pEXP1-DEST

价格:1800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrigen
载体名称: pEXP1-DEST
质粒类型: Gateway载体;无细胞表达系统载体;In vitro
高拷贝/低拷贝: 高拷贝
启动子: T7
克隆方法: Gateway
载体大小: 4622bp
5' 测序引物及序列: T7 Forward:TAATACGACTCACTATAGGG
3' 测序引物及序列: --
载体标签: 6X His ; Xpress (Nterm)
载体抗性: 氨苄青霉素
筛选标记:
备注: --
产品目录号: V960-01
稳定性: --
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

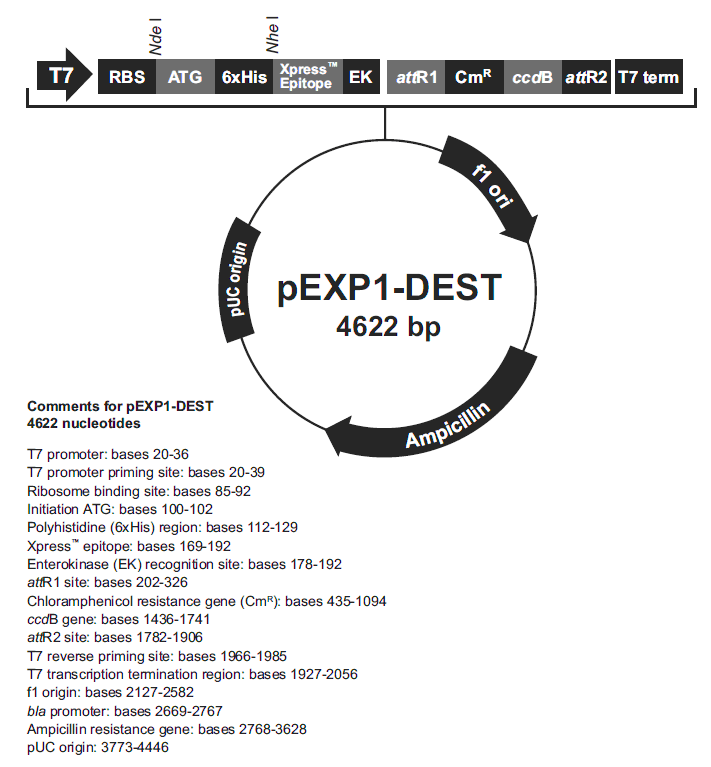

pEXP1-DEST载体图谱

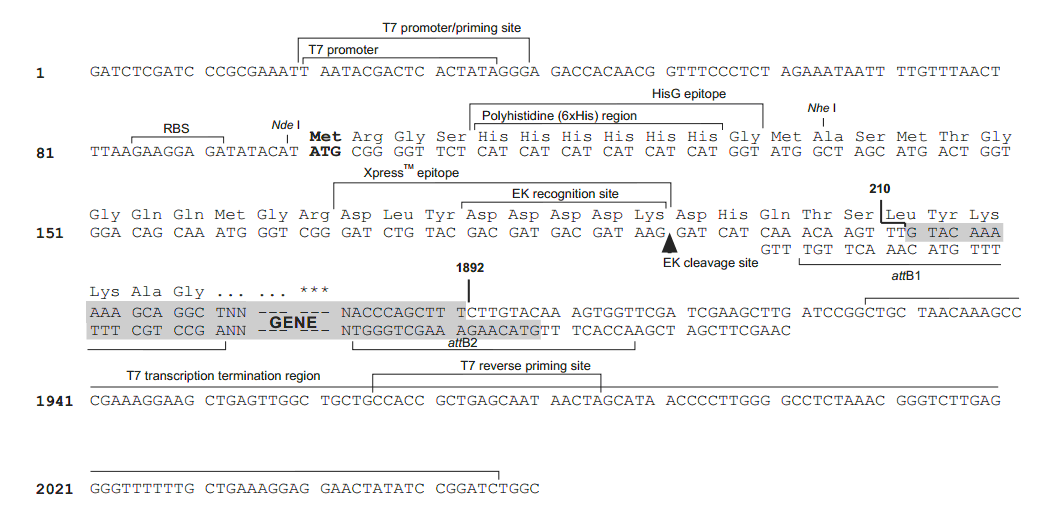

pEXP1-DEST多克隆位点

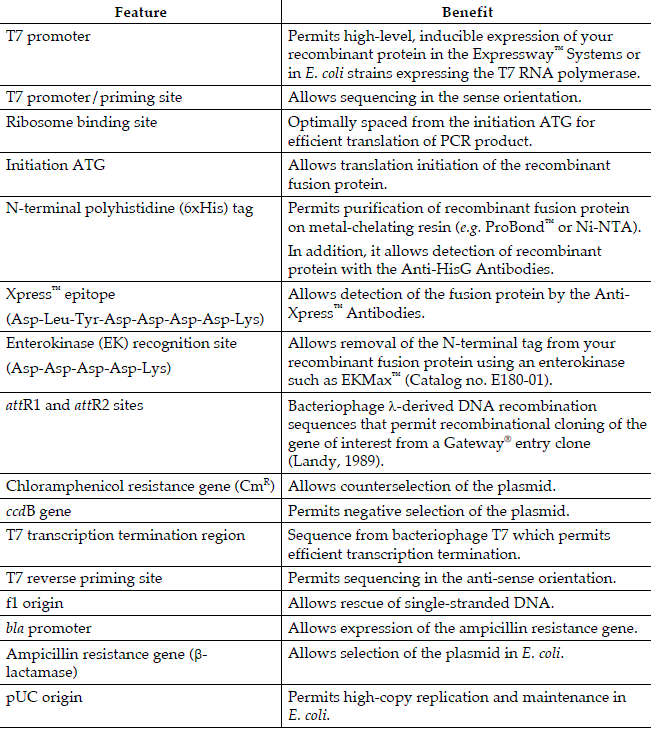

pEXP1-DEST载体特征

载体简介

To fit all of your expression needs, Invitrogen offers state-of-the-art Gateway destination vectors for expression in E. coli, insect, yeast, or mammalian cells, as well as for production
of native protein or N- or C-terminal fusion proteins. All Gateway destination vectors have attR sites for recombination with any attL-flanked fragment, regardless of whether it is an entry clone or an Ultimate RF Clone. The following table lists the wide range of destination vectors available.

Additional materials required, available separately: Gateway entry clone, Gateway LR Clonase enzyme mix, and reaction buffer.

载体序列

LOCUS       pEXP1-DEST (Expressway in vitro)	4622 bp 	DNA	SYN
DEFINITION  pEXP1-DEST (Expressway in vitro)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4622
                     /organism="pEXP1-DEST (Expressway in vitro)"
                     /mol_type="other DNA"
     promoter        20..38
                     /label="T7_promoter"
     misc_feature    75..91
                     /label="T7_transl_en_RBS"
     misc_feature    132..150
                     /label="Xpress_fwd_primer"
     misc_feature    133..165
                     /label="T7_leader"
     misc_feature    169..192
                     /label="Xpress_EK"
     misc_feature    202..326
                     /label="attR1"
     misc_feature    complement(226..326)
                     /label="attR2"
     promoter        351..374
                     /label="lac_promoter"
     gene            435..1094
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
     CDS             435..1094
                     /label="ORF frame 3"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    1436..1741
                     /label="ccdB"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(1782..1889)
                     /label="attR1"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    1782..1882
                     /label="attR2"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      1927..2055
                     /label="T7_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(1969..1987)
                     /label="T7_Terminal_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     rep_origin      2144..2450
                     /label="f1_origin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     promoter        2698..2726
                     /label="AmpR_promoter"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     gene            2768..3628
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     CDS             2768..3628
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDESDTTMPVAMPTTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKRSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      3783..4402
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDESDTTMPVAMPTTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKRSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GATCTCGATC CCGCGAAATT AATACGACTC ACTATAGGGA GACCACAACG GTTTCCCTCT
   61 AGAAATAATT TTGTTTAACT TTAAGAAGGA GATATACATA TGCGGGGTTC TCATCATCAT
  121 CATCATCATG GTATGGCTAG CATGACTGGT GGACAGCAAA TGGGTCGGGA TCTGTACGAC
  181 GATGACGATA AGGATCATCA AACAAGTTTG TACAAAAAAG CTGAACGAGA AACGTAAAAT
  241 GATATAAATA TCAATATATT AAATTAGATT TTGCATAAAA AACAGACTAC ATAATACTGT
  301 AAAACACAAC ATATCCAGTC ACTATGGCGG CCGCATTAGG CACCCCAGGC TTTACACTTT
  361 ATGCTTCCGG CTCGTATAAT GTGTGGATTT TGAGTTAGGA TCCGGCGAGA TTTTCAGGAG
  421 CTAAGGAAGC TAAAATGGAG AAAAAAATCA CTGGATATAC CACCGTTGAT ATATCCCAAT
  481 GGCATCGTAA AGAACATTTT GAGGCATTTC AGTCAGTTGC TCAATGTACC TATAACCAGA
  541 CCGTTCAGCT GGATATTACG GCCTTTTTAA AGACCGTAAA GAAAAATAAG CACAAGTTTT
  601 ATCCGGCCTT TATTCACATT CTTGCCCGCC TGATGAATGC TCATCCGGAA TTCCGTATGG
  661 CAATGAAAGA CGGTGAGCTG GTGATATGGG ATAGTGTTCA CCCTTGTTAC ACCGTTTTCC
  721 ATGAGCAAAC TGAAACGTTT TCATCGCTCT GGAGTGAATA CCACGACGAT TTCCGGCAGT
  781 TTCTACACAT ATATTCGCAA GATGTGGCGT GTTACGGTGA AAACCTGGCC TATTTCCCTA
  841 AAGGGTTTAT TGAGAATATG TTTTTCGTCT CAGCCAATCC CTGGGTGAGT TTCACCAGTT
  901 TTGATTTAAA CGTGGCCAAT ATGGACAACT TCTTCGCCCC CGTTTTCACC ATGGGCAAAT
  961 ATTATACGCA AGGCGACAAG GTGCTGATGC CGCTGGCGAT TCAGGTTCAT CATGCCGTCT
 1021 GTGATGGCTT CCATGTCGGC AGAATGCTTA ATGAATTACA ACAGTACTGC GATGAGTGGC
 1081 AGGGCGGGGC GTAATCTAGA GGATCCGGCT TACTAAAAGC CAGATAACAG TATGCGTATT
 1141 TGCGCGCTGA TTTTTGCGGT ATAAGAATAT ATACTGATAT GTATACCCGA AGTATGTCAA
 1201 AAAGAGGTGT GCTATGAAGC AGCGTATTAC AGTGACAGTT GACAGCGACA GCTATCAGTT
 1261 GCTCAAGGCA TATATGATGT CAATATCTCC GGTCTGGTAA GCACAACCAT GCAGAATGAA
 1321 GCCCGTCGTC TGCGTGCCGA ACGCTGGAAA GCGGAAAATC AGGAAGGGAT GGCTGAGGTC
 1381 GCCCGGTTTA TTGAAATGAA CGGCTCTTTT GCTGACGAGA ACAGGGACTG GTGAAATGCA
 1441 GTTTAAGGTT TACACCTATA AAAGAGAGAG CCGTTATCGT CTGTTTGTGG ATGTACAGAG
 1501 TGATATTATT GACACGCCCG GGCGACGGAT GGTGATCCCC CTGGCCAGTG CACGTCTGCT
 1561 GTCAGATAAA GTCTCCCGTG AACTTTACCC GGTGGTGCAT ATCGGGGATG AAAGCTGGCG
 1621 CATGATGACC ACCGATATGG CCAGTGTGCC GGTCTCCGTT ATCGGGGAAG AAGTGGCTGA
 1681 TCTCAGCCAC CGCGAAAATG ACATCAAAAA CGCCATTAAC CTGATGTTCT GGGGAATATA
 1741 AATGTCAGGC TCCCTTATAC ACAGCCAGTC TGCAGGTCGA CCATAGTGAC TGGATATGTT
 1801 GTGTTTTACA GTATTATGTA GTCTGTTTTT TATGCAAAAT CTAATTTAAT ATATTGATAT
 1861 TTATATCATT TTACGTTTCT CGTTCAGCTT TCTTGTACAA AGTGGTTCGA TCGAAGCTTG
 1921 ATCCGGCTGC TAACAAAGCC CGAAAGGAAG CTGAGTTGGC TGCTGCCACC GCTGAGCAAT
 1981 AACTAGCATA ACCCCTTGGG GCCTCTAAAC GGGTCTTGAG GGGTTTTTTG CTGAAAGGAG
 2041 GAACTATATC CGGATCTGGC GTAATAGCGA AGAGGCCCGC ACCGATCGCC CTTCCCAACA
 2101 GTTGCGCAGC CTGAATGGCG AATGGGACGC GCCCTGTAGC GGCGCATTAA GCGCGGCGGG
 2161 TGTGGTGGTT ACGCGCAGCG TGACCGCTAC ACTTGCCAGC GCCCTAGCGC CCGCTCCTTT
 2221 CGCTTTCTTC CCTTCCTTTC TCGCCACGTT CGCCGGCTTT CCCCGTCAAG CTCTAAATCG
 2281 GGGGCTCCCT TTAGGGTTCC GATTTAGAGC TTTACGGCAC CTCGACCGCA AAAAACTTGA
 2341 TTTGGGTGAT GGTTCACGTA GTGGGCCATC GCCCTGATAG ACGGTTTTTC GCCCTTTGAC
 2401 GTTGGAGTCC ACGTTCTTTA ATAGTGGACT CTTGTTCCAA ACTGGAACAA CACTCAACCC
 2461 TATCGCGGTC TATTCTTTTG ATTTATAAGG GATTTTGCCG ATTTCGGCCT ATTGGTTAAA
 2521 AAATGAGCTG ATTTAACAAA TATTTAACGC GAATTTTAAC AAAATATTAA CGTTTACAAT
 2581 TTCGCCTGAT GCGGTATTTT CTCCTTACGC ATCTGTGCGG TATTTCACAC CGCATACAGG
 2641 TGGCACTTTT CGGGGAAATG TGCGCGGAAC CCCTATTTGT TTATTTTTCT AAATACATTC
 2701 AAATATGTAT CCGCTCATGA GACAATAACC CTGATAAATG CTTCAATAAT ATTGAAAAAG
 2761 GAAGAGTATG AGTATTCAAC ATTTCCGTGT CGCCCTTATT CCCTTTTTTG CGGCATTTTG
 2821 CCTTCCTGTT TTTGCTCACC CAGAAACGCT GGTGAAAGTA AAAGATGCTG AAGATCAGTT
 2881 GGGTGCACGA GTGGGTTACA TCGAACTGGA TCTCAACAGC GGTAAGATCC TTGAGAGTTT
 2941 TCGCCCCGAA GAACGTTTTC CAATGATGAG CACTTTTAAA GTTCTGCTAT GTGGCGCGGT
 3001 ATTATCCCGT ATTGACGCCG GGCAAGAGCA ACTCGGTCGC CGCATACACT ATTCTCAGAA
 3061 TGACTTGGTT GAGTACTCAC CAGTCACAGA AAAGCATCTT ACGGATGGCA TGACAGTAAG
 3121 AGAATTATGC AGTGCTGCCA TAACCATGAG TGATAACACT GCGGCCAACT TACTTCTGAC
 3181 AACGATCGGA GGACCGAAGG AGCTAACCGC TTTTTTGCAC AACATGGGGG ATCATGTAAC
 3241 TCGCCTTGAT CGTTGGGAAC CGGAGCTGAA TGAAGCCATA CCAAACGACG AGAGTGACAC
 3301 CACGATGCCT GTAGCAATGC CAACAACGTT GCGCAAACTA TTAACTGGCG AACTACTTAC
 3361 TCTAGCTTCC CGGCAACAAT TAATAGACTG GATGGAGGCG GATAAAGTTG CAGGACCACT
 3421 TCTGCGCTCG GCCCTTCCGG CTGGCTGGTT TATTGCTGAT AAATCTGGAG CCGGTGAGCG
 3481 TGGGTCTCGC GGTATCATTG CAGCACTGGG GCCAGATGGT AAGCGCTCCC GTATCGTAGT
 3541 TATCTACACG ACGGGGAGTC AGGCAACTAT GGATGAACGA AATAGACAGA TCGCTGAGAT
 3601 AGGTGCCTCA CTGATTAAGC ATTGGTAACT GTCAGACCAA GTTTACTCAT ATATACTTTA
 3661 GATTGATTTA AAACTTCATT TTTAATTTAA AAGGATCTAG GTGAAGATCC TTTTTGATAA
 3721 TCTCATGACC AAAATCCCTT AACGTGAGTT TTCGTTCCAC TGAGCGTCAG ACCCCGTAGA
 3781 AAAGATCAAA GGATCTTCTT GAGATCCTTT TTTTCTGCGC GTAATCTGCT GCTTGCAAAC
 3841 AAAAAAACCA CCGCTACCAG CGGTGGTTTG TTTGCCGGAT CAAGAGCTAC CAACTCTTTT
 3901 TCCGAAGGTA ACTGGCTTCA GCAGAGCGCA GATACCAAAT ACTGTCCTTC TAGTGTAGCC
 3961 GTAGTTAGGC CACCACTTCA AGAACTCTGT AGCACCGCCT ACATACCTCG CTCTGCTAAT
 4021 CCTGTTACCA GTGGCTGCTG CCAGTGGCGA TAAGTCGTGT CTTACCGGGT TGGACTCAAG
 4081 ACGATAGTTA CCGGATAAGG CGCAGCGGTC GGGCTGAACG GGGGGTTCGT GCACACAGCC
 4141 CAGCTTGGAG CGAACGACCT ACACCGAACT GAGATACCTA CAGCGTGAGC TATGAGAAAG
 4201 CGCCACGCTT CCCGAAGGGA GAAAGGCGGA CAGGTATCCG GTAAGCGGCA GGGTCGGAAC
 4261 AGGAGAGCGC ACGAGGGAGC TTCCAGGGGG AAACGCCTGG TATCTTTATA GTCCTGTCGG
 4321 GTTTCGCCAC CTCTGACTTG AGCGTCGATT TTTGTGATGC TCGTCAGGGG GGCGGAGCCT
 4381 ATGGAAAAAC GCCAGCAACG CGGCCTTTTT ACGGTTCCTG GGCTTTTGCT GGCCTTTTGC
 4441 TCACATGTTC TTTCCTGCGT TATCCCCTGA TTCTGTGGAT AACCGTATTA CCGCCTTTGA
 4501 GTGAGCTGAT ACCGCTCGCC GCAGCCGAAC GACCGAGCGC AGCGAGTCAG TGAGCGAGGA
 4561 AGCGGAAGAG CGCCCAATAC GCAAACCGCC TCTCCCCGCG CGTTGGCCGA TTCATTAATG
 4621 CA
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
