pEXP3-DEST

价格:1800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrigen
载体名称: pEXP3-DEST
质粒类型: Gateway载体;无细胞表达载体
高拷贝/低拷贝: 高拷贝
启动子: T7
克隆方法: Gateway
载体大小: 4607bp
5' 测序引物及序列: T7 Forward:TAATACGACTCACTATAGGG
3' 测序引物及序列: --
载体标签: Lumio Tag;His Tag
载体抗性: 氨苄青霉素
真核筛选标记:
备注: --
产品目录号: V960-03
稳定性: --
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

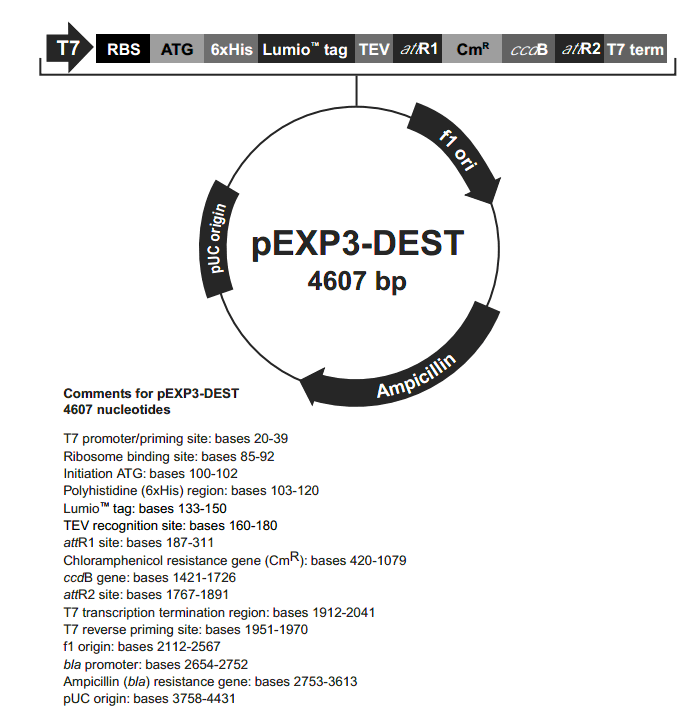

pEXP3-DEST载体图谱

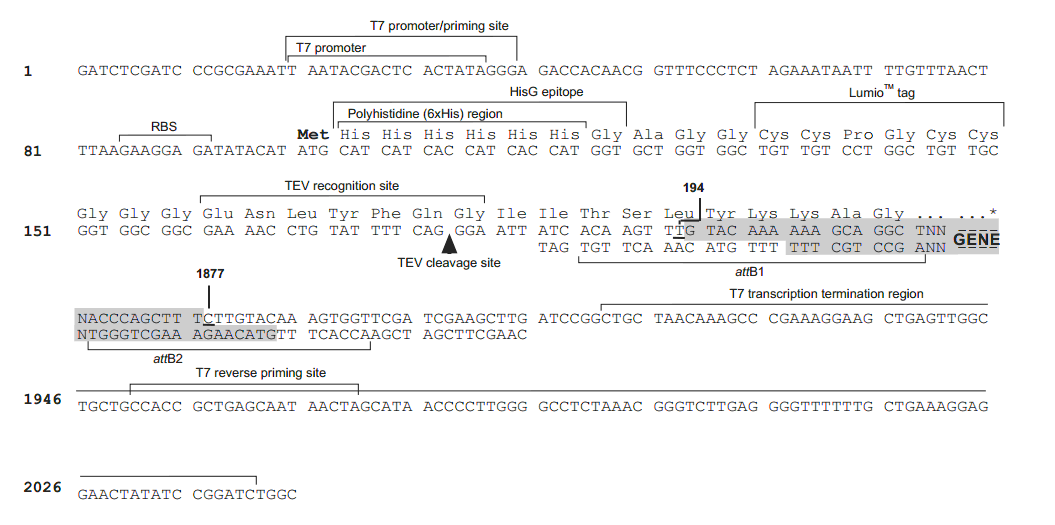

pEXP3-DEST多克隆位点

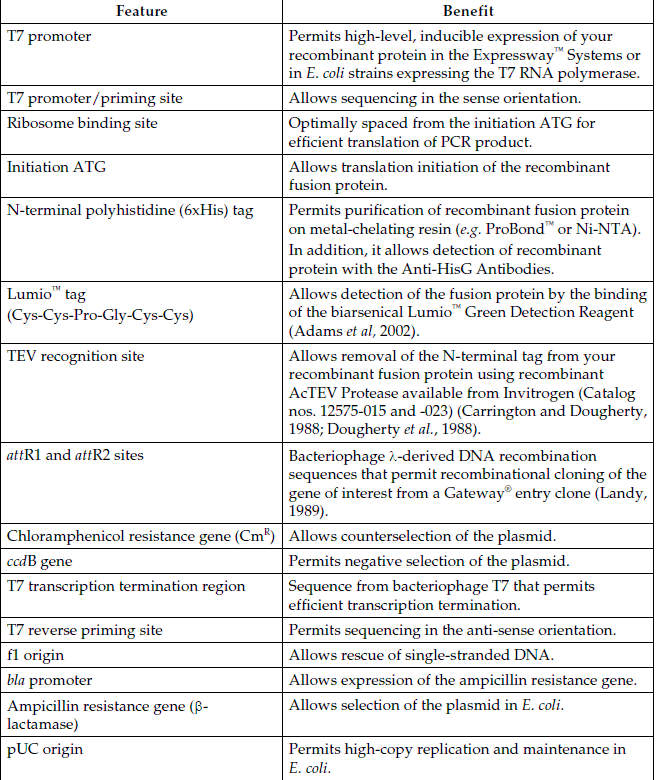

pEXP3-DEST载体特征

载体简介

pEXP3-DEST载体主要特点及功能

The Expressway Lumio Expression and Detection System takes advantage of the Lumio recognition sequence, a small, six amino acid sequence (Cys-Cys-Pro-Gly-Cys-Cys). The Lumio detection reagent binds the recognition sequence with high specificity and affinity, resulting in a bright fluorescent signal for real-time protein production analysis and immediate in-gel protein detection. In addition, Expressway’s specialized E. coli lysate, derived from a slyD mutant, eliminates nonspecific binding of the Lumio Green Detection Reagent to the endogenous SlyD protein and provides optimal background for detection of recombinant proteins (Figure 1). The Lumio Green Detection Kit is included in the system for real-time detection of protein synthesis as well as easy in-gel protein detection. The Lumio vectors (Figures 2 and 3) also feature:

 attR sites for efficient recombination with any attL-flanked Gateway entry vector
 N-terminal Lumio tag (pEXP3-DEST vector) with TEV cleavage site for efficient removal of the Lumio sequence following purification
 C-terminal Lumio tag (pEXP4-DEST vector) for easy, and immediate in-gel detection
 T7 promoter, ribosome binding site, and T7 terminator optimally spaced for cell-free protein expression

Lumio 检测技术

Expressway Tag-On-Demand Cell-Free E. coliExpression System with Lumio Technology enables convenient, in vitro expression of tagged or untagged protein from a single vector, real-time detection of protein synthesis, and easy in-gel protein detection. With this system, you can:

 Quickly screen for expression levels of full-length protein
 Save time and effort by cloning only once to express tagged or native protein
 Express a C-terminally tagged protein from an Ultimate ORF Clone in an in vitro system

The Expressway Tag-On-Demand System includes a specialized E. colilysate derived from a slyD mutant for cell-free synthesis. This lysate eliminates non-specific binding of the Lumio Green Detection Reagent to the endogenous SlyD protein, providing an optimal background for recombinant protein detection.

How it works
Simply clone your gene of interest containing a TAG (amber) stop codon into the provided pEXP4-DEST (Figure 1). The pEXP4-DEST vector features attR sites for efficient Gateway recombination, C-terminal Lumio and 6xHis tags for simplified identification and purification, and components for cell-free protein synthesis. In the presence of the Expressway Tag-On-Demand Suppressor tRNA, the TAG codon is not recognized and translation continues through the Lumio and 6xHis tags. In the absence of the Suppressor tRNA, the TAG stop codon is recognized and native protein is produced (Figure 2). From the same vector, you can rapidly determine the expression level of the C-terminal-tagged, full-length protein, and then express the native protein free from any adverse affects the tag may have on its structure, activity, or molecular interactions.

载体序列

GATCTCGATCCCGCGAAATTAATACGACTCACTATAGGGAGACCACAACGGTTTCCCTCTAGAAA
TAATTTTGTTTAACTTTAAGAAGGAGATATACATATGCATCATCACCATCACCATGGTGCTGGTG
GCTGTTGTCCTGGCTGTTGCGGTGGCGGCGAAAACCTGTATTTTCAGGGAATTATCACAAGTTTG
TACAAAAAAGCTGAACGAGAAACGTAAAATGATATAAATATCAATATATTAAATTAGATTTTGCA
TAAAAAACAGACTACATAATACTGTAAAACACAACATATCCAGTCACTATGGCGGCCGCATTAGG
CACCCCAGGCTTTACACTTTATGCTTCCGGCTCGTATAATGTGTGGATTTTGAGTTAGGATCCGG
CGAGATTTTCAGGAGCTAAGGAAGCTAAAATGGAGAAAAAAATCACTGGATATACCACCGTTGAT
ATATCCCAATGGCATCGTAAAGAACATTTTGAGGCATTTCAGTCAGTTGCTCAATGTACCTATAA
CCAGACCGTTCAGCTGGATATTACGGCCTTTTTAAAGACCGTAAAGAAAAATAAGCACAAGTTTT
ATCCGGCCTTTATTCACATTCTTGCCCGCCTGATGAATGCTCATCCGGAATTCCGTATGGCAATG
AAAGACGGTGAGCTGGTGATATGGGATAGTGTTCACCCTTGTTACACCGTTTTCCATGAGCAAAC
TGAAACGTTTTCATCGCTCTGGAGTGAATACCACGACGATTTCCGGCAGTTTCTACACATATATT
CGCAAGATGTGGCGTGTTACGGTGAAAACCTGGCCTATTTCCCTAAAGGGTTTATTGAGAATATG
TTTTTCGTCTCAGCCAATCCCTGGGTGAGTTTCACCAGTTTTGATTTAAACGTGGCCAATATGGA
CAACTTCTTCGCCCCCGTTTTCACCATGGGCAAATATTATACGCAAGGCGACAAGGTGCTGATGC
CGCTGGCGATTCAGGTTCATCATGCCGTCTGTGATGGCTTCCATGTCGGCAGAATGCTTAATGAA
TTACAACAGTACTGCGATGAGTGGCAGGGCGGGGCGTAATCTAGAGGATCCGGCTTACTAAAAGC
CAGATAACAGTATGCGTATTTGCGCGCTGATTTTTGCGGTATAAGAATATATACTGATATGTATA
CCCGAAGTATGTCAAAAAGAGGTGTGCTATGAAGCAGCGTATTACAGTGACAGTTGACAGCGACA
GCTATCAGTTGCTCAAGGCATATATGATGTCAATATCTCCGGTCTGGTAAGCACAACCATGCAGA
ATGAAGCCCGTCGTCTGCGTGCCGAACGCTGGAAAGCGGAAAATCAGGAAGGGATGGCTGAGGTC
GCCCGGTTTATTGAAATGAACGGCTCTTTTGCTGACGAGAACAGGGACTGGTGAAATGCAGTTTA
AGGTTTACACCTATAAAAGAGAGAGCCGTTATCGTCTGTTTGTGGATGTACAGAGTGATATTATT
GACACGCCCGGGCGACGGATGGTGATCCCCCTGGCCAGTGCACGTCTGCTGTCAGATAAAGTCTC
CCGTGAACTTTACCCGGTGGTGCATATCGGGGATGAAAGCTGGCGCATGATGACCACCGATATGG
CCAGTGTGCCGGTCTCCGTTATCGGGGAAGAAGTGGCTGATCTCAGCCACCGCGAAAATGACATC
AAAAACGCCATTAACCTGATGTTCTGGGGAATATAAATGTCAGGCTCCCTTATACACAGCCAGTC
TGCAGGTCGACCATAGTGACTGGATATGTTGTGTTTTACAGTATTATGTAGTCTGTTTTTTATGC
AAAATCTAATTTAATATATTGATATTTATATCATTTTACGTTTCTCGTTCAGCTTTCTTGTACAA
AGTGGTTCGATCGAAGCTTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTG
CCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCCTCTAAACGGGTCTTGAGGGGTTTTTTG
CTGAAAGGAGGAACTATATCCGGATCTGGCGTAATAGCGAAGAGGCCCGCACCGATCGCCCTTCC
CAACAGTTGCGCAGCCTGAATGGCGAATGGGACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGG
TGTGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCCTAGCGCCCGCTCCTTTCGCTT
TCTTCCCTTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCT
TTAGGGTTCCGATTTAGAGCTTTACGGCACCTCGACCGCAAAAAACTTGATTTGGGTGATGGTTC
ACGTAGTGGGCCATCGCCCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTA
ATAGTGGACTCTTGTTCCAAACTGGAACAACACTCAACCCTATCGCGGTCTATTCTTTTGATTTA
TAAGGGATTTTGCCGATTTCGGCCTATTGGTTAAAAAATGAGCTGATTTAACAAATATTTAACGC
GAATTTTAACAAAATATTAACGTTTACAATTTCGCCTGATGCGGTATTTTCTCCTTACGCATCTG
TGCGGTATTTCACACCGCATACAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGT
TTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCA
ATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTG
CGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGAT
CAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTT
TCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTAT
CCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTT
GAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGC
TGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGG
AGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAG
CTGAATGAAGCCATACCAAACGACGAGAGTGACACCACGATGCCTGTAGCAATGCCAACAACGTT
GCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGG
AGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGAT
AAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCG
CTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGA
TCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAACTGTCAGACCAAGTTTACTCATATATA
CTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAA
TCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGA
TCAAAGGATCTTCTTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCA
CCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGG
CTTCAGCAGAGCGCAGATACCAAATACTGTCCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCA
AGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGT
GGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTC
GGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGAT
ACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCG
GTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCT
TTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGG
GGCGGAGCCTATGGAAAAACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGGCTTTTGCTGGCCT
TTTGCTCACATGTTCTTTCCTGCGTTATCCCCTGATTCTGTGGATAACCGTATTACCGCCTTTGA
GTGAGCTGATACCGCTCGCCGCAGCCGAACGACCGAGCGCAGCGAGTCAGTGAGCGAGGAAGCGG
AAGAGCGCCCAATACGCAAACCGCCTCTCCCCGCGCGTTGGCCGATTCATTAATGCA

载体质粒图谱pdf版和相关资料下载

载体应用举例
