质粒名称: | AIO-mCherry |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 74120 |
存储实验室: | Steve Jackson |
载体骨架基本信息 |
|
载体名称: | All-in-One |
载体抗性: | 氨苄霉素 |
空载体大小: | 9728 bp |
载体类型: | 哺乳细胞表达,CRISPR |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
克隆方法: | 限制性内切酶 |
文献引用方法 |
|
材料和方法部分: | AIO-mCherry was a gift from Steve Jackson (爱迪基因 plasmid # 74120) |
参考文献部分: | CRISPR-Cas9(D10A) nickase-based genotypic and phenotypic screening to enhance genome editing. Chiang TW, le Sage C, Larrieu D, Demir M, Jackson SP. Sci Rep. 2016 Apr 15;6:24356. doi: 10.1038/srep24356. 10.1038/srep24356 PubMed 27079678 |
买家导航
载体基本信息

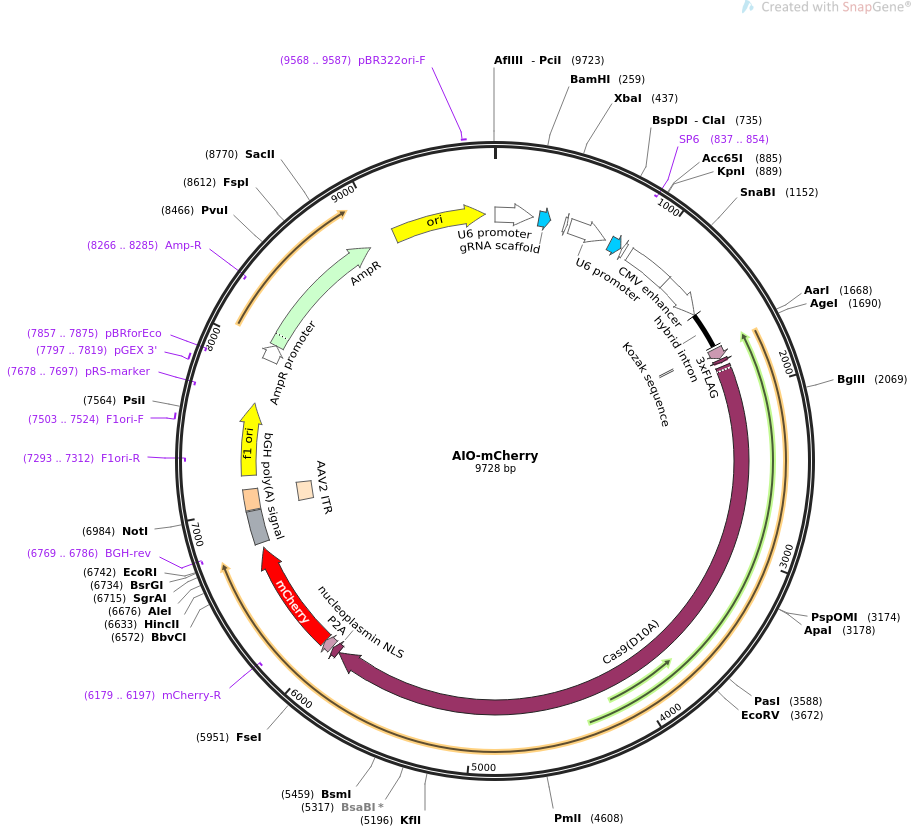

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS AIO-mCherry 9728 bp ds-DNA circular SYN 10-JAN-2018
DEFINITION All-in-One plasmid encoding dual U6 promoter-driven sgRNAs and
mCherry-coupled Cas9-D10A nickase to enhance efficient and accurate
genome editing.
ACCESSION .
VERSION .
KEYWORDS AIO-mCherry
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 9728)
AUTHORS Chiang TW, le Sage C, Larrieu D, Demir M, Jackson SP
TITLE CRISPR-Cas9(D10A) nickase-based genotypic and phenotypic screening
to enhance genome editing.
JOURNAL Sci Rep. 2016 Apr 15;6:24356. doi: 10.1038/srep24356.
PUBMED 27079678
COMMENT This file is created by Vector NTI
http://www.biofeng.com/
COMMENT ORIGDB|GenBank
COMMENT VNTAUTHORNAME|biofeng.com|
COMMENT VNTNAME|AIO-mCherry|
FEATURES Location/Qualifiers
source 1..9728
/organism="synthetic DNA construct"
/mol_type="other DNA"
promoter 1..241
/label=U6 promoter
/note="RNA polymerase III promoter for human U6 snRNA"
misc_RNA 277..352
/label=gRNA scaffold
/note="guide RNA scaffold for the Streptococcus pyogenes
CRISPR/Cas9 system"
promoter 442..459
/label=T3 promoter
/note="promoter for bacteriophage T3 RNA polymerase"
promoter 477..717
/label=U6 promoter
/note="RNA polymerase III promoter for human U6 snRNA"
misc_RNA 752..827
/label=gRNA scaffold
/note="guide RNA scaffold for the Streptococcus pyogenes
CRISPR/Cas9 system"
promoter complement(836..854)
/label=SP6 promoter
/note="promoter for bacteriophage SP6 RNA polymerase"
primer_bind complement(837..854)
/label=SP6
/note="SP6 promoter, forward primer"
enhancer 891..1176
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer;
contains an 18-bp deletion relative to the standard CMV
enhancer"
promoter 1178..1455
/label=chicken beta-actin promoter
intron 1456..1684
/label=hybrid intron
/note="hybrid between chicken beta-actin (CBA) and minute
virus of mice (MMV) introns (Gray et al., 2011)"
regulatory 1696..1705
/regulatory_class="other"
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
CDS 1705..1770
/codon_start=1
/product="three tandem FLAG(R) epitope tags, followed by an
enterokinase cleavage site"
/label=3xFLAG
/translation="DYKDHDGDYKDHDIDYKDDDDK"
CDS 1777..1797
/codon_start=1
/product="nuclear localization signal of SV40 (simian virus
40) large T antigen"
/label=SV40 NLS
/translation="PKKKRKV"
CDS 1822..5922
/codon_start=1
/product="nickase mutant of the Cas9 endonuclease from the
Streptococcus pyogenes Type II CRISPR/Cas system"
/label=Cas9(D10A)
/note="generates RNA-guided single strand nicks in DNA due
to the D10A mutation in the RuvC catalytic domain"
/translation="DKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS
EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
ATLIHQSITGLYETRIDLSQLGGD"
CDS 5923..5970
/codon_start=1
/product="bipartite nuclear localization signal from
nucleoplasmin"
/label=nucleoplasmin NLS
/translation="KRPAATKKAGQAKKKK"
CDS 5980..6036
/codon_start=1
/product="2A peptide from porcine teschovirus-1
polyprotein"
/label=P2A
/note="Eukaryotic ribosomes fail to insert a peptide bond
between the Gly and Pro residues, yielding separate
polypeptides."
/translation="ATNFSLLKQAGDVEENPGP"
CDS 6037..6741
/codon_start=1
/product="monomeric derivative of DsRed fluorescent protein
(Shaner et al., 2004)"
/label=mCherry
/note="mammalian codon-optimized"
/translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
GRHSTGGMDELYK"
primer_bind complement(6179..6197)
/label=mCherry-R
/note="mCherry, reverse primer"
primer_bind complement(6769..6786)
/label=BGH-rev
/note="Bovine growth hormone terminator, reverse primer.
Also called BGH reverse"
polyA_signal 6775..6982
/label=bGH poly(A) signal
/note="bovine growth hormone polyadenylation signal"
repeat_region 6991..7131
/label=AAV2 ITR
/note="inverted terminal repeat of adeno-associated virus
serotype 2"
repeat_region 6991..7120
/label=AAV2 ITR
rep_origin 7206..7661
/direction=RIGHT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
primer_bind complement(7293..7312)
/label=F1ori-R
/note="F1 origin, reverse primer"
primer_bind 7503..7524
/label=F1ori-F
/note="F1 origin, forward primer"
primer_bind complement(7678..7697)
/label=pRS-marker
/note="pRS vectors, use to sequence yeast selectable
marker"
primer_bind 7797..7819
/label=pGEX 3'
/note="pGEX vectors, reverse primer"
primer_bind complement(7857..7875)
/label=pBRforEco
/note="pBR322 vectors, upsteam of EcoRI site, forward
primer"
promoter 7943..8047
/gene="bla"
/label=AmpR promoter
CDS 8048..8908
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
primer_bind complement(8266..8285)
/label=Amp-R
/note="Ampicillin resistance gene, reverse primer"
rep_origin 9079..9667
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
primer_bind 9568..9587
/label=pBR322ori-F
/note="pBR322 origin, forward primer"
ORIGIN
1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
61 ataattggaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
241 cgaaacaccg gggtcttcgg atccatgcga agacctgttt tagagctaga aatagcaagt
301 taaaataagg ctagtccgtt atcaacttga aaaagtggca ccgagtcggt gcttttttgt
361 tttagagcta gaaatagcaa gttaaaataa ggctagtccg tttttagcgc gtgcgccaat
421 tctgcagaca aatggctcta gattaaccct cactaaaggg aaaggtcggg caggaagagg
481 gcctatttcc catgattcct tcatatttgc atatacgata caaggctgtt agagagataa
541 ttagaattaa tttgactgta aacacaaaga tattagtaca aaatacgtga cgtagaaagt
601 aataatttct tgggtagttt gcagttttaa aattatgttt taaaatggac tatcatatgc
661 ttaccgtaac ttgaaagtat ttcgatttct tggctttata tatcttgtgg aaaggacgaa
721 acaccgggag accatcgatg agagggtctc agttttagag ctagaaatag caagttaaaa
781 taaggctagt ccgttatcaa cttgaaaaag tggcaccgag tcggtgcttt ttttttctat
841 agtgtcacct aaattgcagc tctggcccgt gtctcaaaat ctctggtacc cgttacataa
901 cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata
961 gtaacgccaa tagggacttt ccattgacgt caatgggtgg agtatttacg gtaaactgcc
1021 cacttggcag tacatcaagt gtatcatatg ccaagtacgc cccctattga cgtcaatgac
1081 ggtaaatggc ccgcctggca ttgtgcccag tacatgacct tatgggactt tcctacttgg
1141 cagtacatct acgtattagt catcgctatt accatggtcg aggtgagccc cacgttctgc
1201 ttcactctcc ccatctcccc cccctcccca cccccaattt tgtatttatt tattttttaa
1261 ttattttgtg cagcgatggg ggcggggggg gggggggggc gcgcgccagg cggggcgggg
1321 cggggcgagg ggcggggcgg ggcgaggcgg agaggtgcgg cggcagccaa tcagagcggc
1381 gcgctccgaa agtttccttt tatggcgagg cggcggcggc ggcggcccta taaaaagcga
1441 agcgcgcggc gggcgggagt cgctgcgacg ctgccttcgc cccgtgcccc gctccgccgc
1501 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
1561 ggacggccct tctcctccgg gctgtaatta gctgagcaag aggtaagggt ttaagggatg
1621 gttggttggt ggggtattaa tgtttaatta cctggagcac ctgcctgaaa tcactttttt
1681 tcaggttgga ccggtgccac catggactat aaggaccacg acggagacta caaggatcat
1741 gatattgatt acaaagacga tgacgataag atggccccaa agaagaagcg gaaggtcggt
1801 atccacggag tcccagcagc cgacaagaag tacagcatcg gcctggccat cggcaccaac
1861 tctgtgggct gggccgtgat caccgacgag tacaaggtgc ccagcaagaa attcaaggtg
1921 ctgggcaaca ccgaccggca cagcatcaag aagaacctga tcggagccct gctgttcgac
1981 agcggcgaaa cagccgaggc cacccggctg aagagaaccg ccagaagaag atacaccaga
2041 cggaagaacc ggatctgcta tctgcaagag atcttcagca acgagatggc caaggtggac
2101 gacagcttct tccacagact ggaagagtcc ttcctggtgg aagaggataa gaagcacgag
2161 cggcacccca tcttcggcaa catcgtggac gaggtggcct accacgagaa gtaccccacc
2221 atctaccacc tgagaaagaa actggtggac agcaccgaca aggccgacct gcggctgatc
2281 tatctggccc tggcccacat gatcaagttc cggggccact tcctgatcga gggcgacctg
2341 aaccccgaca acagcgacgt ggacaagctg ttcatccagc tggtgcagac ctacaaccag
2401 ctgttcgagg aaaaccccat caacgccagc ggcgtggacg ccaaggccat cctgtctgcc
2461 agactgagca agagcagacg gctggaaaat ctgatcgccc agctgcccgg cgagaagaag
2521 aatggcctgt tcggcaacct gattgccctg agcctgggcc tgacccccaa cttcaagagc
2581 aacttcgacc tggccgagga tgccaaactg cagctgagca aggacaccta cgacgacgac
2641 ctggacaacc tgctggccca gatcggcgac cagtacgccg acctgtttct ggccgccaag
2701 aacctgtccg acgccatcct gctgagcgac atcctgagag tgaacaccga gatcaccaag
2761 gcccccctga gcgcctctat gatcaagaga tacgacgagc accaccagga cctgaccctg
2821 ctgaaagctc tcgtgcggca gcagctgcct gagaagtaca aagagatttt cttcgaccag
2881 agcaagaacg gctacgccgg ctacattgac ggcggagcca gccaggaaga gttctacaag
2941 ttcatcaagc ccatcctgga aaagatggac ggcaccgagg aactgctcgt gaagctgaac
3001 agagaggacc tgctgcggaa gcagcggacc ttcgacaacg gcagcatccc ccaccagatc
3061 cacctgggag agctgcacgc cattctgcgg cggcaggaag atttttaccc attcctgaag
3121 gacaaccggg aaaagatcga gaagatcctg accttccgca tcccctacta cgtgggccct
3181 ctggccaggg gaaacagcag attcgcctgg atgaccagaa agagcgagga aaccatcacc
3241 ccctggaact tcgaggaagt ggtggacaag ggcgcttccg cccagagctt catcgagcgg
3301 atgaccaact tcgataagaa cctgcccaac gagaaggtgc tgcccaagca cagcctgctg
3361 tacgagtact tcaccgtgta taacgagctg accaaagtga aatacgtgac cgagggaatg
3421 agaaagcccg ccttcctgag cggcgagcag aaaaaggcca tcgtggacct gctgttcaag
3481 accaaccgga aagtgaccgt gaagcagctg aaagaggact acttcaagaa aatcgagtgc
3541 ttcgactccg tggaaatctc cggcgtggaa gatcggttca acgcctccct gggcacatac
3601 cacgatctgc tgaaaattat caaggacaag gacttcctgg acaatgagga aaacgaggac
3661 attctggaag atatcgtgct gaccctgaca ctgtttgagg acagagagat gatcgaggaa
3721 cggctgaaaa cctatgccca cctgttcgac gacaaagtga tgaagcagct gaagcggcgg
3781 agatacaccg gctggggcag gctgagccgg aagctgatca acggcatccg ggacaagcag
3841 tccggcaaga caatcctgga tttcctgaag tccgacggct tcgccaacag aaacttcatg
3901 cagctgatcc acgacgacag cctgaccttt aaagaggaca tccagaaagc ccaggtgtcc
3961 ggccagggcg atagcctgca cgagcacatt gccaatctgg ccggcagccc cgccattaag
4021 aagggcatcc tgcagacagt gaaggtggtg gacgagctcg tgaaagtgat gggccggcac
4081 aagcccgaga acatcgtgat cgaaatggcc agagagaacc agaccaccca gaagggacag
4141 aagaacagcc gcgagagaat gaagcggatc gaagagggca tcaaagagct gggcagccag
4201 atcctgaaag aacaccccgt ggaaaacacc cagctgcaga acgagaagct gtacctgtac
4261 tacctgcaga atgggcggga tatgtacgtg gaccaggaac tggacatcaa ccggctgtcc
4321 gactacgatg tggaccatat cgtgcctcag agctttctga aggacgactc catcgacaac
4381 aaggtgctga ccagaagcga caagaaccgg ggcaagagcg acaacgtgcc ctccgaagag
4441 gtcgtgaaga agatgaagaa ctactggcgg cagctgctga acgccaagct gattacccag
4501 agaaagttcg acaatctgac caaggccgag agaggcggcc tgagcgaact ggataaggcc
4561 ggcttcatca agagacagct ggtggaaacc cggcagatca caaagcacgt ggcacagatc
4621 ctggactccc ggatgaacac taagtacgac gagaatgaca agctgatccg ggaagtgaaa
4681 gtgatcaccc tgaagtccaa gctggtgtcc gatttccgga aggatttcca gttttacaaa
4741 gtgcgcgaga tcaacaacta ccaccacgcc cacgacgcct acctgaacgc cgtcgtggga
4801 accgccctga tcaaaaagta ccctaagctg gaaagcgagt tcgtgtacgg cgactacaag
4861 gtgtacgacg tgcggaagat gatcgccaag agcgagcagg aaatcggcaa ggctaccgcc
4921 aagtacttct tctacagcaa catcatgaac tttttcaaga ccgagattac cctggccaac
4981 ggcgagatcc ggaagcggcc tctgatcgag acaaacggcg aaaccgggga gatcgtgtgg
5041 gataagggcc gggattttgc caccgtgcgg aaagtgctga gcatgcccca agtgaatatc
5101 gtgaaaaaga ccgaggtgca gacaggcggc ttcagcaaag agtctatcct gcccaagagg
5161 aacagcgata agctgatcgc cagaaagaag gactgggacc ctaagaagta cggcggcttc
5221 gacagcccca ccgtggccta ttctgtgctg gtggtggcca aagtggaaaa gggcaagtcc
5281 aagaaactga agagtgtgaa agagctgctg gggatcacca tcatggaaag aagcagcttc
5341 gagaagaatc ccatcgactt tctggaagcc aagggctaca aagaagtgaa aaaggacctg
5401 atcatcaagc tgcctaagta ctccctgttc gagctggaaa acggccggaa gagaatgctg
5461 gcctctgccg gcgaactgca gaagggaaac gaactggccc tgccctccaa atatgtgaac
5521 ttcctgtacc tggccagcca ctatgagaag ctgaagggct cccccgagga taatgagcag
5581 aaacagctgt ttgtggaaca gcacaagcac tacctggacg agatcatcga gcagatcagc
5641 gagttctcca agagagtgat cctggccgac gctaatctgg acaaagtgct gtccgcctac
5701 aacaagcacc gggataagcc catcagagag caggccgaga atatcatcca cctgtttacc
5761 ctgaccaatc tgggagcccc tgccgccttc aagtactttg acaccaccat cgaccggaag
5821 aggtacacca gcaccaaaga ggtgctggac gccaccctga tccaccagag catcaccggc
5881 ctgtacgaga cacggatcga cctgtctcag ctgggaggcg acaaaaggcc ggcggccacg
5941 aaaaaggccg gccaggcaaa aaagaaaaag ggctccggag ccacgaactt ctctctgtta
6001 aagcaagcag gagacgtgga agaaaacccc ggtcctgtga gcaagggcga ggaggataac
6061 atggccatca tcaaggagtt catgcgcttc aaggtgcaca tggagggctc cgtgaacggc
6121 cacgagttcg agatcgaggg cgagggcgag ggccgcccct acgagggcac ccagaccgcc
6181 aagctgaagg tgaccaaggg tggccccctg cccttcgcct gggacatcct gtcccctcag
6241 ttcatgtacg gctccaaggc ctacgtgaag caccccgccg acatccccga ctacttgaag
6301 ctgtccttcc ccgagggctt caagtgggag cgcgtgatga acttcgagga cggcggcgtg
6361 gtgaccgtga cccaggactc ctccctgcag gacggcgagt tcatctacaa ggtgaagctg
6421 cgcggcacca acttcccctc cgacggcccc gtaatgcaga aaaagaccat gggctgggag
6481 gcctcctccg agcggatgta ccccgaggac ggcgccctga agggcgagat caagcagagg
6541 ctgaagctga aggacggcgg ccactacgac gctgaggtca agaccaccta caaggccaag
6601 aagcccgtgc agctgcccgg cgcctacaac gtcaacatca agttggacat cacctcccac
6661 aacgaggact acaccatcgt ggaacagtac gaacgcgccg agggccgcca ctccaccggc
6721 ggcatggacg agctgtacaa ggaattctaa ctagagctcg ctgatcagcc tcgactgtgc
6781 cttctagttg ccagccatct gttgtttgcc cctcccccgt gccttccttg accctggaag
6841 gtgccactcc cactgtcctt tcctaataaa atgaggaaat tgcatcgcat tgtctgagta
6901 ggtgtcattc tattctgggg ggtggggtgg ggcaggacag caagggggag gattgggaag
6961 agaatagcag gcatgctggg gagcggccgc aggaacccct agtgatggag ttggccactc
7021 cctctctgcg cgctcgctcg ctcactgagg ccgggcgacc aaaggtcgcc cgacgcccgg
7081 gctttgcccg ggcggcctca gtgagcgagc gagcgcgcag ctgcctgcag gggcgcctga
7141 tgcggtattt tctccttacg catctgtgcg gtatttcaca ccgcatacgt caaagcaacc
7201 atagtacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt
7261 gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct
7321 cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg
7381 atttagtgct ttacggcacc tcgaccccaa aaaacttgat ttgggtgatg gttcacgtag
7441 tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa
7501 tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcgggct attcttttga
7561 tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa
7621 atttaacgcg aattttaaca aaatattaac gtttacaatt ttatggtgca ctctcagtac
7681 aatctgctct gatgccgcat agttaagcca gccccgacac ccgccaacac ccgctgacgc
7741 gccctgacgg gcttgtctgc tcccggcatc cgcttacaga caagctgtga ccgtctccgg
7801 gagctgcatg tgtcagaggt tttcaccgtc atcaccgaaa cgcgcgagac gaaagggcct
7861 cgtgatacgc ctatttttat aggttaatgt catgataata atggtttctt agacgtcagg
7921 tggcactttt cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc
7981 aaatatgtat ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag
8041 gaagagtatg agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg
8101 ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt
8161 gggtgcacga gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt
8221 tcgccccgaa gaacgttttc caatgatgag cacttttaaa gttctgctat gtggcgcggt
8281 attatcccgt attgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa
8341 tgacttggtt gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag
8401 agaattatgc agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac
8461 aacgatcgga ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac
8521 tcgccttgat cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac
8581 cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac
8641 tctagcttcc cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact
8701 tctgcgctcg gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg
8761 tggaagccgc ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt
8821 tatctacacg acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat
8881 aggtgcctca ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta
8941 gattgattta aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa
9001 tctcatgacc aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga
9061 aaagatcaaa ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac
9121 aaaaaaacca ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt
9181 tccgaaggta actggcttca gcagagcgca gataccaaat actgtccttc tagtgtagcc
9241 gtagttaggc caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat
9301 cctgttacca gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag
9361 acgatagtta ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc
9421 cagcttggag cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag
9481 cgccacgctt cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac
9541 aggagagcgc acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg
9601 gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct
9661 atggaaaaac gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc
9721 tcacatgt
//
