pRS425

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: ATCC
载体名称: pRS425
质粒类型: 酵母表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: --
载体大小: 6849 bp
5' 测序引物及序列: M13 fwd
3' 测序引物及序列: M13 rev
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: --
宿主细胞(系): --
备注: --
产品目录号: #77106

载体质粒图谱和多克隆位点信息

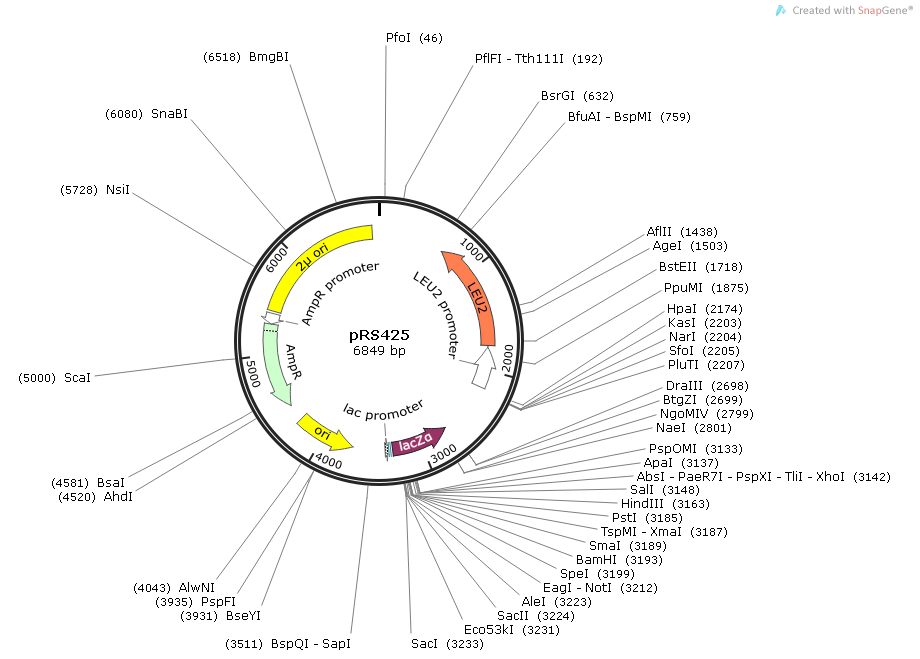

pRS425 载体图谱

载体简介

载体序列

LOCUS       pRS425                6849 bp ds-DNA     circular SYN 29-NOV-2013
DEFINITION  Yeast episomal vector with a LEU2 marker and an MCS derived from
            pBLUESCRIPT II.
ACCESSION   U03452
VERSION     .
KEYWORDS    pRS425
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6849)
  AUTHORS   Christianson TW, Sikorski RS, Dante M, Shero JH, Hieter P.
  TITLE     Multifunctional yeast high-copy-number shuttle vectors.
  JOURNAL   Gene 1992;110:119-22.
  PUBMED    1544568
REFERENCE   2  (bases 1 to 6849)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Saturday, November 30, 2019 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6849
                     /organism="synthetic DNA construct"
                     /lab_host="Saccharomyces cerevisiae"
                     /mol_type="other DNA"
     CDS             complement(663..1757)
                     /codon_start=1
                     /gene="S. cerevisiae LEU2"
                     /product="3-isopropylmalate dehydrogenase, required for
                     leucine biosynthesis"
                     /note="LEU2"
                     /note="yeast auxotrophic marker"
                     /translation="MSAPKKIVVLPGDHVGQEITAEAIKVLKAISDVRSNVKFDFENHL
                     IGGAAIDATGVPLPDEALEASKKVDAVLLGAVAGPKWGTGSVRPEQGLLKIRKELQLYA
                     NLRPCNFASDSLLDLSPIKPQFAKGTDFVVVRELVGGIYFGKRKEDDGDGVAWDSEQYT
                     VPEVQRITRMAAFMALQHEPPLPIWSLDKANLLASSRLWRKTVEETIKNEFPTLKVQHQ
                     LIDSAAMILVKNPTHLNGIIITSNMFGDIISDEASVIPGSLGLLPSASLASLPDKNTAF
                     GLYEPCHGSAPDLPKNKVDPIATILSAAMMLKLSLNLPEEGKAIEDAVKKVLDAGIRTG
                     DLGGSNSTTEVGDAVAEEVKKILA"
     promoter        complement(1770..2174)
                     /gene="S. cerevisiae LEU2"
                     /note="LEU2 promoter"
     rep_origin      complement(2474..2929)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     CDS             complement(2712..3290)
                     /codon_start=1
                     /gene="lacZ fragment"
                     /product="LacZ-alpha fragment of beta-galactosidase"
                     /note="lacZ-alpha"
                     /translation="MTMITPSAQLTLTKGNKSWSSTAVAAALELVDPPGCRNSISSLSI
                     PSTSRGGPVPNSPYSESYYARSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEAR
                     TDRPSQQLRSLNGEWRDAPCSGALSAAGVVVTRSVTATLASALAPAPFAFFPSFLATFA
                     GFPRQALNRGLPLGFRFSALRHLDPKKLD"
     primer_bind     3074..3090
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        3100..3118
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     misc_feature    3127..3234
                     /note="MCS"
                     /note="pBluescript multiple cloning site"
     promoter        complement(3247..3265)
                     /note="T3 promoter"
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(3286..3302)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    3310..3326
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3334..3364)
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     rep_origin      complement(3688..4276)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number colE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4447..5307)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5308..5412)
                     /gene="bla"
                     /note="AmpR promoter"
     rep_origin      5439..6781
                     /note="2u ori"
                     /note="yeast 2u plasmid origin of replication"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accatatcga ctacgtcgta aggccgtttc tgacagagta aaattcttga gggaactttc
      241 accattatgg gaaatgcttc aagaaggtat tgacttaaac tccatcaaat ggtcaggtca
      301 ttgagtgttt tttatttgtt gtattttttt ttttttagag aaaatcctcc aatatcaaat
      361 taggaatcgt agtttcatga ttttctgtta cacctaactt tttgtgtggt gccctcctcc
      421 ttgtcaatat taatgttaaa gtgcaattct ttttccttat cacgttgagc cattagtatc
      481 aatttgctta cctgtattcc tttactatcc tcctttttct ccttcttgat aaatgtatgt
      541 agattgcgta tatagtttcg tctaccctat gaacatattc cattttgtaa tttcgtgtcg
      601 tttctattat gaatttcatt tataaagttt atgtacaaat atcataaaaa aagagaatct
      661 ttttaagcaa ggattttctt aacttcttcg gcgacagcat caccgacttc ggtggtactg
      721 ttggaaccac ctaaatcacc agttctgata cctgcatcca aaaccttttt aactgcatct
      781 tcaatggcct taccttcttc aggcaagttc aatgacaatt tcaacatcat tgcagcagac
      841 aagatagtgg cgatagggtc aaccttattc tttggcaaat ctggagcaga accgtggcat
      901 ggttcgtaca aaccaaatgc ggtgttcttg tctggcaaag aggccaagga cgcagatggc
      961 aacaaaccca aggaacctgg gataacggag gcttcatcgg agatgatatc accaaacatg
     1021 ttgctggtga ttataatacc atttaggtgg gttgggttct taactaggat catggcggca
     1081 gaatcaatca attgatgttg aaccttcaat gtagggaatt cgttcttgat ggtttcctcc
     1141 acagtttttc tccataatct tgaagaggcc aaaagattag ctttatccaa ggaccaaata
     1201 ggcaatggtg gctcatgttg tagggccatg aaagcggcca ttcttgtgat tctttgcact
     1261 tctggaacgg tgtattgttc actatcccaa gcgacaccat caccatcgtc ttcctttctc
     1321 ttaccaaagt aaatacctcc cactaattct ctgacaacaa cgaagtcagt acctttagca
     1381 aattgtggct tgattggaga taagtctaaa agagagtcgg atgcaaagtt acatggtctt
     1441 aagttggcgt acaattgaag ttctttacgg atttttagta aaccttgttc aggtctaaca
     1501 ctaccggtac cccatttagg accagccaca gcacctaaca aaacggcatc aaccttcttg
     1561 gaggcttcca gcgcctcatc tggaagtggg acacctgtag catcgatagc agcaccacca
     1621 attaaatgat tttcgaaatc gaacttgaca ttggaacgaa catcagaaat agctttaaga
     1681 accttaatgg cttcggctgt gatttcttga ccaacgtggt cacctggcaa aacgacgatc
     1741 ttcttagggg cagacatagg ggcagacatt agaatggtat atccttgaaa tatatatata
     1801 tattgctgaa atgtaaaagg taagaaaagt tagaaagtaa gacgattgct aaccacctat
     1861 tggaaaaaac aataggtcct taaataatat tgtcaacttc aagtattgtg atgcaagcat
     1921 ttagtcatga acgcttctct attctatatg aaaagccggt tccggcctct cacctttcct
     1981 ttttctccca atttttcagt tgaaaaaggt atatgcgtca ggcgacctct gaaattaaca
     2041 aaaaatttcc agtcatcgaa tttgattctg tgcgatagcg cccctgtgtg ttctcgttat
     2101 gttgaggaaa aaaataatgg ttgctaagag attcgaactc ttgcatctta cgatacctga
     2161 gtattcccac agttaactgc ggtcaagata tttcttgaat caggcgcctt agaccgctcg
     2221 gccaaacaac caattacttg ttgagaaata gagtataatt atcctataaa tataacgttt
     2281 ttgaacacac atgaacaagg aagtacagga caattgattt tgaagagaat gtggattttg
     2341 atgtaattgt tgggattcca tttttaataa ggcaataata ttaggtatgt ggatatacta
     2401 gaagttctcc tcgaccgtcg atatgcggtg tgaaataccg cacagatgcg taaggagaaa
     2461 ataccgcatc aggaaattgt aaacgttaat attttgttaa aattcgcgtt aaatttttgt
     2521 taaatcagct cattttttaa ccaataggcc gaaatcggca aaatccctta taaatcaaaa
     2581 gaatagaccg agatagggtt gagtgttgtt ccagtttgga acaagagtcc actattaaag
     2641 aacgtggact ccaacgtcaa agggcgaaaa accgtctatc agggcgatgg cccactacgt
     2701 gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc gtaaagcact aaatcggaac
     2761 cctaaaggga gcccccgatt tagagcttga cggggaaagc cggcgaacgt ggcgagaaag
     2821 gaagggaaga aagcgaaagg agcgggcgct agggcgctgg caagtgtagc ggtcacgctg
     2881 cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac agggcgcgtc gcgccattcg
     2941 ccattcaggc tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc gctattacgc
     3001 cagctggcga aagggggatg tgctgcaagg cgattaagtt gggtaacgcc agggttttcc
     3061 cagtcacgac gttgtaaaac gacggccagt gagcgcgcgt aatacgactc actatagggc
     3121 gaattgggta ccgggccccc cctcgaggtc gacggtatcg ataagcttga tatcgaattc
     3181 ctgcagcccg ggggatccac tagttctaga gcggccgcca ccgcggtgga gctccagctt
     3241 ttgttccctt tagtgagggt taattgcgcg cttggcgtaa tcatggtcat agctgtttcc
     3301 tgtgtgaaat tgttatccgc tcacaattcc acacaacata ggagccggaa gcataaagtg
     3361 taaagcctgg ggtgcctaat gagtgaggta actcacatta attgcgttgc gctcactgcc
     3421 cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc aacgcgcggg
     3481 gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc
     3541 ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag gcggtaatac ggttatccac
     3601 agaatcaggg gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa
     3661 ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc cgcccccctg acgagcatca
     3721 caaaaatcga cgctcaagtc agaggtggcg aaacccgaca ggactataaa gataccaggc
     3781 gtttccccct ggaagctccc tcgtgcgctc tcctgttccg accctgccgc ttaccggata
     3841 cctgtccgcc tttctccctt cgggaagcgt ggcgctttct catagctcac gctgtaggta
     3901 tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac cccccgttca
     3961 gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag tccaacccgg taagacacga
     4021 cttatcgcca ctggcagcag ccactggtaa caggattagc agagcgaggt atgtaggcgg
     4081 tgctacagag ttcttgaagt ggtggcctaa ctacggctac actagaagga cagtatttgg
     4141 tatctgcgct ctgctgaagc cagttacctt cggaaaaaga gttggtagct cttgatccgg
     4201 caaacaaacc accgctggta gcggtggttt ttttgtttgc aagcagcaga ttacgcgcag
     4261 aaaaaaagga tctcaagaag atcctttgat cttttctacg gggtctgacg ctcagtggaa
     4321 cgaaaactca cgttaaggga ttttggtcat gagattatca aaaaggatct tcacctagat
     4381 ccttttaaat taaaaatgaa gttttaaatc aatctaaagt atatatgagt aaacttggtc
     4441 tgacagttac caatgcttaa tcagtgaggc acctatctca gcgatctgtc tatttcgttc
     4501 atccatagtt gcctgactcc ccgtcgtgta gataactacg atacgggagg gcttaccatc
     4561 tggccccagt gctgcaatga taccgcgaga cccacgctca ccggctccag atttatcagc
     4621 aataaaccag ccagccggaa gggccgagcg cagaagtggt cctgcaactt tatccgcctc
     4681 catccagtct attaattgtt gccgggaagc tagagtaagt agttcgccag ttaatagttt
     4741 gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca cgctcgtcgt ttggtatggc
     4801 ttcattcagc tccggttccc aacgatcaag gcgagttaca tgatccccca tgttgtgcaa
     4861 aaaagcggtt agctccttcg gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt
     4921 atcactcatg gttatggcag cactgcataa ttctcttact gtcatgccat ccgtaagatg
     4981 cttttctgtg actggtgagt actcaaccaa gtcattctga gaatagtgta tgcggcgacc
     5041 gagttgctct tgcccggcgt caatacggga taataccgcg ccacatagca gaactttaaa
     5101 agtgctcatc attggaaaac gttcttcggg gcgaaaactc tcaaggatct taccgctgtt
     5161 gagatccagt tcgatgtaac ccactcgtgc acccaactga tcttcagcat cttttacttt
     5221 caccagcgtt tctgggtgag caaaaacagg aaggcaaaat gccgcaaaaa agggaataag
     5281 ggcgacacgg aaatgttgaa tactcatact cttccttttt caatattatt gaagcattta
     5341 tcagggttat tgtctcatga gcggatacat atttgaatgt atttagaaaa ataaacaaat
     5401 aggggttccg cgcacatttc cccgaaaagt gccacctgaa cgaagcatct gtgcttcatt
     5461 ttgtagaaca aaaatgcaac gcgagagcgc taatttttca aacaaagaat ctgagctgca
     5521 tttttacaga acagaaatgc aacgcgaaag cgctatttta ccaacgaaga atctgtgctt
     5581 catttttgta aaacaaaaat gcaacgcgag agcgctaatt tttcaaacaa agaatctgag
     5641 ctgcattttt acagaacaga aatgcaacgc gagagcgcta ttttaccaac aaagaatcta
     5701 tacttctttt ttgttctaca aaaatgcatc ccgagagcgc tatttttcta acaaagcatc
     5761 ttagattact ttttttctcc tttgtgcgct ctataatgca gtctcttgat aactttttgc
     5821 actgtaggtc cgttaaggtt agaagaaggc tactttggtg tctattttct cttccataaa
     5881 aaaagcctga ctccacttcc cgcgtttact gattactagc gaagctgcgg gtgcattttt
     5941 tcaagataaa ggcatccccg attatattct ataccgatgt ggattgcgca tactttgtga
     6001 acagaaagtg atagcgttga tgattcttca ttggtcagaa aattatgaac ggtttcttct
     6061 attttgtctc tatatactac gtataggaaa tgtttacatt ttcgtattgt tttcgattca
     6121 ctctatgaat agttcttact acaatttttt tgtctaaaga gtaatactag agataaacat
     6181 aaaaaatgta gaggtcgagt ttagatgcaa gttcaaggag cgaaaggtgg atgggtaggt
     6241 tatataggga tatagcacag agatatatag caaagagata cttttgagca atgtttgtgg
     6301 aagcggtatt cgcaatattt tagtagctcg ttacagtccg gtgcgttttt ggttttttga
     6361 aagtgcgtct tcagagcgct tttggttttc aaaagcgctc tgaagttcct atactttcta
     6421 gagaatagga acttcggaat aggaacttca aagcgtttcc gaaaacgagc gcttccgaaa
     6481 atgcaacgcg agctgcgcac atacagctca ctgttcacgt cgcacctata tctgcgtgtt
     6541 gcctgtatat atatatacat gagaagaacg gcatagtgcg tgtttatgct taaatgcgta
     6601 cttatatgcg tctatttatg taggatgaaa ggtagtctag tacctcctgt gatattatcc
     6661 cattccatgc ggggtatcgt atgcttcctt cagcactacc ctttagctgt tctatatgct
     6721 gccactcctc aattggatta gtctcatcct tcaatgctat catttccttt gatattggat
     6781 catactaaga aaccattatt atcatgacat taacctataa aaataggcgt atcacgaggc
     6841 cctttcgtc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
欢迎您的访问和咨询....
