LeGO-iG

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: LeGO-iG
出品公司: 爱迪基因
目录编号: 27358
存储实验室: Boris Fehse

载体骨架基本信息
载体名称: LeGO
载体抗性: 氨苄霉素
空载体大小: 8159 bp
载体类型: 哺乳细胞表达,慢病毒
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: U6 promoter, SFFV promoter, IRES-eGFP
克隆方法: 限制性内切酶
5' 测序引物 GAGCTCACAACCCCTCACTC

文献引用方法
材料和方法部分: LeGO-iG was a gift from Boris Fehse (Addgene plasmid # 27358)
参考文献部分: A multicolor panel of novel lentiviral "gene ontology" (LeGO) vectors for functional gene analysis. Weber K, Bartsch U, Stocking C, Fehse B. Mol Ther. 2008 Apr . 16(4):698-706. 10.1038/mt.2008.6 PubMed 18362927

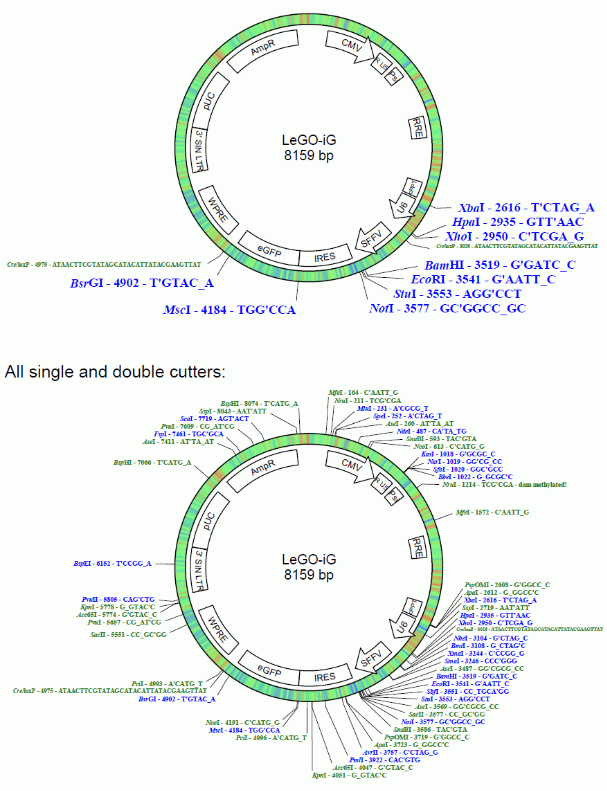

载体图谱质粒图谱和多克隆位点信息

LeGO-iG载体图谱

载体简介

载体序列

LOCUS       LeGO-iG	8159 bp 	DNA	SYN
DEFINITION  LeGO-iG
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..8159
                     /organism="LeGO-iG"
                     /mol_type="other DNA"
     promoter        239..815
                     /label="CMV_immearly_promoter"
     misc_feature    318..605
                     /label="CAG_enhancer"
     misc_feature    772..792
                     /label="CMV_fwd_primer"
     misc_feature    835..1015
                     /label="HIV-1_5_LTR"
     misc_feature    835..1015
                     /label="truncHIV-1_3_LTR"
     misc_feature    1126..1170
                     /label="HIV-1_psi_pack"
     CDS             1564..2451
                     /label="ORF frame 1"
     misc_feature    1686..1919
                     /label="RRE"
     misc_feature    2450..2465
                     /label="cPPT"
     CDS             complement(2870..3349)
                     /label="ORF frame 2"
     misc_feature    2951..2967
                     /label="pBluescriptKS_primer"
     misc_feature    3010..3043
                     /label="loxP"
     misc_feature    3617..4189
                     /label="IRES"
     CDS             complement(4094..4975)
                     /label="ORF frame 2"
     CDS             4181..4912
                     /label="ORF frame 2"
     gene            4196..4909
                     /label="EGFP"
                     /gene="EGFP"
     misc_feature    complement(4238..4259)
                     /label="EGFP_N_primer"
     misc_feature    4376..4405
                     /label="Y66 (EGFP)"
     misc_feature    4846..4867
                     /label="EGFP_C_primer"
     misc_feature    4959..4992
                     /label="loxP"
     misc_feature    5050..5637
                     /label="WPRE"
     CDS             5138..5692
                     /label="ORF frame 2"
     CDS             5151..6191
                     /label="ORF frame 3"
     misc_feature    complement(5640..5656)
                     /label="pBluescriptKS_primer"
     misc_feature    5828..5849
                     /label="U3PPT"
     misc_feature    5828..5843
                     /label="cPPT"
     misc_feature    6165..6345
                     /label="HIV-1_5_LTR"
     misc_feature    6165..6345
                     /label="truncHIV-1_3_LTR"
     gene            complement(7166..8026)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(7166..8026)
                     /label="ORF frame 2"
     promoter        complement(8068..8096)
                     /label="AmpR_promoter"
ORIGIN
    1 GTCGACGGAT CGGGAGATCT CCCGATCCCC TATGGTGCAC TCTCAGTACA ATCTGCTCTG
   61 ATGCCGCATA GTTAAGCCAG TATCTGCTCC CTGCTTGTGT GTTGGAGGTC GCTGAGTAGT
  121 GCGCGAGCAA AATTTAAGCT ACAACAAGGC AAGGCTTGAC CGACAATTGC ATGAAGAATC
  181 TGCTTAGGGT TAGGCGTTTT GCGCTGCTTC GCGATGTACG GGCCAGATAT ACGCGTTGAC
  241 ATTGATTATT GACTAGTTAT TAATAGTAAT CAATTACGGG GTCATTAGTT CATAGCCCAT
  301 ATATGGAGTT CCGCGTTACA TAACTTACGG TAAATGGCCC GCCTGGCTGA CCGCCCAACG
  361 ACCCCCGCCC ATTGACGTCA ATAATGACGT ATGTTCCCAT AGTAACGCCA ATAGGGACTT
  421 TCCATTGACG TCAATGGGTG GAGTATTTAC GGTAAACTGC CCACTTGGCA GTACATCAAG
  481 TGTATCATAT GCCAAGTACG CCCCCTATTG ACGTCAATGA CGGTAAATGG CCCGCCTGGC
  541 ATTATGCCCA GTACATGACC TTATGGGACT TTCCTACTTG GCAGTACATC TACGTATTAG
  601 TCATCGCTAT TACCATGGTG ATGCGGTTTT GGCAGTACAT CAATGGGCGT GGATAGCGGT
  661 TTGACTCACG GGGATTTCCA AGTCTCCACC CCATTGACGT CAATGGGAGT TTGTTTTGGC
  721 ACCAAAATCA ACGGGACTTT CCAAAATGTC GTAACAACTC CGCCCCATTG ACGCAAATGG
  781 GCGGTAGGCG TGTACGGTGG GAGGTCTATA TAAGCAGCGC GTTTTGCCTG TACTGGGTCT
  841 CTCTGGTTAG ACCAGATCTG AGCCTGGGAG CTCTCTGGCT AACTAGGGAA CCCACTGCTT
  901 AAGCCTCAAT AAAGCTTGCC TTGAGTGCTT CAAGTAGTGT GTGCCCGTCT GTTGTGTGAC
  961 TCTGGTAACT AGAGATCCCT CAGACCCTTT TAGTCAGTGT GGAAAATCTC TAGCAGTGGC
 1021 GCCCGAACAG GGACTTGAAA GCGAAAGGGA AACCAGAGGA GCTCTCTCGA CGCAGGACTC
 1081 GGCTTGCTGA AGCGCGCACG GCAAGAGGCG AGGGGCGGCG ACTGGTGAGT ACGCCAAAAA
 1141 TTTTGACTAG CGGAGGCTAG AAGGAGAGAG ATGGGTGCGA GAGCGTCAGT ATTAAGCGGG
 1201 GGAGAATTAG ATCGCGATGG GAAAAAATTC GGTTAAGGCC AGGGGGAAAG AAAAAATATA
 1261 AATTAAAACA TATAGTATGG GCAAGCAGGG AGCTAGAACG ATTCGCAGTT AATCCTGGCC
 1321 TGTTAGAAAC ATCAGAAGGC TGTAGACAAA TACTGGGACA GCTACAACCA TCCCTTCAGA
 1381 CAGGATCAGA AGAACTTAGA TCATTATATA ATACAGTAGC AACCCTCTAT TGTGTGCATC
 1441 AAAGGATAGA GATAAAAGAC ACCAAGGAAG CTTTAGACAA GATAGAGGAA GAGCAAAACA
 1501 AAAGTAAGAC CACCGCACAG CAAGCGGCCG GCCGCGCTGA TCTTCAGACC TGGAGGAGGA
 1561 GATATGAGGG ACAATTGGAG AAGTGAATTA TATAAATATA AAGTAGTAAA AATTGAACCA
 1621 TTAGGAGTAG CACCCACCAA GGCAAAGAGA AGAGTGGTGC AGAGAGAAAA AAGAGCAGTG
 1681 GGAATAGGAG CTTTGTTCCT TGGGTTCTTG GGAGCAGCAG GAAGCACTAT GGGCGCAGCG
 1741 TCAATGACGC TGACGGTACA GGCCAGACAA TTATTGTCTG GTATAGTGCA GCAGCAGAAC
 1801 AATTTGCTGA GGGCTATTGA GGCGCAACAG CATCTGTTGC AACTCACAGT CTGGGGCATC
 1861 AAGCAGCTCC AGGCAAGAAT CCTGGCTGTG GAAAGATACC TAAAGGATCA ACAGCTCCTG
 1921 GGGATTTGGG GTTGCTCTGG AAAACTCATT TGCACCACTG CTGTGCCTTG GAATGCTAGT
 1981 TGGAGTAATA AATCTCTGGA ACAGATTTGG AATCACACGA CCTGGATGGA GTGGGACAGA
 2041 GAAATTAACA ATTACACAAG CTTAATACAC TCCTTAATTG AAGAATCGCA AAACCAGCAA
 2101 GAAAAGAATG AACAAGAATT ATTGGAATTA GATAAATGGG CAAGTTTGTG GAATTGGTTT
 2161 AACATAACAA ATTGGCTGTG GTATATAAAA TTATTCATAA TGATAGTAGG AGGCTTGGTA
 2221 GGTTTAAGAA TAGTTTTTGC TGTACTTTCT ATAGTGAATA GAGTTAGGCA GGGATATTCA
 2281 CCATTATCGT TTCAGACCCA CCTCCCAACC CCGAGGGGAC CCGACAGGCC CGAAGGAATA
 2341 GAAGAAGAAG GTGGAGAGAG AGACAGAGAC AGATCCATTC GATTAGTGAA CGGATCGGCA
 2401 CTGCGTGCGC CAATTCTGCA GACAAATGGC AGTATTCATC CACAATTTTA AAAGAAAAGG
 2461 GGGGATTGGG GGGTACAGTG CAGGGGAAAG AATAGTAGAC ATAATAGCAA CAGACATACA
 2521 AACTAAAGAA TTACAAAAAC AAATTACAAA AATTCAAAAT TTTCGGGTTT ATTACAGGGA
 2581 CAGCAGAGAT CCAGTTTGGT TAGTACCGGG CCCGCTCTAG AGATCCGACG CCGCCATCTC
 2641 TAGGCCCGCG CCGGCCCCCT CGCACAGACT TGTGGGAGAA GCTCGGCTAC TCCCCTGCCC
 2701 CGGTTAATTT GCATATAATA TTTCCTAGTA ACTATAGAGG CTTAATGTGC GATAAAAGAC
 2761 AGATAATCTG TTCTTTTTAA TACTAGCTAC ATTTTACATG ATAGGCTTGG ATTTCTATAA
 2821 GAGATACAAA TACTAAATTA TTATTTTAAA AAACAGCACA AAAGGAAACT CACCCTAACT
 2881 GTAAAGTAAT TGTGTGTTTT GAGACTATAA ATATCCCTTG GAGAAAAGCC TTGTTAACGC
 2941 GCGGTGACCC TCGAGGTCGA CGGTATCGAT AAGCTCGCTT CACGAGATTC CAGCAGGTCG
 3001 AGGGACCTAA TAACTTCGTA TAGCATACAT TATACGAAGT TATATTAAGG GTTCCAAGCT
 3061 TAAGCGGCCG GCCGCTGAAA GACCCCACCT GTAGGTTTGG CAAGCTAGCT GCAGTAACGC
 3121 CATTTTGCAA GGCATGGAAA AATACCAAAC CAAGAATAGA GAAGTTCAGA TCAAGGGCGG
 3181 GTACATGAAA ATAGCTAACG TTGGGCCAAA CAGGATATCT GCGGTGAGCA GTTTCGGCCC
 3241 CGGCCCGGGG CCAAGAACAG ATGGTCACCG CAGTTTCGGC CCCGGCCCGA GGCCAAGAAC
 3301 AGATGGTCCC CAGATATGGC CCAACCCTCA GCAGTTTCTT AAGACCCATC AGATGTTTCC
 3361 AGGCTCCCCC AAGGACCTGA AATGACCCTG CGCCTTATTT GAATTAACCA ATCAGCCTGC
 3421 TTCTCGCTTC TGTTCGCGCG CTTCTGCTTC CCGAGCTCTA TAAAAGAGCT CACAACCCCT
 3481 CACTCGGCGC GCCAGTCCTC CGATTGACTG AGTCGCCCGG ATCCCAGTGT GGTGGTACGG
 3541 GAATTCCTGC AGGCCTCGAC GAGGGCCGGC GCGCCGCGGC CGCTACGTAA ATTCCGCCCC
 3601 CCCCCCCCCT CTCCCTCCCC CCCCCCTAAC GTTACTGGCC GAAGCCGCTT GGAATAAGGC
 3661 CGGTGTGCGT TTGTCTATAT GTTATTTTCC ACCATATTGC CGTCTTTTGG CAATGTGAGG
 3721 GCCCGGAAAC CTGGCCCTGT CTTCTTGACG AGCATTCCTA GGGGTCTTTC CCCTCTCGCC
 3781 AAAGGAATGC AAGGTCTGTT GAATGTCGTG AAGGAAGCAG TTCCTCTGGA AGCTTCTTGA
 3841 AGACAAACAA CGTCTGTAGC GACCCTTTGC AGGCAGCGGA ACCCCCCACC TGGCGACAGG
 3901 TGCCTCTGCG GCCAAAAGCC ACGTGTATAA GATACACCTG CAAAGGCGGC ACAACCCCAG
 3961 TGCCACGTTG TGAGTTGGAT AGTTGTGGAA AGAGTCAAAT GGCTCTCCTC AAGCGTATTC
 4021 AACAAGGGGC TGAAGGATGC CCAGAAGGTA CCCCATTGTA TGGGATCTGA TCTGGGGCCT
 4081 CGGTGCACAT GCTTTACATG TGTTTAGTCG AGGTTAAAAA AACGTCTAGG CCCCCCGAAC
 4141 CACGGGGACG TGGTTTTCCT TTGAAAAACA CGATGATAAT ATGGCCACAA CCATGGTGAG
 4201 CAAGGGCGAG GAGCTGTTCA CCGGGGTGGT GCCCATCCTG GTCGAGCTGG ACGGCGACGT
 4261 AAACGGCCAC AAGTTCAGCG TGTCCGGCGA GGGCGAGGGC GATGCCACCT ACGGCAAGCT
 4321 GACCCTGAAG TTCATCTGCA CCACCGGCAA GCTGCCCGTG CCCTGGCCCA CCCTCGTGAC
 4381 CACCCTGACC TACGGCGTGC AGTGCTTCAG CCGCTACCCC GACCACATGA AGCAGCACGA
 4441 CTTCTTCAAG TCCGCCATGC CCGAAGGCTA CGTCCAGGAG CGCACCATCT TCTTCAAGGA
 4501 CGACGGCAAC TACAAGACCC GCGCCGAGGT GAAGTTCGAG GGCGACACCC TGGTGAACCG
 4561 CATCGAGCTG AAGGGCATCG ACTTCAAGGA GGACGGCAAC ATCCTGGGGC ACAAGCTGGA
 4621 GTACAACTAC AACAGCCACA ACGTCTATAT CATGGCCGAC AAGCAGAAGA ACGGCATCAA
 4681 GGTGAACTTC AAGATCCGCC ACAACATCGA GGACGGCAGC GTGCAGCTCG CCGACCACTA
 4741 CCAGCAGAAC ACCCCCATCG GCGACGGCCC CGTGCTGCTG CCCGACAACC ACTACCTGAG
 4801 CACCCAGTCC GCCCTGAGCA AAGACCCCAA CGAGAAGCGC GATCACATGG TCCTGCTGGA
 4861 GTTCGTGACC GCCGCCGGGA TCACTCTCGG CATGGACGAG CTGTACAAGT AAAGCGGCCG
 4921 GCCGCCAGCA CAGTGGTCGA AATTCGTCGA GGGACCTAAT AACTTCGTAT AGCATACATT
 4981 ATACGAAGTT ATACATGTTT AAGGGTTCCG GTTCCACTAG GTACAATTCG ATATCAAGCT
 5041 TATCGATAAT CAACCTCTGG ATTACAAAAT TTGTGAAAGA TTGACTGGTA TTCTTAACTA
 5101 TGTTGCTCCT TTTACGCTAT GTGGATACGC TGCTTTAATG CCTTTGTATC ATGCTATTGC
 5161 TTCCCGTATG GCTTTCATTT TCTCCTCCTT GTATAAATCC TGGTTGCTGT CTCTTTATGA
 5221 GGAGTTGTGG CCCGTTGTCA GGCAACGTGG CGTGGTGTGC ACTGTGTTTG CTGACGCAAC
 5281 CCCCACTGGT TGGGGCATTG CCACCACCTG TCAGCTCCTT TCCGGGACTT TCGCTTTCCC
 5341 CCTCCCTATT GCCACGGCGG AACTCATCGC CGCCTGCCTT GCCCGCTGCT GGACAGGGGC
 5401 TCGGCTGTTG GGCACTGACA ATTCCGTGGT GTTGTCGGGG AAATCATCGT CCTTTCCTTG
 5461 GCTGCTCGCC TGTGTTGCCA CCTGGATTCT GCGCGGGACG TCCTTCTGCT ACGTCCCTTC
 5521 GGCCCTCAAT CCAGCGGACC TTCCTTCCCG CGGCCTGCTG CCGGCTCTGC GGCCTCTTCC
 5581 GCGTCTTCGC CTTCGCCCTC AGACGAGTCG GATCTCCCTT TGGGCCGCCT CCCCGCATCG
 5641 ATACCGTCGA CCTCGATCGA GACCTAGAAA AACATGGAGC AATCACAAGT AGCAATACAG
 5701 CAGCTACCAA TGCTGATTGT GCCTGGCTAG AAGCACAAGA GGAGGAGGAG GTGGGTTTTC
 5761 CAGTCACACC TCAGGTACCT TTAAGACCAA TGACTTACAA GGCAGCTGTA GATCTTAGCC
 5821 ACTTTTTAAA AGAAAAGGGG GGACTGGAAG GGCTAATTCA CTCCCAACGA AGACAAGATA
 5881 TCCTTGATCT GTGGATCTAC CACACACAAG GCTACTTCCC TGATTGGCAG AACTACACAC
 5941 CAGGGCCAGG GATCAGATAT CCACTGACCT TTGGATGGTG CTACAAGCTA GTACCAGTTG
 6001 AGCAAGAGAA GGTAGAAGAA GCCAATGAAG GAGAGAACAC CCGCTTGTTA CACCCTGTGA
 6061 GCCTGCATGG GATGGATGAC CCGGAGAGAG AAGTATTAGA GTGGAGGTTT GACAGCCGCC
 6121 TAGCATTTCA TCACATGGCC CGAGAGCTGC ATCCGGACTG TACTGGGTCT CTCTGGTTAG
 6181 ACCAGATCTG AGCCTGGGAG CTCTCTGGCT AACTAGGGAA CCCACTGCTT AAGCCTCAAT
 6241 AAAGCTTGCC TTGAGTGCTT CAAGTAGTGT GTGCCCGTCT GTTGTGTGAC TCTGGTAACT
 6301 AGAGATCCCT CAGACCCTTT TAGTCAGTGT GGAAAATCTC TAGCAGCATG TGAGCAAAAG
 6361 GCCAGCAAAA GGCCAGGAAC CGTAAAAAGG CCGCGTTGCT GGCGTTTTTC CATAGGCTCC
 6421 GCCCCCCTGA CGAGCATCAC AAAAATCGAC GCTCAAGTCA GAGGTGGCGA AACCCGACAG
 6481 GACTATAAAG ATACCAGGCG TTTCCCCCTG GAAGCTCCCT CGTGCGCTCT CCTGTTCCGA
 6541 CCCTGCCGCT TACCGGATAC CTGTCCGCCT TTCTCCCTTC GGGAAGCGTG GCGCTTTCTC
 6601 ATAGCTCACG CTGTAGGTAT CTCAGTTCGG TGTAGGTCGT TCGCTCCAAG CTGGGCTGTG
 6661 TGCACGAACC CCCCGTTCAG CCCGACCGCT GCGCCTTATC CGGTAACTAT CGTCTTGAGT
 6721 CCAACCCGGT AAGACACGAC TTATCGCCAC TGGCAGCAGC CACTGGTAAC AGGATTAGCA
 6781 GAGCGAGGTA TGTAGGCGGT GCTACAGAGT TCTTGAAGTG GTGGCCTAAC TACGGCTACA
 6841 CTAGAAGAAC AGTATTTGGT ATCTGCGCTC TGCTGAAGCC AGTTACCTTC GGAAAAAGAG
 6901 TTGGTAGCTC TTGATCCGGC AAACAAACCA CCGCTGGTAG CGGTGGTTTT TTTGTTTGCA
 6961 AGCAGCAGAT TACGCGCAGA AAAAAAGGAT CTCAAGAAGA TCCTTTGATC TTTTCTACGG
 7021 GGTCTGACGC TCAGTGGAAC GAAAACTCAC GTTAAGGGAT TTTGGTCATG AGATTATCAA
 7081 AAAGGATCTT CACCTAGATC CTTTTAAATT AAAAATGAAG TTTTAAATCA ATCTAAAGTA
 7141 TATATGAGTA AACTTGGTCT GACAGTTACC AATGCTTAAT CAGTGAGGCA CCTATCTCAG
 7201 CGATCTGTCT ATTTCGTTCA TCCATAGTTG CCTGACTCCC CGTCGTGTAG ATAACTACGA
 7261 TACGGGAGGG CTTACCATCT GGCCCCAGTG CTGCAATGAT ACCGCGAGAC CCACGCTCAC
 7321 CGGCTCCAGA TTTATCAGCA ATAAACCAGC CAGCCGGAAG GGCCGAGCGC AGAAGTGGTC
 7381 CTGCAACTTT ATCCGCCTCC ATCCAGTCTA TTAATTGTTG CCGGGAAGCT AGAGTAAGTA
 7441 GTTCGCCAGT TAATAGTTTG CGCAACGTTG TTGCCATTGC TACAGGCATC GTGGTGTCAC
 7501 GCTCGTCGTT TGGTATGGCT TCATTCAGCT CCGGTTCCCA ACGATCAAGG CGAGTTACAT
 7561 GATCCCCCAT GTTGTGCAAA AAAGCGGTTA GCTCCTTCGG TCCTCCGATC GTTGTCAGAA
 7621 GTAAGTTGGC CGCAGTGTTA TCACTCATGG TTATGGCAGC ACTGCATAAT TCTCTTACTG
 7681 TCATGCCATC CGTAAGATGC TTTTCTGTGA CTGGTGAGTA CTCAACCAAG TCATTCTGAG
 7741 AATAGTGTAT GCGGCGACCG AGTTGCTCTT GCCCGGCGTC AATACGGGAT AATACCGCGC
 7801 CACATAGCAG AACTTTAAAA GTGCTCATCA TTGGAAAACG TTCTTCGGGG CGAAAACTCT
 7861 CAAGGATCTT ACCGCTGTTG AGATCCAGTT CGATGTAACC CACTCGTGCA CCCAACTGAT
 7921 CTTCAGCATC TTTTACTTTC ACCAGCGTTT CTGGGTGAGC AAAAACAGGA AGGCAAAATG
 7981 CCGCAAAAAA GGGAATAAGG GCGACACGGA AATGTTGAAT ACTCATACTC TTCCTTTTTC
 8041 AATATTATTG AAGCATTTAT CAGGGTTATT GTCTCATGAG CGGATACATA TTTGAATGTA
 8101 TTTAGAAAAA TAAACAAATA GGGGTTCCGC GCACATTTCC CCGAAAAGTG CCACCTGAC

//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
