pENTR U6载体质粒基本信息

出品公司: Invitrogen
载体名称: pENTR U6
质粒类型: Gateway系统载体
高拷贝/低拷贝: --
启动子: Human U6
克隆方法: 多克隆位点,限制性内切酶
载体大小: 2854 bp
5' 测序引物及序列: M13 Forward
3' 测序引物及序列: M13 Reverse
载体标签: --
载体抗性: 卡那霉素(Kanamycin)
筛选标记: --
备注: U6 promoter allows for the RNA polymerase III-dependant expression of short hairpin RNA (shRNA).
产品目录号: K4945-00
稳定性: --
组成型: --
病毒/非病毒: --

pENTR U6质粒图谱载体图谱和pENTR U6载体序列质粒序列多克隆位点信息

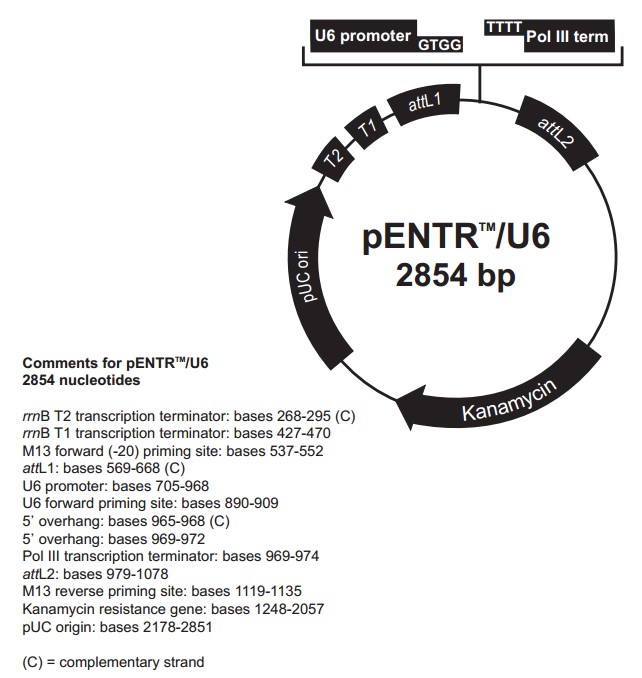

pENTR U6载体图谱



pENTR U6质粒载体简介

pENTR U6质粒序列载体序列

LOCUS       pENTR/U6	2854 bp 	DNA	SYN
DEFINITION  pENTR/U6
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..2854
                     /organism="pENTR/U6"
                     /mol_type="other DNA"
     terminator      complement(268..295)
                     /label="rrnB_T2_terminator"
     terminator      complement(427..470)
                     /label="rrnB_T1_terminator"
     misc_feature    522..544
                     /label="M13_pUC_fwd_primer"
     promoter        537..553
                     /label="M13_forward20_primer"
     misc_feature    complement(569..668)
                     /label="attL1"
     promoter        705..961
                     /label="hU6_promoter"
     misc_feature    891..910
                     /label="LKO1_5_primer"
     misc_feature    979..1078
                     /label="attL2"
     promoter        complement(1096..1114)
                     /label="T7_promoter"
     promoter        complement(1115..1133)
                     /label="M13_reverse_primer"
     gene            1248..2057
                     /label="KanR2"
                     /gene="KanR2"
     CDS             1248..2057
                     /label="ORF frame 3"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGK
                     PDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVD
                     ASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRV
                     GIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
     rep_origin      2188..2807
                     /label="pBR322_origin"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGK
                     PDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVD
                     ASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRV
                     GIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
ORIGIN
    1 CTTTCCTGCG TTATCCCCTG ATTCTGTGGA TAACCGTATT ACCGCCTTTG AGTGAGCTGA
   61 TACCGCTCGC CGCAGCCGAA CGACCGAGCG CAGCGAGTCA GTGAGCGAGG AAGCGGAAGA
  121 GCGCCCAATA CGCAAACCGC CTCTCCCCGC GCGTTGGCCG ATTCATTAAT GCAGCTGGCA
  181 CGACAGGTTT CCCGACTGGA AAGCGGGCAG TGAGCGCAAC GCAATTAATA CGCGTACCGC
  241 TAGCCAGGAA GAGTTTGTAG AAACGCAAAA AGGCCATCCG TCAGGATGGC CTTCTGCTTA
  301 GTTTGATGCC TGGCAGTTTA TGGCGGGCGT CCTGCCCGCC ACCCTCCGGG CCGTTGCTTC
  361 ACAACGTTCA AATCCGCTCC CGGCGGATTT GTCCTACTCA GGAGAGCGTT CACCGACAAA
  421 CAACAGATAA AACGAAAGGC CCAGTCTTCC GACTGAGCCT TTCGTTTTAT TTGATGCCTG
  481 GCAGTTCCCT ACTCTCGCGT TAACGCTAGC ATGGATGTTT TCCCAGTCAC GACGTTGTAA
  541 AACGACGGCC AGTCTTAAGC TCGGGCCCCA AATAATGATT TTATTTTGAC TGATAGTGAC
  601 CTGTTCGTTG CAACAAATTG ATGAGCAATG CTTTTTTATA ATGCCAACTT TGTACAAAAA
  661 AGCAGGCTTT AAAGGAACCA ATTCAGTCGA CTGGATCCGG TACCAAGGTC GGGCAGGAAG
  721 AGGGCCTATT TCCCATGATT CCTTCATATT TGCATATACG ATACAAGGCT GTTAGAGAGA
  781 TAATTAGAAT TAATTTGACT GTAAACACAA AGATATTAGT ACAAAATACG TGACGTAGAA
  841 AGTAATAATT TCTTGGGTAG TTTGCAGTTT TAAAATTATG TTTTAAAATG GACTATCATA
  901 TGCTTACCGT AACTTGAAAG TATTTCGATT TCTTGGCTTT ATATATCTTG TGGAAAGGAC
  961 GAAACACCTT TTTTCTAGAC CCAGCTTTCT TGTACAAAGT TGGCATTATA AGAAAGCATT
 1021 GCTTATCAAT TTGTTGCAAC GAACAGGTCA CTATCAGTCA AAATAAAATC ATTATTTGCC
 1081 ATCCAGCTGA TATCCCCTAT AGTGAGTCGT ATTACATGGT CATAGCTGTT TCCTGGCAGC
 1141 TCTGGCCCGT GTCTCAAAAT CTCTGATGTT ACATTGCACA AGATAAAAAT ATATCATCAT
 1201 GAACAATAAA ACTGTCTGCT TACATAAACA GTAATACAAG GGGTGTTATG AGCCATATTC
 1261 AACGGGAAAC GTCGAGGCCG CGATTAAATT CCAACATGGA TGCTGATTTA TATGGGTATA
 1321 AATGGGCTCG CGATAATGTC GGGCAATCAG GTGCGACAAT CTATCGCTTG TATGGGAAGC
 1381 CCGATGCGCC AGAGTTGTTT CTGAAACATG GCAAAGGTAG CGTTGCCAAT GATGTTACAG
 1441 ATGAGATGGT CAGACTAAAC TGGCTGACGG AATTTATGCC TCTTCCGACC ATCAAGCATT
 1501 TTATCCGTAC TCCTGATGAT GCATGGTTAC TCACCACTGC GATCCCCGGA AAAACAGCAT
 1561 TCCAGGTATT AGAAGAATAT CCTGATTCAG GTGAAAATAT TGTTGATGCG CTGGCAGTGT
 1621 TCCTGCGCCG GTTGCATTCG ATTCCTGTTT GTAATTGTCC TTTTAACAGC GATCGCGTAT
 1681 TTCGTCTCGC TCAGGCGCAA TCACGAATGA ATAACGGTTT GGTTGATGCG AGTGATTTTG
 1741 ATGACGAGCG TAATGGCTGG CCTGTTGAAC AAGTCTGGAA AGAAATGCAT AAACTTTTGC
 1801 CATTCTCACC GGATTCAGTC GTCACTCATG GTGATTTCTC ACTTGATAAC CTTATTTTTG
 1861 ACGAGGGGAA ATTAATAGGT TGTATTGATG TTGGACGAGT CGGAATCGCA GACCGATACC
 1921 AGGATCTTGC CATCCTATGG AACTGCCTCG GTGAGTTTTC TCCTTCATTA CAGAAACGGC
 1981 TTTTTCAAAA ATATGGTATT GATAATCCTG ATATGAATAA ATTGCAGTTT CATTTGATGC
 2041 TCGATGAGTT TTTCTAATCA GAATTGGTTA ATTGGTTGTA ACACTGGCAG AGCATTACGC
 2101 TGACTTGACG GGACGGCGCA AGCTCATGAC CAAAATCCCT TAACGTGAGT TACGCGTCGT
 2161 TCCACTGAGC GTCAGACCCC GTAGAAAAGA TCAAAGGATC TTCTTGAGAT CCTTTTTTTC
 2221 TGCGCGTAAT CTGCTGCTTG CAAACAAAAA AACCACCGCT ACCAGCGGTG GTTTGTTTGC
 2281 CGGATCAAGA GCTACCAACT CTTTTTCCGA AGGTAACTGG CTTCAGCAGA GCGCAGATAC
 2341 CAAATACTGT CCTTCTAGTG TAGCCGTAGT TAGGCCACCA CTTCAAGAAC TCTGTAGCAC
 2401 CGCCTACATA CCTCGCTCTG CTAATCCTGT TACCAGTGGC TGCTGCCAGT GGCGATAAGT
 2461 CGTGTCTTAC CGGGTTGGAC TCAAGACGAT AGTTACCGGA TAAGGCGCAG CGGTCGGGCT
 2521 GAACGGGGGG TTCGTGCACA CAGCCCAGCT TGGAGCGAAC GACCTACACC GAACTGAGAT
 2581 ACCTACAGCG TGAGCATTGA GAAAGCGCCA CGCTTCCCGA AGGGAGAAAG GCGGACAGGT
 2641 ATCCGGTAAG CGGCAGGGTC GGAACAGGAG AGCGCACGAG GGAGCTTCCA GGGGGAAACG
 2701 CCTGGTATCT TTATAGTCCT GTCGGGTTTC GCCACCTCTG ACTTGAGCGT CGATTTTTGT
 2761 GATGCTCGTC AGGGGGGCGG AGCCTATGGA AAAACGCCAG CAACGCGGCC TTTTTACGGT
 2821 TCCTGGCCTT TTGCTGGCCT TTTGCTCACA TGTT
//

pENTR U6载体图谱质粒图谱pdf版和pENTR U6载体序列质粒序列等相关资料下载
