| 质粒名称: | pXAT2 |
|---|---|
| 出品公司: | 爱迪基因 |
| 目录编号: | 80494 |
| 存储实验室: | Knut Woltjen |
|
载体骨架基本信息 |
|
| 载体名称: | pX330 |
| 载体抗性: | 氨苄青霉素 |
| 完整质粒大小: | 8509 bp |
| 载体类型: | 哺乳细胞表达,CRISPR |
| 高拷贝/低拷贝: | 高拷贝 |
| 生长条件: | 37 ℃ |
|
插入基因信息 |
|
| 插入基因名称: | AAVS1 sgRNA-T2 |
| 物种来源: | H. sapiens (human), Synthetic |
| 启动子 | U6 |
| 克隆方法: | 限制性内切酶 |
| 5' 克隆位点: | BbsI（克隆期间销毁） |
| 3' 克隆位点: | BbsI（克隆期间销毁） |
| 5' 测序引物 | 5'-GAGGGCCTATTTCCCATGATTCC-3' |
|
文献引用方法 |
|
| 材料和方法部分: | pXAT2 was a gift from Knut Woltjen (Addgene plasmid # 80494 ; http://n2t.net/addgene:80494 ; RRID:Addgene_80494) |
| 参考文献部分: | Engineering the AAVS1 locus for consistent and scalable transgene expression in human iPSCs and their differentiated derivatives. Oceguera-Yanez F, Kim SI, Matsumoto T, Tan GW, Xiang L, Hatani T, Kondo T, Ikeya M, Yoshida Y, Inoue H, Woltjen K. Methods. 2015 Dec 18. pii: S1046-2023(15)30181-X. doi: 10.1016/j.ymeth.2015.12.012. 10.1016/j.ymeth.2015.12.012 PubMed 26707206 |
买家导航
载体基本信息

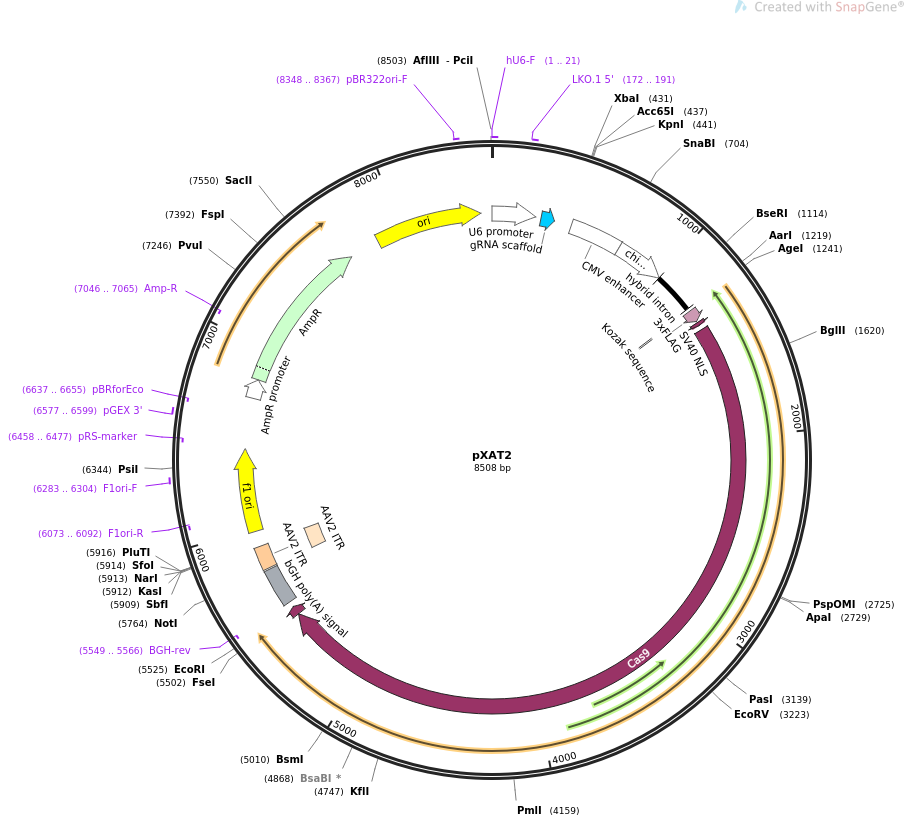

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pXAT2 8508 bp ds-DNA circular SYN 12-MAY-2021
DEFINITION AAVS1 sgRNA expression vector.
ACCESSION .
VERSION .
KEYWORDS pXAT2
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 8508)
AUTHORS Oceguera-Yanez F, Kim SI, Matsumoto T, Tan GW, Xiang L, Hatani T,
Kondo T, Ikeya M, Yoshida Y, Inoue H, Woltjen K
TITLE Engineering the AAVS1 locus for consistent and scalable transgene
expression in human iPSCs and their differentiated derivatives.
JOURNAL Methods. 2015 Dec 18. pii: S1046-2023(15)30181-X. doi:
10.1016/j.ymeth.2015.12.012.
PUBMED 26707206
REFERENCE 2 (bases 1 to 8508)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58
http://www.snapgene.com
FEATURES Location/Qualifiers
source 1..8508
/organism="synthetic DNA construct"
/mol_type="other DNA"
promoter 1..241
/label=U6 promoter
/note="RNA polymerase III promoter for human U6 snRNA"
primer_bind 1..21
/label=hU6-F
/note="Human U6 promoter, forward primer"
primer_bind 172..191
/label=LKO.1 5'
/note="Human U6 promoter, forward primer"
misc_RNA 271..346
/label=gRNA scaffold
/note="guide RNA scaffold for the Streptococcus pyogenes
CRISPR/Cas9 system"
enhancer 443..728
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer;
contains an 18-bp deletion relative to the standard CMV
enhancer"
promoter 730..1007
/label=chicken beta-actin promoter
intron 1008..1235
/label=hybrid intron
/note="hybrid between chicken beta-actin (CBA) and minute
virus of mice (MMV) introns (Gray et al., 2011)"
regulatory 1247..1256
/regulatory_class="other"
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
CDS 1256..1321
/codon_start=1
/product="three tandem FLAG(R) epitope tags, followed by an
enterokinase cleavage site"
/label=3xFLAG
/translation="DYKDHDGDYKDHDIDYKDDDDK"
CDS 1328..1348
/codon_start=1
/product="nuclear localization signal of SV40 (simian virus
40) large T antigen"
/label=SV40 NLS
/translation="PKKKRKV"
CDS 1373..5473
/codon_start=1
/product="Cas9 (Csn1) endonuclease from the Streptococcus
pyogenes Type II CRISPR/Cas system"
/label=Cas9
/note="generates RNA-guided double strand breaks in DNA"
/translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS
EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
ATLIHQSITGLYETRIDLSQLGGD"
CDS 5474..5521
/codon_start=1
/product="bipartite nuclear localization signal from
nucleoplasmin"
/label=nucleoplasmin NLS
/translation="KRPAATKKAGQAKKKK"
primer_bind complement(5549..5566)
/label=BGH-rev
/note="Bovine growth hormone terminator, reverse primer.
Also called BGH reverse"
polyA_signal 5555..5762
/label=bGH poly(A) signal
/note="bovine growth hormone polyadenylation signal"
repeat_region 5771..5911
/label=AAV2 ITR
/note="inverted terminal repeat of adeno-associated virus
serotype 2"
repeat_region 5771..5900
/label=AAV2 ITR
rep_origin 5986..6441
/direction=RIGHT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
primer_bind complement(6073..6092)
/label=F1ori-R
/note="F1 origin, reverse primer"
primer_bind 6283..6304
/label=F1ori-F
/note="F1 origin, forward primer"
primer_bind complement(6458..6477)
/label=pRS-marker
/note="pRS vectors, use to sequence yeast selectable
marker"
primer_bind 6577..6599
/label=pGEX 3'
/note="pGEX vectors, reverse primer"
primer_bind complement(6637..6655)
/label=pBRforEco
/note="pBR322 vectors, upsteam of EcoRI site, forward
primer"
promoter 6723..6827
/gene="bla"
/label=AmpR promoter
CDS 6828..7688
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
primer_bind complement(7046..7065)
/label=Amp-R
/note="Ampicillin resistance gene, reverse primer"
rep_origin 7859..8447
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
primer_bind 8348..8367
/label=pBR322ori-F
/note="pBR322 origin, forward primer"
ORIGIN
1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
61 ataattggaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
241 cgaaacaccg ggggccacta gggacaggat gttttagagc tagaaatagc aagttaaaat
301 aaggctagtc cgttatcaac ttgaaaaagt ggcaccgagt cggtgctttt ttgttttaga
361 gctagaaata gcaagttaaa ataaggctag tccgttttta gcgcgtgcgc caattctgca
421 gacaaatggc tctagaggta cccgttacat aacttacggt aaatggcccg cctggctgac
481 cgcccaacga cccccgccca ttgacgtcaa tagtaacgcc aatagggact ttccattgac
541 gtcaatgggt ggagtattta cggtaaactg cccacttggc agtacatcaa gtgtatcata
601 tgccaagtac gccccctatt gacgtcaatg acggtaaatg gcccgcctgg cattgtgccc
661 agtacatgac cttatgggac tttcctactt ggcagtacat ctacgtatta gtcatcgcta
721 ttaccatggt cgaggtgagc cccacgttct gcttcactct ccccatctcc cccccctccc
781 cacccccaat tttgtattta tttatttttt aattattttg tgcagcgatg ggggcggggg
841 gggggggggg gcgcgcgcca ggcggggcgg ggcggggcga ggggcggggc ggggcgaggc
901 ggagaggtgc ggcggcagcc aatcagagcg gcgcgctccg aaagtttcct tttatggcga
961 ggcggcggcg gcggcggccc tataaaaagc gaagcgcgcg gcgggcggga gtcgctgcgc
1021 gctgccttcg ccccgtgccc cgctccgccg ccgcctcgcg ccgcccgccc cggctctgac
1081 tgaccgcgtt actcccacag gtgagcgggc gggacggccc ttctcctccg ggctgtaatt
1141 agctgagcaa gaggtaaggg tttaagggat ggttggttgg tggggtatta atgtttaatt
1201 acctggagca cctgcctgaa atcacttttt ttcaggttgg accggtgcca ccatggacta
1261 taaggaccac gacggagact acaaggatca tgatattgat tacaaagacg atgacgataa
1321 gatggcccca aagaagaagc ggaaggtcgg tatccacgga gtcccagcag ccgacaagaa
1381 gtacagcatc ggcctggaca tcggcaccaa ctctgtgggc tgggccgtga tcaccgacga
1441 gtacaaggtg cccagcaaga aattcaaggt gctgggcaac accgaccggc acagcatcaa
1501 gaagaacctg atcggagccc tgctgttcga cagcggcgaa acagccgagg ccacccggct
1561 gaagagaacc gccagaagaa gatacaccag acggaagaac cggatctgct atctgcaaga
1621 gatcttcagc aacgagatgg ccaaggtgga cgacagcttc ttccacagac tggaagagtc
1681 cttcctggtg gaagaggata agaagcacga gcggcacccc atcttcggca acatcgtgga
1741 cgaggtggcc taccacgaga agtaccccac catctaccac ctgagaaaga aactggtgga
1801 cagcaccgac aaggccgacc tgcggctgat ctatctggcc ctggcccaca tgatcaagtt
1861 ccggggccac ttcctgatcg agggcgacct gaaccccgac aacagcgacg tggacaagct
1921 gttcatccag ctggtgcaga cctacaacca gctgttcgag gaaaacccca tcaacgccag
1981 cggcgtggac gccaaggcca tcctgtctgc cagactgagc aagagcagac ggctggaaaa
2041 tctgatcgcc cagctgcccg gcgagaagaa gaatggcctg ttcggaaacc tgattgccct
2101 gagcctgggc ctgaccccca acttcaagag caacttcgac ctggccgagg atgccaaact
2161 gcagctgagc aaggacacct acgacgacga cctggacaac ctgctggccc agatcggcga
2221 ccagtacgcc gacctgtttc tggccgccaa gaacctgtcc gacgccatcc tgctgagcga
2281 catcctgaga gtgaacaccg agatcaccaa ggcccccctg agcgcctcta tgatcaagag
2341 atacgacgag caccaccagg acctgaccct gctgaaagct ctcgtgcggc agcagctgcc
2401 tgagaagtac aaagagattt tcttcgacca gagcaagaac ggctacgccg gctacattga
2461 cggcggagcc agccaggaag agttctacaa gttcatcaag cccatcctgg aaaagatgga
2521 cggcaccgag gaactgctcg tgaagctgaa cagagaggac ctgctgcgga agcagcggac
2581 cttcgacaac ggcagcatcc cccaccagat ccacctggga gagctgcacg ccattctgcg
2641 gcggcaggaa gatttttacc cattcctgaa ggacaaccgg gaaaagatcg agaagatcct
2701 gaccttccgc atcccctact acgtgggccc tctggccagg ggaaacagca gattcgcctg
2761 gatgaccaga aagagcgagg aaaccatcac cccctggaac ttcgaggaag tggtggacaa
2821 gggcgcttcc gcccagagct tcatcgagcg gatgaccaac ttcgataaga acctgcccaa
2881 cgagaaggtg ctgcccaagc acagcctgct gtacgagtac ttcaccgtgt ataacgagct
2941 gaccaaagtg aaatacgtga ccgagggaat gagaaagccc gccttcctga gcggcgagca
3001 gaaaaaggcc atcgtggacc tgctgttcaa gaccaaccgg aaagtgaccg tgaagcagct
3061 gaaagaggac tacttcaaga aaatcgagtg cttcgactcc gtggaaatct ccggcgtgga
3121 agatcggttc aacgcctccc tgggcacata ccacgatctg ctgaaaatta tcaaggacaa
3181 ggacttcctg gacaatgagg aaaacgagga cattctggaa gatatcgtgc tgaccctgac
3241 actgtttgag gacagagaga tgatcgagga acggctgaaa acctatgccc acctgttcga
3301 cgacaaagtg atgaagcagc tgaagcggcg gagatacacc ggctggggca ggctgagccg
3361 gaagctgatc aacggcatcc gggacaagca gtccggcaag acaatcctgg atttcctgaa
3421 gtccgacggc ttcgccaaca gaaacttcat gcagctgatc cacgacgaca gcctgacctt
3481 taaagaggac atccagaaag cccaggtgtc cggccagggc gatagcctgc acgagcacat
3541 tgccaatctg gccggcagcc ccgccattaa gaagggcatc ctgcagacag tgaaggtggt
3601 ggacgagctc gtgaaagtga tgggccggca caagcccgag aacatcgtga tcgaaatggc
3661 cagagagaac cagaccaccc agaagggaca gaagaacagc cgcgagagaa tgaagcggat
3721 cgaagagggc atcaaagagc tgggcagcca gatcctgaaa gaacaccccg tggaaaacac
3781 ccagctgcag aacgagaagc tgtacctgta ctacctgcag aatgggcggg atatgtacgt
3841 ggaccaggaa ctggacatca accggctgtc cgactacgat gtggaccata tcgtgcctca
3901 gagctttctg aaggacgact ccatcgacaa caaggtgctg accagaagcg acaagaaccg
3961 gggcaagagc gacaacgtgc cctccgaaga ggtcgtgaag aagatgaaga actactggcg
4021 gcagctgctg aacgccaagc tgattaccca gagaaagttc gacaatctga ccaaggccga
4081 gagaggcggc ctgagcgaac tggataaggc cggcttcatc aagagacagc tggtggaaac
4141 ccggcagatc acaaagcacg tggcacagat cctggactcc cggatgaaca ctaagtacga
4201 cgagaatgac aagctgatcc gggaagtgaa agtgatcacc ctgaagtcca agctggtgtc
4261 cgatttccgg aaggatttcc agttttacaa agtgcgcgag atcaacaact accaccacgc
4321 ccacgacgcc tacctgaacg ccgtcgtggg aaccgccctg atcaaaaagt accctaagct
4381 ggaaagcgag ttcgtgtacg gcgactacaa ggtgtacgac gtgcggaaga tgatcgccaa
4441 gagcgagcag gaaatcggca aggctaccgc caagtacttc ttctacagca acatcatgaa
4501 ctttttcaag accgagatta ccctggccaa cggcgagatc cggaagcggc ctctgatcga
4561 gacaaacggc gaaaccgggg agatcgtgtg ggataagggc cgggattttg ccaccgtgcg
4621 gaaagtgctg agcatgcccc aagtgaatat cgtgaaaaag accgaggtgc agacaggcgg
4681 cttcagcaaa gagtctatcc tgcccaagag gaacagcgat aagctgatcg ccagaaagaa
4741 ggactgggac cctaagaagt acggcggctt cgacagcccc accgtggcct attctgtgct
4801 ggtggtggcc aaagtggaaa agggcaagtc caagaaactg aagagtgtga aagagctgct
4861 ggggatcacc atcatggaaa gaagcagctt cgagaagaat cccatcgact ttctggaagc
4921 caagggctac aaagaagtga aaaaggacct gatcatcaag ctgcctaagt actccctgtt
4981 cgagctggaa aacggccgga agagaatgct ggcctctgcc ggcgaactgc agaagggaaa
5041 cgaactggcc ctgccctcca aatatgtgaa cttcctgtac ctggccagcc actatgagaa
5101 gctgaagggc tcccccgagg ataatgagca gaaacagctg tttgtggaac agcacaagca
5161 ctacctggac gagatcatcg agcagatcag cgagttctcc aagagagtga tcctggccga
5221 cgctaatctg gacaaagtgc tgtccgccta caacaagcac cgggataagc ccatcagaga
5281 gcaggccgag aatatcatcc acctgtttac cctgaccaat ctgggagccc ctgccgcctt
5341 caagtacttt gacaccacca tcgaccggaa gaggtacacc agcaccaaag aggtgctgga
5401 cgccaccctg atccaccaga gcatcaccgg cctgtacgag acacggatcg acctgtctca
5461 gctgggaggc gacaaaaggc cggcggccac gaaaaaggcc ggccaggcaa aaaagaaaaa
5521 gtaagaattc ctagagctcg ctgatcagcc tcgactgtgc cttctagttg ccagccatct
5581 gttgtttgcc cctcccccgt gccttccttg accctggaag gtgccactcc cactgtcctt
5641 tcctaataaa atgaggaaat tgcatcgcat tgtctgagta ggtgtcattc tattctgggg
5701 ggtggggtgg ggcaggacag caagggggag gattgggaag agaatagcag gcatgctggg
5761 gagcggccgc aggaacccct agtgatggag ttggccactc cctctctgcg cgctcgctcg
5821 ctcactgagg ccgggcgacc aaaggtcgcc cgacgcccgg gctttgcccg ggcggcctca
5881 gtgagcgagc gagcgcgcag ctgcctgcag gggcgcctga tgcggtattt tctccttacg
5941 catctgtgcg gtatttcaca ccgcatacgt caaagcaacc atagtacgcg ccctgtagcg
6001 gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg
6061 ccttagcgcc cgctcctttc gctttcttcc cttcctttct cgccacgttc gccggctttc
6121 cccgtcaagc tctaaatcgg gggctccctt tagggttccg atttagtgct ttacggcacc
6181 tcgaccccaa aaaacttgat ttgggtgatg gttcacgtag tgggccatcg ccctgataga
6241 cggtttttcg ccctttgacg ttggagtcca cgttctttaa tagtggactc ttgttccaaa
6301 ctggaacaac actcaactct atctcgggct attcttttga tttataaggg attttgccga
6361 tttcggtcta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattttaaca
6421 aaatattaac gtttacaatt ttatggtgca ctctcagtac aatctgctct gatgccgcat
6481 agttaagcca gccccgacac ccgccaacac ccgctgacgc gccctgacgg gcttgtctgc
6541 tcccggcatc cgcttacaga caagctgtga ccgtctccgg gagctgcatg tgtcagaggt
6601 tttcaccgtc atcaccgaaa cgcgcgagac gaaagggcct cgtgatacgc ctatttttat
6661 aggttaatgt catgataata atggtttctt agacgtcagg tggcactttt cggggaaatg
6721 tgcgcggaac ccctatttgt ttatttttct aaatacattc aaatatgtat ccgctcatga
6781 gacaataacc ctgataaatg cttcaataat attgaaaaag gaagagtatg agtattcaac
6841 atttccgtgt cgcccttatt cccttttttg cggcattttg ccttcctgtt tttgctcacc
6901 cagaaacgct ggtgaaagta aaagatgctg aagatcagtt gggtgcacga gtgggttaca
6961 tcgaactgga tctcaacagc ggtaagatcc ttgagagttt tcgccccgaa gaacgttttc
7021 caatgatgag cacttttaaa gttctgctat gtggcgcggt attatcccgt attgacgccg
7081 ggcaagagca actcggtcgc cgcatacact attctcagaa tgacttggtt gagtactcac
7141 cagtcacaga aaagcatctt acggatggca tgacagtaag agaattatgc agtgctgcca
7201 taaccatgag tgataacact gcggccaact tacttctgac aacgatcgga ggaccgaagg
7261 agctaaccgc ttttttgcac aacatggggg atcatgtaac tcgccttgat cgttgggaac
7321 cggagctgaa tgaagccata ccaaacgacg agcgtgacac cacgatgcct gtagcaatgg
7381 caacaacgtt gcgcaaacta ttaactggcg aactacttac tctagcttcc cggcaacaat
7441 taatagactg gatggaggcg gataaagttg caggaccact tctgcgctcg gcccttccgg
7501 ctggctggtt tattgctgat aaatctggag ccggtgagcg tggaagccgc ggtatcattg
7561 cagcactggg gccagatggt aagccctccc gtatcgtagt tatctacacg acggggagtc
7621 aggcaactat ggatgaacga aatagacaga tcgctgagat aggtgcctca ctgattaagc
7681 attggtaact gtcagaccaa gtttactcat atatacttta gattgattta aaacttcatt
7741 tttaatttaa aaggatctag gtgaagatcc tttttgataa tctcatgacc aaaatccctt
7801 aacgtgagtt ttcgttccac tgagcgtcag accccgtaga aaagatcaaa ggatcttctt
7861 gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag
7921 cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta actggcttca
7981 gcagagcgca gataccaaat actgttcttc tagtgtagcc gtagttaggc caccacttca
8041 agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca gtggctgctg
8101 ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta ccggataagg
8161 cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag cgaacgacct
8221 acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt cccgaaggga
8281 gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc acgagggagc
8341 ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac ctctgacttg
8401 agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac gccagcaacg
8461 cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgt
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
- 上一篇：pEBTet_NADP-Snifit-nucl
- 下一篇：pXPR_047
