pIRESpuro3载体质粒基本信息

出品公司: Clontech
载体名称: pIRESpuro3
质粒类型: 哺乳动物细胞表达载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5157 bp
5' 测序引物:   CMV-F: 5'-CGCAAATGGGCGGTAGGCGTG-3'
3' 测序引物: pIRES-R:5'-GCCCTAGATGCATGCTCG-3'
载体标签:
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: DH5α, HB101
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注:
pIRESpuro3载体含有IRES元件,目的基因和抗性基因以双顺反子的形式表达。
产品目录号: 6986-1
稳定性: 稳表达 或 稳表达
组成型: 组成型
病毒/非病毒: 非病毒

pIRESpuro3质粒图谱载体图谱和pIRESpuro3载体序列质粒序列多克隆位点信息

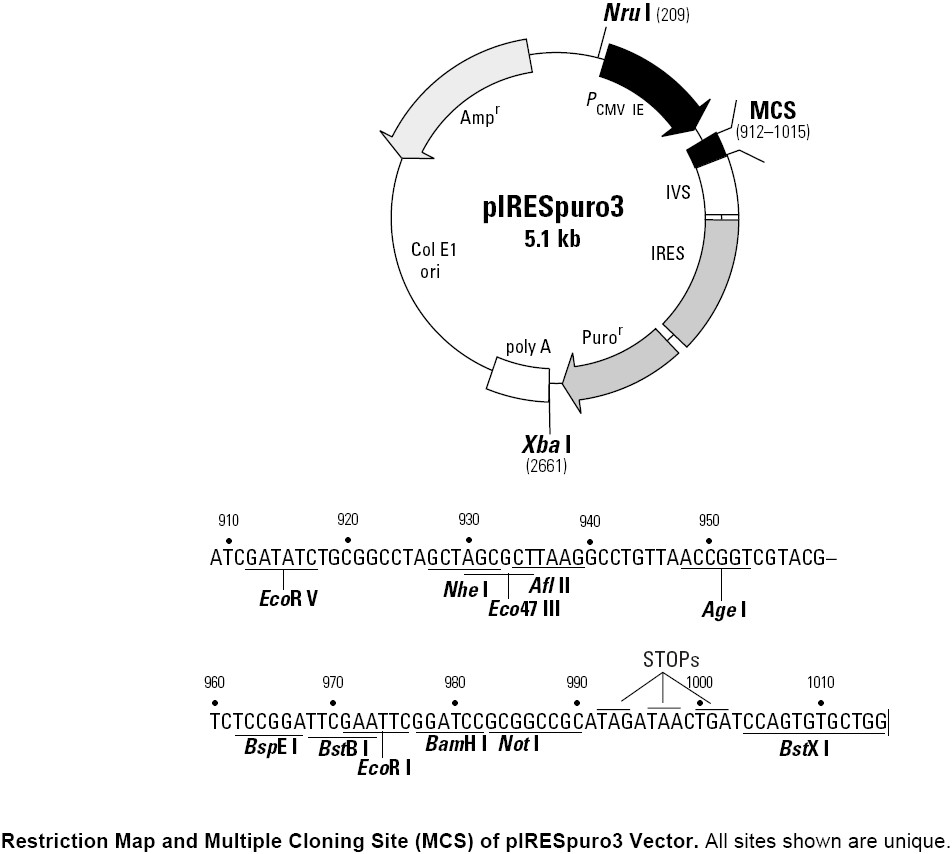

pIRESpuro3载体图谱和多克隆位点

pIRESpuro3质粒载体简介

Description
pIRESpuro3 contains the internal ribosome entry site (IRES) of the encephalomyocarditis virus (ECMV), which permits the translation of two open reading frames from one messenger RNA (1–3). After selection with puromycin, nearly all surviving colonies will stably express the gene of interest, thus decreasing the need to screen large numbers of colonies to find functional clones. To select for cells that express high levels of the gene of interest, the selective pressure for antibiotic resistance was increased by shifting the puromycin resistance gene downstream to a less optimal position for translation as directed by the IRES sequence (3). By decreasing the level of expression of the antibiotic resistance marker, the selective pressure on the entire expression cassette is increased, resulting in selection for cells that express the entire transcript, including the gene of interest, at high levels. The expression cassette of pIRESpuro3 contains the human cytomegalovirus (CMV) major immediate early promoter/enhancer followed by a multiple cloning site (MCS) that precedes stop codons in all three reading frames, a synthetic intron known to enhance the stability of the mRNA (4), the ECMV IRES followed by the gene encoding puromycin resistance (puromycin-N-acetyltransferase; 5), and the polyadenylation signal from SV40. Ribosomes can enter the bicistronic mRNA at the 5' end to translate the gene of interest and at the ECMV IRES to translate the antibiotic resistance marker.

Use
When using the pIRESpuro3 Vector, the antibiotic exerts selective pressure on the whole expression cassette; thus, a high dose of antibiotic will select for cells expressing a high level of the gene of interest. This selective pressure also ensures that the expression of the gene of interest will be stable

pIRESpuro3质粒序列载体序列

LOCUS       pIRESpuro3   5171 bp    DNA   circular            16-NOV-2009
COMMENT     Created by Clontech Laboratories Inc. http://www.biofeng.com
COMMENT     Cat. No. 631619
FEATURES             Location/Qualifiers
     misc_feature    309..810
                     /label=CMV\IE\Promoter/Enhancer
     misc_feature    863..879
                     /label=T7\RNA\Polymerase\Promoter
     misc_feature    912..1015
                     /label=MCS
     misc_feature    1015..1310
                     /label=IVS
     misc_feature    1336..1926
                     /label=IRES
     misc_feature    1959..2555
                     /label=Puro(R)
     misc_feature    2822..2827
                     /label=SV40\polyA\signal
     misc_feature    2851..2856
                     /label=SV40\polyA\signal
     misc_feature    3411..4010
                     /label=pUC\origin
     misc_feature    complement(4172..5032)
                     /label=Amp(R)
BASE COUNT     1207 a      1429 c      1303 g      1232 t
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gcttggtacc
      901 gagctcggat cgatatctgc ggcctagcta gcgcttaagg cctgttaacc ggtcgtacgt
      961 ctccggattc gaattcggat ccgcggccgc atagataact gatccagtgt gctggaatta
     1021 attcgctgtc tgcgagggcc agctgttggg gtgagtactc cctctcaaaa gcgggcatga
     1081 cttctgcgct aagattgtca gtttccaaaa acgaggagga tttgatattc acctggcccg
     1141 cggtgatgcc tttgagggtg gccgcgtcca tctggtcaga aaagacaatc tttttgttgt
     1201 caagcttgag gtgtggcagg cttgagatct ggccatacac ttgagtgaca atgacatcca
     1261 ctttgccttt ctctccacag gtgtccactc ccaggtccaa ctgcaggtcg agcatgcatc
     1321 tagggcggcc aattccgccc ctctcccccc cccccctctc cctccccccc ccctaacgtt
     1381 actggccgaa gccgcttgga ataaggccgg tgtgcgtttg tctatatgtt attttccacc
     1441 atattgccgt cttttggcaa tgtgagggcc cggaaacctg gccctgtctt cttgacgagc
     1501 attcctaggg gtctttcccc tctcgccaaa ggaatgcaag gtctgttgaa tgtcgtgaag
     1561 gaagcagttc ctctggaagc ttcttgaaga caaacaacgt ctgtagcgac cctttgcagg
     1621 cagcggaacc ccccacctgg cgacaggtgc ctctgcggcc aaaagccacg tgtataagat
     1681 acacctgcaa aggcggcaca accccagtgc cacgttgtga gttggatagt tgtggaaaga
     1741 gtcaaatggc tctcctcaag cgtattcaac aaggggctga aggatgccca gaaggtaccc
     1801 cattgtatgg gatctgatct ggggcctcgg tgcacatgct ttacatgtgt ttagtcgagg
     1861 ttaaaaaaac gtctaggccc cccgaaccac ggggacgtgg ttttcctttg aaaaacacga
     1921 tgataagctt gccacaaccc acaaggagac gaccttccat gaccgagtac aagcccacgg
     1981 tgcgcctcgc cacccgcgac gacgtccccc gggccgtacg caccctcgcc gccgcgttcg
     2041 ccgactaccc cgccacgcgc cacaccgtcg acccggaccg ccacatcgag cgggtcaccg
     2101 agctgcaaga actcttcctc acgcgcgtcg ggctcgacat cggcaaggtg tgggtcgcgg
     2161 acgacggcgc cgcggtggcg gtctggacca cgccggagag cgtcgaagcg ggggcggtgt
     2221 tcgccgagat cggcccgcgc atggccgagt tgagcggttc ccggctggcc gcgcagcaac
     2281 agatggaagg cctcctggcg ccgcaccggc ccaaggagcc cgcgtggttc ctggccaccg
     2341 tcggcgtctc gcccgaccac cagggcaagg gtctgggcag cgccgtcgtg ctccccggag
     2401 tggaggcggc cgagcgcgcc ggggtgcccg ccttcctgga gacctccgcg ccccgcaacc
     2461 tccccttcta cgagcggctc ggcttcaccg tcaccgccga cgtcgaggtg cccgaaggac
     2521 cgcgcacctg gtgcatgacc cgcaagcccg gtgcctgacg cccgccccac gacccgcagc
     2581 gcccgaccga aaggagcgca cgaccccatg gctccgaccg aagccacccg gggcggcccc
     2641 gccgaccccg cacccgcccc cgaggcccac cgactctaga taactgatca taatcagcca
     2701 taccacattt gtagaggttt tacttgcttt aaaaaacctc ccacacctcc ccctgaacct
     2761 gaaacataaa atgaatgcaa ttgttgttgt taacttgttt attgcagctt ataatggtta
     2821 caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac tgcattctag
     2881 ttgtggtttg tccaaactca tcaatgtatc ttaacgctcg agtgcattct agttgtggtt
     2941 tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct agctagagct
     3001 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     3061 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     3121 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     3181 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg
     3241 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
     3301 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
     3361 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     3421 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     3481 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     3541 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     3601 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     3661 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     3721 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     3781 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     3841 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     3901 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt
     3961 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct
     4021 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga
     4081 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa
     4141 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac
     4201 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga
     4261 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc
     4321 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca
     4381 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta
     4441 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg
     4501 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc
     4561 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg
     4621 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt
     4681 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt
     4741 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata
     4801 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc
     4861 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac
     4921 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa
     4981 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct
     5041 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat
     5101 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc
     5161 cacctgacgt c
//

pIRESpuro3载体图谱质粒图谱pdf版和pIRESpuro3载体序列质粒序列等相关资料下载

pIRESpuro3质粒载体应用举例
