质粒名称: | BPK764 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 65767 |
存储实验室: | Keith Joung |
载体骨架基本信息 |
|
载体名称: | pACYCDuet-1 |
载体出品公司: | EMD Millipore |
载体抗性: | 氯霉素 |
载体类型: | Bacterial Expression, CRISPR |
高拷贝/低拷贝: | 低拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | mammalian codon-optimized Streptococcus pyogenes Cas9-NLS-3XFlag, and SpCas9 gRNA |
启动子 | T7 (x2) |
标签/融合蛋白: |
NLS (C terminal on insert)
3x FLAG (C terminal on insert)
|
克隆方法: | Gibson Cloning |
5' 测序引物 | ACYC-DuetUP1 |
3' 测序引物 | oBK390 (5'-GCAAATTCGACCCGGTCGTCG-3') |
文献引用方法 |
|
材料和方法部分: | BPK764 was a gift from Keith Joung (爱迪基因 plasmid # 65767) |
参考文献部分: | Engineered CRISPR-Cas9 nucleases with altered PAM specificities. Kleinstiver BP, Prew MS, Tsai SQ, Topkar VV, Nguyen NT, Zheng Z, Gonzales AP, Li Z, Peterson RT, Yeh JJ, Aryee MJ, Joung JK. Nature. 2015 Jun 22. doi: 10.1038/nature14592. 10.1038/nature14592 PubMed 26098369 |
买家导航
载体基本信息

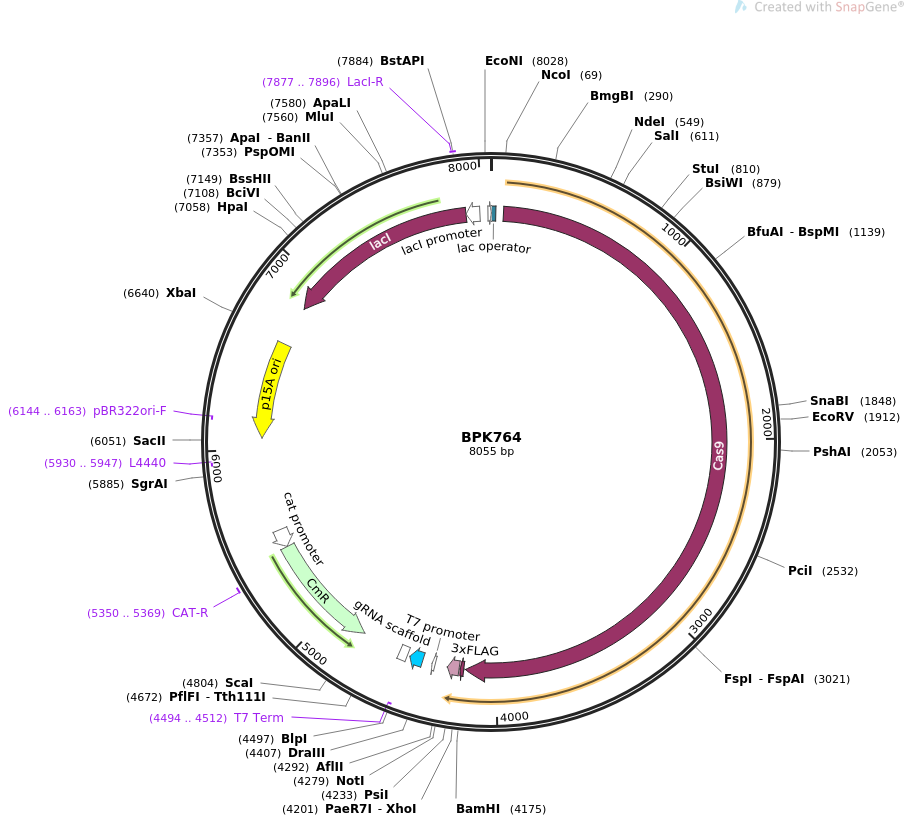

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS BPK764 8055 bp ds-DNA circular SYN 10-JAN-2018 DEFINITION Bacterial expression plasmid for SpCas9. ACCESSION . VERSION . KEYWORDS BPK764 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 8055) AUTHORS Kleinstiver BP, Prew MS, Tsai SQ, Topkar VV, Nguyen NT, Zheng Z, Gonzales AP, Li Z, Peterson RT, Yeh JJ, Aryee MJ, Joung JK TITLE Engineered CRISPR-Cas9 nucleases with altered PAM specificities. JOURNAL Nature. 2015 Jun 22. doi: 10.1038/nature14592. PUBMED 26098369 COMMENT This file is created by Vector NTI http://www.biofeng.com/ COMMENT ORIGDB|GenBank COMMENT VNTAUTHORNAME|biofeng.com| COMMENT VNTNAME|BPK764| FEATURES Location/Qualifiers source 1..8055 /organism="synthetic DNA construct" /mol_type="other DNA" protein_bind 3..27 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." CDS 71..4174 /codon_start=1 /product="Cas9 (Csn1) endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=Cas9 /note="generates RNA-guided double strand breaks in DNA" /translation="MDKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY LYYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL DATLIHQSITGLYETRIDLSQLGGD" CDS 4181..4201 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 4208..4273 /codon_start=1 /product="three tandem FLAG(R) epitope tags, followed by an enterokinase cleavage site" /label=3xFLAG /translation="DYKDHDGDYKDHDIDYKDDDDK" promoter 4343..4361 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" misc_RNA 4417..4492 /label=gRNA scaffold /note="guide RNA scaffold for the Streptococcus pyogenes CRISPR/Cas9 system" primer_bind complement(4494..4512) /label=T7 Term /note="T7 terminator, reverse primer" terminator 4508..4555 /label=T7 terminator /note="transcription terminator for bacteriophage T7 RNA polymerase" CDS complement(4776..5435) /codon_start=1 /gene="cat" /product="chloramphenicol acetyltransferase" /label=CmR /note="confers resistance to chloramphenicol" /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA" primer_bind 5350..5369 /label=CAT-R /note="Chloramphenicol resistance gene, reverse primer" promoter complement(5436..5538) /label=cat promoter /note="promoter of the E. coli cat gene encoding chloramphenicol acetyltransferase" primer_bind complement(5930..5947) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(6064..6608) /direction=LEFT /label=p15A ori /note="Plasmids containing the medium-copy-number p15A origin of replication can be propagated in E. coli cells that contain a second plasmid with the ColE1 origin. " primer_bind complement(6144..6163) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(6833..7915) /codon_start=1 /gene="lacI" /product="lac repressor" /label=lacI /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR ALADSLMQLARQVSRLESGQ" primer_bind 7877..7896 /label=LacI-R /note="LacI, reverse primer" promoter complement(7916..7993) /gene="lacI" /label=lacI promoter promoter 8039..2 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" ORIGIN 1 ggggaattgt gagcggataa caattcccct gtagaaataa ttttgtttaa ctttaataag 61 gagatatacc atggataaaa agtattctat tggtttagac atcggcacta attccgttgg 121 atgggctgtc ataaccgatg aatacaaagt accttcaaag aaatttaagg tgttggggaa 181 cacagaccgt cattcgatta aaaagaatct tatcggtgcc ctcctattcg atagtggcga 241 aacggcagag gcgactcgcc tgaaacgaac cgctcggaga aggtatacac gtcgcaagaa 301 ccgaatatgt tacttacaag aaatttttag caatgagatg gccaaagttg acgattcttt 361 ctttcaccgt ttggaagagt ccttccttgt cgaagaggac aagaaacatg aacggcaccc 421 catctttgga aacatagtag atgaggtggc atatcatgaa aagtacccaa cgatttatca 481 cctcagaaaa aagctagttg actcaactga taaagcggac ctgaggttaa tctacttggc 541 tcttgcccat atgataaagt tccgtgggca ctttctcatt gagggtgatc taaatccgga 601 caactcggat gtcgacaaac tgttcatcca gttagtacaa acctataatc agttgtttga 661 agagaaccct ataaatgcaa gtggcgtgga tgcgaaggct attcttagcg cccgcctctc 721 taaatcccga cggctagaaa acctgatcgc acaattaccc ggagagaaga aaaatgggtt 781 gttcggtaac cttatagcgc tctcactagg cctgacacca aattttaagt cgaacttcga 841 cttagctgaa gatgccaaat tgcagcttag taaggacacg tacgatgacg atctcgacaa 901 tctactggca caaattggag atcagtatgc ggacttattt ttggctgcca aaaaccttag 961 cgatgcaatc ctcctatctg acatactgag agttaatact gagattacca aggcgccgtt 1021 atccgcttca atgatcaaaa ggtacgatga acatcaccaa gacttgacac ttctcaaggc 1081 cctagtccgt cagcaactgc ctgagaaata taaggaaata ttctttgatc agtcgaaaaa 1141 cgggtacgca ggttatattg acggcggagc gagtcaagag gaattctaca agtttatcaa 1201 acccatatta gagaagatgg atgggacgga agagttgctt gtaaaactca atcgcgaaga 1261 tctactgcga aagcagcgga ctttcgacaa cggtagcatt ccacatcaaa tccacttagg 1321 cgaattgcat gctatactta gaaggcagga ggatttttat ccgttcctca aagacaatcg 1381 tgaaaagatt gagaaaatcc taacctttcg cataccttac tatgtgggac ccctggcccg 1441 agggaactct cggttcgcat ggatgacaag aaagtccgaa gaaacgatta ctccctggaa 1501 ttttgaggaa gttgtcgata aaggtgcgtc agctcaatcg ttcatcgaga ggatgaccaa 1561 ctttgacaag aatttaccga acgaaaaagt attgcctaag cacagtttac tttacgagta 1621 tttcacagtg tacaatgaac tcacgaaagt taagtatgtc actgagggca tgcgtaaacc 1681 cgcctttcta agcggagaac agaagaaagc aatagtagat ctgttattca agaccaaccg 1741 caaagtgaca gttaagcaat tgaaagagga ctactttaag aaaattgaat gcttcgattc 1801 tgtcgagatc tccggggtag aagatcgatt taatgcgtca cttggtacgt atcatgacct 1861 cctaaagata attaaagata aggacttcct ggataacgaa gagaatgaag atatcttaga 1921 agatatagtg ttgactctta ccctctttga agatcgggaa atgattgagg aaagactaaa 1981 aacatacgct cacctgttcg acgataaggt tatgaaacag ttaaagaggc gtcgctatac 2041 gggctgggga cgattgtcgc ggaaacttat caacgggata agagacaagc aaagtggtaa 2101 aactattctc gattttctaa agagcgacgg cttcgccaat aggaacttta tgcagctgat 2161 ccatgatgac tctttaacct tcaaagagga tatacaaaag gcacaggttt ccggacaagg 2221 ggactcattg cacgaacata ttgcgaatct tgctggttcg ccagccatca aaaagggcat 2281 actccagaca gtcaaagtag tggatgagct agttaaggtc atgggacgtc acaaaccgga 2341 aaacattgta atcgagatgg cacgcgaaaa tcaaacgact cagaaggggc aaaaaaacag 2401 tcgagagcgg atgaagagaa tagaagaggg tattaaagaa ctgggcagcc agatcttaaa 2461 ggagcatcct gtggaaaata cccaattgca gaacgagaaa ctttacctct attacctaca 2521 aaatggaagg gacatgtatg ttgatcagga actggacata aaccgtttat ctgattacga 2581 cgtcgatcac attgtacccc aatccttttt gaaggacgat tcaatcgaca ataaagtgct 2641 tacacgctcg gataagaacc gagggaaaag tgacaatgtt ccaagcgagg aagtcgtaaa 2701 gaaaatgaag aactattggc ggcagctcct aaatgcgaaa ctgataacgc aaagaaagtt 2761 cgataactta actaaagctg agaggggtgg cttgtctgaa cttgacaagg ccggatttat 2821 taaacgtcag ctcgtggaaa cccgccaaat cacaaagcat gttgcacaga tactagattc 2881 ccgaatgaat acgaaatacg acgagaacga taagctgatt cgggaagtca aagtaatcac 2941 tttaaagtca aaattggtgt cggacttcag aaaggatttt caattctata aagttaggga 3001 gataaataac taccaccatg cgcacgacgc ttatcttaat gccgtcgtag ggaccgcact 3061 cattaagaaa tacccgaagc tagaaagtga gtttgtgtat ggtgattaca aagtttatga 3121 cgtccgtaag atgatcgcga aaagcgaaca ggagataggc aaggctacag ccaaatactt 3181 cttttattct aacattatga atttctttaa gacggaaatc actctggcaa acggagagat 3241 acgcaaacga cctttaattg aaaccaatgg ggagacaggt gaaatcgtat gggataaggg 3301 ccgggacttc gcgacggtga gaaaagtttt gtccatgccc caagtcaaca tagtaaagaa 3361 aactgaggtg cagaccggag ggttttcaaa ggaatcgatt cttccaaaaa ggaatagtga 3421 taagctcatc gctcgtaaaa aggactggga cccgaaaaag tacggtggct tcgatagccc 3481 tacagttgcc tattctgtcc tagtagtggc aaaagttgag aagggaaaat ccaagaaact 3541 gaagtcagtc aaagaattat tggggataac gattatggag cgctcgtctt ttgaaaagaa 3601 ccccatcgac ttccttgagg cgaaaggtta caaggaagta aaaaaggatc tcataattaa 3661 actaccaaag tatagtctgt ttgagttaga aaatggccga aaacggatgt tggctagcgc 3721 cggagagctt caaaagggga acgaactcgc actaccgtct aaatacgtga atttcctgta 3781 tttagcgtcc cattacgaga agttgaaagg ttcacctgaa gataacgaac agaagcaact 3841 ttttgttgag cagcacaaac attatctcga cgaaatcata gagcaaattt cggaattcag 3901 taagagagtc atcctagctg atgccaatct ggacaaagta ttaagcgcat acaacaagca 3961 cagggataaa cccatacgtg agcaggcgga aaatattatc catttgttta ctcttaccaa 4021 cctcggcgct ccagccgcat tcaagtattt tgacacaacg atagatcgca aacgatacac 4081 ttctaccaag gaggtgctag acgcgacact gattcaccaa tccatcacgg gattatatga 4141 aactcggata gatttgtcac agcttggggg tgacggatcc cccaagaaga agaggaaagt 4201 ctcgagcgac tacaaagacc atgacggtga ttataaagat catgacatcg attacaagga 4261 tgacgatgac aagtgaagcg gccgcataat gcttaagtcg aacagaaagt aatcgtattg 4321 tacacggccg cataatcgaa attaatacga ctcactatag ggagacccat gccatagcgt 4381 tgttcggaac agattcacca acacctagtg gtctccgttt tagagctaga aatagcaagt 4441 taaaataagg ctagtccgtt atcaacttga aaaagtggca ccgagtcggt gctccgctga 4501 gcaataacta gcataacccc ttggggcctc taaacgggtc ttgaggggtt ttttgctgaa 4561 acctcaggca tttgagaagc acacggtcac actgcttccg gtagtcaata aaccggtaaa 4621 ccagcaatag acataagcgg ctatttaacg accctgccct gaaccgacga ccgggtcgaa 4681 tttgctttcg aatttctgcc attcatccgc ttattatcac ttattcaggc gtagcaacca 4741 ggcgtttaag ggcaccaata actgccttaa aaaaattacg ccccgccctg ccactcatcg 4801 cagtactgtt gtaattcatt aagcattctg ccgacatgga agccatcaca aacggcatga 4861 tgaacctgaa tcgccagcgg catcagcacc ttgtcgcctt gcgtataata tttgcccata 4921 gtgaaaacgg gggcgaagaa gttgtccata ttggccacgt ttaaatcaaa actggtgaaa 4981 ctcacccagg gattggctga gacgaaaaac atattctcaa taaacccttt agggaaatag 5041 gccaggtttt caccgtaaca cgccacatct tgcgaatata tgtgtagaaa ctgccggaaa 5101 tcgtcgtggt attcactcca gagcgatgaa aacgtttcag tttgctcatg gaaaacggtg 5161 taacaagggt gaacactatc ccatatcacc agctcaccgt ctttcattgc catacggaac 5221 tccggatgag cattcatcag gcgggcaaga atgtgaataa aggccggata aaacttgtgc 5281 ttatttttct ttacggtctt taaaaaggcc gtaatatcca gctgaacggt ctggttatag 5341 gtacattgag caactgactg aaatgcctca aaatgttctt tacgatgcca ttgggatata 5401 tcaacggtgg tatatccagt gatttttttc tccattttag cttccttagc tcctgaaaat 5461 ctcgataact caaaaaatac gcccggtagt gatcttattt cattatggtg aaagttggaa 5521 cctcttacgt gccgatcaac gtctcatttt cgccaaaagt tggcccaggg cttcccggta 5581 tcaacaggga caccaggatt tatttattct gcgaagtgat cttccgtcac aggtatttat 5641 tcggcgcaaa gtgcgtcggg tgatgctgcc aacttactga tttagtgtat gatggtgttt 5701 ttgaggtgct ccagtggctt ctgtttctat cagctgtccc tcctgttcag ctactgacgg 5761 ggtggtgcgt aacggcaaaa gcaccgccgg acatcagcgc tagcggagtg tatactggct 5821 tactatgttg gcactgatga gggtgtcagt gaagtgcttc atgtggcagg agaaaaaagg 5881 ctgcaccggt gcgtcagcag aatatgtgat acaggatata ttccgcttcc tcgctcactg 5941 actcgctacg ctcggtcgtt cgactgcggc gagcggaaat ggcttacgaa cggggcggag 6001 atttcctgga agatgccagg aagatactta acagggaagt gagagggccg cggcaaagcc 6061 gtttttccat aggctccgcc cccctgacaa gcatcacgaa atctgacgct caaatcagtg 6121 gtggcgaaac ccgacaggac tataaagata ccaggcgttt cccctggcgg ctccctcgtg 6181 cgctctcctg ttcctgcctt tcggtttacc ggtgtcattc cgctgttatg gccgcgtttg 6241 tctcattcca cgcctgacac tcagttccgg gtaggcagtt cgctccaagc tggactgtat 6301 gcacgaaccc cccgttcagt ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc 6361 caacccggaa agacatgcaa aagcaccact ggcagcagcc actggtaatt gatttagagg 6421 agttagtctt gaagtcatgc gccggttaag gctaaactga aaggacaagt tttggtgact 6481 gcgctcctcc aagccagtta cctcggttca aagagttggt agctcagaga accttcgaaa 6541 aaccgccctg caaggcggtt ttttcgtttt cagagcaaga gattacgcgc agaccaaaac 6601 gatctcaaga agatcatctt attaatcaga taaaatattt ctagatttca gtgcaattta 6661 tctcttcaaa tgtagcacct gaagtcagcc ccatacgata taagttgtaa ttctcatgtt 6721 agtcatgccc cgcgcccacc ggaaggagct gactgggttg aaggctctca agggcatcgg 6781 tcgagatccc ggtgcctaat gagtgagcta acttacatta attgcgttgc gctcactgcc 6841 cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc aacgcgcggg 6901 gagaggcggt ttgcgtattg ggcgccaggg tggtttttct tttcaccagt gagacgggca 6961 acagctgatt gcccttcacc gcctggccct gagagagttg cagcaagcgg tccacgctgg 7021 tttgccccag caggcgaaaa tcctgtttga tggtggttaa cggcgggata taacatgagc 7081 tgtcttcggt atcgtcgtat cccactaccg agatgtccgc accaacgcgc agcccggact 7141 cggtaatggc gcgcattgcg cccagcgcca tctgatcgtt ggcaaccagc atcgcagtgg 7201 gaacgatgcc ctcattcagc atttgcatgg tttgttgaaa accggacatg gcactccagt 7261 cgccttcccg ttccgctatc ggctgaattt gattgcgagt gagatattta tgccagccag 7321 ccagacgcag acgcgccgag acagaactta atgggcccgc taacagcgcg atttgctggt 7381 gacccaatgc gaccagatgc tccacgccca gtcgcgtacc gtcttcatgg gagaaaataa 7441 tactgttgat gggtgtctgg tcagagacat caagaaataa cgccggaaca ttagtgcagg 7501 cagcttccac agcaatggca tcctggtcat ccagcggata gttaatgatc agcccactga 7561 cgcgttgcgc gagaagattg tgcaccgccg ctttacaggc ttcgacgccg cttcgttcta 7621 ccatcgacac caccacgctg gcacccagtt gatcggcgcg agatttaatc gccgcgacaa 7681 tttgcgacgg cgcgtgcagg gccagactgg aggtggcaac gccaatcagc aacgactgtt 7741 tgcccgccag ttgttgtgcc acgcggttgg gaatgtaatt cagctccgcc atcgccgctt 7801 ccactttttc ccgcgttttc gcagaaacgt ggctggcctg gttcaccacg cgggaaacgg 7861 tctgataaga gacaccggca tactctgcga catcgtataa cgttactggt ttcacattca 7921 ccaccctgaa ttgactctct tccgggcgct atcatgccat accgcgaaag gttttgcgcc 7981 attcgatggt gtccgggatc tcgacgctct cccttatgcg actcctgcat taggaaatta 8041 atacgactca ctata //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
