CRY2low-mCherry

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: CRY2low-mCherry
出品公司: addgene
目录编号: 104065
存储实验室: Bianxiao Cui

载体骨架基本信息
载体名称: pmCherryN1
空载体大小: 4000 bp
完整质粒大小: 6200 bp
载体类型: 哺乳细胞表达
载体抗性: Kanamycin
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 未知

插入基因信息
插入基因名称: CRY2low-mCherry/CRY2PHR/Cherry
物种来源: A. thaliana (mustard weed)芥花(芥菜杂草)
插入大小: 951 bp
基因突变: CRY2 aa 1-491 truncation, R489E A491D
启动子: CMV
克隆方法: Gibson Cloning
5’测序引物 CMV forward

文献引用方法
材料和方法部分: CRY2low-mCherry was a gift from Bianxiao Cui (Addgene plasmid # 104065 ; http://n2t.net/addgene:104065 ; RRID:Addgene_104065)
参考文献部分: Understanding CRY2 interactions for optical control of intracellular signaling. Duan L, Hope J, Ong Q, Lou HY, Kim N, McCarthy C, Acero V, Lin MZ, Cui B. Nat Commun. 2017 Sep 15;8(1):547. doi: 10.1038/s41467-017-00648-8. 10.1038/s41467-017-00648-8 [pii] PubMed 28916751

载体图谱质粒图谱和多克隆位点信息

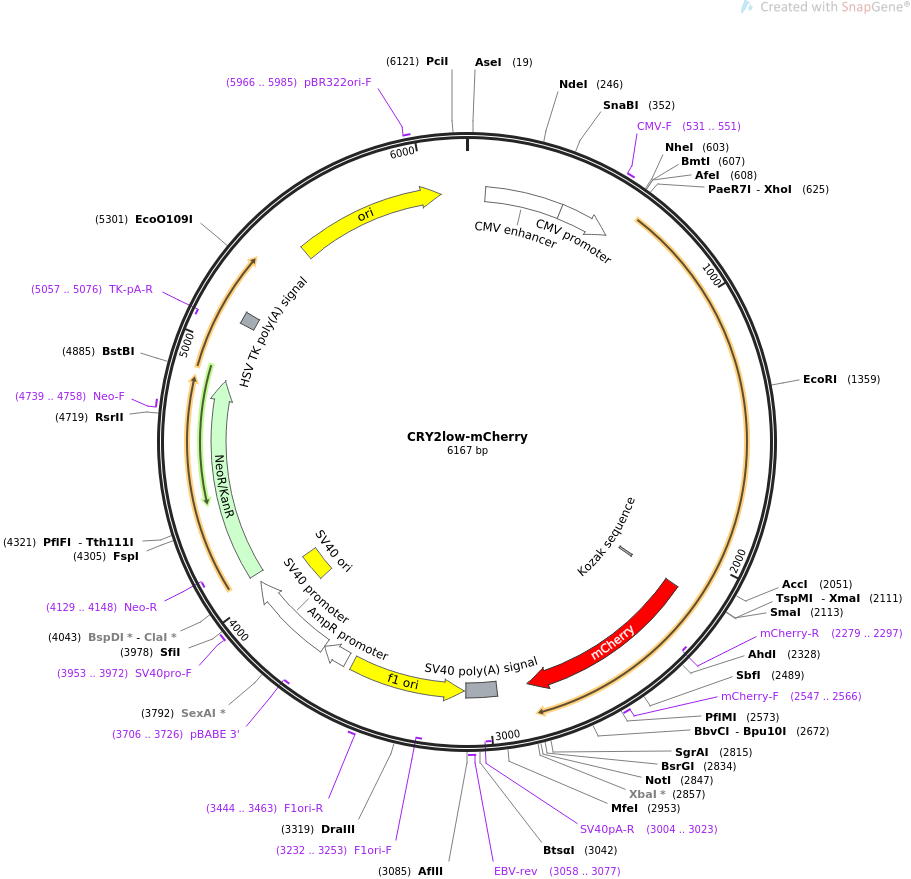

CRY2low-mCherry质粒图谱

载体简介

载体序列

LOCUS       CRY2low-mCherry                6167 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expresses fusion of CRY2low mutant (CRY2 aa1-491 R489E A491D) with
            mCherry.
ACCESSION   .
VERSION     .
KEYWORDS    CRY2low-mCherry
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6167)
  AUTHORS   Duan L, Hope J, Ong Q, Lou HY, Kim N, McCarthy C, Acero V, Lin MZ,
            Cui B
  TITLE     Understanding CRY2 interactions for optical control of intracellular
            signaling.
  JOURNAL   Nat Commun. 2017 Sep 15;8(1):547. doi: 10.1038/s41467-017-00648-8.
  PUBMED    28916751
REFERENCE   2  (bases 1 to 6167)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6167
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        73..376
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        377..580
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     531..551
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      2128..2137
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             2134..2844
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(2279..2297)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     2547..2566
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     polyA_signal    2967..3088
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3004..3023)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3058..3077
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(3095..3550)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3232..3253)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     3444..3463
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        3577..3681
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3683..4040
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(3706..3726)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3891..4026
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3953..3972
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             4075..4869
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(4129..4148)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4739..4758
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(5057..5076)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    5101..5148
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      5477..6065
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5966..5985
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 accgccatgc attagttatt aatagtaatc aattacgggg tcattagttc atagcccata
       61 tatggagttc cgcgttacat aacttacggt aaatggcccg cctggctgac cgcccaacga
      121 cccccgccca ttgacgtcaa taatgacgta tgttcccata gtaacgccaa tagggacttt
      181 ccattgacgt caatgggtgg agtatttacg gtaaactgcc cacttggcag tacatcaagt
      241 gtatcatatg ccaagtacgc cccctattga cgtcaatgac ggtaaatggc ccgcctggca
      301 ttatgcccag tacatgacct tatgggactt tcctacttgg cagtacatct acgtattagt
      361 catcgctatt accatggtga tgcggttttg gcagtacatc aatgggcgtg gatagcggtt
      421 tgactcacgg ggatttccaa gtctccaccc cattgacgtc aatgggagtt tgttttggca
      481 ccaaaatcaa cgggactttc caaaatgtcg taacaactcc gccccattga cgcaaatggg
      541 cggtaggcgt gtacggtggg aggtctatat aagcagagct ggtttagtga accgtcagat
      601 ccgctagcgc taccggactc agatctcgag gccaccatga agatggacaa aaagactata
      661 gtttggttta gaagagacct aaggattgag gataatcctg cattagcagc agctgctcac
      721 gaaggatctg tttttcctgt cttcatttgg tgtcctgaag aagaaggaca gttttatcct
      781 ggaagagctt caagatggtg gatgaaacaa tcacttgctc acttatctca atccttgaag
      841 gctcttggat ctgacctcac tttaatcaaa acccacaaca cgatttcagc gatcttggat
      901 tgtatccgcg ttaccggtgc tacaaaagtc gtctttaacc acctctatga tcctgtttcg
      961 ttagttcggg accataccgt aaaggagaag ctggtggaac gtgggatctc tgtgcaaagc
     1021 tacaatggag atctattgta tgaaccgtgg gagatatact gcgaaaaggg caaacctttt
     1081 acgagtttca attcttactg gaagaaatgc ttagatatgt cgattgaatc cgttatgctt
     1141 cctcctcctt ggcggttgat gccaataact gcagcggctg aagcgatttg ggcgtgttcg
     1201 attgaagaac tagggctgga gaatgaggcc gagaaaccga gcaatgcgtt gttaactaga
     1261 gcttggtctc caggatggag caatgctgat aagttactaa atgagttcat cgagaagcag
     1321 ttgatagatt atgcaaagaa cagcaagaaa gttgttggga attctacttc actactttct
     1381 ccgtatctcc atttcgggga aataagcgtc agacacgttt tccagtgtgc ccggatgaaa
     1441 caaattatat gggcaagaga taagaacagt gaaggagaag aaagtgcaga tctttttctt
     1501 aggggaatcg gtttaagaga gtattctcgg tatatatgtt tcaacttccc gtttactcac
     1561 gagcaatcgt tgttgagtca tcttcggttt ttcccttggg atgctgatgt tgataagttc
     1621 aaggcctgga gacaaggcag gaccggttat ccgttggtgg atgccggaat gagagagctt
     1681 tgggctaccg gatggatgca taacagaata agagtgattg tttcaagctt tgctgtgaag
     1741 tttcttctcc ttccatggaa atggggaatg aagtatttct gggatacact tttggatgct
     1801 gatttggaat gtgacatcct tggctggcag tatatctctg ggagtatccc cgatggccac
     1861 gagcttgatc gcttggacaa tcccgcgtta caaggcgcca aatatgaccc agaaggtgag
     1921 tacataaggc aatggcttcc cgagcttgcg agattgccaa ctgaatggat ccatcatcca
     1981 tgggacgctc ctttaaccgt actcaaagct tctggtgtgg aactcggaac aaactatgcg
     2041 aaacccattg tagacatcga cacagctcgt gagctactag ctaaagctat ttcaagaacc
     2101 gaggaagacg cccgggatcc accggtcgcc accatggtga gcaagggcga ggaggataac
     2161 atggccatca tcaaggagtt catgcgcttc aaggtgcaca tggagggctc cgtgaacggc
     2221 cacgagttcg agatcgaggg cgagggcgag ggccgcccct acgagggcac ccagaccgcc
     2281 aagctgaagg tgaccaaggg tggccccctg cccttcgcct gggacatcct gtcccctcag
     2341 ttcatgtacg gctccaaggc ctacgtgaag caccccgccg acatccccga ctacttgaag
     2401 ctgtccttcc ccgagggctt caagtgggag cgcgtgatga acttcgagga cggcggcgtg
     2461 gtgaccgtga cccaggactc ctccctgcag gacggcgagt tcatctacaa ggtgaagctg
     2521 cgcggcacca acttcccctc cgacggcccc gtaatgcaga agaagaccat gggctgggag
     2581 gcctcctccg agcggatgta ccccgaggac ggcgccctga agggcgagat caagcagagg
     2641 ctgaagctga aggacggcgg ccactacgac gctgaggtca agaccaccta caaggccaag
     2701 aagcccgtgc agctgcccgg cgcctacaac gtcaacatca agttggacat cacctcccac
     2761 aacgaggact acaccatcgt ggaacagtac gaacgcgccg agggccgcca ctccaccggc
     2821 ggcatggacg agctgtacaa gtaaagcggc cgcgactcta gatcataatc agccatacca
     2881 catttgtaga ggttttactt gctttaaaaa acctcccaca cctccccctg aacctgaaac
     2941 ataaaatgaa tgcaattgtt gttgttaact tgtttattgc agcttataat ggttacaaat
     3001 aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg
     3061 gtttgtccaa actcatcaat gtatcttaag gcgtaaattg taagcgttaa tattttgtta
     3121 aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc cgaaatcggc
     3181 aaaatccctt ataaatcaaa agaatagacc gagatagggt tgagtgttgt tccagtttgg
     3241 aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa aaccgtctat
     3301 cagggcgatg gcccactacg tgaaccatca ccctaatcaa gttttttggg gtcgaggtgc
     3361 cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg acggggaaag
     3421 ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg
     3481 gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta
     3541 cagggcgcgt caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt
     3601 ttctaaatac attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa
     3661 taatattgaa aaaggaagag tcctgaggcg gaaagaacca gctgtggaat gtgtgtcagt
     3721 tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca
     3781 attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa
     3841 gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc
     3901 taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg
     3961 cagaggccga ggccgcctcg gcctctgagc tattccagaa gtagtgagga ggcttttttg
     4021 gaggcctagg cttttgcaaa gatcgatcaa gagacaggat gaggatcgtt tcgcatgatt
     4081 gaacaagatg gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat
     4141 gactgggcac aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag
     4201 gggcgcccgg ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaagac
     4261 gaggcagcgc ggctatcgtg gctggccacg acgggcgttc cttgcgcagc tgtgctcgac
     4321 gttgtcactg aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc
     4381 ctgtcatctc accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg
     4441 ctgcatacgc ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag
     4501 cgagcacgta ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat
     4561 caggggctcg cgccagccga actgttcgcc aggctcaagg cgagcatgcc cgacggcgag
     4621 gatctcgtcg tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc
     4681 ttttctggat tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg
     4741 ttggctaccc gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg
     4801 ctttacggta tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag
     4861 ttcttctgag cgggactctg gggttcgaaa tgaccgacca agcgacgccc aacctgccat
     4921 cacgagattt cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc
     4981 gggacgccgg ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc
     5041 ctagggggag gctaactgaa acacggaagg agacaatacc ggaaggaacc cgcgctatga
     5101 cggcaataaa aagacagaat aaaacgcacg gtgttgggtc gtttgttcat aaacgcgggg
     5161 ttcggtccca gggctggcac tctgtcgata ccccaccgag accccattgg ggccaatacg
     5221 cccgcgtttc ttccttttcc ccaccccacc ccccaagttc gggtgaaggc ccagggctcg
     5281 cagccaacgt cggggcggca ggccctgcca tagcctcagg ttactcatat atactttaga
     5341 ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt tttgataatc
     5401 tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagac cccgtagaaa
     5461 agatcaaagg atcttcttga gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa
     5521 aaaaaccacc gctaccagcg gtggtttgtt tgccggatca agagctacca actctttttc
     5581 cgaaggtaac tggcttcagc agagcgcaga taccaaatac tgttcttcta gtgtagccgt
     5641 agttaggcca ccacttcaag aactctgtag caccgcctac atacctcgct ctgctaatcc
     5701 tgttaccagt ggctgctgcc agtggcgata agtcgtgtct taccgggttg gactcaagac
     5761 gatagttacc ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc acacagccca
     5821 gcttggagcg aacgacctac accgaactga gatacctaca gcgtgagcta tgagaaagcg
     5881 ccacgcttcc cgaagggaga aaggcggaca ggtatccggt aagcggcagg gtcggaacag
     5941 gagagcgcac gagggagctt ccagggggaa acgcctggta tctttatagt cctgtcgggt
     6001 ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg cggagcctat
     6061 ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc cttttgctgg ccttttgctc
     6121 acatgttctt tcctgcgtta tcccctgatt ctgtggataa ccgtatt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
