Cx26-sfGFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: Cx26-sfGFP
出品公司: addgene
目录编号: 69026
存储实验室: David Spray

载体骨架基本信息
载体名称: EGFP-N1
空载体大小: 5350 bp
完整质粒大小: 5350bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: JM109
拷贝数: 高拷贝

插入基因信息
插入基因名称: Cx26
物种来源: R. norvegicus (rat)
启动子: CMV
标签/融合蛋白: non-monomerized superfolder GFP (V206) (C terminal on insert)
克隆方法: Ligation Independent Cloning
5’测序引物 CMV-F
3’测序引物 C1N1-rev: ACCTCTACAAATGTGGTATGGCTGATTATG

文献引用方法
材料和方法部分:
Cx26-sfGFP was a gift from David Spray (Addgene plasmid # 69026 ; http://n2t.net/addgene:69026 ; RRID:Addgene_69026)

参考文献部分: Connexin Type and Fluorescent Protein-fusion Tag Determine Structural Stability of Gap Junction Plaques. Stout RF Jr, Snapp EL, Spray DC. J Biol Chem. 2015 Aug 11. pii: jbc.M115.659979. 10.1074/jbc.M115.659979 PubMed 26265468

载体图谱质粒图谱和多克隆位点信息

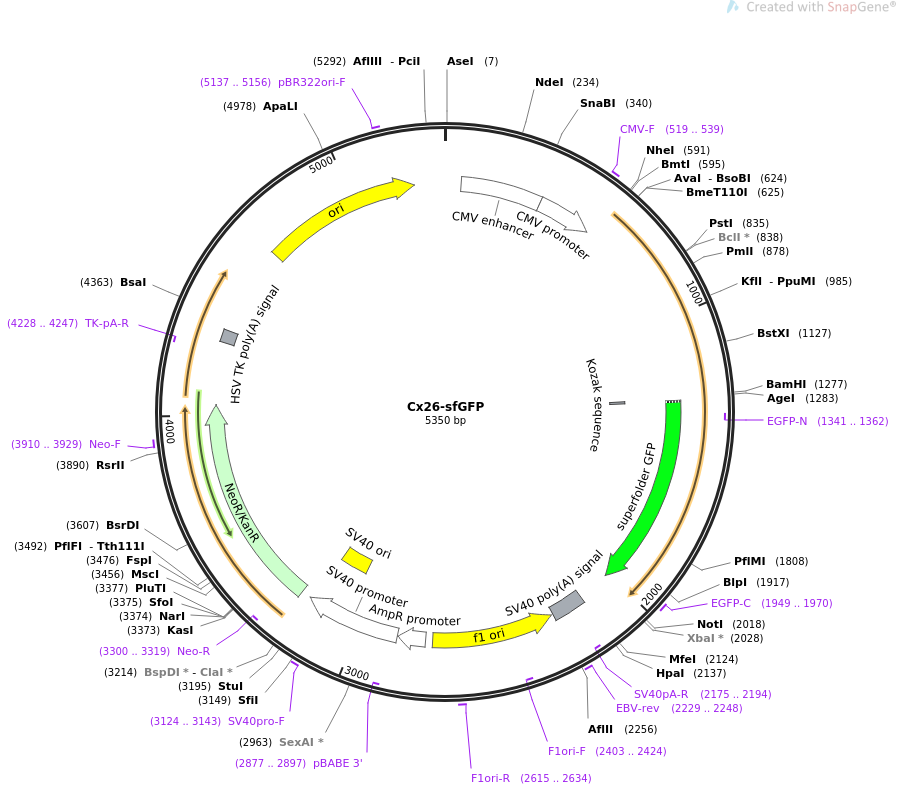

Cx26-sfGFP载体图谱

载体简介

载体序列

LOCUS       Cx26-sfGFP                5350 bp ds-DNA     circular SYN 13-MAY-2021
DEFINITION  Expresses rat Cx26 (Gjb2 CDS) with a 7 amino acid linker on the
            C-terminus of the Connexin linking to non-monomerized superfolder
            GFP. Expression driven by CMV promoter..
ACCESSION   .
VERSION     .
KEYWORDS    Cx26-sfGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5350)
  AUTHORS   Stout RF Jr, Snapp EL, Spray DC
  TITLE     Connexin Type and Fluorescent Protein-fusion Tag Determine
            Structural Stability of Gap Junction Plaques.
  JOURNAL   J Biol Chem. 2015 Aug 11. pii: jbc.M115.659979.
  PUBMED    26265468
REFERENCE   2  (bases 1 to 5350)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 13, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5350
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      1290..1299
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1296..2015
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDD
                     GTYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIK
                     ANFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLL
                     EFVTAAGITHGMDELYK"
     primer_bind     complement(1341..1362)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     1949..1970
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     polyA_signal    2138..2259
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2175..2194)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2229..2248
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2266..2721)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2403..2424)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2615..2634
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2748..2852
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2854..3211
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2877..2897)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3062..3197
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3124..3143
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3246..4040
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3300..3319)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3910..3929
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4228..4247)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4272..4319
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4648..5236
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5137..5156
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgg
      601 attggggcac actacagagc atcctcgggg gtgtcaacaa gcactccacc agcattggga
      661 aaatctggct cactgtcctc ttcatcttcc gcatcatgat cctcgtggtg gccgcgaagg
      721 aggtgtgggg agatgagcaa gccgattttg tttgcaacac tctccagcct ggctgtaaga
      781 atgtgtgcta cgaccactac ttccccatct ctcacatccg gctctgggct ctgcagctga
      841 tcatggtgtc cacgccggcc ctcctggtag ctatgcacgt ggcctaccgg agacacgaaa
      901 agaaacggaa gttcatgaag ggagagataa agaacgagtt taaggacatc gaagagatca
      961 aaacccagaa ggtccgtatc gaagggtccc tgtggtggac ctacaccacc agcatcttct
     1021 tccgggtcat cttcgaagct gtcttcatgt atgtctttta catcatgtac aatggcttct
     1081 tcatgcagcg tctggtgaag tgtaacgcct ggccttgtcc caatacagtg gactgcttca
     1141 tttccaggcc cacagaaaag actgtcttca cggtgttcat gatctctgtg tctggaattt
     1201 gcatcctgct aaacatcaca gagctgtgct atctgttcat taggtattgc tcagggaagt
     1261 ccaaaagacc agtcgcggat ccaccggtcg ccaccatggt gagcaagggc gaggagctgt
     1321 tcaccggggt ggtgcccatc ctggtcgagc tggacggcga cgtaaacggc cacaagttca
     1381 gcgtgcgcgg cgagggcgag ggcgatgcca ccaacggcaa gctgaccctg aagttcatct
     1441 gcaccaccgg caagctgccc gtgccctggc ccaccctcgt gaccaccctg acctacggcg
     1501 tgcagtgctt cagccgctac cccgaccaca tgaagcgcca cgacttcttc aagtccgcca
     1561 tgcccgaagg ctacgtccag gagcgcacca tcagcttcaa ggacgacggc acctacaaga
     1621 cccgcgccga ggtgaagttc gagggcgaca ccctggtgaa ccgcatcgag ctgaagggca
     1681 tcgacttcaa ggaggacggc aacatcctgg ggcacaagct ggagtacaac ttcaacagcc
     1741 acaacgtcta tatcaccgcc gacaagcaga agaacggcat caaggccaac ttcaagatcc
     1801 gccacaacgt ggaggacggc agcgtgcagc tcgccgacca ctaccagcag aacaccccca
     1861 tcggcgacgg ccccgtgctg ctgcccgaca accactacct gagcacccag tccgtgctga
     1921 gcaaagaccc caacgagaag cgcgatcaca tggtcctgct ggagttcgtg accgccgccg
     1981 ggatcactca cggcatggac gagctgtaca agtaaagcgg ccgcgactct agatcataat
     2041 cagccatacc acatttgtag aggttttact tgctttaaaa aacctcccac acctccccct
     2101 gaacctgaaa cataaaatga atgcaattgt tgttgttaac ttgtttattg cagcttataa
     2161 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     2221 ttctagttgt ggtttgtcca aactcatcaa tgtatcttaa ggcgtaaatt gtaagcgtta
     2281 atattttgtt aaaattcgcg ttaaattttt gttaaatcag ctcatttttt aaccaatagg
     2341 ccgaaatcgg caaaatccct tataaatcaa aagaatagac cgagataggg ttgagtgttg
     2401 ttccagtttg gaacaagagt ccactattaa agaacgtgga ctccaacgtc aaagggcgaa
     2461 aaaccgtcta tcagggcgat ggcccactac gtgaaccatc accctaatca agttttttgg
     2521 ggtcgaggtg ccgtaaagca ctaaatcgga accctaaagg gagcccccga tttagagctt
     2581 gacggggaaa gccggcgaac gtggcgagaa aggaagggaa gaaagcgaaa ggagcgggcg
     2641 ctagggcgct ggcaagtgta gcggtcacgc tgcgcgtaac caccacaccc gccgcgctta
     2701 atgcgccgct acagggcgcg tcaggtggca cttttcgggg aaatgtgcgc ggaaccccta
     2761 tttgtttatt tttctaaata cattcaaata tgtatccgct catgagacaa taaccctgat
     2821 aaatgcttca ataatattga aaaaggaaga gtcctgaggc ggaaagaacc agctgtggaa
     2881 tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag
     2941 catgcatctc aattagtcag caaccaggtg tggaaagtcc ccaggctccc cagcaggcag
     3001 aagtatgcaa agcatgcatc tcaattagtc agcaaccata gtcccgcccc taactccgcc
     3061 catcccgccc ctaactccgc ccagttccgc ccattctccg ccccatggct gactaatttt
     3121 ttttatttat gcagaggccg aggccgcctc ggcctctgag ctattccaga agtagtgagg
     3181 aggctttttt ggaggcctag gcttttgcaa agatcgatca agagacagga tgaggatcgt
     3241 ttcgcatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg gtggagaggc
     3301 tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc gtgttccggc
     3361 tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt gccctgaatg
     3421 aactgcaaga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt ccttgcgcag
     3481 ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc gaagtgccgg
     3541 ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc atggctgatg
     3601 caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac caagcgaaac
     3661 atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag gatgatctgg
     3721 acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag gcgagcatgc
     3781 ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat atcatggtgg
     3841 aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg gaccgctatc
     3901 aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa tgggctgacc
     3961 gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc
     4021 ttcttgacga gttcttctga gcgggactct ggggttcgaa atgaccgacc aagcgacgcc
     4081 caacctgcca tcacgagatt tcgattccac cgccgccttc tatgaaaggt tgggcttcgg
     4141 aatcgttttc cgggacgccg gctggatgat cctccagcgc ggggatctca tgctggagtt
     4201 cttcgcccac cctaggggga ggctaactga aacacggaag gagacaatac cggaaggaac
     4261 ccgcgctatg acggcaataa aaagacagaa taaaacgcac ggtgttgggt cgtttgttca
     4321 taaacgcggg gttcggtccc agggctggca ctctgtcgat accccaccga gaccccattg
     4381 gggccaatac gcccgcgttt cttccttttc cccaccccac cccccaagtt cgggtgaagg
     4441 cccagggctc gcagccaacg tcggggcggc aggccctgcc atagcctcag gttactcata
     4501 tatactttag attgatttaa aacttcattt ttaatttaaa aggatctagg tgaagatcct
     4561 ttttgataat ctcatgacca aaatccctta acgtgagttt tcgttccact gagcgtcaga
     4621 ccccgtagaa aagatcaaag gatcttcttg agatcctttt tttctgcgcg taatctgctg
     4681 cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc aagagctacc
     4741 aactcttttt ccgaaggtaa ctggcttcag cagagcgcag ataccaaata ctgtccttct
     4801 agtgtagccg tagttaggcc accacttcaa gaactctgta gcaccgccta catacctcgc
     4861 tctgctaatc ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt
     4921 ggactcaaga cgatagttac cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg
     4981 cacacagccc agcttggagc gaacgaccta caccgaactg agatacctac agcgtgagct
     5041 atgagaaagc gccacgcttc ccgaagggag aaaggcggac aggtatccgg taagcggcag
     5101 ggtcggaaca ggagagcgca cgagggagct tccaggggga aacgcctggt atctttatag
     5161 tcctgtcggg tttcgccacc tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg
     5221 gcggagccta tggaaaaacg ccagcaacgc ggccttttta cggttcctgg ccttttgctg
     5281 gccttttgct cacatgttct ttcctgcgtt atcccctgat tctgtggata accgtattac
     5341 cgccatgcat
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
