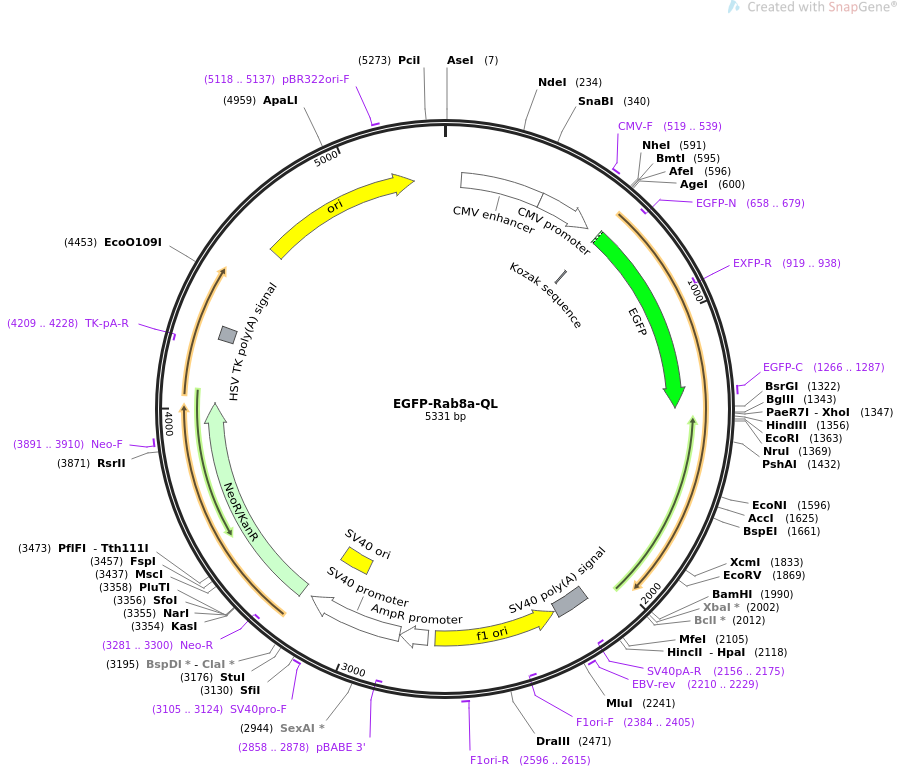

EGFP-Rab8a-QL

LOCUS      EGFP-Rab8a-QL                5331 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  A mammalian expression plasmid encoding Rab8a GTPase-deficient
            mutant (Rab8a-Q67L) with N-terminus EGFP..
ACCESSION   .
VERSION     .
KEYWORDS    EGFP-Rab8a-QL
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5331)
  AUTHORS   Madugula V, Lu L
  TITLE     A ternary complex comprising transportin1, Rab8 and the ciliary
            targeting signal directs proteins to ciliary membranes.
  JOURNAL   J Cell Sci. 2016 Oct 15;129(20):3922-3934. Epub 2016 Sep 15.
  PUBMED    27633000
REFERENCE   2  (bases 1 to 5331)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5331
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      607..616
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             613..1329
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(658..679)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(919..938)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1266..1287
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     polyA_signal    2119..2240
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2156..2175)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2210..2229
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2247..2702)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2384..2405)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2596..2615
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2729..2833
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2835..3192
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2858..2878)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3043..3178
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3105..3124
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3227..4021
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3281..3300)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3891..3910
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4209..4228)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4253..4300
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4629..5217
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5118..5137
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatggtgag caagggcgag gagctgttca ccggggtggt gcccatcctg
      661 gtcgagctgg acggcgacgt aaacggccac aagttcagcg tgtccggcga gggcgagggc
      721 gatgccacct acggcaagct gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg
      781 ccctggccca ccctcgtgac caccctgacc tacggcgtgc agtgcttcag ccgctacccc
      841 gaccacatga agcagcacga cttcttcaag tccgccatgc ccgaaggcta cgtccaggag
      901 cgcaccatct tcttcaagga cgacggcaac tacaagaccc gcgccgaggt gaagttcgag
      961 ggcgacaccc tggtgaaccg catcgagctg aagggcatcg acttcaagga ggacggcaac
     1021 atcctggggc acaagctgga gtacaactac aacagccaca acgtctatat catggccgac
     1081 aagcagaaga acggcatcaa ggtgaacttc aagatccgcc acaacatcga ggacggcagc
     1141 gtgcagctcg ccgaccacta ccagcagaac acccccatcg gcgacggccc cgtgctgctg
     1201 cccgacaacc actacctgag cacccagtcc gccctgagca aagaccccaa cgagaagcgc
     1261 gatcacatgg tcctgctgga gttcgtgacc gccgccggga tcactctcgg catggacgag
     1321 ctgtacaagt ccggccggac tcagatctcg agctcaagct tcgaattcgc gaagacctac
     1381 gattacctgt tcaagctgct gctgatcggg gactcggggg tggggaagac ctgtgtcctg
     1441 ttccgcttct ccgaggacgc cttcaactcc acttttatct ccaccatagg aattgacttt
     1501 aaaattagga ccatagagct cgatggcaag agaattaaac tgcagatatg ggacacagcc
     1561 ggtctggaac ggtttcggac gatcacaacg gcctactaca ggggtgcaat gggcatcatg
     1621 ctggtctacg acatcaccaa cgagaagtcc ttcgacaaca tccggaactg gattcgcaac
     1681 attgaggagc acgcctctgc agacgtcgaa aagatgatac tcgggaacaa gtgtgatgtg
     1741 aatgacaaga gacaagtttc caaggaacgg ggagaaaagc tggccctcga ctatggaatc
     1801 aagttcatgg agaccagcgc gaaggccaac atcaatgtgg aaaatgcatt tttcactctc
     1861 gccagagata tcaaagcaaa aatggacaaa aaattggaag gcaacagccc ccaggggagc
     1921 aaccagggag tcaaaatcac accggaccag cagaagagga gcagcttttt ccgatgtgtt
     1981 cttctgtagg gatccaccgg atctagataa ctgatcataa tcagccatac cacatttgta
     2041 gaggttttac ttgctttaaa aaacctccca cacctccccc tgaacctgaa acataaaatg
     2101 aatgcaattg ttgttgttaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     2161 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     2221 aaactcatca atgtatctta acgcgtaaat tgtaagcgtt aatattttgt taaaattcgc
     2281 gttaaatttt tgttaaatca gctcattttt taaccaatag gccgaaatcg gcaaaatccc
     2341 ttataaatca aaagaataga ccgagatagg gttgagtgtt gttccagttt ggaacaagag
     2401 tccactatta aagaacgtgg actccaacgt caaagggcga aaaaccgtct atcagggcga
     2461 tggcccacta cgtgaaccat caccctaatc aagttttttg gggtcgaggt gccgtaaagc
     2521 actaaatcgg aaccctaaag ggagcccccg atttagagct tgacggggaa agccggcgaa
     2581 cgtggcgaga aaggaaggga agaaagcgaa aggagcgggc gctagggcgc tggcaagtgt
     2641 agcggtcacg ctgcgcgtaa ccaccacacc cgccgcgctt aatgcgccgc tacagggcgc
     2701 gtcaggtggc acttttcggg gaaatgtgcg cggaacccct atttgtttat ttttctaaat
     2761 acattcaaat atgtatccgc tcatgagaca ataaccctga taaatgcttc aataatattg
     2821 aaaaaggaag agtcctgagg cggaaagaac cagctgtgga atgtgtgtca gttagggtgt
     2881 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     2941 gcaaccaggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     3001 ctcaattagt cagcaaccat agtcccgccc ctaactccgc ccatcccgcc cctaactccg
     3061 cccagttccg cccattctcc gccccatggc tgactaattt tttttattta tgcagaggcc
     3121 gaggccgcct cggcctctga gctattccag aagtagtgag gaggcttttt tggaggccta
     3181 ggcttttgca aagatcgatc aagagacagg atgaggatcg tttcgcatga ttgaacaaga
     3241 tggattgcac gcaggttctc cggccgcttg ggtggagagg ctattcggct atgactgggc
     3301 acaacagaca atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc
     3361 ggttcttttt gtcaagaccg acctgtccgg tgccctgaat gaactgcaag acgaggcagc
     3421 gcggctatcg tggctggcca cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac
     3481 tgaagcggga agggactggc tgctattggg cgaagtgccg gggcaggatc tcctgtcatc
     3541 tcaccttgct cctgccgaga aagtatccat catggctgat gcaatgcggc ggctgcatac
     3601 gcttgatccg gctacctgcc cattcgacca ccaagcgaaa catcgcatcg agcgagcacg
     3661 tactcggatg gaagccggtc ttgtcgatca ggatgatctg gacgaagagc atcaggggct
     3721 cgcgccagcc gaactgttcg ccaggctcaa ggcgagcatg cccgacggcg aggatctcgt
     3781 cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg
     3841 attcatcgac tgtggccggc tgggtgtggc ggaccgctat caggacatag cgttggctac
     3901 ccgtgatatt gctgaagagc ttggcggcga atgggctgac cgcttcctcg tgctttacgg
     3961 tatcgccgct cccgattcgc agcgcatcgc cttctatcgc cttcttgacg agttcttctg
     4021 agcgggactc tggggttcga aatgaccgac caagcgacgc ccaacctgcc atcacgagat
     4081 ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg gaatcgtttt ccgggacgcc
     4141 ggctggatga tcctccagcg cggggatctc atgctggagt tcttcgccca ccctaggggg
     4201 aggctaactg aaacacggaa ggagacaata ccggaaggaa cccgcgctat gacggcaata
     4261 aaaagacaga ataaaacgca cggtgttggg tcgtttgttc ataaacgcgg ggttcggtcc
     4321 cagggctggc actctgtcga taccccaccg agaccccatt ggggccaata cgcccgcgtt
     4381 tcttcctttt ccccacccca ccccccaagt tcgggtgaag gcccagggct cgcagccaac
     4441 gtcggggcgg caggccctgc catagcctca ggttactcat atatacttta gattgattta
     4501 aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa tctcatgacc
     4561 aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga aaagatcaaa
     4621 ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca
     4681 ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta
     4741 actggcttca gcagagcgca gataccaaat actgtccttc tagtgtagcc gtagttaggc
     4801 caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca
     4861 gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta
     4921 ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag
     4981 cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt
     5041 cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc
     5101 acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac
     5161 ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac
     5221 gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgttc
     5281 tttcctgcgt tatcccctga ttctgtggat aaccgtatta ccgccatgca t
//
