FUW-M2rtTA

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: FUW-M2rtTA
出品公司: addgene
目录编号: 20342
存储实验室: Rudolf Jaenisch

载体骨架基本信息
载体名称: FUW (Lenti-Lox-Ubi)
载体出品公司: homemade
空载体大小: 7231 bp
完整质粒大小: 7979 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: Stbl3
拷贝数: 高拷贝

插入基因信息
插入基因名称: M2rtTA
物种来源: bacteria
插入大小: 792 bp
克隆方法: 限制性内切酶
5’克隆位点: EcoRI(未破坏)
3’克隆位点: EcoRI(未破坏)
5’测序引物 n/a

文献引用方法
材料和方法部分: FUW-M2rtTA was a gift from Rudolf Jaenisch (Addgene plasmid # 20342 ; http://n2t.net/addgene:20342 ; RRID:Addgene_20342)
参考文献部分: A drug-inducible system for direct reprogramming of human somatic cells to pluripotency. Hockemeyer D, Soldner F, Cook EG, Gao Q, Mitalipova M, Jaenisch R. Cell Stem Cell. 2008 Sep 11. 3(3):346-53. 10.1016/j.stem.2008.08.014 PubMed 18786421

载体图谱质粒图谱和多克隆位点信息

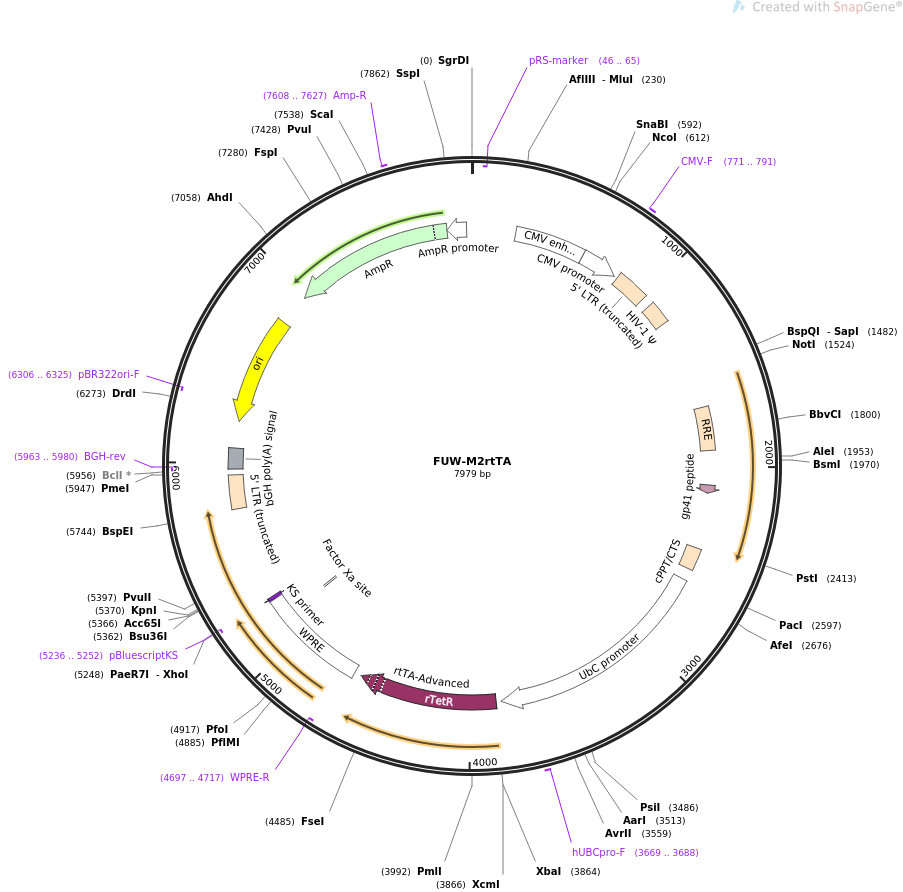

FUW-M2rtTA质粒图谱

载体简介

载体序列

LOCUS       FUW-M2rtTA                7979 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Lentiviral plasmid expressing the reverse tetracycline
            transactivator.
ACCESSION   .
VERSION     .
KEYWORDS    FUW-M2rtTA
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7979)
  AUTHORS   Hockemeyer D, Soldner F, Cook EG, Gao Q, Mitalipova M, Jaenisch R
  TITLE     A drug-inducible system for direct reprogramming of human somatic
            cells to pluripotency.
  JOURNAL   Cell Stem Cell. 2008 Sep 11. 3(3):346-53.
  PUBMED    18786421
REFERENCE   2  (bases 1 to 7979)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7979
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(46..65)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        237..616
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        618..816
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     771..791
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             834..1014
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1061..1186
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1679..1912
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             2097..2141
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    2439..2556
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2621..3832
                     /label=UbC promoter
                     /note="human ubiquitin C promoter"
     primer_bind     3669..3688
                     /label=hUBCpro-F
                     /note="Human Ubiquitin C (UbC) promoter, forward primer"
     CDS             3861..4607
                     /codon_start=1
                     /product="improved tetracycline-controlled transactivator"
                     /label=rtTA-Advanced
                     /note="In the Tet-On(R) system, rtTA-Advanced binds to the
                     Tet-responsive element and stimulates transcription only in
                     the presence of tetracycline or doxycycline."
                     /translation="MSRLDKSKVINGALELLNGVGIEGLTTRKLAQKLGVEQPTLYWHV
                     KNKRALLDALPIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLGTR
                     PTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEEQEHQVAKEERETPTT
                     DSMPPLLRQAIELFDRQGAEPAFLFGLELIICGLEKQLKCESGGPADALDDFDLDMLPA
                     DALDDFDLDMLPADALDDFDLDMLPG"
     misc_feature    4644..5232
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4697..4717)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(5115..5126)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     primer_bind     complement(5235..5251)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(5236..5252)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     LTR             5757..5937
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     primer_bind     complement(5963..5980)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    5969..6080
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      complement(6226..6814)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(6306..6325)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6985..7845)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     7608..7627
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7846..7950)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 tcgacggatc gggagatctc ccgatcccct atggtgcact ctcagtacaa tctgctctga
       61 tgccgcatag ttaagccagt atctgctccc tgcttgtgtg ttggaggtcg ctgagtagtg
      121 cgcgagcaaa atttaagcta caacaaggca aggcttgacc gacaattgca tgaagaatct
      181 gcttagggtt aggcgttttg cgctgcttcg cgatgtacgg gccagatata cgcgttgaca
      241 ttgattattg actagttatt aatagtaatc aattacgggg tcattagttc atagcccata
      301 tatggagttc cgcgttacat aacttacggt aaatggcccg cctggctgac cgcccaacga
      361 cccccgccca ttgacgtcaa taatgacgta tgttcccata gtaacgccaa tagggacttt
      421 ccattgacgt caatgggtgg agtatttacg gtaaactgcc cacttggcag tacatcaagt
      481 gtatcatatg ccaagtacgc cccctattga cgtcaatgac ggtaaatggc ccgcctggca
      541 ttatgcccag tacatgacct tatgggactt tcctacttgg cagtacatct acgtattagt
      601 catcgctatt accatggtga tgcggttttg gcagtacatc aatgggcgtg gatagcggtt
      661 tgactcacgg ggatttccaa gtctccaccc cattgacgtc aatgggagtt tgttttggca
      721 ccaaaatcaa cgggactttc caaaatgtcg taacaactcc gccccattga cgcaaatggg
      781 cggtaggcgt gtacggtggg aggtctatat aagcagcgcg ttttgcctgt actgggtctc
      841 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      901 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      961 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
     1021 cccgaacagg gacttgaaag cgaaagggaa accagaggag ctctctcgac gcaggactcg
     1081 gcttgctgaa gcgcgcacgg caagaggcga ggggcggcga ctggtgagta cgccaaaaat
     1141 tttgactagc ggaggctaga aggagagaga tgggtgcgag agcgtcagta ttaagcgggg
     1201 gagaattaga tcgcgatggg aaaaaattcg gttaaggcca gggggaaaga aaaaatataa
     1261 attaaaacat atagtatggg caagcaggga gctagaacga ttcgcagtta atcctggcct
     1321 gttagaaaca tcagaaggct gtagacaaat actgggacag ctacaaccat cccttcagac
     1381 aggatcagaa gaacttagat cattatataa tacagtagca accctctatt gtgtgcatca
     1441 aaggatagag ataaaagaca ccaaggaagc tttagacaag atagaggaag agcaaaacaa
     1501 aagtaagacc accgcacagc aagcggccgc tgatcttcag acctggagga ggagatatga
     1561 gggacaattg gagaagtgaa ttatataaat ataaagtagt aaaaattgaa ccattaggag
     1621 tagcacccac caaggcaaag agaagagtgg tgcagagaga aaaaagagca gtgggaatag
     1681 gagctttgtt ccttgggttc ttgggagcag caggaagcac tatgggcgca gcgtcaatga
     1741 cgctgacggt acaggccaga caattattgt ctggtatagt gcagcagcag aacaatttgc
     1801 tgagggctat tgaggcgcaa cagcatctgt tgcaactcac agtctggggc atcaagcagc
     1861 tccaggcaag aatcctggct gtggaaagat acctaaagga tcaacagctc ctggggattt
     1921 ggggttgctc tggaaaactc atttgcacca ctgctgtgcc ttggaatgct agttggagta
     1981 ataaatctct ggaacagatt tggaatcaca cgacctggat ggagtgggac agagaaatta
     2041 acaattacac aagcttaata cactccttaa ttgaagaatc gcaaaaccag caagaaaaga
     2101 atgaacaaga attattggaa ttagataaat gggcaagttt gtggaattgg tttaacataa
     2161 caaattggct gtggtatata aaattattca taatgatagt aggaggcttg gtaggtttaa
     2221 gaatagtttt tgctgtactt tctatagtga atagagttag gcagggatat tcaccattat
     2281 cgtttcagac ccacctccca accccgaggg gacccgacag gcccgaagga atagaagaag
     2341 aaggtggaga gagagacaga gacagatcca ttcgattagt gaacggatcg gcactgcgtg
     2401 cgccaattct gcagacaaat ggcagtattc atccacaatt ttaaaagaaa aggggggatt
     2461 ggggggtaca gtgcagggga aagaatagta gacataatag caacagacat acaaactaaa
     2521 gaattacaaa aacaaattac aaaaattcaa aattttcggg tttattacag ggacagcaga
     2581 gatccagttt ggttaattaa cccgtgtcgg ctccagatct ggcctccgcg ccgggttttg
     2641 gcgcctcccg cgggcgcccc cctcctcacg gcgagcgctg ccacgtcaga cgaagggcgc
     2701 agcgagcgtc ctgatccttc cgcccggacg ctcaggacag cggcccgctg ctcataagac
     2761 tcggccttag aaccccagta tcagcagaag gacattttag gacgggactt gggtgactct
     2821 agggcactgg ttttctttcc agagagcgga acaggcgagg aaaagtagtc ccttctcggc
     2881 gattctgcgg agggatctcc gtggggcggt gaacgccgat gattatataa ggacgcgccg
     2941 ggtgtggcac agctagttcc gtcgcagccg ggatttgggt cgcggttctt gtttgtggat
     3001 cgctgtgatc gtcacttggt gagtagcggg ctgctgggct ggccggggct ttcgtggccg
     3061 ccgggccgct cggtgggacg gaagcgtgtg gagagaccgc caagggctgt agtctgggtc
     3121 cgcgagcaag gttgccctga actgggggtt ggggggagcg cagcaaaatg gcggctgttc
     3181 ccgagtcttg aatggaagac gcttgtgagg cgggctgtga ggtcgttgaa acaaggtggg
     3241 gggcatggtg ggcggcaaga acccaaggtc ttgaggcctt cgctaatgcg ggaaagctct
     3301 tattcgggtg agatgggctg gggcaccatc tggggaccct gacgtgaagt ttgtcactga
     3361 ctggagaact cggtttgtcg tctgttgcgg gggcggcagt tatggcggtg ccgttgggca
     3421 gtgcacccgt acctttggga gcgcgcgccc tcgtcgtgtc gtgacgtcac ccgttctgtt
     3481 ggcttataat gcagggtggg gccacctgcc ggtaggtgtg cggtaggctt ttctccgtcg
     3541 caggacgcag ggttcgggcc tagggtaggc tctcctgaat cgacaggcgc cggacctctg
     3601 gtgaggggag ggataagtga ggcgtcagtt tctttggtcg gttttatgta cctatcttct
     3661 taagtagctg aagctccggt tttgaactat gcgctcgggg ttggcgagtg tgttttgtga
     3721 agttttttag gcaccttttg aaatgtaatc atttgggtca atatgtaatt ttcagtgtta
     3781 gactagtaaa ttgtccgcta aattctggcc gtttttggct tttttgttag acgaagcttg
     3841 ggcccgggaa ttaattcacc atgtctagac tggacaagag caaagtcata aacggcgctc
     3901 tggaattact caatggagtc ggtatcgaag gcctgacgac aaggaaactc gctcaaaagc
     3961 tgggagttga gcagcctacc ctgtactggc acgtgaagaa caagcgggcc ctgctcgatg
     4021 ccctgccaat cgagatgctg gacaggcatc atacccactt ctgccccctg gaaggcgagt
     4081 catggcaaga ctttctgcgg aacaacgcca agtcattccg ctgtgctctc ctctcacatc
     4141 gcgacggggc taaagtgcat ctcggcaccc gcccaacaga gaaacagtac gaaaccctgg
     4201 aaaatcagct cgcgttcctg tgtcagcaag gcttctccct ggagaacgca ctgtacgctc
     4261 tgtccgccgt gggccacttt acactgggct gcgtattgga ggaacaggag catcaagtag
     4321 caaaagagga aagagagaca cctaccaccg attctatgcc cccacttctg agacaagcaa
     4381 ttgagctgtt cgaccggcag ggagccgaac ctgccttcct tttcggcctg gaactaatca
     4441 tatgtggcct ggagaaacag ctaaagtgcg aaagcggcgg gccggccgac gcccttgacg
     4501 attttgactt agacatgctc ccagccgatg cccttgacga ctttgacctt gatatgctgc
     4561 ctgctgacgc tcttgacgat tttgaccttg acatgctccc cgggtaacta agtaaggatc
     4621 aattcgatat caagcttatc gataatcaac ctctggatta caaaatttgt gaaagattga
     4681 ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt
     4741 tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt
     4801 tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg
     4861 tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg
     4921 ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc
     4981 gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaaat
     5041 catcgtcctt tccttggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct
     5101 tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg
     5161 ctctgcggcc tcttccgcgt cttcgccttc gccctcagac gagtcggatc tccctttggg
     5221 ccgcctcccc gcatcgatac cgtcgacctc gagacctaga aaaacatgga gcaatcacaa
     5281 gtagcaatac agcagctacc aatgctgatt gtgcctggct agaagcacaa gaggaggagg
     5341 aggtgggttt tccagtcaca cctcaggtac ctttaagacc aatgacttac aaggcagctg
     5401 tagatcttag ccacttttta aaagaaaagg ggggactgga agggctaatt cactcccaac
     5461 gaagacaaga tatccttgat ctgtggatct accacacaca aggctacttc cctgattggc
     5521 agaactacac accagggcca gggatcagat atccactgac ctttggatgg tgctacaagc
     5581 tagtaccagt tgagcaagag aaggtagaag aagccaatga aggagagaac acccgcttgt
     5641 tacaccctgt gagcctgcat gggatggatg acccggagag agaagtatta gagtggaggt
     5701 ttgacagccg cctagcattt catcacatgg cccgagagct gcatccggac tgtactgggt
     5761 ctctctggtt agaccagatc tgagcctggg agctctctgg ctaactaggg aacccactgc
     5821 ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt ctgttgtgtg
     5881 actctggtaa ctagagatcc ctcagaccct tttagtcagt gtggaaaatc tctagcaggg
     5941 cccgtttaaa cccgctgatc agcctcgact gtgccttcta gttgccagcc atctgttgtt
     6001 tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt cctttcctaa
     6061 taaaatgagg aaattgcatc gcattgtctg agtaggtgtc attctattct ggggggtggg
     6121 gtggggcagg acagcaaggg ggaggattgg gaagacaata gcaggcatgt gagcaaaagg
     6181 ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg
     6241 cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg
     6301 actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac
     6361 cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca
     6421 tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt
     6481 gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc
     6541 caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag
     6601 agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac
     6661 tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt
     6721 tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa
     6781 gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg
     6841 gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa
     6901 aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat
     6961 atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc
     7021 gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat
     7081 acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc
     7141 ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc
     7201 tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag
     7261 ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg tggtgtcacg
     7321 ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg
     7381 atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag
     7441 taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt
     7501 catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga
     7561 atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc
     7621 acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc
     7681 aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc
     7741 ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc
     7801 cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca
     7861 atattattga agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat
     7921 ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
