Flag-SENP1m

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

FlagSENP1m载体基本信息

质粒名称: Flag-SENP1m
出品公司: 爱迪基因
目录编号: 17358
存储实验室: Edward Yeh

载体骨架基本信息
载体名称: pFlag-CMV
载体出品公司: Sigma
载体抗性: 氨苄青霉素
空载体大小: 4700 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: SENP1
物种来源: H. sapiens (human)
插入大小: 1930 bp
基因突变: R630L, K631M
GenBank编号 --
启动子 --
标签/融合蛋白: Flag(主干上的N终端)
克隆方法: 限制性内切酶
5' 克隆位点: BglII(未破坏)
3' 克隆位点: SalI(未破坏)
5' 测序引物 CMV-F
3' 测序引物 --

文献引用方法
材料和方法部分: Flag-SENP1m was a gift from Edward Yeh (Addgene plasmid # 17358 ; http://n2t.net/addgene:17358 ; RRID:Addgene_17358)
参考文献部分: SUMO-specific protease 1 is essential for stabilization of HIF1alpha during hypoxia. Cheng J, Kang X, Zhang S, Yeh ET. Cell. 2007 Nov 2. 131(3):584-95. 10.1016/j.cell.2007.08.045 PubMed 17981124

FlagSENP1m载体图谱质粒图谱和多克隆位点信息

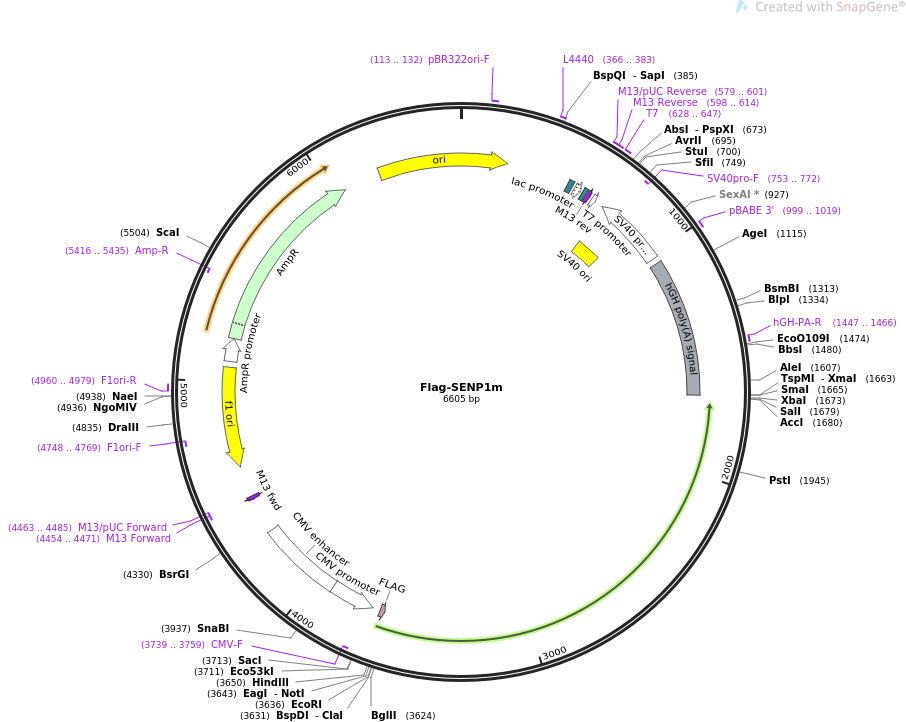

Flag-SENP1m质粒图谱

FlagSENP1m载体简介

FlagSENP1m载体序列

LOCUS       Flag-SENP1m                6605 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    Flag-SENP1m
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6605)
  AUTHORS   Cheng J, Kang X, Zhang S, Yeh ET
  TITLE     SUMO-specific protease 1 is essential for stabilization of HIF1alpha
            during hypoxia.
  JOURNAL   Cell. 2007 Nov 2. 131(3):584-95.
  PUBMED    17981124
REFERENCE   2  (bases 1 to 6605)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6605
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     113..132
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     366..383
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    500..521
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        536..566
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    574..590
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     579..601
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     598..614
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     598..614
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     628..647
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        628..646
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     promoter        complement(685..1014)
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      699..834
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(753..772)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     999..1019
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     polyA_signal    1043..1665
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     1447..1466
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     CDS             complement(3653..3676)
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     promoter        complement(3710..3913)
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(3739..3759)
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     enhancer        3914..4293
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     complement(4454..4471)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4454..4470)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4463..4485)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      complement(4611..5066)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4748..4769)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     4960..4979
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        5093..5197
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5198..6058
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5416..5435)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6229..212
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 acctacagcg tgagctatga gaaagcgcca cgcttcccga agggagaaag gcggacaggt
       61 atccggtaag cggcagggtc ggaacaggag agcgcacgag ggagcttcca gggggaaacg
      121 cctggtatct ttatagtcct gtcgggtttc gccacctctg acttgagcgt cgatttttgt
      181 gatgctcgtc aggggggcgg agcctatgga aaaacgccag caacgcggcc tttttacggt
      241 tcctggcctt ttgctggcct tttgctcaca tgttctttcc tgcgttatcc cctgattctg
      301 tggataaccg tattaccgcc tttgagtgag ctgataccgc tcgccgcagc cgaacgaccg
      361 agcgcagcga gtcagtgagc gaggaagcgg aagagcgccc aatacgcaaa ccgcctctcc
      421 ccgcgcgttg gccgattcat taatgcagct ggcacgacag gtttcccgac tggaaagcgg
      481 gcagtgagcg caacgcaatt aatgtgagtt agctcactca ttaggcaccc caggctttac
      541 actttatgct tccggctcgt atgttgtgtg gaattgtgag cggataacaa tttcacacag
      601 gaaacagcta tgacatgatt acgaatttaa tacgactcac tatagggaat taactttctg
      661 gtttttcagt tcctcgagga gctttttgca aaagcctagg cctccaaaaa agcctcctca
      721 ctacttctgg aatagctcag aggccgaggc ggcctcggcc tctgcataaa taaaaaaaat
      781 tagtcagcca tggggcggag aatgggcgga actgggcgga gttaggggcg ggatgggcgg
      841 agttaggggc gggactatgg ttgctgacta attgagatgc atgctttgca tacttctgcc
      901 tgctggggag cctggggact ttccacacct ggttgctgac taattgagat gcatgctttg
      961 catacttctg cctgctgggg agcctgggga ctttccacac cctaactgac acacattcca
     1021 cagccaagct ggccgcgtac ccaattcaac aggcatctac tgagtggacc caacgcatga
     1081 gaggacagtg ccaagcaagc aactcaaatg tcccaccggt tgggcatggc caggtagcct
     1141 atgctgtgtc tggacgtcct cctgctggta tagttatttt aaaatcagaa ggacagggaa
     1201 gggagcagtg gttcacgcct gtaatcccag caatttggga ggccaaggtg ggtagatcac
     1261 ctgagattag gagttggaga ccagcctggc caatatggtg aaaccccgtc tctaccaaaa
     1321 aaacaaaaat tagctgagcc tggtcatgca tgcctggaat cccaacaact cgggaggctg
     1381 aggcaggaga atcgcttgaa cccaggaggc ggagattgca gtgagccaag attgtgccac
     1441 tgcactccag cttggttccc aatagacccc gcaggcccta caggttgtct tcccaacttg
     1501 ccccttgctc cataccaccc ccctccaccc cataatatta tagaaggaca cctagtcaga
     1561 caaaatgatg caacttaatt ttattaggac aaggctggtg ggcactggag tggcaacttc
     1621 cagggccagg agaggcactg gggaggggtc acagggatgc cacccgggat cctctagagt
     1681 cgactcatca caagagtttt cggtggagga tctcccagac catccgcatc aggaagtatg
     1741 gcatgtgttg ctgtgcgaag ttgattggtc tgtctttggt aatacagtca gcatatttgc
     1801 aggcaaacat cccacagtca cttccattca tctgctgagg aatctcctgg cttttcttgc
     1861 tgaaaagctg ccagccattg gtgtcaaact ctttcctttt cttgtcaatg ctttcttgct
     1921 ttaggtattg caagagtatt ctgcaggctt cattgtttat cccacccatg gagtcgtaat
     1981 aggtaatatt cttctttcta aagtccacaa cagctagaca ccagtgtact cccaggtgaa
     2041 tgggcaccaa aagaatgtca acagaaaata catctacttt ctttgtccaa cgtttcactg
     2101 cctgataacc agccgttttt aatttagtga agaaaaaggt attaaatgca tgcacacttg
     2161 gcaagccctt ctctttactt cgctccatca gcatattcat gtagaaattg atgatctcat
     2221 cattgagcca attcagatgg tttagagttt gaatatcttt gcgtgtaatg gtcaggcgaa
     2281 atgcttcact gagaacttca tcctgattcc cattacgaaa tacattcttt atttctttct
     2341 ccatttcctc tgtaatttca ggaaattcat cttcactatc agttaattta tgaccttttt
     2401 tttgtgtttc ttggacaaca gtaacaggaa tctccttttc aagaggtaca cgaagatgta
     2461 gttctactga atcatgtact gaatgttccc gctcctgcaa tctctggttt tgaagctgta
     2521 aggccaatgc cttctgttct tcaatctggc gcaatctttc tcgtgctcga gaatcataaa
     2581 cactagttaa ttctttgatc cacagctctg cctggaagaa agtagaactg ggagttggag
     2641 tctgggaatc tttcactttc agtaaaatca cagagtctga tccttcagat tgtgtatttg
     2701 aagctgctaa gttatctggc tgatgtggaa cagagtggtg atgatgggga tgatgaagag
     2761 taccagaatc tttggatcca aatgcaacat ctggggtata agaagatagg gaatatacac
     2821 tgtgggacag ctgttcctgg ttagttaaaa tgctggcaga tccagatgat gaagtatcag
     2881 agccaatgat ctgagatgca caagagcttc catttttaaa cagtgagtct ttcaaagtat
     2941 ttttactgga actaagacat cgagacaggt gtaaaggaaa atgtgtggtg ggtttggcta
     3001 tagcaaactg tttccctgtg accatctgta gcagctgtct gtaaaactct ctttcttctt
     3061 cttgaactgt ctcttctgct gtactaacat gtcgcctctg agttttcttg gggctcaaaa
     3121 gacttcgacg acatgaacca ctccaagatg gacttggaac aggtttaata ggaaaagatt
     3181 tttcatatgc agatacatgg cagtgatggt ttgactttcc cgcaaaactg tttgataatc
     3241 cacttgaggt ctttcgggtt tcgaggtaaa gacttcggct gtttcttgat ttttgtaaag
     3301 atgagcttga cgatggggta gaatttctcc attggccatt tgcactctgg ccaaaggttc
     3361 ttaaatcgcc tgagccaaga aaactgtctg aggaaggatt atctgagtaa tagcttggat
     3421 tataagctgc acttcttgtg gaacatgtaa aagatcggtc caaatgtcct tgcctggaag
     3481 ataaaatctg ctggtcagaa agcgaaagct ggtcctctgg aaaacctgtt tgtggcagga
     3541 ggtgggtttt gaatacggag ttgtggttca ctaaagtcac ttctccagca tccatcctca
     3601 tcctatcagc aatatcatcc ataagatcta tcgatgaatt cgcggccgca agcttgtcgt
     3661 catcgtcttt gtagtccatg gtagatcaat tctgacggtt cactaaacga gctctgctta
     3721 tatagacctc ccaccgtaca cgcctaccgc ccatttgcgt caacggggcg gggttattac
     3781 gacattttgg aaagtcccgt tgattttggt gccaaaacaa actcccattg acgtcaatgg
     3841 ggtggagact tggaaatccc cgtgagtcaa accgctatcc acgcccattg gtgtactgcc
     3901 aaaaccgcat caccatggta atagcgatga ctaatacgta gatgtactgc caagtaggaa
     3961 agtcccgtaa ggtcatgtac tgggcataat gccaggcggg ccatttaccg tcattgacgt
     4021 caataggggg cggacttggc atatgataca cttgatgtac tgccaagtgg gcagtttacc
     4081 gtaaatactc cacccattga cgtcaatgga aagtccctat tggcgttact atgggaacat
     4141 acgtcattat tgacgtcaat gggcgggggt cgttgggcgg tcagccaggc gggccattta
     4201 ccgtaagtta tgtaacgcgg aactccatat atgggctatg aactaatgac cccgtaattg
     4261 attactatta ataactagtc aataatcaat gtcaacatgg cggtcatatt ggacatgagc
     4321 caatataaat gtacatatta tgatatagat acaacgtatg caatggccaa tagccaatat
     4381 tgatttatgc tatataacca atgactaata tggctaattg ccaatattga ttcaatgtat
     4441 agatcagctt ggcactggcc gtcgttttac aacgtcgtga ctgggaaaac cctggcgtta
     4501 cccaacttaa tcgccttgca gcacatcccc ctttcgccag ctggcgtaat agcgaagagg
     4561 cccgcaccga tcgcccttcc caacagttgc gcagcctgaa tggcgaatgg aaattgtaag
     4621 cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa atcagctcat tttttaacca
     4681 ataggccgaa atcggcaaaa tcccttataa atcaaaagaa tagaccgaga tagggttgag
     4741 tgttgttcca gtttggaaca agagtccact attaaagaac gtggactcca acgtcaaagg
     4801 gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa ccatcaccct aatcaagttt
     4861 tttggggtcg aggtgccgta aagcactaaa tcggaaccct aaagggagcc cccgatttag
     4921 agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc
     4981 gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc
     5041 gcttaatgcg ccgctacagg gcgcgtcagg tggcactttt cggggaaatg tgcgcggaac
     5101 ccctatttgt ttatttttct aaatacattc aaatatgtat ccgctcatga gacaataacc
     5161 ctgataaatg cttcaataat attgaaaaag gaagagtatg agtattcaac atttccgtgt
     5221 cgcccttatt cccttttttg cggcattttg ccttcctgtt tttgctcacc cagaaacgct
     5281 ggtgaaagta aaagatgctg aagatcagtt gggtgcacga gtgggttaca tcgaactgga
     5341 tctcaacagc ggtaagatcc ttgagagttt tcgccccgaa gaacgttttc caatgatgag
     5401 cacttttaaa gttctgctat gtggcgcggt attatcccgt attgacgccg ggcaagagca
     5461 actcggtcgc cgcatacact attctcagaa tgacttggtt gagtactcac cagtcacaga
     5521 aaagcatctt acggatggca tgacagtaag agaattatgc agtgctgcca taaccatgag
     5581 tgataacact gcggccaact tacttctgac aacgatcgga ggaccgaagg agctaaccgc
     5641 ttttttgcac aacatggggg atcatgtaac tcgccttgat cgttgggaac cggagctgaa
     5701 tgaagccata ccaaacgacg agcgtgacac cacgatgcct gtagcaatgg caacaacgtt
     5761 gcgcaaacta ttaactggcg aactacttac tctagcttcc cggcaacaat taatagactg
     5821 gatggaggcg gataaagttg caggaccact tctgcgctcg gcccttccgg ctggctggtt
     5881 tattgctgat aaatctggag ccggtgagcg tgggtctcgc ggtatcattg cagcactggg
     5941 gccagatggt aagccctccc gtatcgtagt tatctacacg acggggagtc aggcaactat
     6001 ggatgaacga aatagacaga tcgctgagat aggtgcctca ctgattaagc attggtaact
     6061 gtcagaccaa gtttactcat atatacttta gattgattta aaacttcatt tttaatttaa
     6121 aaggatctag gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt
     6181 ttcgttccac tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt
     6241 ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg
     6301 tttgccggat caagagctac caactctttt tccgaaggta actggcttca gcagagcgca
     6361 gataccaaat actgttcttc tagtgtagcc gtagttaggc caccacttca agaactctgt
     6421 agcaccgcct acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga
     6481 taagtcgtgt cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc
     6541 gggctgaacg gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact
     6601 gagat
//

FlagSENP1m载体图谱质粒图谱pdf版和相关资料下载

FlagSENP1m载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
