GFP-HuR

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: GFP-HuR
出品公司: addgene
目录编号: 121162
存储实验室: Christine Mayr

载体骨架基本信息
载体名称: pcDNA3.1
完整质粒大小: 6825 bp
载体类型: 哺乳细胞表达
筛选标记: Puromycin
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 未知

插入基因信息
插入基因名称: HuR / ELAVL1

文献引用方法
材料和方法部分: GFP-HuR was a gift from Christine Mayr (Addgene plasmid # 121162 ; http://n2t.net/addgene:121162 ; RRID:Addgene_121162)
参考文献部分: A Membraneless Organelle Associated with the Endoplasmic Reticulum Enables 3'UTR-Mediated Protein-Protein Interactions. Ma W, Mayr C. Cell. 2018 Oct 30. pii: S0092-8674(18)31315-1. doi: 10.1016/j.cell.2018.10.007. 10.1016/j.cell.2018.10.007 PubMed 30449617

载体图谱质粒图谱和多克隆位点信息

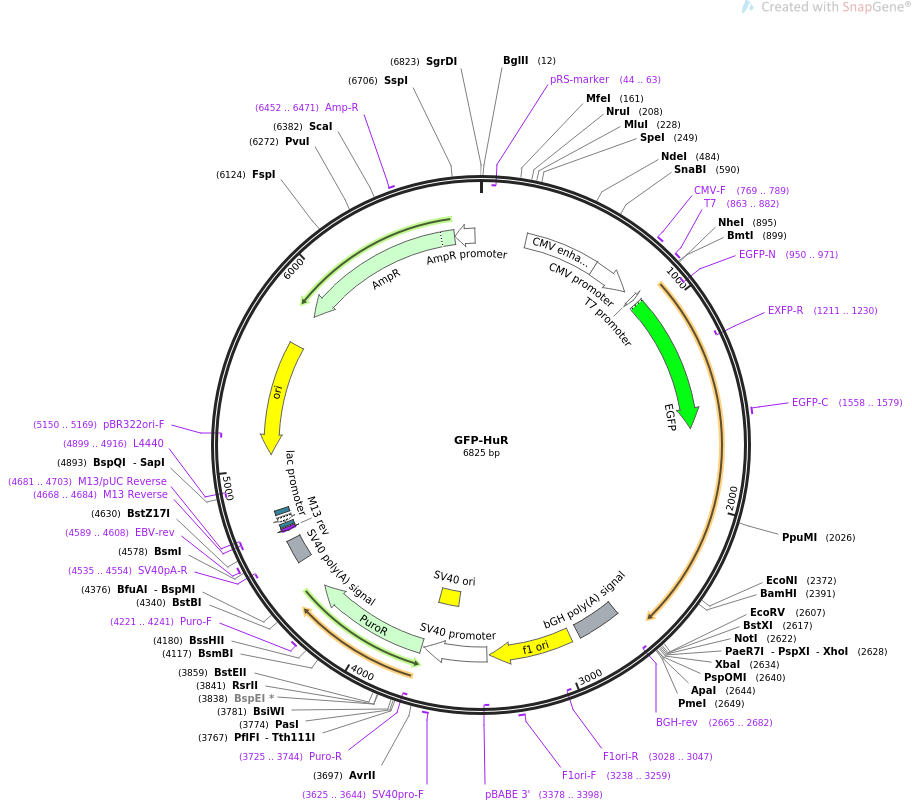

GFP-HuR载体图谱

载体简介

载体序列

LOCUS       GFP-HuR                6825 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Mammalian expression of GFP tagged HuR.
ACCESSION   .
VERSION     .
KEYWORDS    GFP-HuR
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6825)
  AUTHORS   Ma W, Mayr C
  TITLE     A Membraneless Organelle Associated with the Endoplasmic Reticulum
            Enables 3'UTR-Mediated Protein-Protein Interactions.
  JOURNAL   Cell. 2018 Oct 30. pii: S0092-8674(18)31315-1. doi:
            10.1016/j.cell.2018.10.007.
  PUBMED    30449617
REFERENCE   2  (bases 1 to 6825)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6825
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(44..63)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     863..882
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             905..1621
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     ANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(950..971)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(1211..1230)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1558..1579
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     primer_bind     complement(2665..2682)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    2671..2895
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2941..3369
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3028..3047)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3238..3259
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3378..3398)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3383..3712
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3563..3698
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3625..3644
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3725..4324
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(3725..3744)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     4221..4241
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     polyA_signal    4498..4619
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4535..4554)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4589..4608
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(4668..4684)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4668..4684)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4681..4703)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4692..4708
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4716..4746)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4761..4782
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4899..4916)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5070..5658)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5150..5169)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5829..6689)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6452..6471
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6690..6794)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 aaccatggtg agcaagggcg aggagctgtt caccggggtg gtgcccatcc tggtcgagct
      961 ggacggcgac gtaaacggcc acaagttcag cgtgtctggc gagggcgagg gcgatgccac
     1021 ctacggcaag ctgaccctga agttcatctg caccaccggc aagctgcccg tgccctggcc
     1081 caccctcgtg accaccctga cctacggcgt gcagtgcttc agccgctacc ccgaccacat
     1141 gaagcagcac gacttcttca agtccgccat gcccgaaggc tacgtccagg agcgcaccat
     1201 cttcttcaag gacgacggca actacaagac ccgcgccgag gtgaagttcg agggcgacac
     1261 cctggtgaac cgcatcgagc tgaagggcat cgacttcaag gaggacggca acatcctggg
     1321 gcacaagctg gagtacaact acaacagcca caacgtctat atcatggccg acaagcagaa
     1381 gaacggcatc aaggcgaact tcaagatccg ccacaacatc gaggacggca gcgtgcagct
     1441 cgccgaccac taccagcaga acacccccat cggcgacggc cccgtgctgc tgcccgacaa
     1501 ccactacctg agcacccagt ccgccctgag caaagacccc aacgagaagc gcgatcacat
     1561 ggtcctgctg gagttcgtga ccgccgccgg gatcactctc ggcatggacg agctgtacaa
     1621 gtctaatggt tatgaagacc acatggccga agactgcagg ggtgacatcg ggagaacgaa
     1681 tttgatcgtc aactacctcc ctcagaacat gacccaggat gagttacgaa gcctgttcag
     1741 cagcattggt gaagttgaat ctgcaaaact tattcgggat aaagtagcag gacacagctt
     1801 gggctatggc tttgtgaact acgtgaccgc gaaggatgca gagagagcga tcaacacgct
     1861 gaacggcttg aggctccagt caaaaaccat taaggtgtcg tatgctcgcc cgagctcaga
     1921 ggtgatcaaa gacgccaact tgtacatcag cgggctcccg cggaccatga cccagaagga
     1981 cgtagaagac atgttctctc ggtttgggcg gatcatcaac tcgcgggtcc tcgtggatca
     2041 gactacaggt ttgtccagag gggttgcgtt tatccggttt gacaaacggt cggaggcaga
     2101 agaggcaatt accagtttca atggtcataa acccccaggt tcctctgagc ccatcacagt
     2161 gaagtttgca gccaacccca accagaacaa aaacgtggca ctcctctcgc agctgtacca
     2221 ctcgccagcg cgacggttcg gaggccccgt tcaccaccag gcgcagagat tcaggttctc
     2281 ccccatgggc gtcgatcaca tgagcgggct ctctggcgtc aacgtgccag gaaacgcctc
     2341 ctccggctgg tgcattttca tctacaacct ggggcaggat gccgacgagg ggatcctctg
     2401 gcagatgttt gggccgtttg gtgccgtcac caatgtgaaa gtgatccgcg acttcaacac
     2461 caacaagtgc aaagggtttg gctttgtgac catgacaaac tatgaagaag ccgcgatggc
     2521 catagccagc ctgaacggct accgcctggg ggacaaaatc ttacaggttt ccttcaaaac
     2581 caacaagtcc cacaaataac tgcagatatc cagcacagtg gcggccgctc gagtctagag
     2641 ggcccgttta aacccgctga tcagcctcga ctgtgccttc tagttgccag ccatctgttg
     2701 tttgcccctc ccccgtgcct tccttgaccc tggaaggtgc cactcccact gtcctttcct
     2761 aataaaatga ggaaattgca tcgcattgtc tgagtaggtg tcattctatt ctggggggtg
     2821 gggtggggca ggacagcaag ggggaggatt gggaagacaa tagcaggcat gctggggatg
     2881 cggtgggctc tatggcttct gaggcggaaa gaaccagctg gggctctagg gggtatcccc
     2941 acgcgccctg tagcggcgca ttaagcgcgg cgggtgtggt ggttacgcgc agcgtgaccg
     3001 ctacacttgc cagcgcccta gcgcccgctc ctttcgcttt cttcccttcc tttctcgcca
     3061 cgttcgccgg ctttccccgt caagctctaa atcgggggct ccctttaggg ttccgattta
     3121 gtgctttacg gcacctcgac cccaaaaaac ttgattaggg tgatggttca cgtagtgggc
     3181 catcgccctg atagacggtt tttcgccctt tgacgttgga gtccacgttc tttaatagtg
     3241 gactcttgtt ccaaactgga acaacactca accctatctc ggtctattct tttgatttat
     3301 aagggatttt gccgatttcg gcctattggt taaaaaatga gctgatttaa caaaaattta
     3361 acgcgaatta attctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc
     3421 agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc
     3481 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat
     3541 agtcccgccc ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc
     3601 gccccatggc tgactaattt tttttattta tgcagaggcc gaggccgcct ctgcctctga
     3661 gctattccag aagtagtgag gaggcttttt tggaggccta ggcttttgca aaaagctccc
     3721 aaccatgacc gagtacaagc ccacggtgcg cctcgccacc cgcgacgacg tccccagggc
     3781 cgtacgcacc ctcgccgccg cgttcgccga ctaccccgcc acgcgccaca ccgtcgatcc
     3841 ggaccgccac atcgagcggg tcaccgagct gcaagaactc ttcctcacgc gcgtcgggct
     3901 cgacatcggc aaggtgtggg tcgcggacga cggcgccgcg gtggcggtct ggaccacgcc
     3961 ggagagcgtc gaagcggggg cggtgttcgc cgagatcggc ccgcgcatgg ccgagttgag
     4021 cggttcccgg ctggccgcgc agcaacagat ggaaggcctc ctggcgccgc accggcccaa
     4081 ggagcccgcg tggttcctgg ccaccgtcgg cgtctcgccc gaccaccagg gcaagggtct
     4141 gggcagcgcc gtcgtgctcc ccggagtgga ggcggccgag cgcgccgggg tgcccgcctt
     4201 cctggagacc tccgcgcccc gcaacctccc cttctacgag cggctcggct tcaccgtcac
     4261 cgccgacgtc gaggtgcccg aaggaccgcg cacctggtgc atgacccgca agcccggtgc
     4321 ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct gccatcacga
     4381 gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt tttccgggac
     4441 gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc ccaccccaac
     4501 ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat
     4561 aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat
     4621 catgtctgta taccgtcgac ctctagctag agcttggcgt aatcatggtc atagctgttt
     4681 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     4741 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     4801 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     4861 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     4921 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     4981 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     5041 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     5101 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     5161 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     5221 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     5281 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     5341 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     5401 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     5461 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt
     5521 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     5581 ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc
     5641 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
     5701 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
     5761 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
     5821 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
     5881 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
     5941 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
     6001 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
     6061 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
     6121 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
     6181 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
     6241 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
     6301 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
     6361 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
     6421 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
     6481 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
     6541 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
     6601 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
     6661 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
     6721 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
     6781 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
