HOP-flash

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

HOPflash载体基本信息

质粒名称: HOP-flash
出品公司: 爱迪基因
目录编号: 83467
存储实验室: Barry Gumbiner

载体骨架基本信息
载体名称: pGL3-basic
载体出品公司: Promega
载体抗性: 氨苄青霉素
空载体大小: 4797 bp
完整质粒大小: --
载体修饰: --
载体类型: 荧光素酶表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Multimerized TEAD binding sites in the promoter of CTGF with minimal promoter,TEAD reporter
物种来源: H. sapiens (human)
插入大小: 223 bp
基因突变: --
GenBank编号 7003, 8463,7005, 7004
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: SacI(未破坏)
3' 克隆位点: XhoI  (未破坏)
5' 测序引物 RVprimer3
3' 测序引物 LucNrev

文献引用方法
材料和方法部分: HOP-flash was a gift from Barry Gumbiner (Addgene plasmid # 83467 ; http://n2t.net/addgene:83467 ; RRID:Addgene_83467)
参考文献部分: Adhesion to fibronectin regulates Hippo signaling via the FAK-Src-PI3K pathway. Kim NG, Gumbiner BM. J Cell Biol. 2015 Aug 3;210(3):503-15. doi: 10.1083/jcb.201501025. Epub 2015 Jul 27. 10.1083/jcb.201501025 PubMed 26216901

HOPflash载体图谱质粒图谱和多克隆位点信息

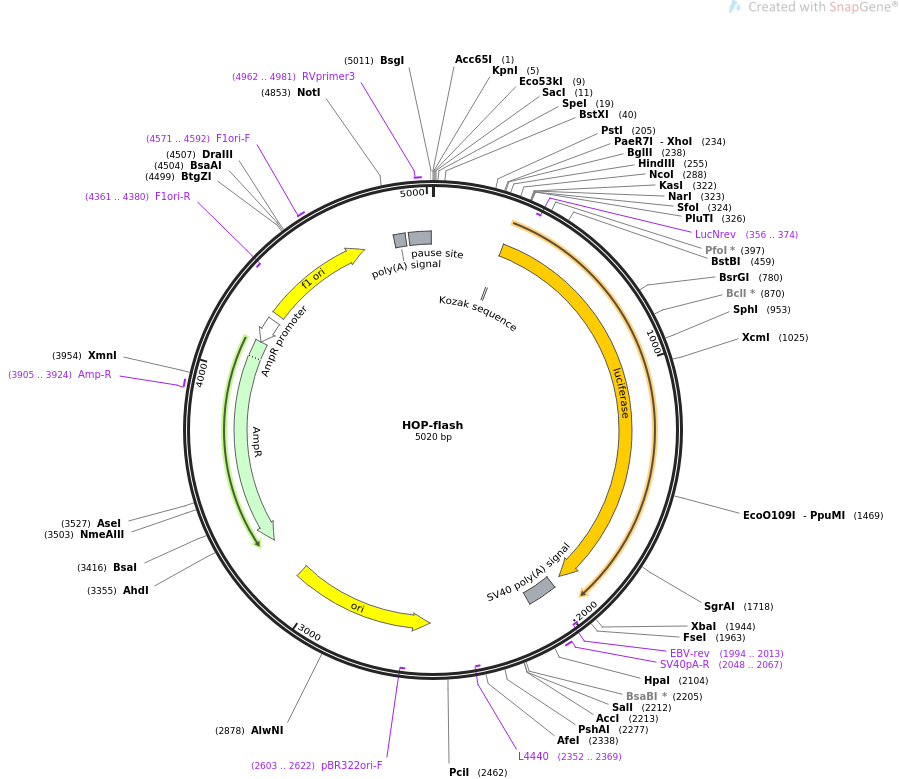

HOP-flash质粒图谱

HOPflash载体简介

HOPflash载体序列

LOCUS       HOP-flash                5020 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  TEAD-YAP/TAZ tx activity reporter. 8xwt TEAD binding sites with
            minimal promoter plus luciferase reporter gene.
ACCESSION   .
VERSION     .
KEYWORDS    HOP-flash
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5020)
  AUTHORS   Kim NG, Gumbiner BM
  TITLE     Adhesion to fibronectin regulates Hippo signaling via the
            FAK-Src-PI3K pathway.
  JOURNAL   J Cell Biol. 2015 Aug 3;210(3):503-15. doi: 10.1083/jcb.201501025.
            Epub 2015 Jul 27.
  PUBMED    26216901
REFERENCE   2  (bases 1 to 5020)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5020
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     regulatory      284..293
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             290..1942
                     /codon_start=1
                     /gene="luc+"
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="enhanced luc+ version of the luciferase gene"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     primer_bind     complement(356..374)
                     /label=LucNrev
                     /note="Firefly luciferase, reverse primer"
     polyA_signal    1983..2104
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1994..2013)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     2048..2067
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     complement(2352..2369)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(2523..3111)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2603..2622)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3282..4142)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     3905..3924
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(4143..4247)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      4274..4729
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4361..4380)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4571..4592
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     polyA_signal    4860..4908
                     /note="synthetic polyadenylation signal"
     misc_feature    4922..5013
                     /label=pause site
                     /note="RNA polymerase II transcriptional pause signal from
                     the human alpha-2 globin gene"
     primer_bind     4962..4981
                     /label=RVprimer3
                     /note="pGL3 vector, forward primer"
ORIGIN
        1 ggtaccgagc tcggatccac tagtaacggc cgccagtgtg ctggaattcg cccttggtgg
       61 ggaggaatgc gaggaatgtc cctgtttgtg gtggggagga atgcgaggaa tgtccctgtt
      121 tgtggtgggg aggaatgcga ggaatgtccc tgtttgtggt ggggaggaat gcgaggaatg
      181 tccctgttta agggcgaatt ctgcagatta gagggtatat aatggatccg gtactcgaga
      241 tctgcgatct aagtaagctt ggcattccgg tactgttggt aaagccacca tggaagacgc
      301 caaaaacata aagaaaggcc cggcgccatt ctatccgctg gaagatggaa ccgctggaga
      361 gcaactgcat aaggctatga agagatacgc cctggttcct ggaacaattg cttttacaga
      421 tgcacatatc gaggtggaca tcacttacgc tgagtacttc gaaatgtccg ttcggttggc
      481 agaagctatg aaacgatatg ggctgaatac aaatcacaga atcgtcgtat gcagtgaaaa
      541 ctctcttcaa ttctttatgc cggtgttggg cgcgttattt atcggagttg cagttgcgcc
      601 cgcgaacgac atttataatg aacgtgaatt gctcaacagt atgggcattt cgcagcctac
      661 cgtggtgttc gtttccaaaa aggggttgca aaaaattttg aacgtgcaaa aaaagctccc
      721 aatcatccaa aaaattatta tcatggattc taaaacggat taccagggat ttcagtcgat
      781 gtacacgttc gtcacatctc atctacctcc cggttttaat gaatacgatt ttgtgccaga
      841 gtccttcgat agggacaaga caattgcact gatcatgaac tcctctggat ctactggtct
      901 gcctaaaggt gtcgctctgc ctcatagaac tgcctgcgtg agattctcgc atgccagaga
      961 tcctattttt ggcaatcaaa tcattccgga tactgcgatt ttaagtgttg ttccattcca
     1021 tcacggtttt ggaatgttta ctacactcgg atatttgata tgtggatttc gagtcgtctt
     1081 aatgtataga tttgaagaag agctgtttct gaggagcctt caggattaca agattcaaag
     1141 tgcgctgctg gtgccaaccc tattctcctt cttcgccaaa agcactctga ttgacaaata
     1201 cgatttatct aatttacacg aaattgcttc tggtggcgct cccctctcta aggaagtcgg
     1261 ggaagcggtt gccaagaggt tccatctgcc aggtatcagg caaggatatg ggctcactga
     1321 gactacatca gctattctga ttacacccga gggggatgat aaaccgggcg cggtcggtaa
     1381 agttgttcca ttttttgaag cgaaggttgt ggatctggat accgggaaaa cgctgggcgt
     1441 taatcaaaga ggcgaactgt gtgtgagagg tcctatgatt atgtccggtt atgtaaacaa
     1501 tccggaagcg accaacgcct tgattgacaa ggatggatgg ctacattctg gagacatagc
     1561 ttactgggac gaagacgaac acttcttcat cgttgaccgc ctgaagtctc tgattaagta
     1621 caaaggctat caggtggctc ccgctgaatt ggaatccatc ttgctccaac accccaacat
     1681 cttcgacgca ggtgtcgcag gtcttcccga cgatgacgcc ggtgaacttc ccgccgccgt
     1741 tgttgttttg gagcacggaa agacgatgac ggaaaaagag atcgtggatt acgtcgccag
     1801 tcaagtaaca accgcgaaaa agttgcgcgg aggagttgtg tttgtggacg aagtaccgaa
     1861 aggtcttacc ggaaaactcg acgcaagaaa aatcagagag atcctcataa aggccaagaa
     1921 gggcggaaag atcgccgtgt aattctagag tcggggcggc cggccgcttc gagcagacat
     1981 gataagatac attgatgagt ttggacaaac cacaactaga atgcagtgaa aaaaatgctt
     2041 tatttgtgaa atttgtgatg ctattgcttt atttgtaacc attataagct gcaataaaca
     2101 agttaacaac aacaattgca ttcattttat gtttcaggtt cagggggagg tgtgggaggt
     2161 tttttaaagc aagtaaaacc tctacaaatg tggtaaaatc gataaggatc cgtcgaccga
     2221 tgcccttgag agccttcaac ccagtcagct ccttccggtg ggcgcggggc atgactatcg
     2281 tcgccgcact tatgactgtc ttctttatca tgcaactcgt aggacaggtg ccggcagcgc
     2341 tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta
     2401 tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag
     2461 aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg
     2521 tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg
     2581 tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg
     2641 cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga
     2701 agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc
     2761 tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt
     2821 aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact
     2881 ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg
     2941 cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct gaagccagtt
     3001 accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt
     3061 ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct
     3121 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     3181 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     3241 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     3301 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     3361 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     3421 cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     3481 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     3541 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     3601 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     3661 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     3721 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     3781 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     3841 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     3901 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     3961 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     4021 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     4081 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     4141 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     4201 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga
     4261 aaagtgccac ctgacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg
     4321 cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct
     4381 tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta
     4441 gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta gggtgatggt
     4501 tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg
     4561 ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat ctcggtctat
     4621 tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt
     4681 taacaaaaat ttaacgcgaa ttttaacaaa atattaacgc ttacaatttg ccattcgcca
     4741 ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag
     4801 cccaagctac catgataagt aagtaatatt aaggtacggg aggtacttgg agcggccgca
     4861 ataaaatatc tttattttca ttacatctgt gtgttggttt tttgtgtgaa tcgatagtac
     4921 taacatacgc tctccatcaa aacaaaacga aacaaaacaa actagcaaaa taggctgtcc
     4981 ccagtgcaag tgcaggtgcc agaacatttc tctatcgata
//

HOPflash载体图谱质粒图谱pdf版和相关资料下载

HOPflash载体质粒应用举例
