LCV2_mClover3_AAVS1_sgRNA_2

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: LCV2_mClover3_AAVS1_sgRNA_2
出品公司: 爱迪基因
目录编号: 155099
存储实验室: Jason Moffat

载体骨架基本信息
载体名称: LCV2_mClover3
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 14753 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳动物表达,慢病毒,CRISPR
筛选标记: 嘌呤霉素
高拷贝/低拷贝: 高拷贝
生长条件: 30 ℃

插入基因信息
插入基因名称: AAVS1_sgRNA_2
物种来源: H. sapiens (human)
插入大小: 20 bp
基因突变: --
GenBank编号 --
启动子 U6 promoter
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: BsmBI/Esp3I(在克隆过程中被破坏)
3' 克隆位点: BsmBI/Esp3I(在克隆过程中被破坏)
5' 测序引物 ACTATCATATGCTTACCGTAAC
3' 测序引物 --

文献引用方法
材料和方法部分: LCV2_mClover3_AAVS1_sgRNA_2 was a gift from Jason Moffat (Addgene plasmid # 155099 ; http://n2t.net/addgene:155099 ; RRID:Addgene_155099)
参考文献部分: Systematic mapping of genetic interactions for de novo fatty acid synthesis identifies C12orf49 as a regulator of lipid metabolism. Aregger M, Lawson KA, Billmann M, Costanzo M, Tong AHY, Chan KA, Rahman M, Brown KR, Ross C, Usaj M, Nedyalkova L, Sizova O, Habsid A, Pawling J, Lin ZY, Abdouni H, Wong C, Weiss A, Mero P, Dennis JW, Gingras A, Myers CL, Andrews BJ, Boone C, Moffat J. Nat Metab (2020) 10.1038/s42255-020-0211-z

载体图谱质粒图谱和多克隆位点信息

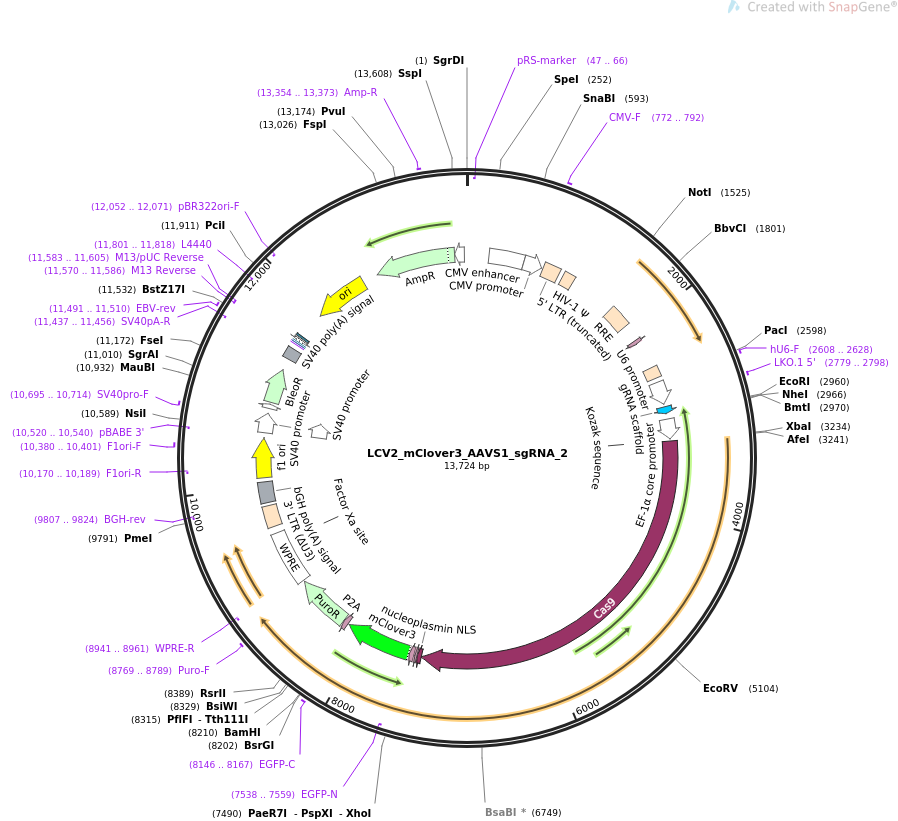

LCV2_mClover3_AAVS1_sgRNA_2质粒图谱

载体简介

载体序列

LOCUS       LCV2_mClover3_AAVS1_sgRNA_2              13724 bp ds-DNA     circular SYN 13-MAY-2021
DEFINITION  lentiviral plasmid expressing mClover3, Cas9 and a gRNA targeting
            the AAVS1 safe harbor locus.
ACCESSION   .
VERSION     .
KEYWORDS    LCV2_mClover3_AAVS1_sgRNA_2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 13724)
  AUTHORS   Aregger M, Lawson KA, Billmann M, Costanzo M, Tong AHY, Chan KA,
            Rahman M, Brown KR, Ross C, Usaj M, Nedyalkova L, Sizova O, Habsid
            A, Pawling J, Lin ZY, Abdouni H, Wong C, Weiss A, Mero P, Dennis JW,
            Gingras A, Myers CL, Andrews BJ, Boone C, Moffat J
  TITLE     Systematic mapping of genetic interactions for de novo fatty acid
            synthesis identifies C12orf49 as a regulator of lipid metabolism
  JOURNAL   Nat Metab (2020)
REFERENCE   2  (bases 1 to 13724)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 13, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..13724
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(47..66)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        238..617
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        619..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     772..792
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             835..1015
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1062..1187
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1680..1913
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             2098..2142
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    2440..2557
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2608..2848
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     2608..2628
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     2779..2798
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        2878..2953
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     promoter        3015..3226
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     regulatory      3245..3254
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             3251..7354
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="MDKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK
                     NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES
                     FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK
                     FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL
                     ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ
                     IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR
                     QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL
                     RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG
                     NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY
                     FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD
                     SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER
                     LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM
                     QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR
                     HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY
                     LYYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP
                     SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH
                     VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL
                     NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT
                     EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK
                     ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI
                     TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE
                     LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD
                     ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL
                     DATLIHQSITGLYETRIDLSQLGGD"
     CDS             7355..7402
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     CDS             7403..7426
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     CDS             7436..7489
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             7496..8209
                     /codon_start=1
                     /product="bright green-yellow fluorescent protein derived
                     from mClover2, with improved photostability (Bajar et al.,
                     2003)"
                     /label=mClover3
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLK
                     FICTTGKLPVPWPTLVTTFGYGVACFSRYPDHMKQHDFFKSAMPEGYVQERTISFKDDG
                     TYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHYVYITADKQKNCIKA
                     NFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSHQSKLSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     primer_bind     complement(7538..7559)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     8146..8167
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     CDS             8219..8275
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             8276..8872
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="TEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERV
                     TELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAA
                     QQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSA
                     PRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     8769..8789
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     misc_feature    8888..9476
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(8941..8961)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(9359..9370)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             9548..9781
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     primer_bind     complement(9807..9824)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    9813..10037
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      10083..10511
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(10170..10189)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     10380..10401
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(10520..10540)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        10564..10774
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     promoter        10586..10782
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      10633..10768
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     10695..10714
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     promoter        10830..10877
                     /label=EM7 promoter
                     /note="synthetic bacterial promoter "
     CDS             10896..11270
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /label=BleoR
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     polyA_signal    11400..11521
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(11437..11456)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     11491..11510
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(11570..11586)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(11570..11586)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(11583..11605)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    11594..11610
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(11618..11648)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    11663..11684
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(11801..11818)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(11972..12560)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(12052..12071)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(12731..13591)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     13354..13373
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(13592..13696)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac
      241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat
      301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg
      361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt
      421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag
      481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc
      541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag
      601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt
      661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc
      721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg
      781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct
      841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     1501 aaagtaagac caccgcacag caagcggccg ctgatcttca gacctggagg aggagatatg
     1561 agggacaatt ggagaagtga attatataaa tataaagtag taaaaattga accattagga
     1621 gtagcaccca ccaaggcaaa gagaagagtg gtgcagagag aaaaaagagc agtgggaata
     1681 ggagctttgt tccttgggtt cttgggagca gcaggaagca ctatgggcgc agcgtcaatg
     1741 acgctgacgg tacaggccag acaattattg tctggtatag tgcagcagca gaacaatttg
     1801 ctgagggcta ttgaggcgca acagcatctg ttgcaactca cagtctgggg catcaagcag
     1861 ctccaggcaa gaatcctggc tgtggaaaga tacctaaagg atcaacagct cctggggatt
     1921 tggggttgct ctggaaaact catttgcacc actgctgtgc cttggaatgc tagttggagt
     1981 aataaatctc tggaacagat ttggaatcac acgacctgga tggagtggga cagagaaatt
     2041 aacaattaca caagcttaat acactcctta attgaagaat cgcaaaacca gcaagaaaag
     2101 aatgaacaag aattattgga attagataaa tgggcaagtt tgtggaattg gtttaacata
     2161 acaaattggc tgtggtatat aaaattattc ataatgatag taggaggctt ggtaggttta
     2221 agaatagttt ttgctgtact ttctatagtg aatagagtta ggcagggata ttcaccatta
     2281 tcgtttcaga cccacctccc aaccccgagg ggacccgaca ggcccgaagg aatagaagaa
     2341 gaaggtggag agagagacag agacagatcc attcgattag tgaacggatc ggcactgcgt
     2401 gcgccaattc tgcagacaaa tggcagtatt catccacaat tttaaaagaa aaggggggat
     2461 tggggggtac agtgcagggg aaagaatagt agacataata gcaacagaca tacaaactaa
     2521 agaattacaa aaacaaatta caaaaattca aaattttcgg gtttattaca gggacagcag
     2581 agatccagtt tggttaatta aggtaccgag ggcctatttc ccatgattcc ttcatatttg
     2641 catatacgat acaaggctgt tagagagata attagaatta atttgactgt aaacacaaag
     2701 atattagtac aaaatacgtg acgtagaaag taataatttc ttgggtagtt tgcagtttta
     2761 aaattatgtt ttaaaatgga ctatcatatg cttaccgtaa cttgaaagta tttcgatttc
     2821 ttggctttat atatcttgtg gaaaggacga aacaccggtc accaatcctg tccctaggtt
     2881 ttagagctag aaatagcaag ttaaaataag gctagtccgt tatcaacttg aaaaagtggc
     2941 accgagtcgg tgcttttttg aattcgctag ctaggtcttg aaaggagtgg gaattggctc
     3001 cggtgcccgt cagtgggcag agcgcacatc gcccacagtc cccgagaagt tggggggagg
     3061 ggtcggcaat tgatccggtg cctagagaag gtggcgcggg gtaaactggg aaagtgatgt
     3121 cgtgtactgg ctccgccttt ttcccgaggg tgggggagaa ccgtatataa gtgcagtagt
     3181 cgccgtgaac gttctttttc gcaacgggtt tgccgccaga acacaggacc ggttctagag
     3241 cgctgccacc atggacaaga agtacagcat cggcctggac atcggcacca actctgtggg
     3301 ctgggccgtg atcaccgacg agtacaaggt gcccagcaag aaattcaagg tgctgggcaa
     3361 caccgaccgg cacagcatca agaagaacct gatcggagcc ctgctgttcg acagcggcga
     3421 aacagccgag gccacccggc tgaagagaac cgccagaaga agatacacca gacggaagaa
     3481 ccggatctgc tatctgcaag agatcttcag caacgagatg gccaaggtgg acgacagctt
     3541 cttccacaga ctggaagagt ccttcctggt ggaagaggat aagaagcacg agcggcaccc
     3601 catcttcggc aacatcgtgg acgaggtggc ctaccacgag aagtacccca ccatctacca
     3661 cctgagaaag aaactggtgg acagcaccga caaggccgac ctgcggctga tctatctggc
     3721 cctggcccac atgatcaagt tccggggcca cttcctgatc gagggcgacc tgaaccccga
     3781 caacagcgac gtggacaagc tgttcatcca gctggtgcag acctacaacc agctgttcga
     3841 ggaaaacccc atcaacgcca gcggcgtgga cgccaaggcc atcctgtctg ccagactgag
     3901 caagagcaga cggctggaaa atctgatcgc ccagctgccc ggcgagaaga agaatggcct
     3961 gttcggaaac ctgattgccc tgagcctggg cctgaccccc aacttcaaga gcaacttcga
     4021 cctggccgag gatgccaaac tgcagctgag caaggacacc tacgacgacg acctggacaa
     4081 cctgctggcc cagatcggcg accagtacgc cgacctgttt ctggccgcca agaacctgtc
     4141 cgacgccatc ctgctgagcg acatcctgag agtgaacacc gagatcacca aggcccccct
     4201 gagcgcctct atgatcaaga gatacgacga gcaccaccag gacctgaccc tgctgaaagc
     4261 tctcgtgcgg cagcagctgc ctgagaagta caaagagatt ttcttcgacc agagcaagaa
     4321 cggctacgcc ggctacattg acggcggagc cagccaggaa gagttctaca agttcatcaa
     4381 gcccatcctg gaaaagatgg acggcaccga ggaactgctc gtgaagctga acagagagga
     4441 cctgctgcgg aagcagcgga ccttcgacaa cggcagcatc ccccaccaga tccacctggg
     4501 agagctgcac gccattctgc ggcggcagga agatttttac ccattcctga aggacaaccg
     4561 ggaaaagatc gagaagatcc tgaccttccg catcccctac tacgtgggcc ctctggccag
     4621 gggaaacagc agattcgcct ggatgaccag aaagagcgag gaaaccatca ccccctggaa
     4681 cttcgaggaa gtggtggaca agggcgcttc cgcccagagc ttcatcgagc ggatgaccaa
     4741 cttcgataag aacctgccca acgagaaggt gctgcccaag cacagcctgc tgtacgagta
     4801 cttcaccgtg tataacgagc tgaccaaagt gaaatacgtg accgagggaa tgagaaagcc
     4861 cgccttcctg agcggcgagc agaaaaaggc catcgtggac ctgctgttca agaccaaccg
     4921 gaaagtgacc gtgaagcagc tgaaagagga ctacttcaag aaaatcgagt gcttcgactc
     4981 cgtggaaatc tccggcgtgg aagatcggtt caacgcctcc ctgggcacat accacgatct
     5041 gctgaaaatt atcaaggaca aggacttcct ggacaatgag gaaaacgagg acattctgga
     5101 agatatcgtg ctgaccctga cactgtttga ggacagagag atgatcgagg aacggctgaa
     5161 aacctatgcc cacctgttcg acgacaaagt gatgaagcag ctgaagcggc ggagatacac
     5221 cggctggggc aggctgagcc ggaagctgat caacggcatc cgggacaagc agtccggcaa
     5281 gacaatcctg gatttcctga agtccgacgg cttcgccaac agaaacttca tgcagctgat
     5341 ccacgacgac agcctgacct ttaaagagga catccagaaa gcccaggtgt ccggccaggg
     5401 cgatagcctg cacgagcaca ttgccaatct ggccggcagc cccgccatta agaagggcat
     5461 cctgcagaca gtgaaggtgg tggacgagct cgtgaaagtg atgggccggc acaagcccga
     5521 gaacatcgtg atcgaaatgg ccagagagaa ccagaccacc cagaagggac agaagaacag
     5581 ccgcgagaga atgaagcgga tcgaagaggg catcaaagag ctgggcagcc agatcctgaa
     5641 agaacacccc gtggaaaaca cccagctgca gaacgagaag ctgtacctgt actacctgca
     5701 gaatgggcgg gatatgtacg tggaccagga actggacatc aaccggctgt ccgactacga
     5761 tgtggaccat atcgtgcctc agagctttct gaaggacgac tccatcgaca acaaggtgct
     5821 gaccagaagc gacaagaacc ggggcaagag cgacaacgtg ccctccgaag aggtcgtgaa
     5881 gaagatgaag aactactggc ggcagctgct gaacgccaag ctgattaccc agagaaagtt
     5941 cgacaatctg accaaggccg agagaggcgg cctgagcgaa ctggataagg ccggcttcat
     6001 caagagacag ctggtggaaa cccggcagat cacaaagcac gtggcacaga tcctggactc
     6061 ccggatgaac actaagtacg acgagaatga caagctgatc cgggaagtga aagtgatcac
     6121 cctgaagtcc aagctggtgt ccgatttccg gaaggatttc cagttttaca aagtgcgcga
     6181 gatcaacaac taccaccacg cccacgacgc ctacctgaac gccgtcgtgg gaaccgccct
     6241 gatcaaaaag taccctaagc tggaaagcga gttcgtgtac ggcgactaca aggtgtacga
     6301 cgtgcggaag atgatcgcca agagcgagca ggaaatcggc aaggctaccg ccaagtactt
     6361 cttctacagc aacatcatga actttttcaa gaccgagatt accctggcca acggcgagat
     6421 ccggaagcgg cctctgatcg agacaaacgg cgaaaccggg gagatcgtgt gggataaggg
     6481 ccgggatttt gccaccgtgc ggaaagtgct gagcatgccc caagtgaata tcgtgaaaaa
     6541 gaccgaggtg cagacaggcg gcttcagcaa agagtctatc ctgcccaaga ggaacagcga
     6601 taagctgatc gccagaaaga aggactggga ccctaagaag tacggcggct tcgacagccc
     6661 caccgtggcc tattctgtgc tggtggtggc caaagtggaa aagggcaagt ccaagaaact
     6721 gaagagtgtg aaagagctgc tggggatcac catcatggaa agaagcagct tcgagaagaa
     6781 tcccatcgac tttctggaag ccaagggcta caaagaagtg aaaaaggacc tgatcatcaa
     6841 gctgcctaag tactccctgt tcgagctgga aaacggccgg aagagaatgc tggcctctgc
     6901 cggcgaactg cagaagggaa acgaactggc cctgccctcc aaatatgtga acttcctgta
     6961 cctggccagc cactatgaga agctgaaggg ctcccccgag gataatgagc agaaacagct
     7021 gtttgtggaa cagcacaagc actacctgga cgagatcatc gagcagatca gcgagttctc
     7081 caagagagtg atcctggccg acgctaatct ggacaaagtg ctgtccgcct acaacaagca
     7141 ccgggataag cccatcagag agcaggccga gaatatcatc cacctgttta ccctgaccaa
     7201 tctgggagcc cctgccgcct tcaagtactt tgacaccacc atcgaccgga agaggtacac
     7261 cagcaccaaa gaggtgctgg acgccaccct gatccaccag agcatcaccg gcctgtacga
     7321 gacacggatc gacctgtctc agctgggagg cgacaagcga cctgccgcca caaagaaggc
     7381 tggacaggct aagaagaaga aagattacaa agacgatgac gataagggca gtggagaggg
     7441 cagaggaagt ctgctaacat gcggtgacgt cgaggagaat cctggcccac tcgaggtgag
     7501 caagggcgag gagctgttca ccggggtggt gcccatcctg gtcgagctgg acggcgacgt
     7561 aaacggccac aagttcagcg tccgcggcga gggcgagggc gatgccacca acggcaagct
     7621 gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg ccctggccca ccctcgtgac
     7681 caccttcggc tacggcgtgg cctgcttcag ccgctacccc gaccacatga agcagcacga
     7741 cttcttcaag tccgccatgc ccgaaggcta cgtccaggag cgcaccatct ctttcaagga
     7801 cgacggtacc tacaagaccc gcgccgaggt gaagttcgag ggcgacaccc tggtgaaccg
     7861 catcgagctg aagggcatcg acttcaagga ggacggcaac atcctggggc acaagctgga
     7921 gtacaacttc aacagccact acgtctatat cacggccgac aagcagaaga actgcatcaa
     7981 ggctaacttc aagatccgcc acaacgttga ggacggcagc gtgcagctcg ccgaccacta
     8041 ccagcagaac acccccatcg gcgacggccc cgtgctgctg cccgacaacc actacctgag
     8101 ccatcagtcc aagctgagca aagaccccaa cgagaagcgc gatcacatgg tcctgctgga
     8161 gttcgtgacc gccgccggga ttacacatgg catggacgag ctgtacaagg gatccggcgc
     8221 aacaaacttc tctctgctga aacaagccgg agatgtcgaa gagaatcctg gaccgaccga
     8281 gtacaagccc acggtgcgcc tcgccacccg cgacgacgtc cccagggccg tacgcaccct
     8341 cgccgccgcg ttcgccgact accccgccac gcgccacacc gtcgatccgg accgccacat
     8401 cgagcgggtc accgagctgc aagaactctt cctcacgcgc gtcgggctcg acatcggcaa
     8461 ggtgtgggtc gcggacgacg gcgccgcggt ggcggtctgg accacgccgg agagcgtcga
     8521 agcgggggcg gtgttcgccg agatcggccc gcgcatggcc gagttgagcg gttcccggct
     8581 ggccgcgcag caacagatgg aaggcctcct ggcgccgcac cggcccaagg agcccgcgtg
     8641 gttcctggcc accgtcggag tctcgcccga ccaccagggc aagggtctgg gcagcgccgt
     8701 cgtgctcccc ggagtggagg cggccgagcg cgccggggtg cccgccttcc tggagacctc
     8761 cgcgccccgc aacctcccct tctacgagcg gctcggcttc accgtcaccg ccgacgtcga
     8821 ggtgcccgaa ggaccgcgca cctggtgcat gacccgcaag cccggtgcct gaacgcgtta
     8881 agtcgacaat caacctctgg attacaaaat ttgtgaaaga ttgactggta ttcttaacta
     8941 tgttgctcct tttacgctat gtggatacgc tgctttaatg cctttgtatc atgctattgc
     9001 ttcccgtatg gctttcattt tctcctcctt gtataaatcc tggttgctgt ctctttatga
     9061 ggagttgtgg cccgttgtca ggcaacgtgg cgtggtgtgc actgtgtttg ctgacgcaac
     9121 ccccactggt tggggcattg ccaccacctg tcagctcctt tccgggactt tcgctttccc
     9181 cctccctatt gccacggcgg aactcatcgc cgcctgcctt gcccgctgct ggacaggggc
     9241 tcggctgttg ggcactgaca attccgtggt gttgtcgggg aaatcatcgt cctttccttg
     9301 gctgctcgcc tgtgttgcca cctggattct gcgcgggacg tccttctgct acgtcccttc
     9361 ggccctcaat ccagcggacc ttccttcccg cggcctgctg ccggctctgc ggcctcttcc
     9421 gcgtcttcgc cttcgccctc agacgagtcg gatctccctt tgggccgcct ccccgcgtcg
     9481 actttaagac caatgactta caaggcagct gtagatctta gccacttttt aaaagaaaag
     9541 gggggactgg aagggctaat tcactcccaa cgaagacaag atctgctttt tgcttgtact
     9601 gggtctctct ggttagacca gatctgagcc tgggagctct ctggctaact agggaaccca
     9661 ctgcttaagc ctcaataaag cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg
     9721 tgtgactctg gtaactagag atccctcaga cccttttagt cagtgtggaa aatctctagc
     9781 agggcccgtt taaacccgct gatcagcctc gactgtgcct tctagttgcc agccatctgt
     9841 tgtttgcccc tcccccgtgc cttccttgac cctggaaggt gccactccca ctgtcctttc
     9901 ctaataaaat gaggaaattg catcgcattg tctgagtagg tgtcattcta ttctgggggg
     9961 tggggtgggg caggacagca agggggagga ttgggaagac aatagcaggc atgctgggga
    10021 tgcggtgggc tctatggctt ctgaggcgga aagaaccagc tggggctcta gggggtatcc
    10081 ccacgcgccc tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac
    10141 cgctacactt gccagcgccc tagcgcccgc tcctttcgct ttcttccctt cctttctcgc
    10201 cacgttcgcc ggctttcccc gtcaagctct aaatcggggg ctccctttag ggttccgatt
    10261 tagtgcttta cggcacctcg accccaaaaa acttgattag ggtgatggtt cacgtagtgg
    10321 gccatcgccc tgatagacgg tttttcgccc tttgacgttg gagtccacgt tctttaatag
    10381 tggactcttg ttccaaactg gaacaacact caaccctatc tcggtctatt cttttgattt
    10441 ataagggatt ttgccgattt cggcctattg gttaaaaaat gagctgattt aacaaaaatt
    10501 taacgcgaat taattctgtg gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc
    10561 ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat agtcccgccc
    10621 ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
    10681 tgactaattt tttttattta tgcagaggcc gaggccgcct ctgcctctga gctattccag
    10741 aagtagtgag gaggcttttt tggaggccta ggcttttgca aaaagctccc gggagcttgt
    10801 atatccattt tcggatctga tcagcacgtg ttgacaatta atcatcggca tagtatatcg
    10861 gcatagtata atacgacaag gtgaggaact aaaccatggc caagttgacc agtgccgttc
    10921 cggtgctcac cgcgcgcgac gtcgccggag cggtcgagtt ctggaccgac cggctcgggt
    10981 tctcccggga cttcgtggag gacgacttcg ccggtgtggt ccgggacgac gtgaccctgt
    11041 tcatcagcgc ggtccaggac caggtggtgc cggacaacac cctggcctgg gtgtgggtgc
    11101 gcggcctgga cgagctgtac gccgagtggt cggaggtcgt gtccacgaac ttccgggacg
    11161 cctccgggcc ggccatgacc gagatcggcg agcagccgtg ggggcgggag ttcgccctgc
    11221 gcgacccggc cggcaactgc gtgcacttcg tggccgagga gcaggactga cacgtgctac
    11281 gagatttcga ttccaccgcc gccttctatg aaaggttggg cttcggaatc gttttccggg
    11341 acgccggctg gatgatcctc cagcgcgggg atctcatgct ggagttcttc gcccacccca
    11401 acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa
    11461 ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt
    11521 atcatgtctg tataccgtcg acctctagct agagcttggc gtaatcatgg tcatagctgt
    11581 ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa
    11641 agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg ttgcgctcac
    11701 tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg
    11761 cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact gactcgctgc
    11821 gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta atacggttat
    11881 ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag caaaaggcca
    11941 ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc cctgacgagc
    12001 atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta taaagatacc
    12061 aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg
    12121 gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta
    12181 ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg
    12241 ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac ccggtaagac
    12301 acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg aggtatgtag
    12361 gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga agaacagtat
    12421 ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt agctcttgat
    12481 ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag cagattacgc
    12541 gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct gacgctcagt
    12601 ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg atcttcacct
    12661 agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat gagtaaactt
    12721 ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc tgtctatttc
    12781 gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg gagggcttac
    12841 catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct ccagatttat
    12901 cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca actttatccg
    12961 cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg ccagttaata
    13021 gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg tcgtttggta
    13081 tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc cccatgttgt
    13141 gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag
    13201 tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg ccatccgtaa
    13261 gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc
    13321 gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat agcagaactt
    13381 taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg atcttaccgc
    13441 tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca gcatctttta
    13501 ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa
    13561 taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat tattgaagca
    13621 tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag aaaaataaac
    13681 aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
