LeGO-EBFP2

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

LeGOEBFP2载体基本信息

质粒名称: LeGO-EBFP2
出品公司: 爱迪基因
目录编号: 85213
存储实验室: Boris Fehse

载体骨架基本信息
载体名称: LeGO vector
载体抗性: 氨苄青霉素
空载体大小: 6417 bp
完整质粒大小: 7137 bp
载体类型: 哺乳动物表达,慢病毒,Cre/Lox
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: EBFP2
物种来源: Synthetic
插入大小: 720 bp
启动子 SFFV
克隆方法: 限制性内切酶
5' 克隆位点: BamHI, NcoI (未破坏)
3' 克隆位点: EcoRI  (未破坏)
5' 测序引物 GAGCTCACAACCCCTCACTC

文献引用方法
材料和方法部分: LeGO-EBFP2 was a gift from Boris Fehse (Addgene plasmid # 85213 ; http://n2t.net/addgene:85213 ; RRID:Addgene_85213)
参考文献部分: Optical Barcoding for Single-Clone Tracking to Study Tumor Heterogeneity. Mohme M, Maire CL, Riecken K, Zapf S, Aranyossy T, Westphal M, Lamszus K, Fehse B. Mol Ther. 2017 Jan 18. pii: S1525-0016(16)45496-1. doi: 10.1016/j.ymthe.2016.12.014. 10.1016/j.ymthe.2016.12.014 PubMed 28109958

LeGOEBFP2载体图谱质粒图谱和多克隆位点信息

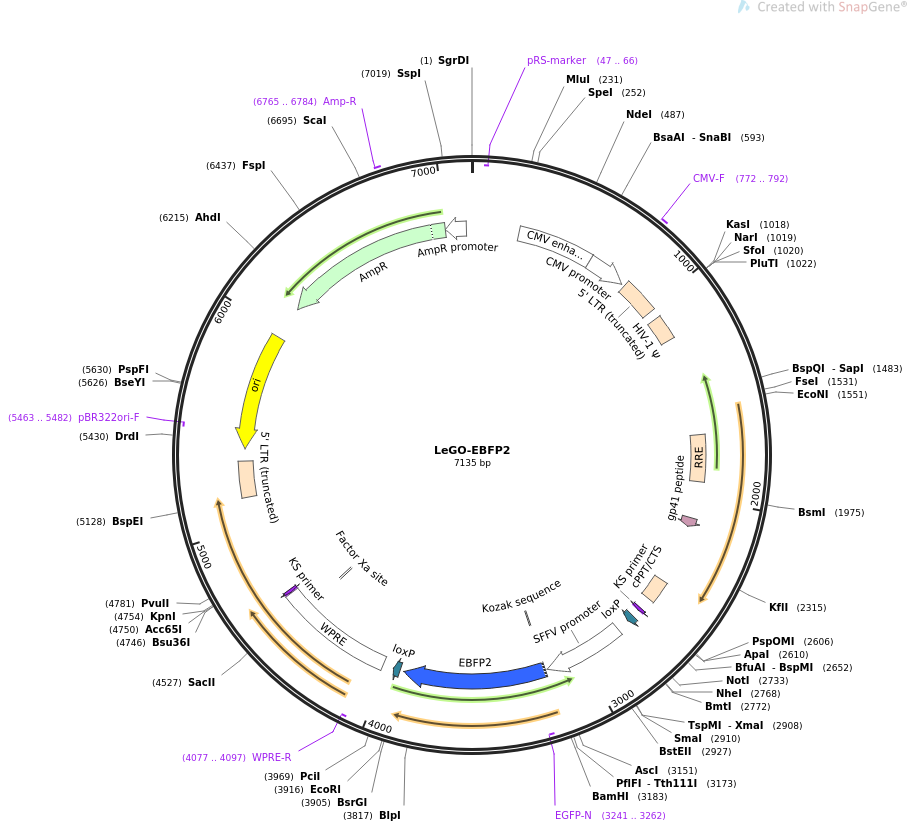

LeGO-EBFP2质粒图谱

LeGOEBFP2载体简介

LeGOEBFP2载体序列

LOCUS       LeGO-EBFP2                7135 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Lentiviral vector expressing EBFP2 fluorescent protein driven by
            SFFV promoter.
ACCESSION   .
VERSION     .
KEYWORDS    LeGO-EBFP2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7135)
  AUTHORS   Mohme M, Maire CL, Riecken K, Zapf S, Aranyossy T, Westphal M,
            Lamszus K, Fehse B
  TITLE     Optical Barcoding for Single-Clone Tracking to Study Tumor
            Heterogeneity.
  JOURNAL   Mol Ther. 2017 Jan 18. pii: S1525-0016(16)45496-1. doi:
            10.1016/j.ymthe.2016.12.014.
  PUBMED    28109958
REFERENCE   2  (bases 1 to 7135)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7135
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(47..66)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        238..617
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        619..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     772..792
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             835..1015
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1062..1187
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1684..1917
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             2102..2146
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    2444..2561
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     2620..2636
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    2678..2711
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     promoter        2778..3184
                     /label=SFFV promoter
                     /note="spleen focus-forming virus long terminal repeat
                     (LTR) promoter"
     regulatory      3190..3199
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             3196..3915
                     /codon_start=1
                     /product="enhanced blue variant of GFP (Ai et al., 2007)"
                     /label=EBFP2
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTL
                     KFICTTGKLPVPWPTLVTTLSHGVQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GTYKTRAEVKFEGDTLVNRIELKGVDFKEDGNILGHKLEYNFNSHNIYIMAVKQKNGIK
                     VNFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDSHYLSTQSVLSKDPNEKRDHMVLL
                     EFRTAAGITLGMDELYK"
     primer_bind     complement(3241..3262)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     protein_bind    3935..3968
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     misc_feature    4024..4612
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4077..4097)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(4495..4506)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     primer_bind     complement(4615..4631)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     LTR             5141..5321
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     rep_origin      complement(5383..5971)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5463..5482)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6142..7002)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6765..6784
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7003..7107)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac
      241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat
      301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg
      361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt
      421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag
      481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc
      541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag
      601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt
      661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc
      721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg
      781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct
      841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     1501 aaagtaagac caccgcacag caagcggccg gccgctgatc ttcagacctg gaggaggaga
     1561 tatgagggac aattggagaa gtgaattata taaatataaa gtagtaaaaa ttgaaccatt
     1621 aggagtagca cccaccaagg caaagagaag agtggtgcag agagaaaaaa gagcagtggg
     1681 aataggagct ttgttccttg ggttcttggg agcagcagga agcactatgg gcgcagcgtc
     1741 aatgacgctg acggtacagg ccagacaatt attgtctggt atagtgcagc agcagaacaa
     1801 tttgctgagg gctattgagg cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa
     1861 gcagctccag gcaagaatcc tggctgtgga aagataccta aaggatcaac agctcctggg
     1921 gatttggggt tgctctggaa aactcatttg caccactgct gtgccttgga atgctagttg
     1981 gagtaataaa tctctggaac agatttggaa tcacacgacc tggatggagt gggacagaga
     2041 aattaacaat tacacaagct taatacactc cttaattgaa gaatcgcaaa accagcaaga
     2101 aaagaatgaa caagaattat tggaattaga taaatgggca agtttgtgga attggtttaa
     2161 cataacaaat tggctgtggt atataaaatt attcataatg atagtaggag gcttggtagg
     2221 tttaagaata gtttttgctg tactttctat agtgaataga gttaggcagg gatattcacc
     2281 attatcgttt cagacccacc tcccaacccc gaggggaccc gacaggcccg aaggaataga
     2341 agaagaaggt ggagagagag acagagacag atccattcga ttagtgaacg gatcggcact
     2401 gcgtgcgcca attctgcaga caaatggcag tattcatcca caattttaaa agaaaagggg
     2461 ggattggggg gtacagtgca ggggaaagaa tagtagacat aatagcaaca gacatacaaa
     2521 ctaaagaatt acaaaaacaa attacaaaaa ttcaaaattt tcgggtttat tacagggaca
     2581 gcagagatcc agtttggtta gtaccgggcc cgctctagtc gaggtcgacg gtatcgataa
     2641 gctcgcttca cgagattcca gcaggtcgag ggacctaata acttcgtata gcatacatta
     2701 tacgaagtta tattaagggt tccaagctta agcggccgct gaaagacccc acctgtaggt
     2761 ttggcaagct agctgcagta acgccatttt gcaaggcatg gaaaaatacc aaaccaagaa
     2821 tagagaagtt cagatcaagg gcgggtacat gaaaatagct aacgttgggc caaacaggat
     2881 atctgcggtg agcagtttcg gccccggccc ggggccaaga acagatggtc accgcagttt
     2941 cggccccggc ccgaggccaa gaacagatgg tccccagata tggcccaacc ctcagcagtt
     3001 tcttaagacc catcagatgt ttccaggctc ccccaaggac ctgaaatgac cctgcgcctt
     3061 atttgaatta accaatcagc ctgcttctcg cttctgttcg cgcgcttctg cttcccgagc
     3121 tctataaaag agctcacaac ccctcactcg gcgcgccagt cctccgattg actgagtcgc
     3181 ccggatcccg ccaccatggt gagcaagggc gaggagctgt tcaccggggt ggtgcccatc
     3241 ctggtcgagc tggacggcga cgtaaacggc cacaagttca gcgtgagggg cgagggcgag
     3301 ggcgatgcca ccaacggcaa gctgaccctg aagttcatct gcaccaccgg caagctgccc
     3361 gtgccctggc ccaccctcgt gaccaccctg agccacggcg tgcagtgctt cgcccgctac
     3421 cccgaccaca tgaagcagca cgacttcttc aagtccgcca tgcccgaagg ctacgtccag
     3481 gagcgcacca tcttcttcaa ggacgacggc acctacaaga cccgcgccga ggtgaagttc
     3541 gagggcgaca ccctggtgaa ccgcatcgag ctgaagggcg tcgacttcaa ggaggacggc
     3601 aacatcctgg ggcacaagct ggagtacaac ttcaacagcc acaacatcta tatcatggcc
     3661 gtcaagcaga agaacggcat caaggtgaac ttcaagatcc gccacaacgt ggaggacggc
     3721 agcgtgcagc tcgccgacca ctaccagcag aacaccccca tcggcgacgg ccccgtgctg
     3781 ctgcccgaca gccactacct gagcacccag tccgtgctga gcaaagaccc caacgagaag
     3841 cgcgatcaca tggtcctgct ggagttccgc accgccgccg ggatcactct cggcatggac
     3901 gagctgtaca agtaagaatt cgtcgaggga cctaataact tcgtatagca tacattatac
     3961 gaagttatac atgtttaagg gttccggttc cactaggtac aattcgatat caagcttatc
     4021 gataatcaac ctctggatta caaaatttgt gaaagattga ctggtattct taactatgtt
     4081 gctcctttta cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc tattgcttcc
     4141 cgtatggctt tcattttctc ctccttgtat aaatcctggt tgctgtctct ttatgaggag
     4201 ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga cgcaaccccc
     4261 actggttggg gcattgccac cacctgtcag ctcctttccg ggactttcgc tttccccctc
     4321 cctattgcca cggcggaact catcgccgcc tgccttgccc gctgctggac aggggctcgg
     4381 ctgttgggca ctgacaattc cgtggtgttg tcggggaaat catcgtcctt tccttggctg
     4441 ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct tctgctacgt cccttcggcc
     4501 ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc tcttccgcgt
     4561 cttcgccttc gccctcagac gagtcggatc tccctttggg ccgcctcccc gcatcgatac
     4621 cgtcgacctc gatcgagacc tagaaaaaca tggagcaatc acaagtagca atacagcagc
     4681 taccaatgct gattgtgcct ggctagaagc acaagaggag gaggaggtgg gttttccagt
     4741 cacacctcag gtacctttaa gaccaatgac ttacaaggca gctgtagatc ttagccactt
     4801 tttaaaagaa aaggggggac tggaagggct aattcactcc caacgaagac aagatatcct
     4861 tgatctgtgg atctaccaca cacaaggcta cttccctgat tggcagaact acacaccagg
     4921 gccagggatc agatatccac tgacctttgg atggtgctac aagctagtac cagttgagca
     4981 agagaaggta gaagaagcca atgaaggaga gaacacccgc ttgttacacc ctgtgagcct
     5041 gcatgggatg gatgacccgg agagagaagt attagagtgg aggtttgaca gccgcctagc
     5101 atttcatcac atggcccgag agctgcatcc ggactgtact gggtctctct ggttagacca
     5161 gatctgagcc tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag
     5221 cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag
     5281 atccctcaga cccttttagt cagtgtggaa aatctctagc agcatgtgag caaaaggcca
     5341 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
     5401 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     5461 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     5521 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
     5581 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     5641 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     5701 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     5761 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     5821 aagaacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     5881 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
     5941 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
     6001 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
     6061 gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata
     6121 tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat
     6181 ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg
     6241 ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc
     6301 tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc
     6361 aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc
     6421 gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc
     6481 gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc
     6541 ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa
     6601 gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat
     6661 gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata
     6721 gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca
     6781 tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag
     6841 gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc
     6901 agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc
     6961 aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata
     7021 ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta
     7081 gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac ctgac
//

LeGOEBFP2载体图谱质粒图谱pdf版和相关资料下载

LeGOEBFP2载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
