质粒名称: | Lenti-dCas9-KRAB-blast |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 89567 |
存储实验室: | Gary Hon |
载体骨架基本信息 |
|
载体名称: | plenti |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 14229 bp |
完整质粒大小: | -- |
载体修饰: | 用KRAB域替换VP64 |
载体类型: | 慢病毒载体 |
筛选标记: | 杀稻瘟菌素 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 30 ℃ |
插入基因信息 |
|
插入基因名称: | dCas9 |
物种来源: | Synthetic |
插入大小: | -- |
基因突变: | D10A and H840A |
GenBank编号 | -- |
启动子 | -- |
标签/融合蛋白: |
KRAB(插入件上的C端子)
Blasticidin resistance gene(插入端C端)
|
克隆方法: | -- |
5' 克隆位点: | -- |
3' 克隆位点: | -- |
5' 测序引物 | -- |
3' 测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | Lenti-dCas9-KRAB-blast was a gift from Gary Hon (Addgene plasmid # 89567 ; http://n2t.net/addgene:89567 ; RRID:Addgene_89567) |
参考文献部分: | Multiplexed Engineering and Analysis of Combinatorial Enhancer Activity in Single Cells. Xie S, Duan J, Li B, Zhou P, Hon GC. Mol Cell. 2017 Apr 20;66(2):285-299.e5. doi: 10.1016/j.molcel.2017.03.007. Epub 2017 Apr 13. 10.1016/j.molcel.2017.03.007 PubMed 28416141 |
买家导航
载体基本信息

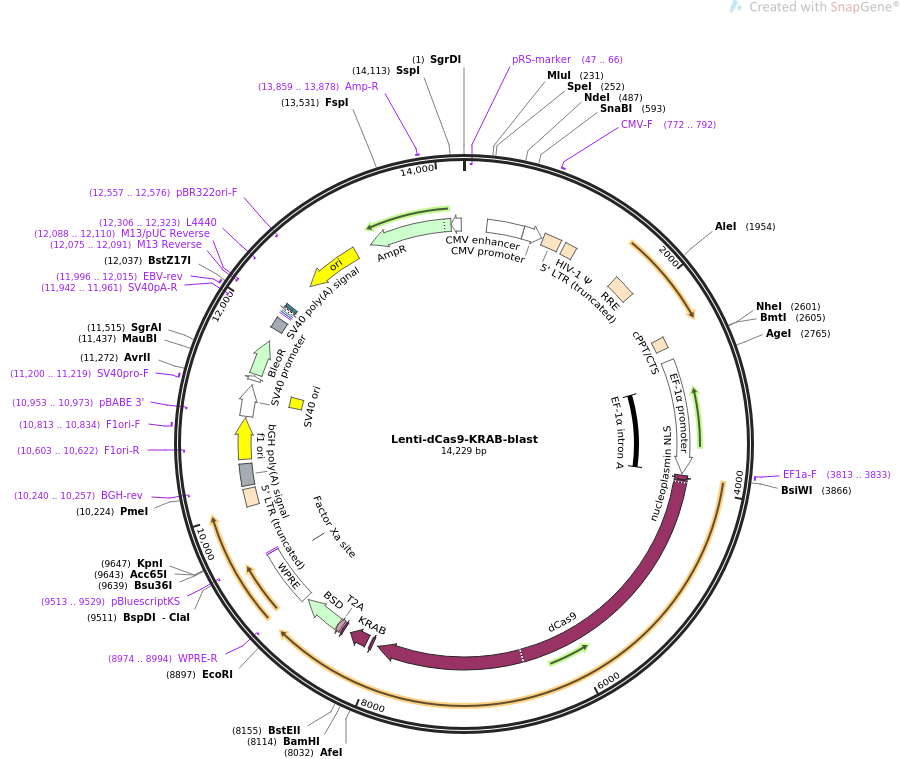

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS Lenti-dCas9-KRAB-blast 14229 bp ds-DNA circular SYN 22-APR-2019 DEFINITION Plasmid expression dCas9 protein in fusion with KRAB domain. ACCESSION . VERSION . KEYWORDS Lenti-dCas9-KRAB-blast SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 14229) AUTHORS Xie S, Duan J, Li B, Zhou P, Hon GC TITLE Multiplexed Engineering and Analysis of Combinatorial Enhancer Activity in Single Cells. JOURNAL Mol Cell. 2017 Apr 20;66(2):285-299.e5. doi: 10.1016/j.molcel.2017.03.007. Epub 2017 Apr 13. PUBMED 28416141 REFERENCE 2 (bases 1 to 14229) AUTHORS . TITLE Direct Submission JOURNAL Exported Apr 22, 2019 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..14229 /organism="synthetic DNA construct" /mol_type="other DNA" primer_bind complement(47..66) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" enhancer 238..617 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 619..817 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 772..792 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" LTR 835..1015 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" misc_feature 1062..1187 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 1680..1913 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." misc_feature 2440..2557 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1" promoter 2687..3865 /label=EF-1-alpha promoter /note="strong constitutive promoter for human elongation factor EF-1-alpha" intron 2918..3856 /label=EF-1-alpha intron A /note="intron upstream of the start codon of human EF-1-alpha" primer_bind 3813..3833 /label=EF1a-F /note="Human elongation factor-1a promoter, forward primer" CDS 3881..3928 /codon_start=1 /product="bipartite nuclear localization signal from nucleoplasmin" /label=nucleoplasmin NLS /translation="KRPAATKKAGQAKKKK" CDS 3929..8029 /codon_start=1 /product="catalytically dead mutant of the Cas9 endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=dCas9 /note="RNA-guided DNA-binding protein that lacks endonuclease activity due to the D10A mutation in the RuvC catalytic domain and the N863A mutation in the HNH catalytic domain" /translation="DKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKARGKSDNVPS EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD ATLIHQSITGLYETRIDLSQLGGD" CDS 8084..8104 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 8147..8341 /codon_start=1 /gene="ZNF10" /gene_synonym="KOX1" /product="Kruppel-associated box (KRAB) transcriptional repression domain from the human zinc finger protein ZNF10 (Margolin et al., 1994)" /label=KRAB /translation="RTLVTFKDVFVDFTREEWKLLDTAQQILYRNVMLENYKNLVSLGY QLTKPDVILRLEKGEEPWLV" CDS 8408..8428 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 8444..8497 /codon_start=1 /product="2A peptide from Thosea asigna virus capsid protein" /label=T2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="EGRGSLLTCGDVEENPGP" CDS 8498..8896 /codon_start=1 /gene="Aspergillus terreus BSD" /product="blasticidin S deaminase" /label=BSD /note="confers resistance to blasticidin" /translation="MAKPLSQEESTLIERATATINSIPISEDYSVASAALSSDGRIFTG VNVYHFTGGPCAELVVLGTAAAAAAGNLTCIVAIGNENRGILSPCGRCRQVLLDLHPGI KAIVKDSDGQPTAVGIRELLPSGYVWEG" misc_feature 8921..9509 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(8974..8994) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(9392..9403) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" primer_bind complement(9512..9528) /label=KS primer /note="common sequencing primer, one of multiple similar variants" primer_bind complement(9513..9529) /label=pBluescriptKS /note="For pBluescript vector" LTR 10034..10214 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" primer_bind complement(10240..10257) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 10246..10470 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" rep_origin 10516..10944 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(10603..10622) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 10813..10834 /label=F1ori-F /note="F1 origin, forward primer" primer_bind complement(10953..10973) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 10958..11287 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 11138..11273 /label=SV40 ori /note="SV40 origin of replication" primer_bind 11200..11219 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" promoter 11335..11382 /label=EM7 promoter /note="synthetic bacterial promoter " CDS 11401..11775 /codon_start=1 /gene="Sh ble from Streptoalloteichus hindustanus" /product="antibiotic-binding protein" /label=BleoR /note="confers resistance to bleomycin, phleomycin, and Zeocin(TM)" /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR EFALRDPAGNCVHFVAEEQD" polyA_signal 11905..12026 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(11942..11961) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 11996..12015 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" primer_bind complement(12075..12091) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(12075..12091) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(12088..12110) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 12099..12115 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(12123..12153) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 12168..12189 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(12306..12323) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(12477..13065) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(12557..12576) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(13236..14096) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 13859..13878 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(14097..14201) /gene="bla" /label=AmpR promoter ORIGIN 1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg 61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt 121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc 181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac 241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat 301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg 361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt 421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag 481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc 541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag 601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt 661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc 721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg 781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct 841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt 901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac 961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc 1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc 1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa 1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg 1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata 1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc 1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga 1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc 1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca 1501 aaagtaagac caccgcacag caagcggccg ctgatcttca gacctggagg aggagatatg 1561 agggacaatt ggagaagtga attatataaa tataaagtag taaaaattga accattagga 1621 gtagcaccca ccaaggcaaa gagaagagtg gtgcagagag aaaaaagagc agtgggaata 1681 ggagctttgt tccttgggtt cttgggagca gcaggaagca ctatgggcgc agcgtcaatg 1741 acgctgacgg tacaggccag acaattattg tctggtatag tgcagcagca gaacaatttg 1801 ctgagggcta ttgaggcgca acagcatctg ttgcaactca cagtctgggg catcaagcag 1861 ctccaggcaa gaatcctggc tgtggaaaga tacctaaagg atcaacagct cctggggatt 1921 tggggttgct ctggaaaact catttgcacc actgctgtgc cttggaatgc tagttggagt 1981 aataaatctc tggaacagat ttggaatcac acgacctgga tggagtggga cagagaaatt 2041 aacaattaca caagcttaat acactcctta attgaagaat cgcaaaacca gcaagaaaag 2101 aatgaacaag aattattgga attagataaa tgggcaagtt tgtggaattg gtttaacata 2161 acaaattggc tgtggtatat aaaattattc ataatgatag taggaggctt ggtaggttta 2221 agaatagttt ttgctgtact ttctatagtg aatagagtta ggcagggata ttcaccatta 2281 tcgtttcaga cccacctccc aaccccgagg ggacccgaca ggcccgaagg aatagaagaa 2341 gaaggtggag agagagacag agacagatcc attcgattag tgaacggatc ggcactgcgt 2401 gcgccaattc tgcagacaaa tggcagtatt catccacaat tttaaaagaa aaggggggat 2461 tggggggtac agtgcagggg aaagaatagt agacataata gcaacagaca tacaaactaa 2521 agaattacaa aaacaaatta caaaaattca aaattttcgg gtttattaca gggacagcag 2581 agatccagtt tggttaatta gctagctgca aagatggata aagttttaaa cagagaggaa 2641 tctttgcagc taatggacct tctaggtctt gaaaggagtg ggaattggct ccggtgcccg 2701 tcagtgggca gagcgcacat cgcccacagt ccccgagaag ttggggggag gggtcggcaa 2761 ttgaaccggt gcctagagaa ggtggcgcgg ggtaaactgg gaaagtgatg tcgtgtactg 2821 gctccgcctt tttcccgagg gtgggggaga accgtatata agtgcagtag tcgccgtgaa 2881 cgttcttttt cgcaacgggt ttgccgccag aacacaggta agtgccgtgt gtggttcccg 2941 cgggcctggc ctctttacgg gttatggccc ttgcgtgcct tgaattactt ccacctggct 3001 gcagtacgtg attcttgatc ccgagcttcg ggttggaagt gggtgggaga gttcgaggcc 3061 ttgcgcttaa ggagcccctt cgcctcgtgc ttgagttgag gcctggcctg ggcgctgggg 3121 ccgccgcgtg cgaatctggt ggcaccttcg cgcctgtctc gctgctttcg ataagtctct 3181 agccatttaa aatttttgat gacctgctgc gacgcttttt ttctggcaag atagtcttgt 3241 aaatgcgggc caagatctgc acactggtat ttcggttttt ggggccgcgg gcggcgacgg 3301 ggcccgtgcg tcccagcgca catgttcggc gaggcggggc ctgcgagcgc ggccaccgag 3361 aatcggacgg gggtagtctc aagctggccg gcctgctctg gtgcctggcc tcgcgccgcc 3421 gtgtatcgcc ccgccctggg cggcaaggct ggcccggtcg gcaccagttg cgtgagcgga 3481 aagatggccg cttcccggcc ctgctgcagg gagctcaaaa tggaggacgc ggcgctcggg 3541 agagcgggcg ggtgagtcac ccacacaaag gaaaagggcc tttccgtcct cagccgtcgc 3601 ttcatgtgac tccacggagt accgggcgcc gtccaggcac ctcgattagt tctcgagctt 3661 ttggagtacg tcgtctttag gttgggggga ggggttttat gcgatggagt ttccccacac 3721 tgagtgggtg gagactgaag ttaggccagc ttggcacttg atgtaattct ccttggaatt 3781 tgcccttttt gagtttggat cttggttcat tctcaagcct cagacagtgg ttcaaagttt 3841 ttttcttcca tttcaggtgt cgtgacgtac ggccaccatg aaaaggccgg cggccacgaa 3901 aaaggccggc caggcaaaaa agaaaaagga caagaagtac agcatcggcc tggccatcgg 3961 caccaactct gtgggctggg ccgtgatcac cgacgagtac aaggtgccca gcaagaaatt 4021 caaggtgctg ggcaacaccg accggcacag catcaagaag aacctgatcg gagccctgct 4081 gttcgacagc ggcgaaacag ccgaggccac ccggctgaag agaaccgcca gaagaagata 4141 caccagacgg aagaaccgga tctgctatct gcaagagatc ttcagcaacg agatggccaa 4201 ggtggacgac agcttcttcc acagactgga agagtccttc ctggtggaag aggataagaa 4261 gcacgagcgg caccccatct tcggcaacat cgtggacgag gtggcctacc acgagaagta 4321 ccccaccatc taccacctga gaaagaaact ggtggacagc accgacaagg ccgacctgcg 4381 gctgatctat ctggccctgg cccacatgat caagttccgg ggccacttcc tgatcgaggg 4441 cgacctgaac cccgacaaca gcgacgtgga caagctgttc atccagctgg tgcagaccta 4501 caaccagctg ttcgaggaaa accccatcaa cgccagcggc gtggacgcca aggccatcct 4561 gtctgccaga ctgagcaaga gcagacggct ggaaaatctg atcgcccagc tgcccggcga 4621 gaagaagaat ggcctgttcg gcaacctgat tgccctgagc ctgggcctga cccccaactt 4681 caagagcaac ttcgacctgg ccgaggatgc caaactgcag ctgagcaagg acacctacga 4741 cgacgacctg gacaacctgc tggcccagat cggcgaccag tacgccgacc tgtttctggc 4801 cgccaagaac ctgtccgacg ccatcctgct gagcgacatc ctgagagtga acaccgagat 4861 caccaaggcc cccctgagcg cctctatgat caagagatac gacgagcacc accaggacct 4921 gaccctgctg aaagctctcg tgcggcagca gctgcctgag aagtacaaag agattttctt 4981 cgaccagagc aagaacggct acgccggcta cattgacggc ggagccagcc aggaagagtt 5041 ctacaagttc atcaagccca tcctggaaaa gatggacggc accgaggaac tgctcgtgaa 5101 gctgaacaga gaggacctgc tgcggaagca gcggaccttc gacaacggca gcatccccca 5161 ccagatccac ctgggagagc tgcacgccat tctgcggcgg caggaagatt tttacccatt 5221 cctgaaggac aaccgggaaa agatcgagaa gatcctgacc ttccgcatcc cctactacgt 5281 gggccctctg gccaggggaa acagcagatt cgcctggatg accagaaaga gcgaggaaac 5341 catcaccccc tggaacttcg aggaagtggt ggacaagggc gcttccgccc agagcttcat 5401 cgagcggatg accaacttcg ataagaacct gcccaacgag aaggtgctgc ccaagcacag 5461 cctgctgtac gagtacttca ccgtgtataa cgagctgacc aaagtgaaat acgtgaccga 5521 gggaatgaga aagcccgcct tcctgagcgg cgagcagaaa aaggccatcg tggacctgct 5581 gttcaagacc aaccggaaag tgaccgtgaa gcagctgaaa gaggactact tcaagaaaat 5641 cgagtgcttc gactccgtgg aaatctccgg cgtggaagat cggttcaacg cctccctggg 5701 cacataccac gatctgctga aaattatcaa ggacaaggac ttcctggaca atgaggaaaa 5761 cgaggacatt ctggaagata tcgtgctgac cctgacactg tttgaggaca gagagatgat 5821 cgaggaacgg ctgaaaacct atgcccacct gttcgacgac aaagtgatga agcagctgaa 5881 gcggcggaga tacaccggct ggggcaggct gagccggaag ctgatcaacg gcatccggga 5941 caagcagtcc ggcaagacaa tcctggattt cctgaagtcc gacggcttcg ccaacagaaa 6001 cttcatgcag ctgatccacg acgacagcct gacctttaaa gaggacatcc agaaagccca 6061 ggtgtccggc cagggcgata gcctgcacga gcacattgcc aatctggccg gcagccccgc 6121 cattaagaag ggcatcctgc agacagtgaa ggtggtggac gagctcgtga aagtgatggg 6181 ccggcacaag cccgagaaca tcgtgatcga aatggccaga gagaaccaga ccacccagaa 6241 gggacagaag aacagccgcg agagaatgaa gcggatcgaa gagggcatca aagagctggg 6301 cagccagatc ctgaaagaac accccgtgga aaacacccag ctgcagaacg agaagctgta 6361 cctgtactac ctgcagaatg ggcgggatat gtacgtggac caggaactgg acatcaaccg 6421 gctgtccgac tacgatgtgg accacatcgt gcctcagagc tttctgaagg acgactccat 6481 cgacaacaag gtgctgacca gaagcgacaa ggcccggggc aagagcgaca acgtgccctc 6541 cgaagaggtc gtgaagaaga tgaagaacta ctggcggcag ctgctgaacg ccaagctgat 6601 tacccagaga aagttcgaca atctgaccaa ggccgagaga ggcggcctga gcgaactgga 6661 taaggccggc ttcatcaaga gacagctggt ggaaacccgg cagatcacaa agcacgtggc 6721 acagatcctg gactcccgga tgaacactaa gtacgacgag aatgacaagc tgatccggga 6781 agtgaaagtg atcaccctga agtccaagct ggtgtccgat ttccggaagg atttccagtt 6841 ttacaaagtg cgcgagatca acaactacca ccacgcccac gacgcctacc tgaacgccgt 6901 cgtgggaacc gccctgatca aaaagtaccc taagctggaa agcgagttcg tgtacggcga 6961 ctacaaggtg tacgacgtgc ggaagatgat cgccaagagc gagcaggaaa tcggcaaggc 7021 taccgccaag tacttcttct acagcaacat catgaacttt ttcaagaccg agattaccct 7081 ggccaacggc gagatccgga agcggcctct gatcgagaca aacggcgaaa ccggggagat 7141 cgtgtgggat aagggccggg attttgccac cgtgcggaaa gtgctgagca tgccccaagt 7201 gaatatcgtg aaaaagaccg aggtgcagac aggcggcttc agcaaagagt ctatcctgcc 7261 caagaggaac agcgataagc tgatcgccag aaagaaggac tgggacccta agaagtacgg 7321 cggcttcgac agccccaccg tggcctattc tgtgctggtg gtggccaaag tggaaaaggg 7381 caagtccaag aaactgaaga gtgtgaaaga gctgctgggg atcaccatca tggaaagaag 7441 cagcttcgag aagaatccca tcgactttct ggaagccaag ggctacaaag aagtgaaaaa 7501 ggacctgatc atcaagctgc ctaagtactc cctgttcgag ctggaaaacg gccggaagag 7561 aatgctggcc tctgccggcg aactgcagaa gggaaacgaa ctggccctgc cctccaaata 7621 tgtgaacttc ctgtacctgg ccagccacta tgagaagctg aagggctccc ccgaggataa 7681 tgagcagaaa cagctgtttg tggaacagca caagcactac ctggacgaga tcatcgagca 7741 gatcagcgag ttctccaaga gagtgatcct ggccgacgct aatctggaca aagtgctgtc 7801 cgcctacaac aagcaccggg ataagcccat cagagagcag gccgagaata tcatccacct 7861 gtttaccctg accaatctgg gagcccctgc cgccttcaag tactttgaca ccaccatcga 7921 ccggaagagg tacaccagca ccaaagaggt gctggacgcc accctgatcc accagagcat 7981 caccggcctg tacgagacac ggatcgacct gtctcagctg ggaggcgaca gcgctggagg 8041 aggtggaagc ggaggaggag gaagcggagg aggaggtagc ggacctaaga aaaagaggaa 8101 ggtggcggcc gctggatccg atgctaagtc actgactgcc tggtcccgga cactggtgac 8161 cttcaaggat gtgtttgtgg acttcaccag ggaggagtgg aagctgctgg acactgctca 8221 gcagatcctg tacagaaatg tgatgctgga gaactataag aacctggttt ccttgggtta 8281 tcagcttact aagccagatg tgatcctccg gttggagaag ggagaagagc cctggctggt 8341 ggagagagaa attcaccaag agacccatcc tgattcagag actgcatttg aaatcaaatc 8401 atcagttccg aaaaagaaac gcaaagtttg tacaggcagt ggagagggca gaggaagtct 8461 gctaacatgc ggtgacgtcg aggagaatcc tggcccaatg gccaagcctt tgtctcaaga 8521 agaatccacc ctcattgaaa gagcaacggc tacaatcaac agcatcccca tctctgaaga 8581 ctacagcgtc gccagcgcag ctctctctag cgacggccgc atcttcactg gtgtcaatgt 8641 atatcatttt actgggggac cttgtgcaga actcgtggtg ctgggcactg ctgctgctgc 8701 ggcagctggc aacctgactt gtatcgtcgc gatcggaaat gagaacaggg gcatcttgag 8761 cccctgcgga cggtgccgac aggtgcttct cgatctgcat cctgggatca aagccatagt 8821 gaaggacagt gatggacagc cgacggcagt tgggattcgt gaattgctgc cctctggtta 8881 tgtgtgggag ggctaagaat tcgatatcaa gcttatcggt aatcaacctc tggattacaa 8941 aatttgtgaa agattgactg gtattcttaa ctatgttgct ccttttacgc tatgtggata 9001 cgctgcttta atgcctttgt atcatgctat tgcttcccgt atggctttca ttttctcctc 9061 cttgtataaa tcctggttgc tgtctcttta tgaggagttg tggcccgttg tcaggcaacg 9121 tggcgtggtg tgcactgtgt ttgctgacgc aacccccact ggttggggca ttgccaccac 9181 ctgtcagctc ctttccggga ctttcgcttt ccccctccct attgccacgg cggaactcat 9241 cgccgcctgc cttgcccgct gctggacagg ggctcggctg ttgggcactg acaattccgt 9301 ggtgttgtcg gggaaatcat cgtcctttcc ttggctgctc gcctgtgttg ccacctggat 9361 tctgcgcggg acgtccttct gctacgtccc ttcggccctc aatccagcgg accttccttc 9421 ccgcggcctg ctgccggctc tgcggcctct tccgcgtctt cgccttcgcc ctcagacgag 9481 tcggatctcc ctttgggccg cctccccgca tcgataccgt cgacctcgag acctagaaaa 9541 acatggagca atcacaagta gcaatacagc agctaccaat gctgattgtg cctggctaga 9601 agcacaagag gaggaggagg tgggttttcc agtcacacct caggtacctt taagaccaat 9661 gacttacaag gcagctgtag atcttagcca ctttttaaaa gaaaaggggg gactggaagg 9721 gctaattcac tcccaacgaa gacaagatat ccttgatctg tggatctacc acacacaagg 9781 ctacttccct gattggcaga actacacacc agggccaggg atcagatatc cactgacctt 9841 tggatggtgc tacaagctag taccagttga gcaagagaag gtagaagaag ccaatgaagg 9901 agagaacacc cgcttgttac accctgtgag cctgcatggg atggatgacc cggagagaga 9961 agtattagag tggaggtttg acagccgcct agcatttcat cacatggccc gagagctgca 10021 tccggactgt actgggtctc tctggttaga ccagatctga gcctgggagc tctctggcta 10081 actagggaac ccactgctta agcctcaata aagcttgcct tgagtgcttc aagtagtgtg 10141 tgcccgtctg ttgtgtgact ctggtaacta gagatccctc agaccctttt agtcagtgtg 10201 gaaaatctct agcagggccc gtttaaaccc gctgatcagc ctcgactgtg ccttctagtt 10261 gccagccatc tgttgtttgc ccctcccccg tgccttcctt gaccctggaa ggtgccactc 10321 ccactgtcct ttcctaataa aatgaggaaa ttgcatcgca ttgtctgagt aggtgtcatt 10381 ctattctggg gggtggggtg gggcaggaca gcaaggggga ggattgggaa gacaatagca 10441 ggcatgctgg ggatgcggtg ggctctatgg cttctgaggc ggaaagaacc agctggggct 10501 ctagggggta tccccacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta 10561 cgcgcagcgt gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc 10621 cttcctttct cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt 10681 tagggttccg atttagtgct ttacggcacc tcgaccccaa aaaacttgat tagggtgatg 10741 gttcacgtag tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca 10801 cgttctttaa tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcggtct 10861 attcttttga tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga 10921 tttaacaaaa atttaacgcg aattaattct gtggaatgtg tgtcagttag ggtgtggaaa 10981 gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac 11041 caggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa 11101 ttagtcagca accatagtcc cgcccctaac tccgcccatc ccgcccctaa ctccgcccag 11161 ttccgcccat tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc 11221 cgcctctgcc tctgagctat tccagaagta gtgaggaggc ttttttggag gcctaggctt 11281 ttgcaaaaag ctcccgggag cttgtatatc cattttcgga tctgatcagc acgtgttgac 11341 aattaatcat cggcatagta tatcggcata gtataatacg acaaggtgag gaactaaacc 11401 atggccaagt tgaccagtgc cgttccggtg ctcaccgcgc gcgacgtcgc cggagcggtc 11461 gagttctgga ccgaccggct cgggttctcc cgggacttcg tggaggacga cttcgccggt 11521 gtggtccggg acgacgtgac cctgttcatc agcgcggtcc aggaccaggt ggtgccggac 11581 aacaccctgg cctgggtgtg ggtgcgcggc ctggacgagc tgtacgccga gtggtcggag 11641 gtcgtgtcca cgaacttccg ggacgcctcc gggccggcca tgaccgagat cggcgagcag 11701 ccgtgggggc gggagttcgc cctgcgcgac ccggccggca actgcgtgca cttcgtggcc 11761 gaggagcagg actgacacgt gctacgagat ttcgattcca ccgccgcctt ctatgaaagg 11821 ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc 11881 atgctggagt tcttcgccca ccccaacttg tttattgcag cttataatgg ttacaaataa 11941 agcaatagca tcacaaattt cacaaataaa gcattttttt cactgcattc tagttgtggt 12001 ttgtccaaac tcatcaatgt atcttatcat gtctgtatac cgtcgacctc tagctagagc 12061 ttggcgtaat catggtcata gctgtttcct gtgtgaaatt gttatccgct cacaattcca 12121 cacaacatac gagccggaag cataaagtgt aaagcctggg gtgcctaatg agtgagctaa 12181 ctcacattaa ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag 12241 ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc 12301 gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct 12361 cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg 12421 tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc 12481 cataggctcc gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga 12541 aacccgacag gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct 12601 cctgttccga ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg 12661 gcgctttctc atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag 12721 ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat 12781 cgtcttgagt ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac 12841 aggattagca gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac 12901 tacggctaca ctagaagaac agtatttggt atctgcgctc tgctgaagcc agttaccttc 12961 ggaaaaagag ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggtggtttt 13021 tttgtttgca agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc 13081 ttttctacgg ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg 13141 agattatcaa aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca 13201 atctaaagta tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca 13261 cctatctcag cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag 13321 ataactacga tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac 13381 ccacgctcac cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc 13441 agaagtggtc ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct 13501 agagtaagta gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc 13561 gtggtgtcac gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg 13621 cgagttacat gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc 13681 gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat 13741 tctcttactg tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag 13801 tcattctgag aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat 13861 aataccgcgc cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg 13921 cgaaaactct caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca 13981 cccaactgat cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga 14041 aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc 14101 ttcctttttc aatattattg aagcatttat cagggttatt gtctcatgag cggatacata 14161 tttgaatgta tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg 14221 ccacctgac //
