Ngn2

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: Ngn2
出品公司: 爱迪基因
目录编号: 34999
存储实验室: Malin Parmar

载体骨架基本信息
载体名称: pCCL-cppt-PGK-WPRE
载体出品公司: Malin Parmar
载体抗性: 氨苄霉素
空载体大小: 7041 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 未知
生长条件: 37 ℃

插入基因信息
插入基因名称: Neurogenin-2
物种来源: M. musculus (鼠)
插入大小: 792 bp
GenBank编号 NT_039240.7
克隆方法: 限制性内切酶
5' 克隆位点: BamHI(未破坏)
3' 克隆位点: SalI(未破坏)
5' 测序引物 ATCCGAGCAGCACTAACACG
3' 测序引物 GCACAGGCCAAAGTCACAG

文献引用方法
材料和方法部分: Ngn2 was a gift from Malin Parmar (Addgene plasmid # 34999)
参考文献部分: Direct conversion of human fibroblasts to dopaminergic neurons. Pfisterer U, Kirkeby A, Torper O, Wood J, Nelander J, Dufour A, Bjorklund A, Lindvall O, Jakobsson J, Parmar M. Proc Natl Acad Sci U S A. 2011 Jun 21;108(25):10343-8. Epub 2011 Jun 6. 10.1073/pnas.1105135108 PubMed 21646515

载体图谱质粒图谱和多克隆位点信息

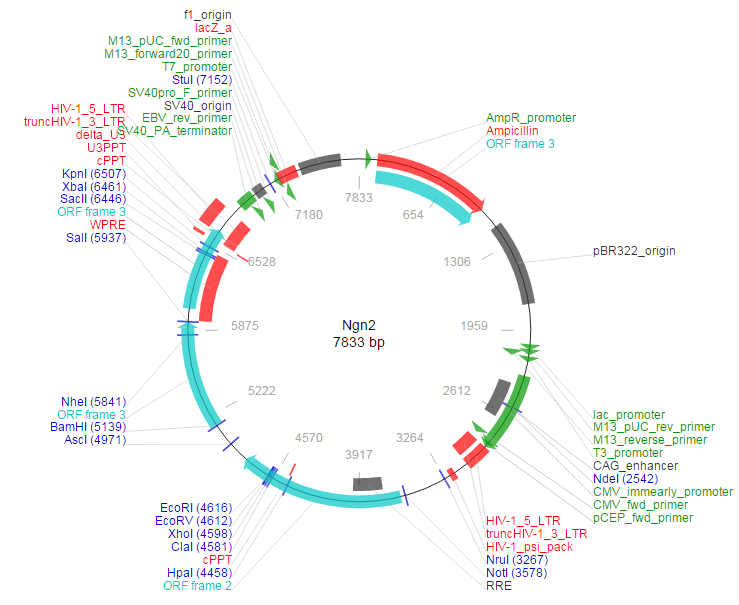

Ngn2载体图谱

载体简介

载体序列

LOCUS       Ngn2	7833 bp 	DNA	SYN
DEFINITION  Ngn2
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7833
                     /organism="Ngn2"
                     /mol_type="other DNA"
     promoter        62..90
                     /label="AmpR_promoter"
     gene            132..992
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             132..992
                     /label="ORF frame 3"
     rep_origin      1147..1766
                     /label="pBR322_origin"
     promoter        2075..2104
                     /label="lac_promoter"
     misc_feature    2118..2140
                     /label="M13_pUC_rev_primer"
     promoter        2139..2157
                     /label="M13_reverse_primer"
     promoter        2174..2193
                     /label="T3_promoter"
     promoter        2294..2870
                     /label="CMV_immearly_promoter"
     misc_feature    2373..2660
                     /label="CAG_enhancer"
     misc_feature    2827..2847
                     /label="CMV_fwd_primer"
     misc_feature    2871..2890
                     /label="pCEP_fwd_primer"
     misc_feature    2891..3071
                     /label="HIV-1_5_LTR"
     misc_feature    2891..3071
                     /label="truncHIV-1_3_LTR"
     misc_feature    3179..3223
                     /label="HIV-1_psi_pack"
     CDS             3611..4819
                     /label="ORF frame 2"
     misc_feature    3733..3966
                     /label="RRE"
     misc_feature    4466..4481
                     /label="cPPT"
     CDS             5145..5936
                     /label="ORF frame 3"
     misc_feature    5945..6484
                     /label="WPRE"
     CDS             6033..6653
                     /label="ORF frame 3"
     misc_feature    6557..6572
                     /label="cPPT"
     misc_feature    6557..6578
                     /label="U3PPT"
     misc_feature    6574..6626
                     /label="delta_U3"
     misc_feature    6627..6807
                     /label="truncHIV-1_3_LTR"
     misc_feature    6627..6807
                     /label="HIV-1_5_LTR"
     terminator      6882..7001
                     /label="SV40_PA_terminator"
     misc_feature    6970..6989
                     /label="EBV_rev_primer"
     rep_origin      7019..7096
                     /label="SV40_origin"
     misc_feature    7081..7100
                     /label="SV40pro_F_primer"
     promoter        complement(7187..7205)
                     /label="T7_promoter"
     promoter        complement(7215..7231)
                     /label="M13_forward20_primer"
     misc_feature    7224..7367
                     /label="lacZ_a"
     misc_feature    complement(7224..7246)
                     /label="M13_pUC_fwd_primer"
     rep_origin      7393..7699
                     /label="f1_origin"
ORIGIN
    1 caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac
   61 attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa
  121 aaaggaagag tatgagtatt caacatttcc gtgtcgccct tattcccttt tttgcggcat
  181 tttgccttcc tgtttttgct cacccagaaa cgctggtgaa agtaaaagat gctgaagatc
  241 agttgggtgc acgagtgggt tacatcgaac tggatctcaa cagcggtaag atccttgaga
  301 gttttcgccc cgaagaacgt tttccaatga tgagcacttt taaagttctg ctatgtggcg
  361 cggtattatc ccgtattgac gccgggcaag agcaactcgg tcgccgcata cactattctc
  421 agaatgactt ggttgagtac tcaccagtca cagaaaagca tcttacggat ggcatgacag
  481 taagagaatt atgcagtgct gccataacca tgagtgataa cactgcggcc aacttacttc
  541 tgacaacgat cggaggaccg aaggagctaa ccgctttttt gcacaacatg ggggatcatg
  601 taactcgcct tgatcgttgg gaaccggagc tgaatgaagc cataccaaac gacgagcgtg
  661 acaccacgat gcctgtagca atggcaacaa cgttgcgcaa actattaact ggcgaactac
  721 ttactctagc ttcccggcaa caattaatag actggatgga ggcggataaa gttgcaggac
  781 cacttctgcg ctcggccctt ccggctggct ggtttattgc tgataaatct ggagccggtg
  841 agcgtgggtc tcgcggtatc attgcagcac tggggccaga tggtaagccc tcccgtatcg
  901 tagttatcta cacgacgggg agtcaggcaa ctatggatga acgaaataga cagatcgctg
  961 agataggtgc ctcactgatt aagcattggt aactgtcaga ccaagtttac tcatatatac
 1021 tttagattga tttaaaactt catttttaat ttaaaaggat ctaggtgaag atcctttttg
 1081 ataatctcat gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg tcagaccccg
 1141 tagaaaagat caaaggatct tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc
 1201 aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc
 1261 tttttccgaa ggtaactggc ttcagcagag cgcagatacc aaatactgtc cttctagtgt
 1321 agccgtagtt aggccaccac ttcaagaact ctgtagcacc gcctacatac ctcgctctgc
 1381 taatcctgtt accagtggct gctgccagtg gcgataagtc gtgtcttacc gggttggact
 1441 caagacgata gttaccggat aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac
 1501 agcccagctt ggagcgaacg acctacaccg aactgagata cctacagcgt gagctatgag
 1561 aaagcgccac gcttcccgaa gggagaaagg cggacaggta tccggtaagc ggcagggtcg
 1621 gaacaggaga gcgcacgagg gagcttccag ggggaaacgc ctggtatctt tatagtcctg
 1681 tcgggtttcg ccacctctga cttgagcgtc gatttttgtg atgctcgtca ggggggcgga
 1741 gcctatggaa aaacgccagc aacgcggcct ttttacggtt cctggccttt tgctggcctt
 1801 ttgctcacat gttctttcct gcgttatccc ctgattctgt ggataaccgt attaccgcct
 1861 ttgagtgagc tgataccgct cgccgcagcc gaacgaccga gcgcagcgag tcagtgagcg
 1921 aggaagcgga agagcgccca atacgcaaac cgcctctccc cgcgcgttgg ccgattcatt
 1981 aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc aacgcaatta
 2041 atgtgagtta gctcactcat taggcacccc aggctttaca ctttatgctt ccggctcgta
 2101 tgttgtgtgg aattgtgagc ggataacaat ttcacacagg aaacagctat gaccatgatt
 2161 acgccaagcg cgcaattaac cctcactaaa gggaacaaaa gctggagctg caagcttggc
 2221 cattgcatac gttgtatcca tatcataata tgtacattta tattggctca tgtccaacat
 2281 taccgccatg ttgacattga ttattgacta gttattaata gtaatcaatt acggggtcat
 2341 tagttcatag cccatatatg gagttccgcg ttacataact tacggtaaat ggcccgcctg
 2401 gctgaccgcc caacgacccc cgcccattga cgtcaataat gacgtatgtt cccatagtaa
 2461 cgccaatagg gactttccat tgacgtcaat gggtggagta tttacggtaa actgcccact
 2521 tggcagtaca tcaagtgtat catatgccaa gtacgccccc tattgacgtc aatgacggta
 2581 aatggcccgc ctggcattat gcccagtaca tgaccttatg ggactttcct acttggcagt
 2641 acatctacgt attagtcatc gctattacca tggtgatgcg gttttggcag tacatcaatg
 2701 ggcgtggata gcggtttgac tcacggggat ttccaagtct ccaccccatt gacgtcaatg
 2761 ggagtttgtt ttggcaccaa aatcaacggg actttccaaa atgtcgtaac aactccgccc
 2821 cattgacgca aatgggcggt aggcgtgtac ggtgggaggt ctatataagc agagctcgtt
 2881 tagtgaaccg gggtctctct ggttagacca gatctgagcc tgggagctct ctggctaact
 2941 agggaaccca ctgcttaagc ctcaataaag cttgccttga gtgcttcaag tagtgtgtgc
 3001 ccgtctgttg tgtgactctg gtaactagag atccctcaga cccttttagt cagtgtggaa
 3061 aatctctagc agtggcgccc gaacagggac ctgaaagcga aagggaaacc agagctctct
 3121 cgacgcagga ctcggcttgc tgaagcgcgc acggcaagag gcgaggggcg gcgactggtg
 3181 agtacgccaa aaattttgac tagcggaggc tagaaggaga gagatgggtg cgagagcgtc
 3241 agtattaagc gggggagaat tagatcgcga tgggaaaaaa ttcggttaag gccaggggga
 3301 aagaaaaaat ataaattaaa acatatagta tgggcaagca gggagctaga acgattcgca
 3361 gttaatcctg gcctgttaga aacatcagaa ggctgtagac aaatactggg acagctacaa
 3421 ccatcccttc agacaggatc agaagaactt agatcattat ataatacagt agcaaccctc
 3481 tattgtgtgc atcaaaggat agagataaaa gacaccaagg aagctttaga caagatagag
 3541 gaagagcaaa acaaaagtaa gaccaccgca cagcaagcgg ccgctgatct tcagacctgg
 3601 aggaggagat atgagggaca attggagaag tgaattatat aaatataaag tagtaaaaat
 3661 tgaaccatta ggagtagcac ccaccaaggc aaagagaaga gtggtgcaga gagaaaaaag
 3721 agcagtggga ataggagctt tgttccttgg gttcttggga gcagcaggaa gcactatggg
 3781 cgcagcctca atgacgctga cggtacaggc cagacaatta ttgtctggta tagtgcagca
 3841 gcagaacaat ttgctgaggg ctattgaggc gcaacagcat ctgttgcaac tcacagtctg
 3901 gggcatcaag cagctccagg caagaatcct ggctgtggaa agatacctaa aggatcaaca
 3961 gctcctgggg atttggggtt gctctggaaa actcatttgc accactgctg tgccttggaa
 4021 tgctagttgg agtaataaat ctctggaaca gatttggaat cacacgacct ggatggagtg
 4081 ggacagagaa attaacaatt acacaagctt aatacactcc ttaattgaag aatcgcaaaa
 4141 ccagcaagaa aagaatgaac aagaattatt ggaattagat aaatgggcaa gtttgtggaa
 4201 ttggtttaac ataacaaatt ggctgtggta tataaaatta ttcataatga tagtaggagg
 4261 cttggtaggt ttaagaatag tttttgctgt actttctata gtgaatagag ttaggcaggg
 4321 atattcacca ttatcgtttc agacccacct cccaaccccg aggggacccg acaggcccga
 4381 aggaatagaa gaagaaggtg gagagagaga cagagacaga tccattcgat tagtgaacgg
 4441 atctcgacgg tatcggttaa cttttaaaag aaaagggggg attggggggt acagtgcagg
 4501 ggaaagaata gtagacataa tagcaacaga catacaaact aaagaattac aaaaacaaat
 4561 tacaaaaatt caaaatttta tcgatcacga gactagcctc gagaagcttg atatcgaatt
 4621 cccacggggt tggggttgcg ccttttccaa ggcagccctg ggtttgcgca gggacgcggc
 4681 tgctctgggc gtggttccgg gaaacgcagc ggcgccgacc ctgggtctcg cacattcttc
 4741 acgtccgttc gcagcgtcac ccggatcttc gccgctaccc ttgtgggccc cccggcgacg
 4801 cttcctgctc cgcccctaag tcgggaaggt tccttgcggt tcgcggcgtg ccggacgtga
 4861 caaacggaag ccgcacgtct cactagtacc ctcgcagacg gacagcgcca gggagcaatg
 4921 gcagcgcgcc gaccgcgatg ggctgtggcc aatagcggct gctcagcggg gcgcgccgag
 4981 agcagcggcc gggaaggggc ggtgcgggag gcggggtgtg gggcggtagt gtgggccctg
 5041 ttcctgcccg cgcggtgttc cgcattctgc aagcctccgg agcgcacgtc ggcagtcggc
 5101 tccctcgttg accgaatcac cgacctctct ccccaggggg atccATGTTC GTCAAATCTG
 5161 AGACTCTGGA GTTGAAGGAG GAAGAGGAGG TACTGATGCT GCTGGGCTCG GCTTCCCCGG
 5221 CCTCGGCGAC CCTGACCCCG ATGTCCTCCA GCGCGGACGA GGAGGAGGAC GAGGAGCTGC
 5281 GCCGGCCGGG CTCCGCGCGT GGGCAGCGTG GAGCGGAAGC CGGGCAGGGG GTGCAGGGCA
 5341 GTCCGGCGTC GGGTGCCGGG GGTTGCCGGC CAGGGCGGCT GCTGGGCCTG ATGCACGAGT
 5401 GCAAGCGTCG CCCGTCGCGC TCACGGGCCG TCTCCCGAGG TGCCAAGACG GCGGAGACGG
 5461 TGCAGCGCAT CAAGAAGACC CGCAGGCTCA AGGCCAACAA CCGCGAGCGC AACCGCATGC
 5521 ACAACCTAAA CGCCGCGCTG GACGCGCTGC GCGAGGTGCT GCCCACCTTC CCCGAGGATG
 5581 CCAAGCTCAC GAAGATCGAG ACGCTGCGCT TCGCCCACAA TTACATCTGG GCGCTCACCG
 5641 AGACTCTGCG CCTGGCGGAC CACTGCGCCG GCGCCGGTGG CCTCCAGGGG GCGCTCTTCA
 5701 CGGAGGCGGT GCTCCTGAGC CCGGGAGCTG CGCTCGGCGC CAGCGGGGAC AGCCCTTCTC
 5761 CACCTTCCTC CTGGAGCTGC ACCAACAGCC CGGCGTCATC CTCCAACTCC ACGTCCCCAT
 5821 ACAGCTGCAC TTTATCGCCC GCTAGCCCCG GGTCAGACGT GGACTACTGG CAGCCCCCAC
 5881 CTCCGGAGAA GCATCGTTAT GCGCCTCACC TGCCCCTCGC CAGGGACTGT ATCTAGgtcg
 5941 acaatcaacc tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg
 6001 ctccttttac gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc
 6061 gtatggcttt cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt
 6121 tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca
 6181 ctggttgggg cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc
 6241 ctattgccac ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc
 6301 tgttgggcac tgacaattcc gtggtgttgt cggggaagct gacgtccttt ccatggctgc
 6361 tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc
 6421 tcaatccagc ggaccttcct tcccgcggcc tgctgccggc tctagagcct cttccgcgtc
 6481 ttcgccttcc cgggtcgagc tcggtacctt taagaccaat gacttacaag gcagctgtag
 6541 atcttagcca ctttttaaaa gaaaaggggg gactggaagg gctaattcac tcccaacgaa
 6601 gacaagatct gctttttgct tgtactgggt ctctctggtt agaccagatc tgagcctggg
 6661 agctctctgg ctaactaggg aacccactgc ttaagcctca ataaagcttg ccttgagtgc
 6721 ttcaagtagt gtgtgcccgt ctgttgtgtg actctggtaa ctagagatcc ctcagaccct
 6781 tttagtcagt gtggaaaatc tctagcagta gtagttcatg tcatcttatt attcagtatt
 6841 tataacttgc aaagaaatga atatcagaga gtgagaggaa cttgtttatt gcagcttata
 6901 atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc
 6961 attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgg ctctagctat
 7021 cccgccccta actccgccca gttccgccca ttctccgccc catggctgac taattttttt
 7081 tatttatgca gaggccgagg ccgcctcggc ctctgagcta ttccagaagt agtgaggagg
 7141 cttttttgga ggcctaggct tttgcgtcga gacgtaccca attcgcccta tagtgagtcg
 7201 tattacgcgc gctcactggc cgtcgtttta caacgtcgtg actgggaaaa ccctggcgtt
 7261 acccaactta atcgccttgc agcacatccc cctttcgcca gctggcgtaa tagcgaagag
 7321 gcccgcaccg atcgcccttc ccaacagttg cgcagcctga atggcgaatg gcgcgacgcg
 7381 ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca
 7441 cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct cgccacgttc
 7501 gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg atttagtgct
 7561 ttacggcacc tcgaccccaa aaaacttgat tagggtgatg gttcacgtag tgggccatcg
 7621 ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa tagtggactc
 7681 ttgttccaaa ctggaacaac actcaaccct atctcggtct attcttttga tttataaggg
 7741 attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg
 7801 aattttaaca aaatattaac gtttacaatt tcc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
