PTEF1-yEGFPCLN2PEST-pRS406

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: PTEF1-yEGFPCLN2PEST-pRS406
出品公司: Addgene
目录编号: 64406
存储实验室: Claudia Vickers

载体骨架基本信息
载体名称: GFPCLN2PEST-pRS406
载体出品公司: Mateus and Avery 2000
空载体大小: --
完整质粒大小: --
载体修饰: destabilized GFP
载体类型: 酵母表达
筛选标记: URA3
载体抗性: 氨苄霉素100 μg/mL
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: TEF1 promoter
物种来源: S. cerevisiae (budding yeast)
插入大小: --
基因突变: --
GenBank编号 --
启动子: TEF1 promoter
标签/融合蛋白: yEGFPCLN2PEST(失稳酵母EGFP)(主链上的C端)
克隆方法: 限制性内切酶
5’克隆位点: XhoI (未破坏)
3’克隆位点: EcoRI(未破坏)
5’测序引物 M13pUC-fwd
3’测序引物 yGFP-R

文献引用方法
材料和方法部分: PTEF1-yEGFPCLN2PEST-pRS406 was a gift from Claudia Vickers (Addgene plasmid # 64406 ; http://n2t.net/addgene:64406 ; RRID:Addgene_64406)
参考文献部分: Dynamic regulation of gene expression using sucrose responsive promoters and RNA interference in Saccharomyces cerevisiae. Williams TC, Espinosa MI, Nielsen LK, Vickers CE. Microb Cell Fact. 2015 Apr 1;14:43. doi: 10.1186/s12934-015-0223-7. 10.1186/s12934-015-0223-7 [pii] PubMed 25886317

载体图谱质粒图谱和多克隆位点信息

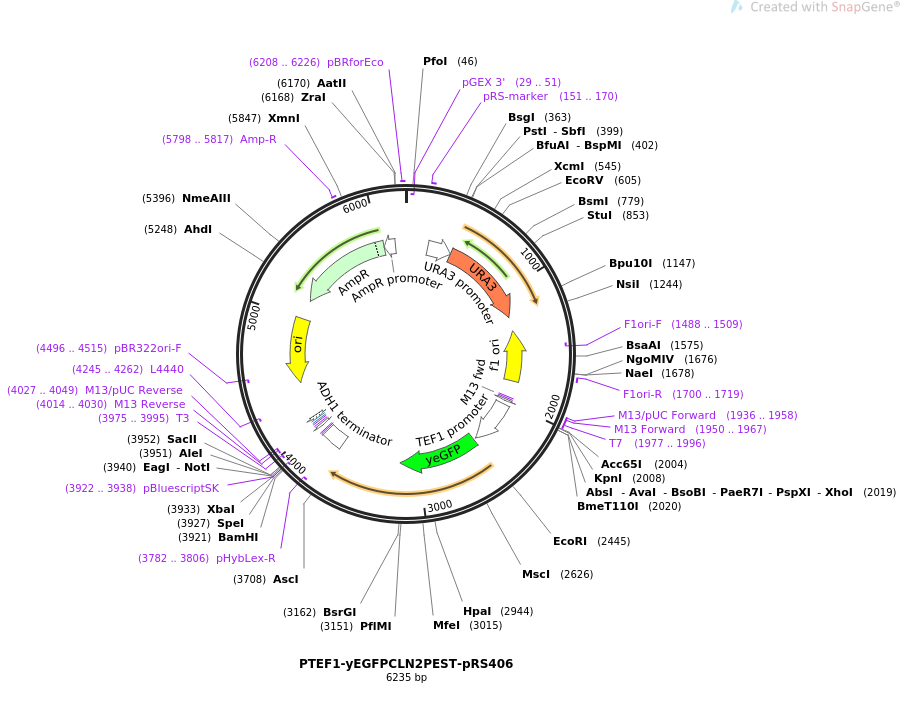

PTEF1-yEGFPCLN2PEST-pRS406载体图谱

载体简介

载体序列

LOCUS       PTEF1-yEGFPCLN2PEST-pRS406               6235 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  TEF promoter driven GFP expression.
ACCESSION   .
VERSION     .
KEYWORDS    PTEF1-yEGFPCLN2PEST-pRS406
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6235)
  AUTHORS   Williams TC, Espinosa MI, Nielsen LK, Vickers CE
  TITLE     Dynamic regulation of gene expression using sucrose responsive
            promoters and RNA interference in Saccharomyces cerevisiae.
  JOURNAL   Microb Cell Fact. 2015 Apr 1;14:43. doi: 10.1186/s12934-015-0223-7.
  PUBMED    25886317
REFERENCE   2  (bases 1 to 6235)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6235
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(29..51)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     151..170
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     promoter        201..416
                     /gene="S. cerevisiae URA3"
                     /label=URA3 promoter
     CDS             417..1220
                     /codon_start=1
                     /gene="S. cerevisiae URA3"
                     /product="orotidine-5'-phosphate decarboxylase, required
                     for uracil biosynthesis"
                     /label=URA3
                     /note="yeast auxotrophic marker, counterselectable with
                     5-fluoroorotic acid (5-FOA)"
                     /translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKELL
                     ELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVKLQ
                     YSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLSTGE
                     YTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYRTVDD
                     VVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN"
     rep_origin      complement(1351..1806)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1488..1509)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     1700..1719
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     1936..1958
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     1950..1967
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     1951..1967
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     1977..1996
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        1977..1995
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     promoter        2026..2432
                     /gene="S. cerevisiae TEF1"
                     /label=TEF1 promoter
                     /note="promoter for EF-1-alpha"
     CDS             2456..3169
                     /codon_start=1
                     /product="yeast-enhanced green fluorescent protein"
                     /label=yeGFP
                     /note="codons optimized for translation in S. cerevisiae
                     and C. albicans"
                     /translation="MSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTFGYGVQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     terminator      3727..3914
                     /gene="S. cerevisiae ADH1"
                     /label=ADH1 terminator
                     /note="transcription terminator for the S. cerevisiae
                     alcohol dehydrogenase 1 (ADH1) gene"
     primer_bind     complement(3782..3806)
                     /label=pHybLex-R
                     /note="ADH terminator, reverse primer"
     primer_bind     complement(3922..3938)
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3922..3938)
                     /label=pBluescriptSK
                     /note="For pBluescript vector"
     primer_bind     complement(3975..3995)
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        complement(3975..3993)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(4014..4030)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4014..4030)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4027..4049)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4038..4054
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4062..4092)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     primer_bind     complement(4245..4262)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4416..5004)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4496..4515)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5175..6035)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5798..5817
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6036..6140)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     6208..6226
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accataccac agcttttcaa ttcaattcat catttttttt ttattctttt ttttgatttc
      241 ggtttctttg aaattttttt gattcggtaa tctccgaaca gaaggaagaa cgaaggaagg
      301 agcacagact tagattggta tatatacgca tatgtagtgt tgaagaaaca tgaaattgcc
      361 cagtattctt aacccaactg cacagaacaa aaacctgcag gaaacgaaga taaatcatgt
      421 cgaaagctac atataaggaa cgtgctgcta ctcatcctag tcctgttgct gccaagctat
      481 ttaatatcat gcacgaaaag caaacaaact tgtgtgcttc attggatgtt cgtaccacca
      541 aggaattact ggagttagtt gaagcattag gtcccaaaat ttgtttacta aaaacacatg
      601 tggatatctt gactgatttt tccatggagg gcacagttaa gccgctaaag gcattatccg
      661 ccaagtacaa ttttttactc ttcgaagaca gaaaatttgc tgacattggt aatacagtca
      721 aattgcagta ctctgcgggt gtatacagaa tagcagaatg ggcagacatt acgaatgcac
      781 acggtgtggt gggcccaggt attgttagcg gtttgaagca ggcggcagaa gaagtaacaa
      841 aggaacctag aggccttttg atgttagcag aattgtcatg caagggctcc ctatctactg
      901 gagaatatac taagggtact gttgacattg cgaagagcga caaagatttt gttatcggct
      961 ttattgctca aagagacatg ggtggaagag atgaaggtta cgattggttg attatgacac
     1021 ccggtgtggg tttagatgac aagggagacg cattgggtca acagtataga accgtggatg
     1081 atgtggtctc tacaggatct gacattatta ttgttggaag aggactattt gcaaagggaa
     1141 gggatgctaa ggtagagggt gaacgttaca gaaaagcagg ctgggaagca tatttgagaa
     1201 gatgcggcca gcaaaactaa aaaactgtat tataagtaaa tgcatgtata ctaaactcac
     1261 aaattagagc ttcaatttaa ttatatcagt tattacccta tgcggtgtga aataccgcac
     1321 agatgcgtaa ggagaaaata ccgcatcagg aaattgtaaa cgttaatatt ttgttaaaat
     1381 tcgcgttaaa tttttgttaa atcagctcat tttttaacca ataggccgaa atcggcaaaa
     1441 tcccttataa atcaaaagaa tagaccgaga tagggttgag tgttgttcca gtttggaaca
     1501 agagtccact attaaagaac gtggactcca acgtcaaagg gcgaaaaacc gtctatcagg
     1561 gcgatggccc actacgtgaa ccatcaccct aatcaagttt tttggggtcg aggtgccgta
     1621 aagcactaaa tcggaaccct aaagggagcc cccgatttag agcttgacgg ggaaagccgg
     1681 cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc gggcgctagg gcgctggcaa
     1741 gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc gcttaatgcg ccgctacagg
     1801 gcgcgtcgcg ccattcgcca ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg
     1861 cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg
     1921 taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgag cgcgcgtaat
     1981 acgactcact atagggcgaa ttgggtaccg ggccccccct cgaggcacac accatagctt
     2041 caaaatgttt ctactccttt tttactcttc cagattttct cggactccgc gcatcgccgt
     2101 accacttcaa aacacccaag cacagcatac taaatttccc ctctttcttc ctctagggtg
     2161 tcgttaatta cccgtactaa aggtttggaa aagaaaaaag agaccgcctc gtttcttttt
     2221 cttcgtcgaa aaaggcaata aaaattttta tcacgtttct ttttcttgaa aatttttttt
     2281 tttgattttt ttctctttcg atgacctccc attgatattt aagttaataa acggtcttca
     2341 atttctcaag tttcagtttc atttttcttg ttctattaca acttttttta cttcttgctc
     2401 attagaaaga aagcatagca atctaatcta agttttaatt acaagaattc attaaatgtc
     2461 taaaggtgaa gaattattca ctggtgttgt cccaattttg gttgaattag atggtgatgt
     2521 taatggtcac aaattttctg tctccggtga aggtgaaggt gatgctactt acggtaaatt
     2581 gaccttaaaa tttatttgta ctactggtaa attgccagtt ccatggccaa ccttagtcac
     2641 tactttcggt tatggtgttc aatgttttgc gagataccca gatcatatga aacaacatga
     2701 ctttttcaag tctgccatgc cagaaggtta tgttcaagaa agaactattt ttttcaaaga
     2761 tgacggtaac tacaagacca gagctgaagt caagtttgaa ggtgatacct tagttaatag
     2821 aatcgaatta aaaggtattg attttaaaga agatggtaac attttaggtc acaaattgga
     2881 atacaactat aactctcaca atgtttacat catggctgac aaacaaaaga atggtatcaa
     2941 agttaacttc aaaattagac acaacattga agatggttct gttcaattag ctgaccatta
     3001 tcaacaaaat actccaattg gtgatggtcc agtcttgtta ccagacaacc attacttatc
     3061 cactcaatct gccttatcca aagatccaaa cgaaaagaga gaccacatgg tcttgttaga
     3121 atttgttact gctgctggta ttacccatgg tatggatgaa ttgtacaaag catccaactt
     3181 gaacatttcg agaaagctta ccatatcaac cccatcatgc tctttcgaaa attcaaatag
     3241 cacatccatt ccttcgcccg cttcctcatc tcaaagccac actccaatga gaaacatgag
     3301 ctcactctct gataacagcg ttttcagccg gaatatggaa caatcatcac caatcactcc
     3361 aagtatgtac caatttggtc agcagcagtc aaacagtata tgtggtagca ccgttagtgt
     3421 gaatagtctg gtgaatacaa ataacaaaca aaggatctac gaacaaatca cgggtcctaa
     3481 cagcaataac gcaaccaatg attatattga tttgctaaac ctaaatgagt ctaacaagga
     3541 aaaccaaaat cccgcaacgg cgcattacct caatgggggc ccacccaaga caagcttcat
     3601 taaccatgga atgttcccct cgccaactgg gaccataaat agcggtaaat ctagcagtgc
     3661 ctcatcttta atttcttttg gtatgggcaa tacccaagta atatagggcg cgccacttct
     3721 aaataagcga atttcttatg atttatgatt tttattatta aataagttat aaaaaaaata
     3781 agtgtataca aattttaaag tgactcttag gttttaaaac gaaaattctt attcttgagt
     3841 aactctttcc tgtaggtcag gttgctttct caggtatagt atgaggtcgc tcttattgac
     3901 cacacctcta ccggcagatc ggatccacta gttctagagc ggccgccacc gcggtggagc
     3961 tccagctttt gttcccttta gtgagggtta attgcgcgct tggcgtaatc atggtcatag
     4021 ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatagg agccggaagc
     4081 ataaagtgta aagcctgggg tgcctaatga gtgaggtaac tcacattaat tgcgttgcgc
     4141 tcactgcccg ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa
     4201 cgcgcgggga gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg
     4261 ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg
     4321 ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag
     4381 gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac
     4441 gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga
     4501 taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt
     4561 accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc
     4621 tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc
     4681 cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta
     4741 agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat
     4801 gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac tagaaggaca
     4861 gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct
     4921 tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt
     4981 acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct
     5041 cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc
     5101 acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa
     5161 acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta
     5221 tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc
     5281 ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat
     5341 ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta
     5401 tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt
     5461 aatagtttgc gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt
     5521 ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg
     5581 ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc
     5641 gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc
     5701 gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg
     5761 cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga
     5821 actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta
     5881 ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct
     5941 tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag
     6001 ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca atattattga
     6061 agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat
     6121 aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacgt ctaagaaacc
     6181 attattatca tgacattaac ctataaaaat aggcgtatca cgaggccctt tcgtc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
