PX552

价格:1000元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: PX552
出品公司: 爱迪基因
目录编号: 60958
存储实验室: Feng Zhang

载体骨架基本信息
载体名称: pAAV
载体抗性: 氨苄霉素
空载体大小: 2905 bp
完整质粒大小: 5314 bp
载体类型: 哺乳细胞表达,Mouse Targeting, AAV, CRISPR
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: U6_(SpaI)_sgRNA
物种来源: Synthetic
插入大小: 351 bp
启动子 U6
克隆方法: Gibson Cloning
5' 测序引物 cgcgtgagggcctatttcc
3' 测序引物 gcaagtgggttttaggaccag

文献引用方法
材料和方法部分: PX552 was a gift from Feng Zhang (爱迪基因 plasmid # 60958)
参考文献部分: n vivo interrogation of gene function in the mammalian brain using CRISPR-Cas9. Swiech L, Heidenreich M, Banerjee A, Habib N, Li Y, Trombetta J, Sur M, Zhang F. Nat Biotechnol. 2014 Oct 19. doi: 10.1038/nbt.3055. 10.1038/nbt.3055 PubMed 25326897

载体图谱质粒图谱和多克隆位点信息

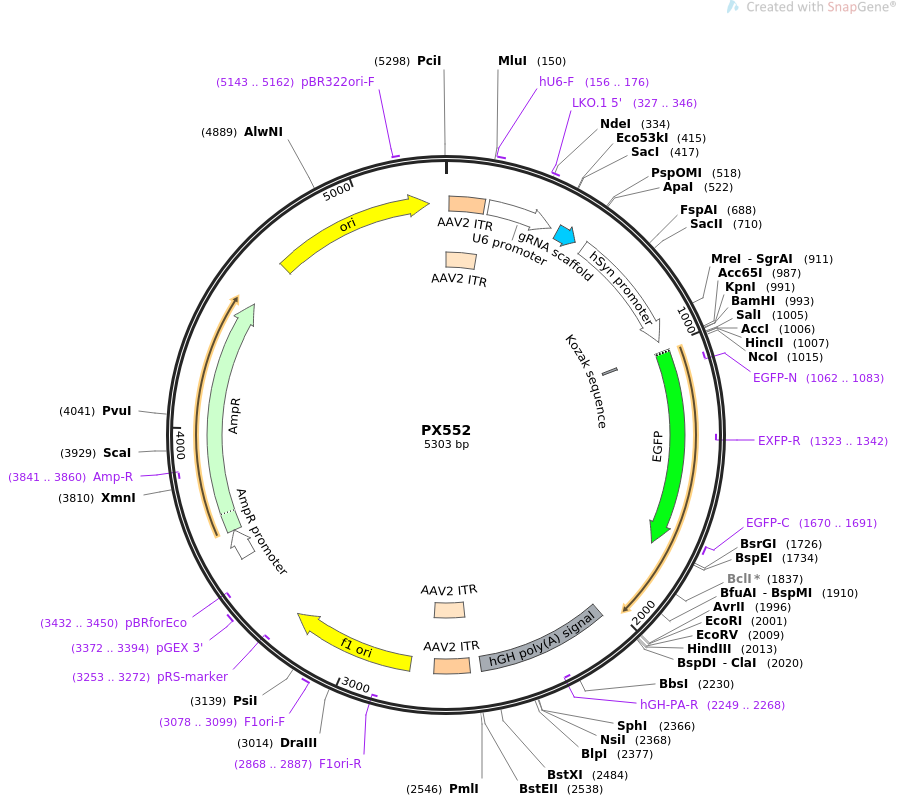

PX552质粒图谱

载体简介

载体序列

LOCUS       PX552                5303 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  pAAV-U6sgRNA(SapI)_hSyn-GFP-KASH-bGH (SpGuide acceptor). AAV plasmid
            for sgRNA cloning. GFP-KASH fusion facilitates FACS sorting of cells
            and nuclei. .
ACCESSION   .
VERSION     .
KEYWORDS    PX552
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5303)
  AUTHORS   Swiech L, Heidenreich M, Banerjee A, Habib N, Li Y, Trombetta J, Sur
            M, Zhang F
  TITLE     In vivo interrogation of gene function in the mammalian brain using
            CRISPR-Cas9.
  JOURNAL   Nat Biotechnol. 2014 Oct 19. doi: 10.1038/nbt.3055.
  PUBMED    25326897
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|PX552|
FEATURES             Location/Qualifiers
     source          1..5303
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     repeat_region   1..141
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   12..141
                     /label=AAV2 ITR
     promoter        156..396
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     156..176
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     327..346
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        423..498
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     promoter        532..979
                     /label=hSyn promoter
                     /note="human synapsin I promoter; confers neuron-specific
                     expression (Kugler et al., 2003)"
     regulatory      1011..1020
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1017..1733
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(1062..1083)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(1323..1342)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1670..1691
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     polyA_signal    2050..2526
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     complement(2249..2268)
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     repeat_region   2566..2706
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   2566..2695
                     /label=AAV2 ITR
     rep_origin      2781..3236
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2868..2887)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3078..3099
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3253..3272)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     3372..3394
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(3432..3450)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        3518..3622
                     /gene="bla"
                     /label=AmpR promoter
     CDS             3623..4483
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(3841..3860)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      4654..5242
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5143..5162
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcaaag cccgggcgtc
       61 gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc gcgcagagag ggagtggcca
      121 actccatcac taggggttcc tgcggccgca cgcgtgaggg cctatttccc atgattcctt
      181 catatttgca tatacgatac aaggctgtta gagagataat tggaattaat ttgactgtaa
      241 acacaaagat attagtacaa aatacgtgac gtagaaagta ataatttctt gggtagtttg
      301 cagttttaaa attatgtttt aaaatggact atcatatgct taccgtaact tgaaagtatt
      361 tcgatttctt ggctttatat atcttgtgga aaggacgaaa caccggaaga gcgagctctt
      421 ctgttttaga gctagaaata gcaagttaaa ataaggctag tccgttatca acttgaaaaa
      481 gtggcaccga gtcggtgctt tttttctaga ctgcagaggg ccctgcgtat gagtgcaagt
      541 gggttttagg accaggatga ggcggggtgg gggtgcctac ctgacgaccg accccgaccc
      601 actggacaag cacccaaccc ccattcccca aattgcgcat cccctatcag agagggggag
      661 gggaaacagg atgcggcgag gcgcgtgcgc actgccagct tcagcaccgc ggacagtgcc
      721 ttcgcccccg cctggcggcg cgcgccaccg ccgcctcagc actgaaggcg cgctgacgtc
      781 actcgccggt cccccgcaaa ctccccttcc cggccacctt ggtcgcgtcc gcgccgccgc
      841 cggcccagcc ggaccgcacc acgcgaggcg cgagataggg gggcacgggc gcgaccatct
      901 gcgctgcggc gccggcgact cagcgctgcc tcagtctgcg gtgggcagcg gaggagtcgt
      961 gtcgtgcctg agagcgcagt cgagaaggta ccggatcctc tagagtcgac gccaccatgg
     1021 tgagcaaggg cgaggagctg ttcaccgggg tggtgcccat cctggtcgag ctggacggcg
     1081 acgtaaacgg ccacaagttc agcgtgtccg gcgagggcga gggcgatgcc acctacggca
     1141 agctgaccct gaagttcatc tgcaccaccg gcaagctgcc cgtgccctgg cccaccctcg
     1201 tgaccaccct gacctacggc gtgcagtgct tcagccgcta ccccgaccac atgaagcagc
     1261 acgacttctt caagtccgcc atgcccgaag gctacgtcca ggagcgcacc atcttcttca
     1321 aggacgacgg caactacaag acccgcgccg aggtgaagtt cgagggcgac accctggtga
     1381 accgcatcga gctgaagggc atcgacttca aggaggacgg caacatcctg gggcacaagc
     1441 tggagtacaa ctacaacagc cacaacgtct atatcatggc cgacaagcag aagaacggca
     1501 tcaaggtgaa cttcaagatc cgccacaaca tcgaggacgg cagcgtgcag ctcgccgacc
     1561 actaccagca gaacaccccc atcggcgacg gccccgtgct gctgcccgac aaccactacc
     1621 tgagcaccca gtccgccctg agcaaagacc ccaacgagaa gcgcgatcac atggtcctgc
     1681 tggagttcgt gaccgccgcc gggatcactc tcggcatgga cgagctgtac aagtccggac
     1741 tcagatctcg agaggaggag gaggagacag acagcaggat gccccacctc gacagccccg
     1801 gcagctccca gccgagacgc tccttcctct caagggtgat cagggcagcg ctaccgttgc
     1861 agctgcttct gctgctgctg ctgctcctgg cctgcctgct acctgcctct gaagatgact
     1921 acagctgcac ccaggccaac aactttgccc gatccttcta ccccatgctg cggtacacca
     1981 acgggccacc tcccacctag gaattcgata tcaagcttat cgataccgag cgctgctcga
     2041 gagatctacg ggtggcatcc ctgtgacccc tccccagtgc ctctcctggc cctggaagtt
     2101 gccactccag tgcccaccag ccttgtccta ataaaattaa gttgcatcat tttgtctgac
     2161 taggtgtcct tctataatat tatggggtgg aggggggtgg tatggagcaa ggggcaagtt
     2221 gggaagacaa cctgtagggc ctgcggggtc tattgggaac caagctggag tgcagtggca
     2281 caatcttggc tcactgcaat ctccgcctcc tgggttcaag cgattctcct gcctcagcct
     2341 cccgagttgt tgggattcca ggcatgcatg accaggctca gctaattttt gtttttttgg
     2401 tagagacggg gtttcaccat attggccagg ctggtctcca actcctaatc tcaggtgatc
     2461 tacccacctt ggcctcccaa attgctggga ttacaggcgt gaaccactgc tcccttccct
     2521 gtccttctga ttttgtaggt aaccacgtgc ggaccgagcg gccgcaggaa cccctagtga
     2581 tggagttggc cactccctct ctgcgcgctc gctcgctcac tgaggccggg cgaccaaagg
     2641 tcgcccgacg cccgggcttt gcccgggcgg cctcagtgag cgagcgagcg cgcagctgcc
     2701 tgcaggggcg cctgatgcgg tattttctcc ttacgcatct gtgcggtatt tcacaccgca
     2761 tacgtcaaag caaccatagt acgcgccctg tagcggcgca ttaagcgcgg cgggtgtggt
     2821 ggttacgcgc agcgtgaccg ctacacttgc cagcgcccta gcgcccgctc ctttcgcttt
     2881 cttcccttcc tttctcgcca cgttcgccgg ctttccccgt caagctctaa atcgggggct
     2941 ccctttaggg ttccgattta gtgctttacg gcacctcgac cccaaaaaac ttgatttggg
     3001 tgatggttca cgtagtgggc catcgccctg atagacggtt tttcgccctt tgacgttgga
     3061 gtccacgttc tttaatagtg gactcttgtt ccaaactgga acaacactca accctatctc
     3121 gggctattct tttgatttat aagggatttt gccgatttcg gcctattggt taaaaaatga
     3181 gctgatttaa caaaaattta acgcgaattt taacaaaata ttaacgttta caattttatg
     3241 gtgcactctc agtacaatct gctctgatgc cgcatagtta agccagcccc gacacccgcc
     3301 aacacccgct gacgcgccct gacgggcttg tctgctcccg gcatccgctt acagacaagc
     3361 tgtgaccgtc tccgggagct gcatgtgtca gaggttttca ccgtcatcac cgaaacgcgc
     3421 gagacgaaag ggcctcgtga tacgcctatt tttataggtt aatgtcatga taataatggt
     3481 ttcttagacg tcaggtggca cttttcgggg aaatgtgcgc ggaaccccta tttgtttatt
     3541 tttctaaata cattcaaata tgtatccgct catgagacaa taaccctgat aaatgcttca
     3601 ataatattga aaaaggaaga gtatgagtat tcaacatttc cgtgtcgccc ttattccctt
     3661 ttttgcggca ttttgccttc ctgtttttgc tcacccagaa acgctggtga aagtaaaaga
     3721 tgctgaagat cagttgggtg cacgagtggg ttacatcgaa ctggatctca acagcggtaa
     3781 gatccttgag agttttcgcc ccgaagaacg ttttccaatg atgagcactt ttaaagttct
     3841 gctatgtggc gcggtattat cccgtattga cgccgggcaa gagcaactcg gtcgccgcat
     3901 acactattct cagaatgact tggttgagta ctcaccagtc acagaaaagc atcttacgga
     3961 tggcatgaca gtaagagaat tatgcagtgc tgccataacc atgagtgata acactgcggc
     4021 caacttactt ctgacaacga tcggaggacc gaaggagcta accgcttttt tgcacaacat
     4081 gggggatcat gtaactcgcc ttgatcgttg ggaaccggag ctgaatgaag ccataccaaa
     4141 cgacgagcgt gacaccacga tgcctgtagc aatggcaaca acgttgcgca aactattaac
     4201 tggcgaacta cttactctag cttcccggca acaattaata gactggatgg aggcggataa
     4261 agttgcagga ccacttctgc gctcggccct tccggctggc tggtttattg ctgataaatc
     4321 tggagccggt gagcgtgggt ctcgcggtat cattgcagca ctggggccag atggtaagcc
     4381 ctcccgtatc gtagttatct acacgacggg gagtcaggca actatggatg aacgaaatag
     4441 acagatcgct gagataggtg cctcactgat taagcattgg taactgtcag accaagttta
     4501 ctcatatata ctttagattg atttaaaact tcatttttaa tttaaaagga tctaggtgaa
     4561 gatccttttt gataatctca tgaccaaaat cccttaacgt gagttttcgt tccactgagc
     4621 gtcagacccc gtagaaaaga tcaaaggatc ttcttgagat cctttttttc tgcgcgtaat
     4681 ctgctgcttg caaacaaaaa aaccaccgct accagcggtg gtttgtttgc cggatcaaga
     4741 gctaccaact ctttttccga aggtaactgg cttcagcaga gcgcagatac caaatactgt
     4801 ccttctagtg tagccgtagt taggccacca cttcaagaac tctgtagcac cgcctacata
     4861 cctcgctctg ctaatcctgt taccagtggc tgctgccagt ggcgataagt cgtgtcttac
     4921 cgggttggac tcaagacgat agttaccgga taaggcgcag cggtcgggct gaacgggggg
     4981 ttcgtgcaca cagcccagct tggagcgaac gacctacacc gaactgagat acctacagcg
     5041 tgagctatga gaaagcgcca cgcttcccga agggagaaag gcggacaggt atccggtaag
     5101 cggcagggtc ggaacaggag agcgcacgag ggagcttcca gggggaaacg cctggtatct
     5161 ttatagtcct gtcgggtttc gccacctctg acttgagcgt cgatttttgt gatgctcgtc
     5221 aggggggcgg agcctatgga aaaacgccag caacgcggcc tttttacggt tcctggcctt
     5281 ttgctggcct tttgctcaca tgt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
