质粒名称: | hCas9-VPR |
---|---|
出品公司: | addgene |
目录编号: | 68497 |
存储实验室: | George Church |
载体骨架基本信息 |
|
载体名称: | hCas9 Plasmid #41815 |
完整质粒大小: | 11319bp |
载体类型: | 哺乳细胞表达 |
载体抗性: | 氨苄霉素 |
生长温度: | 37 ℃ |
宿主菌: | DH5a |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | SP-Cas9-VPR |
物种来源: | Synthetic |
插入大小: | 5799bp |
启动子: | CMV |
标签/融合蛋白: | VPR (C terminal on insert) |
克隆方法: | Gateway Cloning |
5’测序引物 | TCAAGTACTTCGACACCACCA |
3’测序引物 | AACACCCGTGCGTTTTATTC |
文献引用方法 |
|
材料和方法部分: | hCas9-VPR was a gift from George Church (Addgene plasmid # 68497 ; http://n2t.net/addgene:68497 ; RRID:Addgene_68497) |
参考文献部分: | Cas9 gRNA engineering for genome editing, activation and repression. Kiani S, Chavez A, Tuttle M, Hall RN, Chari R, Ter-Ovanesyan D, Qian J, Pruitt BW, Beal J, Vora S, Buchthal J, Kowal EJ, Ebrahimkhani MR, Collins JJ, Weiss R, Church G. Nat Methods. 2015 Sep 7. doi: 10.1038/nmeth.3580. 10.1038/nmeth.3580 PubMed 26344044 |
买家导航
载体基本信息

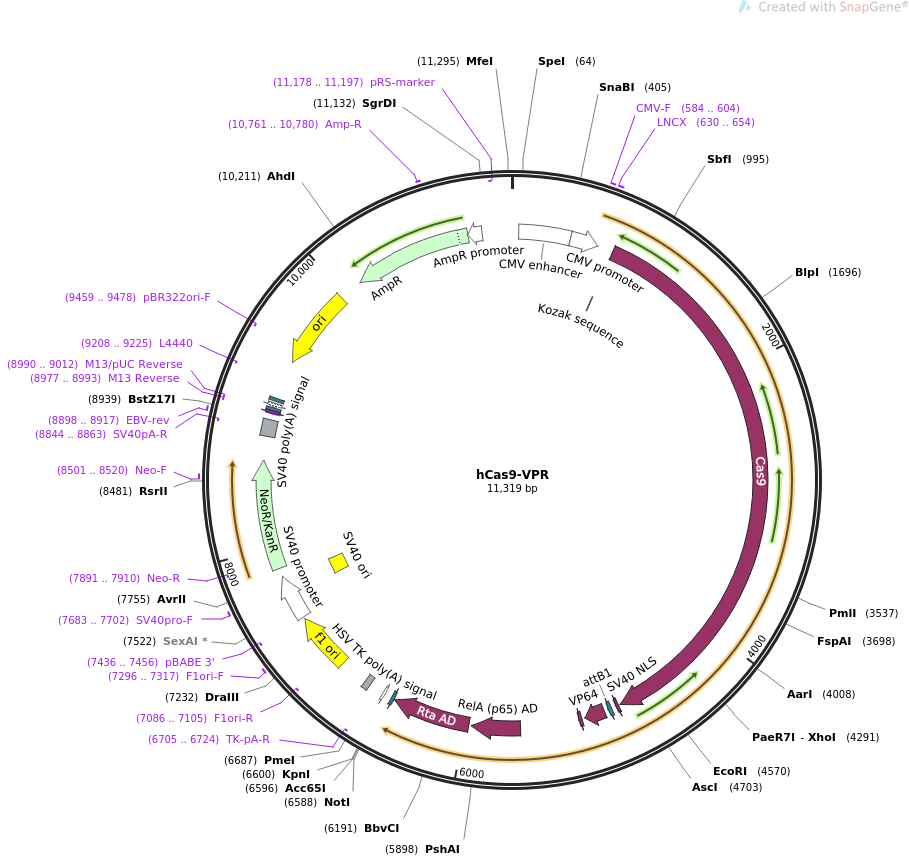

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS hCas9-VPR 11319 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION nuclease competent SP-Cas9 fused to VPR. ACCESSION . VERSION . KEYWORDS hCas9-VPR SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 11319) AUTHORS Kiani S, Chavez A, Tuttle M, Hall RN, Chari R, Ter-Ovanesyan D, Qian J, Pruitt BW, Beal J, Vora S, Buchthal J, Kowal EJ, Ebrahimkhani MR, Collins JJ, Weiss R, Church G TITLE Cas9 gRNA engineering for genome editing, activation and repression. JOURNAL Nat Methods. 2015 Sep 7. doi: 10.1038/nmeth.3580. PUBMED 26344044 REFERENCE 2 (bases 1 to 11319) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.biofeng.com FEATURES Location/Qualifiers source 1..11319 /organism="synthetic DNA construct" /mol_type="other DNA" enhancer 50..429 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 430..633 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 584..604 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" primer_bind 630..654 /label=LNCX /note="Human CMV promoter, forward primer" regulatory 742..751 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 748..4851 /codon_start=1 /product="Cas9 (Csn1) endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=Cas9 /note="generates RNA-guided double strand breaks in DNA" /translation="MDKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY LYYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL DATLIHQSITGLYETRIDLSQLGGD" CDS 4864..4884 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" protein_bind 4921..4945 /gene="mutant version of attB" /label=attB1 /bound_moiety="BP Clonase(TM)" /note="recombination site for the Gateway(R) BP reaction" CDS 4975..5124 /codon_start=1 /product="tetrameric repeat of the minimal activation domain of herpes simplex virus VP16 (Beerli et al., 1998)" /label=VP64 /translation="DALDDFDLDMLGSDALDDFDLDMLGSDALDDFDLDMLGSDALDDF DLDML" CDS 5149..5169 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 5599..5955 /codon_start=1 /product="transcriptional activation domain of human RelA, also known as p65 (O'Shea and Perkins, 2008)" /label=RelA (p65) AD /translation="PTQAGEGTLSEALLQLQFDDEDLGALLGNSTDPAVFTDLASVDNS EFQQLLNQGIPVAPHTTEPMLMEYPEAITRLVTGAQRPPDPAPAPLGAPGLPNGLLSGD EDFSSIADMDFSALL" CDS 5974..6543 /codon_start=1 /product="transcriptional activation domain from the human herpesvirus 4 (Epstein-Barr virus) replication and transcription activator Rta/BRLF1 (Hardwick et al., 1992; Chavez et al., 2015)" /label=Rta AD /translation="RDSREGMFLPKPEAGSAISDVFEGREVCQPKRIRPFHPPGSPWAN RPLPASLAPTPTGPVHEPVGSLTPAPVPQPLDPAPAVTPEASHLLEDPDEETSQAVKAL REMADTVIPQKEEAAICGQMDLSHPPPRGHLDELTTTLESMTEDLNLDSPLTPELNEIL DTFLNDECLLHAMHISTGLSIFDTSLF" protein_bind complement(6548..6572) /gene="mutant version of attB" /label=attB2 /bound_moiety="BP Clonase(TM)" /note="recombination site for the Gateway(R) BP reaction" promoter complement(6622..6639) /label=T3 promoter /note="promoter for bacteriophage T3 RNA polymerase" primer_bind complement(6705..6724) /label=TK-pA-R /note="Thymidine kinase polyA, reverse primer" polyA_signal 6749..6797 /label=HSV TK poly(A) signal /note="herpes simplex virus thymidine kinase polyadenylation signal (Cole and Stacy, 1985)" rep_origin 6999..7427 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(7086..7105) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 7296..7317 /label=F1ori-F /note="F1 origin, forward primer" primer_bind complement(7436..7456) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 7441..7770 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 7621..7756 /label=SV40 ori /note="SV40 origin of replication" primer_bind 7683..7702 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" CDS 7837..8631 /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(7891..7910) /label=Neo-R /note="Neomycin resistance gene, reverse primer" primer_bind 8501..8520 /label=Neo-F /note="Neomycin resistance gene, forward primer" polyA_signal 8807..8928 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(8844..8863) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 8898..8917 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" primer_bind complement(8977..8993) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(8977..8993) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(8990..9012) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 9001..9017 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(9025..9055) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 9070..9091 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(9208..9225) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(9379..9967) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(9459..9478) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(10138..10998) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 10761..10780 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(10999..11103) /gene="bla" /label=AmpR promoter primer_bind complement(11178..11197) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" ORIGIN 1 gttaggcgtt ttgcgctgct tcgcgatgta cgggccagat atacgcgttg acattgatta 61 ttgactagtt attaatagta atcaattacg gggtcattag ttcatagccc atatatggag 121 ttccgcgtta cataacttac ggtaaatggc ccgcctggct gaccgcccaa cgacccccgc 181 ccattgacgt caataatgac gtatgttccc atagtaacgc caatagggac tttccattga 241 cgtcaatggg tggagtattt acggtaaact gcccacttgg cagtacatca agtgtatcat 301 atgccaagta cgccccctat tgacgtcaat gacggtaaat ggcccgcctg gcattatgcc 361 cagtacatga ccttatggga ctttcctact tggcagtaca tctacgtatt agtcatcgct 421 attaccatgg tgatgcggtt ttggcagtac atcaatgggc gtggatagcg gtttgactca 481 cggggatttc caagtctcca ccccattgac gtcaatggga gtttgttttg gcaccaaaat 541 caacgggact ttccaaaatg tcgtaacaac tccgccccat tgacgcaaat gggcggtagg 601 cgtgtacggt gggaggtcta tataagcaga gctcgtttag tgaaccgtca gatcgcctgg 661 agacgccatc cacgctgttt tgacctccat agaagacacc gggaccgatc cagcctccgg 721 actctagagg atcgaaccct tgccaccatg gacaagaagt actccattgg gctcgatatc 781 ggcacaaaca gcgtcggctg ggccgtcatt acggacgagt acaaggtgcc gagcaaaaaa 841 ttcaaagttc tgggcaatac cgatcgccac agcataaaga agaacctcat tggcgccctc 901 ctgttcgact ccggggagac ggccgaagcc acgcggctca aaagaacagc acggcgcaga 961 tatacccgca gaaagaatcg gatctgctac ctgcaggaga tctttagtaa tgagatggct 1021 aaggtggatg actctttctt ccataggctg gaggagtcct ttttggtgga ggaggataaa 1081 aagcacgagc gccacccaat ctttggcaat atcgtggacg aggtggcgta ccatgaaaag 1141 tacccaacca tatatcatct gaggaagaag cttgtagaca gtactgataa ggctgacttg 1201 cggttgatct atctcgcgct ggcgcatatg atcaaatttc ggggacactt cctcatcgag 1261 ggggacctga acccagacaa cagcgatgtc gacaaactct ttatccaact ggttcagact 1321 tacaatcagc ttttcgaaga gaacccgatc aacgcatccg gagttgacgc caaagcaatc 1381 ctgagcgcta ggctgtccaa atcccggcgg ctcgaaaacc tcatcgcaca gctccctggg 1441 gagaagaaga acggcctgtt tggtaatctt atcgccctgt cactcgggct gacccccaac 1501 tttaaatcta acttcgacct ggccgaagat gccaagcttc aactgagcaa agacacctac 1561 gatgatgatc tcgacaatct gctggcccag atcggcgacc agtacgcaga cctttttttg 1621 gcggcaaaga acctgtcaga cgccattctg ctgagtgata ttctgcgagt gaacacggag 1681 atcaccaaag ctccgctgag cgctagtatg atcaagcgct atgatgagca ccaccaagac 1741 ttgactttgc tgaaggccct tgtcagacag caactgcctg agaagtacaa ggaaattttc 1801 ttcgatcagt ctaaaaatgg ctacgccgga tacattgacg gcggagcaag ccaggaggaa 1861 ttttacaaat ttattaagcc catcttggaa aaaatggacg gcaccgagga gctgctggta 1921 aagcttaaca gagaagatct gttgcgcaaa cagcgcactt tcgacaatgg aagcatcccc 1981 caccagattc acctgggcga actgcacgct atcctcaggc ggcaagagga tttctacccc 2041 tttttgaaag ataacaggga aaagattgag aaaatcctca catttcggat accctactat 2101 gtaggccccc tcgcccgggg aaattccaga ttcgcgtgga tgactcgcaa atcagaagag 2161 accatcactc cctggaactt cgaggaagtc gtggataagg gggcctctgc ccagtccttc 2221 atcgaaagga tgactaactt tgataaaaat ctgcctaacg aaaaggtgct tcctaaacac 2281 tctctgctgt acgagtactt cacagtttat aacgagctca ccaaggtcaa atacgtcaca 2341 gaagggatga gaaagccagc attcctgtct ggagagcaga agaaagctat cgtggacctc 2401 ctcttcaaga cgaaccggaa agttaccgtg aaacagctca aagaagacta tttcaaaaag 2461 attgaatgtt tcgactctgt tgaaatcagc ggagtggagg atcgcttcaa cgcatccctg 2521 ggaacgtatc acgatctcct gaaaatcatt aaagacaagg acttcctgga caatgaggag 2581 aacgaggaca ttcttgagga cattgtcctc acccttacgt tgtttgaaga tagggagatg 2641 attgaagaac gcttgaaaac ttacgctcat ctcttcgacg acaaagtcat gaaacagctc 2701 aagaggcgcc gatatacagg atgggggcgg ctgtcaagaa aactgatcaa tgggatccga 2761 gacaagcaga gtggaaagac aatcctggat tttcttaagt ccgatggatt tgccaaccgg 2821 aacttcatgc agttgatcca tgatgactct ctcaccttta aggaggacat ccagaaagca 2881 caagtttctg gccaggggga cagtcttcac gagcacatcg ctaatcttgc aggtagccca 2941 gctatcaaaa agggaatact gcagaccgtt aaggtcgtgg atgaactcgt caaagtaatg 3001 ggaaggcata agcccgagaa tatcgttatc gagatggccc gagagaacca aactacccag 3061 aagggacaga agaacagtag ggaaaggatg aagaggattg aagagggtat aaaagaactg 3121 gggtcccaaa tccttaagga acacccagtt gaaaacaccc agcttcagaa tgagaagctc 3181 tacctgtact acctgcagaa cggcagggac atgtacgtgg atcaggaact ggacatcaat 3241 cggctctccg actacgacgt ggatcatatc gtgccccagt cttttctcaa agatgattct 3301 attgataata aagtgttgac aagatccgat aaaaatagag ggaagagtga taacgtcccc 3361 tcagaagaag ttgtcaagaa aatgaaaaat tattggcggc agctgctgaa cgccaaactg 3421 atcacacaac ggaagttcga taatctgact aaggctgaac gaggtggcct gtctgagttg 3481 gataaagccg gcttcatcaa aaggcagctt gttgagacac gccagatcac caagcacgtg 3541 gcccaaattc tcgattcacg catgaacacc aagtacgatg aaaatgacaa actgattcga 3601 gaggtgaaag ttattactct gaagtctaag ctggtctcag atttcagaaa ggactttcag 3661 ttttataagg tgagagagat caacaattac caccatgcgc atgatgccta cctgaatgca 3721 gtggtaggca ctgcacttat caaaaaatat cccaagcttg aatctgaatt tgtttacgga 3781 gactataaag tgtacgatgt taggaaaatg atcgcaaagt ctgagcagga aataggcaag 3841 gccaccgcta agtacttctt ttacagcaat attatgaatt ttttcaagac cgagattaca 3901 ctggccaatg gagagattcg gaagcgacca cttatcgaaa caaacggaga aacaggagaa 3961 atcgtgtggg acaagggtag ggatttcgcg acagtccgga aggtcctgtc catgccgcag 4021 gtgaacatcg ttaaaaagac cgaagtacag accggaggct tctccaagga aagtatcctc 4081 ccgaaaagga acagcgacaa gctgatcgca cgcaaaaaag attgggaccc caagaaatac 4141 ggcggattcg attctcctac agtcgcttac agtgtactgg ttgtggccaa agtggagaaa 4201 gggaagtcta aaaaactcaa aagcgtcaag gaactgctgg gcatcacaat catggagcga 4261 tcaagcttcg aaaaaaaccc catcgacttt ctcgaggcga aaggatataa agaggtcaaa 4321 aaagacctca tcattaagct tcccaagtac tctctctttg agcttgaaaa cggccggaaa 4381 cgaatgctcg ctagtgcggg cgagctgcag aaaggtaacg agctggcact gccctctaaa 4441 tacgttaatt tcttgtatct ggccagccac tatgaaaagc tcaaagggtc tcccgaagat 4501 aatgagcaga agcagctgtt cgtggaacaa cacaaacact accttgatga gatcatcgag 4561 caaataagcg aattctccaa aagagtgatc ctcgccgacg ctaacctcga taaggtgctt 4621 tctgcttaca ataagcacag ggataagccc atcagggagc aggcagaaaa cattatccac 4681 ttgtttactc tgaccaactt gggcgcgcct gcagccttca agtacttcga caccaccata 4741 gacagaaagc ggtacacctc tacaaaggag gtcctggacg ccacactgat tcatcagtca 4801 attacggggc tctatgaaac aagaatcgac ctctctcagc tcggtggaga cagcagggct 4861 gaccccaaga agaagaggaa ggtgtcgcca gggatccgtc gacttgacgc gttaatatca 4921 acaagtttgt acaaaaaagc aggctacaaa gaggccagcg gttccggacg ggctgacgca 4981 ttggacgatt ttgatctgga tatgctggga agtgacgccc tcgatgattt tgaccttgac 5041 atgcttggtt cggatgccct tgatgacttt gacctcgaca tgctcggcag tgacgccctt 5101 gatgatttcg acctggacat gctgattaac tctagaagtt ccggatctcc gaaaaagaaa 5161 cgcaaagttg gtagccagta cctgcccgac accgacgacc ggcaccggat cgaggaaaag 5221 cggaagcgga cctacgagac attcaagagc atcatgaaga agtccccctt cagcggcccc 5281 accgacccta gacctccacc tagaagaatc gccgtgccca gcagatccag cgccagcgtg 5341 ccaaaacctg ccccccagcc ttaccccttc accagcagcc tgagcaccat caactacgac 5401 gagttcccta ccatggtgtt ccccagcggc cagatctctc aggcctctgc tctggctcca 5461 gcccctcctc aggtgctgcc tcaggctcct gctcctgcac cagctccagc catggtgtct 5521 gcactggctc aggcaccagc acccgtgcct gtgctggctc ctggacctcc acaggctgtg 5581 gctccaccag cccctaaacc tacacaggcc ggcgagggca cactgtctga agctctgctg 5641 cagctgcagt tcgacgacga ggatctggga gccctgctgg gaaacagcac cgatcctgcc 5701 gtgttcaccg acctggccag cgtggacaac agcgagttcc agcagctgct gaaccagggc 5761 atccctgtgg cccctcacac caccgagccc atgctgatgg aataccccga ggccatcacc 5821 cggctcgtga caggcgctca gaggcctcct gatccagctc ctgcccctct gggagcacca 5881 ggcctgccta atggactgct gtctggcgac gaggacttca gctctatcgc cgatatggat 5941 ttctcagcct tgctgggctc tggcagcggc agccgggatt ccagggaagg gatgtttttg 6001 ccgaagcctg aggccggctc cgctattagt gacgtgtttg agggccgcga ggtgtgccag 6061 ccaaaacgaa tccggccatt tcatcctcca ggaagtccat gggccaaccg cccactcccc 6121 gccagcctcg caccaacacc aaccggtcca gtacatgagc cagtcgggtc actgaccccg 6181 gcaccagtcc ctcagccact ggatccagcg cccgcagtga ctcccgaggc cagtcacctg 6241 ttggaggatc ccgatgaaga gacgagccag gctgtcaaag cccttcggga gatggccgat 6301 actgtgattc cccagaagga agaggctgca atctgtggcc aaatggacct ttcccatccg 6361 cccccaaggg gccatctgga tgagctgaca accacacttg agtccatgac cgaggatctg 6421 aacctggact cacccctgac cccggaattg aacgagattc tggatacctt cctgaacgac 6481 gagtgcctct tgcatgccat gcatatcagc acaggactgt ccatcttcga cacatctctg 6541 ttttgaaacc cagctttctt gtacaaagtg gttgatatca tctagagcgg ccgcaggtac 6601 ctgaataact aaggccgctt ccctttagtg agggttaatg cttcgagcag acaaagggtt 6661 cgatccctac cggttagtaa tgagtttaaa cgggggaggc taactgaaac acggaaggag 6721 acaataccgg aaggaacccg cgctatgacg gcaataaaaa gacagaataa aacgcacggg 6781 tgttgggtcg tttgttcata aacgcggggt tcggtcccag ggctggcact ctgtcgatac 6841 cccaccgaga ccccattggg gccaatacgc ccgcgtttct tccttttccc caccccaccc 6901 cccaagttcg ggtgaaggcc cagggctcgc agccaacgtc ggggcggcag gccctgccat 6961 agcagatctg cgcagctggg gctctagggg gtatccccac gcgccctgta gcggcgcatt 7021 aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc 7081 gcccgctcct ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca 7141 agctctaaat cggggcatcc ctttagggtt ccgatttagt gctttacggc acctcgaccc 7201 caaaaaactt gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt 7261 tcgccctttg acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac 7321 aacactcaac cctatctcgg tctattcttt tgatttataa gggattttgg ggatttcggc 7381 ctattggtta aaaaatgagc tgatttaaca aaaatttaac gcgaattaat tctgtggaat 7441 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc 7501 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga 7561 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc 7621 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt 7681 tttatttatg cagaggccga ggccgcctct gcctctgagc tattccagaa gtagtgagga 7741 ggcttttttg gaggcctagg cttttgcaaa aagctcccgg gagcttgtat atccattttc 7801 ggatctgatc aagagacagg atgaggatcg tttcgcatga ttgaacaaga tggattgcac 7861 gcaggttctc cggccgcttg ggtggagagg ctattcggct atgactgggc acaacagaca 7921 atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt 7981 gtcaagaccg acctgtccgg tgccctgaat gaactgcagg acgaggcagc gcggctatcg 8041 tggctggcca cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac tgaagcggga 8101 agggactggc tgctattggg cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct 8161 cctgccgaga aagtatccat catggctgat gcaatgcggc ggctgcatac gcttgatccg 8221 gctacctgcc cattcgacca ccaagcgaaa catcgcatcg agcgagcacg tactcggatg 8281 gaagccggtc ttgtcgatca ggatgatctg gacgaagagc atcaggggct cgcgccagcc 8341 gaactgttcg ccaggctcaa ggcgcgcatg cccgacggcg aggatctcgt cgtgacccat 8401 ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg attcatcgac 8461 tgtggccggc tgggtgtggc ggaccgctat caggacatag cgttggctac ccgtgatatt 8521 gctgaagagc ttggcggcga atgggctgac cgcttcctcg tgctttacgg tatcgccgct 8581 cccgattcgc agcgcatcgc cttctatcgc cttcttgacg agttcttctg agcgggactc 8641 tggggttcgc gaaatgaccg accaagcgac gcccaacctg ccatcacgag atttcgattc 8701 caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg ccggctggat 8761 gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccccaact tgtttattgc 8821 agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt 8881 ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttatc atgtctgtat 8941 accgtcgacc tctagctaga gcttggcgta atcatggtca tagctgtttc ctgtgtgaaa 9001 ttgttatccg ctcacaattc cacacaacat acgagccgga agcataaagt gtaaagcctg 9061 gggtgcctaa tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca 9121 gtcgggaaac ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg 9181 tttgcgtatt gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg 9241 gctgcggcga gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg 9301 ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa 9361 ggccgcgttg ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg 9421 acgctcaagt cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc 9481 tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc 9541 ctttctccct tcgggaagcg tggcgctttc tcaatgctca cgctgtaggt atctcagttc 9601 ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg 9661 ctgcgcctta tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc 9721 actggcagca gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga 9781 gttcttgaag tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc 9841 tctgctgaag ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac 9901 caccgctggt agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg 9961 atctcaagaa gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc 10021 acgttaaggg attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa 10081 ttaaaaatga agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta 10141 ccaatgctta atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt 10201 tgcctgactc cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag 10261 tgctgcaatg ataccgcgag acccacgctc accggctcca gatttatcag caataaacca 10321 gccagccgga agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc 10381 tattaattgt tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt 10441 tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag 10501 ctccggttcc caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt 10561 tagctccttc ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat 10621 ggttatggca gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt 10681 gactggtgag tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc 10741 ttgcccggcg tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat 10801 cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag 10861 ttcgatgtaa cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt 10921 ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg 10981 gaaatgttga atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta 11041 ttgtctcatg agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc 11101 gcgcacattt ccccgaaaag tgccacctga cgtcgacgga tcgggagatc tcccgatccc 11161 ctatggtcga ctctcagtac aatctgctct gatgccgcat agttaagcca gtatctgctc 11221 cctgcttgtg tgttggaggt cgctgagtag tgcgcgagca aaatttaagc tacaacaagg 11281 caaggcttga ccgacaattg catgaagaat ctgcttagg //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
