mChDrp1载体基本信息

质粒名称: mCh-Drp1
出品公司: 爱迪基因
目录编号: 49152
存储实验室: Gia Voeltz

载体骨架基本信息
载体名称: mCh-alpha tubulin (Addgene plasmid )
载体出品公司: Voeltz lab
载体抗性: 卡那霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: Drp1,DNM1L,dynamin 1-like,Drp1, isoform 3
物种来源: H. sapiens (human)
插入大小: --
基因突变: --
GenBank编号 NM_005690
启动子 CMV
标签/融合蛋白: mCherry(主干上的N终端)
克隆方法: 限制性内切酶
5' 克隆位点: XhoI(未破坏)
3' 克隆位点: BamHI  (未破坏)
5' 测序引物 mCherry-F (ccccgtaatgcagaagaaga)
3' 测序引物 --

文献引用方法
材料和方法部分: mCh-Drp1 was a gift from Gia Voeltz (Addgene plasmid # 49152 ; http://n2t.net/addgene:49152 ; RRID:Addgene_49152)
参考文献部分: ER tubules mark sites of mitochondrial division. Friedman JR, Lackner LL, West M, DiBenedetto JR, Nunnari J, Voeltz GK. Science. 2011 Oct 21;334(6054):358-62. doi: 10.1126/science.1207385. Epub 2011 Sep 1. 10.1126/science.1207385 PubMed 21885730

mChDrp1载体图谱质粒图谱和多克隆位点信息

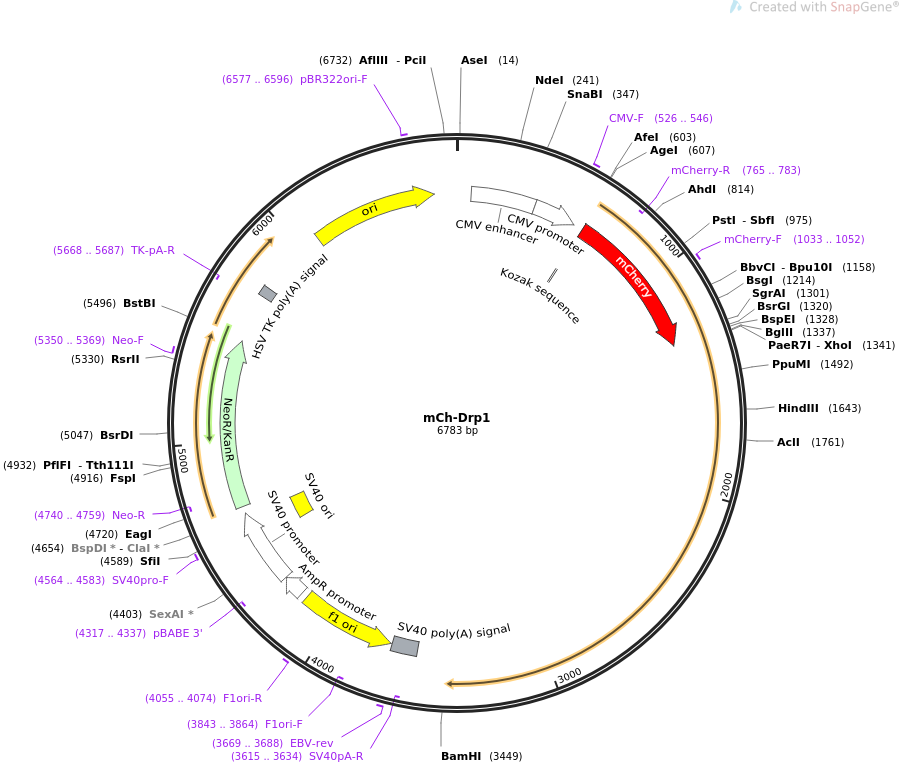

mCh-Drp1质粒图谱

mChDrp1载体简介

mChDrp1载体序列

LOCUS       mCh-Drp1                6783 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  mammalian expression of Drp1 fused to mCherry.
ACCESSION   .
VERSION     .
KEYWORDS    mCh-Drp1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6783)
  AUTHORS   Friedman JR, Lackner LL, West M, DiBenedetto JR, Nunnari J, Voeltz
            GK
  TITLE     ER tubules mark sites of mitochondrial division.
  JOURNAL   Science. 2011 Oct 21;334(6054):358-62. doi: 10.1126/science.1207385.
            Epub 2011 Sep 1.
  PUBMED    21885730
REFERENCE   2  (bases 1 to 6783)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6783
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        68..371
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        372..575
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     526..546
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      614..623
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             620..1327
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(765..783)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     1033..1052
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     polyA_signal    3578..3699
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3615..3634)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3669..3688
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(3706..4161)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3843..3864)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     4055..4074
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        4188..4292
                     /gene="bla"
                     /label=AmpR promoter
     promoter        4294..4651
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(4317..4337)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      4502..4637
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4564..4583
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             4686..5480
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(4740..4759)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     5350..5369
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(5668..5687)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    5712..5759
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      6088..6676
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6577..6596
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 catgcattag ttattaatag taatcaatta cggggtcatt agttcatagc ccatatatgg
       61 agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc aacgaccccc
      121 gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg actttccatt
      181 gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat caagtgtatc
      241 atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc tggcattatg
      301 cccagtacat gaccttatgg gactttccta cttggcagta catctacgta ttagtcatcg
      361 ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag cggtttgact
      421 cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt tggcaccaaa
      481 atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa atgggcggta
      541 ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt cagatccgct
      601 agcgctaccg gtcgccacca tggtgagcaa gggcgaggag gataacatgg ccatcatcaa
      661 ggagttcatg cgcttcaagg tgcacatgga gggctccgtg aacggccacg agttcgagat
      721 cgagggcgag ggcgagggcc gcccctacga gggcacccag accgccaagc tgaaggtgac
      781 caagggtggc cccctgccct tcgcctggga catcctgtcc cctcagttca tgtacggctc
      841 caaggcctac gtgaagcacc ccgccgacat ccccgactac ttgaagctgt ccttccccga
      901 gggcttcaag tgggagcgcg tgatgaactt cgaggacggc ggcgtggtga ccgtgaccca
      961 ggactcctcc ctgcaggacg gcgagttcat ctacaaggtg aagctgcgcg gcaccaactt
     1021 cccctccgac ggccccgtaa tgcagaagaa gaccatgggc tgggaggcct cctccgagcg
     1081 gatgtacccc gaggacggcg ccctgaaggg cgagatcaag cagaggctga agctgaagga
     1141 cggcggccac tacgacgctg aggtcaagac cacctacaag gccaagaagc ccgtgcagct
     1201 gcccggcgcc tacaacgtca acatcaagtt ggacatcacc tcccacaacg aggactacac
     1261 catcgtggaa cagtacgaac gcgccgaggg ccgccactcc accggcggca tggacgagct
     1321 gtacaagtcc ggactcagat ctcgagtgat ggaggcgcta attcctgtca taaacaagct
     1381 ccaggacgtc ttcaacacgg tgggcgccga catcatccag ctgcctcaaa tcgtcgtagt
     1441 gggaacgcag agcagcggaa agagctccgt gctagaaagc ctggtgggga gggacctgct
     1501 tcccagaggt actggaattg tcacccggag acctctcatt ctgcaactgg tccatgtttc
     1561 acaagaagat aaacggaaaa caacaggaga agaaaatgga gtggaagcag aagaatgggg
     1621 taaatttctt cacaccaaaa ataagcttta cacggatttt gatgaaattc gacaagaaat
     1681 tgaaaatgaa acagaaagaa tttcaggaaa taataaggga gtaagccctg aaccaattca
     1741 tcttaagatt ttttcaccca acgttgtcaa tttgacactt gtggatttgc caggaatgac
     1801 caaggtgcct gtaggtgatc aacctaagga tattgagctt caaatcagag agctcattct
     1861 tcggttcatc agtaatccta attccattat cctcgctgtc actgctgcta atacagatat
     1921 ggcaacatca gaggcactta aaatttcaag agaggtagat ccagatggtc gcagaaccct
     1981 agctgtaatc actaaacttg atctcatgga tgcgggtact gatgccatgg atgtattgat
     2041 gggaagggtt attccagtca aacttggaat aattggagta gttaacagga gccagctaga
     2101 tattaacaac aagaagagtg taactgattc aatccgtgat gagtatgctt ttcttcaaaa
     2161 gaaatatcca tctctggcca atagaaatgg aacaaagtat cttgctagga ctctaaacag
     2221 gttactgatg catcacatca gagattgttt accagagttg aaaacgagaa taaatgttct
     2281 agctgctcag tatcagtctc ttctaaatag ctacggtgaa cccgtggatg ataaaagtgc
     2341 tactttactc caacttatta ccaaatttgc cacagaatat tgtaacacta ttgaaggaac
     2401 tgcaaaatat attgaaactt cggagctatg cggtggtgct agaatttgtt atattttcca
     2461 tgagactttt gggcgaacct tagaatctgt tgatccactt ggtggcctta acactattga
     2521 cattttgact gccattagaa atgctactgg tcctcgtcct gctttatttg tgcctgaggt
     2581 ttcatttgag ttactggtga agcggcaaat caaacgtcta gaagagccca gcctccgctg
     2641 tgtggaactg gttcatgagg aaatgcaaag gatcattcag cactgtagca attacagtac
     2701 acaggaattg ttacgatttc ctaaacttca tgatgccata gttgaagtgg tgacttgtct
     2761 tcttcgtaaa aggttgcctg ttacaaatga aatggtccat aacttagtgg caattgaact
     2821 ggcttatatc aacacaaaac atccagactt tgctgatgct tgtgggctaa tgaacaataa
     2881 tatagaggaa caaaggagaa acaggctagc cagagaatta ccttcagctg tatcacgaga
     2941 caaggttgca tctggaggtg gtggggttgg agatggtgtt caagaaccaa ccacaggcaa
     3001 ctggagagga atgctgaaaa cttcaaaagc tgaagagtta ttagcagaag aaaaatcaaa
     3061 acccattcca attatgccag ccagtccaca aaaaggtcat gccgtgaacc tgctagatgt
     3121 gccagttcct gttgcacgaa aactatctgc tcgggaacag cgagattgtg aggttattga
     3181 acgactcatt aaatcatatt ttctcattgt cagaaagaat attcaagaca gtgtgccaaa
     3241 ggcagtaatg cattttttgg ttaatcatgt gaaagacact cttcagagtg agctagtagg
     3301 ccagctgtat aaatcatcct tattggatga tcttctgaca gaatctgagg acatggcaca
     3361 gcgcaggaaa gaagcagctg atatgctaaa ggcattacaa ggagccagtc aaattattgc
     3421 tgaaatccgg gagactcatc tttggtgagg atccaccgga tctagataac tgatcataat
     3481 cagccatacc acatttgtag aggttttact tgctttaaaa aacctcccac acctccccct
     3541 gaacctgaaa cataaaatga atgcaattgt tgttgttaac ttgtttattg cagcttataa
     3601 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     3661 ttctagttgt ggtttgtcca aactcatcaa tgtatcttaa ggcgtaaatt gtaagcgtta
     3721 atattttgtt aaaattcgcg ttaaattttt gttaaatcag ctcatttttt aaccaatagg
     3781 ccgaaatcgg caaaatccct tataaatcaa aagaatagac cgagataggg ttgagtgttg
     3841 ttccagtttg gaacaagagt ccactattaa agaacgtgga ctccaacgtc aaagggcgaa
     3901 aaaccgtcta tcagggcgat ggcccactac gtgaaccatc accctaatca agttttttgg
     3961 ggtcgaggtg ccgtaaagca ctaaatcgga accctaaagg gagcccccga tttagagctt
     4021 gacggggaaa gccggcgaac gtggcgagaa aggaagggaa gaaagcgaaa ggagcgggcg
     4081 ctagggcgct ggcaagtgta gcggtcacgc tgcgcgtaac caccacaccc gccgcgctta
     4141 atgcgccgct acagggcgcg tcaggtggca cttttcgggg aaatgtgcgc ggaaccccta
     4201 tttgtttatt tttctaaata cattcaaata tgtatccgct catgagacaa taaccctgat
     4261 aaatgcttca ataatattga aaaaggaaga gtcctgaggc ggaaagaacc agctgtggaa
     4321 tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag
     4381 catgcatctc aattagtcag caaccaggtg tggaaagtcc ccaggctccc cagcaggcag
     4441 aagtatgcaa agcatgcatc tcaattagtc agcaaccata gtcccgcccc taactccgcc
     4501 catcccgccc ctaactccgc ccagttccgc ccattctccg ccccatggct gactaatttt
     4561 ttttatttat gcagaggccg aggccgcctc ggcctctgag ctattccaga agtagtgagg
     4621 aggctttttt ggaggcctag gcttttgcaa agatcgatca agagacagga tgaggatcgt
     4681 ttcgcatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg gtggagaggc
     4741 tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc gtgttccggc
     4801 tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt gccctgaatg
     4861 aactgcaaga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt ccttgcgcag
     4921 ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc gaagtgccgg
     4981 ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc atggctgatg
     5041 caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac caagcgaaac
     5101 atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag gatgatctgg
     5161 acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag gcgagcatgc
     5221 ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat atcatggtgg
     5281 aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg gaccgctatc
     5341 aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa tgggctgacc
     5401 gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc
     5461 ttcttgacga gttcttctga gcgggactct ggggttcgaa atgaccgacc aagcgacgcc
     5521 caacctgcca tcacgagatt tcgattccac cgccgccttc tatgaaaggt tgggcttcgg
     5581 aatcgttttc cgggacgccg gctggatgat cctccagcgc ggggatctca tgctggagtt
     5641 cttcgcccac cctaggggga ggctaactga aacacggaag gagacaatac cggaaggaac
     5701 ccgcgctatg acggcaataa aaagacagaa taaaacgcac ggtgttgggt cgtttgttca
     5761 taaacgcggg gttcggtccc agggctggca ctctgtcgat accccaccga gaccccattg
     5821 gggccaatac gcccgcgttt cttccttttc cccaccccac cccccaagtt cgggtgaagg
     5881 cccagggctc gcagccaacg tcggggcggc aggccctgcc atagcctcag gttactcata
     5941 tatactttag attgatttaa aacttcattt ttaatttaaa aggatctagg tgaagatcct
     6001 ttttgataat ctcatgacca aaatccctta acgtgagttt tcgttccact gagcgtcaga
     6061 ccccgtagaa aagatcaaag gatcttcttg agatcctttt tttctgcgcg taatctgctg
     6121 cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc aagagctacc
     6181 aactcttttt ccgaaggtaa ctggcttcag cagagcgcag ataccaaata ctgttcttct
     6241 agtgtagccg tagttaggcc accacttcaa gaactctgta tcaccgccta catacctcgc
     6301 tctgctaatc ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt
     6361 ggactcaaga cgatagttac cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg
     6421 cacacagccc agcttggagc gaacgaccta caccgaactg agatacctac agcgtgagct
     6481 atgagaaagc gccacgcttc ccgaagggag aaaggcggac aggtatccgg taagcggcag
     6541 ggtcggaaca ggagagcgca cgagggagct tccaggggga aacgcctggt atctttatag
     6601 tcctgtcggg tttcgccacc tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg
     6661 gcggagccta tggaaaaacg ccagcaacgc ggccttttta cggttcctgg ccttttgctg
     6721 gccttttgct cacatgttct ttcctgcgtt atcccctgat tctgtggata accgtattac
     6781 cgc
//

mChDrp1载体图谱质粒图谱pdf版和相关资料下载

mChDrp1载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
