mCherry-P4M-SidM

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: mCherry-P4M-SidM
出品公司: 爱迪基因
目录编号: 51471
存储实验室: Tamas Balla

载体骨架基本信息
载体名称: pmCherry-N1
载体出品公司: Clontech
载体抗性: 卡那霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: P4M-SidM(546-647)
物种来源: Legionella pneumophila
插入大小: 321 bp
基因突变: --
GenBank编号 DQ845395.1
启动子 CMV
标签/融合蛋白: mCherry(插入件上的N端子)
克隆方法: 限制性内切酶
5' 克隆位点: AccIII(未破坏)
3' 克隆位点: EcoRI  (未破坏)
5' 测序引物 CMV-F
3' 测序引物 SV40-R

文献引用方法
材料和方法部分: mCherry-P4M-SidM was a gift from Tamas Balla (Addgene plasmid # 51471 ; http://n2t.net/addgene:51471 ; RRID:Addgene_51471)
参考文献部分: A novel probe for phosphatidylinositol 4-phosphate reveals multiple pools beyond the Golgi. Hammond GR, Machner MP, Balla T. J Cell Biol. 2014 Apr 7. 10.1083/jcb.201312072 PubMed 24711504

载体图谱质粒图谱和多克隆位点信息

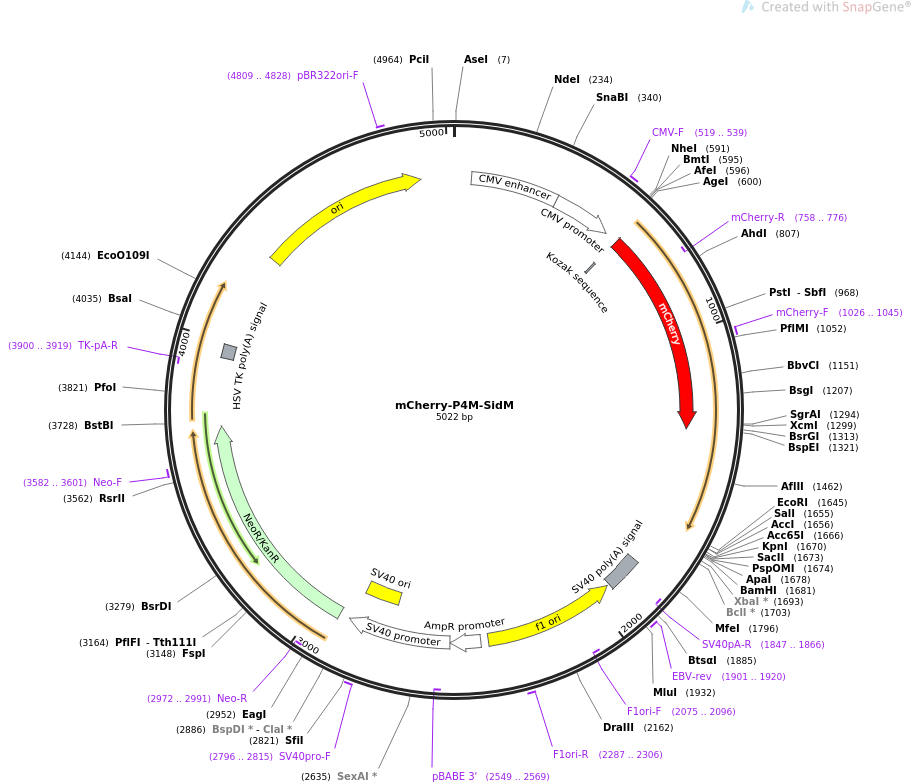

mCherry-P4M-SidM质粒图谱

载体简介

载体序列

LOCUS       mCherry-P4M-SidM                5022 bp ds-DNA     circular SYN 12-NOV-2018
DEFINITION  Biosensor for PtdIns4P.
ACCESSION   .
VERSION     .
KEYWORDS    mCherry-P4M-SidM
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5022)
  AUTHORS   Hammond GR, Machner MP, Balla T
  TITLE     A novel probe for phosphatidylinositol 4-phosphate reveals multiple
            pools beyond the Golgi.
  JOURNAL   J Cell Biol. 2014 Apr 7.
  PUBMED    24711504
REFERENCE   2  (bases 1 to 5022)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Nov 12, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5022
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      607..616
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             613..1320
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(758..776)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     1026..1045
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     polyA_signal    1810..1931
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1847..1866)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1901..1920
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1938..2393)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2075..2096)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2287..2306
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2420..2524
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2526..2883
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2549..2569)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2734..2869
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2796..2815
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2918..3712
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2972..2991)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3582..3601
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3900..3919)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3944..3991
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4320..4908
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4809..4828
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatggtgag caagggcgag gaggataaca tggccatcat caaggagttc
      661 atgcgcttca aggtgcacat ggagggctcc gtgaacggcc acgagttcga gatcgagggc
      721 gagggcgagg gccgccccta cgagggcacc cagaccgcca agctgaaggt gaccaagggt
      781 ggccccctgc ccttcgcctg ggacatcctg tcccctcagt tcatgtacgg ctccaaggcc
      841 tacgtgaagc accccgccga catccccgac tacttgaagc tgtccttccc cgagggcttc
      901 aagtgggagc gcgtgatgaa cttcgaggac ggcggcgtgg tgaccgtgac ccaggactcc
      961 tccctgcagg acggcgagtt catctacaag gtgaagctgc gcggcaccaa cttcccctcc
     1021 gacggccccg taatgcagaa gaagaccatg ggctgggagg cctcctccga gcggatgtac
     1081 cccgaggacg gcgccctgaa gggcgagatc aagcagaggc tgaagctgaa ggacggcggc
     1141 cactacgacg ctgaggtcaa gaccacctac aaggccaaga agcccgtgca gctgcccggc
     1201 gcctacaacg tcaacatcaa gttggacatc acctcccaca acgaggacta caccatcgtg
     1261 gaacagtacg aacgcgccga gggccgccac tccaccggcg gcatggacga gctgtacaag
     1321 tccggactca gatccacggc aagcacggaa aactttaaaa atgttaaaga aaaatatcag
     1381 caaatgcgag gtgatgcttt aaaaacagaa atcctggctg atttcaagga taaactggct
     1441 gaagctaccg atgaacagag ccttaagcaa attgttgctg aattgaaaag taaagatgaa
     1501 tatagaattt tggctaaggg gcaagggtta acaacccagc ttttagggtt aaagacaagt
     1561 tcagtgtctt catttgagaa aatggttgag gaaacaagag aaagtattaa gtctcaagaa
     1621 agacaaacca ttaagataaa ataagaattc ccgggtcgac tcgacggtac cgcgggcccg
     1681 ggatccaccg gatctagata actgatcata atcagccata ccacatttgt agaggtttta
     1741 cttgctttaa aaaacctccc acacctcccc ctgaacctga aacataaaat gaatgcaatt
     1801 gttgttgtta acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca
     1861 aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc
     1921 aatgtatctt aacgcgtaaa ttgtaagcgt taatattttg ttaaaattcg cgttaaattt
     1981 ttgttaaatc agctcatttt ttaaccaata ggccgaaatc ggcaaaatcc cttataaatc
     2041 aaaagaatag accgagatag ggttgagtgt tgttccagtt tggaacaaga gtccactatt
     2101 aaagaacgtg gactccaacg tcaaagggcg aaaaaccgtc tatcagggcg atggcccact
     2161 acgtgaacca tcaccctaat caagtttttt ggggtcgagg tgccgtaaag cactaaatcg
     2221 gaaccctaaa gggagccccc gatttagagc ttgacgggga aagccggcga acgtggcgag
     2281 aaaggaaggg aagaaagcga aaggagcggg cgctagggcg ctggcaagtg tagcggtcac
     2341 gctgcgcgta accaccacac ccgccgcgct taatgcgccg ctacagggcg cgtcaggtgg
     2401 cacttttcgg ggaaatgtgc gcggaacccc tatttgttta tttttctaaa tacattcaaa
     2461 tatgtatccg ctcatgagac aataaccctg ataaatgctt caataatatt gaaaaaggaa
     2521 gagtcctgag gcggaaagaa ccagctgtgg aatgtgtgtc agttagggtg tggaaagtcc
     2581 ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg
     2641 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     2701 tcagcaacca tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc
     2761 gcccattctc cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc
     2821 tcggcctctg agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc
     2881 aaagatcgat caagagacag gatgaggatc gtttcgcatg attgaacaag atggattgca
     2941 cgcaggttct ccggccgctt gggtggagag gctattcggc tatgactggg cacaacagac
     3001 aatcggctgc tctgatgccg ccgtgttccg gctgtcagcg caggggcgcc cggttctttt
     3061 tgtcaagacc gacctgtccg gtgccctgaa tgaactgcaa gacgaggcag cgcggctatc
     3121 gtggctggcc acgacgggcg ttccttgcgc agctgtgctc gacgttgtca ctgaagcggg
     3181 aagggactgg ctgctattgg gcgaagtgcc ggggcaggat ctcctgtcat ctcaccttgc
     3241 tcctgccgag aaagtatcca tcatggctga tgcaatgcgg cggctgcata cgcttgatcc
     3301 ggctacctgc ccattcgacc accaagcgaa acatcgcatc gagcgagcac gtactcggat
     3361 ggaagccggt cttgtcgatc aggatgatct ggacgaagag catcaggggc tcgcgccagc
     3421 cgaactgttc gccaggctca aggcgagcat gcccgacggc gaggatctcg tcgtgaccca
     3481 tggcgatgcc tgcttgccga atatcatggt ggaaaatggc cgcttttctg gattcatcga
     3541 ctgtggccgg ctgggtgtgg cggaccgcta tcaggacata gcgttggcta cccgtgatat
     3601 tgctgaagag cttggcggcg aatgggctga ccgcttcctc gtgctttacg gtatcgccgc
     3661 tcccgattcg cagcgcatcg ccttctatcg ccttcttgac gagttcttct gagcgggact
     3721 ctggggttcg aaatgaccga ccaagcgacg cccaacctgc catcacgaga tttcgattcc
     3781 accgccgcct tctatgaaag gttgggcttc ggaatcgttt tccgggacgc cggctggatg
     3841 atcctccagc gcggggatct catgctggag ttcttcgccc accctagggg gaggctaact
     3901 gaaacacgga aggagacaat accggaagga acccgcgcta tgacggcaat aaaaagacag
     3961 aataaaacgc acggtgttgg gtcgtttgtt cataaacgcg gggttcggtc ccagggctgg
     4021 cactctgtcg ataccccacc gagaccccat tggggccaat acgcccgcgt ttcttccttt
     4081 tccccacccc accccccaag ttcgggtgaa ggcccagggc tcgcagccaa cgtcggggcg
     4141 gcaggccctg ccatagcctc aggttactca tatatacttt agattgattt aaaacttcat
     4201 ttttaattta aaaggatcta ggtgaagatc ctttttgata atctcatgac caaaatccct
     4261 taacgtgagt tttcgttcca ctgagcgtca gaccccgtag aaaagatcaa aggatcttct
     4321 tgagatcctt tttttctgcg cgtaatctgc tgcttgcaaa caaaaaaacc accgctacca
     4381 gcggtggttt gtttgccgga tcaagagcta ccaactcttt ttccgaaggt aactggcttc
     4441 agcagagcgc agataccaaa tactgttctt ctagtgtagc cgtagttagg ccaccacttc
     4501 aagaactctg tagcaccgcc tacatacctc gctctgctaa tcctgttacc agtggctgct
     4561 gccagtggcg ataagtcgtg tcttaccggg ttggactcaa gacgatagtt accggataag
     4621 gcgcagcggt cgggctgaac ggggggttcg tgcacacagc ccagcttgga gcgaacgacc
     4681 tacaccgaac tgagatacct acagcgtgag ctatgagaaa gcgccacgct tcccgaaggg
     4741 agaaaggcgg acaggtatcc ggtaagcggc agggtcggaa caggagagcg cacgagggag
     4801 cttccagggg gaaacgcctg gtatctttat agtcctgtcg ggtttcgcca cctctgactt
     4861 gagcgtcgat ttttgtgatg ctcgtcaggg gggcggagcc tatggaaaaa cgccagcaac
     4921 gcggcctttt tacggttcct ggccttttgc tggccttttg ctcacatgtt ctttcctgcg
     4981 ttatcccctg attctgtgga taaccgtatt accgccatgc at
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
