mTert-pBabe-puro

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: mTert-pBabe-puro
出品公司: 爱迪基因
目录编号: 36413
存储实验室: Marta Alvarez, Joseph Bidwell

载体骨架基本信息
载体名称: pBABE-puro
载体出品公司: Bob Weinberg (Addgene Plasmid #1764)
载体抗性: 氨苄青霉素
空载体大小: 5169 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳动物表达,逆转录病毒
筛选标记: 嘌呤霉素
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: mTERT
物种来源: M. musculus (mouse)
插入大小: --
基因突变: --
GenBank编号 BC127068.1
启动子 LTR
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未销毁)
3' 克隆位点: EcoRI(未销毁)
5' 测序引物 mTERT 1: 5'-TTCGAACAGCAAACCAACAG-3'
3' 测序引物 --

文献引用方法
材料和方法部分: mTert-pBabe-puro was a gift from Marta Alvarez & Joseph Bidwell (Addgene plasmid # 36413 ; http://n2t.net/addgene:36413 ; RRID:Addgene_36413)
参考文献部分: Immortalization and characterization of osteoblast cell lines generated from wild-type and Nmp4-null mouse bone marrow stromal cells using murine telomerase reverse transcriptase (mTERT). Alvarez MB, Childress P, Philip BK, Gerard-O'Riley R, Hanlon M, Herbert BS, Robling AG, Pavalko FM, Bidwell JP. J Cell Physiol. 2012 May;227(5):1873-82. doi: 10.1002/jcp.22915. 10.1002/jcp.22915 PubMed 21732358

载体图谱质粒图谱和多克隆位点信息

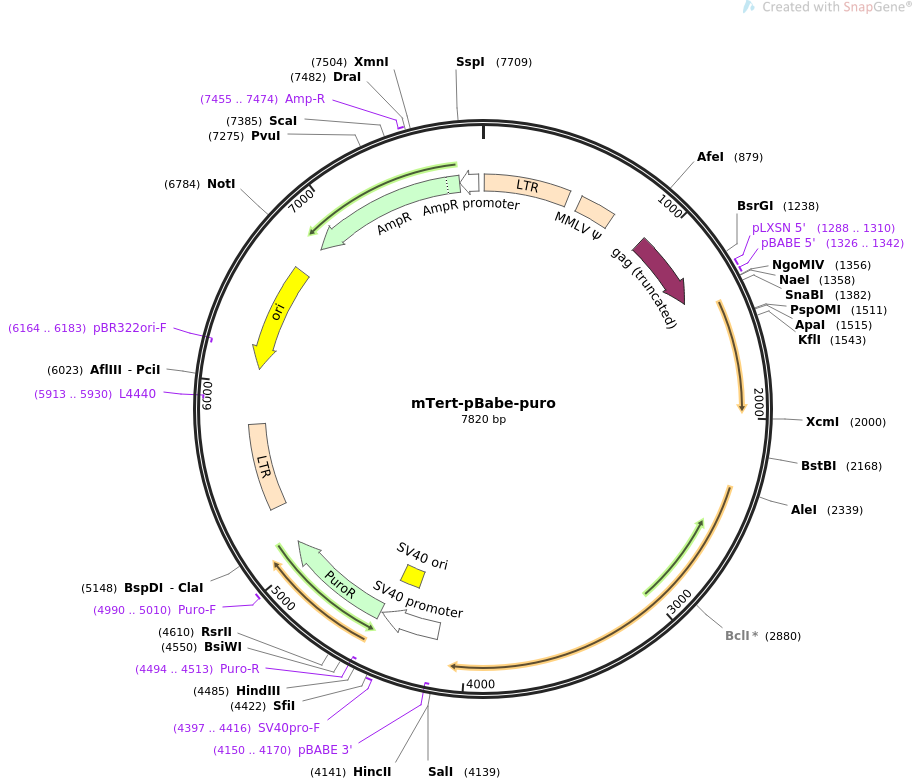

mTert-pBabe-puro质粒图谱

载体简介

载体序列

LOCUS       mTert-pBabe-puro              7820 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    mTert-pBabe-puro
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7820)
  AUTHORS   Alvarez MB, Childress P, Philip BK, Gerard-O'Riley R, Hanlon M,
            Herbert BS, Robling AG, Pavalko FM, Bidwell JP
  TITLE     Immortalization and characterization of osteoblast cell lines
            generated from wild-type and Nmp4-null mouse bone marrow stromal
            cells using murine telomerase reverse transcriptase (mTERT).
  JOURNAL   J Cell Physiol. 2012 May;227(5):1873-82. doi: 10.1002/jcp.22915.
  PUBMED    21732358
REFERENCE   2  (bases 1 to 7820)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7820
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             8..477
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     misc_feature    542..741
                     /label=MMLV Psi
                     /note="packaging signal of Moloney murine leukemia virus
                     (MMLV)"
     CDS             942..1358
                     /label=gag (truncated)
                     /note="truncated Moloney murine leukemia virus (MMLV) gag
                     gene lacking the start codon"
     primer_bind     1288..1310
                     /label=pLXSN 5'
                     /note="Murine stem cell virus, forward primer. Also called
                     MSCV"
     primer_bind     1326..1342
                     /label=pBABE 5'
                     /note="Psi packaging signal, forward primer for pBABE
                     vectors"
     primer_bind     complement(4150..4170)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        4155..4484
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      4335..4470
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4397..4416
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             4494..5093
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(4494..4513)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     4990..5010
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     LTR             5314..5783
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     primer_bind     complement(5913..5930)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(6084..6672)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(6164..6183)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6832..7692)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     7455..7474
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7693..7797)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ctgcagcctg aatatgggcc aaacaggata tctgtggtaa gcagttcctg ccccggctca
       61 gggccaagaa cagatggaac agctgaatat gggccaaaca ggatatctgt ggtaagcagt
      121 tcctgccccg gctcagggcc aagaacagat ggtccccaga tgcggtccag ccctcagcag
      181 tttctagaga accatcagat gtttccaggg tgccccaagg acctgaaatg accctgtgcc
      241 ttatttgaac taaccaatca gttcgcttct cgcttctgtt cgcgcgcttc tgctccccga
      301 gctcaataaa agagcccaca acccctcact cggggcgcca gtcctccgat tgactgagtc
      361 gcccgggtac ccgtgtatcc aataaaccct cttgcagttg catccgactt gtggtctcgc
      421 tgttccttgg gagggtctcc tctgagtgat tgactacccg tcagcggggg tctttcattt
      481 gggggctcgt ccgggatcgg gagacccctg cccagggacc accgacccac caccgggagg
      541 caagctggcc agcaacttat ctgtgtctgt ccgattgtct agtgtctatg actgatttta
      601 tgcgcctgcg tcggtactag ttagctaact agctctgtat ctggcggacc cgtggtggaa
      661 ctgacgagtt ctgaacaccc ggccgcaacc ctgggagacg tcccagggac tttgggggcc
      721 gtttttgtgg cccgacctga ggaagggagt cgatgtggaa tccgaccccg tcaggatatg
      781 tggttctggt aggagacgag aacctaaaac agttcccgcc tccgtctgaa tttttgcttt
      841 cggtttggaa ccgaagccgc gcgtcttgtc tgctgcagcg ctgcagcatc gttctgtgtt
      901 gtctctgtct gactgtgttt ctgtatttgt ctgaaaatta gggccagact gttaccactc
      961 ccttaagttt gaccttaggt cactggaaag atgtcgagcg gatcgctcac aaccagtcgg
     1021 tagatgtcaa gaagagacgt tgggttacct tctgctctgc agaatggcca acctttaacg
     1081 tcggatggcc gcgagacggc acctttaacc gagacctcat cacccaggtt aagatcaagg
     1141 tcttttcacc tggcccgcat ggacacccag accaggtccc ctacatcgtg acctgggaag
     1201 ccttggcttt tgacccccct ccctgggtca agccctttgt acaccctaag cctccgcctc
     1261 ctcttcctcc atccgccccg tctctccccc ttgaacctcc tcgttcgacc ccgcctcgat
     1321 cctcccttta tccagccctc actccttctc taggcgccgg ccggatccca gtgtggtggt
     1381 acgtaggaat tcgcccttca tcccggcctt gagcacaatg acccgcgctc ctcgttgccc
     1441 cgcggtgcgc tctctgctgc gcagccgata ccgggaggtg tggccgctgg caacctttgt
     1501 gcggcgcctg gggcccgagg gcaggcggct tgtgcaaccc ggggacccga agatctaccg
     1561 cactttggtt gcccaatgcc tagtgtgcat gcactggggc tcacagcctc cacctgccga
     1621 cctttccttc caccaggtgt catccctgaa agagctggtg gccagggttg tgcagagact
     1681 ctgcgagcgc aacgagagaa acgtgctggc ttttggcttt gagctgctta acgaggccag
     1741 aggcgggcct cccatggcct tcactagtag cgtgcgtagc tacttgccca acactgttat
     1801 tgagaccctg cgtgtcagtg gtgcatggat gctactgttg agccgagtgg gcgacgacct
     1861 gctggtctac ctgctggcac actgtgctct ttatcttctg gtgcccccca gctgtgccta
     1921 ccaggggaga tggccaagag cgtctaaacc cctcattcct actcagcaac ctccagccta
     1981 acttgactgg ggccaggaga ctggtggaga tcatctttct gggctcaagg cctaggacat
     2041 caggaccact ctgcaggaca caccgtctat cgcgtcgata ctggcagatg cggcccctgt
     2101 tccaacagct gctggtgaac catgcagagt gccaatatgt cagactcctc aggtcacatt
     2161 gcaggtttcg aacagcaaac caacaggtga cagatgcctt gaacaccagc ccaccgcacc
     2221 tcatggattt gctccgcctg cacagcagtc cctggcaggg aaggaccgtg tccccgctgc
     2281 agagcaccgt ctgagggaga ggatcctggc tacgttcctg ttctggctga tggacacata
     2341 cgtggtacag ctgcttaggt cattctttta catcacagag agcacattcc agaagaacag
     2401 gctcttcttc taccgtaaga gtgtgtggag caagctgcag agcattggag tcaggcaaca
     2461 ccttgagaga gtgcggctac gggagctgtc acaagaggag gtcaggcatc accaggacac
     2521 ctggctagcc atgcccatct gcagactgcg cttcatcccc aagcccaacg gcctgcggcc
     2581 cattgtgaac atgagttata gcatgggtac cagagctttg ggcagaagga agcaggccca
     2641 gcatttcacc cagcgtctca agactctctt cagcatgctc aactatgagc ggacaaaaca
     2701 tcctcacctt atggggtctt ctgtactggg tatgaatgac atctacagga cctggcgggc
     2761 ctttgtgctg cgtgtgcgtg ctctggacca gacacccagg atgtactttg ttaaggcaga
     2821 tgtgaccggg gcctatgatg ccatccccca gggtaagctg gtggaggttg ttgccaatat
     2881 gatcaggcac tcggagagca cgtactgtat ccgccagtat gcagtggtcc ggagagatag
     2941 ccaaggccaa gtccacaagt cctttaggag acaggtcacc accctctctg acctccagcc
     3001 atacatgggc cagttcctta agcatctgca ggattcagat gccagtgcac tgaggaactc
     3061 cgttgtcatc gagcagagca tctctatgaa tgagagcagc agcagcctgt ttgacttctt
     3121 cctgcacttc ctgcgtcaca gtgtcgtaaa gattggtgac aggtgctata cgcagtgcca
     3181 gggcatcccc cagggctcca gcctatccac cctgctctgc agtctgtgtt tcggagacat
     3241 ggagaacaag ctgtttgctg aggtgcagcg ggatgggttg cttttacgtt ttgttgatga
     3301 ctttctgttg gtgacgcctc acttggacca agcaaaaacc ttcctcagca ccctggtcca
     3361 tggcgttcct gagtatgggt gcatgataaa cttgcagaag acagtggtga acttccctgt
     3421 ggagcctggt accctgggtg gtgcagctcc ataccagctg cctgctcact gcctgtttcc
     3481 ctggtgtggc ttgctgctgg acactcagac tttggaggtg ttctgtgact actcaggtta
     3541 tgcccagacc tcaattaaga cgagcctcac cttccagagt gtcttcaaag ctgggaagac
     3601 catgcggaac aagctcctgt cggtcttgcg gttgaagtgt cacggtctat ttctagactt
     3661 gcaggtgaac agcctccaga cagtctgcat caatatatac aagatcttcc tgcttcaggc
     3721 ctacaggttc catgcatgtg tgattcagct tccctttgac cagcgtgtta ggaagaacct
     3781 cacattcttt ctgggcatca tctccagcca agcatcctgc tgctatgcta tcctgaaggt
     3841 caagaatcca ggaatgacac taaaggcctc tggctccttt cctcctgaag ccgcacattg
     3901 gctctgctac caggccttcc tgctcaagct ggctgctcat tctgtcatct acaaatgtct
     3961 cctgggacct ctgaggacag cccaaaaact gctgtgccgg aagctcccag aggcgacaat
     4021 gaccatcctt aaagctgcag ctgacccagc cctaagcaca gactttcaga ccattttgga
     4081 ctaaccctgt ctccttccgc tagatgagag tgcgaagggc gaattcgcca gcacagtggt
     4141 cgaccctgtg gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc ccagcaggca
     4201 gaagtatgca aagcatgcat ctcaattagt cagcaaccag gtgtggaaag tccccaggct
     4261 ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc atagtcccgc
     4321 ccctaactcc gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg
     4381 gctgactaat tttttttatt tatgcagagg ccgaggccgc ctcggcctct gagctattcc
     4441 agaagtagtg aggaggcttt tttggaggcc taggcttttg caaaaagctt accatgaccg
     4501 agtacaagcc cacggtgcgc ctcgccaccc gcgacgacgt ccccagggcc gtacgcaccc
     4561 tcgccgccgc gttcgccgac taccccgcca cgcgccacac cgtcgatccg gaccgccaca
     4621 tcgagcgggt caccgagctg caagaactct tcctcacgcg cgtcgggctc gacatcggca
     4681 aggtgtgggt cgcggacgac ggcgccgcgg tggcggtctg gaccacgccg gagagcgtcg
     4741 aagcgggggc ggtgttcgcc gagatcggcc cgcgcatggc cgagttgagc ggttcccggc
     4801 tggccgcgca gcaacagatg gaaggcctcc tggcgccgca ccggcccaag gagcccgcgt
     4861 ggttcctggc caccgtcggc gtctcgcccg accaccaggg caagggtctg ggcagcgccg
     4921 tcgtgctccc cggagtggag gcggccgagc gcgccggggt gcccgccttc ctggagacct
     4981 ccgcgccccg caacctcccc ttctacgagc ggctcggctt caccgtcacc gccgacgtcg
     5041 aggtgcccga aggaccgcgc acctggtgca tgacccgcaa gcccggtgcc tgacgcccgc
     5101 cccacgaccc gcagcgcccg accgaaagga gcgcacgacc ccatgcatcg ataaaataaa
     5161 agattttatt tagtctccag aaaaaggggg gaatgaaaga ccccacctgt aggtttggca
     5221 agctagctta agtaacgcca ttttgcaagg catggaaaaa tacataactg agaatagaga
     5281 agttcagatc aaggtcagga acagatggaa cagctgaata tgggccaaac aggatatctg
     5341 tggtaagcag ttcctgcccc ggctcagggc caagaacaga tggaacagct gaatatgggc
     5401 caaacaggat atctgtggta agcagttcct gccccggctc agggccaaga acagatggtc
     5461 cccagatgcg gtccagccct cagcagtttc tagagaacca tcagatgttt ccagggtgcc
     5521 ccaaggacct gaaatgaccc tgtgccttat ttgaactaac caatcagttc gcttctcgct
     5581 tctgttcgcg cgcttctgct ccccgagctc aataaaagag cccacaaccc ctcactcggg
     5641 gcgccagtcc tccgattgac tgagtcgccc gggtacccgt gtatccaata aaccctcttg
     5701 cagttgcatc cgacttgtgg tctcgctgtt ccttgggagg gtctcctctg agtgattgac
     5761 tacccgtcag cgggggtctt tcacatgcag catgtatcaa aattaatttg gttttttttc
     5821 ttaagtattt acattaaatg gccatagttg cattaatgaa tcggccaacg cgcggggaga
     5881 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     5941 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     6001 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     6061 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     6121 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     6181 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     6241 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     6301 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     6361 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     6421 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     6481 acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt atttggtatc
     6541 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     6601 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     6661 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     6721 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     6781 ttgcggccgc aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg
     6841 cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg
     6901 actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc
     6961 aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc
     7021 cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa
     7081 ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc
     7141 cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg
     7201 ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc
     7261 cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat
     7321 ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg
     7381 tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc
     7441 ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg
     7501 aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat
     7561 gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg
     7621 gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg
     7681 ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct
     7741 catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac
     7801 atttccccga aaagtgccac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
