myc-BioID2-MCS

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: myc-BioID2-MCS,pCDNA3.1-Myc-BioID2-MCS
出品公司: 爱迪基因
目录编号: 74223
存储实验室: Kyle Roux

载体骨架基本信息
载体名称: pcDNA 3.1
载体出品公司: Thermo Fisher Scientific
载体抗性: 氨苄青霉素
空载体大小: 6147 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 CMV
标签/融合蛋白:
Myc(主干上的N终端)
humanized A. aeolicus BioID2 with R40G(主干上的N端)
克隆方法: 限制性内切酶
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 CMV-F
3' 测序引物 BGH-rev

文献引用方法
材料和方法部分: myc-BioID2-MCS was a gift from Kyle Roux (Addgene plasmid # 74223 ; http://n2t.net/addgene:74223 ; RRID:Addgene_74223)
参考文献部分: An improved smaller biotin ligase for BioID proximity labeling. Kim DI, Jensen SC, Noble KA, Kc B, Roux KH, Motamedchaboki K, Roux KJ. Mol Biol Cell. 2016 Feb 24. pii: mbc.E15-12-0844. 10.1091/mbc.E15-12-0844 PubMed 26912792

载体图谱质粒图谱和多克隆位点信息

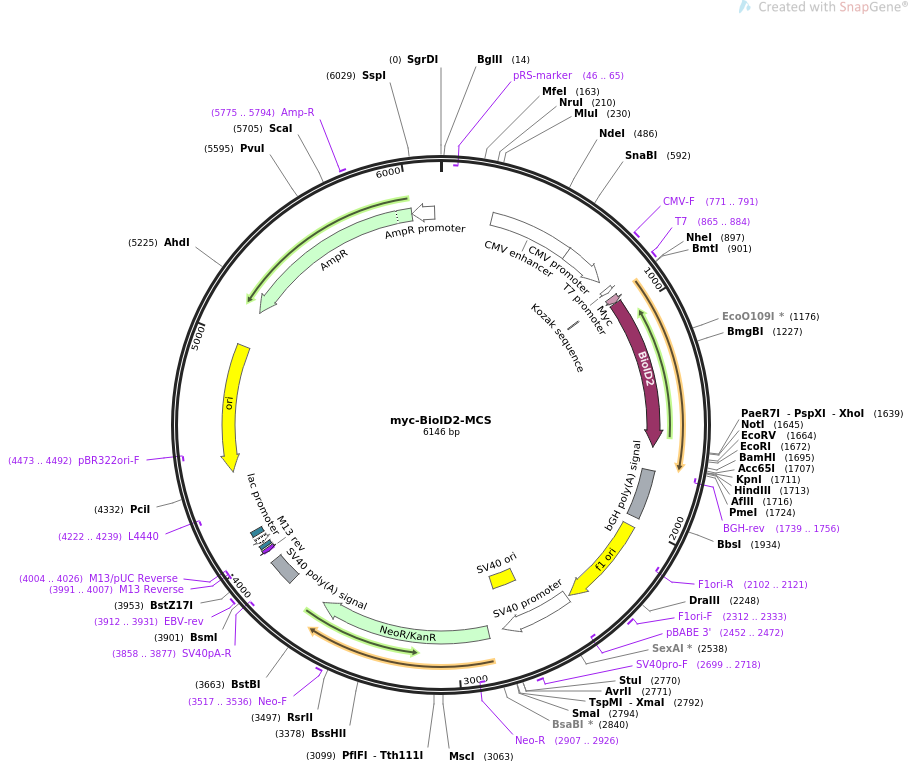

myc-BioID2-MCS质粒图谱

载体简介

载体序列

LOCUS       myc-BioID2-MCS                6146 bp ds-DNA     circular SYN 19-MAR-2019
DEFINITION  To fuse your protein of interest to the C-terminus of BioID2 and use
            in proximity-dependent biotin identification (BioID); MCS is present
            downstream of myc tag and BioID2 tag.
ACCESSION   .
VERSION     .
KEYWORDS    myc-BioID2-MCS
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6146)
  AUTHORS   Kim DI, Jensen SC, Noble KA, Kc B, Roux KH, Motamedchaboki K, Roux
            KJ
  TITLE     An improved smaller biotin ligase for BioID proximity labeling.
  JOURNAL   Mol Biol Cell. 2016 Feb 24. pii: mbc.E15-12-0844.
  PUBMED    26912792
REFERENCE   2  (bases 1 to 6146)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Mar 19, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6146
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(46..65)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        237..616
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        617..820
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     771..791
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     865..884
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        865..883
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      901..910
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             910..939
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             943..1638
                     /codon_start=1
                     /product="promiscuous R40G mutant of a biotin protein
                     ligase from Aquifex aeolicus (Kim et al., 2016)"
                     /label=BioID2
                     /translation="FKNLIWLKEVDSTQERLKEWNVSYGTALVADRQTKGRGGLGRKWL
                     SQEGGLYFSFLLNPKEFENLLQLPLVLGLSVSEALEEITEIPFSLKWPNDVYFQEKKVS
                     GVLCELSKDKLIVGIGINVNQREIPEEIKDRATTLYEITGKDWDRKEVLLKVLKRISEN
                     LKKFKEKSFKEFKGKIESKMLYLGEEVKLLGEGKITGKLVGLSEKGGALILTEEGIKEI
                     LSGEFSLRRS"
     primer_bind     complement(1739..1756)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1745..1969
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2015..2443
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2102..2121)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2312..2333
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2452..2472)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2457..2786
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2637..2772
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2699..2718
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2853..3647
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2907..2926)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3517..3536
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3821..3942
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3858..3877)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3912..3931
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3991..4007)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3991..4007)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4004..4026)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4015..4031
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4039..4069)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4084..4105
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4222..4239)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4393..4981)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4473..4492)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5152..6012)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5775..5794
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6013..6117)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 tcgacggatc gggagatctc ccgatcccct atggtgcact ctcagtacaa tctgctctga
       61 tgccgcatag ttaagccagt atctgctccc tgcttgtgtg ttggaggtcg ctgagtagtg
      121 cgcgagcaaa atttaagcta caacaaggca aggcttgacc gacaattgca tgaagaatct
      181 gcttagggtt aggcgttttg cgctgcttcg cgatgtacgg gccagatata cgcgttgaca
      241 ttgattattg actagttatt aatagtaatc aattacgggg tcattagttc atagcccata
      301 tatggagttc cgcgttacat aacttacggt aaatggcccg cctggctgac cgcccaacga
      361 cccccgccca ttgacgtcaa taatgacgta tgttcccata gtaacgccaa tagggacttt
      421 ccattgacgt caatgggtgg agtatttacg gtaaactgcc cacttggcag tacatcaagt
      481 gtatcatatg ccaagtacgc cccctattga cgtcaatgac ggtaaatggc ccgcctggca
      541 ttatgcccag tacatgacct tatgggactt tcctacttgg cagtacatct acgtattagt
      601 catcgctatt accatggtga tgcggttttg gcagtacatc aatgggcgtg gatagcggtt
      661 tgactcacgg ggatttccaa gtctccaccc cattgacgtc aatgggagtt tgttttggca
      721 ccaaaatcaa cgggactttc caaaatgtcg taacaactcc gccccattga cgcaaatggg
      781 cggtaggcgt gtacggtggg aggtctatat aagcagagct ctctggctaa ctagagaacc
      841 cactgcttac tggcttatcg aaattaatac gactcactat agggagaccc aagctggcta
      901 gccaccatgg aacaaaaact catctcagaa gaggatctcg acttcaagaa cctgatctgg
      961 ctgaaggagg tggacagcac ccaggagaga ctgaaggagt ggaacgtgag ctacggcacc
     1021 gccctggtgg ccgacagaca gaccaagggc agaggcggcc tgggcagaaa gtggctgagc
     1081 caggagggcg gcctgtactt cagcttcctg ctgaacccca aggagttcga gaacctgctg
     1141 cagctgcccc tggtgctggg cctgagcgtg agcgaggccc tggaggagat caccgagatc
     1201 cccttcagcc tgaagtggcc caacgacgtg tacttccagg agaagaaggt gagcggcgtg
     1261 ctgtgcgagc tgagcaagga caagctgatc gtgggcatcg gcatcaacgt gaaccagaga
     1321 gagatccccg aggagatcaa ggacagagcc accaccctgt acgagatcac cggcaaggac
     1381 tgggacagaa aggaggtgct gctgaaggtg ctgaagagaa tcagcgagaa cctgaagaag
     1441 ttcaaggaga agagcttcaa ggagttcaag ggcaagatcg agagcaagat gctgtacctg
     1501 ggcgaggagg tgaagctgct gggcgagggc aagatcaccg gcaagctggt gggcctgagc
     1561 gagaagggcg gcgccctgat cctgaccgag gagggcatca aggagatcct gagcggcgag
     1621 ttcagcctga gaagaagcct cgagcggccg ccactgtgct ggatatctgc agaattccac
     1681 cacactggac tagtggatcc gagctcggta ccaagcttaa gtttaaaccg ctgatcagcc
     1741 tcgactgtgc cttctagttg ccagccatct gttgtttgcc cctcccccgt gccttccttg
     1801 accctggaag gtgccactcc cactgtcctt tcctaataaa atgaggaaat tgcatcgcat
     1861 tgtctgagta ggtgtcattc tattctgggg ggtggggtgg ggcaggacag caagggggag
     1921 gattgggaag acaatagcag gcatgctggg gatgcggtgg gctctatggc ttctgaggcg
     1981 gaaagaacca gctggggctc tagggggtat ccccacgcgc cctgtagcgg cgcattaagc
     2041 gcggcgggtg tggtggttac gcgcagcgtg accgctacac ttgccagcgc cctagcgccc
     2101 gctcctttcg ctttcttccc ttcctttctc gccacgttcg ccggctttcc ccgtcaagct
     2161 ctaaatcggg ggctcccttt agggttccga tttagtgctt tacggcacct cgaccccaaa
     2221 aaacttgatt agggtgatgg ttcacgtagt gggccatcgc cctgatagac ggtttttcgc
     2281 cctttgacgt tggagtccac gttctttaat agtggactct tgttccaaac tggaacaaca
     2341 ctcaacccta tctcggtcta ttcttttgat ttataaggga ttttgccgat ttcggcctat
     2401 tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga attaattctg tggaatgtgt
     2461 gtcagttagg gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
     2521 atctcaatta gtcagcaacc aggtgtggaa agtccccagg ctccccagca ggcagaagta
     2581 tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc gcccctaact ccgcccatcc
     2641 cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta atttttttta
     2701 tttatgcaga ggccgaggcc gcctctgcct ctgagctatt ccagaagtag tgaggaggct
     2761 tttttggagg cctaggcttt tgcaaaaagc tcccgggagc ttgtatatcc attttcggat
     2821 ctgatcaaga gacaggatga ggatcgtttc gcatgattga acaagatgga ttgcacgcag
     2881 gttctccggc cgcttgggtg gagaggctat tcggctatga ctgggcacaa cagacaatcg
     2941 gctgctctga tgccgccgtg ttccggctgt cagcgcaggg gcgcccggtt ctttttgtca
     3001 agaccgacct gtccggtgcc ctgaatgaac tgcaggacga ggcagcgcgg ctatcgtggc
     3061 tggccacgac gggcgttcct tgcgcagctg tgctcgacgt tgtcactgaa gcgggaaggg
     3121 actggctgct attgggcgaa gtgccggggc aggatctcct gtcatctcac cttgctcctg
     3181 ccgagaaagt atccatcatg gctgatgcaa tgcggcggct gcatacgctt gatccggcta
     3241 cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg agcacgtact cggatggaag
     3301 ccggtcttgt cgatcaggat gatctggacg aagagcatca ggggctcgcg ccagccgaac
     3361 tgttcgccag gctcaaggcg cgcatgcccg acggcgagga tctcgtcgtg acccatggcg
     3421 atgcctgctt gccgaatatc atggtggaaa atggccgctt ttctggattc atcgactgtg
     3481 gccggctggg tgtggcggac cgctatcagg acatagcgtt ggctacccgt gatattgctg
     3541 aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct ttacggtatc gccgctcccg
     3601 attcgcagcg catcgccttc tatcgccttc ttgacgagtt cttctgagcg ggactctggg
     3661 gttcgaaatg accgaccaag cgacgcccaa cctgccatca cgagatttcg attccaccgc
     3721 cgccttctat gaaaggttgg gcttcggaat cgttttccgg gacgccggct ggatgatcct
     3781 ccagcgcggg gatctcatgc tggagttctt cgcccacccc aacttgttta ttgcagctta
     3841 taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact
     3901 gcattctagt tgtggtttgt ccaaactcat caatgtatct tatcatgtct gtataccgtc
     3961 gacctctagc tagagcttgg cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta
     4021 tccgctcaca attccacaca acatacgagc cggaagcata aagtgtaaag cctggggtgc
     4081 ctaatgagtg agctaactca cattaattgc gttgcgctca ctgcccgctt tccagtcggg
     4141 aaacctgtcg tgccagctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg
     4201 tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg
     4261 gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa
     4321 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc
     4381 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc
     4441 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag
     4501 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct
     4561 cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta
     4621 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc
     4681 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc
     4741 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt
     4801 gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct
     4861 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc
     4921 tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca
     4981 agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta
     5041 agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa
     5101 atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg
     5161 cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg
     5221 actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc
     5281 aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc
     5341 cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa
     5401 ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc
     5461 cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg
     5521 ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc
     5581 cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat
     5641 ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg
     5701 tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc
     5761 ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg
     5821 aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat
     5881 gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg
     5941 gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg
     6001 ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct
     6061 catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac
     6121 atttccccga aaagtgccac ctgacg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
