p1xNLS-FRB-mCherry-hsp86-BSD

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: p1xNLS-FRB-mCherry-hsp86-BSD
出品公司: Addgene
目录编号: 85795
存储实验室: Tobias Spielmann

载体骨架基本信息
载体名称: pGEM
载体出品公司: --
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 恶性疟原虫表达
筛选标记: 杀稻瘟菌素
载体抗性: 氨苄霉素,100 μg/mL
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: --

插入基因信息
插入基因名称: 1xNLS Mislocaliser
物种来源: Synthetic
插入大小: --
基因突变: --
GenBank编号 --
启动子: Pfhsp86
标签/融合蛋白: FRB*, mCherry
克隆方法: 限制性内切酶
5’克隆位点: XhoI (未破坏)
3’克隆位点: XmaI (未破坏)
5’测序引物 hsp86fw
3’测序引物 pARLrv

文献引用方法
材料和方法部分: p1xNLS-FRB-mCherry-hsp86-BSD was a gift from Tobias Spielmann (Addgene plasmid # 85795 ; http://n2t.net/addgene:85795 ; RRID:Addgene_85795)
参考文献部分: A genetic system to study Plasmodium falciparum protein function. Birnbaum J, Flemming S, Reichard N, Soares AB, Mesen-Ramirez P, Jonscher E, Bergmann B, Spielmann T. Nat Methods. 2017 Mar 13. doi: 10.1038/nmeth.4223. 10.1038/nmeth.4223 PubMed 28288121

载体图谱质粒图谱和多克隆位点信息

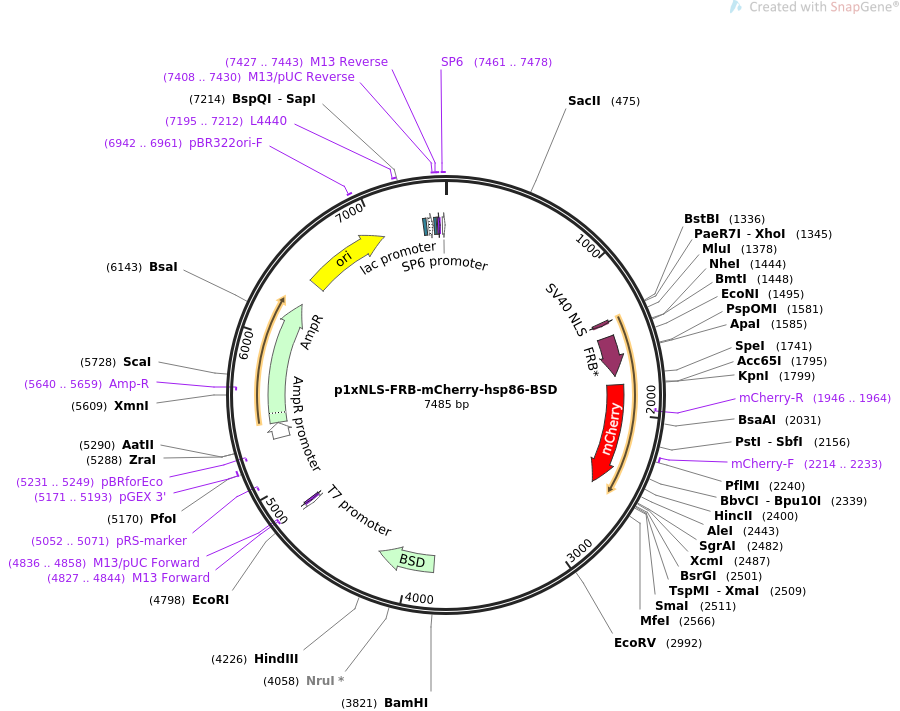

p1xNLS-FRB-mCherry-hsp86-BSD载体图谱

载体简介

载体序列

LOCUS       p1xNLS-FRB-mCherry-hsp86-BSD               7485 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expression of 1xNLS mislocaliser in P. falciparum.
ACCESSION   .
VERSION     .
KEYWORDS    p1xNLS-FRB-mCherry-hsp86-BSD
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7485)
  AUTHORS   Birnbaum J, Flemming S, Reichard N, Soares AB, Mesen-Ramirez P,
            Jonscher E, Bergmann B, Spielmann T
  TITLE     A genetic system to study Plasmodium falciparum protein function.
  JOURNAL   Nat Methods. 2017 Mar 13. doi: 10.1038/nmeth.4223.
  PUBMED    28288121
REFERENCE   2  (bases 1 to 7485)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7485
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             1357..1377
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             1462..1740
                     /codon_start=1
                     /product="T2098L mutant of FKBP-rapamycin binding domain of
                     human FRAP"
                     /label=FRB*
                     /note="binds synthetic ligands such as AP21967"
                     /translation="ILWHEMWHEGLEEASRLYFGERNVKGMFEVLEPLHAMMERGPQTL
                     KETSFNQAYGRDLMEAQEWCRKYMKSGNVKDLLQAWDLYYHVFRRISK"
     CDS             1801..2508
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1946..1964)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     2214..2233
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     CDS             3827..4225
                     /codon_start=1
                     /gene="Aspergillus terreus BSD"
                     /product="blasticidin S deaminase"
                     /label=BSD
                     /note="confers resistance to blasticidin"
                     /translation="MAKPLSQEESTLIERATATINSIPISEDYSVASAALSSDGRIFTG
                     VNVYHFTGGPCAELVVLGTAAAAAAGNLTCIVAIGNENRGILSPCGRCRQVLLDLHPGI
                     KAIVKDSDGQPTAVGIRELLPSGYVWEG"
     promoter        complement(4803..4820)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(4827..4844)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4827..4843)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4836..4858)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     complement(5052..5071)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     5171..5193
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(5231..5249)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        5317..5421
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5422..6282
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMPTTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5640..5659)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6453..7041
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6942..6961
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     7195..7212
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    7329..7350
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        7365..7395
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7403..7419
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     7408..7430
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     7427..7443
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     7427..7443
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     promoter        7461..7479
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     7461..7478
                     /label=SP6
                     /note="SP6 promoter, forward primer"
ORIGIN
        1 cggccgctaa cgtaacagac ttaggaggag atctagatct ttcatatata taatatttta
       61 aaggggtaaa aaaaaaaata tatataataa taacaaataa ataaataaag gaaaacaata
      121 caatacaata taatataatt aattttatgt atatattaag aaatatctta aaaaaaaaaa
      181 aaaaaaatct gtttcatata aagaatatat aatatttata aaacgatgtt attcttataa
      241 aaaaaaaaaa agaaaaaaaa aaataaaaaa taaaaggata ccccacctag tcaaaaataa
      301 ataatattat atgtattaaa ataatattat gggtaattta atattatata tatatatata
      361 tatatatata atttaagttt ttgtagatta tatataatat ataatatatt atatattata
      421 tatatatata taaatatata ttgaaggtgt tttaaaaaaa aaaaaaaagc cccgcggaaa
      481 ggggccattg gatatatatt tagtattcca tagtatatag ttaaatataa taatattata
      541 gtaaattttt gcatgaattt aaagaaaaaa aaaaaaaaaa taacaaaaag gagtattata
      601 taaatataac aaaataataa atactatacc tatatatata tatatatata tatacatata
      661 tataaatata taaatatata aatatattta tataaaaata atattttata tataatatta
      721 tatttttata atatcttttt ttttttaaat atcatctttg tttctttctt tctttctttc
      781 tttctttctt tttttttttt tttgatttat atattatttt attttgtatt tacaaaatat
      841 aataaaataa tttcatgttt agcaaaaatt ttaaataaaa aataataata taaaataaaa
      901 agcatcattt aatataaaat aataaaatta aaataaaata agataattac caaaaataat
      961 aaaaaaaatt aaaaagtatt aaaaaatata tatcatatat aaatatataa attttaacaa
     1021 cgtgagaaat taagaaaaaa attatattta tataaataat ataatattta atatatatct
     1081 catataatat tatatatata tatatatata tatatatatt ttttaaaaaa aaagaaaaaa
     1141 taagtttatt tttacctttt aataaaaaca tatttttaga tatacataaa aatttttata
     1201 ttattttatt ggtatatata tatatatata tatatataat aatatatata taataaaata
     1261 tataaatatt tacataaata ttttacttta aaaagaaatt ttcctttttt attatatttt
     1321 ttttcttccc acatttcgaa taaactcgag atggcaccaa aaaaaaaaag aaaagttacg
     1381 cgtgatccaa caagaagtgc aaatagtgga gcaggagcag gagcaggagc aatattaagt
     1441 agagctagca tggcttctag aatcctctgg catgagatgt ggcatgaagg cctggaagag
     1501 gcatctcgtt tgtactttgg ggaaaggaac gtgaaaggca tgtttgaggt gctggagccc
     1561 ttgcatgcta tgatggaacg gggcccccag actctgaagg aaacatcctt taatcaggcc
     1621 tatggtcgag atttaatgga ggcccaagag tggtgcagga agtacatgaa atcagggaat
     1681 gtcaaggacc tcctccaagc ctgggacctc tattatcatg tgttccgacg aatctcaaag
     1741 actagtacaa gttatccata tgataatcca gattatgcac cagttgcaac attaggtacc
     1801 atggtgagca agggcgagga ggataacatg gccatcatca aggagttcat gcgcttcaag
     1861 gtgcacatgg agggctccgt gaacggccac gagttcgaga tcgagggcga gggcgagggc
     1921 cgcccctacg agggcaccca gaccgccaag ctgaaggtga ccaagggtgg ccccctgccc
     1981 ttcgcctggg acatcctgtc ccctcagttc atgtacggct ccaaggccta cgtgaagcac
     2041 cccgccgaca tccccgacta cttgaagctg tccttccccg agggcttcaa gtgggagcgc
     2101 gtgatgaact tcgaggacgg cggcgtggtg accgtgaccc aggactcctc cctgcaggac
     2161 ggcgagttca tctacaaggt gaagctgcgc ggcaccaact tcccctccga cggccccgta
     2221 atgcagaaga agaccatggg ctgggaggcc tcctccgagc ggatgtaccc cgaggacggc
     2281 gccctgaagg gcgagatcaa gcagaggctg aagctgaagg acggcggcca ctacgacgct
     2341 gaggtcaaga ccacctacaa ggccaagaag cccgtgcagc tgcccggcgc ctacaacgtc
     2401 aacatcaagt tggacatcac ctcccacaac gaggactaca ccatcgtgga acagtacgaa
     2461 cgcgccgagg gccgccactc caccggcggc atggacgagc tgtacaagcc cgggtcgagg
     2521 gatatggcag cttaatgttc gtttttctta tttatatatt tataccaatt gattgtattt
     2581 ataactgtaa aaatgtgtat gttgtgtgca tatttttttt tgtgcatgca catgcatgta
     2641 aatagctaaa attatgaaca ttttattttt tgttcagaaa aaaaaaactt tacacacata
     2701 aaatggctag tatgaatagc catattttat ataaattaaa tcctatgaat ttatgaccat
     2761 attaaaaatt tagatattta tggaacataa tatgtttgaa acaataagac aaaattatta
     2821 ttattattat tatttttact gttataatta tgtgtctcct tcaatgattc ataaatagtt
     2881 ggacttgatt tttaaaatgt ttataatatg attagcatag ttaaataaaa aaagttgaaa
     2941 aattaaaaaa aaacatataa acacaaatga tggtttttcc ttcaatttcg atatcaattt
     3001 atagaaacaa aatatatact tgtataattt tattttttta tataaatcat tacatatata
     3061 attatacaat attttttcta agagataatt atatattaat atatataaaa aaaggtgttt
     3121 tttttttttt tttttatttt tatttttatt ttatggtaat attttatttt ccttatttta
     3181 taaattatat tagtttatat gtgattaatt ttatatatta tcaatttata tatttttaaa
     3241 tgcttactta attatctttt tttttttttt tttttttttt tcccctcttt ttatattaat
     3301 ttatttttga aaaaattgat atatatatat atatataata tatatatata catgtagtag
     3361 tattaaacaa tgtataatat atataaataa tatatttata tatttcattt caattttaat
     3421 tttttttggt tttttttttt tttctttttg tcatatttaa aaaaaattat attcatataa
     3481 gttatgcatt ttttataaac attattcaat atatgtataa tataatatat atatatatat
     3541 taatgtatta ttccaatgtg catgataaaa gaaaaaaata atatttataa aaaaaaagaa
     3601 aaataaaaca aaaaaagaaa aaaaaaaaaa aaaaaaaaaa aatacaaaaa taaataatat
     3661 aatttataat tatatattct tgtcacaata aaaatatata tatatatata tatatttata
     3721 atatgtatat tttaaactag aaaaggaata actaatattt tatttattat cattcaagat
     3781 ttatatttta taataataaa tacctaatag aaatatatca ggatccatgg ccaagccttt
     3841 gtctcaagaa gaatccaccc tcattgaaag agcaacggct acaatcaaca gcatccccat
     3901 ctctgaagac tacagcgtcg ccagcgcagc tctctctagc gacggccgca tcttcactgg
     3961 tgtcaatgta tatcatttta ctgggggacc ttgtgcagaa ctcgtggtgc tgggcactgc
     4021 tgctgctgcg gcagctggca acctgacttg tatcgtcgcg atcggaaatg agaacagggg
     4081 catcttgagc ccctgcggac ggtgccgaca ggtgcttctc gatctgcatc ctgggatcaa
     4141 agcgatagtg aaggacagtg atggacagcc gacggcagtt gggattcgtg aattgctgcc
     4201 ctctggttat gtgtgggagg gctaaaagct tatttaataa tagattaaaa atattataaa
     4261 aataaaaaca taaacacaga aattacaaaa aaaatacata tgaatttttt tttgtaatct
     4321 tccttataaa tatagaataa tgaatcatat aaaacatatc attattcatt tatttacatt
     4381 taaaattatt gtttcagtat ctttaattta ttatgtatat ataaaaataa cttacaattt
     4441 tattaataaa caatatatgt ttattaattc atgttttgta atttatggga tagcgatttt
     4501 ttttactgtc tgtatttttc ttttttaatt atgttttaat tgtattttat ttttattatt
     4561 gttcttttta tagtattatt ttaaaacaaa atgtattttc taagaactta taataataat
     4621 aaatataaat tttaataaaa attatattta tcttttacaa tatgaacata aagtacaaca
     4681 ttaatatata gcttttaata tttttattcc taatcatgta aatcttaaat ttttcttttt
     4741 aaacatatgt taaatattta tttctcatta tatataagaa catatttatt aaatctagaa
     4801 ttctatagtg agtcgtatta caattcactg gccgtcgttt tacaacgtcg tgactgggaa
     4861 aaccctggcg ttacccaact taatcgcctt gcagcacatc cccctttcgc cagctggcgt
     4921 aatagcgaag aggcccgcac cgatcgccct tcccaacagt tgcgcagcct gaatggcgaa
     4981 tggcgcctga tgcggtattt tctccttacg catctgtgcg gtatttcaca ccgcatatgg
     5041 tgcactctca gtacaatctg ctctgatgcc gcatagttaa gccagccccg acacccgcca
     5101 acacccgctg acgcgccctg acgggcttgt ctgctcccgg catccgctta cagacaagct
     5161 gtgaccgtct ccgggagctg catgtgtcag aggttttcac cgtcatcacc gaaacgcgcg
     5221 agacgaaagg gcctcgtgat acgcctattt ttataggtta atgtcatgat aataatggtt
     5281 tcttagacgt caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt
     5341 ttctaaatac attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa
     5401 taatattgaa aaaggaagag tatgagtatt caacatttcc gtgtcgccct tattcccttt
     5461 tttgcggcat tttgccttcc tgtttttgct cacccagaaa cgctggtgaa agtaaaagat
     5521 gctgaagatc agttgggtgc acgagtgggt tacatcgaac tggatctcaa cagcggtaag
     5581 atccttgaga gttttcgccc cgaagaacgt tttccaatga tgagcacttt taaagttctg
     5641 ctatgtggcg cggtattatc ccgtattgac gccgggcaag agcaactcgg tcgccgcata
     5701 cactattctc agaatgactt ggttgagtac tcaccagtca cagaaaagca tcttacggat
     5761 ggcatgacag taagagaatt atgcagtgct gccataacca tgagtgataa cactgcggcc
     5821 aacttacttc tgacaacgat cggaggaccg aaggagctaa ccgctttttt gcacaacatg
     5881 ggggatcatg taactcgcct tgatcgttgg gaaccggagc tgaatgaagc cataccaaac
     5941 gacgagcgtg acaccacgat gcctgtagca atgccaacaa cgttgcgcaa actattaact
     6001 ggcgaactac ttactctagc ttcccggcaa caattaatag actggatgga ggcggataaa
     6061 gttgcaggac cacttctgcg ctcggccctt ccggctggct ggtttattgc tgataaatct
     6121 ggagccggtg agcgtgggtc tcgcggtatc attgcagcac tggggccaga tggtaagccc
     6181 tcccgtatcg tagttatcta cacgacgggg agtcaggcaa ctatggatga acgaaataga
     6241 cagatcgctg agataggtgc ctcactgatt aagcattggt aactgtcaga ccaagtttac
     6301 tcatatatac tttagattga tttaaaactt catttttaat ttaaaaggat ctaggtgaag
     6361 atcctttttg ataatctcat gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg
     6421 tcagaccccg tagaaaagat caaaggatct tcttgagatc ctttttttct gcgcgtaatc
     6481 tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc ggatcaagag
     6541 ctaccaactc tttttccgaa ggtaactggc ttcagcagag cgcagatacc aaatactgtc
     6601 cttctagtgt agccgtagtt aggccaccac ttcaagaact ctgtagcacc gcctacatac
     6661 ctcgctctgc taatcctgtt accagtggct gctgccagtg gcgataagtc gtgtcttacc
     6721 gggttggact caagacgata gttaccggat aaggcgcagc ggtcgggctg aacggggggt
     6781 tcgtgcacac agcccagctt ggagcgaacg acctacaccg aactgagata cctacagcgt
     6841 gagctatgag aaagcgccac gcttcccgaa gggagaaagg cggacaggta tccggtaagc
     6901 ggcagggtcg gaacaggaga gcgcacgagg gagcttccag ggggaaacgc ctggtatctt
     6961 tatagtcctg tcgggtttcg ccacctctga cttgagcgtc gatttttgtg atgctcgtca
     7021 ggggggcgga gcctatcgaa aaacgccagc aacgcggcct ttttacggtt cctggccttt
     7081 tgctggcctt ttgctcacat gttctttcct gcgttatccc ctgattctgt ggataaccgt
     7141 attaccgcct ttgagtgagc tgataccgct cgccgcagcc gaacgaccga gcgcagcgag
     7201 tcagtgagcg aggaagcgga agagcgccca atacgcaaac cgcctctccc cgcgcgttgg
     7261 ccgattcatt aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc
     7321 aacgcaatta atgtgagtta gctcactcat taggcacccc aggctttaca ctttatgctt
     7381 ccggctcgta tgttgtgtgg aattgtgagc ggataacaat ttcacacagg aaacagctat
     7441 gaccatgatt acgccaagct atttaggtga cactatagaa tactc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
