p2NIL

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: p2NIL
出品公司: 爱迪基因
目录编号: 20188
存储实验室: Tanya Parish

载体骨架基本信息
载体名称: p2NIL
载体出品公司: --
载体抗性: --
空载体大小: 4753bp
完整质粒大小: --
载体修饰: 人细胞色素c氧化酶亚基VIII(human cytochrome C oxidase subunit VIII)
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: 人细胞色素c氧化酶亚基VIII(N端)
克隆方法: 限制性内切酶
5' 克隆位点: AgeI(未破坏)
3' 克隆位点: NotI (未破坏)
5' 测序引物 CMV-F
3' 测序引物 SV40pA-R

文献引用方法
材料和方法部分: p2NIL was a gift from Tanya Parish (Addgene plasmid # 20188 ; http://n2t.net/addgene:20188 ; RRID:Addgene_20188)
参考文献部分: Use of a flexible cassette method to generate a double unmarked Mycobacterium tuberculosis tlyA plcABC mutant by gene replacement. Parish T, Stoker NG. Microbiology. 2000 Aug . 146 ( Pt 8)():1969-75. 10.1099/00221287-146-8-1969 PubMed 10931901

载体图谱质粒图谱和多克隆位点信息

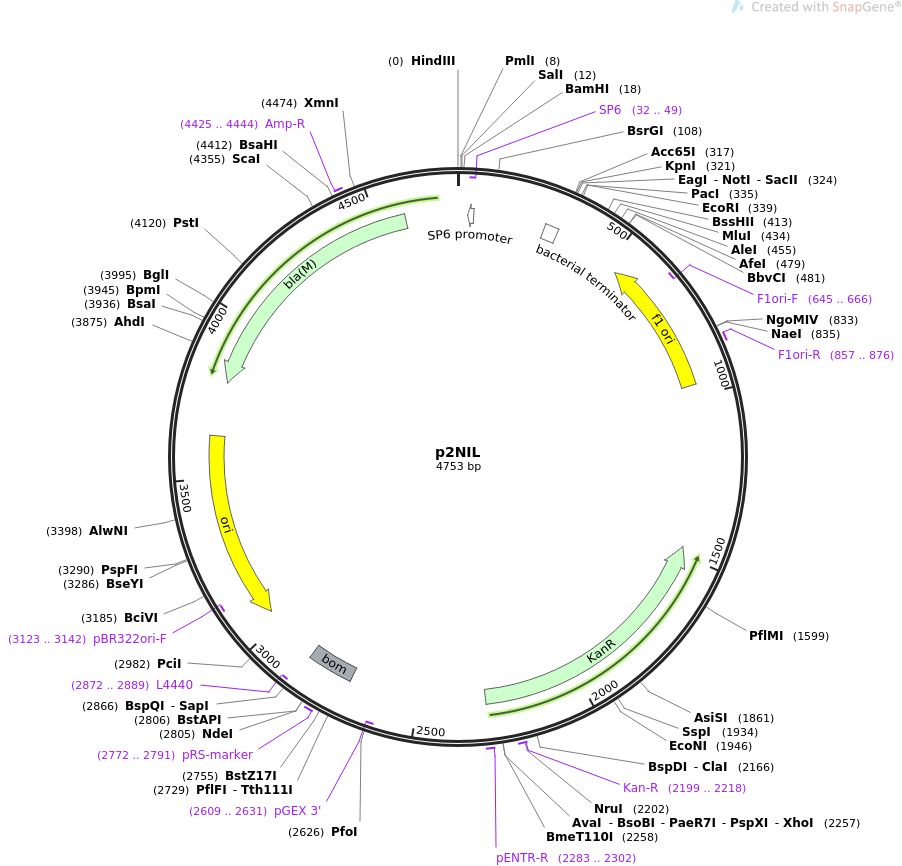

p2NIL质粒图谱

载体简介

载体序列

LOCUS       p2NIL                4753 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    p2NIL
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4753)
  AUTHORS   Parish T, Stoker NG
  TITLE     Use of a flexible cassette method to generate a double unmarked
            Mycobacterium tuberculosis tlyA plcABC mutant by gene replacement.
  JOURNAL   Microbiology. 2000 Aug . 146 ( Pt 8)():1969-75.
  PUBMED    10931901
REFERENCE   2  (bases 1 to 4753)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4753
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        complement(31..49)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(32..49)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     terminator      273..316
                     /label=bacterial terminator
                     /note="putative bacterial transcription terminator"
     rep_origin      complement(535..963)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(645..666)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     857..876
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     CDS             complement(1476..2291)
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPWK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
                     SDFDDERNGWPVEQVWKEMHKFLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     primer_bind     2199..2218
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse primer"
     primer_bind     2283..2302
                     /label=pENTR-R
                     /note="pENTR vectors, reverse primer"
     primer_bind     complement(2609..2631)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     misc_feature    2717..2857
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     2772..2791
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     complement(2872..2889)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3043..3631)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3123..3142)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3802..4590)
                     /codon_start=1
                     /gene="bla(M)"
                     /product="beta-lactamase lacking the signal sequence"
                     /label=bla(M)
                     /note="allows cytosolic expression of beta-lactamase"
                     /translation="PETLVKVKDAEDQLGARVGYIELDLNSGKILESFRPEERFPMMST
                     FKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYSPVTEKHLTDGMTVRELCSAAITMS
                     DNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRWEPELNEAIPNDERDTTMPAAMATT
                     LRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSALPAGWFIADKSGAGERGSRGIIAA
                     LGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGASLIKHW"
     primer_bind     4425..4444
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
ORIGIN
        1 agcttcacgt ggtcgacgga tcctatgtat tctatagtgt cacctaaatc gtatgtgtat
       61 gatacataag gttatgtatt aattgtagcc gcgttctaac gacaatatgt acaagcctaa
      121 ttgtgtagca tctggcttac tgaagcagac cctatcatct ctctcgtaaa ctgccgtcag
      181 agtcggtttg gttggacgaa ccttctgagt ttctggtaac gccgtcccgc acccggaaat
      241 ggtcagcgaa ccaatcagca gggtcatcgc tagaaatcat ccttagcgaa agctaaggat
      301 tttttttatc tgaattggta ccgcggccgc ttaattaaga attcccctgt aatccgggca
      361 gcgcaacgga acattcatca gtgtaaaaat ggaatcaata aagccctgcg cagcgcgcag
      421 ggtcagcctg aatacgcgtt taatgaccag cacagtcgtg atggcaaggt cagaatagcg
      481 ctgaggtctg cctcgtgaag aaggtgttgc tgactcatac caggattttg ttaaaattcg
      541 cgttaaattt ttgttaaatc agctcatttt ttaaccaata ggccgaaatc ggcaaaatcc
      601 cttataaatc aaaagaatag accgagatag ggttgagtgt tgttccagtt tggaacaaga
      661 gtccactatt aaagaacgtg gactccaacg tcaaagggcg aaaaaccgtc tatcagggcg
      721 atggcccact acgtgaacca tcaccctaat caagtttttt ggggtcgagg tgccgtaaag
      781 cactaaatcg gaaccctaaa gggagccccc gatttagagc ttgacgggga aagccggcga
      841 acgtggcgag aaaggaaggg aagaaagcga aaggagcggg cgctagggcg ctggcaagtg
      901 tagcggtcac gctgcgcgta accaccacac ccgccgcgct taatgcgccg ctacagggcg
      961 cgtactatgg ttgctttgac gagcacgtat aacgtgcttt cctcgttaga atcagagcgg
     1021 gagctaaaca ggaggccgat taaagggatt ttagacagga acggtacgcc agaatcctga
     1081 gaagtgtttt tataatcagt gaggccaccg agcaaaagag tctgtccatc acgcaaatta
     1141 accgttgtcg caatacttct ttgattagta ataacatcac ttgcctgagt agaagaactc
     1201 aaactatcgg ccttgctggt aatatccaga acaatcctga atcgccccat catccagcca
     1261 gaaagtgagg gagccacggt tgatgagagc tttgttgtag gtggaccagt tggtgatttt
     1321 gaacttttgc tttgccacgg aacggtctgc gttgtcggga agatgcgtga tctgatcctt
     1381 caactcagca aaagttcgat ttattcaaca aagccgccgt cccgtcaagt cagcgtaatg
     1441 ctctgccagt gttacaacca attaaccaat tctgattaga aaaactcatc gagcatcaaa
     1501 tgaaactgca atttattcat atcaggatta tcaataccat atttttgaaa aagccgtttc
     1561 tgtaatgaag gagaaaactc accgaggcag ttccatagga tggcaagatc ctggtatcgg
     1621 tctgcgattc cgactcgtcc aacatcaata caacctatta atttcccctc gtcaaaaata
     1681 aggttatcaa gtgagaaatc accatgagtg acgactgaat ccggtgagaa tggcaaaaac
     1741 ttatgcattt ctttccagac ttgttcaaca ggccagccat tacgctcgtc atcaaaatca
     1801 ctcgcatcaa ccaaaccgtt attcattcgt gattgcgcct gagcgagacg aaatacgcga
     1861 tcgctgttaa aaggacaatt acaaacagga atcgaatgca accggcgcag gaacactgcc
     1921 agcgcatcaa caatattttc acctgaatca ggatattctt ctaatacctg gaatgctgtt
     1981 ttccagggga tcgcagtggt gagtaaccat gcatcatcag gagtacggat aaaatgcttg
     2041 atggtcggaa gaggcataaa ttccgtcagc cagtttagtc tgaccatctc atctgtaaca
     2101 tcattggcaa cgctaccttt gccatgtttc agaaacaact ctggcgcatc gggcttccca
     2161 tacaatcgat agattgtcgc acctgattgc ccgacattat cgcgagccca tttataccca
     2221 tataaatcag catccatgtt ggaatttaat cgcggcctcg agcaagacgt ttcccgttga
     2281 atatggctca taacacccct tgtattactg tttatgtaag cagacagttt tattgttcat
     2341 gatgatatat ttttatcttg tgcaatgtaa catcagagat tttgagacac aacgtggctt
     2401 tgttgaataa atcgaacttt tgctgagttg aaggatcaga tcacgcatct tcccgacaac
     2461 gcagaccgtt ccgtggcaaa gcaaaagttc aaaatcacca actggtccac ctacaacaaa
     2521 gctctcatca accgtggctc cctcactttc tggctggatg atggggcgat tcaggctgcc
     2581 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
     2641 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
     2701 ttggcgggtg tcggggcgca gccatgaccc agtcacgtag cgatagcgga gtgtatactg
     2761 gcttaactat gcggcatcag agcagattgt actgagagtg caccatatgc ggtgtgaaat
     2821 accgcacaga tgcgtaagga gaaaataccg catcaggcgc tcttccgctt cctcgctcac
     2881 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
     2941 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
     3001 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
     3061 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     3121 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     3181 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcaatg
     3241 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     3301 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     3361 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     3421 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     3481 aaggacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     3541 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
     3601 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
     3661 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
     3721 gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata
     3781 tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat
     3841 ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg
     3901 ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc
     3961 tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc
     4021 aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc
     4081 gccagttaat agtttgcgca acgttgttgc cattgctgca ggcatcgtgg tgtcacgctc
     4141 gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc
     4201 ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa
     4261 gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat
     4321 gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata
     4381 gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaaca cgggataata ccgcgccaca
     4441 tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag
     4501 gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc
     4561 agcatctttt actttcacca gcgtttctgg gtgacgcaga tcccgcaaga ggcccggcag
     4621 taccggcata accaagccta tgcctacagc atccagggtg acggtgccga ggatgacgat
     4681 gagcgcattg ttagatttca tacacggtgc ctgactgcgt tagcaattta actgtgataa
     4741 actaccgcat taa
//
