p406TEF1

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: p406TEF1
出品公司: 爱迪基因
目录编号: 15976
存储实验室: Nicolas Buchler, Fred Cross

载体骨架基本信息
载体名称: pRS406
载体出品公司: Sikorski & Hieter, Genetics 122:19-27 (1989)
载体抗性: 氨苄青霉素
空载体大小: 4283 bp
完整质粒大小: --
载体修饰: --
载体类型: 细菌表达,酵母表达
筛选标记: URA3
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: TEF1 promoter + polylinker + CYC1 terminator,Translational elongation factor EF-1 alpha
物种来源: S. cerevisiae (budding yeast)
插入大小: 728 bp
基因突变: TEF1 promoter is between SacI and XbaI restriction sites.
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: SacI(未破坏)
3' 克隆位点: KpnI(未破坏)
5' 测序引物 M13 Reverse
3' 测序引物 --

文献引用方法
材料和方法部分: p406TEF1 was a gift from Nicolas Buchler & Fred Cross (Addgene plasmid # 15976 ; http://n2t.net/addgene:15976 ; RRID:Addgene_15976)

载体图谱质粒图谱和多克隆位点信息

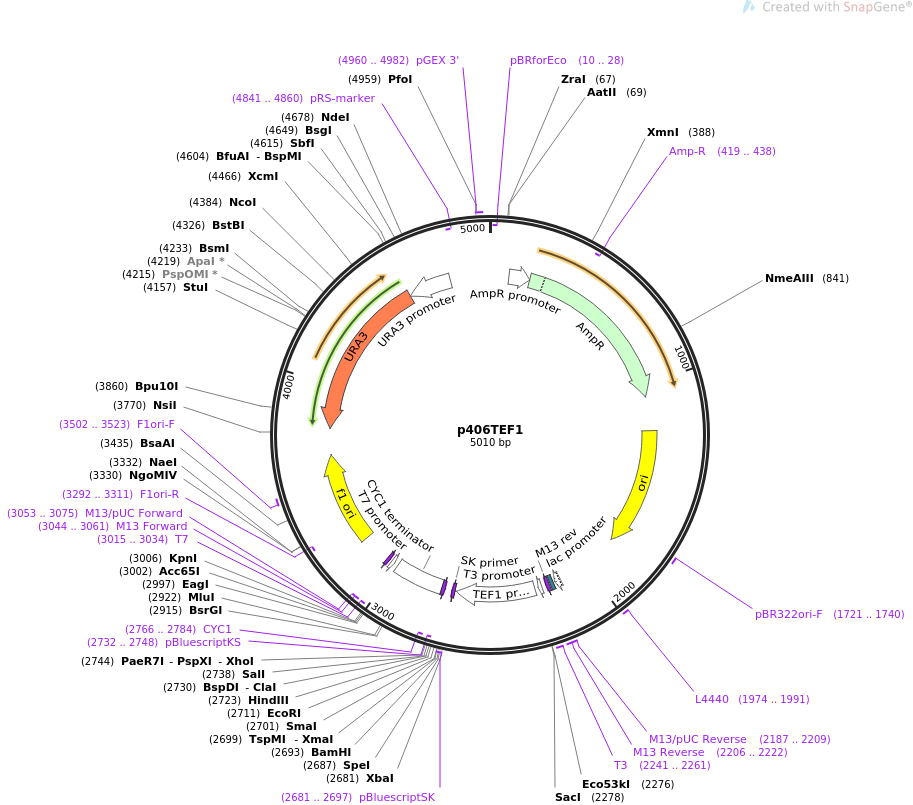

p406TEF1质粒图谱

载体简介

载体序列

LOCUS       p406TEF1                5010 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    p406TEF1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5010)
  TITLE     Buchler lab plasmids
REFERENCE   2  (bases 1 to 5010)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5010
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(10..28)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        96..200
                     /gene="bla"
                     /label=AmpR promoter
     CDS             201..1061
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(419..438)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      1232..1820
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     1721..1740
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     1974..1991
                     /label=L4440
                     /note="L4440 vector, forward primer"
     promoter        2144..2174
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    2182..2198
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     2187..2209
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     2206..2222
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     2206..2222
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     2241..2261
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        2243..2261
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     promoter        2279..2677
                     /gene="S. cerevisiae TEF1"
                     /label=TEF1 promoter
                     /note="promoter for EF-1-alpha"
     primer_bind     2681..2697
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     2681..2697
                     /label=pBluescriptSK
                     /note="For pBluescript vector"
     primer_bind     complement(2731..2747)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2732..2748)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     terminator      2750..2997
                     /gene="S. cerevisiae CYC1"
                     /label=CYC1 terminator
                     /note="transcription terminator for CYC1"
     primer_bind     complement(2766..2784)
                     /label=CYC1
                     /note="CYC1 transcription termination signal, reverse
                     primer"
     primer_bind     complement(3015..3034)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(3016..3034)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(3044..3061)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(3044..3060)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3053..3075)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      3205..3660
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3292..3311)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3502..3523
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     CDS             complement(3791..4594)
                     /codon_start=1
                     /gene="S. cerevisiae URA3"
                     /product="orotidine-5'-phosphate decarboxylase, required
                     for uracil biosynthesis"
                     /label=URA3
                     /note="yeast auxotrophic marker, counterselectable with
                     5-fluoroorotic acid (5-FOA)"
                     /translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKELL
                     ELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVKLQ
                     YSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLSTGE
                     YTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYRTVDD
                     VVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN"
     promoter        complement(4595..4810)
                     /gene="S. cerevisiae URA3"
                     /label=URA3 promoter
     primer_bind     complement(4841..4860)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4960..4982
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
ORIGIN
        1 gacgaaaggg cctcgtgata cgcctatttt tataggttaa tgtcatgata ataatggttt
       61 cttagacgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt
      121 tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat
      181 aatattgaaa aaggaagagt atgagtattc aacatttccg tgtcgccctt attccctttt
      241 ttgcggcatt ttgccttcct gtttttgctc acccagaaac gctggtgaaa gtaaaagatg
      301 ctgaagatca gttgggtgca cgagtgggtt acatcgaact ggatctcaac agcggtaaga
      361 tccttgagag ttttcgcccc gaagaacgtt ttccaatgat gagcactttt aaagttctgc
      421 tatgtggcgc ggtattatcc cgtattgacg ccgggcaaga gcaactcggt cgccgcatac
      481 actattctca gaatgacttg gttgagtact caccagtcac agaaaagcat cttacggatg
      541 gcatgacagt aagagaatta tgcagtgctg ccataaccat gagtgataac actgcggcca
      601 acttacttct gacaacgatc ggaggaccga aggagctaac cgcttttttg cacaacatgg
      661 gggatcatgt aactcgcctt gatcgttggg aaccggagct gaatgaagcc ataccaaacg
      721 acgagcgtga caccacgatg cctgtagcaa tggcaacaac gttgcgcaaa ctattaactg
      781 gcgaactact tactctagct tcccggcaac aattaataga ctggatggag gcggataaag
      841 ttgcaggacc acttctgcgc tcggcccttc cggctggctg gtttattgct gataaatctg
      901 gagccggtga gcgtgggtct cgcggtatca ttgcagcact ggggccagat ggtaagccct
      961 cccgtatcgt agttatctac acgacgggga gtcaggcaac tatggatgaa cgaaatagac
     1021 agatcgctga gataggtgcc tcactgatta agcattggta actgtcagac caagtttact
     1081 catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga
     1141 tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt
     1201 cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct
     1261 gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc
     1321 taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgtcc
     1381 ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc
     1441 tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg tgtcttaccg
     1501 ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga acggggggtt
     1561 cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac ctacagcgtg
     1621 agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat ccggtaagcg
     1681 gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc tggtatcttt
     1741 atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga tgctcgtcag
     1801 gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc ctggcctttt
     1861 gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg gataaccgta
     1921 ttaccgcctt tgagtgagct gataccgctc gccgcagccg aacgaccgag cgcagcgagt
     1981 cagtgagcga ggaagcggaa gagcgcccaa tacgcaaacc gcctctcccc gcgcgttggc
     2041 cgattcatta atgcagctgg cacgacaggt ttcccgactg gaaagcgggc agtgagcgca
     2101 acgcaattaa tgtgagttac ctcactcatt aggcacccca ggctttacac tttatgcttc
     2161 cggctcctat gttgtgtgga attgtgagcg gataacaatt tcacacagga aacagctatg
     2221 accatgatta cgccaagcgc gcaattaacc ctcactaaag ggaacaaaag ctggagctca
     2281 tagcttcaaa atgtttctac tcctttttta ctcttccaga ttttctcgga ctccgcgcat
     2341 cgccgtacca cttcaaaaca cccaagcaca gcatactaaa tttcccctct ttcttcctct
     2401 agggtgtcgt taattacccg tactaaaggt ttggaaaaga aaaaagagac cgcctcgttt
     2461 ctttttcttc gtcgaaaaag gcaataaaaa tttttatcac gtttcttttt cttgaaaatt
     2521 ttttttttga tttttttctc tttcgatgac ctcccattga tatttaagtt aataaacggt
     2581 cttcaatttc tcaagtttca gtttcatttt tcttgttcta ttacaacttt ttttacttct
     2641 tgctcattag aaagaaagca tagcaatcta atctaagttt tctagaacta gtggatcccc
     2701 cgggctgcag gaattcgata tcaagcttat cgataccgtc gacctcgagt catgtaatta
     2761 gttatgtcac gcttacattc acgccctccc cccacatccg ctctaaccga aaaggaagga
     2821 gttagacaac ctgaagtcta ggtccctatt tattttttta tagttatgtt agtattaaga
     2881 acgttattta tatttcaaat ttttcttttt tttctgtaca gacgcgtgta cgcatgtaac
     2941 attatactga aaaccttgct tgagaaggtt ttgggacgct cgaaggcttt aatttgcggc
     3001 cggtacccaa ttcgccctat agtgagtcgt attacgcgcg ctcactggcc gtcgttttac
     3061 aacgtcgtga ctgggaaaac cctggcgtta cccaacttaa tcgccttgca gcacatcccc
     3121 ctttcgccag ctggcgtaat agcgaagagg cccgcaccga tcgcccttcc caacagttgc
     3181 gcagcctgaa tggcgaatgg cgcgacgcgc cctgtagcgg cgcattaagc gcggcgggtg
     3241 tggtggttac gcgcagcgtg accgctacac ttgccagcgc cctagcgccc gctcctttcg
     3301 ctttcttccc ttcctttctc gccacgttcg ccggctttcc ccgtcaagct ctaaatcggg
     3361 ggctcccttt agggttccga tttagtgctt tacggcacct cgaccccaaa aaacttgatt
     3421 agggtgatgg ttcacgtagt gggccatcgc cctgatagac ggtttttcgc cctttgacgt
     3481 tggagtccac gttctttaat agtggactct tgttccaaac tggaacaaca ctcaacccta
     3541 tctcggtcta ttcttttgat ttataaggga ttttgccgat ttcggcctat tggttaaaaa
     3601 atgagctgat ttaacaaaaa tttaacgcga attttaacaa aatattaacg tttacaattt
     3661 cctgatgcgg tattttctcc ttacgcatct gtgcggtatt tcacaccgca tagggtaata
     3721 actgatataa ttaaattgaa gctctaattt gtgagtttag tatacatgca tttacttata
     3781 atacagtttt ttagttttgc tggccgcatc ttctcaaata tgcttcccag cctgcttttc
     3841 tgtaacgttc accctctacc ttagcatccc ttccctttgc aaatagtcct cttccaacaa
     3901 taataatgtc agatcctgta gagaccacat catccacggt tctatactgt tgacccaatg
     3961 cgtctccctt gtcatctaaa cccacaccgg gtgtcataat caaccaatcg taaccttcat
     4021 ctcttccacc catgtctctt tgagcaataa agccgataac aaaatctttg tcgctcttcg
     4081 caatgtcaac agtaccctta gtatattctc cagtagatag ggagcccttg catgacaatt
     4141 ctgctaacat caaaaggcct ctaggttcct ttgttacttc ttctgccgcc tgcttcaaac
     4201 cgctaacaat acctgggccc accacaccgt gtgcattcgt aatgtctgcc cattctgcta
     4261 ttctgtatac acccgcagag tactgcaatt tgactgtatt accaatgtca gcaaattttc
     4321 tgtcttcgaa gagtaaaaaa ttgtacttgg cggataatgc ctttagcggc ttaactgtgc
     4381 cctccatgga aaaatcagtc aagatatcca catgtgtttt tagtaaacaa attttgggac
     4441 ctaatgcttc aactaactcc agtaattcct tggtggtacg aacatccaat gaagcacaca
     4501 agtttgtttg cttttcgtgc atgatattaa atagcttggc agcaacagga ctaggatgag
     4561 tagcagcacg ttccttatat gtagctttcg acatgattta tcttcgtttc ctgcaggttt
     4621 ttgttctgtg cagttgggtt aagaatactg ggcaatttca tgtttcttca acactacata
     4681 tgcgtatata taccaatcta agtctgtgct ccttccttcg ttcttccttc tgttcggaga
     4741 ttaccgaatc aaaaaaattt caaagaaacc gaaatcaaaa aaaagaataa aaaaaaaatg
     4801 atgaattgaa ttgaaaagct gtggtatggt gcactctcag tacaatctgc tctgatgccg
     4861 catagttaag ccagccccga cacccgccaa cacccgctga cgcgccctga cgggcttgtc
     4921 tgctcccggc atccgcttac agacaagctg tgaccgtctc cgggagctgc atgtgtcaga
     4981 ggttttcacc gtcatcaccg aaacgcgcga
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
