质粒名称: | pAKlux2 |
---|---|
出品公司: | Addgene |
目录编号: | 14080 |
存储实验室: | Attila Karsi |
载体骨架基本信息 |
|
载体名称: | pBBR1MCS4 |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 4982 bp |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 细菌表达 |
筛选标记: | -- |
高拷贝/低拷贝: | 低拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | Bacterial luciferase,luxCDABE |
物种来源: | -- |
插入大小: | 5843 bp |
基因突变: | -- |
GenBank编号 | -- |
启动子 | -- |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | EcoR1(未破坏) |
3' 克隆位点: | EcoR1(未破坏) |
5' 测序引物 | T3 |
3' 测序引物 | T7 |
文献引用方法 |
|
材料和方法部分: | pAKlux2 was a gift from Attila Karsi (Addgene plasmid # 14080 ; http://n2t.net/addgene:14080 ; RRID:Addgene_14080) |
参考文献部分: | Broad host range fluorescence and bioluminescence expression vectors for Gram-negative bacteria. Karsi A, Lawrence ML. Plasmid. 2007 Jan 4. ():. 10.1016/j.plasmid.2006.11.002 PubMed 17207855 |
买家导航
载体基本信息

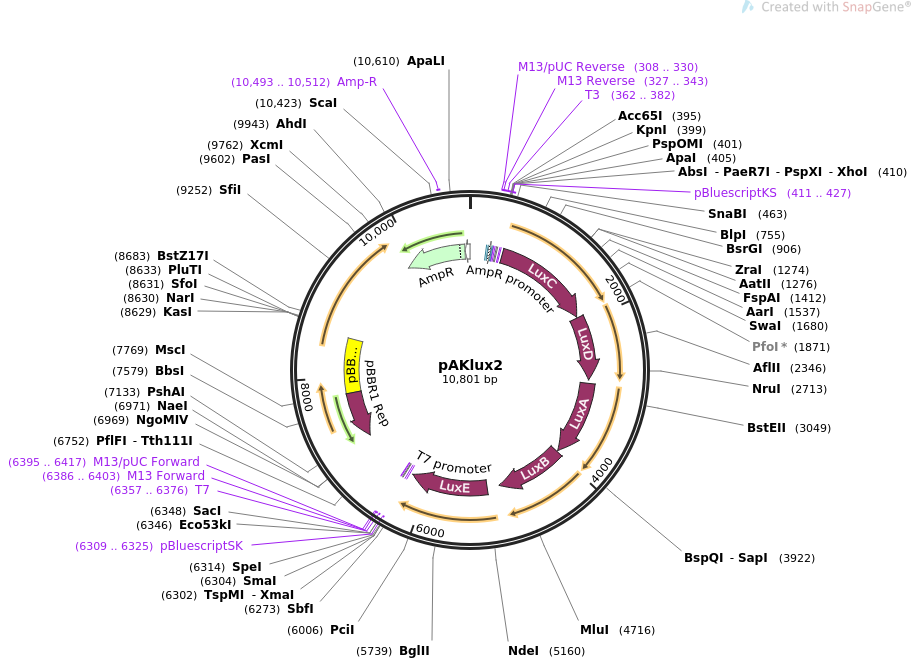

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pAKlux2 10801 bp ds-DNA circular SYN 19-MAR-2019 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pAKlux2 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 10801) AUTHORS Karsi A, Lawrence ML TITLE Broad host range fluorescence and bioluminescence expression vectors for Gram-negative bacteria. JOURNAL Plasmid. 2007 Jan 4. ():. PUBMED 17207855 REFERENCE 2 (bases 1 to 10801) AUTHORS . TITLE Direct Submission JOURNAL Exported Mar 19, 2019 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..10801 /organism="synthetic DNA construct" /mol_type="other DNA" protein_bind 229..250 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." promoter 265..295 /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 303..319 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." primer_bind 308..330 /label=M13/pUC Reverse /note="In lacZ gene" primer_bind 327..343 /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind 327..343 /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind 362..382 /label=T3 /note="T3 promoter, forward primer" promoter 364..382 /label=T3 promoter /note="promoter for bacteriophage T3 RNA polymerase" primer_bind 411..427 /label=pBluescriptKS /note="For pBluescript vector" primer_bind 412..428 /label=KS primer /note="common sequencing primer, one of multiple similar variants" CDS 466..1908 /codon_start=1 /gene="luxC" /product="LuxC fatty acid reductase" /label=LuxC /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MTKKISFIINGQVEIFPEGDDLVQSINFGDNSVYLPILNDSHVKN IIDCNGNNELRLHNIVNFLYTVGQRWKNEEYSRRRTYIRDLKKYMGYSEEMAKLEANWI SMILCSKGGLYDVVENELGSRHIMDEWLPQDESYVRAFPKGKSVHLLAGNVPLSGIMSI LRAILTKNQCIIKTSSTDPFTANALALSFIDVDPNHPITRSLSVIYWPHQGDTSLAKEI MQHADVIVAWGGPDAINWAVEHAPSYADVIKFGSKKSLCIIDNPVDLTSAATGAAHDVC FYDQRACFSAQNIYYMGNHYEEFKLALIEKLNLYAHILPNAKKDFDEKAAYSLVQKESL FAGLKVEVDIHQRWMIIESNAGVEFNQPLGRCVYLHHVDNIEQILPYVQKNKTQTISIF PWESSFKYRDALALKGAERIVEAGMNNIFRVGGSHDGMRPLQRLVTYISHERPSNYTAK DVAVEIEQTRFLEEDKFLVFVP" CDS 1921..2844 /codon_start=1 /gene="luxD" /product="LuxD acyltransferase" /label=LuxD /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MENESKYKTIDHVICVEGNKKIHVWETLPEENSPKRKNAIIIASG FARRMDHFAGLAEYLSRNGFHVIRYDSLHHVGLSSGTIDEFTMSIGKQSLLAVVDWLTT RKINNFGMLASSLSARIAYASLSEINASFLITAVGVVNLRYSLERALGFDYLSLPINEL PNNLDFEGHKLGAEVFARDCLDFGWEDLASTINNMMYLDIPFIAFTANNDNWVKQDEVI TLLSNIRSNRCKIYSLLGSSHDLSENLVVLRNFYQSVTKAAIAMDNDHLDIDVDITEPS FEHLTIATVNERRMRIEIENQAISLS" CDS 2893..3975 /codon_start=1 /gene="luxA" /product="LuxA luciferase subunit" /label=LuxA /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MKFGNFLLTYQPPQFSQTEVMKRLVKLGRISEECGFDTVWLLEHH FTEFGLLGNPYVAAAYLLGATKKLNVGTAAIVLPTAHPVRQLEDVNLLDQMSKGRFRFG ICRGLYNKDFRVFGTDMNNSRALAECWYGLIKNGMTEGYMEADNEHIKFHKVKVNPAAY SRGGAPVYVVAESASTTEWAAQFGLPMILSWIINTNEKKAQLELYNEVAQEYGHDIHNI DHCLSYITSVDHDSIKAKEICRKFLGHWYDSYVNATTIFDDSDQTRGYDFNKGQWRDFV LKGHKDTNRRIDYSYEINPVGTPQECIDIIQKDIDATGISNICCGFEANGTVDEIIASM KLFQSDVMPFLKEKQRSLLY" CDS 3990..4973 /codon_start=1 /gene="luxB" /product="LuxB luciferase subunit" /label=LuxB /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MKFGLFFLNFINSTTVQEQSIVRMQEITEYVDKLNFEQILVYENH FSDNGVVGAPLTVSGFLLGLTEKIKIGSLNHIITTHHPVRIAEEACLLDQLSEGRFILG FSDCEKKDEMHFFNRPVEYQQQLFEECYEIINDALTTGYCNPDNDFYSFPKISVNPHAY TPGGPRKYVTATSHHIVEWAAKKGIPLIFKWDDSNDVRYEYAERYKAVADKYDVDLSEI DHQLMILVNYNEDSNKAKQETRAFISDYVLEMHPNENFENKLEEIIAENAVGNYTECIT AAKLAIEKCGAKSVLLSFEPMNDLMSQKNVINIVDDNIKKYHMEYT" CDS 5152..6264 /codon_start=1 /gene="luxE" /product="LuxE" /label=LuxE /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MTSYVDKQEITASSEIDDLIFSSDPLVWSYDEQEKIRKKLVLDAF RNHYKHCREYRHYCQAHKVDDNITEIDDIPVFPTSVFKFTRLLTSQENEIESWFTSSGT NGLKSQVARDRLSIERLLGSVSYGMKYVGSWFDHQIELVNLGPDRFNAHNIWFKYVMSL VELLYPTTFTVTEERIDFVKTLNSLERIKNQGKDLCLIGSPYFIYLLCHYMKDKKISFS GDKSLYIITGGGWKSYEKESLKRDDFNHLLFDTFNLSDISQIRDIFNQVELNTCFFEDE MQRKHVPPWVYARALDPETLKPVPDGTPGLMSYMDASATSYPAFIVTDDVGIISREYGK YPGVLVEILRRVNTRTQKGCALSLTEAFDS" primer_bind complement(6309..6325) /label=SK primer /note="common sequencing primer, one of multiple similar variants" primer_bind complement(6309..6325) /label=pBluescriptSK /note="For pBluescript vector" primer_bind complement(6357..6376) /label=T7 /note="T7 promoter, forward primer" promoter complement(6358..6376) /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" primer_bind complement(6386..6403) /label=M13 Forward /note="In lacZ gene. Also called M13-F20 or M13 (-21) Forward" primer_bind complement(6386..6402) /label=M13 fwd /note="common sequencing primer, one of multiple similar variants" primer_bind complement(6395..6417) /label=M13/pUC Forward /note="In lacZ gene" CDS complement(7111..7773) /codon_start=1 /product="replication protein for the broad-host-range plasmid pBBR1 from Bordetella bronchiseptica" /label=pBBR1 Rep /translation="MATQSREIGIQAKNKPGHWVQTERKAHEAWAGLIARKPTAAMLLH HLVAQMGHQNAVVVSQKTLSKLIGRSLRTVQYAVKDLVAERWISVVKLNGPGTVSAYVV NDRVAWGQPRDQLRLSVFSAAVVVDHDDQDESLLGHGDLRRIPTLYPGEQQLPTGPGEE PPSQPGIPGMEPDLPALTETEEWERRGQQRLPMPDEPCFLDDGEPLEPPTRVTLPRR" rep_origin 7774..8545 /label=pBBR1 oriV /note="replication origin of the broad-host-range plasmid pBBR1 from Bordetella bronchiseptica; requires the pBBR1 Rep protein for replication" CDS complement(9870..10730) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 10493..10512 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(10731..1) /gene="bla" /label=AmpR promoter ORIGIN 1 gggcaaatat tatacgcaag gcgacaaggt gctgatgccg ctggcgattc aggttcatca 61 tgccgtttgt gatggcttcc atgtcggcag aatgcttaat gaattacaac agtttttatg 121 catgcgccca atacgcaaac cgcctctccc cgcgcgttgg ccgattcatt aatgcagctg 181 gcacgacagg tttcccgact ggaaagcggg cagtgagcgc aacgcaatta atgtgagtta 241 gctcactcat taggcacccc aggctttaca ctttatgctt ccggctcgta tgttgtgtgg 301 aattgtgagc ggataacaat ttcacacagg aaacagctat gaccatgatt acgccaagcg 361 cgcaattaac cctcactaaa gggaacaaaa gctgggtacc gggccccccc tcgaggtcga 421 cggtatcgat aagcttgata tcgaattcag gcttggagga tacgtatgac taaaaaaatt 481 tcattcatta ttaacggcca ggttgaaatc tttcccgaag gtgatgattt agtgcaatcc 541 attaattttg gtgataatag tgtttacctg ccaatattga atgactctca tgtaaaaaac 601 attattgatt gtaatggaaa taacgaatta cggttgcata acattgtcaa ttttctctat 661 acggtagggc aaagatggaa aaatgaagaa tactcaagac gcaggacata cattcgtgac 721 ttaaaaaaat atatgggata ttcagaagaa atggctaagc tagaggccaa ttggatatct 781 atgattttat gttctaaagg cggcctttat gatgttgtag aaaatgaact tggttctcgc 841 catatcatgg atgaatggct acctcaggat gaaagttatg ttcgggcttt tccgaaaggt 901 aaatctgtac atctgttggc aggtaatgtt ccattatctg ggatcatgtc tatattacgc 961 gcaattttaa ctaagaatca gtgtattata aaaacatcgt caaccgatcc ttttaccgct 1021 aatgcattag cgttaagttt tattgatgta gaccctaatc atccgataac gcgctcttta 1081 tctgttatat attggcccca ccaaggtgat acatcactcg caaaagaaat tatgcaacat 1141 gcggatgtta ttgtcgcttg gggagggcca gatgcgatta attgggcggt agagcatgcg 1201 ccatcttatg ctgatgtgat taaatttggt tctaaaaaga gtctttgcat tatcgataat 1261 cctgttgatt tgacgtccgc agcgacaggt gcggctcatg atgtttgttt ttacgatcag 1321 cgagcttgtt tttctgccca aaacatatat tacatgggaa atcattatga ggaatttaag 1381 ttagcgttga tagaaaaact taatctatat gcgcatatat taccgaatgc caaaaaagat 1441 tttgatgaaa aggcggccta ttctttagtt caaaaagaaa gcttgtttgc tggattaaaa 1501 gtagaggtgg atattcatca acgttggatg attattgagt caaatgcagg tgtggaattt 1561 aatcaaccac ttggcagatg tgtgtacctt catcacgtcg ataatattga gcaaatattg 1621 ccttatgttc aaaaaaataa gacgcaaacc atatctattt ttccttggga gtcatcattt 1681 aaatatcgag atgcgttagc attaaaaggt gcggaaagga ttgtagaagc aggaatgaat 1741 aacatatttc gagttggtgg atctcatgac ggaatgagac cgttgcaacg attagtgaca 1801 tatatttctc atgaaaggcc atctaactat acggctaagg atgttgcggt tgaaatagaa 1861 cagactcgat tcctggaaga agataagttc cttgtatttg tcccataata ggtaaaaagt 1921 atggaaaatg aatcaaaata taaaaccatc gaccacgtta tttgtgttga aggaaataaa 1981 aaaattcatg tttgggaaac gctgccagaa gaaaacagcc caaagagaaa gaatgccatt 2041 attattgcgt ctggttttgc ccgcaggatg gatcattttg ctggtctggc ggaatattta 2101 tcgcggaatg gatttcatgt gatccgctat gattcgcttc accacgttgg attgagttca 2161 gggacaattg atgaatttac aatgtctata ggaaagcaga gcttgttagc agtggttgat 2221 tggttaacta cacgaaaaat aaataacttc ggtatgttgg cttcaagctt atctgcgcgg 2281 atagcttatg caagcctatc tgaaatcaat gcttcgtttt taatcaccgc agtcggtgtt 2341 gttaacttaa gatattctct tgaaagagct ttagggtttg attatctcag tctacccatt 2401 aatgaattgc cgaataatct agattttgaa ggccataaat tgggtgctga agtctttgcg 2461 agagattgtc ttgattttgg ttgggaagat ttagcttcta caattaataa catgatgtat 2521 cttgatatac cgtttattgc ttttactgca aataacgata attgggtcaa gcaagatgaa 2581 gttatcacat tgttatcaaa tattcgtagt aatcgatgca agatatattc tttgttagga 2641 agttcgcatg acttgagtga aaatttagtg gtcctgcgca atttttatca atcggttacg 2701 aaagccgcta tcgcgatgga taatgatcat ctggatattg atgttgatat tactgaaccg 2761 tcatttgaac atttaactat tgcgacagtc aatgaacgcc gaatgagaat tgagattgaa 2821 aatcaagcaa tttctctgtc ttaaaatcta ttgagatatt ctatcactca aatagcaata 2881 taaggactct ctatgaaatt tggaaacttt ttgcttacat accaacctcc ccaattttct 2941 caaacagagg taatgaaacg tttggttaaa ttaggtcgca tctctgagga gtgtggtttt 3001 gataccgtat ggttactgga gcatcatttc acggagtttg gtttgcttgg taacccttat 3061 gtcgctgctg catatttact tggcgcgact aaaaaattga atgtaggaac tgccgctatt 3121 gttcttccca cagcccatcc agtacgccaa cttgaagatg tgaatttatt ggatcaaatg 3181 tcaaaaggac gatttcggtt tggtatttgc cgagggcttt acaacaagga ctttcgcgta 3241 ttcggcacag atatgaataa cagtcgcgcc ttagcggaat gctggtacgg gctgataaag 3301 aatggcatga cagagggata tatggaagct gataatgaac atatcaagtt ccataaggta 3361 aaagtaaacc ccgcggcgta tagcagaggt ggcgcaccgg tttatgtggt ggctgaatca 3421 gcttcgacga ctgagtgggc tgctcaattt ggcctaccga tgatattaag ttggattata 3481 aatactaacg aaaagaaagc acaacttgag ctttataatg aagtggctca agaatatggg 3541 cacgatattc ataatatcga ccattgctta tcatatataa catctgtaga tcatgactca 3601 attaaagcga aagagatttg ccggaaattt ctggggcatt ggtatgattc ttatgtgaat 3661 gctacgacta tttttgatga ttcagaccaa acaagaggtt atgatttcaa taaagggcag 3721 tggcgtgact ttgtattaaa aggacataaa gatactaatc gccgtattga ttacagttac 3781 gaaatcaatc ccgtgggaac gccgcaggaa tgtattgaca taattcaaaa agacattgat 3841 gctacaggaa tatcaaatat ttgttgtgga tttgaagcta atggaacagt agacgaaatt 3901 attgcttcca tgaagctctt ccagtctgat gtcatgccat ttcttaaaga aaaacaacgt 3961 tcgctattat attagctaag gagaaagaaa tgaaatttgg attgttcttc cttaacttca 4021 tcaattcaac aactgttcaa gaacaaagta tagttcgcat gcaggaaata acggagtatg 4081 ttgataagtt gaattttgaa cagattttag tgtatgaaaa tcatttttca gataatggtg 4141 ttgtcggcgc tcctctgact gtttctggtt ttctgctcgg tttaacagag aaaattaaaa 4201 ttggttcatt aaatcacatc attacaactc atcatcctgt ccgcatagcg gaggaagctt 4261 gcttattgga tcagttaagt gaagggagat ttattttagg gtttagtgat tgcgaaaaaa 4321 aagatgaaat gcattttttt aatcgcccgg ttgaatatca acagcaacta tttgaagagt 4381 gttatgaaat cattaacgat gctttaacaa caggctattg taatccagat aacgattttt 4441 atagcttccc taaaatatct gtaaatcccc atgcttatac gccaggcgga cctcggaaat 4501 atgtaacagc aaccagtcat catattgttg agtgggcggc caaaaaaggt attcctctca 4561 tctttaagtg ggatgattct aatgatgtta gatatgaata tgctgaaaga tataaagccg 4621 ttgcggataa atatgacgtt gacctatcag agatagacca tcagttaatg atattagtta 4681 actataacga agatagtaat aaagctaaac aagagacgcg tgcatttatt agtgattatg 4741 ttcttgaaat gcaccctaat gaaaatttcg aaaataaact tgaagaaata attgcagaaa 4801 acgctgtcgg aaattatacg gagtgtataa ctgcggctaa gttggcaatt gaaaagtgtg 4861 gtgcgaaaag tgtattgctg tcctttgaac caatgaatga tttgatgagc caaaaaaatg 4921 taatcaatat tgttgatgat aatattaaga agtaccacat ggaatatacc taatagattt 4981 cgagttgcag cgaggcggca agtgaacgaa tccccaggag catagataac tatgtgactg 5041 gggtgagtga aagcagccaa caaagcagca gcttgaaaga tgaagggtat aaaagagtat 5101 gacagcagtg ctgccatact ttctaatatt atcttgagga gtaaaacagg tatgacttca 5161 tatgttgata aacaagaaat tacagcaagc tcagaaattg atgatttgat tttttcgagc 5221 gatccattag tgtggtctta cgacgagcag gaaaaaatca gaaagaaact tgtgcttgat 5281 gcatttcgta atcattataa acattgtcga gaatatcgtc actactgtca ggcacacaaa 5341 gtagatgaca atattacgga aattgatgac atacctgtat tcccaacatc ggtttttaag 5401 tttactcgct tattaacttc tcaggaaaac gagattgaaa gttggtttac cagtagcggc 5461 acgaatggtt taaaaagtca ggtggcgcgt gacagattaa gtattgagag actcttaggc 5521 tctgtgagtt atggcatgaa atatgttggt agttggtttg atcatcaaat agaattagtc 5581 aatttgggac cagatagatt taatgctcat aatatttggt ttaaatatgt tatgagtttg 5641 gtggaattgt tatatcctac gacatttacc gtaacagaag aacgaataga ttttgttaaa 5701 acattgaata gtcttgaacg aataaaaaat caagggaaag atctttgtct tattggttcg 5761 ccatacttta tttatttact ctgccattat atgaaagata aaaaaatctc attttctgga 5821 gataaaagcc tttatatcat aaccggaggc ggctggaaaa gttacgaaaa agaatctctg 5881 aaacgtgatg atttcaatca tcttttattt gatactttca atctcagtga tattagtcag 5941 atccgagata tatttaatca agttgaactc aacacttgtt tctttgagga tgaaatgcag 6001 cgtaaacatg ttccgccgtg ggtatatgcg cgagcgcttg atcctgaaac gttgaaacct 6061 gtacctgatg gaacgccggg gttgatgagt tatatggatg cgtcagcaac cagttatcca 6121 gcatttattg ttaccgatga tgtcgggata attagcagag aatatggtaa gtatcccggc 6181 gtgctcgttg aaattttacg tcgcgtcaat acgaggacgc agaaagggtg tgctttaagc 6241 ttaaccgaag cgtttgatag ttgatgacct gcaggtcgac ggatccgggg aattcctgca 6301 gcccggggga tccactagtt ctagagcggc cgccaccgcg gtggagctcc aattcgccct 6361 atagtgagtc gtattacgcg cgctcactgg ccgtcgtttt acaacgtcgt gactgggaaa 6421 accctggcgt tacccaactt aatcgccttg cagcacatcc ccctttcgcc agctggcgta 6481 atagcgaaga ggcccgcacc gatcgccctt cccaacagtt gcgcagcctg aatggcgaat 6541 ggaaattgta agcgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc 6601 attttttaac caataggccg tactgcgatg agtggcaggg cggggcgtaa tttttttaag 6661 gcagttattg gtgcccttaa acgcctggtt gctacgcctg aataagtgat aataagcgga 6721 tgaatggcag aaattcgaaa gcaaattcga cccggtcgtc ggttcagggc agggtcgtta 6781 aatagccgct tatgtctatt gctggtttac cggtttattg actaccggaa gcagtgtgac 6841 cgtgtgcttc tcaaatgcct gaggccagtt tgctcaggct ctccccgtgg aggtaataat 6901 tgacgatatg atcatttatt ctgcctccca gagcctgata aaaacggtga atccgttagc 6961 gaggtgccgc cggcttccat tcaggtcgag gtggcccggc tccatgcacc gcgacgcaac 7021 gcggggaggc agacaaggta tagggcggcg aggcggctac agccgatagt ctggaacagc 7081 gcacttacgg gttgctgcgc aacccaagtg ctaccggcgc ggcagcgtga cccgtgtcgg 7141 cggctccaac ggctcgccat cgtccagaaa acacggctca tcgggcatcg gcaggcgctg 7201 ctgcccgcgc cgttcccatt cctccgtttc ggtcaaggct ggcaggtctg gttccatgcc 7261 cggaatgccg ggctggctgg gcggctcctc gccggggccg gtcggtagtt gctgctcgcc 7321 cggatacagg gtcgggatgc ggcgcaggtc gccatgcccc aacagcgatt cgtcctggtc 7381 gtcgtgatca accaccacgg cggcactgaa caccgacagg cgcaactggt cgcggggctg 7441 gccccacgcc acgcggtcat tgaccacgta ggccgacacg gtgccggggc cgttgagctt 7501 cacgacggag atccagcgct cggccaccaa gtccttgact gcgtattgga ccgtccgcaa 7561 agaacgtccg atgagcttgg aaagtgtctt ctggctgacc accacggcgt tctggtggcc 7621 catctgcgcc acgaggtgat gcagcagcat tgccgccgtg ggtttcctcg caataagccc 7681 ggcccacgcc tcatgcgctt tgcgttccgt ttgcacccag tgaccgggct tgttcttggc 7741 ttgaatgccg atttctctgg actgcgtggc catgcttatc tccatgcggt aggggtgccg 7801 cacggttgcg gcaccatgcg caatcagctg caacttttcg gcagcgcgac aacaattatg 7861 cgttgcgtaa aagtggcagt caattacaga ttttctttaa cctacgcaat gagctattgc 7921 ggggggtgcc gcaatgagct gttgcgtacc cccctttttt aagttgttga tttttaagtc 7981 tttcgcattt cgccctatat ctagttcttt ggtgcccaaa gaagggcacc cctgcggggt 8041 tcccccacgc cttcggcgcg gctccccctc cggcaaaaag tggcccctcc ggggcttgtt 8101 gatcgactgc gcggccttcg gccttgccca aggtggcgct gcccccttgg aacccccgca 8161 ctcgccgccg tgaggctcgg ggggcaggcg ggcgggcttc gcccttcgac tgcccccact 8221 cgcataggct tgggtcgttc caggcgcgtc aaggccaagc cgctgcgcgg tcgctgcgcg 8281 agccttgacc cgccttccac ttggtgtcca accggcaagc gaagcgcgca ggccgcaggc 8341 cggaggcttt tccccagaga aaattaaaaa aattgatggg gcaaggccgc aggccgcgca 8401 gttggagccg gtgggtatgt ggtcgaaggc tgggtagccg gtgggcaatc cctgtggtca 8461 agctcgtggg caggcgcagc ctgtccatca gcttgtccag cagggttgtc cacgggccga 8521 gcgaagcgag ccagccggtg gccgctcgcg gccatcgtcc acatatccac gggctggcaa 8581 gggagcgcag cgaccgcgca gggcgaagcc cggagagcaa gcccgtaggg cgccgcagcc 8641 gccgtaggcg gtcacgactt tgcgaagcaa agtctagtga gtatactcaa gcattgagtg 8701 gcccgccgga ggcaccgcct tgcgctgccc ccgtcgagcc ggttggacac caaaagggag 8761 gggcaggcat ggcggcatac gcgatcatgc gatgcaagaa gctggcgaaa atgggcaacg 8821 tggcggccag tctcaagcac gcctaccgcg agcgcgagac gcccaacgct gacgccagca 8881 ggacgccaga gaacgagcac tgggcggcca gcagcaccga tgaagcgatg ggccgactgc 8941 gcgagttgct gccagagaag cggcgcaagg acgctgtgtt ggcggtcgag tacgtcatga 9001 cggccagccc ggaatggtgg aagtcggcca gccaagaaca gcaggcggcg ttcttcgaga 9061 aggcgcacaa gtggctggcg gacaagtacg gggcggatcg catcgtgacg gccagcatcc 9121 accgtgacga aaccagcccg cacatgaccg cgttcgtggt gccgctgacg caggacggca 9181 ggctgtcggc caaggagttc atcggcaaca aagcgcagat gacccgcgac cagaccacgt 9241 ttgcggccgc tgtggccgat ctagggctgc aacggggcat cgagggcagc aaggcacgtc 9301 acacgcgcat tcaggcgttc tacgaggccc tggagcggcc accagtgggc cacgtcacca 9361 tcagcccgca agcggtcgag ccacgcgcct atgcaccgca gggattggcc gaaaagctgg 9421 gaatctcaaa gcgcgttgag acgccggaag ccgtggccga ccggctgaca aaagcggttc 9481 ggcaggggta tgagcctgcc ctacaggccg ccgcaggagc gcgtgagatg cgcaagaagg 9541 ccgatcaagc ccaagagacg gcccgagacc ttcgggagcg cctgaagccc gttctggacg 9601 ccctggggcc gttgaatcgg gatatgcagg ccaaggccgc cgcgatcatc aaggccgtgg 9661 gcgaaaagct gctgacggaa cagcgggaag tccagcgcca gaaacaggcc cagcgccagc 9721 aggaacgcgg gcgcgcacat ttccccgaaa agtgccacct ggattttggt catgagatta 9781 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa 9841 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc 9901 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact 9961 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc 10021 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt 10081 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta 10141 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg 10201 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt 10261 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc 10321 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt 10381 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc 10441 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc 10501 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa 10561 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac 10621 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa 10681 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt 10741 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa 10801 t //
