pBY2982

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pBY2982
出品公司: addgene
目录编号: 23220
存储实验室: Ralf Baumeister

载体骨架基本信息
载体名称: EGFP-N1
载体出品公司: Clontech
空载体大小: 3992bp
完整质粒大小: 5702 bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
载体抗性: Kanamycin
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: BirA-mCherry
物种来源: Top10 E.coli, Discosoma sp.
克隆方法: 限制性内切酶
5’克隆位点: BamHI(未破坏)
3’克隆位点: NotI (未破坏)
5’测序引物 CGCAAATGGGCGGTAGGCGTG

文献引用方法
材料和方法部分: pBY2982 was a gift from Ralf Baumeister (Addgene plasmid # 23220 ; http://n2t.net/addgene:23220 ; RRID:Addgene_23220)
参考文献部分: SnAvi - a new tandem tag for high-affinity protein-complex purification. Schaffer U, Schlosser A, Muller KM, Schafer A, Katava N, Baumeister R, Schulze E. Nucleic Acids Res. 2010 Jan 4. ():. 10.1093/nar/gkp1178 PubMed 20047968

载体图谱质粒图谱和多克隆位点信息

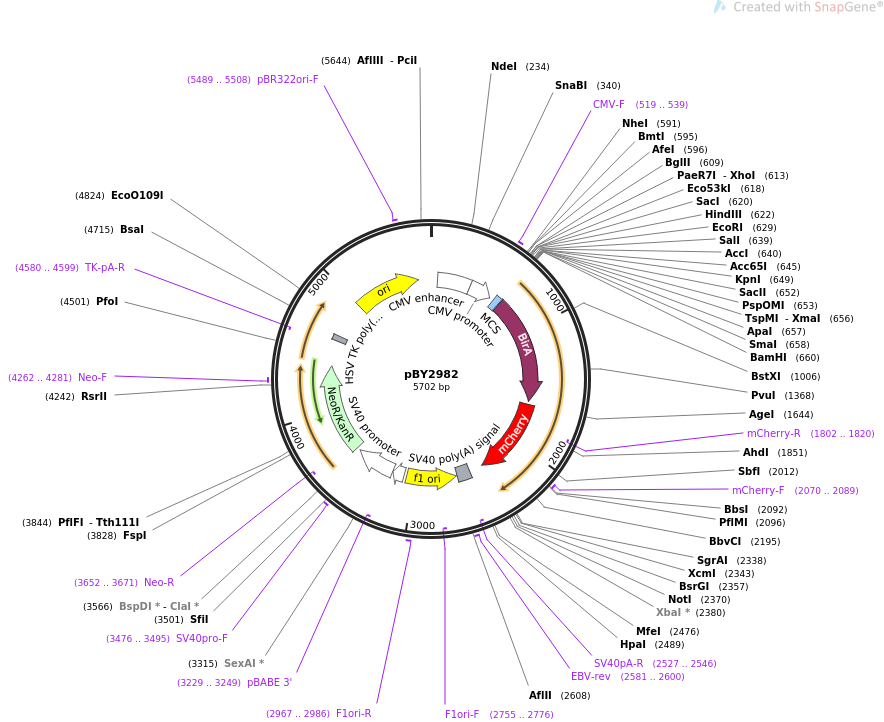

pBY2982质粒图谱

载体简介

载体序列

LOCUS       pBY2982                5702 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pBY2982
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5702)
  AUTHORS   Schaffer U, Schlosser A, Muller KM, Schafer A, Katava N, Baumeister
            R, Schulze E
  TITLE     SnAvi - a new tandem tag for high-affinity protein-complex
            purification.
  JOURNAL   Nucleic Acids Res. 2010 Jan 4. ():.
  PUBMED    20047968
REFERENCE   2  (bases 1 to 5702)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5702
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     misc_feature    609..665
                     /label=MCS
                     /note="multiple cloning site"
     CDS             667..1629
                     /codon_start=1
                     /gene="birA"
                     /product="E. coli biotin protein ligase"
                     /label=BirA
                     /translation="MKDNTVPLKLIALLANGEFHSGEQLGETLGMSRAAINKHIQTLRD
                     WGVDVFTVPGKGYSLPEPIQLLNAKQILGQLDGGSVAVLPVIDSTNQYLLDRIGELKSG
                     DACIAEYQQAGRGRRGRKWFSPFGANLYLSMFWRLEQGPAAAIGLSLVIGIVMAEVLRK
                     LGADKVRVKWPNDLYLQDRKLAGILVELTGKTGDAAQIVIGAGINMAMRRVEESVVNQG
                     WITLQEAGINLDRNTLAAMLIRELRAALELFEQEGLAPYLSRWEKLDNFINRPVKLIIG
                     DKEIFGISRGIDKQGALLLEQDGIIKPWMGGEISLRSAEK"
     regulatory      1651..1660
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1657..2367
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1802..1820)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     2070..2089
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     polyA_signal    2490..2611
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2527..2546)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2581..2600
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2618..3073)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2755..2776)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2967..2986
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        3100..3204
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3206..3563
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(3229..3249)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3414..3549
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3476..3495
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3598..4392
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3652..3671)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4262..4281
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4580..4599)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4624..4671
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      5000..5588
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5489..5508
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
      661 gatccaatga aggataacac cgtgccactg aaattgattg ccctgttagc gaacggtgaa
      721 tttcactctg gcgagcagtt gggtgaaacg ctgggaatga gccgggcggc tattaataaa
      781 cacattcaga cactgcgtga ctggggcgtt gatgtcttta ccgttccggg taaaggatac
      841 agcctgcctg agcctatcca gttacttaat gctaaacaga tattgggtca gctggatggc
      901 ggtagtgtag ccgtgctgcc agtgattgac tccacgaatc agtaccttct tgatcgtatc
      961 ggagagctta aatcgggcga tgcttgcatt gcagaatacc agcaggctgg ccgtggtcgc
     1021 cggggtcgga aatggttttc gccttttggc gcaaacttat atttgtcgat gttctggcgt
     1081 ctggaacaag gcccggcggc ggcgattggt ttaagtctgg ttatcggtat cgtgatggcg
     1141 gaagtattac gcaagctggg tgcagataaa gttcgtgtta aatggcctaa tgacctctat
     1201 ctgcaggatc gcaagctggc aggcattctg gtggagctga ctggcaaaac tggcgatgcg
     1261 gcgcaaatag tcattggagc cgggatcaac atggcaatgc gccgtgttga agagagtgtc
     1321 gttaatcagg ggtggatcac gctgcaggaa gcggggatca atctcgatcg taatacgttg
     1381 gcggccatgc taatacgtga attacgtgct gcgttggaac tcttcgaaca agaaggattg
     1441 gcaccttatc tgtcgcgctg ggaaaagctg gataatttta ttaatcgccc agtgaaactt
     1501 atcattggtg ataaagaaat atttggcatt tcacgcggaa tagacaaaca gggggcttta
     1561 ttacttgagc aggatggaat aataaaaccc tggatgggcg gtgaaatatc cctgcgtagt
     1621 gcagaaaaaa ggagcatcgc cacaccggtc gccaccatgg tgagcaaggg cgaggaggat
     1681 aacatggcca tcatcaagga gttcatgcgc ttcaaggtgc acatggaggg ctccgtgaac
     1741 ggccacgagt tcgagatcga gggcgagggc gagggccgcc cctacgaggg cacccagacc
     1801 gccaagctga aggtgaccaa gggtggcccc ctgcccttcg cctgggacat cctgtcccct
     1861 cagttcatgt acggctccaa ggcctacgtg aagcaccccg ccgacatccc cgactacttg
     1921 aagctgtcct tccccgaggg cttcaagtgg gagcgcgtga tgaacttcga ggacggcggc
     1981 gtggtgaccg tgacccagga ctcctccctg caggacggcg agttcatcta caaggtgaag
     2041 ctgcgcggca ccaacttccc ctccgacggc cccgtaatgc agaagaagac catgggctgg
     2101 gaggcctcct ccgagcggat gtaccccgag gacggcgccc tgaagggcga gatcaagcag
     2161 aggctgaagc tgaaggacgg cggccactac gacgctgagg tcaagaccac ctacaaggcc
     2221 aagaagcccg tgcagctgcc cggcgcctac aacgtcaaca tcaagttgga catcacctcc
     2281 cacaacgagg actacaccat cgtggaacag tacgaacgcg ccgagggccg ccactccacc
     2341 ggcggcatgg acgagctgta caagtaaagc ggccgcgact ctagatcata atcagccata
     2401 ccacatttgt agaggtttta cttgctttaa aaaacctccc acacctcccc ctgaacctga
     2461 aacataaaat gaatgcaatt gttgttgtta acttgtttat tgcagcttat aatggttaca
     2521 aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt
     2581 gtggtttgtc caaactcatc aatgtatctt aaggcgtaaa ttgtaagcgt taatattttg
     2641 ttaaaattcg cgttaaattt ttgttaaatc agctcatttt ttaaccaata ggccgaaatc
     2701 ggcaaaatcc cttataaatc aaaagaatag accgagatag ggttgagtgt tgttccagtt
     2761 tggaacaaga gtccactatt aaagaacgtg gactccaacg tcaaagggcg aaaaaccgtc
     2821 tatcagggcg atggcccact acgtgaacca tcaccctaat caagtttttt ggggtcgagg
     2881 tgccgtaaag cactaaatcg gaaccctaaa gggagccccc gatttagagc ttgacgggga
     2941 aagccggcga acgtggcgag aaaggaaggg aagaaagcga aaggagcggg cgctagggcg
     3001 ctggcaagtg tagcggtcac gctgcgcgta accaccacac ccgccgcgct taatgcgccg
     3061 ctacagggcg cgtcaggtgg cacttttcgg ggaaatgtgc gcggaacccc tatttgttta
     3121 tttttctaaa tacattcaaa tatgtatccg ctcatgagac aataaccctg ataaatgctt
     3181 caataatatt gaaaaaggaa gagtcctgag gcggaaagaa ccagctgtgg aatgtgtgtc
     3241 agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc
     3301 tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     3361 aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg cccatcccgc
     3421 ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt ttttttattt
     3481 atgcagaggc cgaggccgcc tcggcctctg agctattcca gaagtagtga ggaggctttt
     3541 ttggaggcct aggcttttgc aaagatcgat caagagacag gatgaggatc gtttcgcatg
     3601 attgaacaag atggattgca cgcaggttct ccggccgctt gggtggagag gctattcggc
     3661 tatgactggg cacaacagac aatcggctgc tctgatgccg ccgtgttccg gctgtcagcg
     3721 caggggcgcc cggttctttt tgtcaagacc gacctgtccg gtgccctgaa tgaactgcaa
     3781 gacgaggcag cgcggctatc gtggctggcc acgacgggcg ttccttgcgc agctgtgctc
     3841 gacgttgtca ctgaagcggg aagggactgg ctgctattgg gcgaagtgcc ggggcaggat
     3901 ctcctgtcat ctcaccttgc tcctgccgag aaagtatcca tcatggctga tgcaatgcgg
     3961 cggctgcata cgcttgatcc ggctacctgc ccattcgacc accaagcgaa acatcgcatc
     4021 gagcgagcac gtactcggat ggaagccggt cttgtcgatc aggatgatct ggacgaagag
     4081 catcaggggc tcgcgccagc cgaactgttc gccaggctca aggcgagcat gcccgacggc
     4141 gaggatctcg tcgtgaccca tggcgatgcc tgcttgccga atatcatggt ggaaaatggc
     4201 cgcttttctg gattcatcga ctgtggccgg ctgggtgtgg cggaccgcta tcaggacata
     4261 gcgttggcta cccgtgatat tgctgaagag cttggcggcg aatgggctga ccgcttcctc
     4321 gtgctttacg gtatcgccgc tcccgattcg cagcgcatcg ccttctatcg ccttcttgac
     4381 gagttcttct gagcgggact ctggggttcg aaatgaccga ccaagcgacg cccaacctgc
     4441 catcacgaga tttcgattcc accgccgcct tctatgaaag gttgggcttc ggaatcgttt
     4501 tccgggacgc cggctggatg atcctccagc gcggggatct catgctggag ttcttcgccc
     4561 accctagggg gaggctaact gaaacacgga aggagacaat accggaagga acccgcgcta
     4621 tgacggcaat aaaaagacag aataaaacgc acggtgttgg gtcgtttgtt cataaacgcg
     4681 gggttcggtc ccagggctgg cactctgtcg ataccccacc gagaccccat tggggccaat
     4741 acgcccgcgt ttcttccttt tccccacccc accccccaag ttcgggtgaa ggcccagggc
     4801 tcgcagccaa cgtcggggcg gcaggccctg ccatagcctc aggttactca tatatacttt
     4861 agattgattt aaaacttcat ttttaattta aaaggatcta ggtgaagatc ctttttgata
     4921 atctcatgac caaaatccct taacgtgagt tttcgttcca ctgagcgtca gaccccgtag
     4981 aaaagatcaa aggatcttct tgagatcctt tttttctgcg cgtaatctgc tgcttgcaaa
     5041 caaaaaaacc accgctacca gcggtggttt gtttgccgga tcaagagcta ccaactcttt
     5101 ttccgaaggt aactggcttc agcagagcgc agataccaaa tactgtcctt ctagtgtagc
     5161 cgtagttagg ccaccacttc aagaactctg tagcaccgcc tacatacctc gctctgctaa
     5221 tcctgttacc agtggctgct gccagtggcg ataagtcgtg tcttaccggg ttggactcaa
     5281 gacgatagtt accggataag gcgcagcggt cgggctgaac ggggggttcg tgcacacagc
     5341 ccagcttgga gcgaacgacc tacaccgaac tgagatacct acagcgtgag ctatgagaaa
     5401 gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc ggtaagcggc agggtcggaa
     5461 caggagagcg cacgagggag cttccagggg gaaacgcctg gtatctttat agtcctgtcg
     5521 ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg ctcgtcaggg gggcggagcc
     5581 tatggaaaaa cgccagcaac gcggcctttt tacggttcct ggccttttgc tggccttttg
     5641 ctcacatgtt ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgccatgc
     5701 at
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
