pBiFC-VC155

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pBiFC-VC155
出品公司: 爱迪基因
目录编号: 22011
存储实验室: Chang-Deng Hu

载体骨架基本信息
载体名称: pCMV-HA
载体抗性: 氨苄霉素
空载体大小: 3836 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: VC155
物种来源: 维多利亚水母
插入大小: 252 bp
基因突变: Changed Alanine 206 to Lysine
标签/融合蛋白: HA(N端)
克隆方法: 限制性内切酶
5' 克隆位点: KpnI(未破坏)
3' 克隆位点: NotI (未破坏)
5' 测序引物 CMV-F
3' 测序引物 EBV-Rev

文献引用方法
材料和方法部分: pBiFC-VC155 was a gift from Chang-Deng Hu (Addgene plasmid # 22011)
参考文献部分: Identification of new fluorescent protein fragments for bimolecular fluorescence complementation analysis under physiological conditions. Shyu YJ, Liu H, Deng X, Hu CD. Biotechniques. 2006 Jan . 40(1):61-6. 10.2144/000112036 PubMed 16454041

载体图谱质粒图谱和多克隆位点信息

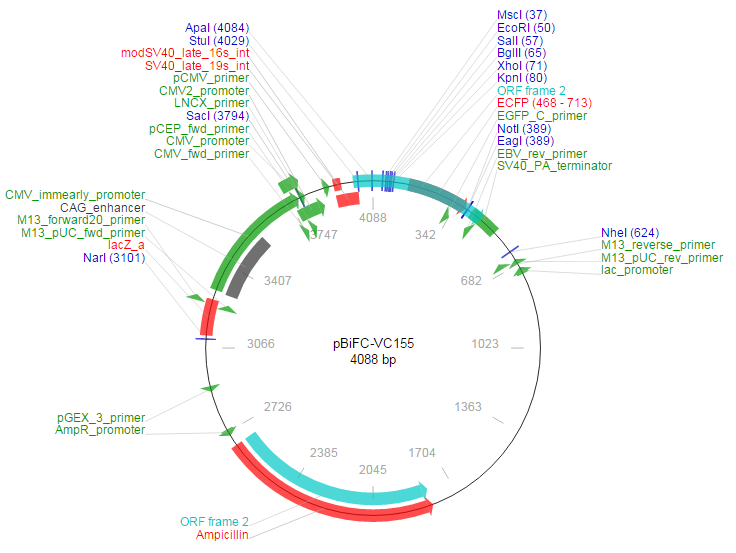

pBiFC-VC155载体图谱

载体简介

载体序列

LOCUS       pBiFC-VC155	4088 bp 	DNA	SYN
DEFINITION  pBiFC-VC155
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4088
                     /organism="pBiFC-VC155"
                     /mol_type="other DNA"
     gene            139..384
                     /label="ECFP (468 - 713)"
                     /gene="ECFP (468 - 713)"
     misc_feature    321..342
                     /label="EGFP_C_primer"
     terminator      complement(409..528)
                     /label="SV40_PA_terminator"
     misc_feature    complement(423..442)
                     /label="EBV_rev_primer"
     promoter        complement(640..658)
                     /label="M13_reverse_primer"
     misc_feature    complement(657..679)
                     /label="M13_pUC_rev_primer"
     promoter        complement(693..722)
                     /label="lac_promoter"
     gene            complement(1805..2665)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(1805..2665)
                     /label="ORF frame 2"
     promoter        complement(2707..2735)
                     /label="AmpR_promoter"
     misc_feature    complement(2894..2916)
                     /label="pGEX_3_primer"
     misc_feature    complement(3115..3258)
                     /label="lacZ_a"
     misc_feature    3229..3251
                     /label="M13_pUC_fwd_primer"
     promoter        3244..3260
                     /label="M13_forward20_primer"
     misc_feature    3291..3578
                     /label="CAG_enhancer"
     promoter        3296..3788
                     /label="CMV_immearly_promoter"
     misc_feature    3745..3765
                     /label="CMV_fwd_primer"
     promoter        3746..3815
                     /label="CMV_promoter"
     promoter        3758..3877
                     /label="CMV2_promoter"
     misc_feature    3789..3808
                     /label="pCEP_fwd_primer"
     misc_feature    3791..3815
                     /label="LNCX_primer"
     misc_feature    3891..3917
                     /label="pCMV_primer"
     misc_feature    3932..3962
                     /label="SV40_late_19s_int"
     misc_feature    3932..4028
                     /label="modSV40_late_16s_int"
     CDS             4010..458
                     /label="ORF frame 2"
ORIGIN
    1 ATGTACCCAT ACGATGTTCC AGATTACGCT CTTATGGCCA TGGAGGCCCG AATTCGGTCG
   61 ACCGAGATCT CTCGAGGTAC CCGTCCGGCG TGCAAAATCC CGAACGACCT GAAACAGAAA
  121 GTCATGAACC ACGACAAGCA GAAGAACGGC ATCAAGGCCA ACTTCAAGAT CCGCCACAAC
  181 ATCGAGGACG GCGGCGTGCA GCTCGCCGAC CACTACCAGC AGAACACCCC CATCGGCGAC
  241 GGCCCCGTGC TGCTGCCCGA CAACCACTAC CTGAGCTACC AGTCCAAACT GAGCAAAGAC
  301 CCCAACGAGA AGCGCGATCA CATGGTCCTG CTGGAGTTCG TGACCGCCGC CGGGATCACT
  361 CTCGGCATGG ACGAGCTGTA CAAGTAAGCG GCCGCGGGGA TCCAGACATG ATAAGATACA
  421 TTGATGAGTT TGGACAAACC ACAACTAGAA TGCAGTGAAA AAAATGCTTT ATTTGTGAAA
  481 TTTGTGATGC TATTGCTTTA TTTGTAACCA TTATAAGCTG CAATAAACAA GTTAACAACA
  541 ACAATTGCAT TCATTTTATG TTTCAGGTTC AGGGGGAGGT GTGGGAGGTT TTTTCGGATC
  601 CTCTAGAGTC GATCTGCAGG CATGCTAGCT TGGCGTAATC ATGGTCATAG CTGTTTCCTG
  661 TGTGAAATTG TTATCCGCTC ACAATTCCAC ACAACATACG AGCCGGAAGC ATAAAGTGTA
  721 AAGCCTGGGG TGCCTAATGA GTGAGCTAAC TCACATTAAT TGCGTTGCGC TCACTGCCCG
  781 CTTTCCAGTC GGGAAACCTG TCGTGCCAGC TGCATTAATG AATCGGCCAA CGCGCGGGGA
  841 GAGGCGGTTT GCGTATTGGG CGCTCTTCCG CTTCCTCGCT CACTGACTCG CTGCGCTCGG
  901 TCGTTCGGCT GCGGCGAGCG GTATCAGCTC ACTCAAAGGC GGTAATACGG TTATCCACAG
  961 AATCAGGGGA TAACGCAGGA AAGAACATGT GAGCAAAAGG CCAGCAAAAG GCCAGGAACC
 1021 GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC GAGCATCACA
 1081 AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA TACCAGGCGT
 1141 TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT ACCGGATACC
 1201 TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA TAGCTCACGC TGTAGGTATC
 1261 TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC CCCGTTCAGC
 1321 CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA AGACACGACT
 1381 TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT GTAGGCGGTG
 1441 CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGGACA GTATTTGGTA
 1501 TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT TGATCCGGCA
 1561 AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT ACGCGCAGAA
 1621 AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT CAGTGGAACG
 1681 AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC ACCTAGATCC
 1741 TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA ACTTGGTCTG
 1801 ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA TTTCGTTCAT
 1861 CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC TTACCATCTG
 1921 GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT TTATCAGCAA
 1981 TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA TCCGCCTCCA
 2041 TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT AATAGTTTGC
 2101 GCAACGTTGT TGCCATTGCT ACAGGCATCG TGGTGTCACG CTCGTCGTTT GGTATGGCTT
 2161 CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG TTGTGCAAAA
 2221 AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC GCAGTGTTAT
 2281 CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC GTAAGATGCT
 2341 TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG CGGCGACCGA
 2401 GTTGCTCTTG CCCGGCGTCA ATACGGGATA ATACCGCGCC ACATAGCAGA ACTTTAAAAG
 2461 TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA CCGCTGTTGA
 2521 GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT TTTACTTTCA
 2581 CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG GGAATAAGGG
 2641 CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTCA ATATTATTGA AGCATTTATC
 2701 AGGGTTATTG TCTCATGAGC GGATACATAT TTGAATGTAT TTAGAAAAAT AAACAAATAG
 2761 GGGTTCCGCG CACATTTCCC CGAAAAGTGC CACCTGACGT CTAAGAAACC ATTATTATCA
 2821 TGACATTAAC CTATAAAAAT AGGCGTATCA CGAGGCCCTT TCGTCTCGCG CGTTTCGGTG
 2881 ATGACGGTGA AAACCTCTGA CACATGCAGC TCCCGGAGAC GGTCACAGCT TGTCTGTAAG
 2941 CGGATGCCGG GAGCAGACAA GCCCGTCAGG GCGCGTCAGC GGGTGTTGGC GGGTGTCGGG
 3001 GCTGGCTTAA CTATGCGGCA TCAGAGCAGA TTGTACTGAG AGTGCACCAT ATGCGGTGTG
 3061 AAATACCGCA CAGATGCGTA AGGAGAAAAT ACCGCATCAG GCGCCATTCG CCATTCAGGC
 3121 TGCGCAACTG TTGGGAAGGG CGATCGGTGC GGGCCTCTTC GCTATTACGC CAGCTGGCGA
 3181 AAGGGGGATG TGCTGCAAGG CGATTAAGTT GGGTAACGCC AGGGTTTTCC CAGTCACGAC
 3241 GTTGTAAAAC GACGGCCAGT GAGTTCGAGC TTGCATGCCT GCAGGTCGTT ACATAACTTA
 3301 CGGTAAATGG CCCGCCTGGC TGACCGCCCA ACGACCCCCG CCCATTGACG TCAATAATGA
 3361 CGTATGTTCC CATAGTAACG CCAATAGGGA CTTTCCATTG ACGTCAATGG GTGGAGTATT
 3421 TACGGTAAAC TGCCCACTTG GCAGTACATC AAGTGTATCA TATGCCAAGT ACGCCCCCTA
 3481 TTGACGTCAA TGACGGTAAA TGGCCCGCCT GGCATTATGC CCAGTACATG ACCTTATGGG
 3541 ACTTTCCTAC TTGGCAGTAC ATCTACGTAT TAGTCATCGC TATTACCATG GTGATGCGGT
 3601 TTTGGCAGTA CATCAATGGG CGTGGATAGC GGTTTGACTC ACGGGGATTT CCAAGTCTCC
 3661 ACCCCATTGA CGTCAATGGG AGTTTGTTTT GGCACCAAAA TCAACGGGAC TTTCCAAAAT
 3721 GTCGTAACAA CTCCGCCCCA TTGACGCAAA TGGGCGGTAG GCGTGTACGG TGGGAGGTCT
 3781 ATATAAGCAG AGCTCGTTTA GTGAACCGTC AGATCGCCTG GAGACGCCAT CCACGCTGTT
 3841 TTGACCTCCA TAGAAGACAC CGGGACCGAT CCAGCCTCCG GACTCTAGAG GATCCGGTAC
 3901 TAGAGGAACT GAAAAACCAG AAAGTTAACT GGTAAGTTTA GTCTTTTTGT CTTTTATTTC
 3961 AGGTCCCGGA TCCGGTGGTG GTGCAAATCA AAGAACTGCT CCTCAGTGGA TGTTGCCTTT
 4021 ACTTCTAGGC CTGTACGGAA GTGTTACTTC TGCTCTAAAA GCTGCGGAAT TGTACCCGCG
 4081 GGCCCACC
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
