pC016-LwCas13a guide expression backbone with U6 promoter

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pC016-LwCas13a guide expression backbone with U6 promoter
出品公司: Addgene
目录编号: 91906
存储实验室: Vladislav Verkhusha

载体骨架基本信息
载体名称:  pUC19
载体抗性: 氨苄霉素
空载体大小: 2850 bp
完整质粒大小: 2908 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: LwCas13a Guide site
物种来源: 合成
插入大小: 58 bp

文献引用方法
材料和方法部分:   pC016 - LwCas13a guide expression backbone with U6 promoter was a gift from Feng Zhang (Addgene plasmid # 91906 ; http://n2t.net/addgene:91906 ; RRID:Addgene_91906)
参考文献部分:
RNA targeting with CRISPR-Cas13. Abudayyeh OO, Gootenberg JS, Essletzbichler P, Han S, Joung J, Belanto JJ, Verdine V, Cox DBT, Kellner MJ, Regev A, Lander ES, Voytas DF, Ting AY, Zhang F. Nature. 2017 Oct 4. doi: 10.1038/nature24049. 10.1038/nature24049 PubMed 28976959

载体图谱质粒图谱和多克隆位点信息

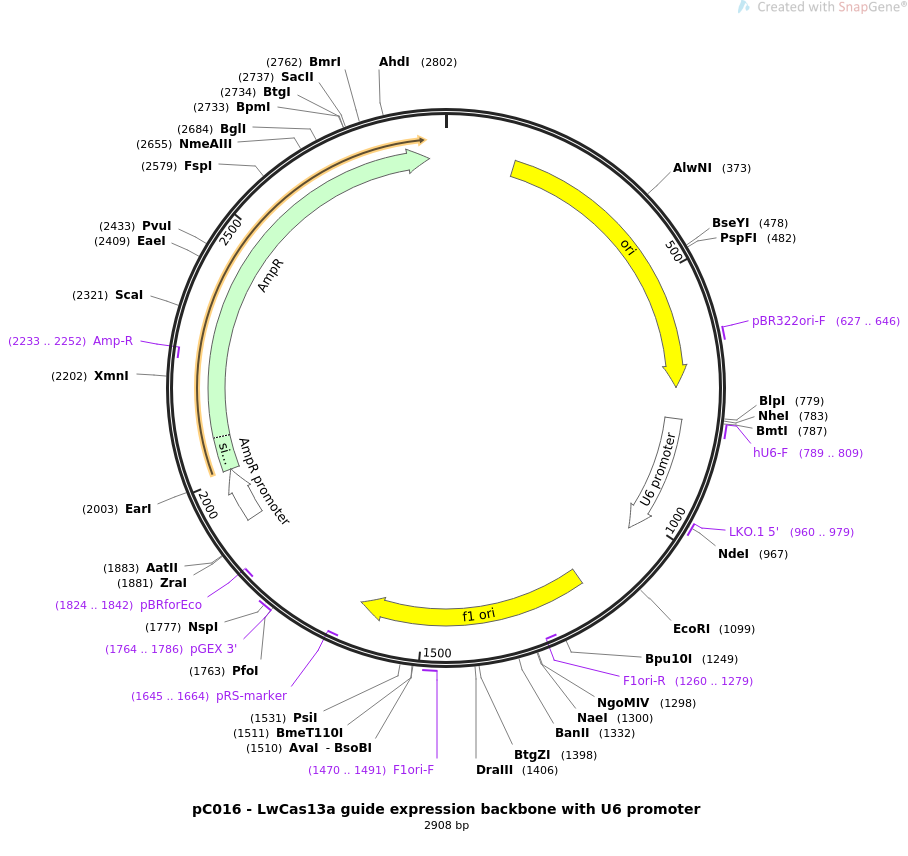

pC016-LwCas13a guide expression backbone with U6 promoter质粒图谱

载体简介

载体序列

LOCUS       pC016-LwCas13a guide expression backbone with U6 promoter                2908 bp ds-DNA     circular SYN 21-JUL-2020
DEFINITION  Backbone for cloning LwCas13a guides under U6 promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pC016 - LwCas13a guide expression backbone with U6 promoter
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2908)
  AUTHORS   Abudayyeh OO, Gootenberg JS, Essletzbichler P, Han S, Joung J,
            Belanto JJ, Verdine V, Cox DBT, Kellner MJ, Regev A, Lander ES,
            Voytas DF, Ting AY, Zhang F
  TITLE     RNA targeting with CRISPR-Cas13.
  JOURNAL   Nature. 2017 Oct 4. doi: 10.1038/nature24049.
  PUBMED    28976959
REFERENCE   2  (bases 1 to 2908)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 21, 2020 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..2908
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      138..726
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     627..646
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     promoter        789..1029
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     789..809
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     960..979
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     rep_origin      1173..1628
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1260..1279)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     1470..1491
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(1645..1664)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     1764..1786
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(1824..1842)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        1910..2014
                     /gene="bla"
                     /label=AmpR promoter
     CDS             2015..2875
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(2233..2252)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
ORIGIN
        1 attgatttaa aacttcattt ttaatttaaa aggatctagg tgaagatcct ttttgataat
       61 ctcatgacca aaatccctta acgtgagttt tcgttccact gagcgtcaga ccccgtagaa
      121 aagatcaaag gatcttcttg agatcctttt tttctgcgcg taatctgctg cttgcaaaca
      181 aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc aagagctacc aactcttttt
      241 ccgaaggtaa ctggcttcag cagagcgcag ataccaaata ctgttcttct agtgtagccg
      301 tagttaggcc accacttcaa gaactctgta gcaccgccta catacctcgc tctgctaatc
      361 ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt ggactcaaga
      421 cgatagttac cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg cacacagccc
      481 agcttggagc gaacgaccta caccgaactg agatacctac agcgtgagct atgagaaagc
      541 gccacgcttc ccgaagggag aaaggcggac aggtatccgg taagcggcag ggtcggaaca
      601 ggagagcgca cgagggagct tccaggggga aacgcctggt atctttatag tcctgtcggg
      661 tttcgccacc tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg gcggagccta
      721 tggaaaaacg ccagcaacgc ggccttttta cggttcctgg ccttttgctg gccttttgct
      781 cagctagcga gggcctattt cccatgattc cttcatattt gcatatacga tacaaggctg
      841 ttagagagat aattggaatt aatttgactg taaacacaaa gatattagta caaaatacgt
      901 gacgtagaaa gtaataattt cttgggtagt ttgcagtttt aaaattatgt tttaaaatgg
      961 actatcatat gcttaccgta acttgaaagt atttcgattt cttggcttta tatatcttgt
     1021 ggaaaggacg aaacaccgat ttagactacc ccaaaaacga aggggactaa aacgggtctt
     1081 cgagaagacc ttttttttga attctgatgc ggtattttct ccttacgcat ctgtgcggta
     1141 tttcacaccg catacgtcaa agcaaccata gtacgcgccc tgtagcggcg cattaagcgc
     1201 ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt gccagcgcct tagcgcccgc
     1261 tcctttcgct ttcttccctt cctttctcgc cacgttcgcc ggctttcccc gtcaagctct
     1321 aaatcggggg ctccctttag ggttccgatt tagtgcttta cggcacctcg accccaaaaa
     1381 acttgatttg ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg tttttcgccc
     1441 tttgacgttg gagtccacgt tctttaatag tggactcttg ttccaaactg gaacaacact
     1501 caactctatc tcgggctatt cttttgattt ataagggatt ttgccgattt cggtctattg
     1561 gttaaaaaat gagctgattt aacaaaaatt taacgcgaat tttaacaaaa tattaacgtt
     1621 tacaatttta tggtgcactc tcagtacaat ctgctctgat gccgcatagt taagccagcc
     1681 ccgacacccg ccaacacccg ctgacgcgcc ctgacgggct tgtctgctcc cggcatccgc
     1741 ttacagacaa gctgtgaccg tctccgggag ctgcatgtgt cagaggtttt caccgtcatc
     1801 accgaaacgc gcgagacgaa agggcctcgt gatacgccta tttttatagg ttaatgtcat
     1861 gataataatg gtttcttaga cgtcaggtgg cacttttcgg ggaaatgtgc gcggaacccc
     1921 tatttgttta tttttctaaa tacattcaaa tatgtatccg ctcatgagac aataaccctg
     1981 ataaatgctt caataatatt gaaaaaggaa gagtatgagt attcaacatt tccgtgtcgc
     2041 ccttattccc ttttttgcgg cattttgcct tcctgttttt gctcacccag aaacgctggt
     2101 gaaagtaaaa gatgctgaag atcagttggg tgcacgagtg ggttacatcg aactggatct
     2161 caacagcggt aagatccttg agagttttcg ccccgaagaa cgttttccaa tgatgagcac
     2221 ttttaaagtt ctgctatgtg gcgcggtatt atcccgtatt gacgccgggc aagagcaact
     2281 cggtcgccgc atacactatt ctcagaatga cttggttgag tactcaccag tcacagaaaa
     2341 gcatcttacg gatggcatga cagtaagaga attatgcagt gctgccataa ccatgagtga
     2401 taacactgcg gccaacttac ttctgacaac gatcggagga ccgaaggagc taaccgcttt
     2461 tttgcacaac atgggggatc atgtaactcg ccttgatcgt tgggaaccgg agctgaatga
     2521 agccatacca aacgacgagc gtgacaccac gatgcctgta gcaatggcaa caacgttgcg
     2581 caaactatta actggcgaac tacttactct agcttcccgg caacaattaa tagactggat
     2641 ggaggcggat aaagttgcag gaccacttct gcgctcggcc cttccggctg gctggtttat
     2701 tgctgataaa tctggagccg gtgagcgtgg aagccgcggt atcattgcag cactggggcc
     2761 agatggtaag ccctcccgta tcgtagttat ctacacgacg gggagtcagg caactatgga
     2821 tgaacgaaat agacagatcg ctgagatagg tgcctcactg attaagcatt ggtaactgtc
     2881 agaccaagtt tactcatata tactttag
//

载体图谱质粒图谱pdf版和相关资料下载
