pCAG-Flpe

价格:1000元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG-Flpe
出品公司: 爱迪基因
目录编号: 13787
存储实验室: Connie Cepko

载体骨架基本信息
载体名称: pCAGEN
载体抗性: 氨苄霉素
空载体大小: 4779 bp
完整质粒大小: 6111 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Flpe
物种来源: S. cerevisiae (芽殖酵母)
插入大小: 1332 bp
基因又名: enhanced form of Flp recombinase
标签/融合蛋白: Myc (C terminal on insert)
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未破坏)
3' 克隆位点: NotI(未破坏)
5' 测序引物 pCAG-F
3' 测序引物 Bglob-pA-R

文献引用方法
材料和方法部分: pCAG-Flpe was a gift from Connie Cepko (爱迪基因 plasmid # 13787)
参考文献部分: Controlled expression of transgenes introduced by in vivo electroporation. Matsuda T, Cepko CL. Proc Natl Acad Sci U S A. 2007 Jan 5. ():. 10.1073/pnas.0610155104 PubMed 17209010

载体图谱质粒图谱和多克隆位点信息

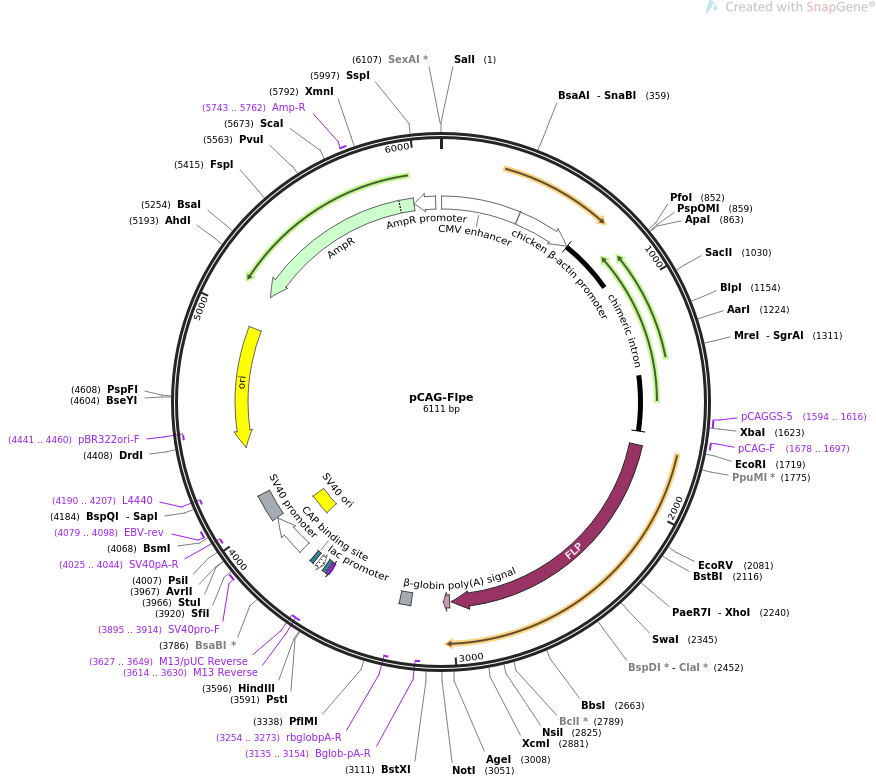

pCAG-Flpe质粒图谱

载体简介

载体序列

LOCUS       pCAG-Flpe                6111 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  Mammalian expression of enhanced form of Flp recombinase.
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-Flpe
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6111)
  AUTHORS   Matsuda T, Cepko CL
  TITLE     Controlled expression of transgenes introduced by in vivo
            electroporation.
  JOURNAL   Proc Natl Acad Sci U S A. 2007 Jan 5. ():.
  PUBMED    17209010
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pCAG-Flpe|
FEATURES             Location/Qualifiers
     source          1..6111
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     CDS             1737..3005
                     /codon_start=1
                     /product="site-specific recombinase"
                     /label=FLP
                     /note="FLP is a site-specific recombinase from
                     Saccharomyces cerevisiae. Recombination occurs at FRT
                     sequences."
                     /translation="MSQFDILCKTPPKVLVRQFVERFERPSGEKIASCAAELTYLCWMI
                     THNGTAIKRATFMSYNTIISNSLSFDIVNKSLQFKYKTQKATILEASLKKLIPAWEFTI
                     IPYNGQKHQSDITDIVSSLQLQFESSEEADKGNSHSKKMLKALLSEGESIWEITEKILN
                     SFEYTSRFTKTKTLYQFLFLATFINCGRFSDIKNVDPKSFKLVQNKYLGVIIQCLVTET
                     KTSVSRHIYFFSARGRIDPLVYLDEFLRNSEPVLKRVNRTGNSSSNKQEYQLLKDNLVR
                     SYNKALKKNAPYPIFAIKNGPKSHIGRHLMTSFLSMKGLTELTNVVGNWSDKRASAVAR
                     TTYTHQITAIPDHYFALVSRYYAYDPISKEMIALKDETNPIEEWQHIEQLKGSAEGSIR
                     YPAWNGIISQEVLDYLSSYINRRI"
     CDS             3015..3044
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     primer_bind     complement(3135..3154)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_site      3200..3255
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal"
     primer_bind     complement(3254..3273)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(3614..3630)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3614..3630)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3627..3649)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3638..3654
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3662..3692)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3707..3728
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3787..3982
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      3833..3968
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3895..3914
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    3988..4122
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4025..4044)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4079..4098
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(4190..4207)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4361..4949)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4441..4460)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5120..5980)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5743..5762
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5981..6085)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attctgagcc gccaccatga
     1741 gccaatttga tatattatgt aaaacaccac ctaaggtcct ggttcgtcag tttgtggaaa
     1801 ggtttgaaag accttcaggg gaaaaaatag catcatgtgc tgctgaacta acctatttat
     1861 gttggatgat tactcataac ggaacagcaa tcaagagagc cacattcatg agctataata
     1921 ctatcataag caattcgctg agtttcgata ttgtcaacaa atcactccag tttaaataca
     1981 agacgcaaaa agcaacaatt ctggaagcct cattaaagaa attaattcct gcttgggaat
     2041 ttacaattat tccttacaat ggacaaaaac atcaatctga tatcactgat attgtaagta
     2101 gtttgcaatt acagttcgaa tcatcggaag aagcagataa gggaaatagc cacagtaaaa
     2161 aaatgcttaa agcacttcta agtgagggtg aaagcatctg ggagatcact gagaaaatac
     2221 taaattcgtt tgagtatacc tcgagattta caaaaacaaa aactttatac caattcctct
     2281 tcctagctac tttcatcaat tgtggaagat tcagcgatat taagaacgtt gatccgaaat
     2341 catttaaatt agtccaaaat aagtatctgg gagtaataat ccagtgttta gtgacagaga
     2401 caaagacaag cgttagtagg cacatatact tctttagcgc aaggggtagg atcgatccac
     2461 ttgtatattt ggatgaattt ttgaggaact ctgaaccagt cctaaaacga gtaaatagga
     2521 ccggcaattc ttcaagcaac aaacaggaat accaattatt aaaagataac ttagtcagat
     2581 cgtacaacaa ggctttgaag aaaaatgcgc cttatccaat ctttgctata aagaatggcc
     2641 caaaatctca cattggaaga catttgatga cctcatttct gtcaatgaag ggcctaacgg
     2701 agttgactaa tgttgtggga aattggagcg ataagcgtgc ttctgccgtg gccaggacaa
     2761 cgtatactca tcagataaca gcaatacctg atcactactt cgcactagtt tctcggtact
     2821 atgcatatga tccaatatca aaggaaatga tagcattgaa ggatgagact aatccaattg
     2881 aggagtggca gcatatagaa cagctaaagg gtagtgctga aggaagcata cgataccccg
     2941 catggaatgg gataatatca caggaggtac tagactacct ttcatcctac ataaatagac
     3001 gcataggacc ggtggaacaa aaacttattt ctgaagaaga tctgtgatag cggccgcact
     3061 cctcaggtgc aggctgccta tcagaaggtg gtggctggtg tggccaatgc cctggctcac
     3121 aaataccact gagatctttt tccctctgcc aaaaattatg gggacatcat gaagcccctt
     3181 gagcatctga cttctggcta ataaaggaaa tttattttca ttgcaatagt gtgttggaat
     3241 tttttgtgtc tctcactcgg aaggacatat gggagggcaa atcatttaaa acatcagaat
     3301 gagtatttgg tttagagttt ggcaacatat gccatatgct ggctgccatg aacaaaggtg
     3361 gctataaaga ggtcatcagt atatgaaaca gccccctgct gtccattcct tattccatag
     3421 aaaagccttg acttgaggtt agattttttt tatattttgt tttgtgttat ttttttcttt
     3481 aacatcccta aaattttcct tacatgtttt actagccaga tttttcctcc tctcctgact
     3541 actcccagtc atagctgtcc ctcttctctt atgaagatcc ctcgacctgc agcccaagct
     3601 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     3661 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     3721 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     3781 ggatccgcat ctcaattagt cagcaaccat agtcccgccc ctaactccgc ccatcccgcc
     3841 cctaactccg cccagttccg cccattctcc gccccatggc tgactaattt tttttattta
     3901 tgcagaggcc gaggccgcct cggcctctga gctattccag aagtagtgag gaggcttttt
     3961 tggaggccta ggcttttgca aaaagctaac ttgtttattg cagcttataa tggttacaaa
     4021 taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt
     4081 ggtttgtcca aactcatcaa tgtatcttat catgtctgga tccgctgcat taatgaatcg
     4141 gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg
     4201 actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca aaggcggtaa
     4261 tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca aaaggccagc
     4321 aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg ctccgccccc
     4381 ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg acaggactat
     4441 aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc
     4501 cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt tctcaatgct
     4561 cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg
     4621 aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc
     4681 cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt agcagagcga
     4741 ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc tacactagaa
     4801 ggacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa agagttggta
     4861 gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt tgcaagcagc
     4921 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     4981 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     5041 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     5101 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     5161 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     5221 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     5281 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     5341 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     5401 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     5461 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     5521 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     5581 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     5641 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     5701 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     5761 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     5821 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     5881 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     5941 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     6001 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     6061 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct g
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
