pCAG-GBP6-10gly-VPminx4

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG-GBP6-10gly-VPminx4
出品公司: 爱迪基因
目录编号: 50796
存储实验室: Connie Cepko

载体骨架基本信息
载体名称: pCAG-GFP
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 4823 bp
完整质粒大小: 5420 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: GBP6-VPminx4 activation domain fusion protein,ADG,GBP6-10gly-VPminx4
物种来源: Synthetic
插入大小: 597 bp
启动子 CAG
克隆方法: 限制性内切酶
5' 克隆位点: AgeI(未破坏)
3' 克隆位点: NotI (未破坏)
5' 测序引物 GGACTTCCTTTGTCCCAAATCTG
3' 测序引物 TAGCCAGAAGTCAGATGCTC

文献引用方法
材料和方法部分: pCAG-GBP6-10gly-VPminx4 was a gift from Connie Cepko (Addgene plasmid # 50796 ; http://n2t.net/addgene:50796 ; RRID:Addgene_50796)
参考文献部分: A nanobody-based system using fluorescent proteins as scaffolds for cell-specific gene manipulation. Tang JC, Szikra T, Kozorovitskiy Y, Teixiera M, Sabatini BL, Roska B, Cepko CL. Cell. 2013 Aug 15;154(4):928-39. doi: 10.1016/j.cell.2013.07.021. 10.1016/j.cell.2013.07.021 PubMed 23953120

载体图谱质粒图谱和多克隆位点信息

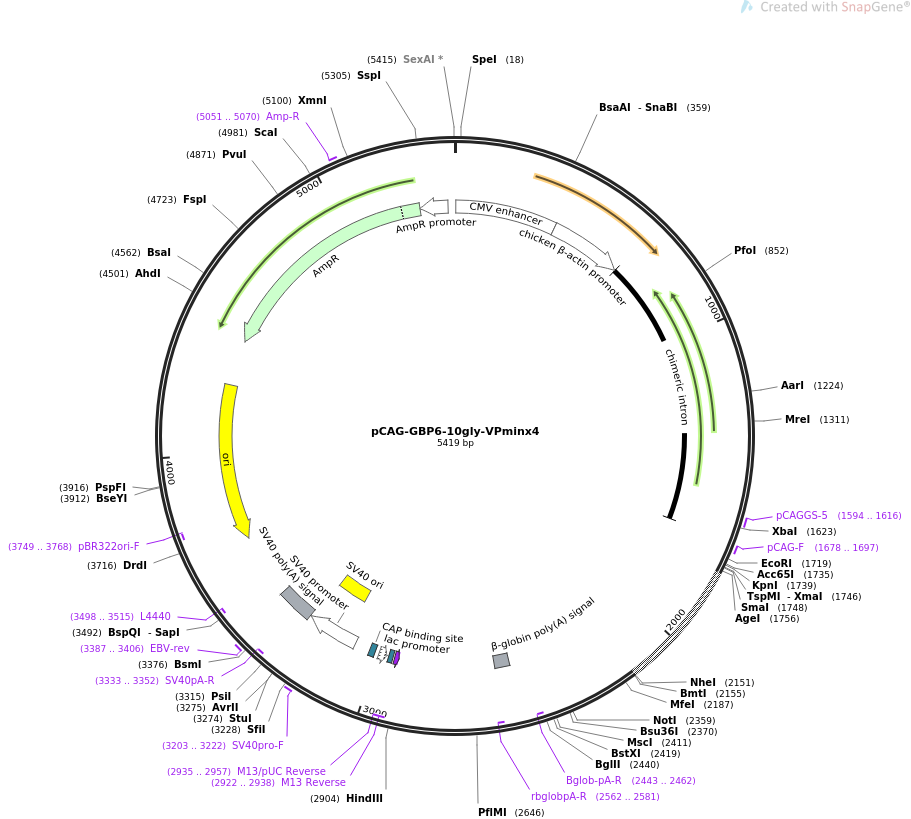

pCAG-GBP6-10gly-VPminx4质粒图谱

载体简介

载体序列

LOCUS       pCAG-GBP6-10gly-VPminx4                5419 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Expression of a GFP-dependent transcription factor component in
            mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-GBP6-10gly-VPminx4
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5419)
  AUTHORS   Tang JC, Szikra T, Kozorovitskiy Y, Teixiera M, Sabatini BL, Roska
            B, Cepko CL
  TITLE     A nanobody-based system using fluorescent proteins as scaffolds for
            cell-specific gene manipulation.
  JOURNAL   Cell. 2013 Aug 15;154(4):928-39. doi: 10.1016/j.cell.2013.07.021.
  PUBMED    23953120
REFERENCE   2  (bases 1 to 5419)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5419
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     gap             1768..2150
                     /estimated_length=383
     primer_bind     complement(2443..2462)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_site      2508..2563
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal"
     primer_bind     complement(2562..2581)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(2922..2938)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2922..2938)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(2935..2957)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    2946..2962
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(2970..3000)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3015..3036
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3095..3290
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      3141..3276
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3203..3222
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    3296..3430
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3333..3352)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3387..3406
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3498..3515)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3669..4257)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3749..3768)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4428..5288)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5051..5070
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5289..5393)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attctgcagt cgacggtacc
     1741 gcgggcccgg gatccaccgg tgccaccnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn
     1801 nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn
     1861 nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn
     1921 nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn
     1981 nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn
     2041 nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn
     2101 nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn nnnnnnnnnn gctagcggag
     2161 gaggtggtgg aggtggaggt ggaggtcaat tgcctaccga cgccctggac gacttcgacc
     2221 tggacatgct gcccgccgat gccctggatg attttgatct ggatatgctc cctgctgacg
     2281 ctctcgatga cttcgatctc gatatgctgc cagccgacgc gctagacgat ttcgatctgg
     2341 acatgttgcc aggctaagcg gccgcactcc tcaggtgcag gctgcctatc agaaggtggt
     2401 ggctggtgtg gccaatgccc tggctcacaa ataccactga gatctttttc cctctgccaa
     2461 aaattatggg gacatcatga agccccttga gcatctgact tctggctaat aaaggaaatt
     2521 tattttcatt gcaatagtgt gttggaattt tttgtgtctc tcactcggaa ggacatatgg
     2581 gagggcaaat catttaaaac atcagaatga gtatttggtt tagagtttgg caacatatgc
     2641 catatgctgg ctgccatgaa caaaggtggc tataaagagg tcatcagtat atgaaacagc
     2701 cccctgctgt ccattcctta ttccatagaa aagccttgac ttgaggttag atttttttta
     2761 tattttgttt tgtgttattt ttttctttaa catccctaaa attttcctta catgttttac
     2821 tagccagatt tttcctcctc tcctgactac tcccagtcat agctgtccct cttctcttat
     2881 gaagatccct cgacctgcag cccaagcttg gcgtaatcat ggtcatagct gtttcctgtg
     2941 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     3001 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     3061 ttccagtcgg gaaacctgtc gtgccagcgg atccgcatct caattagtca gcaaccatag
     3121 tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc cattctccgc
     3181 cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg gcctctgagc
     3241 tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa aagctaactt
     3301 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     3361 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     3421 tgtctggatc cgctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt
     3481 gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
     3541 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
     3601 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg
     3661 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
     3721 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
     3781 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
     3841 tcgggaagcg tggcgctttc tcaatgctca cgctgtaggt atctcagttc ggtgtaggtc
     3901 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
     3961 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
     4021 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
     4081 tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag
     4141 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt
     4201 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
     4261 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
     4321 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
     4381 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
     4441 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
     4501 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
     4561 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
     4621 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
     4681 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
     4741 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
     4801 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
     4861 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
     4921 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
     4981 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
     5041 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
     5101 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
     5161 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
     5221 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
     5281 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
     5341 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
     5401 ccccgaaaag tgccacctg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
