pCAG-VSVG

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG-VSVG
出品公司: Addgene
目录编号: 64084
质粒用途: 水泡性口炎病毒印第安纳株糖蛋白基因的表达载体
存储实验室: Ian Wickersham
相关质粒: pCAG-VSVG
pCAG-VSVL
pCAG-VSVM
pCAG-VSVN
pCAG-VSVP

载体骨架基本信息
载体名称: pCAGEN
空载体大小: 4795 bp
完整质粒大小: 6331 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: VSV glycoprotein
物种来源: Vesicular Stomatitis Virus
插入大小: 1536 bp
启动子: CAG
克隆方法: 未知
5’测序引物 CTCTAGAGCCTCTGCTAACc
3’测序引物 CAGAAGTCAGATGCTCAAG

文献引用方法
材料和方法部分: pCAG-VSVG was a gift from Ian Wickersham (Addgene plasmid # 64084 ; http://n2t.net/addgene:64084 ; RRID:Addgene_64084)
参考文献部分: 未发表

载体图谱质粒图谱和多克隆位点信息

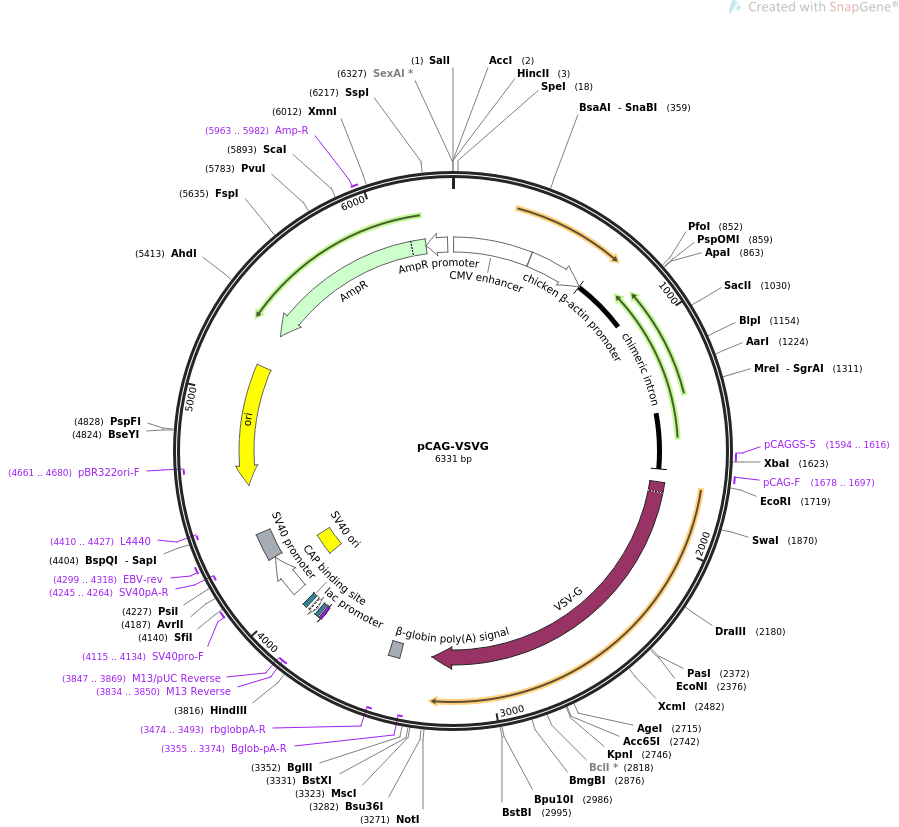

pCAG-VSVG载体图谱

载体简介

载体序列

LOCUS       pCAG-VSVG             6331 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expression vector for Vesicular Stomatitis Virus Indiana strain
            glycoprotein gene.
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-VSVG
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6331)
  TITLE     Genetic Neuroengineering Group Plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 6331)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6331
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     CDS             1734..3269
                     /codon_start=1
                     /product="vesicular stomatitis virus G glycoprotein"
                     /label=VSV-G
                     /note="Indiana strain"
                     /translation="MKCLLYLTFLFIGVNCKFTIVFPHNQKGNWKNVPSNYHYCPSSSD
                     LNWHNDLIGTALQVKMPKSHKAIQADGWMCHASKWVTTCDFRWYGPKYITHSIRSFTPS
                     VEQCKESIEQTKQGTWLNPGFPPQSCGYATVTDAEAVIVQVTPHHVLVDEYTGEWVDSQ
                     FINGKCSNYICPTVHNSTTWHSDYKVKGLCDSNLISMDITFFSEDGELSSLGKEGTGFR
                     SNYFAYETGGKACKMQYCKHWGVRLPSGVWFEMADKDLFAAARFPECPEGSSISAPSQT
                     SVDVSLIQDVERILDYSLCQETWSKIRAGLPISPVDLSYLAPKNPGTGPAFTIINGTLK
                     YFETRYIRVDIAAPILSRMVGMISGTTTERELWDDWAPYEDVEIGPNGVLRTSSGYKFP
                     LYMIGHGMLDSDLHLSSKAQVFEHPHIQDAASQLPDDESLFFGDTGLSKNPIELVEGWF
                     SSWKSSIASFFFIIGLIIGLFLVLRVGIHLCIKLKHTKKRQIYTDIEMNRLGK"
     primer_bind     complement(3355..3374)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_signal    3420..3475
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal (Gil and
                     Proudfoot, 1987)"
     primer_bind     complement(3474..3493)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(3834..3850)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3834..3850)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3847..3869)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3858..3874
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3882..3912)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3927..3948
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        4007..4202
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      4053..4188
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4115..4134
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    4208..4342
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4245..4264)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4299..4318
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(4410..4427)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4581..5169)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4661..4680)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5340..6200)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5963..5982
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6201..6305)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attcgccgcc accatgaagt
     1741 gccttttgta cttaaccttt ttattcattg gggtgaattg caagttcacc atagtttttc
     1801 cacacaacca aaaaggaaac tggaaaaatg ttccttctaa ttaccattat tgcccgtcaa
     1861 gctcagattt aaattggcat aatgacttaa taggcacagc cttacaagtc aaaatgccca
     1921 agagtcacaa ggctattcaa gcagacggtt ggatgtgtca tgcttccaaa tgggtcacta
     1981 cttgtgattt ccgctggtat ggaccgaagt atataacaca ttccatccga tccttcactc
     2041 catctgtaga acaatgcaag gaaagcattg aacaaacgaa acaaggaact tggctgaatc
     2101 caggcttccc tcctcaaagt tgtggatatg caactgtgac ggatgccgaa gcagtgattg
     2161 tccaggtgac tcctcaccat gtgctggttg atgaatacac aggagaatgg gttgattcac
     2221 agttcatcaa cggaaaatgc agcaattaca tatgccccac tgtccataac tctacaacct
     2281 ggcattctga ctataaggtc aaagggctat gtgattctaa cctcatttcc atggacatca
     2341 ccttcttctc agaggacgga gagctatcat ccctgggaaa ggagggcaca gggttcagaa
     2401 gtaactactt tgcttatgaa actggaggca aggcctgcaa aatgcaatac tgcaagcatt
     2461 ggggagtcag actcccatca ggtgtctggt tcgagatggc tgataaggat ctctttgctg
     2521 cagccagatt ccctgaatgc ccagaagggt caagtatctc tgctccatct cagacctcag
     2581 tggatgtaag tctaattcag gacgttgaga ggatcttgga ttattccctc tgccaagaaa
     2641 cctggagcaa aatcagagcg ggtcttccaa tctctccagt ggatctcagc tatcttgctc
     2701 ctaaaaaccc aggaaccggt cctgctttca ccataatcaa tggtacccta aaatactttg
     2761 agaccagata catcagagtc gatattgctg ctccaatcct ctcaagaatg gtcggaatga
     2821 tcagtggaac taccacagaa agggaactgt gggatgactg ggcaccatat gaagacgtgg
     2881 aaattggacc caatggagtt ctgaggacca gttcaggata taagtttcct ttatacatga
     2941 ttggacatgg tatgttggac tccgatcttc atcttagctc aaaggctcag gtgttcgaac
     3001 atcctcacat tcaagacgct gcttcgcaac ttcctgatga tgagagttta ttttttggtg
     3061 atactgggct atccaaaaat ccaatcgagc ttgtagaagg ttggttcagt agttggaaaa
     3121 gctctattgc ctcttttttc tttatcatag ggttaatcat tggactattc ttggttctcc
     3181 gagttggtat ccatctttgc attaaattaa agcacaccaa gaaaagacag atttatacag
     3241 acatagagat gaaccgactt ggaaagtaag cggccgcact cctcaggtgc aggctgccta
     3301 tcagaaggtg gtggctggtg tggccaatgc cctggctcac aaataccact gagatctttt
     3361 tccctctgcc aaaaattatg gggacatcat gaagcccctt gagcatctga cttctggcta
     3421 ataaaggaaa tttattttca ttgcaatagt gtgttggaat tttttgtgtc tctcactcgg
     3481 aaggacatat gggagggcaa atcatttaaa acatcagaat gagtatttgg tttagagttt
     3541 ggcaacatat gccatatgct ggctgccatg aacaaaggtg gctataaaga ggtcatcagt
     3601 atatgaaaca gccccctgct gtccattcct tattccatag aaaagccttg acttgaggtt
     3661 agattttttt tatattttgt tttgtgttat ttttttcttt aacatcccta aaattttcct
     3721 tacatgtttt actagccaga tttttcctcc tctcctgact actcccagtc atagctgtcc
     3781 ctcttctctt atgaagatcc ctcgacctgc agcccaagct tggcgtaatc atggtcatag
     3841 ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc
     3901 ataaagtgta aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc
     3961 tcactgcccg ctttccagtc gggaaacctg tcgtgccagc ggatccgcat ctcaattagt
     4021 cagcaaccat agtcccgccc ctaactccgc ccatcccgcc cctaactccg cccagttccg
     4081 cccattctcc gccccatggc tgactaattt tttttattta tgcagaggcc gaggccgcct
     4141 cggcctctga gctattccag aagtagtgag gaggcttttt tggaggccta ggcttttgca
     4201 aaaagctaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     4261 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     4321 tgtatcttat catgtctgga tccgctgcat taatgaatcg gccaacgcgc ggggagaggc
     4381 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
     4441 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
     4501 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
     4561 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
     4621 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
     4681 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
     4741 gcctttctcc cttcgggaag cgtggcgctt tctcaatgct cacgctgtag gtatctcagt
     4801 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
     4861 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
     4921 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
     4981 gagttcttga agtggtggcc taactacggc tacactagaa ggacagtatt tggtatctgc
     5041 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
     5101 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     5161 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     5221 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     5281 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     5341 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     5401 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     5461 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     5521 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     5581 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     5641 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     5701 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     5761 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     5821 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     5881 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     5941 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     6001 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     6061 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     6121 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     6181 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     6241 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     6301 ccgcgcacat ttccccgaaa agtgccacct g
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
