质粒名称: | pCMV-PE1 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 132774 |
存储实验室: | David Liu |
载体骨架基本信息 |
|
载体名称: | pCMV |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | -- |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 哺乳细胞表达 |
筛选标记: | -- |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | PE1,Cas9(H840A)-M-MLVrt |
物种来源: | Synthetic; Cas9 is from S. pyogenes; M-MLV RT is from the Moloney murine leukemia virus |
插入大小: | 6354 bp |
基因突变: | See manuscript |
GenBank编号 | -- |
启动子 | CMV |
标签/融合蛋白: |
SV40 NLS(主干上的N终端)
SV40 NLS(主干上的C终端)
|
克隆方法: | Ligation Independent Cloning |
5' 克隆位点: | -- |
3' 克隆位点: | -- |
5' 测序引物 | T7-forward |
3' 测序引物 | BGH-reverse |
文献引用方法 |
|
材料和方法部分: | pCMV-PE1 was a gift from David Liu (Addgene plasmid # 132774 ; http://n2t.net/addgene:132774 ; RRID:Addgene_132774) |
参考文献部分: | Search-and-replace genome editing without double-strand breaks or donor DNA. Anzalone AV, Randolph PB, Davis JR, Sousa AA, Koblan LW, Levy JM, Chen PJ, Wilson C, Newby GA, Raguram A, Liu DR. Nature. 2019 Oct 21. pii: 10.1038/s41586-019-1711-4. doi: 10.1038/s41586-019-1711-4. 10.1038/s41586-019-1711-4 PubMed 31634902 |
买家导航
pCMVPE1载体基本信息

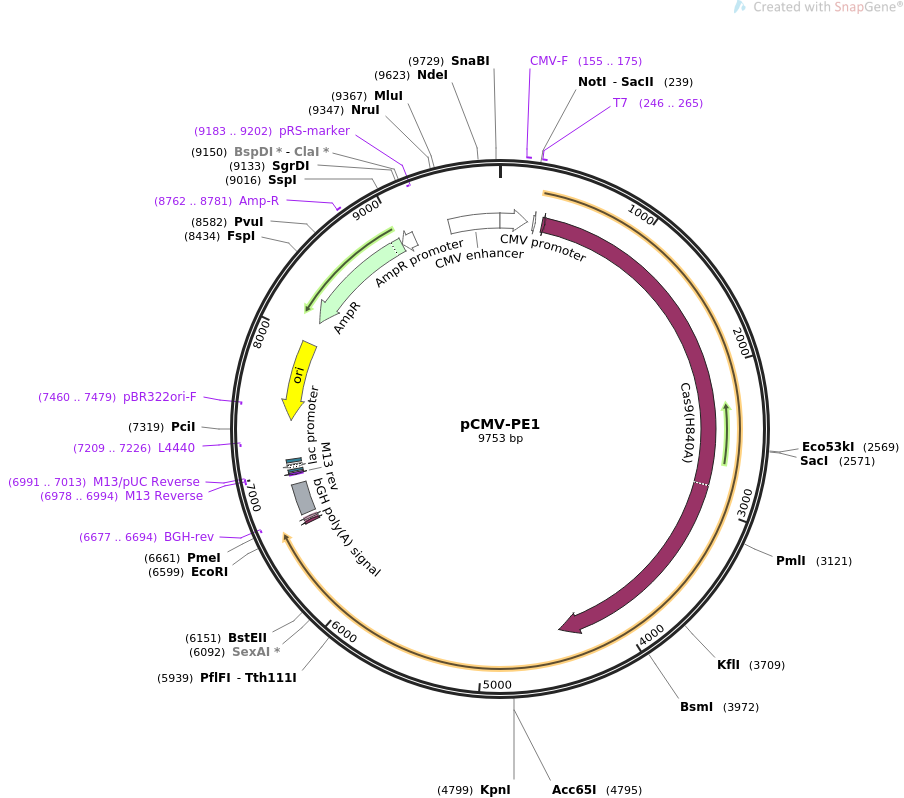

pCMVPE1载体图谱质粒图谱和多克隆位点信息
pCMVPE1载体简介
pCMVPE1载体序列
LOCUS pCMV-PE1 9753 bp ds-DNA circular SYN 18-OCT-2019 DEFINITION Prime editing in mammalian cells. ACCESSION . VERSION . KEYWORDS pCMV-PE1 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9753) TITLE Liu Lab plasmids JOURNAL Unpublished REFERENCE 2 (bases 1 to 9753) AUTHORS . TITLE Direct Submission JOURNAL Exported Oct 18, 2019 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..9753 /organism="synthetic DNA construct" /mol_type="other DNA" promoter 1..204 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 155..175 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" primer_bind 246..265 /label=T7 /note="T7 promoter, forward primer" promoter 246..264 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" CDS 314..334 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 335..4435 /codon_start=1 /product="nickase mutant of the Cas9 endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=Cas9(H840A) /note="generates RNA-guided single strand nicks in DNA due to the H840A mutation in the HNH catalytic domain" /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL YYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD ATLIHQSITGLYETRIDLSQLGGD" CDS 6608..6628 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 6637..6654 /codon_start=1 /product="6xHis affinity tag" /label=6xHis /translation="HHHHHH" primer_bind complement(6677..6694) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 6683..6907 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" primer_bind complement(6978..6994) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(6978..6994) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(6991..7013) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 7002..7018 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(7026..7056) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 7071..7092 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(7209..7226) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(7380..7968) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(7460..7479) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(8139..8999) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 8762..8781 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(9000..9104) /gene="bla" /label=AmpR promoter primer_bind complement(9183..9202) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" enhancer 9374..9753 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" ORIGIN 1 gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc acggggattt 61 ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa tcaacgggac 121 tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag gcgtgtacgg 181 tgggaggtct atataagcag agctggttta gtgaaccgtc agatccgcta gagatccgcg 241 gccgctaata cgactcacta tagggagagc cgccaccatg aaacggacag ccgacggaag 301 cgagttcgag tcaccaaaga agaagcggaa agtcgacaag aagtacagca tcggcctgga 361 catcggcacc aactctgtgg gctgggccgt gatcaccgac gagtacaagg tgcccagcaa 421 gaaattcaag gtgctgggca acaccgaccg gcacagcatc aagaagaacc tgatcggagc 481 cctgctgttc gacagcggcg aaacagccga ggccacccgg ctgaagagaa ccgccagaag 541 aagatacacc agacggaaga accggatctg ctatctgcaa gagatcttca gcaacgagat 601 ggccaaggtg gacgacagct tcttccacag actggaagag tccttcctgg tggaagagga 661 taagaagcac gagcggcacc ccatcttcgg caacatcgtg gacgaggtgg cctaccacga 721 gaagtacccc accatctacc acctgagaaa gaaactggtg gacagcaccg acaaggccga 781 cctgcggctg atctatctgg ccctggccca catgatcaag ttccggggcc acttcctgat 841 cgagggcgac ctgaaccccg acaacagcga cgtggacaag ctgttcatcc agctggtgca 901 gacctacaac cagctgttcg aggaaaaccc catcaacgcc agcggcgtgg acgccaaggc 961 catcctgtct gccagactga gcaagagcag acggctggaa aatctgatcg cccagctgcc 1021 cggcgagaag aagaatggcc tgttcggaaa cctgattgcc ctgagcctgg gcctgacccc 1081 caacttcaag agcaacttcg acctggccga ggatgccaaa ctgcagctga gcaaggacac 1141 ctacgacgac gacctggaca acctgctggc ccagatcggc gaccagtacg ccgacctgtt 1201 tctggccgcc aagaacctgt ccgacgccat cctgctgagc gacatcctga gagtgaacac 1261 cgagatcacc aaggcccccc tgagcgcctc tatgatcaag agatacgacg agcaccacca 1321 ggacctgacc ctgctgaaag ctctcgtgcg gcagcagctg cctgagaagt acaaagagat 1381 tttcttcgac cagagcaaga acggctacgc cggctacatt gacggcggag ccagccagga 1441 agagttctac aagttcatca agcccatcct ggaaaagatg gacggcaccg aggaactgct 1501 cgtgaagctg aacagagagg acctgctgcg gaagcagcgg accttcgaca acggcagcat 1561 cccccaccag atccacctgg gagagctgca cgccattctg cggcggcagg aagattttta 1621 cccattcctg aaggacaacc gggaaaagat cgagaagatc ctgaccttcc gcatccccta 1681 ctacgtgggc cctctggcca ggggaaacag cagattcgcc tggatgacca gaaagagcga 1741 ggaaaccatc accccctgga acttcgagga agtggtggac aagggcgctt ccgcccagag 1801 cttcatcgag cggatgacca acttcgataa gaacctgccc aacgagaagg tgctgcccaa 1861 gcacagcctg ctgtacgagt acttcaccgt gtataacgag ctgaccaaag tgaaatacgt 1921 gaccgaggga atgagaaagc ccgccttcct gagcggcgag cagaaaaagg ccatcgtgga 1981 cctgctgttc aagaccaacc ggaaagtgac cgtgaagcag ctgaaagagg actacttcaa 2041 gaaaatcgag tgcttcgact ccgtggaaat ctccggcgtg gaagatcggt tcaacgcctc 2101 cctgggcaca taccacgatc tgctgaaaat tatcaaggac aaggacttcc tggacaatga 2161 ggaaaacgag gacattctgg aagatatcgt gctgaccctg acactgtttg aggacagaga 2221 gatgatcgag gaacggctga aaacctatgc ccacctgttc gacgacaaag tgatgaagca 2281 gctgaagcgg cggagataca ccggctgggg caggctgagc cggaagctga tcaacggcat 2341 ccgggacaag cagtccggca agacaatcct ggatttcctg aagtccgacg gcttcgccaa 2401 cagaaacttc atgcagctga tccacgacga cagcctgacc tttaaagagg acatccagaa 2461 agcccaggtg tccggccagg gcgatagcct gcacgagcac attgccaatc tggccggcag 2521 ccccgccatt aagaagggca tcctgcagac agtgaaggtg gtggacgagc tcgtgaaagt 2581 gatgggccgg cacaagcccg agaacatcgt gatcgaaatg gccagagaga accagaccac 2641 ccagaaggga cagaagaaca gccgcgagag aatgaagcgg atcgaagagg gcatcaaaga 2701 gctgggcagc cagatcctga aagaacaccc cgtggaaaac acccagctgc agaacgagaa 2761 gctgtacctg tactacctgc agaatgggcg ggatatgtac gtggaccagg aactggacat 2821 caaccggctg tccgactacg atgtggacgc tatcgtgcct cagagctttc tgaaggacga 2881 ctccatcgac aacaaggtgc tgaccagaag cgacaagaac cggggcaaga gcgacaacgt 2941 gccctccgaa gaggtcgtga agaagatgaa gaactactgg cggcagctgc tgaacgccaa 3001 gctgattacc cagagaaagt tcgacaatct gaccaaggcc gagagaggcg gcctgagcga 3061 actggataag gccggcttca tcaagagaca gctggtggaa acccggcaga tcacaaagca 3121 cgtggcacag atcctggact cccggatgaa cactaagtac gacgagaatg acaagctgat 3181 ccgggaagtg aaagtgatca ccctgaagtc caagctggtg tccgatttcc ggaaggattt 3241 ccagttttac aaagtgcgcg agatcaacaa ctaccaccac gcccacgacg cctacctgaa 3301 cgccgtcgtg ggaaccgccc tgatcaaaaa gtaccctaag ctggaaagcg agttcgtgta 3361 cggcgactac aaggtgtacg acgtgcggaa gatgatcgcc aagagcgagc aggaaatcgg 3421 caaggctacc gccaagtact tcttctacag caacatcatg aactttttca agaccgagat 3481 taccctggcc aacggcgaga tccggaagcg gcctctgatc gagacaaacg gcgaaaccgg 3541 ggagatcgtg tgggataagg gccgggattt tgccaccgtg cggaaagtgc tgagcatgcc 3601 ccaagtgaat atcgtgaaaa agaccgaggt gcagacaggc ggcttcagca aagagtctat 3661 cctgcccaag aggaacagcg ataagctgat cgccagaaag aaggactggg accctaagaa 3721 gtacggcggc ttcgacagcc ccaccgtggc ctattctgtg ctggtggtgg ccaaagtgga 3781 aaagggcaag tccaagaaac tgaagagtgt gaaagagctg ctggggatca ccatcatgga 3841 aagaagcagc ttcgagaaga atcccatcga ctttctggaa gccaagggct acaaagaagt 3901 gaaaaaggac ctgatcatca agctgcctaa gtactccctg ttcgagctgg aaaacggccg 3961 gaagagaatg ctggcctctg ccggcgaact gcagaaggga aacgaactgg ccctgccctc 4021 caaatatgtg aacttcctgt acctggccag ccactatgag aagctgaagg gctcccccga 4081 ggataatgag cagaaacagc tgtttgtgga acagcacaag cactacctgg acgagatcat 4141 cgagcagatc agcgagttct ccaagagagt gatcctggcc gacgctaatc tggacaaagt 4201 gctgtccgcc tacaacaagc accgggataa gcccatcaga gagcaggccg agaatatcat 4261 ccacctgttt accctgacca atctgggagc ccctgccgcc ttcaagtact ttgacaccac 4321 catcgaccgg aagaggtaca ccagcaccaa agaggtgctg gacgccaccc tgatccacca 4381 gagcatcacc ggcctgtacg agacacggat cgacctgtct cagctgggag gtgactctgg 4441 aggatctagc ggaggatcct ctggcagcga gacaccagga acaagcgagt cagcaacacc 4501 agagagcagt ggcggcagca gcggcggcag cagcacccta aatatagaag atgagtatcg 4561 gctacatgag acctcaaaag agccagatgt ttctctaggg tccacatggc tgtctgattt 4621 tcctcaggcc tgggcggaaa ccgggggcat gggactggca gttcgccaag ctcctctgat 4681 catacctctg aaagcaacct ctacccccgt gtccataaaa caatacccca tgtcacaaga 4741 agccagactg gggatcaagc cccacataca gagactgttg gaccagggaa tactggtacc 4801 ctgccagtcc ccctggaaca cgcccctgct acccgttaag aaaccaggga ctaatgatta 4861 taggcctgtc caggatctga gagaagtcaa caagcgggtg gaagacatcc accccaccgt 4921 gcccaaccct tacaacctct tgagcgggct cccaccgtcc caccagtggt acactgtgct 4981 tgatttaaag gatgcctttt tctgcctgag actccacccc accagtcagc ctctcttcgc 5041 ctttgagtgg agagatccag agatgggaat ctcaggacaa ttgacctgga ccagactccc 5101 acagggtttc aaaaacagtc ccaccctgtt tgatgaggca ctgcacagag acctagcaga 5161 cttccggatc cagcacccag acttgatcct gctacagtac gtggatgact tactgctggc 5221 cgccacttct gagctagact gccaacaagg tactcgggcc ctgttacaaa ccctagggaa 5281 cctcgggtat cgggcctcgg ccaagaaagc ccaaatttgc cagaaacagg tcaagtatct 5341 ggggtatctt ctaaaagagg gtcagagatg gctgactgag gccagaaaag agactgtgat 5401 ggggcagcct actccgaaga cccctcgaca actaagggag ttcctaggga cggcaggctt 5461 ctgtcgcctc tggatccctg ggtttgcaga aatggcagcc cccctgtacc ctctcaccaa 5521 aacggggact ctgtttaatt ggggcccaga ccaacaaaag gcctatcaag aaatcaagca 5581 agctcttcta actgccccag ccctggggtt gccagatttg actaagccct ttgaactctt 5641 tgtcgacgag aagcagggct acgccaaagg tgtcctaacg caaaaactgg gaccttggcg 5701 tcggccggtg gcctacctgt ccaaaaagct agacccagta gcagctgggt ggcccccttg 5761 cctacggatg gtagcagcca ttgccgtact gacaaaggat gcaggcaagc taaccatggg 5821 acagccacta gtcattctgg ccccccatgc agtagaggca ctagtcaaac aaccccccga 5881 ccgctggctt tccaacgccc ggatgactca ctatcaggcc ttgcttttgg acacggaccg 5941 ggtccagttc ggaccggtgg tagccctgaa cccggctacg ctgctcccac tgcctgagga 6001 agggctgcaa cacaactgcc ttgatatcct ggccgaagcc cacggaaccc gacccgacct 6061 aacggaccag ccgctcccag acgccgacca cacctggtac acggatggaa gcagtctctt 6121 acaagaggga cagcgtaagg cgggagctgc ggtgaccacc gagaccgagg taatctgggc 6181 taaagccctg ccagccggga catccgctca gcgggctgaa ctgatagcac tcacccaggc 6241 cctaaagatg gcagaaggta agaagctaaa tgtttatact gatagccgtt atgcttttgc 6301 tactgcccat atccatggag aaatatacag aaggcgtggg ttgctcacat cagaaggcaa 6361 agagatcaaa aataaagacg agatcttggc cctactaaaa gccctctttc tgcccaaaag 6421 acttagcata atccattgtc caggacatca aaagggacac agcgccgagg ctagaggcaa 6481 ccggatggct gaccaagcgg cccgaaaggc agccatcaca gagactccag acacctctac 6541 cctcctcata gaaaattcat caccctctgg cggctcaaaa agaaccgccg acggcagcga 6601 attcgagccc aagaagaaga ggaaagtcta accggtcatc atcaccatca ccattgagtt 6661 taaacccgct gatcagcctc gactgtgcct tctagttgcc agccatctgt tgtttgcccc 6721 tcccccgtgc cttccttgac cctggaaggt gccactccca ctgtcctttc ctaataaaat 6781 gagaaaattg catcgcattg tctgagtagg tgtcattcta ttctgggggg tggggtgggg 6841 caggacagca agggggagga ttgggaagac aatagcaggc atgctgggga tgcggtgggc 6901 tctatggctt ctgaggcgga aagaaccagc tggggctcga taccgtcgac ctctagctag 6961 agcttggcgt aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt 7021 ccacacaaca tacgagccgg aagcataaag tgtaaagcct agggtgccta atgagtgagc 7081 taactcacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc 7141 cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct 7201 tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca 7261 gctcactcaa aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac 7321 atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt 7381 ttccataggc tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg 7441 cgaaacccga caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc 7501 tctcctgttc cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc 7561 gtggcgcttt ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc 7621 aagctgggct gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac 7681 tatcgtcttg agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt 7741 aacaggatta gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct 7801 aactacggct acactagaag aacagtattt ggtatctgcg ctctgctgaa gccagttacc 7861 ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt 7921 ttttttgttt gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg 7981 atcttttcta cggggtctga cactcagtgg aacgaaaact cacgttaagg gattttggtc 8041 atgagattat caaaaaggat cttcacctag atccttttaa attaaaaatg aagttttaaa 8101 tcaatctaaa gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag 8161 gcacctatct cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg 8221 tagataacta cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga 8281 gacccacgct caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag 8341 cgcagaagtg gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa 8401 gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc 8461 atcgtggtgt cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca 8521 aggcgagtta catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg 8581 atcgttgtca gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat 8641 aattctctta ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc 8701 aagtcattct gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg 8761 gataataccg cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg 8821 gggcgaaaac tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt 8881 gcacccaact gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca 8941 ggaaggcaaa atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata 9001 ctcttccttt ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac 9061 atatttgaat gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa 9121 gtgccacctg acgtcgacgg atcgggagat cgatctcccg atcccctagg gtcgactctc 9181 agtacaatct gctctgatgc cgcatagtta agccagtatc tgctccctgc ttgtgtgttg 9241 gaggtcgctg agtagtgcgc gagcaaaatt taagctacaa caaggcaagg cttgaccgac 9301 aattgcatga agaatctgct tagggttagg cgttttgcgc tgcttcgcga tgtacgggcc 9361 agatatacgc gttgacattg attattgact agttattaat agtaatcaat tacggggtca 9421 ttagttcata gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct 9481 ggctgaccgc ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta 9541 acgccaatag ggactttcca ttgacgtcaa tgggtggagt atttacggta aactgcccac 9601 ttggcagtac atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt 9661 aaatggcccg cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag 9721 tacatctacg tattagtcat cgctattacc atg //
