质粒名称: | pCMV-PEmax-P2A-BSD |
---|---|
出品公司: | Addgene |
目录编号: | 174821 |
存储实验室: | David Liu |
载体骨架基本信息 |
|
载体名称: | pCMV |
载体出品公司: | -- |
空载体大小: | -- |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 哺乳细胞表达 |
筛选标记: | 杀稻瘟菌素 |
载体抗性: | 氨苄霉素 |
生长温度: | 37 ℃ |
宿主菌: | NEB Stable |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | PEmax-P2A-BSD,SV40_bpNLS-SpCas9(R221K,N394K,H840A)-SGGSx2-SV40_bpNLS-SGGSx2-MMLV_RT(D200N, T306K, W313F, T330P, L603W)-SV40_bpNLS-cMyc_NLS,-P2A-BSD |
物种来源: | Synthetic; SpCas9 is from Streptococcus pyogenes; MMLV_RT is from the Moloney murine leukemia virus |
插入大小: | 6855 bp |
基因突变: | Detailed in manuscript |
GenBank编号 | -- |
启动子: | CMV |
标签/融合蛋白: |
SV40 bpNLS(插入件上的N端子)
SV40 bpNLS(插入件上的C端子)
c-Myc NLS(插入件上的c端子)
P2A-BSD(插入件上的C端子)
|
克隆方法: | Ligation Independent克隆 |
5’克隆位点: | -- |
3’克隆位点: | -- |
5’测序引物 | T7-forward |
3’测序引物 | BGH-reverse |
文献引用方法 |
|
材料和方法部分: | pCMV-PEmax-P2A-BSD was a gift from David Liu (Addgene plasmid # 174821 ; http://n2t.net/addgene:174821 ; RRID:Addgene_174821) |
参考文献部分: | Enhanced prime editing systems by manipulating cellular determinants of editing outcomes. Chen PJ, Hussmann JA, Yan J, Knipping F, Ravisankar P, Chen PF, Chen C, Nelson JW, Newby GA, Sahin M, Osborn MJ, Weissman JS, Adamson B, Liu DR. Cell. 2021 Oct 9. pii: S0092-8674(21)01065-5. doi: 10.1016/j.cell.2021.09.018. 10.1016/j.cell.2021.09.018 PubMed 34653350 |
买家导航
载体基本信息

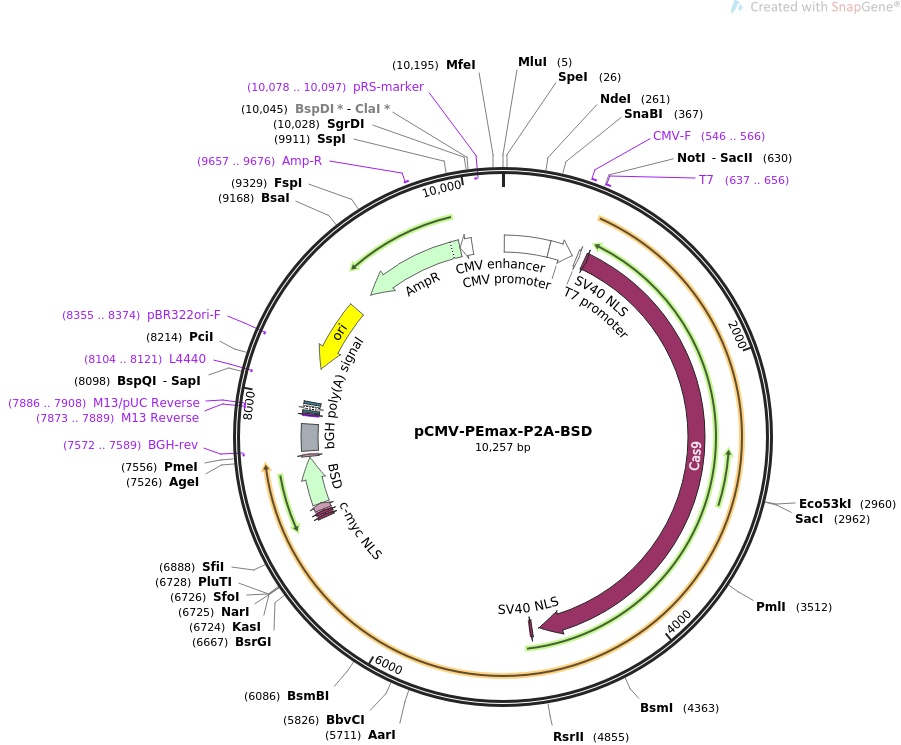

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pCMV-PEmax-P2A-BSD 10257 bp ds-DNA circular SYN 27-SEP-2021 DEFINITION Mammalian expression of SpCas9 PEmax prime editor with P2A-BSD marker. ACCESSION . VERSION . KEYWORDS pCMV-PEmax-P2A-BSD SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 10257) TITLE Enhanced Prime Editing Systems Through Identification and Manipulation of Cellular Determinants of Editing Outcomes JOURNAL Unpublished REFERENCE 2 (bases 1 to 10257) AUTHORS . TITLE Direct Submission JOURNAL Exported Sep 27, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..10257 /organism="synthetic DNA construct" /mol_type="other DNA" enhancer 12..391 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 392..595 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 546..566 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" primer_bind 637..656 /label=T7 /note="T7 promoter, forward primer" promoter 637..655 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" CDS 705..725 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 726..4826 /codon_start=1 /product="Cas9 (Csn1) endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=Cas9 /note="generates RNA-guided double strand breaks in DNA" /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRKLE NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLKREDLLR KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL YYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD ATLIHQSITGLYETRIDLSQLGGD" CDS 4884..4904 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 7005..7025 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 7035..7061 /codon_start=1 /product="nuclear localization signal of human c-Myc proto-oncogene (Dang and Lee, 1988)" /label=c-myc NLS /translation="PAAKRVKLD" CDS 7071..7127 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" CDS 7128..7526 /codon_start=1 /gene="Aspergillus terreus BSD" /product="blasticidin S deaminase" /label=BSD /note="confers resistance to blasticidin" /translation="MAKPLSQEESTLIERATATINSIPISEDYSVASAALSSDGRIFTG VNVYHFTGGPCAELVVLGTAAAAAAGNLTCIVAIGNENRGILSPCGRCRQVLLDLHPGI KAIVKDSDGQPTAVGIRELLPSGYVWEG" CDS 7532..7549 /codon_start=1 /product="6xHis affinity tag" /label=6xHis /translation="HHHHHH" primer_bind complement(7572..7589) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 7578..7802 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" primer_bind complement(7873..7889) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(7873..7889) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(7886..7908) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 7897..7913 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(7921..7951) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 7966..7987 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(8104..8121) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(8275..8863) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(8355..8374) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(9034..9894) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 9657..9676 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(9895..9999) /gene="bla" /label=AmpR promoter primer_bind complement(10078..10097) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" ORIGIN 1 atatacgcgt tgacattgat tattgactag ttattaatag taatcaatta cggggtcatt 61 agttcatagc ccatatatgg agttccgcgt tacataactt acggtaaatg gcccgcctgg 121 ctgaccgccc aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac 181 gccaataggg actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt 241 ggcagtacat caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa 301 atggcccgcc tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta 361 catctacgta ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg 421 gcgtggatag cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg 481 gagtttgttt tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc 541 attgacgcaa atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt 601 agtgaaccgt cagatccgct agagatccgc ggccgctaat acgactcact atagggagag 661 ccgccaccat gaaacggaca gccgacggaa gcgagttcga gtcaccaaag aagaagcgga 721 aagtcgacaa gaagtacagc atcggcctgg acatcggcac caactctgtg ggctgggccg 781 tgatcaccga cgagtacaag gtgcccagca agaaattcaa ggtgctgggc aacaccgacc 841 ggcacagcat caagaagaac ctgatcggag ccctgctgtt cgacagcggc gaaacagccg 901 aggccacccg gctgaagaga accgccagaa gaagatacac cagacggaag aaccggatct 961 gctatctgca agagatcttc agcaacgaga tggccaaggt ggacgacagc ttcttccaca 1021 gactggaaga gtccttcctg gtggaagagg ataagaagca cgagcggcac cccatcttcg 1081 gcaacatcgt ggacgaggtg gcctaccacg agaagtaccc caccatctac cacctgagaa 1141 agaaactggt ggacagcacc gacaaggccg acctgcggct gatctatctg gccctggccc 1201 acatgatcaa gttccggggc cacttcctga tcgagggcga cctgaacccc gacaacagcg 1261 acgtggacaa gctgttcatc cagctggtgc agacctacaa ccagctgttc gaggaaaacc 1321 ccatcaacgc cagcggcgtg gacgccaagg ccatcctgtc tgccagactg agcaagagca 1381 gaaagctgga aaatctgatc gcccagctgc ccggcgagaa gaagaatggc ctgttcggaa 1441 acctgattgc cctgagcctg ggcctgaccc ccaacttcaa gagcaacttc gacctggccg 1501 aggatgccaa actgcagctg agcaaggaca cctacgacga cgacctggac aacctgctgg 1561 cccagatcgg cgaccagtac gccgacctgt ttctggccgc caagaacctg tccgacgcca 1621 tcctgctgag cgacatcctg agagtgaaca ccgagatcac caaggccccc ctgagcgcct 1681 ctatgatcaa gagatacgac gagcaccacc aggacctgac cctgctgaaa gctctcgtgc 1741 ggcagcagct gcctgagaag tacaaagaga ttttcttcga ccagagcaag aacggctacg 1801 ccggctacat tgacggcgga gccagccagg aagagttcta caagttcatc aagcccatcc 1861 tggaaaagat ggacggcacc gaggaactgc tcgtgaagct gaagagagag gacctgctgc 1921 ggaagcagcg gaccttcgac aacggcagca tcccccacca gatccacctg ggagagctgc 1981 acgccattct gcggcggcag gaagattttt acccattcct gaaggacaac cgggaaaaga 2041 tcgagaagat cctgaccttc cgcatcccct actacgtggg ccctctggcc aggggaaaca 2101 gcagattcgc ctggatgacc agaaagagcg aggaaaccat caccccctgg aacttcgagg 2161 aagtggtgga caagggcgct tccgcccaga gcttcatcga gcggatgacc aacttcgata 2221 agaacctgcc caacgagaag gtgctgccca agcacagcct gctgtacgag tacttcaccg 2281 tgtataacga gctgaccaaa gtgaaatacg tgaccgaggg aatgagaaag cccgccttcc 2341 tgagcggcga gcagaaaaag gccatcgtgg acctgctgtt caagaccaac cggaaagtga 2401 ccgtgaagca gctgaaagag gactacttca agaaaatcga gtgcttcgac tccgtggaaa 2461 tctccggcgt ggaagatcgg ttcaacgcct ccctgggcac ataccacgat ctgctgaaaa 2521 ttatcaagga caaggacttc ctggacaatg aggaaaacga ggacattctg gaagatatcg 2581 tgctgaccct gacactgttt gaggacagag agatgatcga ggaacggctg aaaacctatg 2641 cccacctgtt cgacgacaaa gtgatgaagc agctgaagcg gcggagatac accggctggg 2701 gcaggctgag ccggaagctg atcaacggca tccgggacaa gcagtccggc aagacaatcc 2761 tggatttcct gaagtccgac ggcttcgcca acagaaactt catgcagctg atccacgacg 2821 acagcctgac ctttaaagag gacatccaga aagcccaggt gtccggccag ggcgatagcc 2881 tgcacgagca cattgccaat ctggccggca gccccgccat taagaagggc atcctgcaga 2941 cagtgaaggt ggtggacgag ctcgtgaaag tgatgggccg gcacaagccc gagaacatcg 3001 tgatcgaaat ggccagagag aaccagacca cccagaaggg acagaagaac agccgcgaga 3061 gaatgaagcg gatcgaagag ggcatcaaag agctgggcag ccagatcctg aaagaacacc 3121 ccgtggaaaa cacccagctg cagaacgaga agctgtacct gtactacctg cagaatgggc 3181 gggatatgta cgtggaccag gaactggaca tcaaccggct gtccgactac gatgtggacg 3241 ctatcgtgcc tcagagcttt ctgaaggacg actccatcga caacaaggtg ctgaccagaa 3301 gcgacaagaa ccggggcaag agcgacaacg tgccctccga agaggtcgtg aagaagatga 3361 agaactactg gcggcagctg ctgaacgcca agctgattac ccagagaaag ttcgacaatc 3421 tgaccaaggc cgagagaggc ggcctgagcg aactggataa ggccggcttc atcaagagac 3481 agctggtgga aacccggcag atcacaaagc acgtggcaca gatcctggac tcccggatga 3541 acactaagta cgacgagaat gacaagctga tccgggaagt gaaagtgatc accctgaagt 3601 ccaagctggt gtccgatttc cggaaggatt tccagtttta caaagtgcgc gagatcaaca 3661 actaccacca cgcccacgac gcctacctga acgccgtcgt gggaaccgcc ctgatcaaaa 3721 agtaccctaa gctggaaagc gagttcgtgt acggcgacta caaggtgtac gacgtgcgga 3781 agatgatcgc caagagcgag caggaaatcg gcaaggctac cgccaagtac ttcttctaca 3841 gcaacatcat gaactttttc aagaccgaga ttaccctggc caacggcgag atccggaagc 3901 ggcctctgat cgagacaaac ggcgaaaccg gggagatcgt gtgggataag ggccgggatt 3961 ttgccaccgt gcggaaagtg ctgagcatgc cccaagtgaa tatcgtgaaa aagaccgagg 4021 tgcagacagg cggcttcagc aaagagtcta tcctgcccaa gaggaacagc gataagctga 4081 tcgccagaaa gaaggactgg gaccctaaga agtacggcgg cttcgacagc cccaccgtgg 4141 cctattctgt gctggtggtg gccaaagtgg aaaagggcaa gtccaagaaa ctgaagagtg 4201 tgaaagagct gctggggatc accatcatgg aaagaagcag cttcgagaag aatcccatcg 4261 actttctgga agccaagggc tacaaagaag tgaaaaagga cctgatcatc aagctgccta 4321 agtactccct gttcgagctg gaaaacggcc ggaagagaat gctggcctct gccggcgaac 4381 tgcagaaggg aaacgaactg gccctgccct ccaaatatgt gaacttcctg tacctggcca 4441 gccactatga gaagctgaag ggctcccccg aggataatga gcagaaacag ctgtttgtgg 4501 aacagcacaa gcactacctg gacgagatca tcgagcagat cagcgagttc tccaagagag 4561 tgatcctggc cgacgctaat ctggacaaag tgctgtccgc ctacaacaag caccgggata 4621 agcccatcag agagcaggcc gagaatatca tccacctgtt taccctgacc aatctgggag 4681 cccctgccgc cttcaagtac tttgacacca ccatcgaccg gaagaggtac accagcacca 4741 aagaggtgct ggacgccacc ctgatccacc agagcatcac cggcctgtac gagacacgga 4801 tcgacctgtc tcagctggga ggtgactccg gcggaagctc tggtggcagc aagcggaccg 4861 ccgacggctc tgaattcgag agccctaaga agaaaagaaa ggtgagcgga ggctctagcg 4921 gcggaagcac cctgaacatt gaagacgagt atagactgca tgaaacaagc aaggaacccg 4981 acgtgtccct gggctccacc tggctgtccg actttcccca ggcctgggcc gagacaggag 5041 gaatgggcct ggccgtgcgg caggcacccc tgatcatccc tctgaaggcc acctctacac 5101 ccgtgagcat caagcagtac cctatgtctc aggaggccag actgggcatc aagcctcaca 5161 tccagaggct gctggaccag ggcatcctgg tgccatgcca gagcccctgg aacacaccac 5221 tgctgcccgt gaagaagcca ggcaccaatg actatagacc cgtgcaggat ctgagagagg 5281 tgaacaagag ggtggaggat atccacccca ccgtgcccaa cccttacaat ctgctgtccg 5341 gcctgccccc ttctcaccag tggtatacag tgctggacct gaaggatgcc ttcttttgtc 5401 tgagactgca ccctaccagc cagccactgt tcgcctttga gtggagggac cctgagatgg 5461 gcatctctgg ccagctgacc tggacacgcc tgcctcaggg cttcaagaat agcccaacac 5521 tgtttaacga ggccctgcac cgcgacctgg cagatttccg gatccagcac ccagatctga 5581 tcctgctgca gtacgtggac gatctgctgc tggccgccac cagcgagctg gattgccagc 5641 agggaacacg cgccctgctg cagaccctgg gaaacctggg atatagggca tccgccaaga 5701 aggcccagat ctgtcagaag caggtgaagt acctgggcta tctgctgaag gagggccaga 5761 gatggctgac agaggccagg aaggagacag tgatgggcca gccaacaccc aagaccccaa 5821 gacagctgag ggagttcctg ggcaaagcag gattttgcag gctgttcatc ccaggattcg 5881 cagagatggc agcacctctg tacccactga ccaagccggg caccctgttt aattggggcc 5941 ctgaccagca gaaggcctat caggagatca agcaggccct gctgacagca ccagccctgg 6001 gcctgccaga cctgaccaag cctttcgagc tgtttgtgga tgagaagcag ggctacgcca 6061 agggcgtgct gacccagaag ctgggaccat ggagacggcc cgtggcctat ctgtccaaga 6121 agctggaccc agtggcagca ggatggccac catgcctgag gatggtggca gcaatcgccg 6181 tgctgacaaa ggatgccggc aagctgacca tgggacagcc actggtcatc ctggcaccac 6241 acgcagtgga ggccctggtg aagcagcctc cagatcgctg gctgtctaac gcccggatga 6301 cacactacca ggccctgctg ctggacaccg atcgcgtgca gtttggccct gtggtggccc 6361 tgaatccagc caccctgctg cctctgccag aggagggcct gcagcacaac tgtctggaca 6421 tcctggcaga ggcacacgga acaaggccag acctgaccga tcagcccctg cctgacgccg 6481 atcacacatg gtataccgat ggaagctccc tgctgcagga gggccagagg aaggcaggag 6541 cagcagtgac cacagagaca gaagtgatct gggccaaggc cctgccagca ggcacatccg 6601 cccagcgggc cgagctgatc gccctgaccc aggccctgaa gatggccgag ggcaagaagc 6661 tgaacgtgta cacagactcc agatatgcct tcgccaccgc acacatccac ggagagatct 6721 acaggcgccg gggctggctg acctctgagg gcaaggagat caagaacaag gatgagatcc 6781 tggccctgct gaaggccctg tttctgccca agcggctgag catcatccac tgtcctggac 6841 accagaaggg acactccgcc gaggcaaggg gcaatcggat ggccgaccag gccgccagaa 6901 aggctgctat tactgaaact cccgacactt ccactctgct gattgaaaac tcctcccctt 6961 ctggcggctc aaaaagaacc gccgacggca gcgaattcga gtctcccaag aagaagagga 7021 aagtcggctc tggccctgcc gctaagagag tgaagctgga cggatccggc gcaacaaact 7081 tctctctgct gaaacaagcc ggagatgtcg aagagaatcc tggaccgatg gccaagcctt 7141 tgtctcaaga agaatccacc ctcattgaaa gagcaacggc tacaatcaac agcatcccca 7201 tctctgaaga ctacagcgtc gccagcgcag ctctctctag cgacggccgc atcttcactg 7261 gtgtcaatgt atatcatttt actgggggac cttgtgcaga actcgtggtg ctgggcactg 7321 ctgctgctgc ggcagctggc aacctgactt gtatcgtcgc gatcggaaat gagaacaggg 7381 gcatcttgag cccctgcgga cggtgccgac aggtgcttct cgatctgcat cctgggatca 7441 aagccatagt gaaggacagt gatggacagc cgacggcagt tgggattcgt gaattgctgc 7501 cctctggtta tgtgtgggag ggctaaccgg tcatcatcac catcaccatt gagtttaaac 7561 ccgctgatca gcctcgactg tgccttctag ttgccagcca tctgttgttt gcccctcccc 7621 cgtgccttcc ttgaccctgg aaggtgccac tcccactgtc ctttcctaat aaaatgagaa 7681 aattgcatcg cattgtctga gtaggtgtca ttctattctg gggggtgggg tggggcagga 7741 cagcaagggg gaggattggg aagacaatag caggcatgct ggggatgcgg tgggctctat 7801 ggcttctgag gcggaaagaa ccagctgggg ctcgataccg tcgacctcta gctagagctt 7861 ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca caattccaca 7921 caacatacga gccggaagca taaagtgtaa agcctagggt gcctaatgag tgagctaact 7981 cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt cgtgccagct 8041 gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc 8101 ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca 8161 ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg 8221 agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca 8281 taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa 8341 cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc 8401 tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc 8461 gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct 8521 gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg 8581 tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag 8641 gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta 8701 cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg 8761 aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt 8821 tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt 8881 ttctacgggg tctgacactc agtggaacga aaactcacgt taagggattt tggtcatgag 8941 attatcaaaa aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat 9001 ctaaagtata tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc 9061 tatctcagcg atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat 9121 aactacgata cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc 9181 acgctcaccg gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag 9241 aagtggtcct gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag 9301 agtaagtagt tcgccagtta atagtttgcg caacgttgtt gccattgcta caggcatcgt 9361 ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg 9421 agttacatga tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt 9481 tgtcagaagt aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc 9541 tcttactgtc atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc 9601 attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa 9661 taccgcgcca catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg 9721 aaaactctca aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc 9781 caactgatct tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag 9841 gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt 9901 cctttttcaa tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt 9961 tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc 10021 acctgacgtc gacggatcgg gagatcgatc tcccgatccc ctagggtcga ctctcagtac 10081 aatctgctct gatgccgcat agttaagcca gtatctgctc cctgcttgtg tgttggaggt 10141 cgctgagtag tgcgcgagca aaatttaagc tacaacaagg caaggcttga ccgacaattg 10201 catgaagaat ctgcttaggg ttaggcgttt tgcgctgctt cgcgatgtac gggccag //
