质粒名称: | pCMV_UdgX-APOBEC1-UdgX-HF-NG-nCas9 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 163561 |
存储实验室: | David Liu |
载体骨架基本信息 |
|
载体名称: | pCMV |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | -- |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 哺乳动物表达,CRISPR |
筛选标记: | -- |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | UdgX-APOBEC1-UdgX-HF-NG-nCas9 |
物种来源: | H. sapiens (human) |
插入大小: | -- |
基因突变: | nCas9 (D10A)N497A, R661A, Q695A, Q926A//L111R, D1135V, G1218R, E1219F, A1322R, R1335V, T1337R |
GenBank编号 | -- |
启动子 | -- |
标签/融合蛋白: | -- |
克隆方法: | Gibson克隆 |
5' 克隆位点: | -- |
3' 克隆位点: | -- |
5' 测序引物 | -- |
3' 测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pCMV_UdgX-APOBEC1-UdgX-HF-NG-nCas9 was a gift from David Liu (Addgene plasmid # 163561 ; http://n2t.net/addgene:163561 ; RRID:Addgene_163561) |
参考文献部分: | Efficient C*G-to-G*C base editors developed using CRISPRi screens, target-library analysis, and machine learning. Koblan LW, Arbab M, Shen MW, Hussmann JA, Anzalone AV, Doman JL, Newby GA, Yang D, Mok B, Replogle JM, Xu A, Sisley TA, Weissman JS, Adamson B, Liu DR. Nat Biotechnol. 2021 Jun 28. pii: 10.1038/s41587-021-00938-z. doi: 10.1038/s41587-021-00938-z. 10.1038/s41587-021-00938-z PubMed 34183861 |
买家导航
载体基本信息

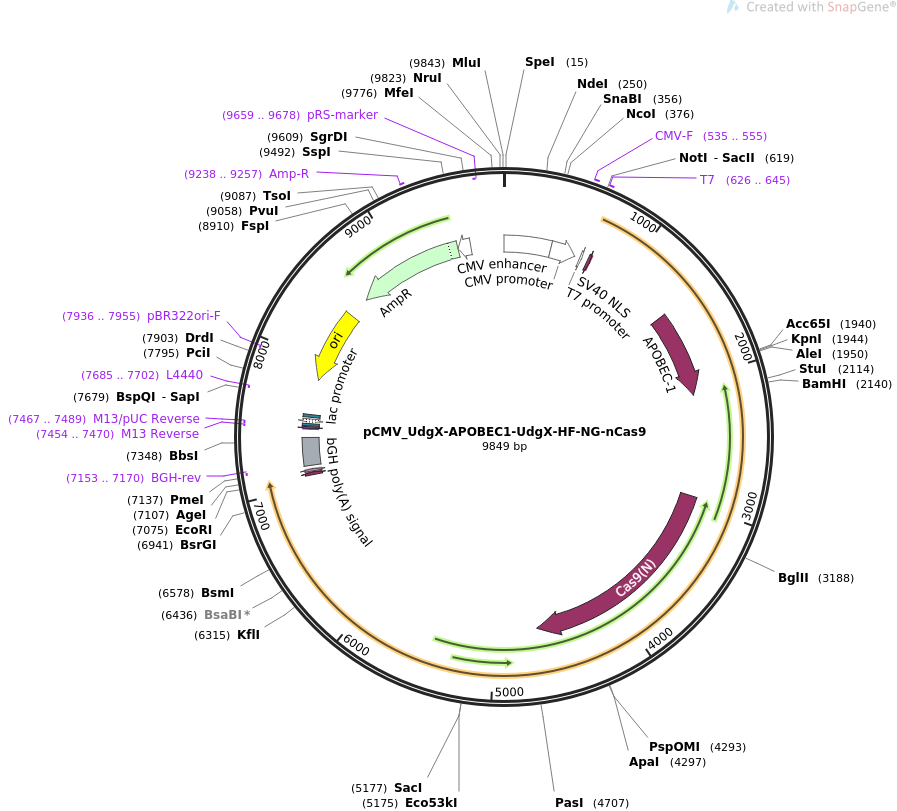

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pCMV_UdgX-APOBEC1-UdgX-HF-NG-nCas9 9849 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION Mammalian CG-to-GC base editing. ACCESSION . VERSION . KEYWORDS pCMV_UdgX-APOBEC1-UdgX-HF-NG-nCas9 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9849) TITLE Liu Lab CGBE base editors REFERENCE 2 (bases 1 to 9849) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..9849 /organism="synthetic DNA construct" /mol_type="other DNA" enhancer 1..380 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 381..584 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 535..555 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" primer_bind 626..645 /label=T7 /note="T7 promoter, forward primer" promoter 626..644 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" CDS 694..714 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 1438..2121 /codon_start=1 /product="cytidine deaminase (C to U editing enzyme) from rat" /label=APOBEC-1 /note="can use ssDNA as a substrate (Komor et al., 2016)" /translation="SSETGPVAVDPTLRRRIEPHEFEVFFDPRELRKETCLLYEINWGG RHSIWRHTSQNTNKHVEVNFIEKFTTERYFCPNTRCSITWFLSWSPCGECSRAITEFLS RYPHVTLFIYIARLYHHADPRNRQGLRDLISSGVTIQIMTEQESGYCWRNFVNYSPSNE AHWPRYPHLWVRLYVLELYCIILGLPPCLNILRRKQPQLTFFTIALQSCHYQRLPPHIL WATGLK" CDS 2941..4656 /codon_start=1 /product="N-terminal portion of Streptococcus pyogenes Cas9 (Zetsche et al., 2015)" /label=Cas9(N) /translation="DKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTAFDKNLPNEKVLPKHSLLYEYF TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIE" CDS 7084..7104 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 7113..7130 /codon_start=1 /product="6xHis affinity tag" /label=6xHis /translation="HHHHHH" primer_bind complement(7153..7170) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 7159..7383 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" primer_bind complement(7454..7470) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(7454..7470) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(7467..7489) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 7478..7494 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(7502..7532) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 7547..7568 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(7685..7702) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(7856..8444) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(7936..7955) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(8615..9475) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 9238..9257 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(9476..9580) /gene="bla" /label=AmpR promoter primer_bind complement(9659..9678) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" ORIGIN 1 gacattgatt attgactagt tattaatagt aatcaattac ggggtcatta gttcatagcc 61 catatatgga gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca 121 acgacccccg cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga 181 ctttccattg acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc 241 aagtgtatca tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct 301 ggcattatgc ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat 361 tagtcatcgc tattaccatg gtgatgcggt tttggcagta catcaatggg cgtggatagc 421 ggtttgactc acggggattt ccaagtctcc accccattga cgtcaatggg agtttgtttt 481 ggcaccaaaa tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa 541 tgggcggtag gcgtgtacgg tgggaggtct atataagcag agctggttta gtgaaccgtc 601 agatccgcta gagatccgcg gccgctaata cgactcacta tagggagagc cgccaccatg 661 aaacggacag ccgacggaag cgagttcgag tcaccaaaga agaagcggaa agtcatggcc 721 ggagcacagg attttgtccc acatactgcc gatctggctg agctggctgc cgccgctgga 781 gagtgtagag gatgcgggct gtaccgggat gccacacagg ccgtgttcgg agcaggcggc 841 aggagcgccc gcatcatgat gatcggcgag cagccaggcg ataaggagga cctggccggc 901 ctgccatttg tgggaccagc aggccggctg ctggacagag ccctggaggc cgccgacatc 961 gatagggacg ccctgtacgt gaccaacgcc gtgaagcact tcaagtttac acgcgccgca 1021 ggaggcaaga ggagaatcca caagaccccc tctcggacag aggtggtggc ctgcagacct 1081 tggctgatcg ccgagatgac cagcgtggag ccagatgtgg tggtgctgct gggagcaaca 1141 gcagcaaagg ccctgctggg caatgacttc agggtgaccc agcacagggg agaggtgctg 1201 cacgtggacg atgtgccagg cgatcctgcc ctggtggcaa ccgtgcaccc tagctccctg 1261 ctgagaggcc caaaggagga gcgggaatcc gccttcgctg ggctggtgga cgacctgaga 1321 gtggctgccg atgtgagacc ttctggagga tctagcggag gctcctctgg cagcgagaca 1381 ccaggaacaa gcgagtcagc aacaccagag agcagtggcg gcagcagcgg ggggtcatcc 1441 tcagagactg ggcctgtcgc cgtcgatcca accctgcgcc gccggattga acctcacgag 1501 tttgaagtgt tctttgaccc ccgggagctg agaaaggaga catgcctgct gtacgagatc 1561 aactggggag gcaggcactc catctggagg cacacctctc agaacacaaa taagcacgtg 1621 gaggtgaact tcatcgagaa gtttaccaca gagcggtact tctgccccaa taccagatgt 1681 agcatcacat ggtttctgag ctggtcccct tgcggagagt gtagcagggc catcaccgag 1741 ttcctgtcca gatatccaca cgtgacactg tttatctaca tcgccaggct gtatcaccac 1801 gcagacccaa ggaataggca gggcctgcgc gatctgatca gctccggcgt gaccatccag 1861 atcatgacag agcaggagtc cggctactgc tggcggaact tcgtgaatta ttctcctagc 1921 aacgaggccc actggcctag gtacccacac ctgtgggtgc gcctgtacgt gctggagctg 1981 tattgcatca tcctgggcct gcccccttgt ctgaatatcc tgcggagaaa gcagccccag 2041 ctgaccttct ttacaatcgc cctgcagtct tgtcactatc agaggctgcc accccacatc 2101 ctgtgggcca caggcctgaa gtctggagga tctagcggag gatcctctgg cagcgagaca 2161 ccaggaacaa gcgagtcagc aacaccagag agcagtggcg gcagcagcgg cggcagcatg 2221 gccggagcac aggattttgt cccacatact gccgatctgg ctgagctggc tgccgccgct 2281 ggagagtgta gaggatgcgg gctgtaccgg gatgcaacac aggccgtgtt cggagcaggc 2341 ggcaggagcg cccgcatcat gatgatcggc gagcagccag gcgataagga ggacctggcc 2401 ggcctgccat ttgtgggacc agcaggccgg ctgctggaca gagccctgga ggccgccgac 2461 atcgataggg acgccctgta cgtgaccaac gccgtgaagc acttcaagtt tacacgcgcc 2521 gcaggaggca agaggagaat ccacaagacc ccctctcgga cagaggtggt ggcctgcaga 2581 ccttggctga tcgccgagat gaccagcgtg gagccagatg tggtggtgct gctgggagca 2641 acagcagcaa aggccctgct gggcaatgac ttcagggtga cccagcacag gggagaggtg 2701 ctgcacgtgg acgatgtgcc aggcgatcct gccctggtgg caaccgtgca ccctagctcc 2761 ctgctgagag gcccaaagga ggagcgggaa tccgccttcg ctgggctggt ggacgacctg 2821 agagtggctg ccgatgtgag acctagcggt ggtagttctg gcggtagctc aggatctgaa 2881 actcccggca catctgaaag cgcgactccc gaatcatctg gtggatcttc aggtggaagt 2941 gacaagaagt acagcatcgg cctggccatc ggcaccaact ctgtgggctg ggccgtgatc 3001 accgacgagt acaaggtgcc cagcaagaaa ttcaaggtgc tgggcaacac cgaccggcac 3061 agcatcaaga agaacctgat cggagccctg ctgttcgaca gcggcgaaac agccgaggcc 3121 acccggctga agagaaccgc cagaagaaga tacaccagac ggaagaaccg gatctgctat 3181 ctgcaagaga tcttcagcaa cgagatggcc aaggtggacg acagcttctt ccacagactg 3241 gaagagtcct tcctggtgga agaggataag aagcacgagc ggcaccccat cttcggcaac 3301 atcgtggacg aggtggccta ccacgagaag taccccacca tctaccacct gagaaagaaa 3361 ctggtggaca gcaccgacaa ggccgacctg cggctgatct atctggccct ggcccacatg 3421 atcaagttcc ggggccactt cctgatcgag ggcgacctga accccgacaa cagcgacgtg 3481 gacaagctgt tcatccagct ggtgcagacc tacaaccagc tgttcgagga aaaccccatc 3541 aacgccagcg gcgtggacgc caaggccatc ctgtctgcca gactgagcaa gagcagacgg 3601 ctggaaaatc tgatcgccca gctgcccggc gagaagaaga atggcctgtt cggaaacctg 3661 attgccctga gcctgggcct gacccccaac ttcaagagca acttcgacct ggccgaggat 3721 gccaaactgc agctgagcaa ggacacctac gacgacgacc tggacaacct gctggcccag 3781 atcggcgacc agtacgccga cctgtttctg gccgccaaga acctgtccga cgccatcctg 3841 ctgagcgaca tcctgagagt gaacaccgag atcaccaagg cccccctgag cgcctctatg 3901 atcaagagat acgacgagca ccaccaggac ctgaccctgc tgaaagctct cgtgcggcag 3961 cagctgcctg agaagtacaa agagattttc ttcgaccaga gcaagaacgg ctacgccggc 4021 tacattgacg gcggagccag ccaggaagag ttctacaagt tcatcaagcc catcctggaa 4081 aagatggacg gcaccgagga actgctcgtg aagctgaaca gagaggacct gctgcggaag 4141 cagcggacct tcgacaacgg cagcatcccc caccagatcc acctgggaga gctgcacgcc 4201 attctgcggc ggcaggaaga tttttaccca ttcctgaagg acaaccggga aaagatcgag 4261 aagatcctga ccttccgcat cccctactac gtgggccctc tggccagggg aaacagcaga 4321 ttcgcctgga tgaccagaaa gagcgaggaa accatcaccc cctggaactt cgaggaagtg 4381 gtggacaagg gcgcttccgc ccagagcttc atcgagcgga tgaccgcctt cgataagaac 4441 ctgcccaacg agaaggtgct gcccaagcac agcctgctgt acgagtactt caccgtgtat 4501 aacgagctga ccaaagtgaa atacgtgacc gagggaatga gaaagcccgc cttcctgagc 4561 ggcgagcaga aaaaggccat cgtggacctg ctgttcaaga ccaaccggaa agtgaccgtg 4621 aagcagctga aagaggacta cttcaagaaa atcgagtgct tcgactccgt ggaaatctcc 4681 ggcgtggaag atcggttcaa cgcctccctg ggcacatacc acgatctgct gaaaattatc 4741 aaggacaagg acttcctgga caatgaggaa aacgaggaca ttctggaaga tatcgtgctg 4801 accctgacac tgtttgagga cagagagatg atcgaggaac ggctgaaaac ctatgcccac 4861 ctgttcgacg acaaagtgat gaagcagctg aagcggcgga gatacaccgg ctggggcagg 4921 ctgagcgcga agctgatcaa cggcatccgg gacaagcagt ccggcaagac aatcctggat 4981 ttcctgaagt ccgacggctt cgccaacaga aacttcatgg cgctgatcca cgacgacagc 5041 ctgaccttta aagaggacat ccagaaagcc caggtgtccg gccagggcga tagcctgcac 5101 gagcacattg ccaatctggc cggcagcccc gccattaaga agggcatcct gcagacagtg 5161 aaggtggtgg acgagctcgt gaaagtgatg ggccggcaca agcccgagaa catcgtgatc 5221 gaaatggcca gagagaacca gaccacccag aagggacaga agaacagccg cgagagaatg 5281 aagcggatcg aagagggcat caaagagctg ggcagccaga tcctgaaaga acaccccgtg 5341 gaaaacaccc agctgcagaa cgagaagctg tacctgtact acctgcagaa tgggcgggat 5401 atgtacgtgg accaggaact ggacatcaac cggctgtccg actacgatgt ggaccatatc 5461 gtgcctcaga gctttctgaa ggacgactcc atcgacaaca aggtgctgac cagaagcgac 5521 aagaaccggg gcaagagcga caacgtgccc tccgaagagg tcgtgaagaa gatgaagaac 5581 tactggcggc agctgctgaa cgccaagctg attacccaga gaaagttcga caatctgacc 5641 aaggccgaga gaggcggcct gagcgaactg gataaggccg gcttcatcaa gagacagctg 5701 gtggaaaccc gggcgatcac aaagcacgtg gcacagatcc tggactcccg gatgaacact 5761 aagtacgacg agaatgacaa gctgatccgg gaagtgaaag tgatcaccct gaagtccaag 5821 ctggtgtccg atttccggaa ggatttccag ttttacaaag tgcgcgagat caacaactac 5881 caccacgccc acgacgccta cctgaacgcc gtcgtgggaa ccgccctgat caaaaagtac 5941 cctaagctgg aaagcgagtt cgtgtacggc gactacaagg tgtacgacgt gcggaagatg 6001 atcgccaaga gcgagcagga aatcggcaag gctaccgcca agtacttctt ctacagcaac 6061 atcatgaact ttttcaagac cgagattacc ctggccaacg gcgagatccg gaagcggcct 6121 ctgatcgaga caaacggcga aaccggggag atcgtgtggg ataagggccg ggattttgcc 6181 accgtgcgga aagtgctgag catgccccaa gtgaatatcg tgaaaaagac cgaggtgcag 6241 acaggcggct tcagcaaaga gtctatcagg cccaagagga acagcgataa gctgatcgcc 6301 agaaagaagg actgggaccc taagaagtac ggcggcttcg tcagccccac cgtggcctat 6361 tctgtgctgg tggtggccaa agtggaaaag ggcaagtcca agaaactgaa gagtgtgaaa 6421 gagctgctgg ggatcaccat catggaaaga agcagcttcg agaagaatcc catcgacttt 6481 ctggaagcca agggctacaa agaagtgaaa aaggacctga tcatcaagct gcctaagtac 6541 tccctgttcg agctggaaaa cggccggaag agaatgctgg cctctgccag attcctgcag 6601 aagggaaacg aactggccct gccctccaaa tatgtgaact tcctgtacct ggccagccac 6661 tatgagaagc tgaagggctc ccccgaggat aatgagcaga aacagctgtt tgtggaacag 6721 cacaagcact acctggacga gatcatcgag cagatcagcg agttctccaa gagagtgatc 6781 ctggccgacg ctaatctgga caaagtgctg tccgcctaca acaagcaccg ggataagccc 6841 atcagagagc aggccgagaa tatcatccac ctgtttaccc tgaccaatct gggagcccct 6901 agggccttca agtactttga caccaccatc gaccggaagg tgtacaggag caccaaagag 6961 gtgctggacg ccaccctgat ccaccagagc atcaccggcc tgtacgagac acggatcgac 7021 ctgtctcagc tgggaggtga ctctggcggc tcaaaaagaa ccgccgacgg cagcgaattc 7081 gagcccaaga agaagaggaa agtctaaccg gtcatcatca ccatcaccat tgagtttaaa 7141 cccgctgatc agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc 7201 ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg 7261 aaattgcatc gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg 7321 acagcaaggg ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta 7381 tggcttctga ggcggaaaga accagctggg gctcgatacc gtcgacctct agctagagct 7441 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac 7501 acaacatacg agccggaagc ataaagtgta aagcctaggg tgcctaatga gtgagctaac 7561 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc 7621 tgcattaatg aatcggccaa cgcgcgggaa gaggcggttt gcgtattggg cgctcttccg 7681 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc 7741 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt 7801 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc 7861 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa 7921 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc 7981 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg 8041 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc 8101 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc 8161 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca 8221 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact 8281 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg 8341 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt 8401 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct 8461 tttctacggg gtctgacact cagtggaacg aaaactcacg ttaagggatt ttggtcatga 8521 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa 8581 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac 8641 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga 8701 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc 8761 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca 8821 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta 8881 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg 8941 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc 9001 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg 9061 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt 9121 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt 9181 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata 9241 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc 9301 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac 9361 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa 9421 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct 9481 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat 9541 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc 9601 cacctgacgt cgacggatcg ggagatcgat ctcccgatcc cctagggtcg actctcagta 9661 caatctgctc tgatgccgca tagttaagcc agtatctgct ccctgcttgt gtgttggagg 9721 tcgctgagta gtgcgcgagc aaaatttaag ctacaacaag gcaaggcttg accgacaatt 9781 gcatgaagaa tctgcttagg gttaggcgtt ttgcgctgct tcgcgatgta cgggccagat 9841 atacgcgtt //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
