pCRIS-PITChv2-FBL

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCRIS-PITChv2-FBL
出品公司: Addgene
目录编号: 63672
存储实验室: Takashi Yamamoto

载体骨架基本信息
载体名称: pUC ori vector
载体出品公司: --
载体抗性: 氨苄霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: CRISPR
筛选标记: 潮霉素
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: EGFP-2A-PuroR
物种来源: 人工合成
插入大小: --
基因突变: --
GenBank编号 --
启动子 Promoterless
标签/融合蛋白: --
克隆方法: 未知
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 TAGGTCAGGGTGGTCACGAG
3' 测序引物 --

文献引用方法
材料和方法部分: pCRIS-PITChv2-FBL was a gift from Takashi Yamamoto (Addgene plasmid # 63672 ; http://n2t.net/addgene:63672 ; RRID:Addgene_63672)
参考文献部分: MMEJ-assisted gene knock-in using TALENs and CRISPR-Cas9 with the PITCh systems. Sakuma T, Nakade S, Sakane Y, Suzuki KT, Yamamoto T. Nat Protoc. 2016 Jan;11(1):118-33. doi: 10.1038/nprot.2015.140. Epub 2015 Dec 17. 10.1038/nprot.2015.140 PubMed 26678082

载体图谱质粒图谱和多克隆位点信息

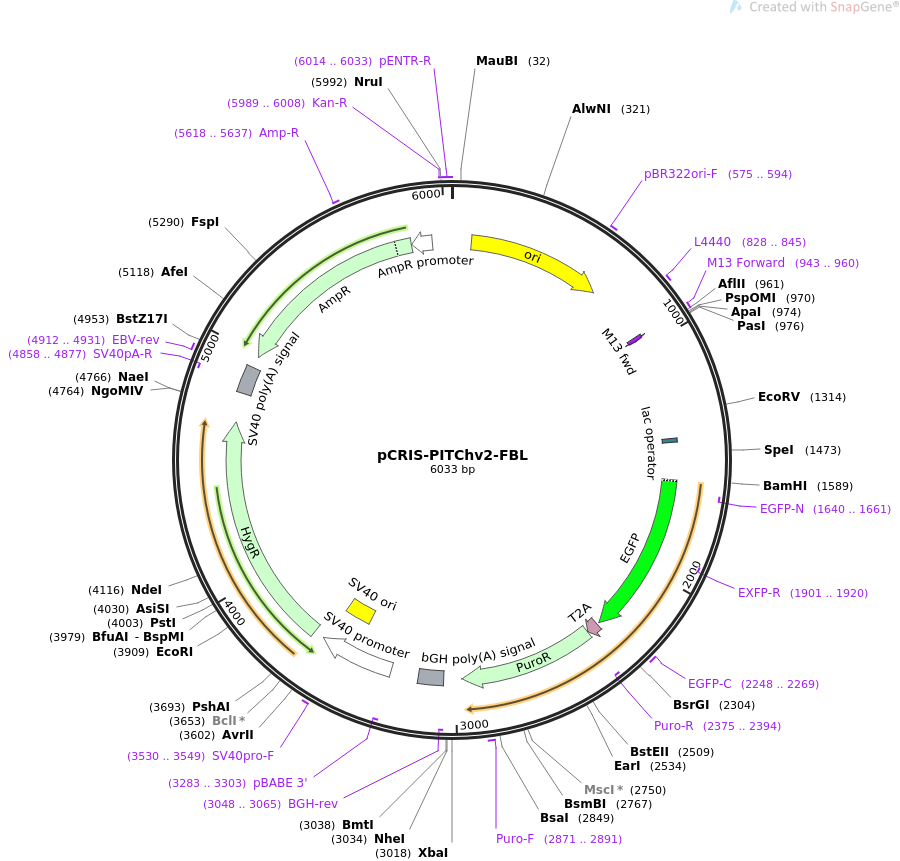

pCRIS-PITChv2-FBL质粒图谱

载体简介

载体序列

LOCUS       pCRIS-PITChv2-FBL                6033 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  PITCh donor vector for EGFP-2A-PuroR knock-in into human FBL locus.
ACCESSION   .
VERSION     .
KEYWORDS    pCRIS-PITChv2-FBL
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6033)
  AUTHORS   Sakuma T, Nakade S, Sakane Y, Suzuki KT, Yamamoto T
  TITLE     MMEJ-assisted gene knock-in using TALENs and CRISPR-Cas9 with the
            PITCh systems.
  JOURNAL   Nat Protoc. 2016 Jan;11(1):118-33. doi: 10.1038/nprot.2015.140. Epub
            2015 Dec 17.
  PUBMED    26678082
REFERENCE   2  (bases 1 to 6033)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6033
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      86..674
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     575..594
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     828..845
                     /label=L4440
                     /note="L4440 vector, forward primer"
     primer_bind     943..960
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     944..960
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    1416..1432
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             1595..2311
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(1640..1661)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(1901..1920)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     2248..2269
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     CDS             2321..2374
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             2375..2974
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(2375..2394)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     2871..2891
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     primer_bind     complement(3048..3065)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    3054..3165
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(3283..3303)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3288..3617
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3468..3603
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3530..3549
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3666..4691
                     /codon_start=1
                     /gene="aph(4)-Ia"
                     /product="aminoglycoside phosphotransferase from E. coli"
                     /label=HygR
                     /note="confers resistance to hygromycin"
                     /translation="MKKPELTATSVEKFLIEKFDSVSDLMQLSEGEESRAFSFDVGGRG
                     YVLRVNSCADGFYKDRYVYRHFASAALPIPEVLDIGEFSESLTYCISRRAQGVTLQDLP
                     ETELPAVLQPVAEAMDAIAAADLSQTSGFGPFGPQGIGQYTTWRDFICAIADPHVYHWQ
                     TVMDDTVSASVAQALDELMLWAEDCPEVRHLVHADFGSNNVLTDNGRITAVIDWSEAMF
                     GDSQYEVANIFFWRPWLACMEQQTRYFERRHPELAGSPRLRAYMLRIGLDQLYQSLVDG
                     NFDDAAWAQGRCDAIVRSGAGTVGRTQIARRSAAVWTDGCVEVLADSGNRRPSTRPRAK
                     E"
     polyA_signal    4821..4942
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4858..4877)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4912..4931
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     CDS             complement(4995..5855)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5618..5637
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5856..5947)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     5989..6008
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse primer"
     primer_bind     6014..6033
                     /label=pENTR-R
                     /note="pENTR vectors, reverse primer"
ORIGIN
        1 ctcatgacca aaatccctta acgtgagtta cgcgcgcgtc gttccactga gcgtcagacc
       61 ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct
      121 tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa
      181 ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact gttcttctag
      241 tgtagccgta gttagcccac cacttcaaga actctgtagc accgcctaca tacctcgctc
      301 tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg
      361 actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca
      421 cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat
      481 gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg
      541 tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc
      601 ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc
      661 ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc
      721 cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg
      781 cctttgagtg agctgatacc gctcgccgca gccgaacgac cgagcgcagc gagtcagtga
      841 gcgaggaagc ggaaggcgag agtagggaac tgccaggcat caaactaagc agaaggcccc
      901 tgacggatgg cctttttgcg tttctacaaa ctctttctgt gttgtaaaac gacggccagt
      961 cttaagctcg ggccccctgg gcggttctga taacgagtaa tcgttaatcc gcaaataacg
     1021 taaaaacccg cttcggcggg tttttttatg gggagagttt agggaaagag catttgtcag
     1081 aatatttaag ggcgcctgtc actttgcttg atatatgaga attatttaac cttataaatg
     1141 agaaaaaagc aacgcacttt aaataagata cgttgctttt tcgattgatg aacacctata
     1201 attaaactat tcatctatta tttatgattt tttgtatata caatatttct agtttgttaa
     1261 agagaattaa gaaaataaat ctcgaaaata ataaagggaa aatcagtttt tgatatcaaa
     1321 attatacatg tcaacgataa tacaaaatat aatacaaact ataagatgtt atcagtattt
     1381 attatcattt agaataaatt ttgtgtcgcc cttaattgtg agcggataac aattacgagc
     1441 ttcatgcaca gtggcgttga cattgattat tgactagtta ttaatagtaa tcaattacgg
     1501 ggtcattagt tcatagccca tatatggagt tccgcgttac atagcatcgt acgcgtacgt
     1561 gtttggttcc tctcacaggc caccccccgg atccatggtg agcaagggcg aggagctgtt
     1621 caccggggtg gtgcccatcc tggtcgagct ggacggcgac gtaaacggcc acaagttcag
     1681 cgtgtccggc gagggcgagg gcgatgccac ctacggcaag ctgaccctga agttcatctg
     1741 caccaccggc aagctgcccg tgccctggcc caccctcgtg accaccctga cctacggcgt
     1801 gcagtgcttc agccgttacc ccgaccacat gaagcagcac gacttcttca agtccgccat
     1861 gcccgaaggc tacgtccagg agcgcaccat cttcttcaag gacgacggca actacaagac
     1921 ccgcgccgag gtgaagttcg agggcgacac cctggtgaac cgcatcgagc tgaagggcat
     1981 cgacttcaag gaggacggca acatcctggg gcacaagctg gagtacaact acaacagcca
     2041 caacgtctat atcatggccg acaagcagaa gaacggcatc aaggtgaact tcaagatccg
     2101 ccacaacatc gaggacggca gcgtgcagct cgccgaccac taccagcaga acacccccat
     2161 cggcgacggc cccgtgctgc tgcccgacaa ccactacctg agcacccagt ccgccctgag
     2221 caaagacccc aacgagaagc gcgatcacat ggtcctgctg gagttcgtga ccgccgccgg
     2281 gatcactctc ggcatggacg agctgtacaa gggaagcgga gagggcagag gaagtctgct
     2341 aacatgcggt gacgtcgagg agaatcctgg acctatgacc gagtacaagc ccacggtgcg
     2401 cctcgccacc cgcgacgacg tcccccgggc cgtacgcacc ctcgccgccg cgttcgccga
     2461 ctaccccgcc acgcgccaca ccgtcgaccc ggaccgccac atcgagcggg tcaccgagct
     2521 gcaagaactc ttcctcacgc gcgtcgggct cgacatcggc aaggtgtggg tcgcggacga
     2581 cggcgccgcg gtggcggtct ggaccacgcc ggagagcgtc gaagcggggg cggtgttcgc
     2641 cgagatcggc ccgcgcatgg ccgagttgag cggttcccgg ctggccgcgc agcaacagat
     2701 ggaaggcctc ctggcgccgc accggcccaa ggagcccgcg tggttcctgg ccaccgtcgg
     2761 cgtctcgccc gaccaccagg gcaagggtct gggcagcgcc gtcgtgctcc ccggagtgga
     2821 ggcggccgag cgcgccgggg tgcccgcctt cctggagacc tccgcgcccc gcaacctccc
     2881 cttctacgag cggctcggct tcaccgtcac cgccgacgtc gaggtgcccg aaggaccgcg
     2941 cacctggtgc atgacccgca agcccggtgc ctgaccaagg tgaagaactg aagtccaaac
     3001 acgtacgcgt acgatgctct agaatgctga tgggctagca aaatcagcct cgactgtgcc
     3061 ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg
     3121 tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcacaac actcaaccct
     3181 atctcggtct attcttttga tttataaggg attttgccga tttcggccta ttggttaaaa
     3241 aatgagctga tttaacaaaa atttaacgcg aattaattct gtggaatgtg tgtcagttag
     3301 ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt
     3361 agtcagcaac caggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca
     3421 tgcatctcaa ttagtcagca accatagtcc cgcccctaac tccgcccatc ccgcccctaa
     3481 ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt atttatgcag
     3541 aggccgaggc cgcctctgcc tctgagctat tccagaagta gtgaggaggc ttttttggag
     3601 gcctaggctt ttgcaaaaag ctcccgggag cttgtatatc cattttcgga tctgatcagc
     3661 acgtgatgaa aaagcctgaa ctcaccgcga cgtctgtcga gaagtttctg atcgaaaagt
     3721 tcgacagcgt ttccgacctg atgcagctct cggagggcga agaatctcgt gctttcagct
     3781 tcgatgtagg agggcgtgga tatgtcctgc gggtaaatag ctgcgccgat ggtttctaca
     3841 aagatcgtta tgtttatcgg cactttgcat cggccgcgct cccgattccg gaagtgcttg
     3901 acattgggga attcagcgag agcctgacct attgcatctc ccgccgtgca cagggtgtca
     3961 cgttgcaaga cctgcctgaa accgaactgc ccgctgttct gcagccggtc gcggaggcca
     4021 tggatgcgat cgctgcggcc gatcttagcc agacgagcgg gttcggccca ttcggaccgc
     4081 aaggaatcgg tcaatacact acatggcgtg atttcatatg cgcgattgct gatccccatg
     4141 tgtatcactg gcaaactgtg atggacgaca ccgtcagtgc gtccgtcgcg caggctctcg
     4201 atgagctgat gctttgggcc gaggactgcc ccgaagtccg gcacctcgtg cacgcggatt
     4261 tcggctccaa caatgtcctg acggacaatg gccgcataac agcggtcatt gactggagcg
     4321 aggcgatgtt cggggattcc caatacgagg tcgccaacat cttcttctgg aggccgtggt
     4381 tggcttgtat ggagcagcag acgcgctact tcgagcggag gcatccggag cttgcaggat
     4441 cgccgcggct ccgggcgtat atgctccgca ttggtcttga ccaactctat cagagcttgg
     4501 ttgacggcaa tttcgatgat gcagcttggg cgcagggtcg atgcgacgca atcgtccgat
     4561 ccggagccgg gactgtcggg cgtacacaaa tcgcccgcag aagcgcggcc gtctggaccg
     4621 atggctgtgt agaagtactc gccgatagtg gaaaccgacg ccccagcact cgtccgaggg
     4681 caaaggaata gcacgtgcta cgagatttcg attccaccgc cgccttctat gaaaggttgg
     4741 gcttcggaat cgttttccgg gacgccggct ggatgatcct ccagcgcggg gatctcatgc
     4801 tggagttctt cgcccacccc aacttgttta ttgcagctta taatggttac aaataaagca
     4861 atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt
     4921 ccaaactcat caatgtatct tatcatgtct gtataccgtc gacctctagc tagagcttgg
     4981 cgtaatcatt gtcattacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta
     5041 tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc
     5101 ttaccatctg gccccagcgc tgcgatgata ccgcgagaac cacgctcacc ggctccggat
     5161 ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta
     5221 tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt
     5281 aatagtttgc gcaacgttgt tgccatcgct acaggcatcg tggtgtcacg ctcgtcgttt
     5341 ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg
     5401 ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc
     5461 gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc
     5521 gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg
     5581 cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga
     5641 actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta
     5701 ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct
     5761 tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag
     5821 ggaataaggg cgacacggaa atgttgaata ctcatattct tcctttttca atattattga
     5881 agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat
     5941 aaacaaatag gggtcagtgt tacaaccaat taaccaattc tgaacattat cgcgagccca
     6001 tttatacctg aatatggctc ataacacccc ttg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
