pDG02583

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pDG02583
出品公司: 爱迪基因
目录编号: 104129
存储实验室: Dirk Görlich

载体骨架基本信息
载体名称: pQE80 derivative
载体出品公司: --
载体抗性: 卡那霉素
空载体大小: --
完整质粒大小: 6134 bp
载体修饰: --
载体类型: 细菌表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: NEDD8-specific protease 1 (NEDP1),SENP8
物种来源: 二穗短柄草
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白:
14x Histidine tag(主干上的N末端)
Maltose binding protein(主链N端)
Small ubiquitin-like modifier (SUMO)
cleavage site from Brachypodium distachyon(骨干上的N末端)
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pDG02583 was a gift from Dirk Görlich (Addgene plasmid # 104129 ; http://n2t.net/addgene:104129 ; RRID:Addgene_104129)
参考文献部分: A toolbox of anti–mouse and anti–rabbit IgG secondary nanobodies. Pleiner T, Bates M, Görlich D. J Cell Biol Dec 2017, jcb.201709115 10.1083/jcb.201709115

载体图谱质粒图谱和多克隆位点信息

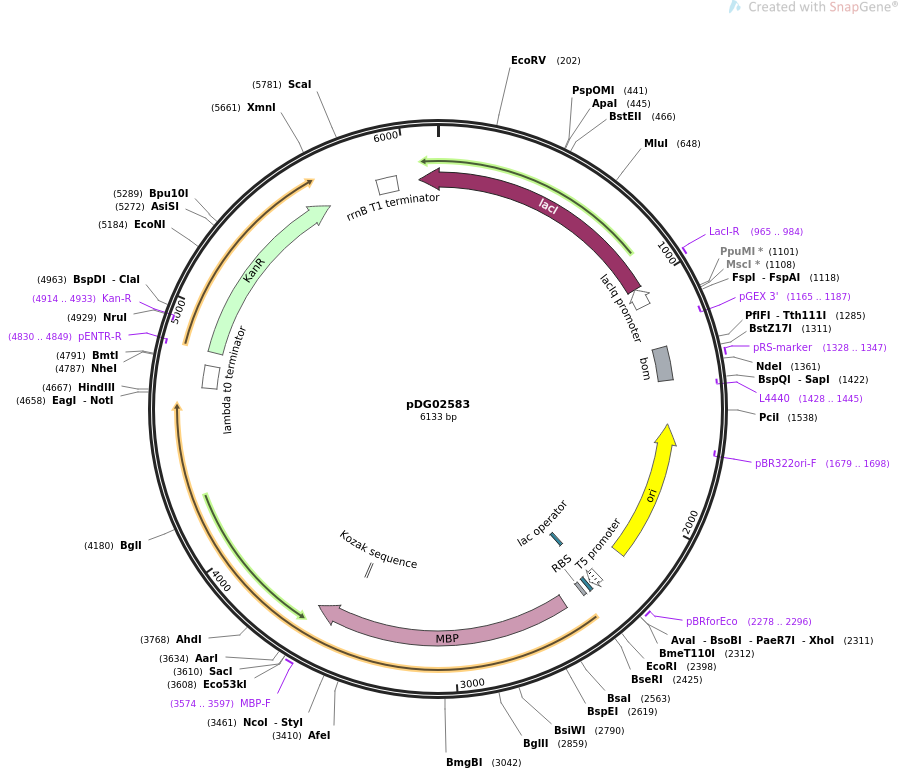

pDG02583质粒图谱

载体简介

载体序列

LOCUS       pDG02583              6133 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Optimized bacterial expression plasmid of bdNEDP1 protease (Frey and
            Goerlich, 2014).
ACCESSION   .
VERSION     .
KEYWORDS    pDG02583
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6133)
  AUTHORS   Pleiner T,  Bates M,  Gorlich D
  TITLE     A toolbox of anti–mouse and anti–rabbit IgG secondary nanobodies
  JOURNAL   J Cell Biol Dec 2017, jcb.201709115
REFERENCE   2  (bases 1 to 6133)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6133
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        1..45
                     /label=T5 promoter
                     /note="bacteriophage T5 promoter for E. coli RNA
                     polymerase, with embedded lac operator"
     protein_bind    21..37
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    53..69
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     RBS             88..99
                     /note="strong bacterial ribosome binding site (Elowitz and
                     Leibler, 2000)"
     CDS             184..1281
                     /codon_start=1
                     /gene="malE (mutated)"
                     /product="maltose binding protein from E. coli"
                     /label=MBP
                     /note="This version of the gene does not encode a signal
                     sequence, so MBP will remain in the cytosol."
                     /translation="KTEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEE
                     KFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLI
                     AYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAA
                     DGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGET
                     AMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLE
                     NYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFW
                     YAVRTAVINAASGRQTVDEALKDAQT"
     regulatory      1138..1147
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     primer_bind     1255..1278
                     /label=MBP-F
                     /note="Maltose binding protein, forward primer"
     terminator      2369..2463
                     /label=lambda t0 terminator
                     /note="transcription terminator from phage lambda"
     primer_bind     complement(2511..2530)
                     /label=pENTR-R
                     /note="pENTR vectors, reverse primer"
     CDS             2522..3337
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
                     SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     primer_bind     complement(2595..2614)
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse primer"
     terminator      3556..3642
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     CDS             complement(3735..4817)
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     primer_bind     4779..4798
                     /label=LacI-R
                     /note="LacI, reverse primer"
     promoter        complement(4818..4895)
                     /gene="lacI (mutant)"
                     /label=lacIq promoter
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     primer_bind     complement(4979..5001)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     misc_feature    5087..5227
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     5142..5161
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     complement(5242..5259)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5413..6001)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5493..5512)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     6092..6110
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
ORIGIN
        1 tcataaaaaa tttatttgct ttgtgagcgg ataacaatta taatagattc aattgtgagc
       61 ggataacaat ttcacacaga attcattaaa gaggagaaat taaccatgag caagcatcac
      121 catcattcag gccatcacca taccggacac caccatcatt caggcagtca tcaccatacc
      181 gggaaaactg aagaaggtaa actggtaatc tggattaacg gcgataaagg ctataacggt
      241 ctcgctgaag tcggtaagaa attcgagaaa gataccggaa ttaaagtcac cgttgagcat
      301 ccggataaac tggaagagaa attcccacag gttgcggcaa ctggcgatgg ccctgacatt
      361 atcttctggg cacacgaccg ctttggtggc tacgctcaat ctggcctgtt ggctgaaatc
      421 accccggaca aagcgttcca ggacaagctg tatccgttta cctgggatgc cgtacgttac
      481 aacggcaagc tgattgctta cccgatcgct gttgaagcgt tatcgctgat ttataacaaa
      541 gatctgctgc cgaacccgcc aaaaacctgg gaagagatcc cggcgctgga taaagaactg
      601 aaagcgaaag gtaagagcgc gctgatgttc aacctgcaag aaccgtactt cacctggccg
      661 ctgattgctg ctgacggggg ttatgcgttc aagtatgaaa acggcaagta cgacattaaa
      721 gacgtgggcg tggataacgc tggcgcgaaa gcgggtctga ccttcctggt tgacctgatt
      781 aaaaacaaac acatgaatgc agacactgat tactccatcg cagaagctgc ctttaataaa
      841 ggcgaaacag cgatgaccat caacggcccg tgggcatggt ccaacatcga caccagcaaa
      901 gtgaattatg gtgtaacggt actgccgacc ttcaagggtc aaccatccaa accgttcgtt
      961 ggcgtgctga gcgcaggtat taacgccgcc agtccgaaca aagagctggc aaaagagttc
     1021 ctcgaaaact atctgctgac tgatgaaggt ctggaagcgg ttaataaaga caaaccgctg
     1081 ggtgccgtag cgctgaagtc ttacgaggaa gagttggcga aagatccacg tattgccgcc
     1141 accatggaaa acgcccagaa aggtgaaatc atgccgaaca tcccgcagat gtccgctttc
     1201 tggtatgccg tgcgtactgc ggtgatcaac gccgccagcg gtcgtcagac tgtcgatgaa
     1261 gccctgaaag acgcgcagac taattcgagc tcagctgcgg gtggcgaaga agataagaaa
     1321 ccggcaggtg gcgaaggtgg cggtgcccat atcaacctga aagtgaaagg tcaagacggc
     1381 aacgaagtct ttttccgcat caaacgttct acccagctga aaaagctgat gaacgcatac
     1441 tgtgaccgtc agtctgtaga catgaccgca attgctttcc tgtttgatgg tcgtcgcctg
     1501 cgtgcggaac agaccccgga tgaactggag atggaagatg gcgacgaaat cgacgcaatg
     1561 cttcatcaga ctggtggcgg tggaatggat gaacgtgtcc tgtcttatgg tgatgtggtg
     1621 ctccttcgtt ccgatctggc tattctgcgt ggcccgcact tcctgaacga ccgtattatc
     1681 gccttctatc tggcacacct gtccgcttcc ttccacggtg atggcgatct gctgctcctg
     1741 ccgccgagca ttccgtacct gctgtccaac ctgccggacc cggaatctgt cgcagaacca
     1801 ctgtgtctgg catcccgccg tctggtcctg ctgccggtta acgataaccc ggacgcctcg
     1861 gtggcaaatg gcggttctca ctggactctg ctcgtcctgg acgctgcgac tactgacccg
     1921 caggctccgc gtttcgtgca tcatgactcc ctgcgcggtt ccgcgaacgc ggctgctgcg
     1981 cgtcgcctgg cccgtgctct gaccgctggt ggtgcgccgc tgcgcttcgt tgaggctcct
     2041 accccgaccc agcgtaacgg ccacgactgc ggcgtctatg tcctggccgt agctcgtgct
     2101 atttgtggtt ggtggcgttc ttctcgtcgc cgcgaaaacc agcagggcgg tggcggcgat
     2161 tggtttgcaa ccatgatgga agaagtggat gctgaatccg taggcgctat gcgcgctgaa
     2221 ctgctccagc tcattcaccg tctgattcag gacaaggaac aagaagaaga gaaaaagtcc
     2281 aaagctggcg tggaggatac ctgcggccaa taactcgtag gctcgacacg aagcatagcg
     2341 gccgcataag cttaattagc tgagcttgga ctcctgttga tagatccagt aatgacctca
     2401 gaactccatc tggatttgtt cagaacgctc ggttgccgcc gggcgttttt tattggtgag
     2461 aatccaagct agccatgaaa ataaactgtc tgcttacata aacagtaata caaggggtgt
     2521 tatgagccat attcaacggg aaacgtcttg ctctaggccg cgattaaatt ccaacatgga
     2581 tgctgattta tatgggtata aatgggctcg cgataatgtc gggcaatcag gtgcgacaat
     2641 ctatcgattg tatgggaagc ccgatgcgcc agagttgttt ctgaaacatg gcaaaggtag
     2701 cgttgccaat gatgttacag atgagatggt cagactaaac tggctgacgg aatttatgcc
     2761 tcttccgacc atcaagcatt ttatccgtac tcctgatgat gcttggttac tcacgactgc
     2821 gatccccggc aaaacagcat tccaggtatt agaagaatat cctgattcag gtgaaaatat
     2881 tgttgatgcg ctggcagtgt tcctgcgccg gttgcattcg attcctgttt gtaattgtcc
     2941 ttttaacagc gatcgcgtat ttcgtctcgc tcaggcgcaa tcacgaatga ataacggttt
     3001 ggttgatgcg agtgattttg atgacgagcg taatggctgg cctgttgaac aagtctggaa
     3061 agaaatgcac aaacttttgc cattctcacc ggattcagtc gtcactcatg gtgatttctc
     3121 acttgataac cttatttttg acgaggggaa attaataggt tgtattgatg ttggacgagt
     3181 cggaatcgca gaccgatacc aggatcttgc catcctatgg aactgcctcg gtgagttttc
     3241 tccttcatta cagaaacggc tttttcaaaa atatggtatt gataatcctg atatgaataa
     3301 attgcagttt catttgatgc tcgatgagtt tttctaagaa ttaattcatg ggcaaatatt
     3361 atacgcaagg cgacaaggtg ctgatgccgc tggcgattca ggttcatcat gccgtttgtg
     3421 atggcttcca tgtcggcaga atgcttaatg aattacaaca gtactgcgat gagtggcagg
     3481 gcggggcgta atttttttaa ggcagttatt ggtgccctta aacgcctggg gtaatgactc
     3541 tctagcttga ggcatcaaat aaaacgaaag gctcagtcga aagactgggc ctttcgtttt
     3601 atctgttgtt tgtcggtgaa cgctctcctg agtaggacaa atccgccctc tagattacgt
     3661 gcagtcgatg ataagctgtc aaacatgaga attgtgccta atgagtgagc taacttacat
     3721 taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt
     3781 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggggccag ggtggttttt
     3841 cttttcacca gtgagacggg caacagctga ttgcccttca ccgcctggcc ctgagagagt
     3901 tgcagcaagc ggtccacgct ggtttgcccc agcaggcgaa aatcctgttt gatggtggtt
     3961 aacggcggga tataacatga gctgtcttcg gtatcgtcgt atcccactac cgagatatcc
     4021 gcaccaacgc gcagcccgga ctcggtaatg gcgcgcattg cgcccagcgc catctgatcg
     4081 ttggcaacca gcatcgcagt gggaacgatg ccctcattca gcatttgcat ggtttgttga
     4141 aaaccggaca tggcactcca gtcgccttcc cgttccgcta tcggctgaat ttgattgcga
     4201 gtgagatatt tatgccagcc agccagacgc agacgcgccg agacagaact taatgggccc
     4261 gctaacagcg cgatttgctg gtgacccaat gcgaccagat gctccacgcc cagtcgcgta
     4321 ccgtcttcat gggagaaaat aatactgttg atgggtgtct ggtcagagac atcaagaaat
     4381 aacgccggaa cattagtgca ggcagcttcc acagcaatgg catcctggtc atccagcgga
     4441 tagttaatga tcagcccact gacgcgttgc gcgagaagat tgtgcaccgc cgctttacag
     4501 gcttcgacgc cgcttcgttc taccatcgac accaccacgc tggcacccag ttgatcggcg
     4561 cgagatttaa tcgccgcgac aatttgcgac ggcgcgtgca gggccagact ggaggtggca
     4621 acgccaatca gcaacgactg tttgcccgcc agttgttgtg ccacgcggtt gggaatgtaa
     4681 ttcagctccg ccatcgccgc ttccactttt tcccgcgttt tcgcagaaac gtggctggcc
     4741 tggttcacca cgcgggaaac ggtctgataa gagacaccgg catactctgc gacatcgtat
     4801 aacgttactg gtttcacatt caccaccctg aattgactct cttccgggcg ctatcatgcc
     4861 ataccgcgaa aggttttgca ccattcgatg gtgtcggaat ttcgggcagc gttgggtcct
     4921 ggccacgggt gcgcatgatc tagagctgcc tcgcgcgttt cggtgatgac ggtgaaaacc
     4981 tctgacacat gcagctcccg gcatccgctt acagacaagc tgtgaccgtc tccgggagca
     5041 gacaagcccg tcagggcgcg tcagcgggtg ttggcgggtg tcggggcgca gccatgaccc
     5101 agtcacgtag cgatagcgga gtgtatactg gcttaactat gcggcatcag agcagattgt
     5161 actgagagtg caccatatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg
     5221 catcaggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg
     5281 gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa
     5341 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc
     5401 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc
     5461 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag
     5521 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct
     5581 cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta
     5641 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc
     5701 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc
     5761 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt
     5821 gaagtggtgg cctaactacg gctacactag aaggacagta tttggtatct gcgctctgct
     5881 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc
     5941 tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca
     6001 agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta
     6061 agggattttg gtcatgacat taacctataa aaataggcgt atcacgaggc cctttcgtct
     6121 tcacctcgag aaa
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
