质粒名称: | pDGM3B |
---|---|
出品公司: | Addgene |
目录编号: | 110809 |
存储实验室: | David Russell |
载体骨架基本信息 |
|
载体名称: | pDG |
载体出品公司: | -- |
空载体大小: | 21845 bp |
完整质粒大小: | 21851 bp |
载体修饰: | -- |
载体类型: |
AAV
|
筛选标记: | -- |
载体抗性: | 氨苄青霉素,100μg/mL |
生长温度: | 37 ℃ |
宿主菌: | DH5a |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | AAV3B cap基因、AAV2 rep基因、腺病毒辅助基因 |
物种来源: | 腺病毒,腺相关病毒 |
插入大小: | 3086 bp |
基因突变: | -- |
GenBank编号 | AF028705.1 |
启动子: | -- |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5’克隆位点: | Sal1(未破坏) |
3’克隆位点: | Cla1 (未破坏) |
5’测序引物 | -- |
3’测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pDGM3B was a gift from David Russell (Addgene plasmid # 110809 ; http://n2t.net/addgene:110809 ; RRID:Addgene_110809) |
参考文献部分: | AAV-mediated gene targeting methods for human cells. Khan IF, Hirata RK, Russell DW. Nat Protoc. 2011 Apr;6(4):482-501. doi: 10.1038/nprot.2011.301. Epub 2011 Mar 24. 10.1038/nprot.2011.301 PubMed 21455185 |
买家导航
载体基本信息

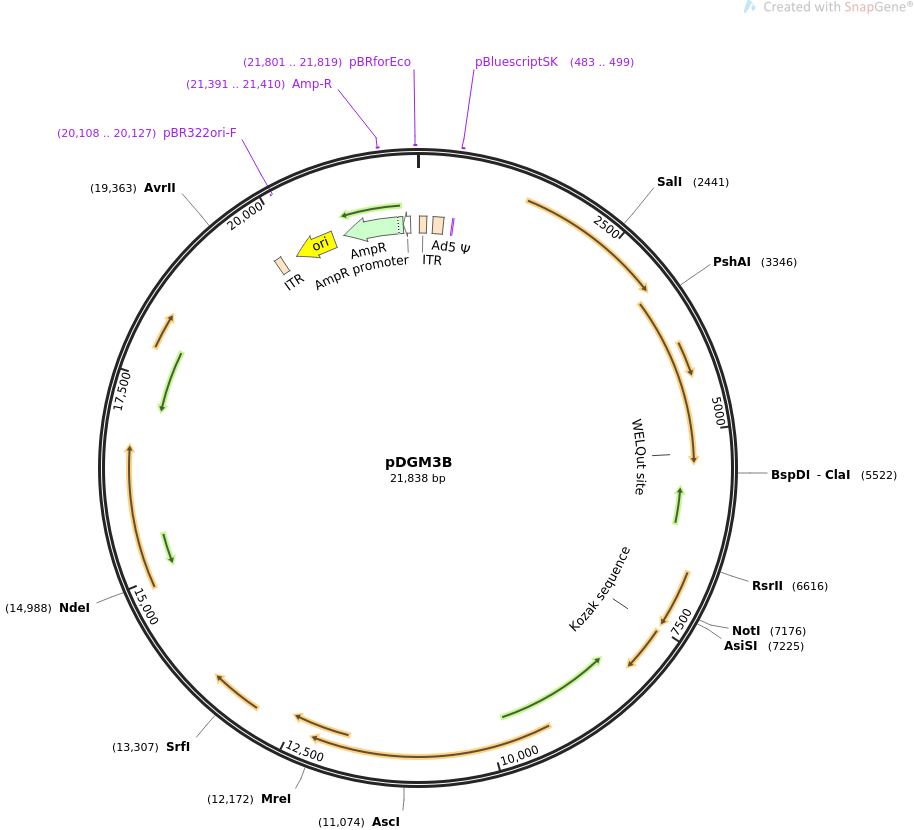

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pDGM3B 21838 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION contains the AAV3B cap genes, AAV2 rep genes, and also adenovirus helper genes. ACCESSION . VERSION . KEYWORDS pDGM3B SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 21838) AUTHORS Khan IF, Hirata RK, Russell DW TITLE AAV-mediated gene targeting methods for human cells. JOURNAL Nat Protoc. 2011 Apr;6(4):482-501. doi: 10.1038/nprot.2011.301. Epub 2011 Mar 24. PUBMED 21455185 REFERENCE 2 (bases 1 to 21838) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.biofeng.com FEATURES Location/Qualifiers source 1..21838 /organism="synthetic DNA construct" /mol_type="other DNA" repeat_region 21..123 /label=ITR /note="inverted terminal repeat of human adenovirus serotype 5" misc_signal 211..361 /label=Ad5 Psi /note="packaging signal for adenovirus serotype 5" primer_bind 483..499 /label=SK primer /note="common sequencing primer, one of multiple similar variants" primer_bind 483..499 /label=pBluescriptSK /note="For pBluescript vector" CDS 5277..5288 /codon_start=1 /product="WELQut protease recognition and cleavage site" /label=WELQut site /translation="WELQ" regulatory 7510..7519 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" repeat_region 19735..19837 /label=ITR /note="inverted terminal repeat of human adenovirus serotype 5" rep_origin complement(20028..20616) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(20108..20127) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(20768..21628) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 21391..21410 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(21629..21733) /gene="bla" /label=AmpR promoter primer_bind 21801..21819 /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" ORIGIN 1 ggatccgaat tcttaattaa catcatcaat aatatacctt attttggatt gaagccaata 61 tgataatgag ggggtggagt ttgtgacgtg gcgcggggcg tgggaacggg gcgggtgacg 121 tagtagtgtg gcggaagtgt gatgttgcaa gtgtggcgga acacatgtaa gcgacggatg 181 tggcaaaagt gacgtttttg gtgtgcgccg gtgtacacag gaagtgacaa ttttcgcgcg 241 gttttaggcg gatgttgtag taaatttggg cgtaaccgag taagatttgg ccattttcgc 301 gggaaaactg aataagagga agtgaaatct gaataatttt gtgttactca tagcgcgtaa 361 tatttgtcta gggccgcggg gactttgacc gtttacgtgg agactcgccc aggtgttttt 421 ctcaggtgtt ttccgcgttc cgggtcaaag ttggcgtttt attattatag tcagggggat 481 cctctagaac tagtggatcc gtccctagaa gtaaaaaagg gaaaaaagag tgtgtttgtc 541 aaaataggag acaggtggtg gcaaccaggg acttataggg gaccttacat ctacagacca 601 acagatgccc ccttaccata tacaggaaga tatgacttaa attgggatag gtgggtcaca 661 atcaacggct ataaagtgtt atacagatcc ctcccctttc gtgaaagact cgccagagct 721 agacctcctt ggtgtatgct aactgagaaa gagaaagacg acatgaaaca acaggtacat 781 gattatattt atctaggaac aggaatgcac ttttggggaa aggttttcca taccaaggaa 841 ggggcagtgg ctggactgat agaacattat tctgcaaaaa cttatggtat gagttattat 901 gattagcctt tatttgccca accttgcggt tcccagggtt taaataagtt tatggttaca 961 aactgttctt aaaacaagga tgtgagacaa gtggtttcct gagttggttt ggtatcaaat 1021 gttctgatct gagctcttag tgttctattt tcctatgttc ttttggaatc tatccaagtc 1081 ttatgtaaat gcttatgtaa accataatat aaaagagtgc tgattttttg agtaaacttg 1141 caacagtcct aacattcttc tctcgtgtgt ttgtgtctgt tcgccatccc gtctccgctc 1201 gtcacttatc cttcactttt cagagggtcc ccccgcagat cccggtcacc ctcaggtcgg 1261 gacctgcaga agacgcccga gtgagcacgc agggtctcca ttttgaagcg ggaggtttga 1321 acgcgcagcc gccatgccgg ggttttacga gattgtgatt aaggtcccca gcgaccttga 1381 cgagcatctg cccggcattt ctgacagctt tgtgaactgg gtggccgaga aggaatggga 1441 gttgccgcca gattctgaca tggatctgaa tctgattgag caggcacccc tgaccgtggc 1501 cgagaagctg cagcgcgact ttctgacgga atggcgccgt gtgagtaagg ccccggaggc 1561 ccttttcttt gtgcaatttg agaagggaga gagctacttc cacatgcacg tgctcgtgga 1621 aaccaccggg gtgaaatcca tggttttggg acgtttcctg agtcagattc gcgaaaaact 1681 gattcagaga atttaccgcg ggatcgagcc gactttgcca aactggttcg cggtcacaaa 1741 gaccagaaat ggcgccggag gcgggaacaa ggtggtggat gagtgctaca tccccaatta 1801 cttgctcccc aaaacccagc ctgagctcca gtgggcgtgg actaatatgg aacagtattt 1861 aagcgcctgt ttgaatctca cggagcgtaa acggttggtg gcgcagcatc tgacgcacgt 1921 gtcgcagacg caggagcaga acaaagagaa tcagaatccc aattctgatg cgccggtgat 1981 cagatcaaaa acttcagcca ggtacatgga gctggtcggg tggctcgtgg acaaggggat 2041 tacctcggag aagcagtgga tccaggagga ccaggcctca tacatctcct tcaatgcggc 2101 ctccaactcg cggtcccaaa tcaaggctgc cttggacaat gcgggaaaga ttatgagcct 2161 gactaaaacc gcccccgact acctggtggg ccagcagccc gtggaggaca tttccagcaa 2221 tcggatttat aaaattttgg aactaaacgg gtacgatccc caatatgcgg cttccgtctt 2281 tctgggatgg gccacgaaaa agttcggcaa gaggaacacc atctggctgt ttgggcctgc 2341 aactaccggg aagaccaaca tcgcggaggc catagcccac actgtgccct tctacgggtg 2401 cgtaaactgg accaatgaga actttccctt caacgactgt gtcgacaaga tggtgatctg 2461 gtgggaggag ggcaagatga cggccaaggt cgtggagagc gccaaggcca ttctgggcgg 2521 aagcaaggtg cgcgtggacc aaaagtgcaa gtcatcggcc cagatcgaac ccactcccgt 2581 gatcgtcacc tccaacacca acatgtgcgc cgtgattgac gggaacagca ccaccttcga 2641 gcatcagcag ccgctgcagg accggatgtt taaatttgaa cttacccgcc gtttggacca 2701 tgactttggg aaggtcacca aacaggaagt aaaggacttt ttccggtggg cttccgatca 2761 cgtgactgac gtggctcatg agttctacgt cagaaagggt ggagctaaga aacgccccgc 2821 ctccaatgac gcggatgtaa gcgagccaaa acggcagtgc acgtcacttg cgcagccgac 2881 aacgtcagac gcggaagcac cggcggacta cgcggacagg taccaaaaca aatgttctcg 2941 tcacgtgggc atgaatctga tgctttttcc ctgtaaaaca tgcgagagaa tgaatcaaat 3001 ttccaatgtc tgttttacgc atggtcaaag agactgtggg gaatgcttcc ctggaatgtc 3061 agaatctcaa cccgtttctg tcgtcaaaaa gaagacttat cagaaactgt gtccaattca 3121 tcatatcctg ggaagggcac ccgagattgc ctgttcggcc tgcgatttgg ccaatgtgga 3181 cttggatgac tgtgtttctg agcaataaat gacttaaacc aggtatggct gctgacggtt 3241 atcttccaga ttggctcgag gacaaccttt ctgaaggcat tcgtgagtgg tgggctctga 3301 aacctggagt ccctcaaccc aaagcgaacc aacaacacca ggacaaccgt cggggtcttg 3361 tgcttccggg ttacaaatac ctcggacccg gtaacggact cgacaaagga gagccggtca 3421 acgaggcgga cgcggcagcc ctcgaacacg acaaagctta cgaccagcag ctcaaggccg 3481 gtgacaaccc gtacctcaag tacaaccacg ccgacgccga gtttcaggag cgtcttcaag 3541 aagatacgtc ttttgggggc aaccttggca gagcagtctt ccaggccaaa aagaggatcc 3601 ttgagcctct tggtctggtt gaggaagcag ctaaaacggc tcctggaaag aagaggcctg 3661 tagatcagtc tcctcaggaa ccggactcat catctggtgt tggcaaatcg ggcaaacagc 3721 ctgccagaaa aagactaaat ttcggtcaga ctggcgactc agagtcagtc ccagaccctc 3781 aacctctcgg agaaccacca gcagccccca caagtttggg atctaataca atggcttcag 3841 gcggtggcgc accaatggca gacaataacg agggtgccga tggagtgggt aattcctcag 3901 gaaattggca ttgcgattcc caatggctgg gcgacagagt catcaccacc agcaccagaa 3961 cctgggccct gcccacttac aacaaccatc tctacaagca aatctccagc caatcaggag 4021 cttcaaacga caaccactac tttggctaca gcaccccttg ggggtatttt gactttaaca 4081 gattccactg ccacttctca ccacgtgact ggcagcgact cattaacaac aactggggat 4141 tccggcccaa gaaactcagc ttcaagctct tcaacatcca agttaaagag gtcacgcaga 4201 acgatggcac gacgactatt gccaataacc ttaccagcac ggttcaagtg tttacggact 4261 cggagtatca gctcccgtac gtgctcgggt cggcgcacca aggctgtctc ccgccgtttc 4321 cagcggacgt cttcatggtc cctcagtatg gatacctcac cctgaacaac ggaagtcaag 4381 cggtgggacg ctcatccttt tactgcctgg agtacttccc ttcgcagatg ctaaggactg 4441 gaaataactt ccaattcagc tataccttcg aggatgtacc ttttcacagc agctacgctc 4501 acagccagag tttggatcgc ttgatgaatc ctcttattga tcagtatctg tactacctga 4561 acagaacgca aggaacaacc tctggaacaa ccaaccaatc acggctgctt tttagccagg 4621 ctgggcctca gtctatgtct ttgcaggcca gaaattggct acctgggccc tgctaccggc 4681 aacagagact ttcaaagact gctaacgaca acaacaacag taactttcct tggacagcgg 4741 ccagcaaata tcatctcaat ggccgcgact cgctggtgaa tccaggacca gctatggcca 4801 gtcacaagga cgatgaagaa aaatttttcc ctatgcacgg caatctaata tttggcaaag 4861 aagggacaac ggcaagtaac gcagaattag ataatgtaat gattacggat gaagaagaga 4921 ttcgtaccac caatcctgtg gcaacagagc agtatggaac tgtggcaaat aacttgcaga 4981 gctcaaatac agctcccacg actagaactg tcaatgatca gggggcctta cctggcatgg 5041 tgtggcaaga tcgtgacgtg taccttcaag gacctatctg ggcaaagatt cctcacacgg 5101 atggacactt tcatccttct cctctgatgg gaggctttgg actgaaacat ccgcctcctc 5161 aaatcatgat caaaaatact ccggtaccgg caaatcctcc gacgactttc agcccggcca 5221 agtttgcttc atttatcact cagtactcca ctggacaggt cagcgtggaa attgagtggg 5281 agctacagaa agaaaacagc aaacgttgga atccagagat tcagtacact tccaactaca 5341 acaagtctgt taatgtggac tttactgtag acactaatgg tgtttatagt gaacctcgcc 5401 ctattggaac ccggtatctc acacgaaact tgtaatcctg gttaatcaat aaaccgttta 5461 attcgtttca gttgaacttt ggctcttgtg cacttcttat cttatcttgt ttccatggct 5521 atcgatgcat gtccttgggt ccggcctgct gaatgcgcag gcggtcggcc atgccccagg 5581 cttcgttttg acatcggcgc aggtctttgt agtagtcttg catgagcctt tctaccggca 5641 cttcttcttc tccttcctct tgtcctgcat ctcttgcatc tatcgctgcg gcggcggcgg 5701 agtttggccg taggtggcgc cctcttcctc ccatcgtgtg accccgaagc ccctcatcgg 5761 ctgaagcagg gctaggtcgg cgacaacgcg ctcggctaat atggcctgct gcacctgcgt 5821 gagggtagac tggaagtcat ccatgtccac aaagcggtgg tatgcgcccg tgttgatggt 5881 gtaagtgcag ttggccataa cggaccagtt aacggtctgg tgacccggct gcgagagctc 5941 ggtgtacctg agacgcgagt aagccctcga gtcaaatacg tagtcgttac aagtccgcac 6001 caggtactgg tatcccacca aaaagtgcgg cggcggctgg cggtagaggg gccagcgtag 6061 ggtggccggg gctccggggg cgagatcttc caacataagg cgatgatatc cgtagatgta 6121 cctggacatc caggtgatgc cggcggcggt ggtggaggcg cgcggaaagt cgcggacgcg 6181 gttccagatg ttgcgcagcg gcaaaaagtg ctccatggtc gggacgctct ggccggtcag 6241 gcgcgcgcaa tcgttgacgc tctagaccgt gcaaaaggag agcctgtaag cgggcactct 6301 tccgtggtct ggtggataaa ttcgcaaggg tatcatggcg gacgaccggg gttcgagccc 6361 cgtatccggc cgtccgccgt gatccatgcg gttaccgccc gcgtgtcgaa cccaggtgtg 6421 cgacgtcaga caacggggga gtgctccttt tggcttcctt ccaggcgcgg cggctgctgc 6481 gctagctttt ttggccactg gccgcgcgca gcgtaagcgg ttaggctgga aagcgaaagc 6541 attaagtggc tcgctccctg tagccggagg gttattttcc aagggttgag tcgcgggacc 6601 cccggttcga gtctcggacc ggccggactg cggcgaacgg gggtttgtct ccccgtcatg 6661 caagaccccg cttgcaaatt cctccggaaa cagggacgag cccctttttt gcttttccca 6721 gatgcatccg gtgctgcggc agatgcgccc ccctcctcag cagcggcaag agcaagagca 6781 gcggcagaca tgcagggcac cctcccctcc tcctaccgcg tcaggagggg cgacatccgc 6841 ggttgacgcg gcagcagatg gtgattacga acccccgcgg cgccgggccc ggcactacct 6901 ggacttggag gagggcgagg gcctggcgcg gctaggagcg ccctctcctg agcggcaccc 6961 aagggtgcag ctgaagcgtg atacgcgtga ggcgtacgtg ccgcggcaga acctgtttcg 7021 cgaccgcgag ggagaggagc ccgaggagat gcgggatcga aagttccacg cagggcgcga 7081 gctgcggcat ggcctgaatc gcgagcggtt gctgcgcgag gaggactttg agcccgacgc 7141 gcgaaccggg attagtcccg cgcgcgcaca cgtggcggcc gccgacctgg taaccgcata 7201 cgagcagacg gtgaaccagg gcgatcgcac cctttggcgc atcccattct ccagtaactt 7261 tatgtccatg ggcgcactca cagacctggg ccaaaacctt ctctacgcca actccgccca 7321 cgcgctagac atgacttttg aggtggatcc catggacgag cccacccttc tttatgtttt 7381 gtttgaagtc tttgacgtgg tccgtgtgca ccagccgcac cgcggcgtca tcgaaaccgt 7441 gtacctgcgc acgcccttct cggccggcaa cgccacaaca taaagaagca agcaacatca 7501 acaacagctg ccgccatggg ctccagtgag caggaactga aagccattgt caaagatctt 7561 ggttgtgggc catatttttt gggcacctat gacaagcgct ttccaggctt tgtttctcca 7621 cacaagctcg cctgcgccat agtcaatacg gccggtcgcg agactggggg cgtacactgg 7681 atggcctttg cctggaaccc gcactcaaaa acatgctacc tctttgagcc ctttggcttt 7741 tctgaccagc gactcaagca ggtttaccag tttgagtacg agtcactcct gcgccgtagc 7801 gccattgctt cttcccccga ccgctgtata acgctggaaa agtccaccca aagcgtacag 7861 gggcccaact cggccgcctg tggactattc tgctgcatgt ttctccacgc ctttgccaac 7921 tggccccaaa ctcccatgga tcacaacccc accatgaacc ttattaccgg ggtacccaac 7981 tccatgctca acagtcccca ggtacagccc accctgcgtc gcaaccagga acagctctac 8041 agcttcctgg agcgccactc gccctacttc cgcagccaca gtgcgcagat taggagcgcc 8101 acttcttttt gtcacttgaa aaacatgtaa aaataatgta ctagagacac tttcaataaa 8161 ggcaaatgct tttatttgta cactctcggg tgattattta cccccaccct tgccgtctgc 8221 gccgtttaaa aatcaaaggg gttctgccgc gcatcgctat gcgccactgg cagggacacg 8281 ttgcgatact ggtgtttagt gctccactta aactcaggca caaccatccg cggcagctcg 8341 gtgaagtttt cactccacag gctgcgcacc atcaccaacg cgtttagcag gtcgggcgcc 8401 gatatcttga agtcgcagtt ggggcctccg ccctgcgcgc gcgagttgcg atacacaggg 8461 ttgcagcact ggaacactat cagcgccggg tggtgcacgc tggccagcac gctcttgtcg 8521 gagatcagat ccgcgtccag gtcctccgcg ttgctcaggg cgaacggagt caactttggt 8581 agctgccttc ccaaaaaggg cgcgtgccca ggctttgagt tgcactcgca ccgtagtggc 8641 atcaaaaggt gaccgtgccc ggtctgggcg ttaggataca gcgcctgcat aaaagccttg 8701 atctgcttaa aagccacctg agcctttgcg ccttcagaga agaacatgcc gcaagacttg 8761 ccggaaaact gattggccgg acaggccgcg tcgtgcacgc agcaccttgc gtcggtgttg 8821 gagatctgca ccacatttcg gccccaccgg ttcttcacga tcttggcctt gctagactgc 8881 tccttcagcg cgcgctgccc gttttcgctc gtcacatcca tttcaatcac gtgctcctta 8941 tttatcataa tgcttccgtg tagacactta agctcgcctt cgatctcagc gcagcggtgc 9001 agccacaacg cgcagcccgt gggctcgtga tgcttgtagg tcacctctgc aaacgactgc 9061 aggtacgcct gcaggaatcg ccccatcatc gtcacaaagg tcttgttgct ggtgaaggtc 9121 agctgcaacc cgcggtgctc ctcgttcagc caggtcttgc atacggccgc cagagcttcc 9181 acttggtcag gcagtagttt gaagttcgcc tttagatcgt tatccacgtg gtacttgtcc 9241 atcagcgcgc gcgcagcctc catgcccttc tcccacgcag acacgatcgg cacactcagc 9301 gggttcatca ccgtaatttc actttccgct tcgctgggct cttcctcttc ctcttgcgtc 9361 cgcataccac gcgccactgg gtcgtcttca ttcagccgcc gcactgtgcg cttacctcct 9421 ttgccatgct tgattagcac cggtgggttg ctgaaaccca ccatttgtag cgccacatct 9481 tctctttctt cctcgctgtc cacgattacc tctggtgatg gcgggcgctc gggcttggga 9541 gaagggcgct tctttttctt cttgggcgca atggccaaat ccgccgccga ggtcgatggc 9601 cgcgggctgg gtgtgcgcgg caccagcgcg tcttgtgatg agtcttcctc gtcctcggac 9661 tcgatacgcc gcctcatccg cttttttggg ggcgcccggg gaggcggcgg cgacggggac 9721 ggggacgaca cgtcctccat ggttggggga cgtcgcgccg caccgcgtcc gcgctcgggg 9781 gtggtttcgc gctgctcctc ttcccgactg gccatttcct tctcctatag gcagaaaaag 9841 atcatggagt cagtcgagaa gaaggacagc ctaaccgccc cctctgagtt cgccaccacc 9901 gcctccaccg atgccgccaa cgcgcctacc accttccccg tcgaggcacc cccgcttgag 9961 gaggaggaag tgattatcga gcaggaccca ggttttgtaa gcgaagacga cgaggaccgc 10021 tcagtaccaa cagaggataa aaagcaagac caggacaacg cagaggcaaa cgaggaacaa 10081 gtcgggcggg gggacgaaag gcatggcgac tacctagatg tgggagacga cgtgctgttg 10141 aagcatctgc agcgccagtg cgccattatc tgcgacgcgt tgcaagagcg cagcgatgtg 10201 cccctcgcca tagcggatgt cagccttgcc tacgaacgcc acctattctc accgcgcgta 10261 ccccccaaac gccaagaaaa cggcacatgc gagcccaacc cgcgcctcaa cttctacccc 10321 gtatttgccg tgccagaggt gcttgccacc tatcacatct ttttccaaaa ctgcaagata 10381 cccctatcct gccgtgccaa ccgcagccga gcggacaagc agctggcctt gcggcagggc 10441 gctgtcatac ctgatatcgc ctcgctcaac gaagtgccaa aaatctttga gggtcttgga 10501 cgcgacgaga agcgcgcggc aaacgctctg caacaggaaa acagcgaaaa tgaaagtcac 10561 tctggagtgt tggtggaact cgagggtgac aacgcgcgcc tagccgtact aaaacgcagc 10621 atcgaggtca cccactttgc ctacccggca cttaacctac cccccaaggt catgagcaca 10681 gtcatgagtg agctgatcgt gcgccgtgcg cagcccctgg agagggatgc aaatttgcaa 10741 gaacaaacag aggagggcct acccgcagtt ggcgacgagc agctagcgcg ctggcttcaa 10801 acgcgcgagc ctgccgactt ggaggagcga cgcaaactaa tgatggccgc agtgctcgtt 10861 accgtggagc ttgagtgcat gcagcggttc tttgctgacc cggagatgca gcgcaagcta 10921 gaggaaacat tgcactacac ctttcgacag ggctacgtac gccaggcctg caagatctcc 10981 aacgtggagc tctgcaacct ggtctcctac cttggaattt tgcacgaaaa ccgccttggg 11041 caaaacgtgc ttcattccac gctcaagggc gaggcgcgcc gcgactacgt ccgcgactgc 11101 gtttacttat ttctatgcta cacctggcag acggccatgg gcgtttggca gcagtgcttg 11161 gaggagtgca acctcaagga gctgcagaaa ctgctaaagc aaaacttgaa ggacctatgg 11221 acggccttca acgagcgctc cgtggccgcg cacctggcgg acatcatttt ccccgaacgc 11281 ctgcttaaaa ccctgcaaca gggtctgcca gacttcacca gtcaaagcat gttgcagaac 11341 tttaggaact ttatcctaga gcgctcagga atcttgcccg ccacctgctg tgcacttcct 11401 agcgactttg tgcccattaa gtaccgcgaa tgccctccgc cgctttgggg ccactgctac 11461 cttctgcagc tagccaacta ccttgcctac cactctgaca taatggaaga cgtgagcggt 11521 gacggtctac tggagtgtca ctgtcgctgc aacctatgca ccccgcaccg ctccctggtt 11581 tgcaattcgc agctgcttaa cgaaagtcaa attatcggta cctttgagct gcagggtccc 11641 tcgcctgacg aaaagtccgc ggctccgggg ttgaaactca ctccggggct gtggacgtcg 11701 gcttaccttc gcaaatttgt acctgaggac taccacgccc acgagattag gttctacgaa 11761 gaccaatccc gcccgcctaa tgcggagctt accgcctgcg tcattaccca gggccacatt 11821 cttggccaat tgcaagccat caacaaagcc cgccaagagt ttctgctacg aaagggacgg 11881 ggggtttact tggaccccca gtccggcgag gagctcaacc caatcccccc gccgccgcag 11941 ccctatcagc agcagccgcg ggcccttgct tcccaggatg gcacccaaaa agaagctgca 12001 gctgccgccg ccacccacgg acgaggagga atactgggac agtcaggcag aggaggtttt 12061 ggacgaggag gaggaggaca tgatggaaga ctgggagagc ctagacgagg aagcttccga 12121 ggtcgaagag gtgtcagacg aaacaccgtc accctcggtc gcattcccct cgccggcgcc 12181 ccagaaatcg gcaaccggtt ccagcatggc tacaacctcc gctcctcagg cgccgccggc 12241 actgcccgtt cgccgaccca accgtagatg ggacaccact ggaaccaggg ccggtaagtc 12301 caagcagccg ccgccgttag cccaagagca acaacagcgc caaggctacc gctcatggcg 12361 cgggcacaag aacgccatag ttgcttgctt gcaagactgt gggggcaaca tctccttcgc 12421 ccgccgcttt cttctctacc atcacggcgt ggccttcccc cgtaacatcc tgcattacta 12481 ccgtcatctc tacagcccat actgcaccgg cggcagcggc agcaacagca gcggccacac 12541 agaagcaaag gcgaccggat agcaagactc tgacaaagcc caagaaatcc acagcggcgg 12601 cagcagcagg aggaggagcg ctgcgtctgg cgcccaacga acccgtatcg acccgcgagc 12661 ttagaaacag gatttttccc actctgtatg ctatatttca acagagcagg ggccaagaac 12721 aagagctgaa aataaaaaac aggtctctgc gatccctcac ccgcagctgc ctgtatcaca 12781 aaagcgaaga tcagcttcgg cgcacgctgg aagacgcgga ggctctcttc agtaaatact 12841 gcgcgctgac tcttaaggac tagtttcgcg ccctttctca aatttaagcg cgaaaactac 12901 gtcatctcca gcggccacac ccggcgccag cacctgttgt cagcgccatt atgagcaagg 12961 aaattcccac gccctacatg tggagttacc agccacaaat gggacttgcg gctggagctg 13021 cccaagacta ctcaacccga ataaactaca tgagcgcggg accccacatg atatcccggg 13081 tcaacggaat acgcgcccac cgaaaccgaa ttctcctgga acaggcggct attaccacca 13141 cacctcgtaa taaccttaat ccccgtagtt ggcccgctgc cctggtgtac caggaaagtc 13201 ctgctcccac cactgtggta cttcccagag acgcccaggc cgaagttcag atgactaact 13261 caggggcgca gcttgcgggc ggctttcgtc acagggtgcg gtcgcccggg cagggtataa 13321 ctcacctgac aatcagaggg cgaggtattc agctcaacga cgagtcggtg agctcctcgc 13381 ttggtctccg tccggacggg acatttcaga tcggcggcgc cggccgctct tcattcacgc 13441 ctcgtcaggc aatcctaact ctgcagacct cgtcctctga gccgcgctct ggaggcattg 13501 gaactctgca atttattgag gagtttgtgc catcggtcta ctttaacccc ttctcgggac 13561 ctcccggcca ctatccggat caatttattc ctaactttga cgcggtaaag gactcggcgg 13621 acggctacga ctgaatgtta agtggagagg cagagcaact gcgcctgaaa cacctggtcc 13681 actgtcgccg ccacaagtgc tttgcccgcg actccggtga gttttgctac tttgaattgc 13741 ccgaggatca tatcgagggc ccggcgcacg gcgtccggct taccgcccag ggagagcttg 13801 cccgtagcct gattcgggag tttacccagc gccccctgct agttgagcgg gacaggggac 13861 cctgtgttct cactgtgatt tgcaactgtc ctaaccctgg attacatcaa gatctttgtt 13921 gccatctctg tgctgagtat aataaataca gaaattaaaa tatactgggg ctcctatcgc 13981 catcctgtaa acgccaccgt cttcacccgc ccaagcaaac caaggcgaac cttacctggt 14041 acttttaaca tctctccctc tgtgatttac aacagtttca acccagacgg agtgagtcta 14101 cgagagaacc tctccgagct cagctactcc atcagaaaaa acaccaccct ccttacctgc 14161 cgggaacgta cgagtgcgtc accggccgct gcaccacacc taccgcctga ccgtaaacca 14221 gactttttcc ggacagacct caataactct gtttaccaga acaggaggtg agcttagaaa 14281 acccttaggg tattaggcca aaggcgcagc tactgtgggg tttatgaaca attcaagcaa 14341 ctctacgggc tattctaatt caggtttctc tagaaatgga cggaattatt acagagcagc 14401 gcctgctaga aagacgcagg gcagcggccg agcaacagcg catgaatcaa gagctccaag 14461 acatggttaa cttgcaccag tgcaaaaggg gtatcttttg tctggtaaag caggccaaag 14521 tcacctacga cagtaatacc accggacacc gccttagcta caagttgcca accaagcgtc 14581 agaaattggt ggtcatggtg ggagaaaagc ccattaccat aactcagcac tcggtagaaa 14641 ccgaaggctg cattcactca ccttgtcaag gacctgagga tctctgcacc cttattaaga 14701 ccctgtgcgg tctcaaagat cttattccct ttaactaata aaaaaaaata ataaagcatc 14761 acttacttaa aatcagttag caaatttctg tccagtttat tcagcagcac ctccttgccc 14821 tcctcccagc tctggtattg cagcttcctc ctggctgcaa actttctcca caatctaaat 14881 ggaatgtcag tttcctcctg ttcctgtcca tccgcaccca ctatcttcat gttgttgcag 14941 atgaagcgcg caagaccgtc tgaagatacc ttcaaccccg tgtatccata tgacacggaa 15001 accggtcctc caactgtgcc ttttcttact cctccctttg tatcccccaa tgggtttcaa 15061 gagagtcccc ctggggtact ctctttgcgc ctatccgaac ctctagttac ctccaatggc 15121 atgcttgcgc tcaaaatggg caacggcctc tctctggacg aggccggcaa ccttacctcc 15181 caaaatgtaa ccactgtgag cccacctctc aaaaaaacca agtcaaacat aaacctggaa 15241 atatctgcac ccctcacagt tacctcagaa gccctaactg tggctgccgc cgcacctcta 15301 atggtcgcgg gcaacacact caccatgcaa tcacaggccc cgctaaccgt gcacgactcc 15361 aaacttagca ttgccaccca aggacccctc acagtgtcag aaggaaagct agccctgcaa 15421 acatcaggcc ccctcaccac caccgatagc agtaccctta ctatcactgc ctcaccccct 15481 ctaactactg ccactggtag cttgggcatt gacttgaaag agcccattta tacacaaaat 15541 ggaaaactag gactaaagta cggggctcct ttgcatgtaa cagacgacct aaacactttg 15601 accgtagcaa ctggtccagg tgtgactatt aataatactt ccttgcaaac taaagttact 15661 ggagccttgg gttttgattc acaaggcaat atgcaactta atgtagcagg aggactaagg 15721 attgattctc aaaacagacg ccttatactt gatgttagtt atccgtttga tgctcaaaac 15781 caactaaatc taagactagg acagggccct ctttttataa actcagccca caacttggat 15841 attaactaca acaaaggcct ttacttgttt acagcttcaa acaattccaa aaagcttgag 15901 gttaacctaa gcactgccaa ggggttgatg tttgacgcta cagccatagc cattaatgca 15961 ggagatgggc ttgaatttgg ttcacctaat gcaccaaaca caaatcccct caaaacaaaa 16021 attggccatg gcctagaatt tgattcaaac aaggctatgg ttcctaaact aggaactggc 16081 cttagttttg acagcacagg tgccattaca gtaggaaaca aaaataatga taagctaact 16141 ttgtggacca caccagctcc atctcctaac tgtagactaa atgcagagaa agatgctaaa 16201 ctcactttgg tcttaacaaa atgtggcagt caaatacttg ctacagtttc agttttggct 16261 gttaaaggca gtttggctcc aatatctgga acagttcaaa gtgctcatct tattataaga 16321 tttgacgaaa atggagtgct actaaacaat tccttcctgg acccagaata ttggaacttt 16381 agaaatggag atcttactga aggcacagcc tatacaaacg ctgttggatt tatgcctaac 16441 ctatcagctt atccaaaatc tcacggtaaa actgccaaaa gtaacattgt cagtcaagtt 16501 tacttaaacg gagacaaaac taaacctgta acactaacca ttacactaaa cggtacacag 16561 gaaacaggag acacaactcc aagtgcatac tctatgtcat tttcatggga ctggtctggc 16621 cacaactaca ttaatgaaat atttgccaca tcctcttaca ctttttcata cattgcccaa 16681 gaataaagaa tcgtttgtgt tatgtttcaa cgtgtttatt tttcaattgc agaaaatttc 16741 aagtcatttt tcattcagta gtatagcccc accaccacat agcttataca gatcaccgta 16801 ccttaatcaa actcacagaa ccctagtatt caacctgcca cctccctccc aacacacaga 16861 gtacacagtc ctttctcccc ggctggcctt aaaaagcatc atatcatggg taacagacat 16921 attcttaggt gttatattcc acacggtttc ctgtcgagcc aaacgctcat cagtgatatt 16981 aataaactcc ccgggcagct cacttaagtt catgtcgctg tccagctgct gagccacagg 17041 ctgctgtcca acttgcggtt gcttaacggg cggcgaagga gaagtccacg cctacatggg 17101 ggtagagtca taatcgtgca tcaggatagg gcggtggtgc tgcagcagcg cgcgaataaa 17161 ctgctgccgc cgccgctccg tcctgcagga atacaacatg gcagtggtct cctcagcgat 17221 gattcgcacc gcccgcagca taaggcgcct tgtcctccgg gcacagcagc gcaccctgat 17281 ctcacttaaa tcagcacagt aactgcagca cagcaccaca atattgttca aaatcccaca 17341 gtgcaaggcg ctgtatccaa agctcatggc ggggaccaca gaacccacgt ggccatcata 17401 ccacaagcgc aggtagatta agtggcgacc cctcataaac acgctggaca taaacattac 17461 ctcttttggc atgttgtaat tcaccacctc ccggtaccat ataaacctct gattaaacat 17521 ggcgccatcc accaccatcc taaaccagct ggccaaaacc tgcccgccgg ctatacactg 17581 cagggaaccg ggactggaac aatgacagtg gagagcccag gactcgtaac catggatcat 17641 catgctcgtc atgatatcaa tgttggcaca acacaggcac acgtgcatac acttcctcag 17701 gattacaagc tcctcccgcg ttagaaccat atcccaggga acaacccatt cctgaatcag 17761 cgtaaatccc acactgcagg gaagacctcg cacgtaactc acgttgtgca ttgtcaaagt 17821 gttacattcg ggcagcagcg gatgatcctc cagtatggta gcgcgggttt ctgtctcaaa 17881 aggaggtaga cgatccctac tgtacggagt gcgccgagac aaccgagatc gtgttggtcg 17941 tagtgtcatg ccaaatggaa cgccggacgt agtcatattt cctgaagcaa aaccaggtgc 18001 gggcgtgaca aacagatctg cgtctccggt ctcgccgctt agatcgctct gtgtagtagt 18061 tgtagtatat ccactctctc aaagcatcca ggcgccccct ggcttcgggt tctatgtaaa 18121 ctccttcatg cgccgctgcc ctgataacat ccaccaccgc agaataagcc acacccagcc 18181 aacctacaca ttcgttctgc gagtcacaca cgggaggagc gggaagagct ggaagaacca 18241 tgtttttttt tttattccaa aagattatcc aaaacctcaa aatgaagatc tattaagtga 18301 acgcgctccc ctccggtggc gtggtcaaac tctacagcca aagaacagat aatggcattt 18361 gtaagatgtt gcacaatggc ttccaaaagg caaacggccc tcacgtccaa gtggacgtaa 18421 aggctaaacc cttcagggtg aatctcctct ataaacattc cagcaccttc aaccatgccc 18481 aaataattct catctcgcca ccttctcaat atatctctaa gcaaatcccg aatattaagt 18541 ccggccattg taaaaatctg ctccagagcg ccctccacct tcagcctcaa gcagcgaatc 18601 atgattgcaa aaattcaggt tcctcacaga cctgtataag attcaaaagc ggaacattaa 18661 caaaaatacc gcgatcccgt aggtcccttc gcagggccag ctgaacataa tcgtgcaggt 18721 ctgcacggac cagcgcggcc acttccccgc caggaaccat gacaaaagaa cccacactga 18781 ttatgacacg catactcgga gctatgctaa ccagcgtagc cccgatgtaa gcttgttgca 18841 tgggcggcga tataaaatgc aaggtgctgc tcaaaaaatc aggcaaagcc tcgcgcaaaa 18901 aagaaagcac atcgtagtca tgctcatgca gataaaggca ggtaagctcc ggaaccacca 18961 cagaaaaaga caccattttt ctctcaaaca tgtctgcggg tttctgcata aacacaaaat 19021 aaaataacaa aaaaacattt aaacattaga agcctgtctt acaacaggaa aaacaaccct 19081 tataagcata agacggacta cggccatgcc ggcgtgaccg taaaaaaact ggtcaccgtg 19141 attaaaaagc accaccgaca gctcctcggt catgtccgga gtcataatgt aagactcggt 19201 aaacacatca ggttgattca catcggtcag tgctaaaaag cgaccgaaat agcccggggg 19261 aatacatacc cgcaggcgta gagacaacat tacagccccc ataggaggta taacaaaatt 19321 aataggagag aaaaacacat aaacacctga aaaaccctcc tgcctaggca aaatagcacc 19381 ctcccgctcc agaacaacat acagcgcttc cacagcggca gccataacag tcagccttac 19441 cagtaaaaaa gaaaacctat taaaaaaaca ccactcgaca cggcaccagc tcaatcagtc 19501 acagtgtaaa aaagggccaa gtgcagagcg agtatatata ggactaaaaa atgacgtaac 19561 ggttaaagtc cacaaaaaac acccagaaaa ccgcacgcga acctacgccc agaaacgaaa 19621 gccaaaaaac ccacaacttc ctcaaatcgt cacttccgtt ttcccacgtt acgtcacttc 19681 ccattttaag aaaactacaa ttcccaacac atacaagtta ctccgcccta aaacctacgt 19741 cacccgcccc gttcccacgc cccgcgccac gtcacaaact ccaccccctc attatcatat 19801 tggcttcaat ccaaaataag gtatattatt gatgatgtta attaagaatt cggatctgcg 19861 acgcgaggct ggatggcctt ccccattatg attcttctcg cttccggcgg catcgggatg 19921 cccgcgttgc aggccatgct gtccaggcag gtagatgacg accatcaggg acagcttcaa 19981 ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc 20041 cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca 20101 ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg 20161 accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct 20221 catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt 20281 gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag 20341 tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc 20401 agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac 20461 actagaagga cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga 20521 gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc 20581 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg 20641 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca 20701 aaaaggatct tcacctagat ccttttaaat caatctaaag tatatatgag taaacttggt 20761 ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt ctatttcgtt 20821 catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag ggcttaccat 20881 ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca gatttatcag 20941 caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact ttatccgcct 21001 ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca gttaatagtt 21061 tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg 21121 cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc atgttgtgca 21181 aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt 21241 tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca tccgtaagat 21301 gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt atgcggcgac 21361 cgagttgctc ttgcccggcg tcaacacggg ataataccgc gccacatagc agaactttaa 21421 aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt 21481 tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca tcttttactt 21541 tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa 21601 gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat tgaagcattt 21661 atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa aataaacaaa 21721 taggggttcc gcgcacattt ccccgaaaag tgccacctga cgtctaagaa accattatta 21781 tcatgacatt aacctataaa aataggcgta tcacgaggcc ctttcgtctt caagaatt //
