质粒名称: | pDest-636 |
---|---|
出品公司: | Addgene |
目录编号: | 159574 |
存储实验室: | Dominic Esposito |
载体骨架基本信息 |
|
载体名称: | -- |
载体出品公司: | -- |
空载体大小: | -- |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 昆虫表达 |
筛选标记: | -- |
载体抗性: | 氯霉素和庆大霉素 |
生长温度: | 37 ℃ |
宿主菌: | ccdB Survival |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | -- |
物种来源: | -- |
插入大小: | -- |
基因突变: | -- |
GenBank编号 | -- |
启动子: | -- |
标签/融合蛋白: | His6 MBP(插入件上的N端子) |
克隆方法: | -- |
5’克隆位点: | -- |
3’克隆位点: | -- |
5’测序引物 | -- |
3’测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pDest-636 was a gift from Dominic Esposito (Addgene plasmid # 159574 ; http://n2t.net/addgene:159574 ; RRID:Addgene_159574) |
参考文献部分: | Farnesylated and methylated KRAS4b: high yield production of protein suitable for biophysical studies of prenylated protein-lipid interactions. Gillette WK, Esposito D, Abreu Blanco M, Alexander P, Bindu L, Bittner C, Chertov O, Frank PH, Grose C, Jones JE, Meng Z, Perkins S, Van Q, Ghirlando R, Fivash M, Nissley DV, McCormick F, Holderfield M, Stephen AG. Sci Rep. 2015 Nov 2;5:15916. doi: 10.1038/srep15916. 10.1038/srep15916 PubMed 26522388 |
买家导航
pDest636载体基本信息

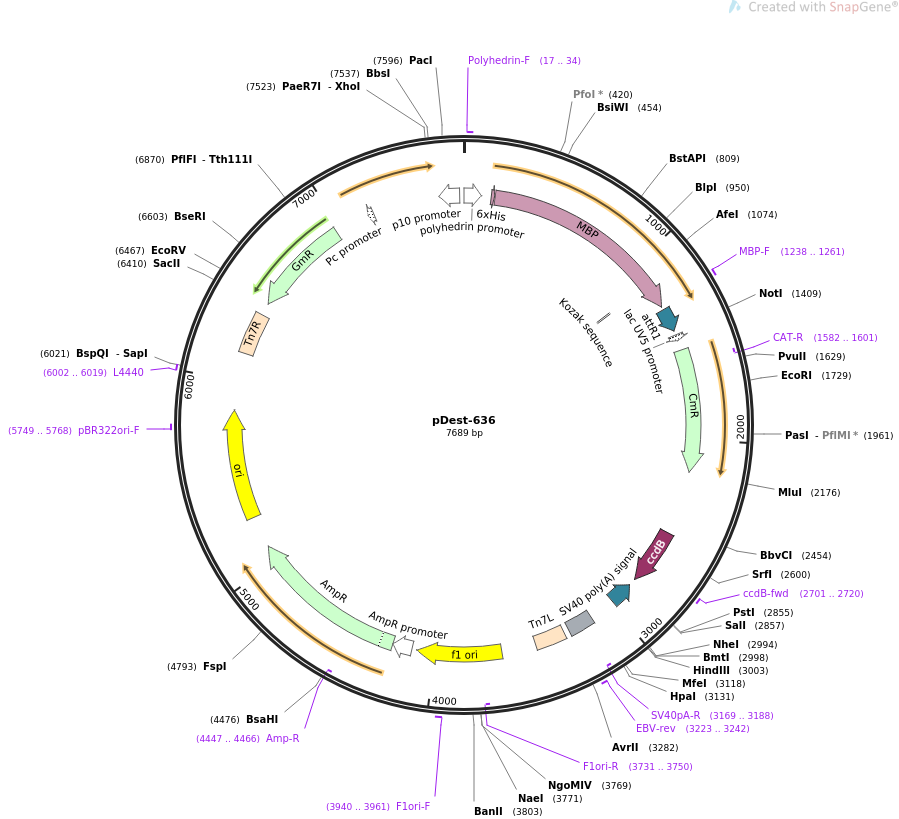

pDest636载体图谱质粒图谱和多克隆位点信息
pDest636载体简介
pDest636载体序列
LOCUS pDest-636 7689 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION Gateway Destination vector for protein expression in baculovirus. ACCESSION . VERSION . KEYWORDS pDest-636 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 7689) AUTHORS Gillette WK, Esposito D, Abreu Blanco M, Alexander P, Bindu L, Bittner C, Chertov O, Frank PH, Grose C, Jones JE, Meng Z, Perkins S, Van Q, Ghirlando R, Fivash M, Nissley DV, McCormick F, Holderfield M, Stephen AG TITLE Farnesylated and methylated KRAS4b: high yield production of protein suitable for biophysical studies of prenylated protein-lipid interactions. JOURNAL Sci Rep. 2015 Nov 2;5:15916. doi: 10.1038/srep15916. PUBMED 26522388 REFERENCE 2 (bases 1 to 7689) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..7689 /organism="synthetic DNA construct" /mol_type="other DNA" promoter 1..92 /gene="polh from Autographa californica" /label=polyhedrin promoter /note="promoter for the baculovirus polyhedrin gene" primer_bind 17..34 /label=Polyhedrin-F /note="Polyhedrin promoter, forward primer" CDS 146..163 /codon_start=1 /product="6xHis affinity tag" /label=6xHis /translation="HHHHHH" CDS 167..1264 /codon_start=1 /gene="malE (mutated)" /product="maltose binding protein from E. coli" /label=MBP /note="This version of the gene does not encode a signal sequence, so MBP will remain in the cytosol." /translation="KIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEE KFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLI AYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAA DGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGET AMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLE NYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFW YAVRTAVINAASGRQTVDEALKDAQT" regulatory 1121..1130 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" primer_bind 1238..1261 /label=MBP-F /note="Maltose binding protein, forward primer" protein_bind 1283..1407 /gene="mutant version of attR" /label=attR1 /bound_moiety="LR Clonase(TM)" /note="recombination site for the Gateway(R) LR reaction" promoter 1432..1462 /label=lac UV5 promoter /note="E. coli lac promoter with an ""up"" mutation" CDS 1516..2175 /codon_start=1 /gene="cat" /product="chloramphenicol acetyltransferase" /label=CmR /note="confers resistance to chloramphenicol" /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA" primer_bind complement(1582..1601) /label=CAT-R /note="Chloramphenicol resistance gene, reverse primer" CDS 2517..2822 /codon_start=1 /gene="ccdB" /product="CcdB, a bacterial toxin that poisons DNA gyrase" /label=ccdB /note="Plasmids containing the ccdB gene cannot be propagated in standard E. coli strains." /translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI" primer_bind 2701..2720 /label=ccdB-fwd /note="ccdB gene, forward primer" protein_bind complement(2863..2987) /gene="mutant version of attR" /label=attR2 /bound_moiety="LR Clonase(TM)" /note="recombination site for the Gateway(R) LR reaction" polyA_signal 3132..3266 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(3169..3188) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 3223..3242 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" mobile_element 3295..3460 /mobile_element_type="transposon:Tn7" /note="mini-Tn7 element (left end of the Tn7 transposon)" rep_origin 3644..4098 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(3731..3750) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 3940..3961 /label=F1ori-F /note="F1 origin, forward primer" promoter 4124..4228 /gene="bla" /label=AmpR promoter CDS 4229..5089 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(4447..4466) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" rep_origin 5260..5848 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 5749..5768 /label=pBR322ori-F /note="pBR322 origin, forward primer" primer_bind 6002..6019 /label=L4440 /note="L4440 vector, forward primer" mobile_element 6153..6377 /mobile_element_type="transposon:Tn7" /note="mini-Tn7 element (right end of the Tn7 transposon)" CDS complement(6444..6977) /codon_start=1 /gene="aacC1" /product="gentamycin acetyltransferase" /label=GmR /note="confers resistance to gentamycin" /translation="MLRSSNDVTQQGSRPKTKLGGSSMGIIRTCRLGPDQVKSMRAALD LFGREFGDVATYSQHQPDSDYLGNLLRSKTFIALAAFDQEAVVGALAAYVLPKFEQPRS EIYIYDLAVSGEHRRQGIATALINLLKHEANALGAYVIYVQADYGDDPAVALYTKLGIR EEVMHFDIDPSTAT" promoter complement(7166..7194) /gene="intI1 (promoter lies within the coding sequence)" /label=Pc promoter /note="class 1 integron promoter" promoter complement(7557..7666) /label=p10 promoter /note="baculovirus promoter for expression in insect cells" ORIGIN 1 atcatggaga taattaaaat gataaccatc tcgcaaataa ataagtattt tactgttttc 61 gtaacagttt tgtaataaaa aaacctataa atattccgga ttattcatac cgtcccacca 121 tcgggcgcgg atcaccatgg gatcccatca ccatcaccat cacggcaaaa tcgaagaagg 181 taaactggta atctggatta acggcgataa aggctataac ggtctcgctg aagtcggtaa 241 gaaattcgag aaagataccg gaattaaagt caccgttgag catccggata aactggaaga 301 gaaattccca caggttgcgg caactggcga tggccctgac attatcttct gggcacacga 361 ccgctttggt ggctacgctc aatctggcct gttggctgaa atcaccccgg acaaagcgtt 421 ccaggacaag ctgtatccgt ttacctggga tgccgtacgt tacaacggca agctgattgc 481 ttacccgatc gctgttgaag cgttatcgct gatttataac aaagatctgc tgccgaaccc 541 gccaaaaacc tgggaagaga tcccggcgct ggataaagaa ctgaaagcga aaggtaagag 601 cgcgctgatg ttcaacctgc aagaaccgta cttcacctgg ccgctgattg ctgctgacgg 661 gggttatgcg ttcaagtatg aaaacggcaa gtacgacatt aaagacgtgg gcgtggataa 721 cgctggcgcg aaagcgggtc tgaccttcct ggttgacctg attaaaaaca aacacatgaa 781 tgcagacacc gattactcca tcgcagaagc tgcctttaat aaaggcgaaa cagcgatgac 841 catcaacggc ccgtgggcat ggtccaacat cgacaccagc aaagtgaatt atggtgtaac 901 ggtactgccg accttcaagg gtcaaccatc caaaccgttc gttggcgtgc tgagcgcagg 961 tattaacgct gccagtccga acaaagagct ggcaaaagag ttcctcgaaa actatctgct 1021 gactgatgaa ggtctggaag cggttaataa agacaaaccg ctgggtgccg tagcgctgaa 1081 gtcttacgag gaagagttgg cgaaagatcc acgtattgcc gccaccatgg aaaacgccca 1141 gaaaggtgaa atcatgccga acatcccgca gatgtccgct ttctggtatg ccgtgcgtac 1201 tgcggtgatc aacgccgcca gcggtcgtca gactgtcgat gaagccctga aagacgcgca 1261 gactaattcg ggatcctcga tcacaagttt gtacaaaaaa gctgaacgag aaacgtaaaa 1321 tgatataaat atcaatatat taaattagat tttgcataaa aaacagacta cataatactg 1381 taaaacacaa catatccagt cactatggcg gccgcattag gcaccccagg ctttacactt 1441 tatgcttccg gctcgtataa tgtgtggatt ttgagttagg atccgtcgag attttcagga 1501 gctaaggaag ctaaaatgga gaaaaaaatc actggatata ccaccgttga tatatcccaa 1561 tggcatcgta aagaacattt tgaggcattt cagtcagttg ctcaatgtac ctataaccag 1621 accgttcagc tggatattac ggccttttta aagaccgtaa agaaaaataa gcacaagttt 1681 tatccggcct ttattcacat tcttgcccgc ctgatgaatg ctcatccgga attccgtatg 1741 gcaatgaaag acggtgagct ggtgatatgg gatagtgttc acccttgtta caccgttttc 1801 catgagcaaa ctgaaacgtt ttcatcgctc tggagtgaat accacgacga tttccggcag 1861 tttctacaca tatattcgca agatgtggcg tgttacggtg aaaacctggc ctatttccct 1921 aaagggttta ttgagaatat gtttttcgtc tcagccaatc cctgggtgag tttcaccagt 1981 tttgatttaa acgtggccaa tatggacaac ttcttcgccc ccgttttcac catgggcaaa 2041 tattatacgc aaggcgacaa ggtgctgatg ccgctggcga ttcaggttca tcatgccgtt 2101 tgtgatggct tccatgtcgg cagaatgctt aatgaattac aacagtactg cgatgagtgg 2161 cagggcgggg cgtaaacgcg tggatccggc ttactaaaag ccagataaca gtatgcgtat 2221 ttgcgcgctg atttttgcgg tataagaata tatactgata tgtatacccg aagtatgtca 2281 aaaagaggta tgctatgaag cagcgtatta cagtgacagt tgacagcgac agctatcagt 2341 tgctcaaggc atatatgatg tcaatatctc cggtctggta agcacaacca tgcagaatga 2401 agcccgtcgt ctgcgtgccg aacgctggaa agcggaaaat caggaaggga tggctgaggt 2461 cgcccggttt attgaaatga acggctcttt tgctgacgag aacaggggct ggtgaaatgc 2521 agtttaaggt ttacacctat aaaagagaga gccgttatcg tctgtttgtg gatgtacaga 2581 gtgatattat tgacacgccc gggcgacgga tggtgatccc cctggccagt gcacgtctgc 2641 tgtcagataa agtctcccgt gaactttacc cggtggtgca tatcggggat gaaagctggc 2701 gcatgatgac caccgatatg gccagtgtgc cggtctccgt tatcggggaa gaagtggctg 2761 atctcagcca ccgcgaaaat gacatcaaaa acgccattaa cctgatgttc tggggaatat 2821 aaatgtcagg ctcccttata cacagccagt ctgcaggtcg accatagtga ctggatatgt 2881 tgtgttttac agtattatgt agtctgtttt ttatgcaaaa tctaatttaa tatattgata 2941 tttatatcat tttacgtttc tcgttcagct ttcttgtaca aagtggtgat cgagctagct 3001 agaagcttgt cgagaagtac tagaggatca taatcagcca taccacattt gtagaggttt 3061 tacttgcttt aaaaaacctc ccacacctcc ccctgaacct gaaacataaa atgaatgcaa 3121 ttgttgttgt taacttgttt attgcagctt ataatggtta caaataaagc aatagcatca 3181 caaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca 3241 tcaatgtatc ttatcatgtc tggatctgat cactgcttga gcctaggaga tccgaaccag 3301 ataagtgaaa tctagttcca aactattttg tcatttttaa ttttcgtatt agcttacgac 3361 gctacaccca gttcccatct attttgtcac tcttccctaa ataatcctta aaaactccat 3421 ttccacccct cccagttccc aactattttg tccgcccaca gcggggcatt tttcttcctg 3481 ttatgttttt aatcaaacat cctgccaact ccatgtgaca aaccgtcatc ttcggctact 3541 ttttctctgt cacagaatga aaatttttct gtcatctctt cgttattaat gtttgtaatt 3601 gactgaatat caacgcttat ttgcagcctg aatggcgaat gggacgcgcc ctgtagcggc 3661 gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga ccgctacact tgccagcgcc 3721 ctagcgcccg ctcctttcgc tttcttccct tcctttctcg ccacgttcgc cggctttccc 3781 cgtcaagctc taaatcgggg gctcccttta gggttccgat ttagtgcttt acggcacctc 3841 gaccccaaaa aacttgatta gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg 3901 gtttttcgcc ctttgacgtt ggagtccacg ttcttaatag tggactcttg ttccaaactg 3961 gaacaacact caaccctatc tcggtctatt cttttgattt ataagggatt ttgccgattt 4021 cggcctattg gttaaaaaat gagctgattt aacaaaaatt taacgcgaat tttaacaaaa 4081 tattaacgct tacaatttag gtggcacttt tcggggaaat gtgcgcggaa cccctatttg 4141 tttatttttc taaatacatt caaatatgta tccgctcatg agacaataac cctgataaat 4201 gcttcaataa tattgaaaaa ggaagagtat gagtattcaa catttccgtg tcgcccttat 4261 tccctttttt gcggcatttt gccttcctgt ttttgctcac ccagaaacgc tggtgaaagt 4321 aaaagatgct gaagatcagt tgggtgcacg agtgggttac atcgaactgg atctcaacag 4381 cggtaagatc cttgagagtt ttcgccccga agaacgtttt ccaatgatga gcacttttaa 4441 agttctgcta tgtggcgcgg tattatcccg tattgacgcc gggcaagagc aactcggtcg 4501 ccgcatacac tattctcaga atgacttggt tgagtactca ccagtcacag aaaagcatct 4561 tacggatggc atgacagtaa gagaattatg cagtgctgcc ataaccatga gtgataacac 4621 tgcggccaac ttacttctga caacgatcgg aggaccgaag gagctaaccg cttttttgca 4681 caacatgggg gatcatgtaa ctcgccttga tcgttgggaa ccggagctga atgaagccat 4741 accaaacgac gagcgtgaca ccacgatgcc tgtagcaatg gcaacaacgt tgcgcaaact 4801 attaactggc gaactactta ctctagcttc ccggcaacaa ttaatagact ggatggaggc 4861 ggataaagtt gcaggaccac ttctgcgctc ggcccttccg gctggctggt ttattgctga 4921 taaatctgga gccggtgagc gtgggtctcg cggtatcatt gcagcactgg ggccagatgg 4981 taagccctcc cgtatcgtag ttatctacac gacggggagt caggcaacta tggatgaacg 5041 aaatagacag atcgctgaga taggtgcctc actgattaag cattggtaac tgtcagacca 5101 agtttactca tatatacttt agattgattt aaaacttcat ttttaattta aaaggatcta 5161 ggtgaagatc ctttttgata atctcatgac caaaatccct taacgtgagt tttcgttcca 5221 ctgagcgtca gaccccgtag aaaagatcaa aggatcttct tgagatcctt tttttctgcg 5281 cgtaatctgc tgcttgcaaa caaaaaaacc accgctacca gcggtggttt gtttgccgga 5341 tcaagagcta ccaactcttt ttccgaaggt aactggcttc agcagagcgc agataccaaa 5401 tactgttctt ctagtgtagc cgtagttagg ccaccacttc aagaactctg tagcaccgcc 5461 tacatacctc gctctgctaa tcctgttacc agtggctgct gccagtggcg ataagtcgtg 5521 tcttaccggg ttggactcaa gacgatagtt accggataag gcgcagcggt cgggctgaac 5581 ggggggttcg tgcacacagc ccagcttgga gcgaacgacc tacaccgaac tgagatacct 5641 acagcgtgag ctatgagaaa gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc 5701 ggtaagcggc agggtcggaa caggagagcg cacgagggag cttccagggg gaaacgcctg 5761 gtatctttat agtcctgtcg ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg 5821 ctcgtcaggg gggcggagcc tatggaaaaa cgccagcaac gcggcctttt tacggttcct 5881 ggccttttgc tggccttttg ctcacatgtt ctttcctgcg ttatcccctg attctgtgga 5941 taaccgtatt accgcctttg agtgagctga taccgctcgc cgcagccgaa cgaccgagcg 6001 cagcgagtca gtgagcgagg aagcggaaga gcgcctgatg cggtattttc tccttacgca 6061 tctgtgcggt atttcacacc gcatagacca gccgcgtaac ctggcaaaat cggttacggt 6121 tgagtaataa atggatgccc tgcgtaagcg ggtgtgggcg gacaataaag tcttaaactg 6181 aacaaaatag atctaaacta tgacaataaa gtcttaaact agacagaata gttgtaaact 6241 gaaatcagtc cagttatgct gtgaaaaagc atactggact tttgttatgg ctaaagcaaa 6301 ctcttcattt tctgaagtgc aaattgcccg tcgtattaaa gaggggcgtg gccaagggca 6361 tggtaaagac tatattcgcg gcgttgtgac aatttaccga acaactccgc ggccgggaag 6421 ccgatctcgg cttgaacgaa ttgttaggtg gcggtacttg ggtcgatatc aaagtgcatc 6481 acttcttccc gtatgcccaa ctttgtatag agagccactg cgggatcgtc accgtaatct 6541 gcttgcacgt agatcacata agcaccaagc gcgttggcct catgcttgag gagattgatg 6601 agcgcggtgg caatgccctg cctccggtgc tcgccggaga ctgcgagatc atagatatag 6661 atctcactac gcggctgctc aaacttgggc agaacgtaag ccgcgagagc gccaacaacc 6721 gcttcttggt cgaaggcagc aagcgcgatg aatgtcttac tacggagcaa gttcccgagg 6781 taatcggagt ccggctgatg ttgggagtag gtggctacgt ctccgaactc acgaccgaaa 6841 agatcaagag cagcccgcat ggatttgact tggtcagggc cgagcctaca tgtgcgaatg 6901 atgcccatac ttgagccacc taactttgtt ttagggcgac tgccctgctg cgtaacatcg 6961 ttgctgctgc gtaacatcgt tgctgctcca taacatcaaa catcgaccca cggcgtaacg 7021 cgcttgctgc ttggatgccc gaggcataga ctgtacaaaa aaacagtcat aacaagccat 7081 gaaaaccgcc actgcgccgt taccaccgct gcgttcggtc aaggttctgg accagttgcg 7141 tgagcgcata cgctacttgc attacagttt acgaaccgaa caggcttatg tcaactgggt 7201 tcgtgccttc atccgtttcc acggtgtgcg tcacccggca accttgggca gcagcgaagt 7261 cgaggcattt ctgtcctggc tggcgaacga gcgcaaggtt tcggtctcca cgcatcgtca 7321 ggcattggcg gccttgctgt tcttctacgg caaggtgctg tgcacggatc tgcccttgct 7381 tcaggagatc ggtagacctc ggccgtcgcg gcgcttgccg gtggtgctga ccccggatga 7441 agtggttcgc atcctcggtt ttctggaagg cgagcatcgt ttgttcgccc aggactctag 7501 ctatagttct agtggttggc tactcgagat cccgggtgat caagtcttcg tcgagtgatt 7561 gtaaataaaa tgtaatttac agtatagtat tttaattaat atacaaatga tttgataata 7621 attcttattt aactataata tattgtgttg ggttgaatta aaggtccgta tactccggaa 7681 tattaatag //
pDest636载体图谱质粒图谱pdf版和相关资料下载
pDest636载体质粒应用举例
