pEXPYR

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pEXPYR
出品公司: 爱迪基因
目录编号: 70030
存储实验室: Rolf Prade

载体骨架基本信息
载体名称: pUC19
载体出品公司: New England Bioscienes
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 合成生物学表达
筛选标记: 博莱霉素
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 A. niger glucoamylase promoter (glaAp)4
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pEXPYR was a gift from Rolf Prade (Addgene plasmid # 70030 ; http://n2t.net/addgene:70030 ; RRID:Addgene_70030)
参考文献部分: High-yield secretion of multiple client proteins in Aspergillus. Segato F, Damasio AR, Goncalves TA, de Lucas RC, Squina FM, Decker SR, Prade RA. Enzyme Microb Technol. 2012 Jul 15;51(2):100-6. doi: 10.1016/j.enzmictec.2012.04.008. Epub 2012 May 2. 10.1016/j.enzmictec.2012.04.008 PubMed 22664194

载体图谱质粒图谱和多克隆位点信息

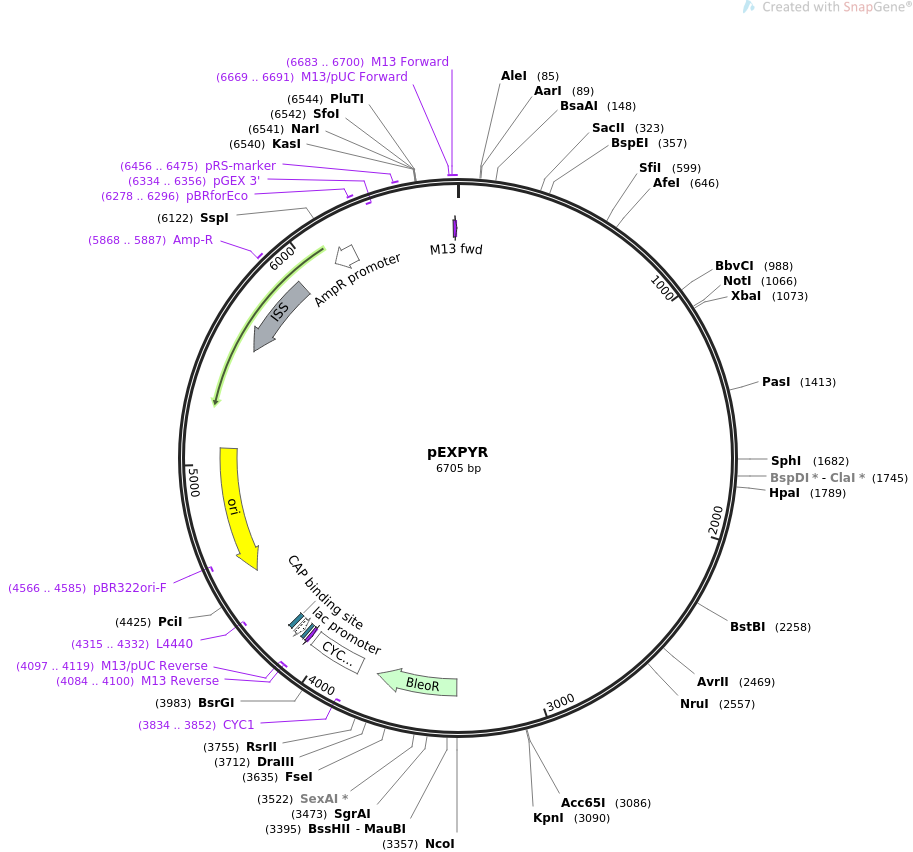

pEXPYR质粒图谱

载体简介

载体序列

LOCUS       pEXPYR                6705 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  High yield protein secretion in Aspergillus nidulans.
ACCESSION   .
VERSION     .
KEYWORDS    pEXPYR
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6705)
  AUTHORS   Segato F, Damasio AR, Goncalves TA, de Lucas RC, Squina FM, Decker
            SR, Prade RA
  TITLE     High-yield secretion of multiple client proteins in Aspergillus.
  JOURNAL   Enzyme Microb Technol. 2012 Jul 15;51(2):100-6. doi:
            10.1016/j.enzmictec.2012.04.008. Epub 2012 May 2.
  PUBMED    22664194
REFERENCE   2  (bases 1 to 6705)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6705
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             3359..3733
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /label=BleoR
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     terminator      3818..4065
                     /gene="S. cerevisiae CYC1"
                     /label=CYC1 terminator
                     /note="transcription terminator for CYC1"
     primer_bind     complement(3834..3852)
                     /label=CYC1
                     /note="CYC1 transcription termination signal, reverse
                     primer"
     primer_bind     complement(4084..4100)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4084..4100)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4097..4119)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4108..4124
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4132..4162)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4177..4198
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4315..4332)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4486..5074)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4566..4585)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5542..5921)
                     /label=ISS
                     /note="immunostimulatory sequence from the AmpR gene;
                     contains unmethylated CpG dinucleotides in the context of
                     5'-AACGTT-3' (Sato et al., 1996)"
     primer_bind     5868..5887
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6106..6210)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     6278..6296
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(6334..6356)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     6456..6475
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     6669..6691
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     6683..6700
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     6684..6700
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 aattcgagct ctcccctgac cttccgaact ggtcgtacct ggcgacctat gactatggca
       61 ccccagttct ggggaccttc cacggaagtg acctgctgca ggtgttctat gggatcaagc
      121 caaactatgc agctagttct agccacacgt actatctgag ctttgtgtat acgctggatc
      181 cgaactccaa ccggggggag tacattgagt ggccgcagtg gaaggaatcg cggcagttga
      241 tgaatttcgg agcgaacgac gccaggtctc cttacggatg attaccgcaa cgggacatat
      301 gagttcatcc tgcagaatac cgcggcgttc cacatctgat gccattggcg gaggggtccg
      361 gacggtcagg aacttagcct tatgagatga atgatggacg tgtctggcct cggaaaagga
      421 tatatgggga tcatgatagt actagccata ttaatgaagg gcatatacca cgcgttggac
      481 ctgcgttata gcttcccgtt agttatagta ccatcgttat accagccaat caagtcacca
      541 cgcacgaccg gggacggcga atccccggga attgaaagaa attgcatccc aggccagtga
      601 ggccagcgat tggccacctc tccaaggcac agggccattc tgcagcgctg gtggattcat
      661 cgcaatttcc cccggcccgg cccgacaccg ctataggctg gttctcccac accatcggag
      721 attcgtcgcc taatgtctcg tccgttcaca agctgaagag cttgaagtgg cgagatgtct
      781 ctgcaggaat taattcaagc tagatgctaa gcgatattgc atggcaatat gtgttgatgc
      841 atgtgcttct tccttcagct tcccctcgtg cagatgaggt ttggctataa attgaagtgg
      901 ttggtcgggg ttccgtgagg ggctgaagtg cttcctccct tttagacgca actgagagcc
      961 tgagcttcac ccccagcatc attacacctc agcaatgtcg ttccgatctc tactcgccct
     1021 gagcggcctc gtctgcacag ggttggcaaa tgtgatttcc aagcgcggcc gctctagaga
     1081 tatctagtga tttaatagct ccatgtcaac aagaataaaa cgcgtttcgg gtttacctct
     1141 tccagataca gctcatctgc aatgcattaa tgcattggac ctcgcaaccc tagtacgccc
     1201 ttcaggctcc ggcgaagcag aagaatagct tagcagagtc tattttcatt ttcgggagac
     1261 gagatcaagc agatcaacgg tcgtcaagag acctacgaga ctgaggaatc cgctcttggc
     1321 tccacgcgac tatatatttg tctctaattg tactttgaca tgctcctctt ctttactctg
     1381 atagcttgac tatgaaaatt ccgtcaccag cccctgggtt cgcaaagata attgcactgt
     1441 ttcttccttg aactctcaag cctacaggac acacattcat cgtaggtata aacctcgaaa
     1501 atcattccta ctaagatggg tatacaatag taaccatgca tggttgccta gtgaatgctc
     1561 cgtaacaccc aatacgccgg ccgaaacttt tttacaactc tcctatgagt cgtttaccca
     1621 gaatgcacag gtacactgca gggatccccc gggctgcagg aattcgatat caagcttgca
     1681 tgcctgcagc aattcgacga aatccgcgac gtcttctcca agtgtggtgt tatcgccgag
     1741 gagatcgata gttcttgtcc ttcaagtgct tgaccaatat gtttctgtta acgcgccgca
     1801 gacaatgctc tctatcctgg tggcaggcgt caagtaccca gaggcagcag cgggcttagg
     1861 agcggcctgg gttgttctcc gcaccctcta catgctgggc tatatttata gcgacaagcc
     1921 gaacggcacc ggcaggtaca atggttcgct gtacttgctt gcgcaagcgg gtctttgggg
     1981 attgagcgca tttggtgttg caaaggattt gatgtaaatg tagtcgacat cttagcacag
     2041 aggggagagt tgataaaatg tggtctgttt gaatgatagt cgggttcgtg acctatattc
     2101 gtgatagtgg agataggtct gcgcctatct tatcgggccg gagcaaaaat tccaccgcag
     2161 cggggtgagt tttcgttata cagccatccc acttccagct tcaaattgtc agtttaatcc
     2221 agcccaattc aatcattgga gaaccgccat catgtcttcg aagtcccacc tcccctacgc
     2281 aattcgcgca accaaccatc ccaacccttt aacatctaaa ctcttctcca tcgccgagga
     2341 gaagaaaacc aacgtcaccg tctccgcaga cgttactact tccgccgagc tcctcgatct
     2401 tgctgaccgt acatcctgca ccaatgcccc tccaggataa caaatagctg atgcgtagtg
     2461 agtacaggcc taggccccta tatcgcagtt ctgaaaaccc acatcgacat cctcaccgat
     2521 ctcaccccgt cgaccctttc ctcgctccaa tccctcgcga caaagcacaa cttcctcatc
     2581 tttgaggacc gcaagttcat cgacatcggc aacaccgtgc aaaagcagta ccacggtggc
     2641 gctctccgca tctccgaatg ggcacacatc atcaactgcg ccatcctgcc gggcgaaggg
     2701 atcgtcgagg ccctcgcaca gacaaccaag tctcctgact ttaaagacgc gaatcaacga
     2761 ggtctcctga ttcttgccga gatgacgagt aagggatctc ttgcgacagg ggagtcacag
     2821 gcacgctcgg ttgagtacgc gcggaagtat aaggggtttg tgatgggatt cgtgagtaca
     2881 agggcgttga gtgaggtgct gcccgaacag aaagaggaga gcgaggattt tgtcgtcttt
     2941 acgactgggg tgaatctgtc ggataagggg gataagctgg ggcagcagta tcagacacct
     3001 gggtcggcgg ttgggcgagg tgcggacttt atcattgcgg gtaggggcat ctataaggcg
     3061 gacgatccag tcgaggcggt tcagaggtac cgggaggaag gctggaaagc ttacgagaaa
     3121 agagttggac tttgagtgtg agtggaaatg tgtaacggta ttgactaaaa ggggagttct
     3181 tgtccttcaa gtgcttgacc aatatgtttc tgttctcgac tgtctttccc cagtctcctc
     3241 ccaacaactt cccgcccatc tactccctcc ggcctcgccg tctctcatac cccttcgacc
     3301 cttttcaata ccttcaaccc cttcaatcta cccggcagaa ttctctagta gaggatccat
     3361 ggccaagttg accagtgccg ttccggtgct caccgcgcgc gacgtcgccg gagcggtcga
     3421 gttctggacc gaccggctcg ggttctcccg ggacttcgtg gaggacgact tcgccggtgt
     3481 ggtccgggac gacgtgaccc tgttcatcag cgcggtccag gaccaggtgg tgccggacaa
     3541 caccctggcc tgggtgtggg tgcgcggcct ggacgagctg tacgccgagt ggtcggaggt
     3601 cgtgtccacg aacttccggg acgcctccgg gccggccatg accgagatcg gcgagcagcc
     3661 gtgggggcgg gagttcgccc tgcgcgaccc ggccggcaac tgcgtgcact tcgtggccga
     3721 ggagcaggac tgaccgacgc cgaccaacac cgccggtccg acgcggcccg acgggtccga
     3781 ggcctcggag atccgtcccc cttttccttt gtcgatatca tgtaattagt tatgtcacgc
     3841 ttacattcac gccctccccc cacatccgct ctaaccgaaa aggaaggagt tagacaacct
     3901 gaagtctagg tccctattta tttttttata gttatgttag tattaagaac gttatttata
     3961 tttcaaattt ttcttttttt tctgtacaga cgcgtgtacg catgtaacat tatactgaaa
     4021 accttgcttg agaaggtttt gggacgctcg aaggctttaa tttgcaagct tggcgtaatc
     4081 atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatacg
     4141 agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac tcacattaat
     4201 tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc tgcattaatg
     4261 aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg cttcctcgct
     4321 cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc
     4381 ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg
     4441 ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg
     4501 cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg
     4561 actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac
     4621 cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca
     4681 tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt
     4741 gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc
     4801 caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag
     4861 agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac
     4921 tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt
     4981 tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa
     5041 gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg
     5101 gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa
     5161 aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat
     5221 atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc
     5281 gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat
     5341 acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc
     5401 ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc
     5461 tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag
     5521 ttcgccagtt aatagttgcg caacgttgtt gccatttgct acaggcatcg tggtgtcacg
     5581 ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg
     5641 atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag
     5701 taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt
     5761 catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga
     5821 atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc
     5881 acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc
     5941 aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc
     6001 ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc
     6061 cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca
     6121 atattattga agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat
     6181 ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacgt
     6241 ctaagaaacc attattatca tgacattaac ctataaaaat aggcgtatca cgaggccctt
     6301 tcgtctcgcg cgtttcggtg atgacggtga aaacctctga cacatgcagc tcccggagac
     6361 ggtcacagct tgtctgtaag cggatgccgg gagcagacaa gcccgtcagg gcgcgtcagc
     6421 gggtgttggc gggtgtcggg gctggcttaa ctatgcggca tcagagcaga ttgtactgag
     6481 agtgcaccat atgcggtgtg aaataccgca cagatgcgta aggagaaaat accgcatcag
     6541 gcgccattcg ccattcaggc tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc
     6601 gctattacgc cagctggcga aagggggatg tgctgcaagg cgattaagtt gggtaacgcc
     6661 agggttttcc cagtcacgac gttgtaaaac gacggccagt gaatt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
