pFUS_B5

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pFUSB5载体基本信息

质粒名称: pFUS_B5
出品公司: 爱迪基因
目录编号: 31022
存储实验室: Adam Bogdanove, Daniel Voytas

载体骨架基本信息
载体名称: pCR8
载体出品公司: Invitrogen
载体抗性: 大观霉素
空载体大小: 2447 bp
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: LacZ + BsaI restriction sites
插入大小: 459 bp
克隆方法: 限制性内切酶
5' 克隆位点: AflII (未破坏)
3' 克隆位点: XbaI(未破坏)
5' 测序引物 pCR8_F1 (ttgatgcctggcagttccct)
3' 测序引物 pCR8_R1 (cgaaccgaacaggcttatgt)

文献引用方法
材料和方法部分: pFUS_B5 was a gift from Adam Bogdanove & Daniel Voytas (Addgene plasmid # 31022 ; http://n2t.net/addgene:31022 ; RRID:Addgene_31022)
参考文献部分: Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Apr 14. ():. 10.1093/nar/gkr218 PubMed 21493687

pFUSB5载体图谱质粒图谱和多克隆位点信息

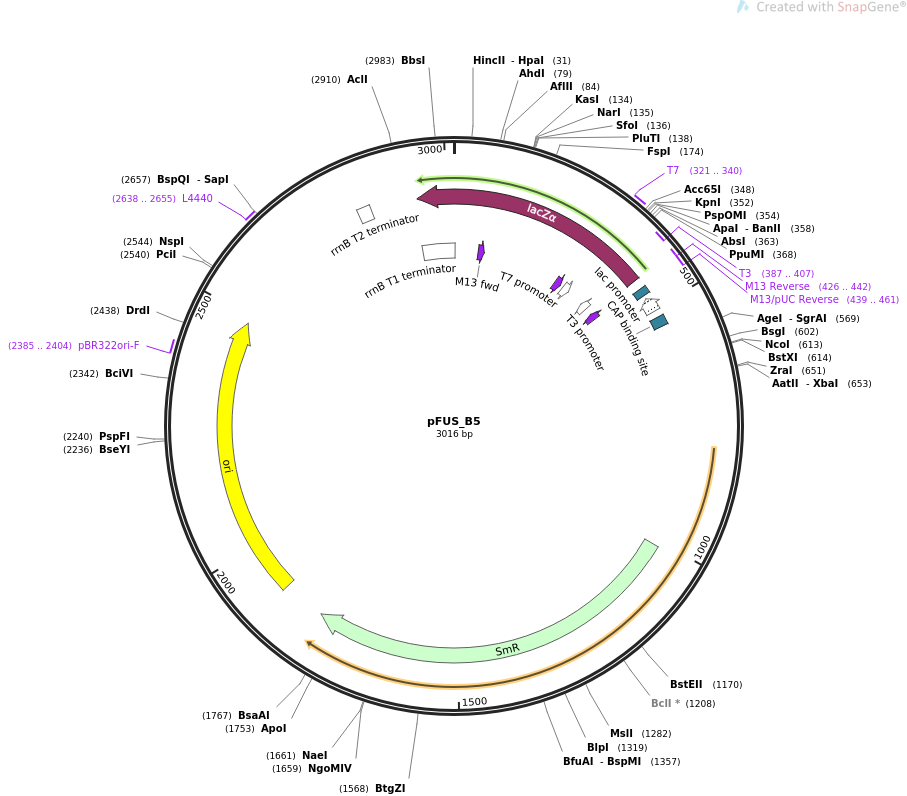

pFUS_B5质粒图谱

pFUSB5载体简介

pFUSB5载体序列

LOCUS       pFUS_B5              3016 bp ds-DNA     circular SYN 13-MAY-2021
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pFUS_B5
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3016)
  AUTHORS   Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller
            JA, Somia NV, Bogdanove AJ, Voytas DF
  TITLE     Efficient design and assembly of custom TALEN and other TAL
            effector-based constructs for DNA targeting.
  JOURNAL   Nucleic Acids Res. 2011 Apr 14. ():.
  PUBMED    21493687
REFERENCE   2  (bases 1 to 3016)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 13, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..3016
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     67..83
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     295..311
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     321..340
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        321..339
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(387..407)
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        complement(387..405)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(426..442)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(426..442)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(439..461)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    450..466
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(474..504)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    519..540
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     CDS             1012..1803
                     /codon_start=1
                     /gene="aadA"
                     /product="aminoglycoside adenylyltransferase (Murphy,
                     1985)"
                     /label=SmR
                     /note="confers resistance to spectinomycin and
                     streptomycin"
                     /translation="MREAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH
                     SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK
                     RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF
                     EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP
                     VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK"
     rep_origin      1896..2484
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2385..2404
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     2638..2655
                     /label=L4440
                     /note="L4440 vector, forward primer"
     terminator      2814..2841
                     /label=rrnB T2 terminator
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      2933..3
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     CDS             complement(2940..430)
                     /codon_start=1
                     /gene="lacZ fragment"
                     /product="LacZ-alpha fragment of beta-galactosidase"
                     /label=lacZ-alpha
                     /translation="MTMITPSAQLTLTKGNKSWRTSRGGPVPNSPYSESYYARSLAVVL
                     QRRDWENPGVTQLNRLAAHPPFASWRNSEEARTDRPSQQLRSLNGEWDAPCSGAGLDSH
                     HLVRGQAMRRLRLAVVLQRRDWENIHASVNARVGNCQASNKTKGSVGRLGLSFYLLFVG
                     ERSPE"
ORIGIN
        1 ttgatgcctg gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac
       61 gacgttgtaa aacgacggcc agtcttaagc gtctcatggc ctgaccccgg accaagtggt
      121 ggctatcgag accggcgccg ctacagggcg cgtcccattc gccattcagg ctgcgcaact
      181 gttgggaagg gcgatcggtg cgggcctctt cgctattacg ccagctggcg aaagggggat
      241 gtgctgcaag gcgattaagt tgggtaacgc cagggttttc ccagtcacga cgttgtaaaa
      301 cgacggccag tgagcgcgcg taatacgact cactataggg cgaattgggt accgggcccc
      361 ccctcgaggt cctccagctt ttgttccctt tagtgagggt taattgcgcg cttggcgtaa
      421 tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata
      481 cgagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgagcta actcacatta
      541 attgcgttgc gctcactgcc cgctttccac cggtggtctc gtgcagcggc tgttgccggt
      601 gctgtgccag gaccatggcc tgaccccgga ccaagtggtg gctatcgaga cgtctagacc
      661 agccaggaca gaaatgcctc gacttcgctg ctacccaagg ttgccgggtg acgcacaccg
      721 tggaaacgga tgaaggcacg aacccagtgg acataagcct gttcggttcg taagctgtaa
      781 tgcaagtagc gtatgcgctc acgcaactgg tccagaacct tgaccgaacg cagcggtggt
      841 aacggcgcag tggcggtttt catggcttgt tatgactgtt tttttggggt acagtctatg
      901 cctcgggcat ccaagcagca agcgcgttac gccgtgggtc gatgtttgat gttatggagc
      961 agcaacgatg ttacgcagca gggcagtcgc cctaaaacaa agttaaacat tatgagggaa
     1021 gcggtgatcg ccgaagtatc gactcaacta tcagaggtag ttggcgtcat cgagcgccat
     1081 ctcgaaccga cgttgctggc cgtacatttg tacggctccg cagtggatgg cggcctgaag
     1141 ccacacagtg atattgattt gctggttacg gtgaccgtaa ggcttgatga aacaacgcgg
     1201 cgagctttga tcaacgacct tttggaaact tcggcttccc ctggagagag cgagattctc
     1261 cgcgctgtag aagtcaccat tgttgtgcac gacgacatca ttccgtggcg ttatccagct
     1321 aagcgcgaac tgcaatttgg agaatggcag cgcaatgaca ttcttgcagg tatcttcgag
     1381 ccagccacga tcgacattga tctggctatc ttgctgacaa aagcaagaga acatagcgtt
     1441 gccttggtag gtccagcggc ggaggaactc tttgatccgg ttcctgaaca ggatctattt
     1501 gaggcgctaa atgaaacctt aacgctatgg aactcgccgc ccgactgggc tggcgatgag
     1561 cgaaatgtag tgcttacgtt gtcccgcatt tggtacagcg cagtaaccgg caaaatcgcg
     1621 ccgaaggatg tcgctgccga ctgggcaatg gagcgcctgc cggcccagta tcagcccgtc
     1681 atacttgaag ctagacaggc ttatcttgga caagaagaag atcgcttggc ctcgcgcgca
     1741 gatcagttgg aagaatttgt ccactacgtg aaaggcgaga tcaccaaggt agtcggcaaa
     1801 taaccctcga gccacccatg accaaaatcc cttaacgtga gttacgcgtc gttccactga
     1861 gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta
     1921 atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa
     1981 gagctaccaa ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact
     2041 gtccttctag tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca
     2101 tacctcgctc tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt
     2161 accgggttgg actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg
     2221 ggttcgtgca cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag
     2281 cgtgagcatt gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta
     2341 agcggcaggg tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat
     2401 ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg
     2461 tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc
     2521 ttttgctggc cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac
     2581 cgtattaccg cctttgagtg agctgatacc gctcgccgca gccgaacgac cgagcgcagc
     2641 gagtcagtga gcgaggaagc ggaagagcgc ccaatacgca aaccgcctct ccccgcgcgt
     2701 tggccgattc attaatgcag ctggcacgac aggtttcccg actggaaagc gggcagtgag
     2761 cgcaacgcaa ttaatacgcg taccgctagc caggaagagt ttgtagaaac gcaaaaaggc
     2821 catccgtcag gatggccttc tgcttagttt gatgcctggc agtttatggc gggcgtcctg
     2881 cccgccaccc tccgggccgt tgcttcacaa cgttcaaatc cgctcccggc ggatttgtcc
     2941 tactcaggag agcgttcacc gacaaacaac agataaaacg aaaggcccag tcttccgact
     3001 gagcctttcg ttttat
//

pFUSB5载体图谱质粒图谱pdf版和相关资料下载

pFUSB5载体质粒应用举例
