质粒名称: | pGWB455 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 74837 |
存储实验室: | Tsuyoshi Nakagawa |
载体骨架基本信息 |
|
载体名称: | pPZP221 |
载体出品公司: | Hajdukiewicz P., Svab Z. and Maliga P. |
载体抗性: | 氯霉素和大观霉素 |
空载体大小: | 8500 bp |
完整质粒大小: | -- |
载体修饰: | 去除庆大霉素耐药标记物和卡那霉素耐药标记物(NOS发起人:NPTII:NOS终止符)已插入。 |
载体类型: | 植物表达 |
筛选标记: | 卡那霉素 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | -- |
物种来源: | -- |
插入大小: | -- |
基因突变: | -- |
GenBank编号 | -- |
启动子 | CaMV35S |
标签/融合蛋白: | -- |
克隆方法: | Gateway克隆 |
5' 克隆位点: | -- |
3' 克隆位点: | -- |
5' 测序引物 | -- |
3' 测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pGWB455 was a gift from Tsuyoshi Nakagawa (Addgene plasmid # 74837 ; http://n2t.net/addgene:74837 ; RRID:Addgene_74837) |
参考文献部分: | Improved Gateway binary vectors: high-performance vectors for creation of fusion constructs in transgenic analysis of plants. Nakagawa T, Suzuki T, Murata S, Nakamura S, Hino T, Maeo K, Tabata R, Kawai T, Tanaka K, Niwa Y, Watanabe Y, Nakamura K, Kimura T, Ishiguro S. Biosci Biotechnol Biochem. 2007 Aug;71(8):2095-100. Epub 2007 Aug 7. 10.1271/bbb.70216 PubMed 17690442 |
相关质粒: |
pGWB4 pGWB5 pGWB11 pGWB12 pGWB17 pGWB18 pGWB21 pGWB406 pGWB453 pGWB454 pGWB455 pGWB504 |
买家导航
载体基本信息

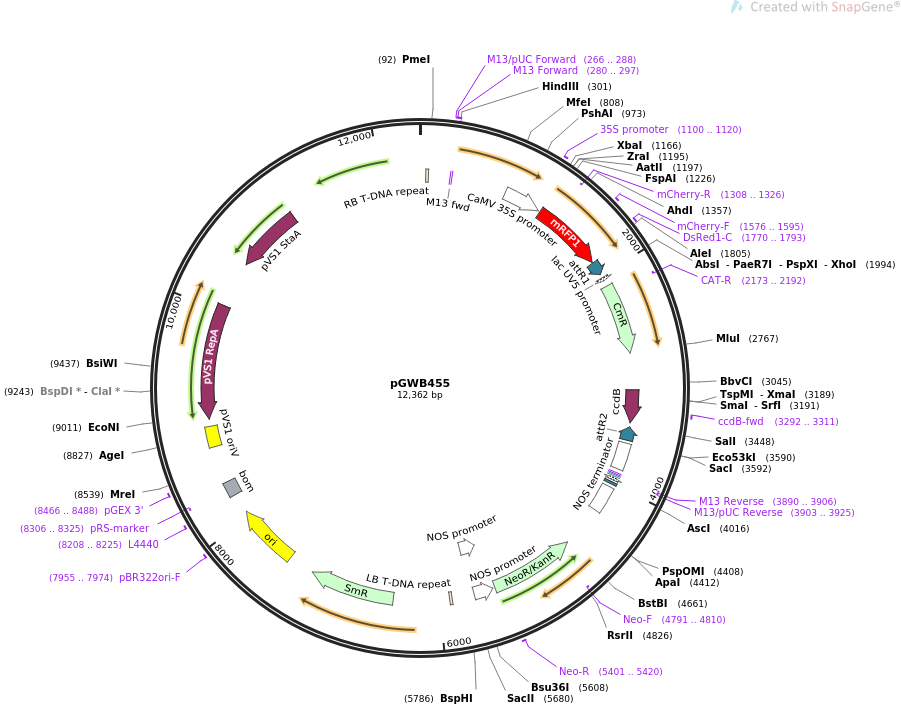

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pGWB455 12362 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION Gateway cloning compatible binary vector for N-terminal fusion with mRFP (CaMV35S promoter).. ACCESSION . VERSION . KEYWORDS pGWB455 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 12362) AUTHORS Nakagawa T, Suzuki T, Murata S, Nakamura S, Hino T, Maeo K, Tabata R, Kawai T, Tanaka K, Niwa Y, Watanabe Y, Nakamura K, Kimura T, Ishiguro S TITLE Improved Gateway binary vectors: high-performance vectors for creation of fusion constructs in transgenic analysis of plants. JOURNAL Biosci Biotechnol Biochem. 2007 Aug;71(8):2095-100. Epub 2007 Aug 7. PUBMED 17690442 REFERENCE 2 (bases 1 to 12362) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..12362 /organism="synthetic DNA construct" /mol_type="other DNA" misc_feature 54..78 /label=RB T-DNA repeat /note="right border repeat from nopaline C58 T-DNA" primer_bind 266..288 /label=M13/pUC Forward /note="In lacZ gene" primer_bind 280..297 /label=M13 Forward /note="In lacZ gene. Also called M13-F20 or M13 (-21) Forward" primer_bind 281..297 /label=M13 fwd /note="common sequencing primer, one of multiple similar variants" promoter 812..1157 /label=CaMV 35S promoter /note="strong constitutive promoter from cauliflower mosaic virus" primer_bind 1100..1120 /label=35S promoter /note="CaMV 35S promoter, forward primer" CDS 1178..1852 /codon_start=1 /product="monomeric derivative of DsRed (Campbell et al., 2002)" /label=mRFP1 /note="mammalian codon-optimized" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTAK LKVTKGGPLPFAWDILSPQFQYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFEDGGV VTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASTERMYPEDGALKGEIKM RLKLKDGGHYDAEVKTTYMAKKPVQLPGAYKTDIKLDITSHNEDYTIVEQYERAEGRHS TGA" primer_bind complement(1308..1326) /label=mCherry-R /note="mCherry, reverse primer" primer_bind 1576..1595 /label=mCherry-F /note="mCherry, forward primer" primer_bind 1770..1793 /label=DsRed1-C /note="DsRed1, forward primer" protein_bind 1862..1986 /gene="mutant version of attR" /label=attR1 /bound_moiety="LR Clonase(TM)" /note="recombination site for the Gateway(R) LR reaction" promoter 2023..2053 /label=lac UV5 promoter /note="E. coli lac promoter with an ""up"" mutation" CDS 2107..2766 /codon_start=1 /gene="cat" /product="chloramphenicol acetyltransferase" /label=CmR /note="confers resistance to chloramphenicol" /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA" primer_bind complement(2173..2192) /label=CAT-R /note="Chloramphenicol resistance gene, reverse primer" CDS 3108..3413 /codon_start=1 /gene="ccdB" /product="CcdB, a bacterial toxin that poisons DNA gyrase" /label=ccdB /note="Plasmids containing the ccdB gene cannot be propagated in standard E. coli strains." /translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI" primer_bind 3292..3311 /label=ccdB-fwd /note="ccdB gene, forward primer" protein_bind complement(3454..3578) /gene="mutant version of attR" /label=attR2 /bound_moiety="LR Clonase(TM)" /note="recombination site for the Gateway(R) LR reaction" terminator 3604..3856 /label=NOS terminator /note="nopaline synthase terminator and poly(A) signal" primer_bind complement(3890..3906) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(3890..3906) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(3903..3925) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 3914..3930 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(3938..3968) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 3983..4004 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." terminator 4038..4290 /label=NOS terminator /note="nopaline synthase terminator and poly(A) signal" CDS complement(4680..5474) /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ GLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(4791..4810) /label=Neo-F /note="Neomycin resistance gene, forward primer" primer_bind 5401..5420 /label=Neo-R /note="Neomycin resistance gene, reverse primer" promoter complement(5495..5678) /function="NOS promoter" /label=NOS promoter /note="nopaline synthase promoter" promoter complement(5531..5710) /label=NOS promoter /note="nopaline synthase promoter" misc_feature 5884..5908 /label=LB T-DNA repeat /note="left border repeat from nopaline C58 T-DNA" CDS 6429..7220 /codon_start=1 /gene="aadA" /product="aminoglycoside adenylyltransferase (Murphy, 1985)" /label=SmR /note="confers resistance to spectinomycin and streptomycin" /translation="MGEAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK" rep_origin 7466..8054 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 7955..7974 /label=pBR322ori-F /note="pBR322 origin, forward primer" primer_bind 8208..8225 /label=L4440 /note="L4440 vector, forward primer" misc_feature 8240..8380 /label=bom /note="basis of mobility region from pBR322" primer_bind complement(8306..8325) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" primer_bind 8466..8488 /label=pGEX 3' /note="pGEX vectors, reverse primer" rep_origin 8724..8918 /label=pVS1 oriV /note="origin of replication for the Pseudomonas plasmid pVS1 (Heeb et al., 2000)" CDS complement(8984..10057) /codon_start=1 /product="replication protein from the Pseudomonas plasmid pVS1 (Heeb et al., 2000)" /label=pVS1 RepA /translation="MSGRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESW QAAADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLS KRDRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKP GRVFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGE ALISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYR LARRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPI LVMRYRNLIEGEASAGS" CDS complement(10486..11115) /codon_start=1 /product="stability protein from the Pseudomonas plasmid pVS1 (Heeb et al., 2000)" /label=pVS1 StaA /translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI" ORIGIN 1 tttcacgccc ttttaaatat ccgattattc taataaacgc tcttttctct taggtttacc 61 cgccaatata tcctgtcaaa cactgatagt ttaaactgaa ggcgggaaac gacaatctga 121 tccaagctca agctgctcta gcattcgcca ttcaggctgc gcaactgttg ggaagggcga 181 tcggtgcggg cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga 241 ttaagttggg taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc 301 aagcttgcat gcctgcaggt ccccagatta gccttttcaa tttcagaaag aatgctaacc 361 cacagatggt tagagaggct tacgcagcag gtctcatcaa gacgatctac ccgagcaata 421 atctccagga aatcaaatac cttcccaaga aggttaaaga tgcagtcaaa agattcagga 481 ctaactgcat caagaacaca gagaaagata tatttctcaa gatcagaagt actattccag 541 tatggacgat tcaaggcttg cttcacaaac caaggcaagt aatagagatt ggagtctcta 601 aaaaggtagt tcccactgaa tcaaaggcca tggagtcaaa gattcaaata gaggacctaa 661 cagaactcgc cgtaaagact ggcgaacagt tcatacagag tctcttacga ctcaatgaca 721 agaagaaaat cttcgtcaac atggtggagc acgacacact tgtctactcc aaaaatatca 781 aagatacagt ctcagaagac caaagggcaa ttgagacttt tcaacaaagg gtaatatccg 841 gaaacctcct cggattccat tgcccagcta tctgtcactt tattgtgaag atagtggaaa 901 aggaaggtgg ctcctacaaa tgccatcatt gcgataaagg aaaggccatc gttgaagatg 961 cctctgccga cagtggtccc aaagatggac ccccacccac gaggagcatc gtggaaaaag 1021 aagacgttcc aaccacgtct tcaaagcaag tggattgatg tgatatctcc actgacgtaa 1081 gggatgacgc acaatcccac tatccttcgc aagacccttc ctctatataa ggaagttcat 1141 ttcatttgga gagaacacgg gggactctag aatgagcatg gcctcctccg aggacgtcat 1201 caaggagttc atgcgcttca aggtgcgcat ggagggctcc gtgaacggcc acgagttcga 1261 gatcgagggc gagggcgagg gccgccccta cgagggcacc cagaccgcca agctgaaggt 1321 gaccaagggc ggccccctgc ccttcgcctg ggacatcctg tcccctcagt tccagtacgg 1381 ctccaaggcc tacgtgaagc accccgccga catccccgac tacttgaagc tgtccttccc 1441 cgagggcttc aagtgggagc gcgtgatgaa cttcgaggac ggcggcgtgg tgaccgtgac 1501 ccaggactcc tccctgcagg acggcgagtt catctacaag gtgaagctgc gcggcaccaa 1561 cttcccctcc gacggccccg taatgcagaa gaagaccatg ggctgggagg cctccaccga 1621 gcggatgtac cccgaggacg gcgccctgaa gggcgagatc aagatgaggc tgaagctgaa 1681 ggacggcggc cactacgacg ccgaggtcaa gaccacctac atggccaaga agcccgtgca 1741 gctgcccggc gcctacaaga ccgacatcaa gctggacatc acctcccaca acgaggacta 1801 caccatcgtg gaacagtacg agcgcgccga gggccgccac tccaccggcg ccgctgttat 1861 cacaagtttg tacaaaaaag ctgaacgaga aacgtaaaat gatataaata tcaatatatt 1921 aaattagatt ttgcataaaa aacagactac ataatactgt aaaacacaac atatccagtc 1981 actatggcgg cccctcgagg ggccgcatta ggcaccccag gctttacact ttatgcttcc 2041 ggctcgtata atgtgtggat tttgagttag gatccggcga gattttcagg agctaaggaa 2101 gctaaaatgg agaaaaaaat cactggatat accaccgttg atatatccca atggcatcgt 2161 aaagaacatt ttgaggcatt tcagtcagtt gctcaatgta cctataacca gaccgttcag 2221 ctggatatta cggccttttt aaagaccgta aagaaaaata agcacaagtt ttatccggcc 2281 tttattcaca ttcttgcccg cctgatgaat gctcatccgg aattccgtat ggcaatgaaa 2341 gacggtgagc tggtgatatg ggatagtgtt cacccttgtt acaccgtttt ccatgagcaa 2401 actgaaacgt tttcatcgct ctggagtgaa taccacgacg atttccggca gtttctacac 2461 atatattcgc aagatgtggc gtgttacggt gaaaacctgg cctatttccc taaagggttt 2521 attgagaata tgtttttcgt ctcagccaat ccctgggtga gtttcaccag ttttgattta 2581 aacgtggcca atatggacaa cttcttcgcc cccgttttca ccatgggcaa atattatacg 2641 caaggcgaca aggtgctgat gccgctggcg attcaggttc atcatgccgt ctgtgatggc 2701 ttccatgtcg gcagaatgct taatgaatta caacagtact gcgatgagtg gcagggcggg 2761 gcgtaaacgc gtggatccgg cttactaaaa gccagataac agtatgcgta tttgcgcgct 2821 gatttttgcg gtataagaat atatactgat atgtataccc gaagtatgtc aaaaagaggt 2881 gtgctatgaa gcagcgtatt acagtgacag ttgacagcga cagctatcag ttgctcaagg 2941 catatatgat gtcaatatct ccggtctggt aagcacaacc atgcagaatg aagcccgtcg 3001 tctgcgtgcc gaacgctgga aagcggaaaa tcaggaaggg atggctgagg tcgcccggtt 3061 tattgaaatg aacggctctt ttgctgacga gaacagggac tggtgaaatg cagtttaagg 3121 tttacaccta taaaagagag agccgttatc gtctgtttgt ggatgtacag agtgatatta 3181 ttgacacgcc cgggcgacgg atggtgatcc ccctggccag tgcacgtctg ctgtcagata 3241 aagtctcccg tgaactttac ccggtggtgc atatcgggga tgaaagctgg cgcatgatga 3301 ccaccgatat ggccagtgtg ccggtctccg ttatcgggga agaagtggct gatctcagcc 3361 accgcgaaaa tgacatcaaa aacgccatta acctgatgtt ctggggaata taaatgtcag 3421 gctcccttat acacagccag tctgcaggtc gaccatagtg actggatatg ttgtgtttta 3481 cagtattatg tagtctgttt tttatgcaaa atctaattta atatattgat atttatatca 3541 ttttacgttt ctcgttcagc tttcttgtac aaagtggtga taacctagag ctcgaatttc 3601 cccgatcgtt caaacatttg gcaataaagt ttcttaagat tgaatcctgt tgccggtctt 3661 gcgatgatta tcatataatt tctgttgaat tacgttaagc atgtaataat taacatgtaa 3721 tgcatgacgt tatttatgag atgggttttt atgattagag tcccgcaatt atacatttaa 3781 tacgcgatag aaaacaaaat atagcgcgca aactaggata aattatcgcg cgcggtgtca 3841 tctatgttac tagatcggga attggttccg gaaccaattc gtaatcatgg tcatagctgt 3901 ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa 3961 agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaggctga attaggcgcg 4021 cctatttctg aattcccgat ctagtaacat agatgacacc gcgcgcgata atttatccta 4081 gtttgcgcgc tatattttgt tttctatcgc gtattaaatg tataattgcg ggactctaat 4141 cataaaaacc catctcataa ataacgtcat gcattacatg ttaattatta catgcttaac 4201 gtaattcaac agaaattata tgataatcat cgcaagaccg gcaacaggat tcaatcttaa 4261 gaaactttat tgccaaatgt ttgaacgatc ggggatcatc cgggtctgtg gcgggaactc 4321 cacgaaaata tccgaacgca gcaagatatc gcggtgcatc tcggtcttgc ctgggcagtc 4381 gccgccgacg ccgttgatgt ggacgccggg cccgatcata ttgtcgctca ggatcgtggc 4441 gttgtgcttg tcggccgttg ctgtcgtaat gatatcggca ccttcgaccg cctgttccgc 4501 agagatcccg tgggcgaaga actccagcat gagatccccg cgctggagga tcatccagcc 4561 ggcgtcccgg aaaacgattc cgaagcccaa cctttcatag aaggcggcgg tggaatcgaa 4621 atctcgtgat ggcaggttgg gcgtcgcttg gtcggtcatt tcgaacccca gagtcccgct 4681 cagaagaact cgtcaagaag gcgatagaag gcgatgcgct gcgaatcggg agcggcgata 4741 ccgtaaagca cgaggaagcg gtcagcccat tcgccgccaa gctcttcagc aatatcacgg 4801 gtagccaacg ctatgtcctg atagcggtcc gccacaccca gccggccaca gtcgatgaat 4861 ccagaaaagc ggccattttc caccatgata ttcggcaagc aggcatcgcc atgggtcacg 4921 acgagatcat cgccgtcggg catgcgcgcc ttgagcctgg cgaacagttc ggctggcgcg 4981 agcccctgat gctcttcgtc cagatcatcc tgatcgacaa gaccggcttc catccgagta 5041 cgtgctcgct cgatgcgatg tttcgcttgg tggtcgaatg ggcaggtagc cggatcaagc 5101 gtatgcagcc gccgcattgc atcagccatg atggatactt tctcggcagg agcaaggtga 5161 gatgacagga gatcctgccc cggcacttcg cccaatagca gccagtccct tcccgcttca 5221 gtgacaacgt cgagcacagc tgcgcaagga acgcccgtcg tggccagcca cgatagccgc 5281 gctgcctcgt cctgcagttc attcagggca ccggacaggt cggtcttgac aaaaagaacc 5341 gggcgcccct gcgctgacag ccggaacacg gcggcatcag agcagccgat tgtctgttgt 5401 gcccagtcat agccgaatag cctctccacc caagcggccg gagaacctgc gtgcaatcca 5461 tcttgttcaa tcatgcgaaa cgatccagat ccggtgcaga ttatttggat tgagagtgaa 5521 tatgagactc taattggata ccgaggggaa tttatggaac gtcagtggag catttttgac 5581 aagaaatatt tgctagctga tagtgacctt aggcgacttt tgaacgcgca ataatggttt 5641 ctgacgtatg tgcttagctc attaaactcc agaaacccgc ggctgagtgg ctccttcaac 5701 gttgcggttc tgtcagttcc aaacgtaaaa cggcttgtcc cgcgtcatcg gcgggggtca 5761 taacgtgact cccttaattc tccgctcatg atgaattcag aaataaattc agcctaattc 5821 ggcgttaatt cagtacatta aaaacgtccg caatgtgtta ttaagttgtc taagcgtcaa 5881 tttgtttaca ccacaatata tcctgccacc agccagccaa cagctccccg accggcagct 5941 cggcacaaaa tcaccactcg atacaggcag cccatcagtc cgggacggcg tcagcgggag 6001 agccgttgta aggcggcaga ctttgctcat gttaccgatg ctattcggaa gaacggcaac 6061 taagctgccg ggtttgaaac acggatgatc tcgcggaggg tagcatgttg attgtaacga 6121 tgacagagcg ttgctgcctg tgatcaattc gggcacgaac ccagtggaca taagcctgtt 6181 cggttcgtaa gctgtaatgc aagtagcgta tgcgctcacg caactggtcc agaaccttga 6241 ccgaacgcag cggtggtaac ggcgcagtgg cggttttcat ggcttgttat gactgttttt 6301 ttggggtaca gtctatgcct cgggcatcca agcagcaagc gcgttacgcc gtgggtcgat 6361 gtttgatgtt atggagcagc aacgatgtta cgcagcaggg cagtcgccct aaaacaaagt 6421 taaacatcat gggggaagcg gtgatcgccg aagtatcgac tcaactatca gaggtagttg 6481 gcgtcatcga gcgccatctc gaaccgacgt tgctggccgt acatttgtac ggctccgcag 6541 tggatggcgg cctgaagcca cacagtgata ttgatttgct ggttacggtg accgtaaggc 6601 ttgatgaaac aacgcggcga gctttgatca acgacctttt ggaaacttcg gcttcccctg 6661 gagagagcga gattctccgc gctgtagaag tcaccattgt tgtgcacgac gacatcattc 6721 cgtggcgtta tccagctaag cgcgaactgc aatttggaga atggcagcgc aatgacattc 6781 ttgcaggtat cttcgagcca gccacgatcg acattgatct ggctatcttg ctgacaaaag 6841 caagagaaca tagcgttgcc ttggtaggtc cagcggcgga ggaactcttt gatccggttc 6901 ctgaacagga tctatttgag gcgctaaatg aaaccttaac gctatggaac tcgccgcccg 6961 actgggctgg cgatgagcga aatgtagtgc ttacgttgtc ccgcatttgg tacagcgcag 7021 taaccggcaa aatcgcgccg aaggatgtcg ctgccgactg ggcaatggag cgcctgccgg 7081 cccagtatca gcccgtcata cttgaagcta gacaggctta tcttggacaa gaagaagatc 7141 gcttggcctc gcgcgcagat cagttggaag aatttgtcca ctacgtgaaa ggcgagatca 7201 ccaaggtagt cggcaaataa tgtctagcta gaaattcgtt caagccgacg ccgcttcgcg 7261 gcgcggctta actcaagcgt tagatgcact aagcacataa ttgctcacag ccaaactatc 7321 aggtcaagtc tgcttttatt atttttaagc gtgcataata agccctacac aaattgggag 7381 atatatcatg catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc 7441 ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct 7501 tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa 7561 ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact gtccttctag 7621 tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc 7681 tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg 7741 actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca 7801 cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat 7861 gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg 7921 tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc 7981 ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc 8041 ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc 8101 cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg 8161 cctttgagtg agctgatacc gctcgccgca gccgaacgac cgagcgcagc gagtcagtga 8221 gcgaggaagc ggaagagcgc ctgatgcggt attttctcct tacgcatctg tgcggtattt 8281 cacaccgcat atggtgcact ctcagtacaa tctgctctga tgccgcatag ttaagccagt 8341 atacactccg ctatcgctac gtgactgggt catggctgcg ccccgacacc cgccaacacc 8401 cgctgacgcg ccctgacggg cttgtctgct cccggcatcc gcttacagac aagctgtgac 8461 cgtctccggg agctgcatgt gtcagaggtt ttcaccgtca tcaccgaaac gcgcgaggca 8521 gggtgccttg atgtgggcgc cggcggtcga gtggcgacgg cgcggcttgt ccgcgccctg 8581 gtagattgcc tggccgtagg ccagccattt ttgagcggcc agcggccgcg ataggccgac 8641 gcgaagcggc ggggcgtagg gagcgcagcg accgaagggt aggcgctttt tgcagctctt 8701 cggctgtgcg ctggccagac agttatgcac aggccaggcg ggttttaaga gttttaataa 8761 gttttaaaga gttttaggcg gaaaaatcgc cttttttctc ttttatatca gtcacttaca 8821 tgtgtgaccg gttcccaatg tacggctttg ggttcccaat gtacgggttc cggttcccaa 8881 tgtacggctt tgggttccca atgtacgtgc tatccacagg aaagagacct tttcgacctt 8941 tttcccctgc tagggcaatt tgccctagca tctgctccgt acattaggaa ccggcggatg 9001 cttcgccctc gatcaggttg cggtagcgca tgactaggat cgggccagcc tgccccgcct 9061 cctccttcaa atcgtactcc ggcaggtcat ttgacccgat cagcttgcgc acggtgaaac 9121 agaacttctt gaactctccg gcgctgccac tgcgttcgta gatcgtcttg aacaaccatc 9181 tggcttctgc cttgcctgcg gcgcggcgtg ccaggcggta gagaaaacgg ccgatgccgg 9241 gatcgatcaa aaagtaatcg gggtgaaccg tcagcacgtc cgggttcttg ccttctgtga 9301 tctcgcggta catccaatca gctagctcga tctcgatgta ctccggccgc ccggtttcgc 9361 tctttacgat cttgtagcgg ctaatcaagg cttcaccctc ggataccgtc accaggcggc 9421 cgttcttggc cttcttcgta cgctgcatgg caacgtgcgt ggtgtttaac cgaatgcagg 9481 tttctaccag gtcgtctttc tgctttccgc catcggctcg ccggcagaac ttgagtacgt 9541 ccgcaacgtg tggacggaac acgcggccgg gcttgtctcc cttcccttcc cggtatcggt 9601 tcatggattc ggttagatgg gaaaccgcca tcagtaccag gtcgtaatcc cacacactgg 9661 ccatgccggc cggccctgcg gaaacctcta cgtgcccgtc tggaagctcg tagcggatca 9721 cctcgccagc tcgtcggtca cgcttcgaca gacggaaaac ggccacgtcc atgatgctgc 9781 gactatcgcg ggtgcccacg tcatagagca tcggaacgaa aaaatctggt tgctcgtcgc 9841 ccttgggcgg cttcctaatc gacggcgcac cggctgccgg cggttgccgg gattctttgc 9901 ggattcgatc agcggccgct tgccacgatt caccggggcg tgcttctgcc tcgatgcgtt 9961 gccgctgggc ggcctgcgcg gccttcaact tctccaccag gtcatcaccc agcgccgcgc 10021 cgatttgtac cgggccggat ggtttgcgac cgctcacgcc gattcctcgg gcttgggggt 10081 tccagtgcca ttgcagggcc ggcagacaac ccagccgctt acgcctggcc aaccgcccgt 10141 tcctccacac atggggcatt ccacggcgtc ggtgcctggt tgttcttgat tttccatgcc 10201 gcctccttta gccgctaaaa ttcatctact catttattca tttgctcatt tactctggta 10261 gctgcgcgat gtattcagat agcagctcgg taatggtctt gccttggcgt accgcgtaca 10321 tcttcagctt ggtgtgatcc tccgccggca actgaaagtt gacccgcttc atggctggcg 10381 tgtctgccag gctggccaac gttgcagcct tgctgctgcg tgcgctcgga cggccggcac 10441 ttagcgtgtt tgtgcttttg ctcattttct ctttacctca ttaactcaaa tgagttttga 10501 tttaatttca gcggccagcg cctggacctc gcgggcagcg tcgccctcgg gttctgattc 10561 aagaacggtt gtgccggcgg cggcagtgcc tgggtagctc acgcgctgcg tgatacggga 10621 ctcaagaatg ggcagctcgt acccggccag cgcctcggca acctcaccgc cgatgcgcgt 10681 gcctttgatc gcccgcgaca cgacaaaggc cgcttgtagc cttccatccg tgacctcaat 10741 gcgctgctta accagctcca ccaggtcggc ggtggcccat atgtcgtaag ggcttggctg 10801 caccggaatc agcacgaagt cggctgcctt gatcgcggac acagccaagt ccgccgcctg 10861 gggcgctccg tcgatcacta cgaagtcgcg ccggccgatg gccttcacgt cgcggtcaat 10921 cgtcgggcgg tcgatgccga caacggttag cggttgatct tcccgcacgg ccgcccaatc 10981 gcgggcactg ccctggggat cggaatcgac taacagaaca tcggccccgg cgagttgcag 11041 ggcgcgggct agatgggttg cgatggtcgt cttgcctgac ccgcctttct ggttaagtac 11101 agcgataacc ttcatgcgtt ccccttgcgt atttgtttat ttactcatcg catcatatac 11161 gcagcgaccg catgacgcaa gctgttttac tcaaatacac atcacctttt tagacggcgg 11221 cgctcggttt cttcagcggc caagctggcc ggccaggccg ccagcttggc atcagacaaa 11281 ccggccagga tttcatgcag ccgcacggtt gagacgtgcg cgggcggctc gaacacgtac 11341 ccggccgcga tcatctccgc ctcgatctct tcggtaatga aaaacggttc gtcctggccg 11401 tcctggtgcg gtttcatgct tgttcctctt ggcgttcatt ctcggcggcc gccagggcgt 11461 cggcctcggt caatgcgtcc tcacggaagg caccgcgccg cctggcctcg gtgggcgtca 11521 cttcctcgct gcgctcaagt gcgcggtaca gggtcgagcg atgcacgcca agcagtgcag 11581 ccgcctcttt cacggtgcgg ccttcctggt cgatcagctc gcgggcgtgc gcgatctgtg 11641 ccggggtgag ggtagggcgg gggccaaact tcacgcctcg ggccttggcg gcctcgcgcc 11701 cgctccgggt gcggtcgatg attagggaac gctcgaactc ggcaatgccg gcgaacacgg 11761 tcaacaccat gcggccggcc ggcgtggtgg tgtcggccca cggctctgcc aggctacgca 11821 ggcccgcgcc ggcctcctgg atgcgctcgg caatgtccag taggtcgcgg gtgctgcggg 11881 ccaggcggtc tagcctggtc actgtcacaa cgtcgccagg gcgtaggtgg tcaagcatcc 11941 tggccagctc cgggcggtcg cgcctggtgc cggtgatctt ctcggaaaac agcttggtgc 12001 agccggccgc gtgcagttcg gcccgttggt tggtcaagtc ctggtcgtcg gtgctgacgc 12061 gggcatagcc cagcaggcca gcggcggcgc tcttgttcat ggcgtaatgt ctccggttct 12121 agtcgcaagt attctacttt atgcgactaa aacacgcgac aagaaaacgc caggaaaagg 12181 gcagggcggc agcctgtcgc gtaacttagg acttgtgcga catgtcgttt tcagaagacg 12241 gctgcactga acgtcagaag ccgactgcac tatagcagcg gaggggttgg atcaaagtac 12301 tttgatcccg aggggaaccc tgtggttggc atgcacatac aaatggacga acggataaac 12361 ct //
