质粒名称: | pHR_Gal4UAS_Pembrolizumab_heavychain_T2A_ Pembrolizumab_lightchain_PGK_mCherry |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 85434 |
存储实验室: | Wendell Lim |
载体骨架基本信息 |
|
载体名称: | pHR SIN |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | -- |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 慢病毒载体 |
筛选标记: | -- |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | Pembrolizumab |
物种来源: | -- |
插入大小: | -- |
基因突变: | -- |
GenBank编号 | -- |
启动子 | -- |
标签/融合蛋白: | -- |
克隆方法: | -- |
5' 克隆位点: | -- |
3' 克隆位点: | -- |
5' 测序引物 | -- |
3' 测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pHR_Gal4UAS_Pembrolizumab_heavychain_T2A_ Pembrolizumab_lightchain_PGK_mCherry was a gift from Wendell Lim (Addgene plasmid # 85434 ; http://n2t.net/addgene:85434 ; RRID:Addgene_85434) |
参考文献部分: | Engineering T Cells with Customized Therapeutic Response Programs Using Synthetic Notch Receptors. Roybal KT, Williams JZ, Morsut L, Rupp LJ, Kolinko I, Choe JH, Walker WJ, McNally KA, Lim WA. Cell. 2016 Oct 6;167(2):419-432.e16. doi: 10.1016/j.cell.2016.09.011. Epub 2016 Sep 29. 10.1016/j.cell.2016.09.011 PubMed 27693353 |
pHR_Gal4UAS_Pembrolizumab_heavychain_T2A_ Pembrolizumab_ligh
买家导航
载体基本信息

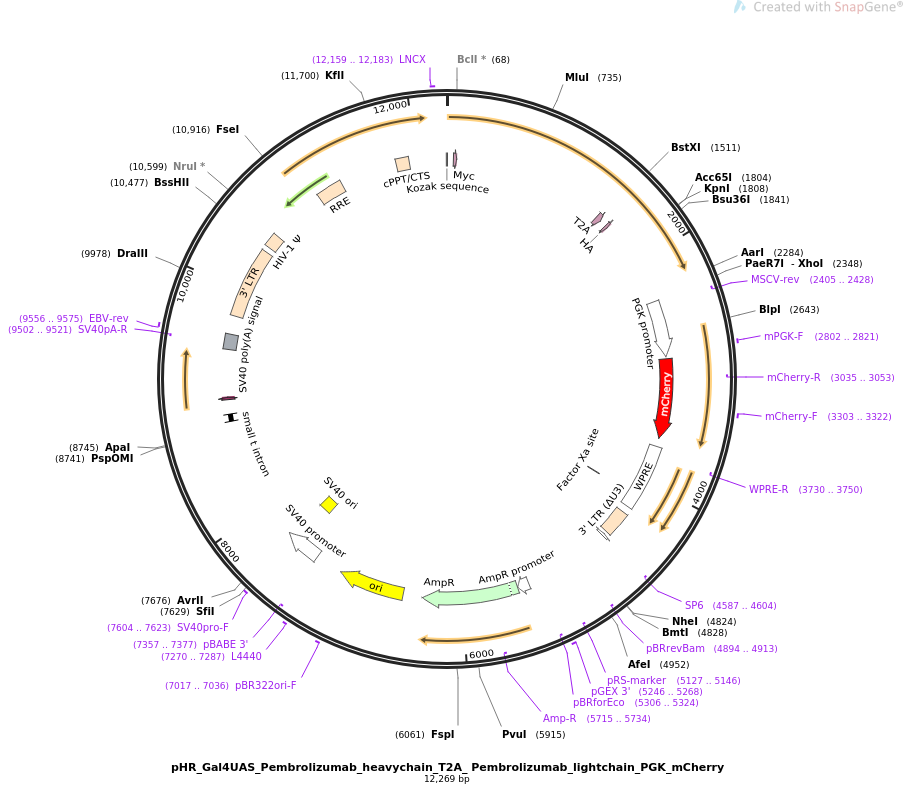

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pHR_Gal4UAS_Pembrolizumab_heavychain_T2A_ Pembrolizumab_lightc... 12269 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION Lentiviral vector for Gal4 inducible leucinezipper Pembrolizumab and constitutive mCherry expression. ACCESSION . VERSION . KEYWORDS pHR_Gal4UAS_Pembrolizumab_heavychain_T2A_ Pembrolizumab_lightc... SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 12269) AUTHORS Roybal KT, Williams JZ, Morsut L, Rupp LJ, Kolinko I, Choe JH, Walker WJ, McNally KA, Lim WA TITLE Engineering T Cells with Customized Therapeutic Response Programs Using Synthetic Notch Receptors. JOURNAL Cell. 2016 Oct 6;167(2):419-432.e16. doi: 10.1016/j.cell.2016.09.011. Epub 2016 Sep 29. PUBMED 27693353 REFERENCE 2 (bases 1 to 12269) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..12269 /organism="synthetic DNA construct" /mol_type="other DNA" CDS 58..87 /codon_start=1 /product="Myc (human c-Myc proto-oncogene) epitope tag" /label=Myc /translation="EQKLISEEDL" CDS 1453..1506 /codon_start=1 /product="2A peptide from Thosea asigna virus capsid protein" /label=T2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="EGRGSLLTCGDVEENPGP" CDS 1564..1590 /codon_start=1 /product="HA (human influenza hemagglutinin) epitope tag" /label=HA /translation="YPYDVPDYA" promoter 2370..2869 /label=PGK promoter /note="mouse phosphoglycerate kinase 1 promoter" primer_bind complement(2405..2428) /label=MSCV-rev /note="Murine stem cell virus, reverse primer" primer_bind 2802..2821 /label=mPGK-F /note="Mouse PGK promoter, forward primer" CDS 2890..3600 /codon_start=1 /product="monomeric derivative of DsRed fluorescent protein (Shaner et al., 2004)" /label=mCherry /note="mammalian codon-optimized" /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA EGRHSTGGMDELYK" primer_bind complement(3035..3053) /label=mCherry-R /note="mCherry, reverse primer" primer_bind 3303..3322 /label=mCherry-F /note="mCherry, forward primer" misc_feature 3677..4265 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(3730..3750) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(4148..4159) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" LTR 4328..4561 /label=3' LTR (Delta-U3) /note="self-inactivating 3' long terminal repeat (LTR) from HIV-1" promoter complement(4586..4604) /label=SP6 promoter /note="promoter for bacteriophage SP6 RNA polymerase" primer_bind complement(4587..4604) /label=SP6 /note="SP6 promoter, forward primer" primer_bind complement(4894..4913) /label=pBRrevBam /note="pBR322 vectors, tet region, downstream of BamHI, reverse primer" primer_bind complement(5127..5146) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" primer_bind 5246..5268 /label=pGEX 3' /note="pGEX vectors, reverse primer" primer_bind complement(5306..5324) /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" promoter 5392..5496 /gene="bla" /label=AmpR promoter CDS 5497..6357 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(5715..5734) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" rep_origin 6528..7116 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 7017..7036 /label=pBR322ori-F /note="pBR322 origin, forward primer" primer_bind 7270..7287 /label=L4440 /note="L4440 vector, forward primer" primer_bind complement(7357..7377) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 7362..7691 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 7542..7677 /label=SV40 ori /note="SV40 origin of replication" primer_bind 7604..7623 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" intron 8825..8890 /label=small t intron /note="SV40 (simian virus 40) small t antigen intron" CDS 9020..9040 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" polyA_signal 9465..9599 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(9502..9521) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 9556..9575 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" LTR 9767..10400 /label=3' LTR /note="3' long terminal repeat (LTR) from HIV-1" misc_feature 10447..10572 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 11069..11302 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." misc_feature 11816..11933 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1" primer_bind 12159..12183 /label=LNCX /note="Human CMV promoter, forward primer" regulatory 12264..4 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" ORIGIN 1 atggattgga catggagagt gttttgtctg cttgcggtga cacctggcgc tcatcctgag 61 cagaagctga tcagcgagga ggacctgcag gtacaactgg tccagtcagg cgtcgaggtt 121 aaaaagcccg gtgcctcagt gaaggtctcc tgcaaagcca gtggttacac cttcactaat 181 tactatatgt attgggtcag acaggcaccc ggccagggtc ttgaatggat gggaggcatc 241 aatcccagca atggagggac aaacttcaat gaaaagttca aaaatcgcgt gaccctcaca 301 accgactcct ccacaacaac agcatatatg gaactgaagt ctcttcagtt tgatgacacc 361 gccgtctact actgcgcccg acgagactac cggttcgata tgggattcga ctattggggt 421 caggggacga cagtgacagt ctcctccgca tctacaaagg gaccatcagt gtttcctctg 481 gccccgtgct cccgctctac cagcgaatct accgcagcat tgggctgttt ggtgaaggac 541 tacttccctg agccagtgac cgtgtcctgg aacagcgggg cactcactag cggagtgcac 601 acatttccag ccgtgcttca aagcagcggt ctctattccc tctccagcgt ggtgactgtg 661 ccatccagct ctctcggcac gaagacctat acctgcaacg tggaccacaa gccttcaaat 721 accaaggtgg ataaacgcgt cgaatccaaa tatggcccac cctgcccgcc atgtccagct 781 ccagagtttc tcggcgggcc tagcgtgttc ttgtttcccc ccaaacccaa ggacacgctc 841 atgatttcca gaacacctga agttacctgc gtcgtcgtag acgtcagtca ggaggacccg 901 gaagttcagt ttaactggta cgtggacggt gttgaggtgc ataatgccaa aaccaagcca 961 agagaagagc agttcaattc tacatatcga gtggtgtcag tcctgacagt tctccaccag 1021 gactggttga acggcaaaga gtacaaatgc aaggtctcca acaaaggatt gccgagcagt 1081 atagagaaaa caattagtaa agctaagggt cagcccagag agccccaggt gtacacgttg 1141 ccaccttcac aggaagagat gacgaagaac caagtgtctc tgacctgcct ggtgaagggc 1201 ttctacccat cagacattgc agtggagtgg gaaagcaatg ggcagcctga gaacaactac 1261 aaaactacac cccccgtcct ggacagcgat ggcagtttct tcctgtactc aaggttgact 1321 gtggacaaaa gcagatggca ggaaggcaat gtgttcagct gtagtgtgat gcacgaggcc 1381 ctccacaatc attacactca gaaatccctc tctctgagcc tgggaaagag gaagcgacgg 1441 agtgggtcag gcgaggggag aggctcactc ctcacgtgtg gagacgttga agaaaacccc 1501 ggaccaatgg cttggagtcc tctgttcctg accctgatta ctcactgcgc tggaagctgg 1561 gcttacccat acgatgttcc agattacgct gagattgttc tgacccaatc tcctgcaaca 1621 ctgagcctgt cccccggaga gagggcaacc ctctcctgcc gcgccagtaa gggagtgtct 1681 acgtctggat attcctatct ccattggtat cagcagaagc ctggccaggc gcccaggctt 1741 ctcatctacc ttgcttccta tctggagtcc ggggtgccag cccgcttttc tgggtccggc 1801 tctggtaccg acttcaccct gacaatttcc tcactggagc ctgaggattt cgctgtctac 1861 tattgtcaac attccagaga ccttcccctg acctttggag ggggtacaaa agtggagata 1921 aaacgaacag tggccgcccc atctgtattc atctttcctc catctgatga acagcttaag 1981 tccggcactg cttctgttgt ttgcctgctt aacaattttt acccgcggga agccaaggtg 2041 caatggaaag tggacaacgc cctgcagtct ggtaacagtc aggaaagcgt gactgaacag 2101 gacagcaaag actccacata ctccttgagt tccaccttga cgctcagtaa ggcagactac 2161 gagaagcaca aggtttatgc ctgtgaagtg actcaccagg gcctctctag cccagtgact 2221 aagtccttca accgcgggga gtgttgagat ccttgacttg cggccgcaac tcccacctgc 2281 aacatgcgtg actgactgag gccgcgactc tagagtcgac ctgcatctag gcgccggaat 2341 tagatctctc gaggttaacg aattctaccg ggtaggggag gcgcttttcc caaggcagtc 2401 tggagcatgc gctttagcag ccccgctggg cacttggcgc tacacaagtg gcctctggcc 2461 tcgcacacat tccacatcca ccggtaggcg ccaaccggct ccgttctttg gtggcccctt 2521 cgcgccacct tctactcctc ccctagtcag gaagttcccc cccgccccgc agctcgcgtc 2581 gtgcaggacg tgacaaatgg aagtagcacg tctcactagt ctcgtgcaga tggacagcac 2641 cgctgagcaa tggaagcggg taggcctttg gggcagcggc caatagcagc tttgctcctt 2701 cgctttctgg gctcagaggc tgggaagggg tgggtccggg ggcgggctca ggggcgggct 2761 caggggcggg gcgggcgccc gaaggtcctc cggaggcccg gcattctgca cgcttcaaaa 2821 gcgcacgtct gccgcgctgt tctcctcttc ctcatctccg ggcctttcga cctgcagccc 2881 aagcttacca tggtgagcaa gggcgaggag gataacatgg ccatcatcaa ggagttcatg 2941 cgcttcaagg tgcacatgga gggctccgtg aacggccacg agttcgagat cgagggcgag 3001 ggcgagggcc gcccctacga gggcacccag accgccaagc tgaaggtgac caagggtggc 3061 cccctgccct tcgcctggga catcctgtcc cctcagttca tgtacggctc caaggcctac 3121 gtgaagcacc ccgccgacat ccccgactac ttgaagctgt ccttccccga gggcttcaag 3181 tgggagcgcg tgatgaactt cgaggacggc ggcgtggtga ccgtgaccca ggactcctcc 3241 ctgcaggacg gcgagttcat ctacaaggtg aagctgcgcg gcaccaactt cccctccgac 3301 ggccccgtaa tgcagaagaa gaccatgggc tgggaggcct cctccgagcg gatgtacccc 3361 gaggacggcg ccctgaaggg cgagatcaag cagaggctga agctgaagga cggcggccac 3421 tacgacgctg aggtcaagac cacctacaag gccaagaagc ccgtgcagct gcccggcgcc 3481 tacaacgtca acatcaagtt ggacatcacc tcccacaacg aggactacac catcgtggaa 3541 cagtacgaac gcgccgaggg ccgccactcc accggcggca tggacgagct gtacaagtaa 3601 agcggccgcg actctagagt cgacctgcag gcatgcaagc ttgcaggcat gcaagcttga 3661 tatcaagctt atcgataatc aacctctgga ttacaaaatt tgtgaaagat tgactggtat 3721 tcttaactat gttgctcctt ttacgctatg tggatacgct gctttaatgc ctttgtatca 3781 tgctattgct tcccgtatgg ctttcatttt ctcctccttg tataaatcct ggttgctgtc 3841 tctttatgag gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca ctgtgtttgc 3901 tgacgcaacc cccactggtt ggggcattgc caccacctgt cagctccttt ccgggacttt 3961 cgctttcccc ctccctattg ccacggcgga actcatcgcc gcctgccttg cccgctgctg 4021 gacaggggct cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga aatcatcgtc 4081 ctttccttgg ctgctcgcct gtgttgccac ctggattctg cgcgggacgt ccttctgcta 4141 cgtcccttcg gccctcaatc cagcggacct tccttcccgc ggcctgctgc cggctctgcg 4201 gcctcttccg cgtcttcgcc ttcgccctca gacgagtcgg atctcccttt gggccgcctc 4261 cccgcatcga taccgtcgtc cacggcagct gtagatctta gccacttttt aaaagaaaag 4321 gggggactgg aagggctaat tcactcccaa cgaagacaag atctgctttt tgcttgtact 4381 gggtctctct ggttagacca gatctgagcc tgggagctct ctggctaact agggaaccca 4441 ctgcttaagc ctcaataaag cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg 4501 tgtgactctg gtaactagag atccctcaga cccttttagt cagtgtggaa aatctctagc 4561 agcatctaga attaattccg tgtattctat agtgtcacct aaatcgtatg tgtatgatac 4621 ataaggttat gtattaattg tagccgcgtt ctaacgacaa tatgtacaag cctaattgtg 4681 tagcatctgg cttactgaag cagaccctat catctctctc gtaaactgcc gtcagagtcg 4741 gtttggttgg acgaaccttc tgagtttctg gtaacgccgt cccgcacccg gaaatggtca 4801 gcgaaccaat cagcagggtc atcgctagcc agatcctcta cgccggacgc atcgtggccg 4861 gcatcaccgg cgccacaggt gcggttgctg gcgcctatat cgccgacatc accgatgggg 4921 aagatcgggc tcgccacttc gggctcatga gcgcttgttt cggcgtgggt atggtggcag 4981 gccccgtggc cgggggactg ttgggcgcca tctccttgca tgcaccattc cttgcggcgg 5041 cggtgctcaa cggcctcaac ctactactgg gctgcttcct aatgcaggag tcgcataagg 5101 gagagcgtcg aatggtgcac tctcagtaca atctgctctg atgccgcata gttaagccag 5161 ccccgacacc cgccaacacc cgctgacgcg ccctgacggg cttgtctgct cccggcatcc 5221 gcttacagac aagctgtgac cgtctccggg agctgcatgt gtcagaggtt ttcaccgtca 5281 tcaccgaaac gcgcgagacg aaagggcctc gtgatacgcc tatttttata ggttaatgtc 5341 atgataataa tggtttctta gacgtcaggt ggcacttttc ggggaaatgt gcgcggaacc 5401 cctatttgtt tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc 5461 tgataaatgc ttcaataata ttgaaaaagg aagagtatga gtattcaaca tttccgtgtc 5521 gcccttattc ccttttttgc ggcattttgc cttcctgttt ttgctcaccc agaaacgctg 5581 gtgaaagtaa aagatgctga agatcagttg ggtgcacgag tgggttacat cgaactggat 5641 ctcaacagcg gtaagatcct tgagagtttt cgccccgaag aacgttttcc aatgatgagc 5701 acttttaaag ttctgctatg tggcgcggta ttatcccgta ttgacgccgg gcaagagcaa 5761 ctcggtcgcc gcatacacta ttctcagaat gacttggttg agtactcacc agtcacagaa 5821 aagcatctta cggatggcat gacagtaaga gaattatgca gtgctgccat aaccatgagt 5881 gataacactg cggccaactt acttctgaca acgatcggag gaccgaagga gctaaccgct 5941 tttttgcaca acatggggga tcatgtaact cgccttgatc gttgggaacc ggagctgaat 6001 gaagccatac caaacgacga gcgtgacacc acgatgcctg tagcaatggc aacaacgttg 6061 cgcaaactat taactggcga actacttact ctagcttccc ggcaacaatt aatagactgg 6121 atggaggcgg ataaagttgc aggaccactt ctgcgctcgg cccttccggc tggctggttt 6181 attgctgata aatctggagc cggtgagcgt gggtctcgcg gtatcattgc agcactgggg 6241 ccagatggta agccctcccg tatcgtagtt atctacacga cggggagtca ggcaactatg 6301 gatgaacgaa atagacagat cgctgagata ggtgcctcac tgattaagca ttggtaactg 6361 tcagaccaag tttactcata tatactttag attgatttaa aacttcattt ttaatttaaa 6421 aggatctagg tgaagatcct ttttgataat ctcatgacca aaatccctta acgtgagttt 6481 tcgttccact gagcgtcaga ccccgtagaa aagatcaaag gatcttcttg agatcctttt 6541 tttctgcgcg taatctgctg cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt 6601 ttgccggatc aagagctacc aactcttttt ccgaaggtaa ctggcttcag cagagcgcag 6661 ataccaaata ctgttcttct agtgtagccg tagttaggcc accacttcaa gaactctgta 6721 gcaccgccta catacctcgc tctgctaatc ctgttaccag tggctgctgc cagtggcgat 6781 aagtcgtgtc ttaccgggtt ggactcaaga cgatagttac cggataaggc gcagcggtcg 6841 ggctgaacgg ggggttcgtg cacacagccc agcttggagc gaacgaccta caccgaactg 6901 agatacctac agcgtgagct atgagaaagc gccacgcttc ccgaagggag aaaggcggac 6961 aggtatccgg taagcggcag ggtcggaaca ggagagcgca cgagggagct tccaggggga 7021 aacgcctggt atctttatag tcctgtcggg tttcgccacc tctgacttga gcgtcgattt 7081 ttgtgatgct cgtcaggggg gcggagccta tggaaaaacg ccagcaacgc ggccttttta 7141 cggttcctgg ccttttgctg gccttttgct cacatgttct ttcctgcgtt atcccctgat 7201 tctgtggata accgtattac cgcctttgag tgagctgata ccgctcgccg cagccgaacg 7261 accgagcgca gcgagtcagt gagcgaggaa gcggaagagc gcccaatacg caaaccgcct 7321 ctccccgcgc gttggccgat tcattaatgc agctgtggaa tgtgtgtcag ttagggtgtg 7381 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag 7441 caaccaggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc 7501 tcaattagtc agcaaccata gtcccgcccc taactccgcc catcccgccc ctaactccgc 7561 ccagttccgc ccattctccg ccccatggct gactaatttt ttttatttat gcagaggccg 7621 aggccgcctc ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag 7681 gcttttgcaa aaagcttgga cacaagacag gcttgcgaga tatgtttgag aataccactt 7741 tatcccgcgt cagggagagg cagtgcgtaa aaagacgcgg actcatgtga aatactggtt 7801 tttagtgcgc cagatctcta taatctcgcg caacctattt tcccctcgaa cactttttaa 7861 gccgtagata aacaggctgg gacacttcac atgagcgaaa aatacatcgt cacctgggac 7921 atgttgcaga tccatgcacg taaactcgca agccgactga tgccttctga acaatggaaa 7981 ggcattattg ccgtaagccg tggcggtctg taccgggtgc gttactggcg cgtgaactgg 8041 gtattcgtca tgtcgatacc gtttgtattt ccagctacga tcacgacaac cagcgcgagc 8101 ttaaagtgct gaaacgcgca gaaggcgatg gcgaaggctt catcgttatt gatgacctgg 8161 tggataccgg tggtactgcg gttgcgattc gtgaaatgta tccaaaagcg cactttgtca 8221 ccatcttcgc aaaaccggct ggtcgtccgc tggttgatga ctatgttgtt gatatcccgc 8281 aagatacctg gattgaacag ccgtgggata tgggcgtcgt attcgtcccg ccaatctccg 8341 gtcgctaatc ttttcaacgc ctggcactgc cgggcgttgt tctttttaac ttcaggcggg 8401 ttacaatagt ttccagtaag tattctggag gctgcatcca tgacacaggc aaacctgagc 8461 gaaaccctgt tcaaaccccg ctttaaacat cctgaaacct cgacgctagt ccgccgcttt 8521 aatcacggcg cacaaccgcc tgtgcagtcg gcccttgatg gtaaaaccat ccctcactgg 8581 tatcgcatga ttaaccgtct gatgtggatc tggcgcggca ttgacccacg cgaaatcctc 8641 gacgtccagg cacgtattgt gatgagcgat gccgaacgta ccgacgatga tttatacgat 8701 acggtgattg gctaccgtgg cggcaactgg atttatgagt gggccccgga tctttgtgaa 8761 ggaaccttac ttctgtggtg tgacataatt ggacaaacta cctacagaga tttaaagctc 8821 taaggtaaat ataaaatttt taagtgtata atgtgttaaa ctactgattc taattgtttg 8881 tgtattttag attccaacct atggaactga tgaatgggag cagtggtgga atgcctttaa 8941 tgaggaaaac ctgttttgct cagaagaaat gccatctagt gatgatgagg ctactgctga 9001 ctctcaacat tctactcctc caaaaaagaa gagaaaggta gaagacccca aggactttcc 9061 ttcagaattg ctaagttttt tgagtcatgc tgtgtttagt aatagaactc ttgcttgctt 9121 tgctatttac accacaaagg aaaaagctgc actgctatac aagaaaatta tggaaaaata 9181 ttctgtaacc tttataagta ggcataacag ttataatcat aacatactgt tttttcttac 9241 tccacacagg catagagtgt ctgctattaa taactatgct caaaaattgt gtacctttag 9301 ctttttaatt tgtaaagggg ttaataagga atatttgatg tatagtgcct tgactagaga 9361 tcataatcag ccataccaca tttgtagagg ttttacttgc tttaaaaaac ctcccacacc 9421 tccccctgaa cctgaaacat aaaatgaatg caattgttgt tgttaacttg tttattgcag 9481 cttataatgg ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt 9541 cactgcattc tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctggatca 9601 actggataac tcaagctaac caaaatcatc ccaaacttcc caccccatac cctattacca 9661 ctgccaatta cctgtggttt catttactct aaacctgtga ttcctctgaa ttattttcat 9721 tttaaagaaa ttgtatttgt taaatatgta ctacaaactt agtagttgga agggctaatt 9781 cactcccaaa gaagacaaga tatccttgat ctgtggatct accacacaca aggctacttc 9841 cctgattagc agaactacac accagggcca ggggtcagat atccactgac ctttggatgg 9901 tgctacaagc tagtaccagt tgagccagat aaggtagaag aggccaataa aggagagaac 9961 accagcttgt tacaccctgt gagcctgcat gggatggatg acccggagag agaagtgtta 10021 gagtggaggt ttgacagccg cctagcattt catcacgtgg cccgagagct gcatccggag 10081 tacttcaaga actgctgata tcgagcttgc tacaagggac tttccgctgg ggactttcca 10141 gggaggcgtg gcctgggcgg gactggggag tggcgagccc tcagatcctg catataagca 10201 gctgcttttt gcctgtactg ggtctctctg gttagaccag atctgagcct gggagctctc 10261 tggctaacta gggaacccac tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt 10321 agtgtgtgcc cgtctgttgt gtgactctgg taactagaga tccctcagac ccttttagtc 10381 agtgtggaaa atctctagca gtggcgcccg aacagggact tgaaagcgaa agggaaacca 10441 gaggagctct ctcgacgcag gactcggctt gctgaagcgc gcacggcaag aggcgagggg 10501 cggcgactgg tgagtacgcc aaaaattttg actagcggag gctagaagga gagagatggg 10561 tgcgagagcg tcagtattaa gcgggggaga attagatcgc gatgggaaaa aattcggtta 10621 aggccagggg gaaagaaaaa atataaatta aaacatatag tatgggcaag cagggagcta 10681 gaacgattcg cagttaatcc tggcctgtta gaaacatcag aaggctgtag acaaatactg 10741 ggacagctac aaccatccct tcagacagga tcagaagaac ttagatcatt atataataca 10801 gtagcaaccc tctattgtgt gcatcaaagg atagagataa aagacaccaa ggaagcttta 10861 gacaagatag aggaagagca aaacaaaagt aagaccaccg cacagcaagc ggccggccgc 10921 tgatcttcag acctggagga ggagatatga gggacaattg gagaagtgaa ttatataaat 10981 ataaagtagt aaaaattgaa ccattaggag tagcacccac caaggcaaag agaagagtgg 11041 tgcagagaga aaaaagagca gtgggaatag gagctttgtt ccttgggttc ttgggagcag 11101 caggaagcac tatgggcgca gcgtcaatga cgctgacggt acaggccaga caattattgt 11161 ctggtatagt gcagcagcag aacaatttgc tgagggctat tgaggcgcaa cagcatctgt 11221 tgcaactcac agtctggggc atcaagcagc tccaggcaag aatcctggct gtggaaagat 11281 acctaaagga tcaacagctc ctggggattt ggggttgctc tggaaaactc atttgcacca 11341 ctgctgtgcc ttggaatgct agttggagta ataaatctct ggaacagatt tggaatcaca 11401 cgacctggat ggagtgggac agagaaatta acaattacac aagcttaata cactccttaa 11461 ttgaagaatc gcaaaaccag caagaaaaga atgaacaaga attattggaa ttagataaat 11521 gggcaagttt gtggaattgg tttaacataa caaattggct gtggtatata aaattattca 11581 taatgatagt aggaggcttg gtaggtttaa gaatagtttt tgctgtactt tctatagtga 11641 atagagttag gcagggatat tcaccattat cgtttcagac ccacctccca accccgaggg 11701 gacccgacag gcccgaagga atagaagaag aaggtggaga gagagacaga gacagatcca 11761 ttcgattagt gaacggatct cgacggtatc gccaaatggc agtattcatc cacaatttta 11821 aaagaaaagg ggggattggg gggtacagtg caggggaaag aatagtagac ataatagcaa 11881 cagacataca aactaaagaa ttacaaaaac aaattacaaa aattcaaaat tttcgggttt 11941 attacaggga cagcagagat ccagtttgga tcgataagct tgatatcgaa ttcggagcac 12001 tgtcctccga acgtcggagc actgtcctcc gaacgtcgga gcactgtcct ccgaacgtcg 12061 gagcactgtc ctccgaacgg agcatgtcct ccgaacgtcg gagcactgtc ctccgaacga 12121 ctagttaggc gtgtacggtg ggaggcctat ataagcagag ctcgtttagt gaaccgtcag 12181 atcgcctgga gacgccatcc acgctgtttt gacctccata gaagacaccg ggaccgatcc 12241 agcctctcga cattcgttgg atcgccgcc //
