pJH373

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pJH373
出品公司: 爱迪基因
目录编号: 86840
存储实验室: Joseph Bondy-Denomy

载体骨架基本信息
载体名称: pcDNA3.1(+)
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: acrIIA2,LMOG_03147
物种来源: Listeria monocytogenes
插入大小: --
基因突变: --
GenBank编号 --
启动子 CMV
标签/融合蛋白: --
克隆方法: Gibson克隆
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 CMV-F
3' 测序引物 BGH-Rev

文献引用方法
材料和方法部分: pJH373 was a gift from Joseph Bondy-Denomy (Addgene plasmid # 86840 ; http://n2t.net/addgene:86840 ; RRID:Addgene_86840)
参考文献部分: Inhibition of CRISPR-Cas9 with Bacteriophage Proteins. Rauch BJ, Silvis MR, Hultquist JF, Waters CS, McGregor MJ, Krogan NJ, Bondy-Denomy J. Cell. 2016 Dec 22. pii: S0092-8674(16)31683-X. doi: 10.1016/j.cell.2016.12.009. 10.1016/j.cell.2016.12.009 PubMed 28041849

载体图谱质粒图谱和多克隆位点信息

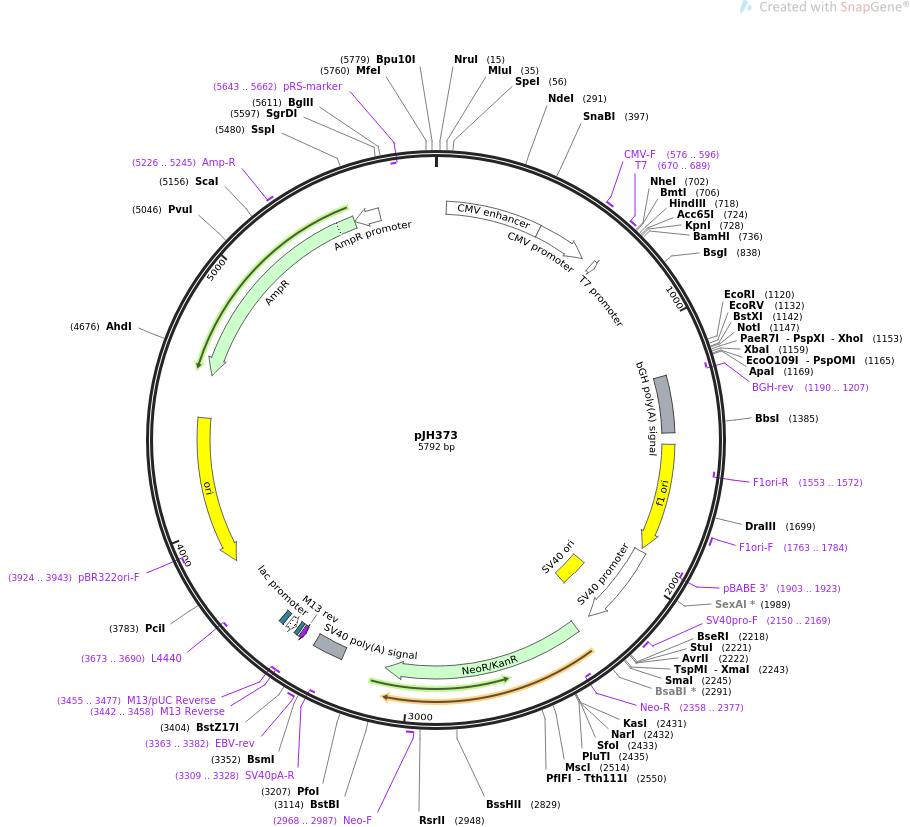

pJH373质粒图谱

载体简介

载体序列

LOCUS       pJH373                5792 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  mamalian expression of AcrIIA2.
ACCESSION   .
VERSION     .
KEYWORDS    pJH373
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5792)
  AUTHORS   Rauch BJ, Silvis MR, Hultquist JF, Waters CS, McGregor MJ, Krogan
            NJ, Bondy-Denomy J
  TITLE     Inhibition of CRISPR-Cas9 with Bacteriophage Proteins.
  JOURNAL   Cell. 2016 Dec 22. pii: S0092-8674(16)31683-X. doi:
            10.1016/j.cell.2016.12.009.
  PUBMED    28041849
REFERENCE   2  (bases 1 to 5792)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5792
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        42..421
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        422..625
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     576..596
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     670..689
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        670..688
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1190..1207)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1196..1420
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1466..1894
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1553..1572)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     1763..1784
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(1903..1923)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        1908..2237
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2088..2223
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2150..2169
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2304..3098
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2358..2377)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     2968..2987
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3272..3393
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3309..3328)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3363..3382
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3442..3458)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3442..3458)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3455..3477)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3466..3482
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3490..3520)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3535..3556
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(3673..3690)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3844..4432)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3924..3943)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4603..5463)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5226..5245
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5464..5568)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(5643..5662)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 ttttgcgctg cttcgcgatg tacgggccag atatacgcgt tgacattgat tattgactag
       61 ttattaatag taatcaatta cggggtcatt agttcatagc ccatatatgg agttccgcgt
      121 tacataactt acggtaaatg gcccgcctgg ctgaccgccc aacgaccccc gcccattgac
      181 gtcaataatg acgtatgttc ccatagtaac gccaataggg actttccatt gacgtcaatg
      241 ggtggagtat ttacggtaaa ctgcccactt ggcagtacat caagtgtatc atatgccaag
      301 tacgccccct attgacgtca atgacggtaa atggcccgcc tggcattatg cccagtacat
      361 gaccttatgg gactttccta cttggcagta catctacgta ttagtcatcg ctattaccat
      421 ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag cggtttgact cacggggatt
      481 tccaagtctc caccccattg acgtcaatgg gagtttgttt tggcaccaaa atcaacggga
      541 ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa atgggcggta ggcgtgtacg
      601 gtgggaggtc tatataagca gagctctctg gctaactaga gaacccactg cttactggct
      661 tatcgaaatt aatacgactc actataggga gacccaagct ggctagcgtt taaacttaag
      721 cttggtaccg agctcggatc cgccaccatg acgctgaccc gcgctcagaa aaaatacgcc
      781 gaggcgatgc atgagtttat caatatggtt gatgactttg aagaatcaac gcctgacttt
      841 gcaaaagagg ttctgcacga ctccgactat gtggtcatta caaaaaacga gaaatatgcc
      901 gtggcactct gtagtctctc cacagatgaa tgtgagtacg atactaactt gtatttggat
      961 gaaaagctcg tcgattacag cacagttgat gtcaacggag tgacatatta catcaatata
     1021 gtggaaacaa atgacataga tgatcttgaa attgcgaccg acgaggacga gatgaagtct
     1081 ggaaaccaag agattattct taagtccgaa ctgaagtaag aattctgcag atatccagca
     1141 cagtggcggc cgctcgagtc tagagggccc gtttaaaccc gctgatcagc ctcgactgtg
     1201 ccttctagtt gccagccatc tgttgtttgc ccctcccccg tgccttcctt gaccctggaa
     1261 ggtgccactc ccactgtcct ttcctaataa aatgaggaaa ttgcatcgca ttgtctgagt
     1321 aggtgtcatt ctattctggg gggtggggtg gggcaggaca gcaaggggga ggattgggaa
     1381 gacaatagca ggcatgctgg ggatgcggtg ggctctatgg cttctgaggc ggaaagaacc
     1441 agctggggct ctagggggta tccccacgcg ccctgtagcg gcgcattaag cgcggcgggt
     1501 gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg ccctagcgcc cgctcctttc
     1561 gctttcttcc cttcctttct cgccacgttc gccggctttc cccgtcaagc tctaaatcgg
     1621 gggctccctt tagggttccg atttagtgct ttacggcacc tcgaccccaa aaaacttgat
     1681 tagggtgatg gttcacgtag tgggccatcg ccctgataga cggtttttcg ccctttgacg
     1741 ttggagtcca cgttctttaa tagtggactc ttgttccaaa ctggaacaac actcaaccct
     1801 atctcggtct attcttttga tttataaggg attttgccga tttcggccta ttggttaaaa
     1861 aatgagctga tttaacaaaa atttaacgcg aattaattct gtggaatgtg tgtcagttag
     1921 ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt
     1981 agtcagcaac caggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca
     2041 tgcatctcaa ttagtcagca accatagtcc cgcccctaac tccgcccatc ccgcccctaa
     2101 ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt atttatgcag
     2161 aggccgaggc cgcctctgcc tctgagctat tccagaagta gtgaggaggc ttttttggag
     2221 gcctaggctt ttgcaaaaag ctcccgggag cttgtatatc cattttcgga tctgatcaag
     2281 agacaggatg aggatcgttt cgcatgattg aacaagatgg attgcacgca ggttctccgg
     2341 ccgcttgggt ggagaggcta ttcggctatg actgggcaca acagacaatc ggctgctctg
     2401 atgccgccgt gttccggctg tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc
     2461 tgtccggtgc cctgaatgaa ctgcaggacg aggcagcgcg gctatcgtgg ctggccacga
     2521 cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga agcgggaagg gactggctgc
     2581 tattgggcga agtgccgggg caggatctcc tgtcatctca ccttgctcct gccgagaaag
     2641 tatccatcat ggctgatgca atgcggcggc tgcatacgct tgatccggct acctgcccat
     2701 tcgaccacca agcgaaacat cgcatcgagc gagcacgtac tcggatggaa gccggtcttg
     2761 tcgatcagga tgatctggac gaagagcatc aggggctcgc gccagccgaa ctgttcgcca
     2821 ggctcaaggc gcgcatgccc gacggcgagg atctcgtcgt gacccatggc gatgcctgct
     2881 tgccgaatat catggtggaa aatggccgct tttctggatt catcgactgt ggccggctgg
     2941 gtgtggcgga ccgctatcag gacatagcgt tggctacccg tgatattgct gaagagcttg
     3001 gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat cgccgctccc gattcgcagc
     3061 gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc gggactctgg ggttcgaaat
     3121 gaccgaccaa gcgacgccca acctgccatc acgagatttc gattccaccg ccgccttcta
     3181 tgaaaggttg ggcttcggaa tcgttttccg ggacgccggc tggatgatcc tccagcgcgg
     3241 ggatctcatg ctggagttct tcgcccaccc caacttgttt attgcagctt ataatggtta
     3301 caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac tgcattctag
     3361 ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc tgtataccgt cgacctctag
     3421 ctagagcttg gcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt atccgctcac
     3481 aattccacac aacatacgag ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt
     3541 gagctaactc acattaattg cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc
     3601 gtgccagctg cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg
     3661 ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt
     3721 atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa
     3781 gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc
     3841 gtttttccat aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag
     3901 gtggcgaaac ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt
     3961 gcgctctcct gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg
     4021 aagcgtggcg ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg
     4081 ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg
     4141 taactatcgt cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac
     4201 tggtaacagg attagcagag cgaggtatgt aggcagtgct acagagttct tgaagtggtg
     4261 gcctaactac ggctacacta gaagaacagt atttggtatc tgcgctctgc tgaagccagt
     4321 taccttcgga aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg
     4381 tggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc
     4441 tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt
     4501 ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt
     4561 taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag
     4621 tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct gactccccgt
     4681 cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg caatgatacc
     4741 gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc
     4801 cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg
     4861 ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac
     4921 aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg
     4981 atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc
     5041 tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact
     5101 gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc
     5161 aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat
     5221 acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc
     5281 ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac
     5341 tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa
     5401 aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact
     5461 catactcttc ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg
     5521 atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg
     5581 aaaagtgcca cctgacgtcg acggatcggg agatctcccg atcccctatg gtgcactctc
     5641 agtacaatct gctctgatgc cgcatagtta agccagtatc tgctccctgc ttgtgtgttg
     5701 gaggtcgctg agtagtgcgc gagcaaaatt taagctacaa caaggcaagg cttgaccgac
     5761 aattgcatga agaatctgct tagggttagg cg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
