pJM111

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pJM111
出品公司: Addgene
目录编号: 134162
存储实验室: Iain Cheeseman

载体骨架基本信息
载体名称: pJAG98 (pBABEblast)
载体出品公司: --
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳动物表达,逆转录病毒
筛选标记: --
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: NEB Stable
拷贝数: 高拷贝

插入基因信息
插入基因名称: Nde1_SSSC 295-C
物种来源: H. sapiens (human)
插入大小: --
基因突变: SSSC
GenBank编号 --
启动子: --
标签/融合蛋白: GFP(插入件上的N端子)
克隆方法: 限制性内切酶
5’克隆位点: --
3’克隆位点: --
5’测序引物 --
3’测序引物 --

文献引用方法
材料和方法部分: pJM111 was a gift from Iain Cheeseman (Addgene plasmid # 134162 ; http://n2t.net/addgene:134162 ; RRID:Addgene_134162)
参考文献部分: Nde1 promotes diverse dynein functions through differential interactions and exhibits an isoform-specific proteasome association. Monda JK, Cheeseman IM. Mol Biol Cell. 2018 Sep 15;29(19):2336-2345. doi: 10.1091/mbc.E18-07-0418. Epub 2018 Jul 19. 10.1091/mbc.E18-07-0418 PubMed 30024347

载体图谱质粒图谱和多克隆位点信息

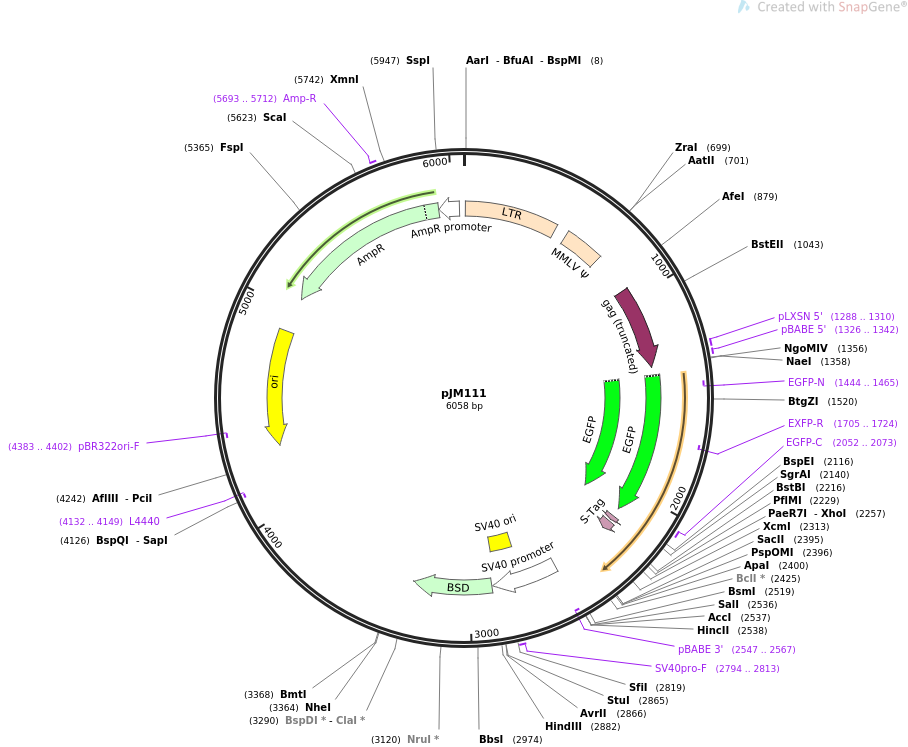

pJM111载体图谱

载体简介

载体序列

LOCUS       pJM111                6058 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Retroviral plasmid expressing GFP - Nde1.
ACCESSION   .
VERSION     .
KEYWORDS    pJM111
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6058)
  AUTHORS   Monda JK, Cheeseman IM
  TITLE     Nde1 promotes diverse dynein functions through differential
            interactions and exhibits an isoform-specific proteasome
            association.
  JOURNAL   Mol Biol Cell. 2018 Sep 15;29(19):2336-2345. doi:
            10.1091/mbc.E18-07-0418. Epub 2018 Jul 19.
  PUBMED    30024347
REFERENCE   2  (bases 1 to 6058)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6058
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             8..477
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     misc_feature    542..741
                     /label=MMLV Psi
                     /note="packaging signal of Moloney murine leukemia virus
                     (MMLV)"
     CDS             942..1358
                     /label=gag (truncated)
                     /note="truncated Moloney murine leukemia virus (MMLV) gag
                     gene lacking the start codon"
     primer_bind     1288..1310
                     /label=pLXSN 5'
                     /note="Murine stem cell virus, forward primer. Also called
                     MSCV"
     primer_bind     1326..1342
                     /label=pBABE 5'
                     /note="Psi packaging signal, forward primer for pBABE
                     vectors"
     regulatory      1393..1402
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1399..2115
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     CDS             1399..2115
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(1444..1465)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(1705..1724)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     2052..2073
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     CDS             2161..2181
                     /codon_start=1
                     /product="tobacco etch virus (TEV) protease recognition and
                     cleavage site"
                     /label=TEV site
                     /translation="ENLYFQG"
     CDS             2194..2238
                     /codon_start=1
                     /product="affinity and epitope tag derived from pancreatic
                     ribonuclease A"
                     /label=S-Tag
                     /translation="KETAAAKFERQHMDS"
     primer_bind     complement(2547..2567)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2552..2881
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2732..2867
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2794..2813
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2889..3287
                     /codon_start=1
                     /gene="Aspergillus terreus BSD"
                     /product="blasticidin S deaminase"
                     /label=BSD
                     /note="confers resistance to blasticidin"
                     /translation="MAKPLSQEESTLIERATATINSIPISEDYSVASAALSSDGRIFTG
                     VNVYHFTGGPCAELVVLGTAAAAAAGNLTCIVAIGNENRGILSPCGRCRQVLLDLHPGI
                     KAIVKDSDGQPTAVGIRELLPSGYVWEG"
     primer_bind     complement(4132..4149)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4303..4891)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4383..4402)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5070..5930)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5693..5712
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5931..6035)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ctgcagcctg aatatgggcc aaacaggata tctgtggtaa gcagttcctg ccccggctca
       61 gggccaagaa cagatggaac agctgaatat gggccaaaca ggatatctgt ggtaagcagt
      121 tcctgccccg gctcagggcc aagaacagat ggtccccaga tgcggtccag ccctcagcag
      181 tttctagaga accatcagat gtttccaggg tgccccaagg acctgaaatg accctgtgcc
      241 ttatttgaac taaccaatca gttcgcttct cgcttctgtt cgcgcgcttc tgctccccga
      301 gctcaataaa agagcccaca acccctcact cggggcgcca gtcctccgat tgactgagtc
      361 gcccgggtac ccgtgtatcc aataaaccct cttgcagttg catccgactt gtggtctcgc
      421 tgttccttgg gagggtctcc tctgagtgat tgactacccg tcagcggggg tctttcattt
      481 gggggctcgt ccgggatcgg gagacccctg cccagggacc accgacccac caccgggagg
      541 caagctggcc agcaacttat ctgtgtctgt ccgattgtct agtgtctatg actgatttta
      601 tgcgcctgcg tcggtactag ttagctaact agctctgtat ctggcggacc cgtggtggaa
      661 ctgacgagtt ctgaacaccc ggccgcaacc ctgggagacg tcccagggac tttgggggcc
      721 gtttttgtgg cccgacctga ggaagggagt cgatgtggaa tccgaccccg tcaggatatg
      781 tggttctggt aggagacgag aacctaaaac agttcccgcc tccgtctgaa tttttgcttt
      841 cggtttggaa ccgaagccgc gcgtcttgtc tgctgcagcg ctgcagcatc gttctgtgtt
      901 gtctctgtct gactgtgttt ctgtatttgt ctgaaaatta gggccagact gttaccactc
      961 ccttaagttt gaccttaggt cactggaaag atgtcgagcg gatcgctcac aaccagtcgg
     1021 tagatgtcaa gaagagacgt tgggttacct tctgctctgc agaatggcca acctttaacg
     1081 tcggatggcc gcgagacggc acctttaacc gagacctcat cacccaggtt aagatcaagg
     1141 tcttttcacc tggcccgcat ggacacccag accaggtccc ctacatcgtg acctgggaag
     1201 ccttggcttt tgacccccct ccctgggtca agccctttgt acaccctaag cctccgcctc
     1261 ctcttcctcc atccgccccg tctctccccc ttgaacctcc tcgttcgacc ccgcctcgat
     1321 cctcccttta tccagccctc actccttctc taggcgccgg ccggatccca gtgtggtggt
     1381 acgctaccgg tcgccaccat ggtgagcaag ggcgaggagc tgttcaccgg ggtggtgccc
     1441 atcctggtcg agctggacgg cgacgtaaac ggccacaagt tcagcgtgtc cggcgagggc
     1501 gagggcgatg ccacctacgg caagctgacc ctgaagttca tctgcaccac cggcaagctg
     1561 cccgtgccct ggcccaccct cgtgaccacc ctgacctacg gcgtgcagtg cttcagccgc
     1621 taccccgacc acatgaagca gcacgacttc ttcaagtccg ccatgcccga aggctacgtc
     1681 caggagcgca ccatcttctt caaggacgac ggcaactaca agacccgcgc cgaggtgaag
     1741 ttcgagggcg acaccctggt gaaccgcatc gagctgaagg gcatcgactt caaggaggac
     1801 ggcaacatcc tggggcacaa gctggagtac aactacaaca gccacaacgt ctatatcatg
     1861 gccgacaagc agaagaacgg catcaaggtg aacttcaaga tccgccacaa catcgaggac
     1921 ggcagcgtgc agctcgccga ccactaccag cagaacaccc ccatcggcga cggccccgtg
     1981 ctgctgcccg acaaccacta cctgagcacc cagtccgccc tgagcaaaga ccccaacgag
     2041 aagcgcgatc acatggtcct gctggagttc gtgaccgccg ccgggatcac tctcggcatg
     2101 gacgagctgt acaagtccgg aggggatcgg tggagctcca ccggtggcgg ccgctctaga
     2161 gagaatcttt attttcaggg cgccgccaaa ttcaaagaaa ccgctgctgc taaattcgaa
     2221 cgccagcaca tggacagcgg aggtggaggt actagtctcg agatgagcaa gaacagagat
     2281 ggcggggaga gacggccaag cagcaccagc gtgcctttgg gtgataaggg gttggacacg
     2341 agttgccgct ggttgtccaa atcaacaacc aggtcgtcca gctcgtgctg accgcgggcc
     2401 cgggatccac cggatctaga taactgatca taatcagcca taccacattt gtagaggttt
     2461 tacttgcttt aaaaaacctc ccacacctcc ccctgaacct gaaacataaa atgaatgcaa
     2521 ttcgccagca cagtggtcga ccctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc
     2581 aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccaggtg
     2641 tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc
     2701 agcaaccata gtcccgcccc taactccgcc catcccgccc ctaactccgc ccagttccgc
     2761 ccattctccg ccccatggct gactaatttt ttttatttat gcagaggccg aggccgcctc
     2821 ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag gcttttgcaa
     2881 aaagcttcat ggccaagcct ttgtctcaag aagaatccac cctcattgaa agagcaacgg
     2941 ctacaatcaa cagcatcccc atctctgaag actacagcgt cgccagcgca gctctctcta
     3001 gcgacggccg catcttcact ggtgtcaatg tatatcattt tactggggga ccttgtgcag
     3061 aactcgtggt gctgggcact gctgctgctg cggcagctgg caacctgact tgtatcgtcg
     3121 cgatcggaaa tgagaacagg ggcatcttga gcccctgcgg acggtgccga caggtgcttc
     3181 tcgatctgca tcctgggatc aaagccatag tgaaggacag tgatggacag ccgacggcag
     3241 ttgggattcg tgaattgctg ccctctggtt atgtgtggga gggctaagat cgataaaata
     3301 aaagatttta tttagtctcc agaaaaaggg gggaatgaaa gaccccacct gtaggtttgg
     3361 caagctagct taagtaacgc cattttgcaa ggcatggaaa aatacataac tgagaataga
     3421 gaagttcaga tcaaggtcag gaacagatgg aacagctgaa tatgggccaa acaggatatc
     3481 tgtggtaagc agttcctgcc ccggctcagg gccaagaaca gatggaacag ctgaatatgg
     3541 gccaaacagg atatctgtgg taagcagttc ctgccccggc tcagggccaa gaacagatgg
     3601 tccccagatg cggtccagcc ctcagcagtt tctagagaac catcagatgt ttccagggtg
     3661 ccccaaggac ctgaaatgac cctgtgcctt atttgaacta accaatcagt tcgcttctcg
     3721 cttctgttcg cgcgcttctg ctccccgagc tcaataaaag agcccacaac ccctcactcg
     3781 gggcgccagt cctccgattg actgagtcgc ccgggtaccc gtgtatccaa taaaccctct
     3841 tgcagttgca tccgacttgt ggtctcgctg ttccttggga gggtctcctc tgagtgattg
     3901 wmtmcmmkwm ascskskkkc wkttgcatcc gacttgtggt ctcgctgttc cttgggaggg
     3961 tctcctctga gtgattgact acccgtcagc gggggtcttt cacatgcagc atgtatcaaa
     4021 attaatttgg ttttttttct taagtattta cattaaatgg ccatagttgc attaatgaat
     4081 cggccaacgc gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac
     4141 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
     4201 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
     4261 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
     4321 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     4381 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     4441 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
     4501 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     4561 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     4621 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     4681 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     4741 aagaacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     4801 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
     4861 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
     4921 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
     4981 gatcttcacc tagatccttt tgcggccgca aatcaatcta aagtatatat gwswawmyww
     5041 rgtmtrwmwg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     5101 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     5161 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     5221 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     5281 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     5341 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     5401 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     5461 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     5521 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     5581 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     5641 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     5701 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     5761 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     5821 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     5881 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     5941 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     6001 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
